Epson EH-TW6600W

• Amazing Colour Brightness 2,500 Lumens colour brightness and 2,500 Lumens white brightness.
• A True Cinematic Experience 2D and 3D, Full HD 1080p technology, and a contrast ratio up to 70,000:1.
• Lens Shift Lens shift technology enables outstanding installation flexibility with an incredible range of up to 60% on the vertical axis and up to 24% on the horizontal axis.
• Wireless HDMI Play high definition content wirelessly without image deterioration, achieving a neat and beautiful home theatre without messy cables.
• Mobile High-Definition Link (MHL) Simply connect your MHL compatible smart device to with an MHL cable to enjoy content from your smartphone or tablet, including movies, games and more.
• Wide Ranging Connectivity Connect to virtually any device, making your entertainment more accessible .
• 2D-to-3D Conversion Easily transform 2D images to spectacular 3D for unlimited 3D content.
• Picture in Picture Display content from two inputs simultaneously, on a single screen
• Easy Setup Image adjustment tools included.
• Captivating Sound Two built-in 10 W stereo speakers for lifelike sound.
• Exciting 3D Made Easy Two pairs of RF 3D glasses included.
• Auto Colour Optimizer By sending ambient light, the colour mode is selected automatically, allowing you to always enjoy the best settings.

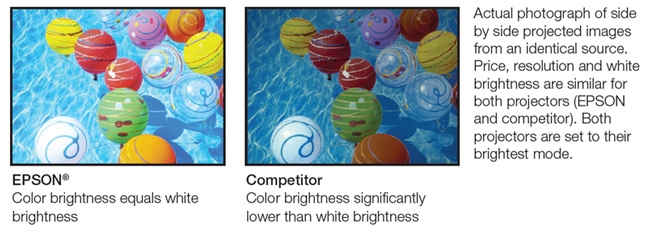

3x Brighter Colours with Epson



Brilliant image quality requires high colour brightness (colour light output), and Epson 3LCD projectors have 3x Brighter Colours than leading competitive projectors.

One brightness measurement (lumens) is not enough. A projectors specification needs to show both high colour brightness and high white brightness. If colour brightness is lower than white brightness, images may be dark, dull and lose detail. If not be sure to ask for a projectors colour brightness specification.







2D-to-3D Conversion



Transform any 2D movie, from the latest science-fiction adventure to your favourite classic, to spectacular 3D. Or, watch the big game in exciting 3D. The TW6600 series makes it easier than ever with convenient 2D-to-3D conversion. With just the touch of a button, you can watch your favourite shows and movies in eye-popping 3D. There are no special discs required. And, the possibilities are endless.





Two Rechargeable RF 3D Glasses Included



Enjoy 3D adventures from any seat in the house. Line of sight is not required with the included RF 3D glasses. Rechargeable for up to 40 hours of battery life, these innovative glasses have a 3-minute quick-charge feature for up to 3 hours of battery life.



High Resolution 1080P



With a full HD 1920x1080 panel, you can fully enjoy your favourite high definition entertainment on the big screen.

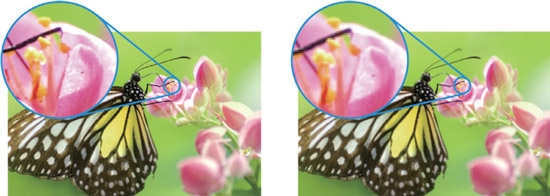

Super Resolution & Detail Enhancement



Makes DVDs and standard definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution. It also sharpens blurry images that have been enlarged by a general upscaling process.

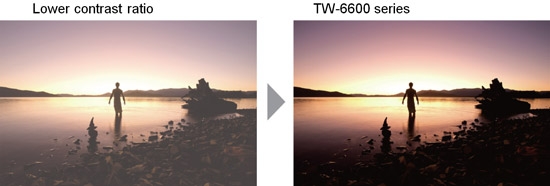

70,000:1 High Contrast



Enjoy bright, vibrant pictures and excellent shadow detail, so you can view the true brilliance of full HD images.

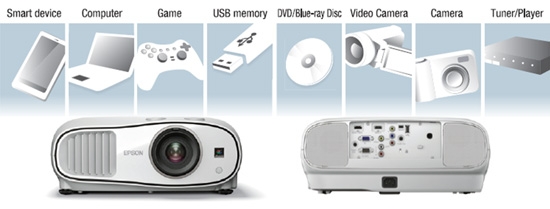

Wide Ranging Connectivity



Connect from virtually any device, making your entertainment simple and more accessible.





Only from Epson Wireless HDMI





Put Your Projector Anywhere You Want Without Running Extra wires



Setup your projector wherever you want. Theres no need to worry about drilling holes, running cables or taking a lot of time for complicated software installations. Just plug your projector into a power source. The wireless receiver is built in so you do not need to connect anything else. And, the wireless transmitters compact design makes it blend into any environment. The EPSON transmitter streams a Full HD signal wirelessly, so you can keep things tidy and keep your A/V equipment separate from your projector.





Secure, Full HD 1080p Video Wireless Streaming



The EPSON Wireless HD streams reliable, HD 1080p, 60 Hz video from one device to another, within the same room, at a distance of up to 10m, with stellar full HD 1080p image quality. The system is HDCP compliant and can stream copy-protected content. Its fast signal transfer ensures real-time transmission of HD media without buffering or drop out. The wireless transmitter provides a secure connection that resists interference with nearby wireless routers.



Connect your receiver, Blu-ray player, game console, streaming device like Apple TV, and more. You can even connect speakers via the optical connection. View a second device using the wireless picture-in-picture mode. Switch between up to 5 connected devices with the preview mode. The wireless transmitter connects to up to 5 HDMI devices simultaneously, has one HDMI out connection, and one optical port.



Pass-Through Mode



Setup your A/V equipment once, connecting to both your projector and a second display device such as a TV. Whether you want to view content on your projector or your second device, you no longer need to unplug and re-plug in your devices. All you need to do is connect both devices to the EPSON wireless HDMI transmitter and then choose which display device youd like to use.

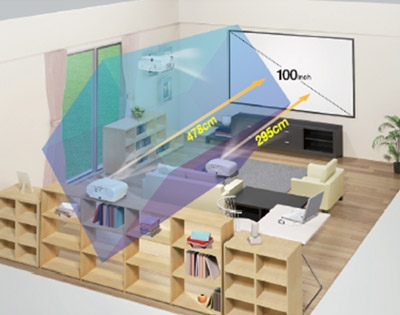

Installation Flexibility



Lens shift allows you to wide range of placement possibilities, with a broad shift range of 60% vertically and 24% horizontally. Combined with a 1.6x zoom lens, projector placement is a breeze.

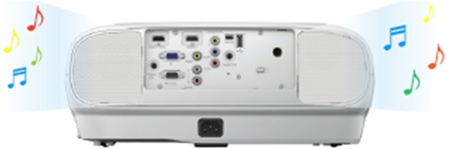

Captivating Sound



Enjoy amazing audio with two built-in 10W speakers.

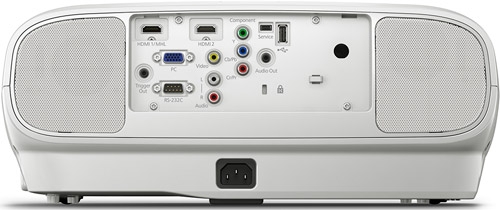

Connectivity Panel





Specifications:



PRODUCT NAME	Epson EH-TW6600W
PRODUCT CODE	V11H652053
WHAT'S IN THE BOX
	EH-TW6600W Projector, Power Cable, Remote Control + Batteries, 3D Glasses + USB cable for charging x 2, WirelessHD Transmitter Set, User Manual
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.61-inch wide panel with MLA (D9.8, C2Fine, 12Bit)
OPTICAL
Zoom	1-1.6 (Optical Zoom)
Screen Size	30" to 300" [0.87 to 8.9m] (Zoom: Wide) 30" to 300" [1.42 to 14.5m] (Zoom: Tele)
Projection Distance	100" screen 2.95 - 4.8 m
Throw Ratio	1.32 (Zoom: Wide), 2.15 (Zoom: Tele)
Projection Lens F Number	1.51-1.99
Projection Lens Focal Length	18.2mm-29.2mm
Focus Method	Manual
Colour Light Output	2,500 Lumens
White Light Output	2,500 Lumens
Resolution	1080p
Native Aspect Ratio	16:9
Contrast Ratio	70,000:1
Lamp Type	230 W UHE
Colour Reproduction	Up to 1.07 billion colours
Colour Processing	10 bit
Keystone Correction	Vertical : -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -60% to +60% Horizontal: -24% to +24%
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x Component Video
Input: Computer	1 x D-sub 15-pin (RGB)
Input: Digital	2 x HDMI (1 x MHL)
Input: USB	1 x USB A (Photo Viewer)
Input: Control	1 x RS232C
ADVANCED FEATURES
WirelessHD	Yes
Super Resolution	Yes
3D Formats	Top-and-Bottom, Side-by-Side, Frame Packaging
2D to 3D Conversion	Off / Weak / Medium / Strong
Internal Speakers	2 x 10W
Split Screen	Yes
Direct Power On	Yes
Security	Kensington -style lock provision
Colour Modes	2D: Dynamic, Living room, Natural, Cinema, Auto 3D: 3D Dynamic, 3D Cinema
GENERAL
Dimensions D x W x H	304 410 157 mm
Weight	Approx. 6.8kg
Lamp Warranty	12 months or 750 hours*
Projector Warranty	2 Years
Power Consumption: Lamp on	366W
Power Consumption: Standby	0.43W
Noise Level	Normal/Eco: 32/24 dB
* Which ever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V13H010L85	ELPLP85 Projector Lamp
	V13H134A39	ELPAF39 Air Filter
	V12H003B22	ELPMB22 Ceiling Mount
	V12H526040	ELPMB30 Flush Ceiling mount
	V12H003P13	ELPFP13 Extension Pole 450mmr
	V12H003P14	ELPFP14 Extension Pole 918mm to 1,168mm
	V12H548001	ELPGS03 3D Glasses
	V12H564C12	ELPAC01 Charger for 3D Glasses
	V12H002S2Y	ELPSC21B 80" Portable tripod screen
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Epson EB-Z11000WNL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• 11,000 Lumens Deliver captivating images in virtually any venue
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind



3LCD Technology



All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCDs 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCDs true-to-life colour.







Up to 3x Brighter Colours with Epson Projectors



Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.



In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.

All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.



Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.



11,000 lumens



Powered by 3LCD technology and Epsons dual lamp optical engine, the Z Series is capable of producing White Light and Colour Light Output of 11,000 lumens. Delivering captivating images in virtually any venue.





Award-winning Faroudja DCDi Cinema for Advanced Video Quality



The Epson Z Series features a Faroudja DCDi Cinema chipset, a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.

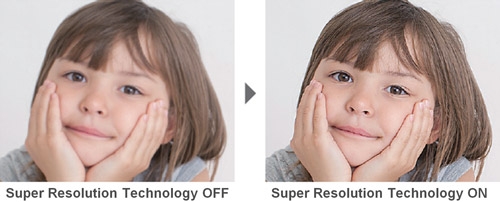

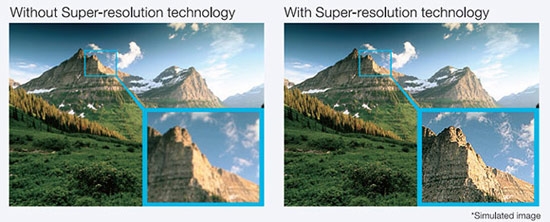

Enhanced Super Resolution Technology for Sharp, Rich Images



Epsons Super Resolution technology makes standard, and high definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution, and sharpens blurry images that have been enlarged by a general upscaling process.

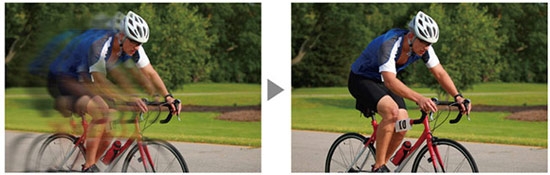

State-of-the-art FineFrame Interpolation Processing Technology



A movie is a series of still frames, shown in quick succession. Traditional movies are shot at 24 frames per second (fps). However, in some cases, fast-moving objects may have moved too fast to be captured on film, so they appear to jump from one part of the screen to another. This effect is called motion judder. In order to reduce motion judder, Epson has created FineFrame interpolation technology, which looks at the frames before and after an action, and creates an interpolated frame, halfway between two existing frames. As a result, a smoother motion is perceived by the viewer. FineFrame interpolation is most beneficial when viewing content such as action movies and sports videos, which are typically shown in High Definition at 30fps. In this case, multiple frames are interpolated and inserted each second, in order to create a more realistic viewing experience.

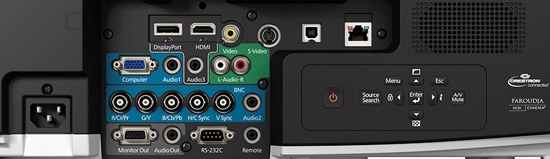

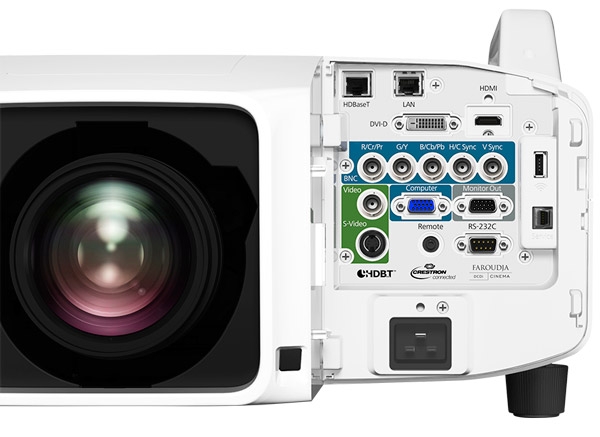

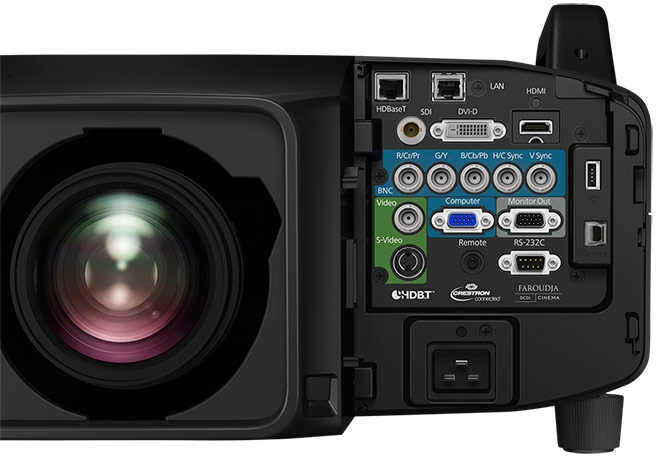

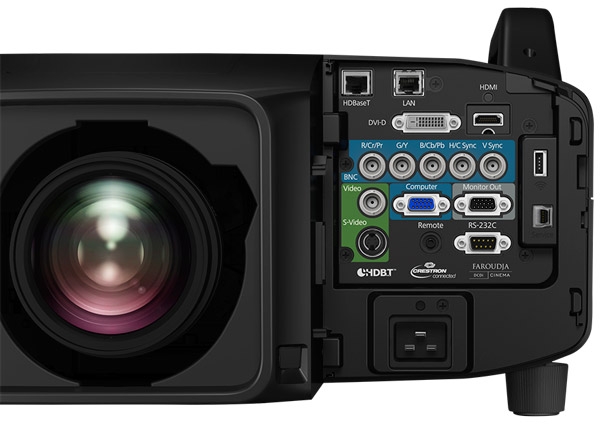

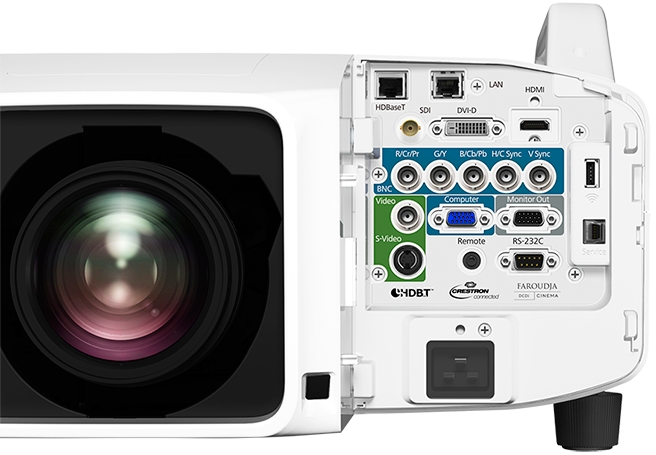

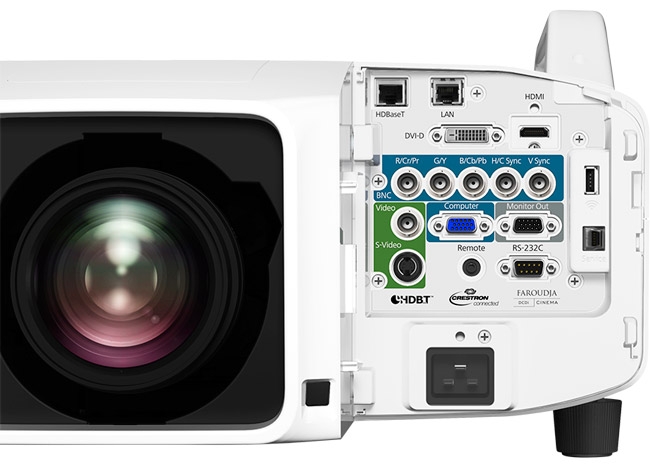

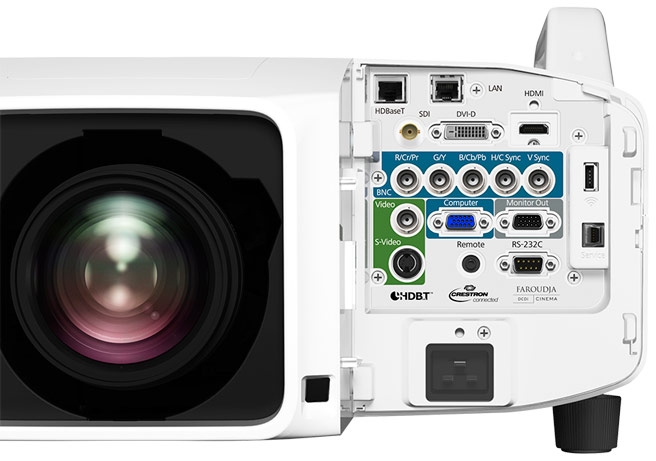

Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, 3G-SDI¹, HDMI, DVI-D, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just ne single CAT-5/6 cable carries Full HD video, audio, network and control commands. And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labor.



3G-SDI not available on the EB-Z9750UNL



360 Degree Projection



The Epson Z Series can be rotated 360 in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

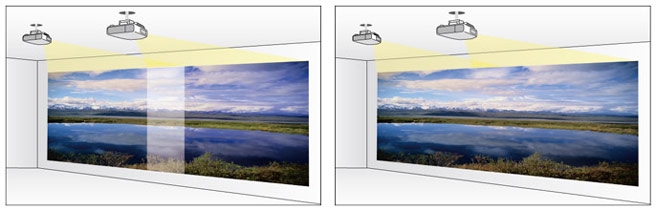

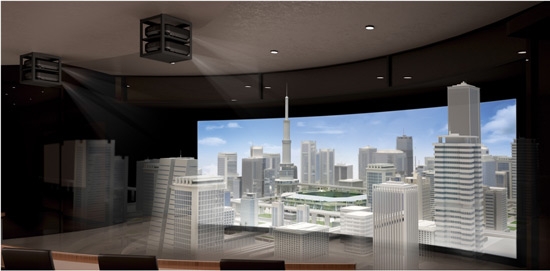

Edge Blending


Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.

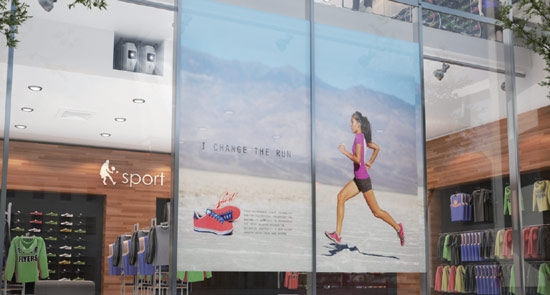

Portrait Projection



The Epson Z Series now supports Portrait Projection, perfect for digital signage, fashion shows, art galleries and museums.

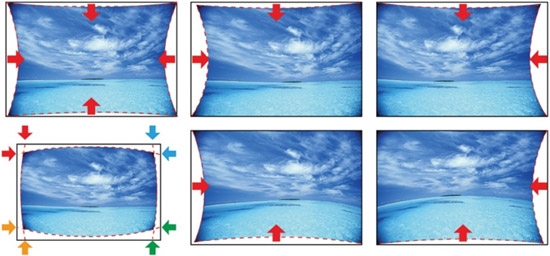

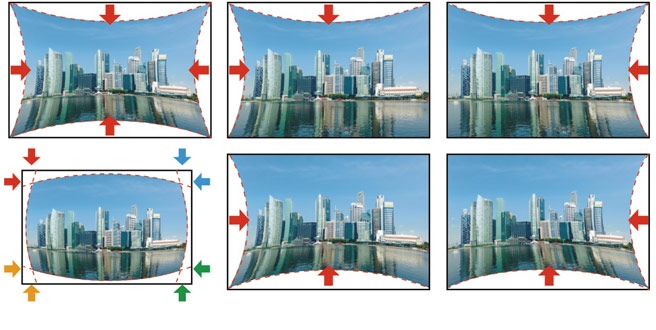

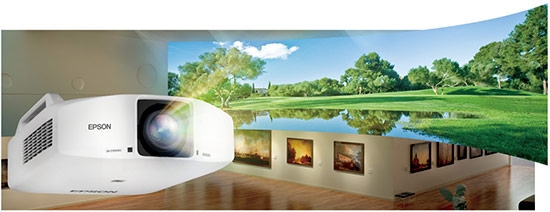

Corner Wall and Curved Surface Projection



Quickly and precisely correct any vertical or horizontial distortion of an image with Epsons curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.



Arc Correction



Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image





Split Screen



Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.

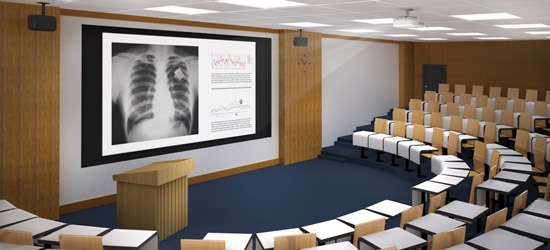

DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projectors DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.



Multi-PC Projection



Epson Multi-PC Projection allows you to display four individual PC screens simultaneously over the network (wired or wireless), with another 12 users connected to the same projector on Standby mode. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

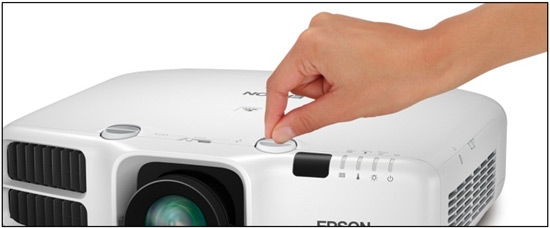

Tool Free Operation



Reduce set up time with tool free, easy access to the lens, lamps and connectivity.





Powered Lens Shift



In addition to added reliability and amazing colour performance, Epson’s industry-leading 3LCD technology enables the projector to achieve a wide range of lens shift capabilities. This lens shift technology enables outstanding installation flexibility with an incredible range of up to ±60% on the vertical axis and up to ±18% on the horizontal axis. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.

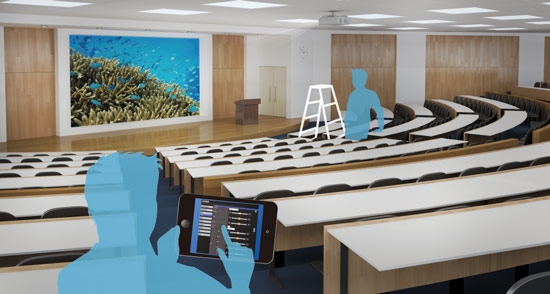

Web Control Window



Connect the projector to the network to simplify the installation process. Adjust the colour mode, image settings, source, aspect ratio and more all from a PC or Tablet.

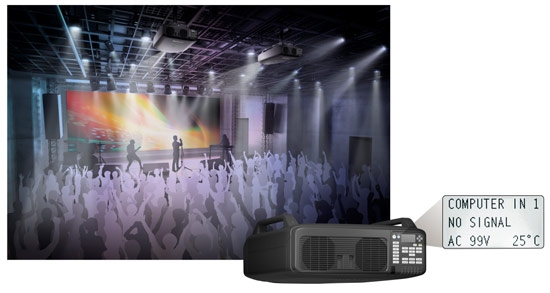

Status Monitor



Access the projectors vital information without having to turn the unit on. The new LCD status monitor allows users to check source, resolution, lamp information and network settings.

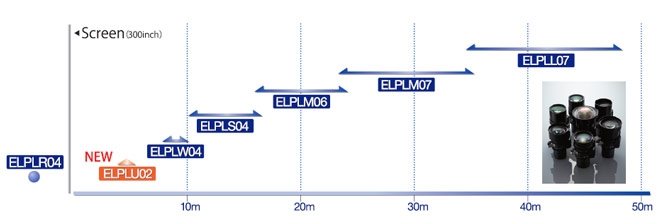

Seven Optional lenses

The Z Series offers increased placement flexibility, with a 1.6x standard lens. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a quick, easy lens exchange. (Lens not included)

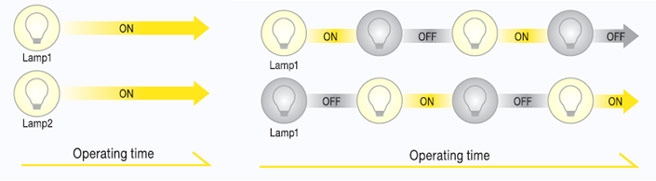

Dual Lamp

The Epson Z Series projectors boast a dual lamp system (two 380W lamps) that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life up to 4,000 hours in ECO Mode, up to 3,000 hours in Normal Mode. Replacements are made easy with tool-free and unobstructed access to the rear control panel. In addition, the new Dual Lamp Relay and Single Lamp Relay function allows users to extend the life of their lamp by alternating the lamp in use.







Quiet, Reliable Liquid Cooling System^*

Epsons innovative system uses liquid to cool the LCD chips directly. The liquid absorbs the heat and is then cooled by a peltier device, which is then cooled by a fan, thereby keeping the overall optical engine cool. This system design promotes greater reliability and enables stable operation in temperatures up to 50C. In addition, it offers quiet, unobtrusive operation and allows for off-axis installation orientations.

^*Not available on the EB-Z9750UNL

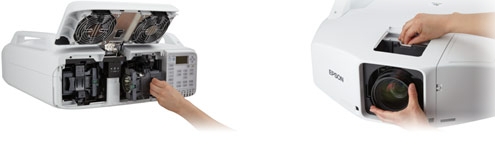

Easy maintenance

Offering convenient access to the lamps and filter, the Epson Z Series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools. In addition to easy lamp and filter replacements, the Z Series includes features that make it easy to monitor and control. With EasyMP Monitor, users can access advanced status functions over the LAN.



Continuous 24 Hour Use

Enjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epsons latest generation of inorganic LCD panels and unique optimised cooling systems, the Z Series projectors are capable of 24/7 use warranted up to 15,000 hrs. With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application!







Specifications



PRODUCT NAME	Epson EB-Z11000WNL
PRODUCT CODE	V11H608953
WHAT'S IN THE BOX
	EB-Z11000WNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Power Cord Clamp, Foot Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	1.03-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Optical)
Screen Size	60" to 500" [1.99m to 17.17m] (Zoom: Wide) 60" to 500" [3.26m to 27.77m] (Zoom: Tele)
Projection Distance	100" screen 3.37 m - 5.49 m
Throw Ratio	1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered
Colour Light Output	11,000 Lumens
White Light Output	11,000 Lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	15,000:1
Lamp Hours	2,000 hours (Normal (5) Std-Lamp x 2) 4,000 hours (ECO Std-Lamp x 2) 1,000 hours (Portrait Lamp x 2)
Lamp Type	380 W UHE x 2 For Std-Lamp 304 W UHE x 2 For Portrait Lamp
Keystone Correction (With Std Lens)	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -60% to +60% (Powered) Horizontal: -18% to +18% (Powered)
Tilt Angle	-3.5 to 3.5 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DVI-D
Input: SDI	-
Input: Audio	-
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Wireless LAN	Optional
Split Screen	Yes
Edge Blending	Yes
Curved Screen Projection	Yes
Corner Wall Projection	Yes
Frame Interpolation	Yes
360 Degrees Projection	Yes
Lamp Select	Dual / Single / Lamp 1 / Lamp 2
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Password protect function Security cable hole
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet)	741 534 255 mm
Weight	Approx. 25kg (Including Std Lens)
Lamp Warranty	1 Year or 750 hours*
Projector Warranty	4 Years or 20,000 Hours**
Power Consumption: Lamp on - 2 Lamps	1060W
Power Consumption: Standby	0.37W
Noise Level - 2 Lamps	Normal/Eco: 40/35 dB
* Whichever comes first. For more information visit Epson Projector Warranty ** 15,000hrs for 24/7 use
PRODUCT OPTIONS	Item Code	Description
	V12H004S04	Standard Zoom Lens
	V12H004R04	Rear Projection Wide Lens
	V12H004U02	Short Throw Lens
	V12H004M06	Middle Throw Zoom Lens 1
	V12H004M07	Middle Throw Zoom Lens 2
	V12H004L07	Long Throw Zoom Lens
	V13H010L81	Replacement Lamp
	V13H010L83	Portrait Lamp
	V13H134A46	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H003B26	Telescopic Ceiling Mount
	V12H003B25	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Epson EB-Z11005NL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• 11,000 Lumens Deliver captivating images in virtually any venue
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind

Award-winning Faroudja DCDi Cinema for Advanced Video Quality



The Epson Z Series features a Faroudja DCDi Cinema chipset, a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.



Enhanced Super Resolution Technology for Sharp, Rich Images



Epsons Super Resolution technology makes standard, and high definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution, and sharpens blurry images that have been enlarged by a general upscaling process.





State-of-the-art FineFrame Interpolation Processing Technology

A movie is a series of still frames, shown in quick succession. Traditional movies are shot at 24 frames per second (fps). However, in some cases, fast-moving objects may have moved too fast to be captured on film, so they appear to jump from one part of the screen to another. This effect is called motion judder. In order to reduce motion judder, Epson has created FineFrame interpolation technology, which looks at the frames before and after an action, and creates an interpolated frame, halfway between two existing frames. As a result, a smoother motion is perceived by the viewer. FineFrame interpolation is most beneficial when viewing content such as action movies and sports videos, which are typically shown in High Definition at 30fps. In this case, multiple frames are interpolated and inserted each second, in order to create a more realistic viewing experience.







Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, 3G-SDI¹, HDMI, DVI-D, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just ne single CAT-5/6 cable carries Full HD video, audio, network and control commands. And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labor.



3G-SDI not available on the EB-Z9750UNL



360 Degree Projection

The Epson Z Series can be rotated 360 in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.





Edge Blending



Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.





Portrait Projection



The Epson Z Series now supports Portrait Projection, perfect for digital signage, fashion shows, art galleries and museums.





Corner Wall and Curved Surface Projection



Quickly and precisely correct any vertical or horizontial distortion of an image with Epsons curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.



Arc Correction



Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.





Split Screen



Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.



DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projectors DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.



Multi-PC Projection



Epson Multi-PC Projection allows you to display four individual PC screens simultaneously over the network (wired or wireless), with another 12 users connected to the same projector on Standby mode. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.



Tool Free Operation



Reduce set up time with tool free, easy access to the lens, lamps and connectivity.





Powered Lens Shift



In addition to added reliability and amazing colour performance, Epsons industry-leading 3LCD technology enables the projector to achieve a wide range of lens shift capabilities. This lens shift technology enables outstanding installation flexibility with an incredible range of up to 60% on the vertical axis and up to 18% on the horizontal axis. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.



Web Control Window



Connect the projector to the network to simplify the installation process. Adjust the colour mode, image settings, source, aspect ratio and more all from a PC or Tablet.





Status Monitor



Access the projectors vital information without having to turn the unit on. The new LCD status monitor allows users to check source, resolution, lamp information and network settings.





Seven Optional lenses



The Z Series offers increased placement flexibility, with a 1.6x standard lens. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a quick, easy lens exchange. (Lens not included)





Dual Lamp



The Epson Z Series projectors boast a dual lamp system (two 380W lamps) that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life up to 4,000 hours in ECO Mode, up to 3,000 hours in Normal Mode. Replacements are made easy with tool-free and unobstructed access to the rear control panel. In addition, the new Dual Lamp Relay and Single Lamp Relay function allows users to extend the life of their lamp by alternating the lamp in use.





Quiet, Reliable Liquid Cooling System^*

Epsons innovative system uses liquid to cool the LCD chips directly. The liquid absorbs the heat and is then cooled by a peltier device, which is then cooled by a fan, thereby keeping the overall optical engine cool. This system design promotes greater reliability and enables stable operation in temperatures up to 50C. In addition, it offers quiet, unobtrusive operation and allows for off-axis installation orientations.

^*Not available on the EB-Z9750UNL

Easy maintenance

Offering convenient access to the lamps and filter, the Epson Z Series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools. In addition to easy lamp and filter replacements, the Z Series includes features that make it easy to monitor and control. With EasyMP Monitor, users can access advanced status functions over the LAN.



Continuous 24 Hour Use

Enjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epsons latest generation of inorganic LCD panels and unique optimised cooling systems, the Z Series projectors are capable of 24/7 use warranted up to 15,000 hrs. With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application!

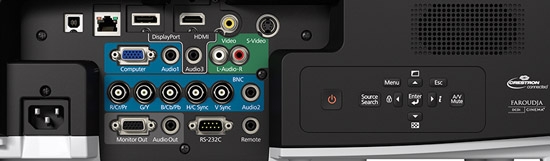

Connectivity Panel





Specifications:



PRODUCT NAME	Epson EB-Z11005NL
PRODUCT CODE	V11H606853
WHAT'S IN THE BOX
	EB-Z11005NL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Power Cord Clamp, Foot Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system

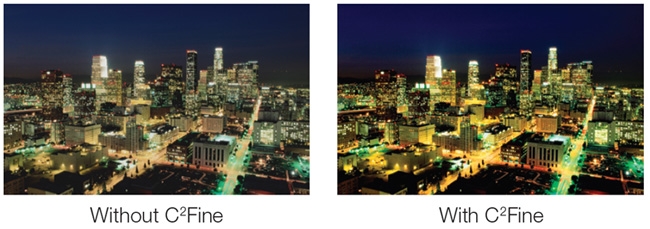

LCD Panel	1.03-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Optical)
Screen Size	60" to 500" [1.99m to 17.17m] (Zoom: Wide) 60" to 500" [3.26m to 27.77m] (Zoom: Tele)
Projection Distance	100" screen 3.37 m - 5.49 m
Throw Ratio	1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered
Colour Light Output	11,000 Lumens
White Light Output	11,000 Lumens
Resolution	XGA
Native Aspect Ratio	4:3
Contrast Ratio	15,000:1
Lamp Hours	2,000 hours (Normal (5) Std-Lamp x 2) 4,000 hours (ECO Std-Lamp x 2) 1,000 hours (Portrait Lamp x 2)
Lamp Type	380 W UHE x 2 For Std-Lamp 304 W UHE x 2 For Portrait Lamp
Keystone Correction (With Std Lens)	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -56% to +56% (Powered) Horizontal: -19% to +19% (Powered)
Tilt Angle	-3.5 to 3.5 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DVI-D
Input: SDI	-
Input: Audio	-
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Wireless LAN	Optional
Split Screen	Yes
Edge Blending	Yes
Curved Screen Projection	Yes
Corner Wall Projection	Yes
Frame Interpolation	Yes
360 Degrees Projection	Yes
Lamp Select	Dual / Single / Lamp 1 / Lamp 2
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Password protect function Security cable hole
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet)	741 534 255 mm
Weight	Approx. 26kg (Including Std Lens)
Lamp Warranty	1 Year or 750 hours*
Projector Warranty	4 Years or 20,000 Hours**
Power Consumption: Lamp on - 2 Lamps	1060W
Power Consumption: Standby	0.37W
Noise Level - 2 Lamps	Normal/Eco: 40/35 dB
* Whichever comes first. For more information visit Epson Projector Warranty ** 15,000hrs for 24/7 use
PRODUCT OPTIONS	Item Code	Description
	V12H004S04	Standard Zoom Lens
	V12H004R04	Rear Projection Wide Lens
	V12H004U02	Short Throw Lens
	V12H004M06	Middle Throw Zoom Lens 1
	V12H004M07	Middle Throw Zoom Lens 2
	V12H004L07	Long Throw Zoom Lens
	V13H010L81	Replacement Lamp
	V13H010L83	Portrait Lamp
	V13H134A46	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H003B26	Telescopic Ceiling Mount
	V12H003B25	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Epson EB-Z11000NL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• 11,000 Lumens Deliver captivating images in virtually any venue
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind

Enhanced Super Resolution Technology for Sharp, Rich Images



 Epsons Super Resolution technology makes standard, and high definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution, and sharpens blurry images that have been enlarged by a general upscaling process.





State-of-the-art FineFrame Interpolation Processing Technology



A movie is a series of still frames, shown in quick succession. Traditional movies are shot at 24 frames per second (fps). However, in some cases, fast-moving objects may have moved too fast to be captured on film, so they appear to jump from one part of the screen to another. This effect is called motion judder. In order to reduce motion judder, Epson has created FineFrame interpolation technology, which looks at the frames before and after an action, and creates an interpolated frame, halfway between two existing frames. As a result, a smoother motion is perceived by the viewer. FineFrame interpolation is most beneficial when viewing content such as action movies and sports videos, which are typically shown in High Definition at 30fps. In this case, multiple frames are interpolated and inserted each second, in order to create a more realistic viewing experience.







Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, 3G-SDI1, HDMI, DVI-D, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just ne single CAT-5/6 cable carries Full HD video, audio, network and control commands. And it’s over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labor.



Edge Blending



Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.





Portrait Projection



The Epson Z Series now supports Portrait Projection, perfect for digital signage, fashion shows, art galleries and museums.





Corner Wall and Curved Surface Projection

Powered Lens Shift



In addition to added reliability and amazing colour performance, Epsons industry-leading 3LCD technology enables the projector to achieve a wide range of lens shift capabilities. This lens shift technology enables outstanding installation flexibility with an incredible range of up to 60% on the vertical axis and up to 18% on the horizontal axis. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.



Web Control Window


Connect the projector to the network to simplify the installation process. Adjust the colour mode, image settings, source, aspect ratio and more all from a PC or Tablet.





Status Monitor



Access the projectors vital information without having to turn the unit on. The new LCD status monitor allows users to check source, resolution, lamp information and network settings.





Seven Optional lenses



Te Z Series offers increased placement flexibility, with a 1.6x standard lens. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a quick, easy lens exchange. (Lens not included)





Dual Lamp



The Epson Z Series projectors boast a dual lamp system (two 380W lamps) that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life up to 4,000 hours in ECO Mode, up to 3,000 hours in Normal Mode. Replacements are made easy with tool-free and unobstructed access to the rear control panel. In addition, the new Dual Lamp Relay and Single Lamp Relay function allows users to extend the life of their lamp by alternating the lamp in use.





Quiet, Reliable Liquid Cooling System^*

Epsons innovative system uses liquid to cool the LCD chips directly. The liquid absorbs the heat and is then cooled by a peltier device, which is then cooled by a fan, thereby keeping the overall optical engine cool. This system design promotes greater reliability and enables stable operation in temperatures up to 50C. In addition, it offers quiet, unobtrusive operation and allows for off-axis installation orientations.

^*Not available on the EB-Z9750UNL

Easy maintenance

Offering convenient access to the lamps and filter, the Epson Z Series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools. In addition to easy lamp and filter replacements, the Z Series includes features that make it easy to monitor and control. With EasyMP Monitor, users can access advanced status functions over the LAN.

Continuous 24 Hour Use

Enjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epsons latest generation of inorganic LCD panels and unique optimised cooling systems, the Z Series projectors are capable of 24/7 use warranted up to 15,000 hrs. With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application!







Specifications:



PRODUCT NAME	Epson EB-Z11000NL
PRODUCT CODE	V11H606953
WHAT'S IN THE BOX
	EB-Z11000NL Projector,3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Power Cord Clamp, Foot Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	1.03-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Optical)
Screen Size	60" to 500" [1.99m to 17.17m] (Zoom: Wide) 60" to 500" [3.26m to 27.77m] (Zoom: Tele)
Projection Distance	100" screen 3.37 m - 5.49 m
Throw Ratio	1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered
Colour Light Output	11,000 Lumens
White Light Output	11,000 Lumens
Resolution	XGA
Native Aspect Ratio	4:3
Contrast Ratio	15,000:1
Lamp Hours	2,000 hours (Normal (5) Std-Lamp x 2) 4,000 hours (ECO Std-Lamp x 2) 1,000 hours (Portrait Lamp x 2)
Lamp Type	380 W UHE x 2 For Std-Lamp 304 W UHE x 2 For Portrait Lamp
Keystone Correction (With Std Lens)	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -56% to +56% (Powered) Horizontal: -19% to +19% (Powered)
Tilt Angle	-3.5 to 3.5 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DVI-D
Input: SDI	-
Input: Audio	-
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Wireless LAN	Optional
Split Screen	Yes
Edge Blending	Yes
Curved Screen Projection	Yes
Corner Wall Projection	Yes
Frame Interpolation	Yes
360 Degrees Projection	Yes
Lamp Select	Dual / Single / Lamp 1 / Lamp 2
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Password protect function Security cable hole
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet)	741 534 255 mm
Weight	Approx. 26kg (Including Std Lens)
Lamp Warranty	1 Year or 750 hours*
Projector Warranty	4 Years or 20,000 Hours**
Power Consumption: Lamp on - 2 Lamps	1060W
Power Consumption: Standby	0.37W
Noise Level - 2 Lamps	Normal/Eco: 40/35 dB
* Whichever comes first. For more information visit Epson Projector Warranty ** 15,000hrs for 24/7 use
PRODUCT OPTIONS	Item Code	Description
	V12H004S04	Standard Zoom Lens
	V12H004R04	Rear Projection Wide Lens
	V12H004U02	Short Throw Lens
	V12H004M06	Middle Throw Zoom Lens 1
	V12H004M07	Middle Throw Zoom Lens 2
	V12H004L07	Long Throw Zoom Lens
	V13H010L81	Replacement Lamp
	V13H010L83	Portrait Lamp
	V13H134A46	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H003B26	Telescopic Ceiling Mount
	V12H003B25	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Epson EB-Z10005UNL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• Widescreen performance Native WUXGA (1920 x 1200) resolution supports Full HD for presentations, videos, digital signage and more
• 10,000 Lumens Deliver captivating images in virtually any venue
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind

Enhanced Super Resolution Technology for Sharp, Rich Images



Epsons Super Resolution technology makes standard, and high definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution, and sharpens blurry images that have been enlarged by a general upscaling process.





State-of-the-art FineFrame Interpolation Processing Technology



A movie is a series of still frames, shown in quick succession. Traditional movies are shot at 24 frames per second (fps). However, in some cases, fast-moving objects may have moved too fast to be captured on film, so they appear to jump from one part of the screen to another. This effect is called motion judder. In order to reduce motion judder, Epson has created FineFrame interpolation technology, which looks at the frames before and after an action, and creates an interpolated frame, halfway between two existing frames. As a result, a smoother motion is perceived by the viewer. FineFrame interpolation is most beneficial when viewing content such as action movies and sports videos, which are typically shown in High Definition at 30fps. In this case, multiple frames are interpolated and inserted each second, in order to create a more realistic viewing experience.







Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, 3G-SDI¹, HDMI, DVI-D, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just ne single CAT-5/6 cable carries Full HD video, audio, network and control commands. And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labor.



3G-SDI not available on the EB-Z9750UNL



360 Degree Projection



The Epson Z Series can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.







Edge Blending



Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.





Portrait Projection



The Epson Z Series now supports Portrait Projection, perfect for digital signage, fashion shows, art galleries and museums.





Corner Wall and Curved Surface Projection



Quickly and precisely correct any vertical or horizontial distortion of an image with Epsons curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.



Arc Correction



Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.





Split Screen



Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.

DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

Multi-PC Projection

Status Monitor



Access the projectors vital information without having to turn the unit on. The new LCD status monitor allows users to check source, resolution, lamp information and network settings.





Seven Optional lenses



The Z Series offers increased placement flexibility, with a 1.6x standard lens. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a quick, easy lens exchange. (Lens not included)





Dual Lamp



The Epson Z Series projectors boast a dual lamp system (two 380W lamps) that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life up to 4,000 hours in ECO Mode, up to 3,000 hours in Normal Mode. Replacements are made easy with tool-free and unobstructed access to the rear control panel. In addition, the new Dual Lamp Relay and Single Lamp Relay function allows users to extend the life of their lamp by alternating the lamp in use.





Quiet, Reliable Liquid Cooling System



Epsons innovative system uses liquid to cool the LCD chips directly. The liquid absorbs the heat and is then cooled by a peltier device, which is then cooled by a fan, thereby keeping the overall optical engine cool. This system design promotes greater reliability and enables stable operation in temperatures up to 50C. In addition, it offers quiet, unobtrusive operation and allows for off-axis installation orientations.



Not available on the EB-Z9750UNL



Easy maintenance



Offering convenient access to the lamps and filter, the Epson Z Series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools. In addition to easy lamp and filter replacements, the Z Series includes features that make it easy to monitor and control. With EasyMP Monitor, users can access advanced status functions over the LAN.



Continuous 24 Hour Use

Enjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epsons latest generation of inorganic LCD panels and unique optimised cooling systems, the Z Series projectors are capable of 24/7 use warranted up to 15,000 hrs. With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application!









Specifications:



PRODUCT NAME	EB-Z10005UNL
PRODUCT CODE	V11H610853
WHAT'S IN THE BOX
	EB-Z10005UNL Projector,3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Power Cord Clamp, Foot Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	1.03-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Optical)
Screen Size	60" to 500" [1.99m to 17.17m] (Zoom: Wide) 60" to 500" [3.26m to 27.77m] (Zoom: Tele)
Projection Distance	100" screen 3.37 m - 5.49 m
Throw Ratio	1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered
Colour Light Output	10,000 Lumens
White Light Output	10,000 Lumens
Resolution	WUXGA
Native Aspect Ratio	16:10
Contrast Ratio	15,000:1
Lamp Hours	2,000 hours (Normal(5) Std-Lamp x 2) 4,000 hours (ECO Std-Lamp x 2) 1,000 hours (Portrait Lamp x 2)
Lamp Type	380 W UHE x 2 For Std-Lamp 304 W UHE x 2 For Portrait Lamp
Keystone Correction (With Std Lens)	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -60% to +60% (Powered) Horizontal: -18% to +18% (Powered)
Tilt Angle	-3.5 to 3.5 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DVI-D
Input: SDI	1 x BNC
Input: Audio	-
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Wireless LAN	Optional
Split Screen	Yes
Edge Blending	Yes
Curved Screen Projection	Yes
Corner Wall Projection	Yes
Frame Interpolation	Yes
360 Degrees Projection	Yes
Lamp Select	Dual / Single / Lamp 1 / Lamp 2
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Password protect function Security cable hole
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet)	741 534 255 mm
Weight	Approx. 26kg (Including Std Lens)
Lamp Warranty	1 Year or 750 hours*
Projector Warranty	4 Years or 15,000 Hours**
Power Consumption: Lamp on - 2 Lamps	1060W
Power Consumption: Standby	0.37W
Noise Level - 2 Lamps	Normal/Eco: 40/35 dB
* Whichever comes first. For more information visit Epson Projector Warranty ** 15,000hrs for 24/7 use
PRODUCT OPTIONS	Item Code	Description
	V12H004S04	Standard Zoom Lens
	V12H004R04	Rear Projection Wide Lens
	V12H004U02	Short Throw Lens
	V12H004M06	Middle Throw Zoom Lens 1
	V12H004M07	Middle Throw Zoom Lens 2
	V12H004L07	Long Throw Zoom Lens
	V13H010L81	Replacement Lamp
	V13H010L83	Portrait Lamp
	V13H134A46	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H003B26	Telescopic Ceiling Mount
	V12H003B25	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

Epson EB-Z10000UNL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• Widescreen performance Native WUXGA (1920 x 1200) resolution supports Full HD for presentations, videos, digital signage and more
• 10,000 Lumens Deliver captivating images in virtually any venue
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind

State-of-the-art FineFrame Interpolation Processing Technology



A movie is a series of still frames, shown in quick succession. Traditional movies are shot at 24 frames per second (fps). However, in some cases, fast-moving objects may have moved too fast to be captured on film, so they appear to jump from one part of the screen to another. This effect is called motion judder. In order to reduce motion judder, Epson has created FineFrame interpolation technology, which looks at the frames before and after an action, and creates an interpolated frame, halfway between two existing frames. As a result, a smoother motion is perceived by the viewer. FineFrame interpolation is most beneficial when viewing content such as action movies and sports videos, which are typically shown in High Definition at 30fps. In this case, multiple frames are interpolated and inserted each second, in order to create a more realistic viewing experience.







Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, 3G-SDI1, HDMI, DVI-D, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just ne single CAT-5/6 cable carries Full HD video, audio, network and control commands. And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labor.



13G-SDI not available on the EB-Z9750UNL



360 Degree Projection



The Epson Z Series can be rotated 360 in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.





Edge Blending



Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.





Portrait Projection



The Epson Z Series now supports Portrait Projection, perfect for digital signage, fashion shows, art galleries and museums.





Corner Wall and Curved Surface Projection



Quickly and precisely correct any vertical or horizontial distortion of an image with Epsons curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.



Arc Correction



Using arc correction, you can adjust each side of a projected image in an arch or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.





Split Screen



Split Screen allows users to display content from two inputs simultaneously, side by side, on a single screen with the option of three different layouts. This makes it possible to display video and presentation materials simultaneously, or run video on both screens.


DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. The projector’s DICOM Simulation Mode enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14. This mode is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes.

Multi-PC Projection



Epson Multi-PC Projection allows you to display four individual PC screens simultaneously over the network (wired or wireless), with another 12 users connected to the same projector on Standby mode. You can drag and drop participants into or out of one of the four quadrants. This feature is a great tool for meetings or classroom projects where multiple users want to present and compare their screens. You can also connect up to four remote projectors at the same time and show the same multi-screen image; another great tool for remote meeting setups.

Tool Free Operation



Reduce set up time with tool free, easy access to the lens, lamps and connectivity.







Powered Lens Shift



In addition to added reliability and amazing colour performance, Epson’s industry-leading 3LCD technology enables the projector to achieve a wide range of lens shift capabilities. This lens shift technology enables outstanding installation flexibility with an incredible range of up to ±60% on the vertical axis and up to ±18% on the horizontal axis. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.

Web Control Window



Connect the projector to the network to simplify the installation process. Adjust the colour mode, image settings, source, aspect ratio and more all from a PC or Tablet.





Status Monitor



Access the projectors vital information without having to turn the unit on. The new LCD status monitor allows users to check source, resolution, lamp information and network settings.





Seven Optional lenses



The Z Series offers increased placement flexibility, with a 1.6x standard lens. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a quick, easy lens exchange. (Lens not included)





Dual Lamp



The Epson Z Series projectors boast a dual lamp system (two 380W lamps) that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life up to 4,000 hours in ECO Mode, up to 3,000 hours in Normal Mode. Replacements are made easy with tool-free and unobstructed access to the rear control panel. In addition, the new Dual Lamp Relay and Single Lamp Relay function allows users to extend the life of their lamp by alternating the lamp in use.





Quiet, Reliable Liquid Cooling System^*



Epsons innovative system uses liquid to cool the LCD chips directly. The liquid absorbs the heat and is then cooled by a peltier device, which is then cooled by a fan, thereby keeping the overall optical engine cool. This system design promotes greater reliability and enables stable operation in temperatures up to 50C. In addition, it offers quiet, unobtrusive operation and allows for off-axis installation orientations.



^*Not available on the EB-Z9750UNL



Easy maintenance



Offering convenient access to the lamps and filter, the Epson Z Series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools. In addition to easy lamp and filter replacements, the Z Series includes features that make it easy to monitor and control. With EasyMP Monitor, users can access advanced status functions over the LAN.







Continuous 24 Hour Use



Enjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epsons latest generation of inorganic LCD panels and unique optimised cooling systems, the Z Series projectors are capable of 24/7 use warranted up to 15,000 hrs. With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application!





Specifications



PRODUCT NAME	EB-Z10000UNL
PRODUCT CODE	V11H610953
WHAT'S IN THE BOX
	EB-Z10000UNL Projector,3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Power Cord Clamp, Foot Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	1.03-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Optical)
Screen Size	60" to 500" [1.99m to 17.17m] (Zoom: Wide) 60" to 500" [3.26m to 27.77m] (Zoom: Tele)
Projection Distance	100" screen 3.37 m - 5.49 m
Throw Ratio	1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered
Colour Light Output	10,000 Lumens
White Light Output	10,000 Lumens
Resolution	WUXGA
Native Aspect Ratio	16:10
Contrast Ratio	15,000:1
Lamp Hours	2,000 hours (Normal(5) Std-Lamp x 2) 4,000 hours (ECO Std-Lamp x 2) 1,000 hours (Portrait Lamp x 2)
Lamp Type	380 W UHE x 2 For Std-Lamp 304 W UHE x 2 For Portrait Lamp
Keystone Correction (With Std Lens)	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -60% to +60% (Powered) Horizontal: -18% to +18% (Powered)
Tilt Angle	-3.5 to 3.5 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DVI-D
Input: SDI	1 x BNC
Input: Audio	-
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Wireless LAN	Optional
Split Screen	Yes
Edge Blending	Yes
Curved Screen Projection	Yes
Corner Wall Projection	Yes
Frame Interpolation	Yes
360 Degrees Projection	Yes
Lamp Select	Dual / Single / Lamp 1 / Lamp 2
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Password protect function Security cable hole
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet)	741 534 255 mm
Weight	Approx. 26kg (Including Std Lens)
Lamp Warranty	1 Year or 750 hours*
Projector Warranty	4 Years or 15,000 Hours**
Power Consumption: Lamp on - 2 Lamps	1060W
Power Consumption: Standby	0.37W
Noise Level - 2 Lamps	Normal/Eco: 40/35 dB
* Whichever comes first. For more information visit Epson Projector Warranty ** 15,000hrs for 24/7 use
PRODUCT OPTIONS	Item Code	Description
	V12H004S04	Standard Zoom Lens
	V12H004R04	Rear Projection Wide Lens
	V12H004U02	Short Throw Lens
	V12H004M06	Middle Throw Zoom Lens 1
	V12H004M07	Middle Throw Zoom Lens 2
	V12H004L07	Long Throw Zoom Lens
	V13H010L81	Replacement Lamp
	V13H010L83	Portrait Lamp
	V13H134A46	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H003B26	Telescopic Ceiling Mount
	V12H003B25	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

Epson EB-Z9900WNL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• 9,200 Lumens Dazzling brightness designed for use in auditoriums and large venues
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind



3LCD Technology



All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCDs 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCDs true-to-life colour.







Up to 3x Brighter Colours with Epson Projectors



Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.



In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.



All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.



Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.



9,2000 lumens



The Epson EB-Z9900WNL features an innovative dual lamp system enabling it to achieve a dazzling 9,200 lumens light output and 9,200 lumens colour light output making it an ideal selection for use in auditoriums and large venues.





Award-winning Faroudja DCDi Cinema for Advanced Video Quality



The Epson Z Series features a Faroudja DCDi Cinema chipset, a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.



Enhanced Super Resolution Technology for Sharp, Rich Images



Epsons Super Resolution technology makes standard, and high definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution, and sharpens blurry images that have been enlarged by a general upscaling process.





State-of-the-art FineFrame Interpolation Processing Technology



A movie is a series of still frames, shown in quick succession. Traditional movies are shot at 24 frames per second (fps). However, in some cases, fast-moving objects may have moved too fast to be captured on film, so they appear to jump from one part of the screen to another. This effect is called motion judder. In order to reduce motion judder, Epson has created FineFrame interpolation technology, which looks at the frames before and after an action, and creates an interpolated frame, halfway between two existing frames. As a result, a smoother motion is perceived by the viewer. FineFrame interpolation is most beneficial when viewing content such as action movies and sports videos, which are typically shown in High Definition at 30fps. In this case, multiple frames are interpolated and inserted each second, in order to create a more realistic viewing experience.







Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, 3G-SDI1, HDMI, DVI-D, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just ne single CAT-5/6 cable carries Full HD video, audio, network and control commands. And it’s over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labor.



13G-SDI not available on the EB-Z9750UNL



360 Degree Projection



The Epson Z Series can be rotated 360° in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.







Edge Blending



Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.





Portrait Projection



The Epson Z Series now supports Portrait Projection, perfect for digital signage, fashion shows, art galleries and museums.





Corner Wall and Curved Surface Projection



Quickly and precisely correct any vertical or horizontial distortion of an image with Epson’s curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.

Arc Correction



Powered Lens Shift



In addition to added reliability and amazing colour performance, Epsons industry-leading 3LCD technology enables the projector to achieve a wide range of lens shift capabilities. This lens shift technology enables outstanding installation flexibility with an incredible range of up to 60% on the vertical axis and up to 18% on the horizontal axis. Users can operate the lens shift functions using the remote control, the projector control panel, or control commands.



Web Control Window



Connect the projector to the network to simplify the installation process. Adjust the colour mode, image settings, source, aspect ratio and more all from a PC or Tablet.





Status Monitor



Access the projectors vital information without having to turn the unit on. The new LCD status monitor allows users to check source, resolution, lamp information and network settings.





Seven Optional lenses



The Z Series offers increased placement flexibility, with a 1.6x standard lens. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a quick, easy lens exchange. (Lens not included)







Dual Lamp



 The Epson Z Series projectors boast a dual lamp system (two 380W lamps) that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life up to 4,000 hours in ECO Mode, up to 3,000 hours in Normal Mode. Replacements are made easy with tool-free and unobstructed access to the rear control panel. In addition, the new Dual Lamp Relay and Single Lamp Relay function allows users to extend the life of their lamp by alternating the lamp in use.





Quiet, Reliable Liquid Cooling System^*



Epsons innovative system uses liquid to cool the LCD chips directly. The liquid absorbs the heat and is then cooled by a peltier device, which is then cooled by a fan, thereby keeping the overall optical engine cool. This system design promotes greater reliability and enables stable operation in temperatures up to 50C. In addition, it offers quiet, unobtrusive operation and allows for off-axis installation orientations.



^*Not available on the EB-Z9750UNL



Easy maintenance



Offering convenient access to the lamps and filter, the Epson Z Series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools. In addition to easy lamp and filter replacements, the Z Series includes features that make it easy to monitor and control. With EasyMP Monitor, users can access advanced status functions over the LAN.





Continuous 24 Hour Use



Enjoy the flexibility of running your projector 24/7 with guaranteed performance and reliability. With Epsons latest generation of inorganic LCD panels and unique optimised cooling systems, the Z Series projectors are capable of 24/7 use warranted up to 15,000 hrs. With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application!



Connectivity Panel





Specifications:



PRODUCT NAME	Epson EB-Z9900WNL
PRODUCT CODE	V11H609953
WHAT'S IN THE BOX
	EB-Z9900WNL Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Power Cord Clamp, Foot Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	1.03-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Optical)
Screen Size	60" to 500" [1.99m to 17.17m] (Zoom: Wide) 60" to 500" [3.26m to 27.77m] (Zoom: Tele)
Projection Distance	100" screen 3.37 m - 5.49 m
Throw Ratio	1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered
Colour Light Output	9,200 Lumens
White Light Output	9,200 Lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	15,000:1
Lamp Hours	2,500 hours (Normal (5) Std-Lamp x 2) 4,000 hours (ECO Std-Lamp x 2) 1,000 hours (Portrait Lamp x 2)
Lamp Type	380 W UHE x 2 For Std-Lamp 304 W UHE x 2 For Portrait Lamp
Keystone Correction (With Std Lens)	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -60% to +60% (Powered) Horizontal: -18% to +18% (Powered)
Tilt Angle	-3.5 to 3.5 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DVI-D
Input: SDI	-
Input: Audio	-
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Wireless LAN	Optional
Split Screen	Yes
Edge Blending	Yes
Curved Screen Projection	Yes
Corner Wall Projection	Yes
Frame Interpolation	Yes
360 Degrees Projection	Yes
Lamp Select	Dual / Single / Lamp 1 / Lamp 2
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Password protect function Security cable hole
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet)	741 534 255 mm
Weight	Approx. 25kg (Including Std Lens)
Lamp Warranty	1 Year or 750 hours*
Projector Warranty	4 Years or 20,000 Hours**
Power Consumption: Lamp on - 2 Lamps	948W
Power Consumption: Standby	0.37W
Noise Level - 2 Lamps	Normal/Eco: 38/35 dB
* Whichever comes first. For more information visit Epson Projector Warranty ** 15,000hrs for 24/7 use
PRODUCT OPTIONS	Item Code	Description
	V12H004S04	Standard Zoom Lens
	V12H004R04	Rear Projection Wide Lens
	V12H004U02	Short Throw Lens
	V12H004M06	Middle Throw Zoom Lens 1
	V12H004M07	Middle Throw Zoom Lens 2
	V12H004L07	Long Throw Zoom Lens
	V13H010L81	Replacement Lamp
	V13H010L83	Portrait Lamp
	V13H134A46	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H003B26	Telescopic Ceiling Mount
	V12H003B25	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Epson EB-Z9870UNL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• Widescreen performance Native WUXGA (1920 x 1200) resolution supports Full HD for presentations, videos, digital signage and more
• 8,700 Lumens Dazzling brightness designed for use in auditoriums and large venues
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind

Status Monitor



Access the projectors vital information without having to turn the unit on. The new LCD status monitor allows users to check source, resolution, lamp information and network settings.





Seven Optional lenses



The Z Series offers increased placement flexibility, with a 1.6x standard lens. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment. A quick release lever allows for a quick, easy lens exchange. (Lens not included)





Dual Lamp



The Epson Z Series projectors boast a dual lamp system (two 380W lamps) that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life up to 4,000 hours in ECO Mode, up to 3,000 hours in Normal Mode. Replacements are made easy with tool-free and unobstructed access to the rear control panel. In addition, the new Dual Lamp Relay and Single Lamp Relay function allows users to extend the life of their lamp by alternating the lamp in use.





Quiet, Reliable Liquid Cooling System

Connectivity Panel





Specifications



PRODUCT NAME	EB-Z9870UNL
PRODUCT CODE	V11H611953
WHAT'S IN THE BOX
	EB-Z9870UNL Projector,3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Power Cord Clamp, Foot Cover, Manual, Projection Software CDROM. (STD Lens not Included)
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	1.03-inch wide panel with MLA (D8, C2 Fine)
OPTICAL
Zoom	1 - 1.61 (Optical)
Screen Size	60" to 500" [1.99m to 17.17m] (Zoom: Wide) 60" to 500" [3.26m to 27.77m] (Zoom: Tele)
Projection Distance	100" screen 3.37 m - 5.49 m
Throw Ratio	1.57 (Zoom:Wide), 2.56 (Zoom:Tele)
Projection Lens F Number	1.65 - 2.51
Projection Lens Focal Length	36.00mm-57.35mm
Focus Method	Powered
Colour Light Output	8,700 Lumens
White Light Output	8,700 Lumens
Resolution	WUXGA
Native Aspect Ratio	16:10
Contrast Ratio	15,000:1
Lamp Hours	2,500 hours (Normal(5) Std-Lamp x 2) 4,000 hours (ECO Std-Lamp x 2) 1,000 hours (Portrait Lamp x 2)
Lamp Type	380 W UHE x 2 For Std-Lamp 304 W UHE x 2 For Portrait Lamp
Keystone Correction (With Std Lens)	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -60% to +60% (Powered) Horizontal: -18% to +18% (Powered)
Tilt Angle	-3.5 to 3.5 degrees
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DVI-D
Input: SDI	1 x BNC
Input: Audio	-
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Input: HDBaseT	1 x RJ45
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	-
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Wireless LAN	Optional
Split Screen	Yes
Edge Blending	Yes
Curved Screen Projection	Yes
Corner Wall Projection	Yes
Frame Interpolation	Yes
360 Degrees Projection	Yes
Lamp Select	Dual / Single / Lamp 1 / Lamp 2
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington -style lock provision Password protect function Security cable hole
Colour Modes	Dynamic, Presentation, Theatre, Photo, sRGB, DICOM SIM, Multi-Projection
GENERAL
Dimensions D x W x H (Including Feet)	741 534 255 mm
Weight	Approx. 26kg (Including Std Lens)
Lamp Warranty	1 Year or 750 hours*
Projector Warranty	4 Years or 15,000 Hours**
Power Consumption: Lamp on - 2 Lamps	948W
Power Consumption: Standby	0.37W
Noise Level - 2 Lamps	Normal/Eco: 38/35 dB
* Whichever comes first. For more information visit Epson Projector Warranty ** 15,000hrs for 24/7 use
PRODUCT OPTIONS	Item Code	Description
	V12H004S04	Standard Zoom Lens
	V12H004R04	Rear Projection Wide Lens
	V12H004U02	Short Throw Lens
	V12H004M06	Middle Throw Zoom Lens 1
	V12H004M07	Middle Throw Zoom Lens 2
	V12H004L07	Long Throw Zoom Lens
	V13H010L81	Replacement Lamp
	V13H010L83	Portrait Lamp
	V13H134A46	Replacement Filter
	V12H547053	HDBaseT Transmitter
	V12H418P13	Wireless LAN adaptor
	V12H003B26	Telescopic Ceiling Mount
	V12H003B25	Flush Ceiling mount

Epson EB-Z9750UNL

• 3x Brighter Colours, and reliable performance 3LCD, 3-chip technology
• Widescreen performance Native WUXGA (1920 x 1200) resolution supports Full HD for presentations, videos, digital signage and more
• 7,500 Lumens Dazzling brightness designed for use in auditoriums and large venues
• Versatile connectivity Supports the latest connectivity options, including HDBaseT, HDMI, DVI and 3G-SDI
• Dual-lamp design with lamp select/relay function Get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
• Advanced image processing Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Portrait Projection Allows users to turn the projector 90 degrees and use it in "portrait" mode. Great for digital signage, fashion shows, art galleries and museums
• Flexible installation for an immersive experience in any setting Cinema filter, Farojia DCDi Chip, Super Resolution, Frame interpolation
• Seven optional lenses with lens shift Including short, wide, rear and long throw lenses designed with a change-out lever for easy installation
• Status Monitor Access the projectors vital information without having to turn the unit on
• 24/7 Operation With advanced installation flexibility and continuous use, Epsons Installation projectors are suitable for almost any application
• 4 Year Projector Warranty Enjoy peace of mind

Award-winning Faroudja DCDi Cinemafor Advanced Video Quality



The Epson Z Series features a Faroudja DCDi Cinema chipset, a video enhancement technology that produces exceptional image quality without introducing artefacts. Faroudja DCDi (Directional Correlational Deinterlacing) was developed to eliminate jagging, using a unique algorithm. This technology, in combination with decoding, deinterlacing and enhancement technologies, won an Emmy Award from the National Academy of Television Arts and Sciences.



Enhanced Super Resolution Technology for Sharp, Rich Images



Epsons Super Resolution technology makes standard, and high definition content come alive via its mixed colour separation techniques and imaging simulation. It delivers crisp, clear images with super high-quality resolution, and sharpens blurry images that have been enlarged by a general upscaling process.





State-of-the-art FineFrame Interpolation Processing Technology



A movie is a series of still frames, shown in quick succession. Traditional movies are shot at 24 frames per second (fps). However, in some cases, fast-moving objects may have moved too fast to be captured on film, so they appear to jump from one part of the screen to another. This effect is called motion judder. In order to reduce motion judder, Epson has created FineFrame interpolation technology, which looks at the frames before and after an action, and creates an interpolated frame, halfway between two existing frames. As a result, a smoother motion is perceived by the viewer. FineFrame interpolation is most beneficial when viewing content such as action movies and sports videos, which are typically shown in High Definition at 30fps. In this case, multiple frames are interpolated and inserted each second, in order to create a more realistic viewing experience.







Incredible HDBaseT and diverse connectivity



Connect with virtually any system including HDBaseT, 3G-SDI¹, HDMI, DVI-D, VGA, BNC and LAN connectivity. Cutting-edge HDBaseT technology means just ne single CAT-5/6 cable carries Full HD video, audio, network and control commands. And its over 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labor.



3G-SDI not available on the EB-Z9750UNL





360 Degree Projection



The Epson Z Series can be rotated 360 in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.



Edge Blending



Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.





Portrait Projection



The Epson Z Series now supports Portrait Projection, perfect for digital signage, fashion shows, art galleries and museums.





Corner Wall and Curved Surface Projection



Quickly and precisely correct any vertical or horizontial distortion of an image with Epson’s curved surface and corner wall projection. These features allow for greater flexibility when choosing a projection surface. Enhance your viewers experience by projecting your content in a unique environment with ease.
Arc Correction

Brother Ink Cartridge LC233 - Tri Colour Value Pack

This pack contains cyan, magenta and yellow standard yield ink cartridges, each covering up to 550 pages at 5% coverage.

What Does 5% Coverage mean?

‘5% coverage’ is a measure that most printer manufacturers use to calculate the number of pages that can be printed with one cartridge. It means that 5% of the whole page is covered in ink or toner. When doing the calculation, printer manufacturers assume basic type with no bold characters, no graphics, and no pictures.

What does standard yield mean?

The ink or toner cartridge prints a standard number of pages at 5% coverage.

What does high-yield mean?

A high-yield cartridge will print more pages than a standard yield cartridge. Although the initial outlay is higher, the cost per page is lower.

What does super-high-yield mean?

Super-high-yield cartridges give you an even lower cost per page, because they print even more pages.

Epson EB-4955WU

• 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
• Crisp Clear Images Featuring WUXGA resolution.
• Lens Shift Align images easily with horizontal and vertical lens shift.
• Versatile connectivity Easily integrate with any system with HDMI and DisplayPort.
• Convenient Remote Management Remotely monitor and control presentations.
• Epson iProjection Wirelessly display and control content from your iPhone, iPad, iPod touch and Android devices.
• Arc and Point Correction Fine tune image geometry to perfection.
• Passive 3D For stacked 3D applications using polarised passive glasses.

You can create an impressive viewing experience with twice the brightness. Epsons stacked 3-D solution (requires two projectors). Using polarised filters, in combination with low-cost 3-D glasses.





Split Screen



Split Screen allows you to display content from two inputs simultaneously, side by side, on a single screen. With three layout options you can display video and presentation materials, and run video on both screens.

Easy Management®



The EasyMP® Monitor tool makes it easy to monitor and control all networked Epson projectors, set up email notifications, verify and change internal settings, and more. You can also remotely power down your projector(s) to extend the lamp life and save energy.



Schedule function



Save energy using the convenient Schedule function. And, easily control the projector at non-networked venues. The embedded clock inside the projector enables it to do scheduled tasks without having the network standby mode on.



DICOM Simulation Mode



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing and transmitting medical imaging information. DICOM Simulation Mode2 is ideal for viewing grayscale medical images, such as X-rays, for training and educational purposes. It enables users to reproduce images with an advanced grayscale level that simulates DICOM Part 14.





Epson iProjection App



Display and control content from your iPhone, iPad or iPod touch and Android devices with the Epson iProjection App and any nearby wireless or networked Epson projector. This free application allows road warriors to travel light and present from their mobile devices. For teachers, it makes it easy to walk around the class and still be able to share engaging content larger-than-life. The app is easy to use and navigate with intuitive menu options that make it simple to bring your content to the big screen.





Lens shift



 Epson lens shift technology enables outstanding installation flexibility with an incredible range of up to 50 on the vertical axis and up to 10 on the horizontal axis (may vary by model). Users can operate the lens shift functions using the adjustment knobs on the top of the projector.





Centered lens design



Featuring a centered lens design, the Epson 4000 series makes installation easy to plan. Positioning the ceiling mount, screen and projector can be performed individually and independent of one another.



Arc correction



 Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.





Easy maintenance



Offering convenient access to the lamps and filter, the Epson 4000 series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.

Protect your investment – long-life electrostatic air filter



The Epson 4000 series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule3 and can capture particles as small as three microns, due in part to its pleated, expanded design.

Convenient test patterns



Make sure your presentation is setup correctly before you begin. The Epson 4000 Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.





Connectivity Panel





Specifications:

PRODUCT NAME	Epson EB-4955WU
PRODUCT CODE	V11H563153
WHAT'S IN THE BOX
	EB-4955WU Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM.
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.76-inch wide panel with MLA
OPTICAL
Zoom	1 - 1.8(Optical)
Screen Size	50" to 300" [1.35m to 8.36m] (Zoom: Wide) 50" to 300" [2.47m to 15.01m] (Zoom: Tele)
Projection Distance	100" screen 2.75 m - 4.98 m
Throw Ratio	1.26 (Zoom: Wide), 2.30 (Zoom: Tele)
Projection Lens F Number	1.65-2.55
Projection Lens Focal Length	21.28 -37.94mm
Focus Method	Manual
Colour Light Output	4,500 Lumens
White Light Output	4,500 Lumens
Resolution	WUXGA
Native Aspect Ratio	16:10
Contrast Ratio	5,000:1
Lamp Hours	4000 hours (Normal) 5000 hours (ECO)
Lamp Type	280 W UHE
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -50% to +50% Horizontal: -10% to +10%
Tilt Angle	-2.50 to 10 degrees
Colour Reproduction	Up to 1.07 billion colours
Colour Processing	10 bit
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DisplayPort
Input: Audio	3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	1 x Stereo mini-jack
Speaker Output	10W
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Split Screen	Yes
Edge Blending
Arc Correction	Yes
Frame Interpolation
360 Degress Projection
Passive 3D Capable	Yes
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington  style lock provision Padlock & Security cable hole Wireless LAN Lock
Colour Modes	Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM, 3D Presentation, 3D Theatre, 3D Dynamic, 3D Multi-Projection
GENERAL
Dimensions D x W x H	320 x 472 x 134 mm
Weight	6.6kg
Lamp Warranty	1 Year or 750 Hours*
Projector Warranty	3 Years
Power Consumption: Lamp on	388 W
Power Consumption: Standby	0.47 W
Noise Level	Normal/Eco: 38/30 dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V13H010L77	Replacement Lamp
	V13H134A45	Replacement Filter
	V12H418P13	Wireless LAN adaptor
	V12H005M09	Quick Wireless USB Key
	V12H618P01	Polarizers for passive 3D
	V12H485001	Passive Adult 3D Glasses (5 pcs)
	V12H486001	Passive Child 3D Glasses (5 pcs)
	V12H003B22	Ceiling Mount
	V12H003P13	Extension Pole 668-918mm
	V12H003P14	Extension Pole 918-1,168mm
	V12H526040	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions

Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.



Epson EB-4750W

• 3 x Brighter Colours* and reliable performance 3LCD, 3-Chip Technology. Look for both high colour brightness and high white brightness.
• Crisp Clear Images Featuring WXGA resolution.
• Lens Shift Align images easily with horizontal and vertical lens shift.
• Versatile connectivity Easily integrate with any system with HDMI and DisplayPort.
• Convenient Remote Management Remotely monitor and control presentations.
• Epson iProjection Wirelessly display and control content from your iPhone, iPad, iPod touch and Android devices.
• Arc and Point Correction Fine tune image geometry to perfection.



Arc correction



Using arc correction, you can adjust each side of a projected image in an arc or barrel-shaped way, making it easier than ever to get a perfectly rectangular image.





Easy maintenance



Offering convenient access to the lamps and filter, the Epson 4000 series makes maintenance easier than ever, even if the projector is ceiling mounted. The lamp cover is located on the rear side panel and there are no screws, so the lid can be removed without any special tools.



Protect your investment long-life electrostatic air filter



The Epson 4000 series electrostatic filter is designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. It has a recommended 10,000- hour filter cleaning schedule³ and can capture particles as small as three microns, due in part to its pleated, expanded design.



Convenient test patterns



Make sure your presentation is setup correctly before you begin. The Epson 4000 Series features nine test patterns including linearity, colour reproduction, bleeding and tone production. It even detects distortion.





Connectivity Panel





Specifications



PRODUCT NAME	Epson EB-4750W
PRODUCT CODE	V11H544053
WHAT'S IN THE BOX
	EB-4750W Projector, 3m Power Cable, 1.8m Computer Cable, Remote Control, 2 x AA Batteries, HDMI Cable Clamp, Cable Cover, Manual, Projection Software CDROM.
TECHNOLOGY
Projection System	RGB liquid crystal shutter projection system
LCD Panel	0.59-inch wide panel with MLA
OPTICAL
Zoom	1 - 2.0 (Optical)
Screen Size	30" to 300" [0.79m to 8.32m] (Zoom: Wide) 30" to 300" [1.65m to 16.85m] (Zoom: Tele)
Projection Distance	100" screen 2.74 m - 5.59 m
Throw Ratio	1.27 (Zoom: Wide), 2.59 (Zoom: Tele)
Projection Lens F Number	1.50-2.15
Projection Lens Focal Length	16.72mm -33.47mm
Focus Method	Manual
Colour Light Output	4,200 Lumens
White Light Output	4,200 Lumens
Resolution	WXGA
Native Aspect Ratio	16:10
Contrast Ratio	5,000:1
Lamp Hours	4000 hours (Normal) 5000 hours (ECO)
Lamp Type	260 W UHE
Keystone Correction	Vertical: -30 to +30 degrees Horizontal: -30 to +30 degrees
Lens Shift	Vertical: -70% to +70% Horizontal: -38% to +38%
Tilt Angle	-2.50 to 10 degrees
Colour Reproduction	Up to 1.07 billion colours
Colour Processing	10 bit
CONNECTIVITY
Input: Video	1 x RCA (Yellow), 1 x S-Video, 1 x 5BNC
Input: Computer	1x D-sub 15-Pin (RGB)
Input: Digital	1 x HDMI, 1 x DisplayPort
Input: Audio	3 x Stereo mini-jack, 1 x RCA (Red/White), 1 x HDMI, 1 x DisplayPort
Input: Control	1 x RS232c, 1 x Stereo mini-jack (Remote)
Input: Network I/O	1 x RJ45, 1 x USB Type A (for optional Wireless LAN unit)
Wireless Connectivity	Optional
Output: Video	1 x Monitor Out (via D-sub 15-pin)
Output: Audio	1 x Stereo mini-jack
Speaker Output	10W
ADVANCED FEATURES
EasyMP Network & Control	Yes
EasyMP Network Projection	Yes
Split Screen	Yes
Edge Blending
Arc Correction	Yes
Frame Interpolation
360 Degress Projection
Passive 3D Capable
Instant Off	Yes
Direct Power On/Off	Yes
Security	Kensington  style lock provision Padlock & Security cable hole Wireless LAN Lock
Colour Modes	Photo, Presentation, Theatre Dynamic, sRGB, Multi-Projection, DICOM SIM
GENERAL
Dimensions D x W x H	320 x 472 x 134 mm
Weight	6.5kg
Lamp Warranty	1 Year or 750 Hours*
Projector Warranty	3 Years
Power Consumption: Lamp on	388 W
Power Consumption: Standby	0.39 W
Noise Level	Normal/Eco: 38/30 dB
* Whichever comes first. For more information visit Epson Projector Warranty
PRODUCT OPTIONS	Item Code	Description
	V13H010L77	Replacement Lamp
	V13H134A45	Replacement Filter
	V12H418P13	Wireless LAN adaptor
	V12H005M09	Quick Wireless USB Key
	V12H003B22	Ceiling Mount
	V12H003P13	Extension Pole 668-918mm
	V12H003P14	Extension Pole 918-1,168mm
	V12H526040	Flush Ceiling mount
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
