04/11
|
Epson EB-580 Ultra Short Throw LCD Projector - XGA, 3200 Lumens, 10,000;1, 4000Hrs, VGA, RCA, 2xHDMI, RS232C, USB, 1xRJ45, Speakers Epson EB-580
Ultra Short Throw Projectors
The ideal ultra-short-throw XGA projector for classroom collaboration.
The EB-580 ultra-short-throw projector takes collaborative learning to a whole new level. Designed for today's BYOD classroom, this XGA performer includes advanced network connectivity and wireless performance, making it easier than ever to share engaging lessons and control the projector remotely. Offering 3x Brighter Colours* than competitive models, Epson 3LCD projectors ensure bright, vivid lessons. Featuring 3200 lumens of colour brightness1 and 3200 lumens of white brightness1, the EB-580 delivers dynamic images that are sure to captivate any classroom. And, it features Moderator software2, so you can easily share students' work from multiple devices, simultaneously.
Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
Moderator feature is part of Epson’s EasyMP Multi PC Projection software.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
KEY FEATURES & BENEFITS
- Brighter images Now with up to 3,200 lumens white brightness and colour brightness.
- Longer lamp life Up to 6,000 hours# lamp life in ECO mode.
- Higher contrast ratio Now with 10,000:1 across the entire range.
- Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android mobile devices.
- Wireless projection Projection function without the wires when used with the optional LAN card (using peer to peer wireless and Epsons EasyMP Network Projection software version 2.81 or later).
- Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
- No driver installation required Installation has never been easier (driver installation is required for Mac).
- Advanced Networking Capability Enables users to monitor, control and present from a remote location.
- Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
- 16W Built-in Speaker Built in audio with the power to fill the room.
Lamp life for the EB-575W and EB-575Wi is up to 10,000 hours (eco mode) and 5,000 hours (normal); lamp life for the EB-580, EB-585W, EB-585Wi and EB-595Wi is up to 6,000 hours (eco mode) and 4,000 hours (normal). Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp Brightness decreases over time.
Interactive Ultra Short Throw Models - Range at the glance
| Model |
EB-580
|
EB-580e
|
EB-575W
|
EB-575We
|
EB-585W
|
EB-585We
|
| White Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Colour Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Display Technology |
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
| Native Resolution |
XGA
|
XGA
|
WXGA
|
WXGA
|
WXGA
|
WXGA
|
| Aspect Ratio |
4:3
|
4:3
|
16:10
|
16:10
|
16:10
|
16:10
|
| Contrast Ratio |
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
| Network Functionality |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Wireless LAN |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
| HDMI Connectivity |
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
| Speakers |
16W
|
16W
|
16W
|
16W
|
16W
|
16W
|
| Integrated Mount Included |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Zoom Ratio |
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
| Education Model |
-
|
YES
|
-
|
YES
|
-
|
YES
|
| Low Cost Replacement Lamp |
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
| Lamp Hours |
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
Basic Functions
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.
Up to 3x Brighter with Epson Projectors*
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Higher Brightness
With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.

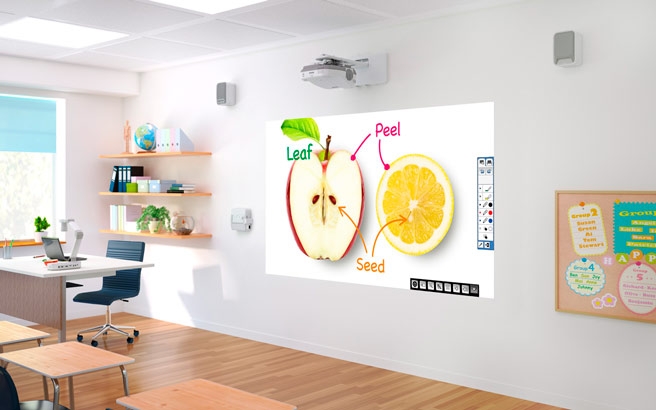

Ultra Short Throw Benefits
Bigger Image
The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.

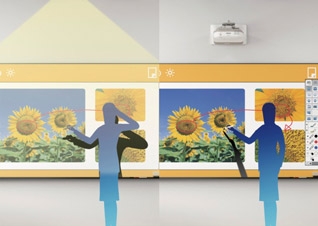

Significantly Reduced Shadow Interference
You no longer need to worry about obscuring the information on screen with shadows cast by your body.

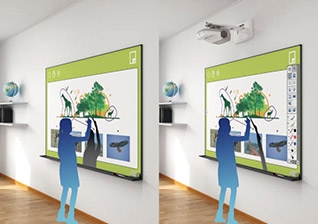

Non-Blinding
Even when you stand directly in front of the screen, the light rarely reaches your face. With no glare in your eyes, you'll find it far more pleasant and stress-free to be out front when using the projector.

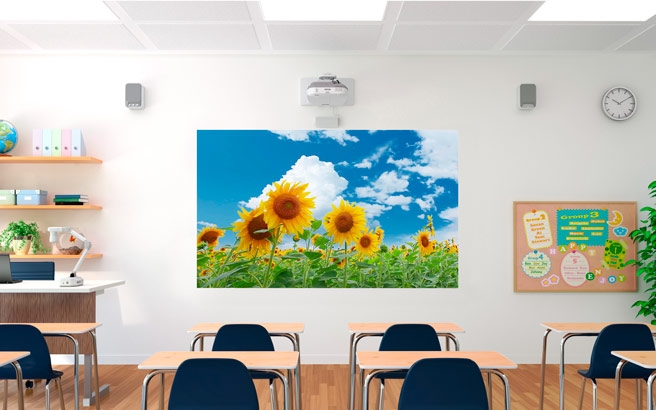

Classroom Friendly Design
These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.

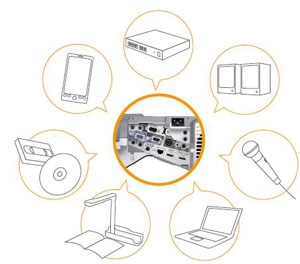

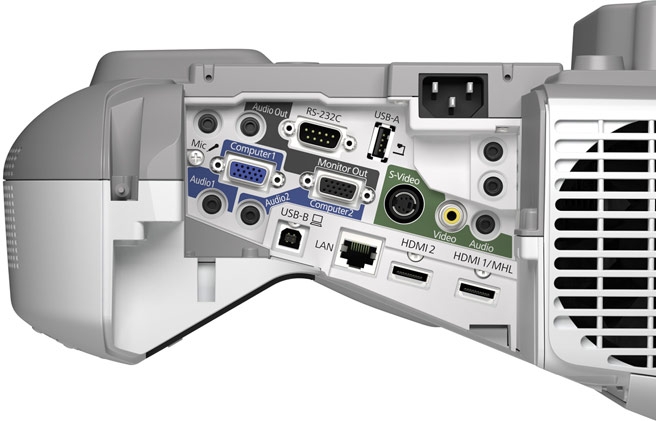

Wide Ranging Interface
Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.
One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.
Mobile Device Compatibility
Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.
Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.
EASY INSTALLATION AND MAINTENANCE

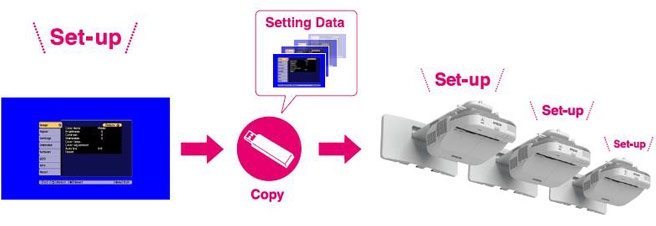

Cloning Function
When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.

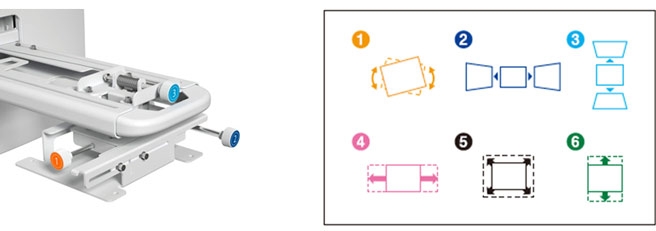

Easy Installation and Adjustment
Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.

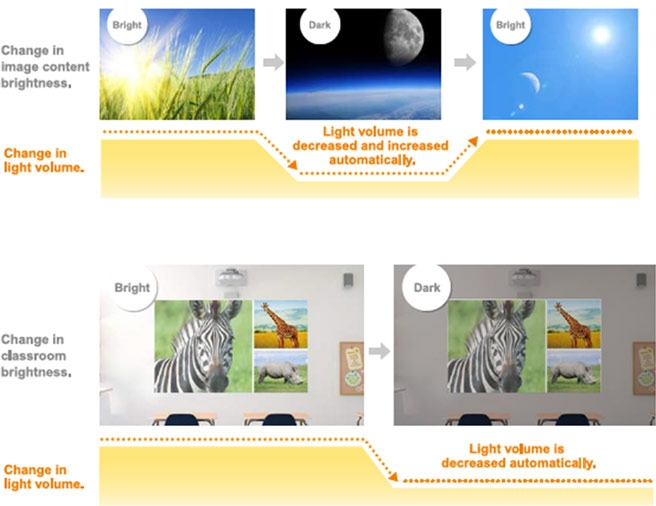

Lamp Regulator Function
This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.

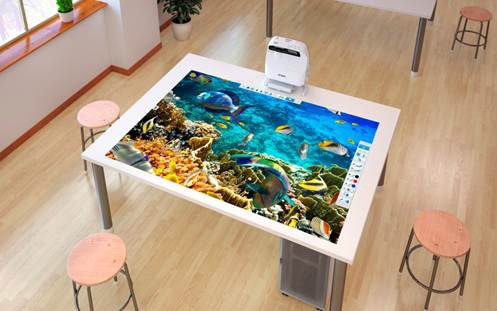

Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.
Longer Lamp Life
The long 10,000 hours lamp life# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.

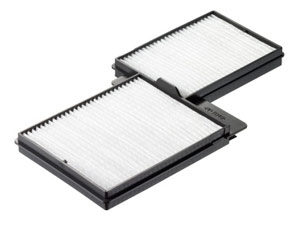

Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.
Specifications:
| PRODUCT NAME |
Epson EB-580 |
| PRODUCT CODE |
V11H604053 |
|
TECHNOLOGY
|
|
| Projection Technology |
Epson 3LCD, 3-chip technology |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.59-inch with MLA |
|
OPTICAL
|
|
| Zoom Ratio |
1.0 - 1.35 (Digital Zoom) |
| Screen Size (Projection Distance) |
55.9" to 93.2" [34.8 to 59.7cm]
69.3" screen 43.8 cm |
| Throw Ratio |
0.31 (Zoom:Wide)
0.42 (Zoom:Tele) |
| Projection Lens Type |
No Optical Zoom / Focus (Manual) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
7.2:-1 |
|
|
|
| White Light Output |
3,200 lumens |
| Colour Light Output |
3,200 lumens |
| Resolution |
XGA |
| Native Aspect Ratio |
4:3 |
| Contrast Ratio |
10,000:1 |
| Keystone Correction |
Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
|
CONNECTIVITY
|
|
| Video I/O - Input |
Analog: 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
1x Min DIN 4pin S-Video |
| Video I/O - Output |
Analog: 1x RGB D-sub 15pin
*In common with Computer 2 input.
Output signal: Computer 1 only |
| Digital Input |
Digital: 2x HDMI (1 supports MHL) |
| Audio I/O - Input |
3x Stereo mini |
| Audio I/O - Output |
1x Stereo mini |
| Mic I/O - Input |
1x Stereo mini |
| Control I/O |
1x RS-232C D-sub 9pin |
| USB I/O |
1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
| Network I/O: |
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP07 LAN unit) |
| Wireless Connectivity |
Optional ELPAP07 Wireless LAN unit |
| Speaker Output |
Monaural: 16 W x 1 |
|
ADVANCED FEATURES
|
|
| EasyMP Network Projector control and projector management via network |
Yes |
| EasyMP Network Projection |
Yes |
| EasyMP Network Multi PC Projection |
Yes |
| Message Broadcasting |
Yes |
| Firmware update |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD settings |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection |
Yes |
| Wireless LAN Security |
WPA/WPA2-Personal (with optional Wireless LAN Unit) |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Security |
* Kensington - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo) |
| Colour Modes |
Dynamic, Theatre |
| Integrated Mount included |
Yes |
|
GENERAL
|
|
| Dimensions (excl feet) WxDxH |
367 x 375 x 155mm |
| Weight |
5.3kg |
| Lamp Warranty |
1 Year (or 750 hours)* |
| Projector Warranty |
3 Years |
| Lamp Hours |
4,000 hours (Normal)
6,000 hours (ECO) |
| Lamp Type |
245W UHE |
| Power Consumption: Lamp On |
358W (Normal)
270W (ECO) |
| Power Consumption: Networked Standby |
4.3W |
| Power Consumption: Energy Saving |
0.44W |
| Air Filter maintenance cycle |
up to 5000 hours |
| Fan Noise Level |
Power consumption Normal: 35dB
Power consumption ECO: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
|
WHAT'S IN THE BOX
|
|
| Power Cable |
Yes 5M |
| Password Protect sticker |
YES |
| Remote Control |
YES |
| Battery for Remote Control |
AA x 2 |
| Setting Plate |
YES |
| |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L80 |
ELPLP80 Lamp 245W UHE for EB-580/580e/585W/585We/585Wi/595Wi/595Wie |
| |
V13H134A40 |
ELPAF40 Air filter |
| |
V12H003P13 |
ELPFP13 Extension pole/suspension adaptor |
| |
V12H003P14 |
ELPFP14 Extension pole/suspension adaptor |
| |
V12H516040 |
ELPMB29 Table mount |
| |
V12H525001 |
ELPKC31 USB extension cable |
| |
V12H418P13 |
ELPAP07 USB Wireless LAN adaptor |
| |
V12H005M09 |
ELPAP09 USB Quick wireless USB key |
| |
|
|
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.
Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
|
|
|
|
04/11
|
Epson EB-575We Ultra Short Throw LCD Projector - WXGA, 2700 Lumens, 10,000;1, 5000Hrs, VGA, RCA, S-Video, 2xHDMI, RS232C, USB, Speakers Epson EB-575We
Ultra Short Throw Projectors
The perfect ultra short-throw widescreen projector for the BYOD classroom
Overview
The EB-575We signal a new era in collaborative learning. They are the perfect ultra-short-throw projector for today's BYOD classroom. With brilliant widescreen WXGA resolution, plus advanced network connectivity and wireless performance, these projectors make it easy to share larger-than-life lessons and control the projector remotely. Offering 3x Brighter Colours* than competitive models, Epson EB-575We projectors ensure bright, vivid lessons. Featuring 2700 lumens of colour brightness1 and 2700 lumens of white brightness1, these ultra short throw projectors deliver truly dynamic images. They feature Moderator software2, so you can easily share and compare students' work from multiple devices, simultaneously.
Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
Moderator feature is part of Epson’s EasyMP Multi PC Projection software.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
KEY FEATURES & BENEFITS
- Brighter images Now with up to 2,700 lumens white brightness and colour brightness.
- Longer lamp life Up to 10,000 hours# lamp life in ECO mode.
- Higher contrast ratio Now with 10,000:1 across the entire range.
- Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android mobile devices.
- Wireless projection Projection function without the wires when used with the optional LAN card (using peer to peer wireless and Epsons EasyMP Network Projection software version 2.81 or later).
- Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
- No driver installation required Installation has never been easier (driver installation is required for Mac).
- Advanced Networking Capability Enables users to monitor, control and present from a remote location.
- Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
- 16W Built-in Speaker Built in audio with the power to fill the room.
Lamp life for the EB-575W and EB-575Wi is up to 10,000 hours (eco mode) and 5,000 hours (normal); lamp life for the EB-580, EB-585W, EB-585Wi and EB-595Wi is up to 6,000 hours (eco mode) and 4,000 hours (normal). Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp Brightness decreases over time.
Interactive Ultra Short Throw Models - Range at the glance
| Model |
EB-580
|
EB-580e
|
EB-575W
|
EB-575We
|
EB-585W
|
EB-585We
|
| White Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Colour Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Display Technology |
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
| Native Resolution |
XGA
|
XGA
|
WXGA
|
WXGA
|
WXGA
|
WXGA
|
| Aspect Ratio |
4:3
|
4:3
|
16:10
|
16:10
|
16:10
|
16:10
|
| Contrast Ratio |
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
| Network Functionality |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Wireless LAN |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
| HDMI Connectivity |
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
| Speakers |
16W
|
16W
|
16W
|
16W
|
16W
|
16W
|
| Integrated Mount Included |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Zoom Ratio |
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
| Education Model |
-
|
YES
|
-
|
YES
|
-
|
YES
|
| Low Cost Replacement Lamp |
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
| Lamp Hours |
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
Basic Functions
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour – red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.
Up to 3x Brighter with Epson Projectors
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Higher Brightness
With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.
Ultra Short Throw Benefits
Bigger Image
The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.
Significantly Reduced Shadow Interference
You no longer need to worry about obscuring the information on screen with shadows cast by your body.
Non-Blinding
Even when you stand directly in front of the screen, the light rarely reaches your face. With no glare in your eyes, you'll find it far more pleasant and stress-free to be out front when using the projector.
Classroom Friendly Design
These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.
Wide Ranging Interface
Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.
One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.
Mobile Device Compatibility
Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.
Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.
EASY INSTALLATION AND MAINTENANCE
Cloning Function
When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.
Easy Installation and Adjustment
Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.
Lamp Regulator Function
This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.
Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.
Longer Lamp Life
The long 10,000 hours lamp life# saves time and money by reducing the frequency of costly lamp replacements. When you do need to replace the lamp, it will only cost $79 inc GST.
Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.
Specifications:
| PRODUCT NAME |
Epson EB-575We |
| PRODUCT CODE |
V11H603153 |
| TECHNOLOGY |
|
| Projection Technology |
Epson 3LCD, 3-chip technology |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.59-inch with MLA |
| OPTICAL |
|
| Zoom Ratio |
1.0 - 1.35 (Digital Zoom) |
| Screen Size (Projection Distance) |
60" to 100" [34.8 to 59.7cm]
74.3" screen 43.8 cm |
| Throw Ratio |
0.27 (Zoom:Wide)
0.37 (Zoom:Tele) |
| Projection Lens Type |
No Optical Zoom / Focus (Manual) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
6.0:-1 |
| IMAGE |
|
| White Light Output |
2,700 lumens |
| Colour Light Output |
2,700 lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Keystone Correction |
Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
| CONNECTIVITY |
|
| Video I/O - Input |
Analog: 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
1x Min DIN 4pin S-Video |
| Video I/O - Output |
Analog: 1x RGB D-sub 15pin
*In common with Computer 2 input.
Output signal: Computer 1 only |
| Digital Input |
Digital: 2x HDMI (1 supports MHL) |
| Audio I/O - Input |
3x Stereo mini |
| Audio I/O - Output |
1x Stereo mini |
| Mic I/O - Input |
1x Stereo mini |
| Control I/O |
1x RS-232C D-sub 9pin |
| USB I/O |
1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
| Network I/O: |
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP07 LAN unit) |
| Wireless Connectivity |
Optional ELPAP07 Wireless LAN unit |
| Speaker Output |
Monaural: 16 W x 1 |
| ADVANCED FEATURES |
|
| EasyMP Network Projector control and projector management via network |
Yes |
| EasyMP Network Projection |
Yes |
| EasyMP Network Multi PC Projection |
Yes |
| Message Broadcasting |
Yes |
| Firmware update |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD settings |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection |
Yes |
| Wireless LAN Security |
WPA/WPA2-Personal (with optional Wireless LAN Unit) |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Security |
* Kensington - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo) |
| Colour Modes |
Dynamic, Theatre |
| Integrated Mount included |
Yes |
| GENERAL |
|
| Dimensions (excl feet) WxDxH |
367 x 375 x 155mm |
| Weight |
5.3kg |
| Lamp Warranty |
1 Year (or 750 hours)* |
| Projector Warranty |
3 Years |
| Lamp Hours |
5,000 hours (Normal)
10,000 hours (ECO) |
| Lamp Type |
215W UHE |
| Power Consumption: Lamp On |
318W (Normal)
230W (ECO) |
| Power Consumption: Networked Standby |
4.3W |
| Power Consumption: Energy Saving |
0.44W |
| Air Filter maintenance cycle |
up to 5000 hours |
| Fan Noise Level |
Power consumption Normal: 35dB
Power consumption ECO: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| WHAT'S IN THE BOX |
|
| Power Cable |
Yes 5M |
| Password Protect sticker |
YES |
| Remote Control |
YES |
| Battery for Remote Control |
AA x 2 |
| Setting Plate |
YES |
| |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L79 |
ELPLP79 Lamp 215W UHE for EB-575W/575We/575Wi/575Wie |
| |
V13H134A40 |
ELPAF40 Air filter |
| |
V12H003P13 |
ELPFP13 Extension pole/suspension adaptor |
| |
V12H003P14 |
ELPFP14 Extension pole/suspension adaptor |
| |
V12H516040 |
ELPMB29 Table mount |
| |
V12H525001 |
ELPKC31 USB extension cable |
| |
V12H418P13 |
ELPAP07 USB Wireless LAN adaptor |
| |
V12H005M09 |
ELPAP09 USB Quick wireless USB key |
|
|
|
|
04/11
|
Epson EB-575W Ultra Short Throw LCD Projector - WXGA, 2700 Lumens, 10,000;1, 5000Hrs, VGA, RCA, S-Video, 2xHDMI, RS232C, USB, Speakers Epson EB-575W
Ultra Short Throw Projectors
The perfect ultra short-throw widescreen projector for the BYOD classroom
The EB-575W signal a new era in collaborative learning. They are the perfect ultra-short-throw projector for today's BYOD classroom. With brilliant widescreen WXGA resolution, plus advanced network connectivity and wireless performance, these projectors make it easy to share larger-than-life lessons and control the projector remotely. Offering 3x Brighter Colours* than competitive models, Epson EB-575W projectors ensure bright, vivid lessons. Featuring 2700 lumens of colour brightness1 and 2700 lumens of white brightness1, these ultra short throw projectors deliver truly dynamic images. They feature Moderator software2, so you can easily share and compare students' work from multiple devices, simultaneously.
Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
Moderator feature is part of Epsons EasyMP Multi PC Projection software.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
KEY FEATURES & BENEFITS
- Brighter images Now with up to 2,700 lumens white brightness and colour brightness.
- Longer lamp life Up to 10,000 hours# lamp life in ECO mode.
- Higher contrast ratio Now with 10,000:1 across the entire range.
- Digital connectivity 2x HDMI ports for digital connections. 1 port supports MHL (Mobile High Definition Link) for mirroring connectivity with Android mobile devices.
- Wireless projection Projection function without the wires when used with the optional LAN card (using peer to peer wireless and Epsons EasyMP Network Projection software version 2.81 or later).
- Projector control using Multi-PC projection software with Moderator function Allows up to 50 devices to connect to the projector. Now features a Moderator function for managing and controlling the images displayed on the screen (up to 4).
- No driver installation required Installation has never been easier (driver installation is required for Mac).
- Advanced Networking Capability Enables users to monitor, control and present from a remote location.
- Low cost Epson Lamp Incredibly low price of only $79 RRP inc GST.
- 16W Built-in Speaker Built in audio with the power to fill the room.
Lamp life for the EB-575W and EB-575Wi is up to 10,000 hours (eco mode) and 5,000 hours (normal); lamp life for the EB-580, EB-585W, EB-585Wi and EB-595Wi is up to 6,000 hours (eco mode) and 4,000 hours (normal). Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp Brightness decreases over time.
Interactive Ultra Short Throw Models - Range at the glance
| Model |
EB-580
|
EB-580e
|
EB-575W
|
EB-575We
|
EB-585W
|
EB-585We
|
| White Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Colour Light Output |
3,200 lumens
|
3,200 lumens
|
2,700 lumens
|
2,700 lumens
|
3,300 lumens
|
3,300 lumens
|
| Display Technology |
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
3LCD
|
| Native Resolution |
XGA
|
XGA
|
WXGA
|
WXGA
|
WXGA
|
WXGA
|
| Aspect Ratio |
4:3
|
4:3
|
16:10
|
16:10
|
16:10
|
16:10
|
| Contrast Ratio |
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
10,000:1
|
| Network Functionality |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Wireless LAN |
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
Optional
|
| HDMI Connectivity |
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
x2 (x1 supports MHL)
|
| Speakers |
16W
|
16W
|
16W
|
16W
|
16W
|
16W
|
| Integrated Mount Included |
YES
|
YES
|
YES
|
YES
|
YES
|
YES
|
| Zoom Ratio |
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
1.35x (Digital)
|
| Education Model |
-
|
YES
|
-
|
YES
|
-
|
YES
|
| Low Cost Replacement Lamp |
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
YES ($79 RRP)
|
| Lamp Hours |
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
5,000 (Normal), 10,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
4,000 (Normal), 6,000 (ECO)
|
3LCD Technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic imagery and video all delivered with 3LCD's true-to-life colour.
Up to 3x Brighter with Epson Projectors
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a tradeoff between white and colour brightness.
All Epson projectors list both White Brightness and Colour Brightness specifications, and all have high Colour Brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors*. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors*.
Compared to leading 1-chip DLP business and education projectors based on NPD data, July 2011 through June 2012. Colour brightness (colour light output) measured in accordance with IDMS 15.4. Colour brightness will vary depending on usage conditions.
Higher Brightness
With brightness up to 3300 lumens (selected models), the screen is easily viewed from anywhere in the classroom, even without dimming the lights.
Ultra Short Throw Benefits
Bigger Image
The ultra-short throw allows the projector to be positioned closer to the screen for reduced shadowing. This model can fill an 80-inch screen from just 47cm away.
Significantly Reduced Shadow Interference
You no longer need to worry about obscuring the information on screen with shadows cast by your body.
Non-Blinding
Even when you stand directly in front of the screen, the light rarely reaches your face. With no glare in your eyes, you'll find it far more pleasant and stress-free to be out front when using the projector.
Classroom Friendly Design
These Ultra Short Throw projectors are designed to blend in with office or classroom surroundings, even when wall mounted. The setting plate and cable cover keep cables out of sight.
Wide Ranging Interface
Not only does the wide-ranging interface correspond with conventional analogue sources, it is compatible with two types of HDMI sources as well for digital connections.
One of the HDMI input terminals is MHL (Mobile High Definition Link) certified for mirroring of Android and other mobile devices.
Mobile Device Compatibility
Using the optional wireless card in conjunction with Epson's iProjection app, you can also display and control content from your iPad, iPhone, iPod and Android devices.
Find out how to set up your Epson iProjection app and learn more about your projector and device compatibility, visit Epson.com.au/iprojection.
EASY INSTALLATION AND MAINTENANCE
Cloning Function
When dealing with multiple projectors, it is now possible to copy the OSD menu settings for things like user logos or colour modes and transfer the settings to multiple machines via USB/network. This function will help reduce set-up and installation time.
Easy Installation and Adjustment
Epson's original mounting plate has been re-designed for improved installation and set-up. For fine adjustment, all six axes can be individually corrected using the adjustment dials on the plate. Improvements on the mounting plate include larger cable cutouts, center line indicator and ruler on both sides of the mounting arm.
Lamp Regulator Function
This newly added function automatically adjusts image brightness according to ambient light levels and image content. This feature helps reduce the load on the lamp and conserves electricity.
Table Top Projection
These projectors can also project vertically downward, enabling users to transform any table top into a viewing surface. By utilising the optional ELP-MB29 table mount, an ordinary table becomes an exciting surface.
Longer Lamp Life
The long 10,000 hours lamp life# saves time and money by reducing the frequency of costly lamp replacements.
Periodic cleaning allows Epson projectors to be used for much longer intervals. The maintenance cycle for the air filter is approximately 5000 hours.
Specifications:
| PRODUCT NAME |
Epson EB-575W |
| PRODUCT CODE |
V11H603053 |
| TECHNOLOGY |
|
| Projection Technology |
Epson 3LCD, 3-chip technology |
| Projection System |
RGB liquid crystal shutter projection system |
| LCD Panel |
0.59-inch with MLA |
| OPTICAL |
|
| Zoom Ratio |
1.0 - 1.35 (Digital Zoom) |
| Screen Size (Projection Distance) |
60" to 100" [34.8 to 59.7cm]
74.3" screen 43.8 cm |
| Throw Ratio |
0.27 (Zoom:Wide)
0.37 (Zoom:Tele) |
| Projection Lens Type |
No Optical Zoom / Focus (Manual) |
| Projection Lens F Number |
1.80 |
| Projection Lens Focal Length |
3.71mm |
| Focus Method |
Manual Focus |
| Offset |
6.0:-1 |
| IMAGE |
|
| White Light Output |
2,700 lumens |
| Colour Light Output |
2,700 lumens |
| Resolution |
WXGA |
| Native Aspect Ratio |
16:10 |
| Contrast Ratio |
10,000:1 |
| Keystone Correction |
Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees |
| Colour Reproduction |
Up to 1.07 billion colours |
| Colour Processing |
10 bit |
| CONNECTIVITY |
|
| Video I/O - Input |
Analog: 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
1x Min DIN 4pin S-Video |
| Video I/O - Output |
Analog: 1x RGB D-sub 15pin
*In common with Computer 2 input.
Output signal: Computer 1 only |
| Digital Input |
Digital: 2x HDMI (1 supports MHL) |
| Audio I/O - Input |
3x Stereo mini |
| Audio I/O - Output |
1x Stereo mini |
| Mic I/O - Input |
1x Stereo mini |
| Control I/O |
1x RS-232C D-sub 9pin |
| USB I/O |
1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings) |
| Network I/O: |
1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP07 LAN unit) |
| Wireless Connectivity |
Optional ELPAP07 Wireless LAN unit |
| Speaker Output |
Monaural: 16 W x 1 |
| ADVANCED FEATURES |
|
| EasyMP Network Projector control and projector management via network |
Yes |
| EasyMP Network Projection |
Yes |
| EasyMP Network Multi PC Projection |
Yes |
| Message Broadcasting |
Yes |
| Firmware update |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Copy OSD settings |
Network via LAN cable, USB A via USB thumb drive, USB B via USB cable |
| Quick Wireless Connection |
Yes |
| Wireless LAN Security |
WPA/WPA2-Personal (with optional Wireless LAN Unit) |
| Instant Off |
Yes |
| Direct Power On |
Yes |
| Security |
* Kensington - lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo) |
| Colour Modes |
Dynamic, Theatre |
| Integrated Mount included |
Yes |
| GENERAL |
|
| Dimensions (excl feet) WxDxH |
367 x 375 x 155mm |
| Weight |
5.3kg |
| Lamp Warranty |
1 Year (or 750 hours)* |
| Projector Warranty |
3 Years |
| Lamp Hours |
5,000 hours (Normal)
10,000 hours (ECO) |
| Lamp Type |
215W UHE |
| Power Consumption: Lamp On |
318W (Normal)
230W (ECO) |
| Power Consumption: Networked Standby |
4.3W |
| Power Consumption: Energy Saving |
0.44W |
| Air Filter maintenance cycle |
up to 5000 hours |
| Fan Noise Level |
Power consumption Normal: 35dB
Power consumption ECO: 28dB |
| |
| * Whichever comes first. For more information visit Epson Projector Warranty |
| WHAT'S IN THE BOX |
|
| Power Cable |
Yes 5M |
| Password Protect sticker |
YES |
| Remote Control |
YES |
| Battery for Remote Control |
AA x 2 |
| Setting Plate |
YES |
| |
| PRODUCT OPTIONS |
Item Code |
Description |
| |
V13H010L79 |
ELPLP79 Lamp 215W UHE for EB-575W/575We/575Wi/575Wie |
| |
V13H134A40 |
ELPAF40 Air filter |
| |
V12H003P13 |
ELPFP13 Extension pole/suspension adaptor |
| |
V12H003P14 |
ELPFP14 Extension pole/suspension adaptor |
| |
V12H516040 |
ELPMB29 Table mount |
| |
V12H525001 |
ELPKC31 USB extension cable |
| |
V12H418P13 |
ELPAP07 USB Wireless LAN adaptor |
| |
V12H005M09 |
ELPAP09 USB Quick wireless USB key |
| |
|
|
| Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice. |
|
|
|
|
04/11
|
ACTi B41 5MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, 12x Zoom Lens - White B41 5MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, 12x Zoom lens
ACTi B41 5MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, 12x Zoom lens 5MP Zoom Bullet with D/N, Adaptive IR, Basic WDR, 12x Zoom lens, f5.2-62.4mm/F1.8-3.0, DC iris, H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10 (metal casing) , DI/DO
- 5 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- 12x Zoom Lens with f5.2-62.4mm/F1.8-3.0, DC iris, Auto Focus
- Basic WDR (69 dB)
- 30 fps at 1920 x 1080
- Weatherproof (IP66) and Vandal Proof Metal Casing (IK10)
|
|
|
|
04/11
|
ACTi E72A 3MP Outdoor Dome with D/N, Adaptive IR, Basic WDR, Fixed lens - White E72A - 3MP Outdoor Dome with D/N, Adaptive IR, Basic WDR, Fixed lens
E72A 3MP Outdoor Dome with D/N, Adaptive IR, Basic WDR, Fixed lens 3MP Outdoor Dome with D/N, Adaptive IR, Basic WDR, Fixed lens, f2.93mm/F2.0, H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP67, IK10, DI/DO
Main Features
- 3 Megapixel with 1080p
- Day & Night with Adaptive IR LED
- Wide Angle Fixed Lens with f2.93mm/ F2.0
- Basic WDR (74 dB)
- 30 fps at 1920 x 1080
- Wide Angle (83.3°)
- Weatherproof (IP67) and Vandal Proof (IK10)
|
|
|
|
04/11
|
Panasonic HX-WA30 Active HD Camcorder - Blue
- Built-In 65MB Memory, SD/SDHC/SDXC Memory Card Slot, HD 1080p, 5x Optical Zoom, 2.6"Wide LCD, Active Image Stabilizer, 10M Waterproof, 1.5M Shockproof HX-WA30
Active HD Camcorder
- 10m Waterproof, 1.5m Shockproof, -10C Freezeproof and Dustproof
- Slow Motion Video in HD
- Easy Live View Control and Sharing with Built-in Wi-Fi
- Creative Control Featuring 12 Shooting Modes
- Full-HD Video Recording and 16 Megapixels Still Picture Recording
- Intelligent 18x Zoom with New Active Image Stabilizer
Overview
Active HD Camcorder HX-WA30 - Get Active with Quad Proof. Tough Style Camcorder with Built-in Wi-Fi
The HX-WA30 features quad proof tough design. Waterproof evolved to 10m to allow you to shoot scenes under deep water while diving. 1.5m shockproof design prevents damage even when the camcorder accidentally falls from a pocket or bag. -10C freezeproof design allows active shooting during winter sports such as skiing and snowboarding. Dustproof design lets you shoot safely in sandy or dusty environments.
Impressive slow motion video is crisp and clear in 1280 x 720 HD quality at 120 fps. In addition, 640 x 360 at 240fps, and 320 x 180 at 480 fps shooting are also supported.
Installation of the "Panasonic Image App" allows the users to operate zoom in/out, shutter ON/OFF and other functions from a distance while watching the results in live view on a smartphone or tablet. Recorded data can be played on a smartphone or tablet and the users can also save and easily share them on SNS with drag & drop operation. Playback of photos or videos is easy on a DLNA-compatible TV. * DLNA wireless playback is not available depending on the Recording Mode. * Compatibility may vary depending on the TV.
Creative Control comprises 12 filters in all -- Miniature Effect, One Point Color, Old Movie, Time Lapse Rec, Ghost Effect, Fish-eye Effect, HDR Paint, Soft Skin, Monochrome, Sepia, Vivid, and Soft -- for highly expressive video and still images. Recorded data can also be retouched.* * Retouching can be used with eight types: One Point Color, Old Movie, Fisheye Effect, Soft Skin, Monochrome, Sepia, Vivid and Soft.
Shooting far away subjects is easy with the Optical 5x Zoom and Intelligent 18x Zoom. And the correction angle has been tripled* for the New Active Image Stabilizer, for dynamic zooming while on the move, and beautiful images without blurring. * Compared to the HX-WA20.
Specifications:
SENSOR SECTION
|
| Image Sensor |
1/2.33-type MOS Sensor |
| Total Pixels |
Approx. 16.4 megapixels |
| Effective Pixels |
| Motion Image |
8.29 megapixels [16:9] / 9.81 megapixels [4:3] |
| Still Image |
8.37 megapixels [16:9] / 9.89 megapixels [4:3] |
LENS SECTION
|
| Lens Brand |
- |
| F Value |
F2.8 (WIDE) / F3.9 (TELE) |
| Optical Zoom |
5x |
| Focal Length |
4.0 - 20.0mm |
| 35 mm Film Camera Equivalent |
| Motion Image |
[120fps / 60fps / 30fps] 28.0 - 280.0mm [16:9]*1 / [240fps] 28.1 - 140.5mm [16:9]*1 / [480fps] 28.3 - 141.5mm [16:9]*1 |
| Still Image |
28.0 - 140.0mm [16:9] |
| Filter Diameter |
- |
CAMERA SECTION
|
| Standard Illumination |
1400 lx |
| Minimum Illumination |
6 lx (Scene Mode OFF 1/30), 2 lx (Scene Mode Low Light 1/15) |
| Image Stabilizer |
Active Image Stabilizer |
| Focus |
Auto / Munual |
| White Balance |
Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set |
| Shutter Speed |
| Motion Image |
1/30 - 1/10000 / Low Light Mode: 1/15 - 1/10000 |
| Still Image |
1/2 - 1/1000 |
| Iris |
Auto / Manual |
| Zoom |
| Optical Zoom |
5x |
| W-Range Zoom / Extra Zoom / Intelligent Zoom (Only for Motion Image) |
Extra Zoom: 10x (Still Image at 0.3 M / 2M) , Intelligent Zoom : 18x |
| Digital Zoom |
120x (Motion Image), 120x (Still Image at 0.3M/2M) |
| Creative Control |
| Motion Image |
Miniature Effect, One Point Color, Old Movie, Time Lapse Rec, Ghost Effect, Fish-eye Effect, Soft Skin, Monochrome, Sepia, Vivid, Soft |
| Still Image |
Miniature Effect, One Point Color, Old Movie, Fish-eye Effect, HDR Paint, Soft Skin, Monochrome, Sepia, Vivid, Soft |
RECORDING SECTION
|
| Media (Motion/ Still Image) |
Built-in memory (65MB), SD/SDHC/SDXC Memory Card |
| Signal System |
1080/60i, 1080/30p, 720/60p, 720/30p, 480/30p, 540/30p, 720/120p*2, 360/240p*2, 180/480p*2 |
| Recording Format |
[MP4] MPEG-4 AVC/H.264 / [iFrame] MPEG-4 AVC/H.264 |
| Recording/ Playback Mode |
1080/60i (17Mbps / VBR), (1920 x 1080) / 1080/30p (15Mbps / VBR), (1920 x 1080) / 720/60p (15Mbps / VBR), (1280 x 720) / 720/30p (9Mbps / VBR), (1280 x 720) / 480/30p (3Mbps / VBR), (640 x 480) / 540/30p (24Mbps / VBR), (960 x 540) / 720/120p (24Mbps / VBR), (1280 x 720) / 360/240p (18Mbps / VBR), (640 x 360) / 180/480p (14Mbps / VBR), (320 x 180) |
| Audio Recording System |
AAC (2ch) |
| Microphone |
2ch stereo |
| Speaker |
Dynamic type |
| Media Remaining Indication |
Yes |
STILL IMAGE SECTION
|
| Recording Format |
JPEG (DCF/Exif2.2) |
| Recording Image Size |
| Still Image |
[16:9] / 12 megapixels (4608 x 2592), 8.3 megapixels (3840 x 2160) / 3.5 megapixels (2560 x 1440), 2 megapixels (1920 x 1080) / [4:3] / 16 megapixels (4608 x 3456), 9.8 megapixels (3616 x 2712) / 5 megapixels (2560 x 1920), 3 megapixels (2048 x 1536) / 0.3 megapixels (640 x 480) / [PANORAMA] / 360 Panorama Horizontal (14144 x 1280) / 180 Panorama Horizontal (7072 x 1280) / 360 Panorama Vertical (1680 x 14144) / 180 Panorama Vertical (1680 x 7072) |
| Simultaneous Recording |
Yes |
| Creating still Image from motion Image |
Yes |
| Flash |
Yes |
| DPOF |
- |
SYSTEM SECTION
|
| Power Supply |
3.7V (Battery) / 5.0V (USB / AC Adaptor) |
| Power Consumption |
Max. 4.8W (Recording) / 4.8W (Charging) |
| Weight |
| Without Battery and SD Card |
Approx. 269g (0.594lb) |
| With Battery and SD Card |
Approx. 290g (0.640lb) |
| Dimensions (W x H x D) |
Approx. 96.6 x 127.2 x 46.2mm (3.81 x 5.01 x 1.82 inch) |
| Interface |
| AV |
Yes |
| HDMI |
Yes (micro) |
| Microphones (stereo mini) |
- |
| Headphone (stereo mini) |
- |
| USB |
2.0 Hi-Speed |
| AV Multi |
- |
| Monitor |
| EVF |
- |
| Monitor (LCD) |
6.72cm (2.6") Wide LCD ( 230,400 dots) |
STANDARD ACCESSORIES
|
| AC Adaptor |
Yes |
| AC Cable |
- |
| DC Cable |
- |
| Rechargeable Battery Pack |
Yes (880 mAh / Lithium-ion) |
| AV multi Cable |
- |
| AV Cable |
Yes |
| IR Remote |
- |
| Shoe adaptor |
- |
| USB Cable |
Yes |
| SD Memory Card |
- |
| Included Software |
HD Writer VE3.0 |
| Lens hood |
- |
| Stylus pen |
- |
Wi-Fi
|
| Standard |
IEEE802.11b/g/n compliant |
| Frequency |
2.4GHz |
OTHERS
|
| Tough Design |
| Waterproof |
33ft / 10 m (IPX8 compliant) |
| Shockproof |
5ft / 1.5m |
| Freezeproof |
14F / -10C |
| Dustproof |
Yes (IP6X compliant) |
| LED Video Light |
- |
| Accessory Shoe |
- |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
Further Specifications
|
| NOTE |
*1 Without active mode / *2 Within 15 sec for recording time |
|
|
|
|
04/11
|
ACTi PMAX-0104 Extension TubePMAX-0104 Extension Tube
|
|
|
|
04/11
|
Panasonic HC-W850MKIT Camcorder - Black
- SD/SDHC/SDXC Memory Card, HD 1080p, 20x Optical Zoom, 3.0" Wide LCD, Image Stabilizer, Remote Shooting, Remote View, Crystal Engine Pro+, Tripod, Battery, Case HC-W850M
HD Camcorder
The Twin Camera Doubles Your Fun
The Twin Camera records two scenes at the same time and doubles your fun. Record your precious memories with the premium picutre quality from the world's first * 4-Drive Lens System and improved Level Shot Function.
Overview
Highlights
The Twin Camera Doubles Your Fun
Which do you want to capture? Lovable animals at play or the ear-to-ear smiles of your children watching them? Until now, you had to choose only one, but the Twin Camera gives you both. And the sub camera can shoot at any angle you want. See how much fun dual shooting can be.
Twin Camera Function
This model Series includes a rotatable sub camera. Parallel 2-system processing with the Crystal Engine PRO+ lets you shoot from the side or rear at the same time.
You can catch a shot of someone at the side, a self portrait, or both a tele and wide-angle shot from the front. The sub camera records into a sub window, which you can move by dragging & dropping.
Premium Picture Quality
An all-new lens, sensor and engine combine for powerful zooming and high sensitivity.
Level Shot Function
The Level Shot function automatically detects and corrects the tilting of captured images. 2014 models use hybrid processing based on an acceleration sensor plus a gyro sensor to improve tilt tracking by 30% for more stable shooting. Images are more level even when shooting in an unstable or awkward position, such as low angle or high angle.
Baby Monitor
Using Wi-Fi, you can check on the baby with a smartphone or tablet in another room. The Push Notification function alerts the smartphone or tablet if a voice sensor detects the baby waking up and making a sound, and you can even speak to the baby over the monitor.
Image Quality
4-Drive Lens System
For the first time* in a consumer video camera, four lens groups are driven to achieve both high picture quality and a compact size.
New BSI Sensor
The effective area is increased* to achieve the high image quality of 6.03M effective pixels.
This gives you bright, beautiful shots even in dark places.
Compared to the HC-V720.
Crystal Engine Pro+
The information processing speed has advanced to about 1.5 times* the conventional speed. New Noise Reduction has reduced noise for crisp, vibrantly colorful Full-HD images.
Intelligent 50x Zoom / Optical 20x Zoom
The wide shooting range expands the breadth of photographic expression, extending from 29.5mm wide angle to Intelligent 50x zooming. This makes it possible to capture everything from panoramic scenery to telephoto images for obtaining dynamic images of subjects at a distance.
5-Axis HYBRID O.I.S.+
HYBRID O.I.S. + uses five-axis correction to thoroughly suppress blurring all the way from wide-angle to powerful zoom shots. This lets you capture crisp, clear images, without blurring, in almost every shooting situation.
High Quality Sound Recording
Wind Shield Zoom Microphone
A special damping material is provided in the space between the mic and the mic net to suppress wind noise to less than 1/3 that of conventional models*, for clear recording always.
Compared to the HC-V720 Series.
High-Quality Audio Parts
Four 6mm-diameter, high-S/N mics and aluminum electrolytic capacitors reduce sound distortion and increase clarity.
Wind Shield Zoom
Microphone
High-S/N mics
Aluminum electrolytic capacitors for audio use
Wi-Fi Functions
Remote Shooting / Remote View
The Panasonic Image App lets you use a smartphone or tablet as a live-view remote controller and operate the camcorder from a distance.
Videos and photos inside the camera can be viewed on a smartphone or tablet, and uploaded to an SNS site.
Home Monitoring
When you are away from home, you can monitor and record there with high-quality live video, and speak to your family or pets using your smartphone or tablet.
Highlight Playback and Easy Share
You can enjoy Highlight Playback with a smartphone or tablet right after shooting. Favorite scenes can be shared on SNS with simple drag and drop operation.
Highlight Photo Collage
Create a highlight photo collage with the best scenes picked out automatically from video
One-Touch Connection with NFC
Without bothersome initial settings, NFC lets you connect a smartphone or tablet to the camcorder in one touch.
Even without NFC, you can use QR code to make Wi-Fi settings quickly and easily.
Real Time Broadcasting with Full HD Recording
You can live-stream events on USTREAM as they are being recorded in Full-HD resolution.
Remote Pan Tilt Cradle (optional)
Connect to a Remote Pan Tilt Cradle (sold separately), and you can make the camera rotate automatically.The motion sensor and face recognition function allow you to automatically capture video of everyone’s faces at parties and other gatherings.The motion sensor even lets you use the camera to watch over pets when you are not home.You can operate directly from the camcorder, or use remote control with the Panasonic Image App.
Full-HD Slow Motion Video
Records Full-HD (1920 x 1080) at 120 fps.* And the Intelligent Frame Creation of the New Crystal Engine Pro+ interpolates to an equivalent of 240 fps,* for smooth slow motion. Switches to slow motion while you touch the icon on the LCD screen during shooting.
For NTSC area:60/120/240fps
For PAL area:50/100/200fps
Night Mode
Infrared rays and IR-LED lighting let you shoot in the dark (0 lux). You can capture nighttime images without waking the baby up.
Creative Control
Filter effects – Miniature Effect, 8mm Movie, Silent Movie and Time Lapse Recording – makes it possible to shoot impressive video recordings that are matched to the shooting situation.
Multi Manual Dial
By pushing or rotating the manual dial, you can easily adjust allocated functions, like focusing and changing the iris.
Adjustable Items
Focus
White Balance Mode
Shutter Speed
Iris
Sharpness
Color Saturation
White Balance Fine
Brightness
iA(intelligent Auto) / iA Plus Mode
This powerful function senses the shooting conditions and automatically makes the settings and activates functions that deliver optimal results. In addition, the iA Plus Mode enables you to adjust exposure compensation and white balance by just pressing the button on the LCD.
Plug and Copy to External HDD
Recorded data can be easily copied to an HDD without having to use a PC.
In the following cases, a USB HDD cannot be used by connecting it to this unit
A USB HDD with a capacity of below 160 GB or above 2 TB
When a USB HDD has two or more partitions
If a USB HDD is in a format other than FAT32
When connected by using a USB hub
When a USB HDD is not a desktop type
Specifications
| SENSOR SECTION |
MAIN SENSOR |
Image Sensor |
1/2.3" NEW BSI MOS Sensor |
| Total Pixels |
12.76 megapixels |
| Effective Pixels (Motion Image) |
6.03 megapixels [16:9] (Level Shot Function OFF or Normal) |
| Effective Pixels (Still Image) |
5.21 megapixels [3:2] |
| Effective Pixels (Still Image) |
6.03 megapixels [16:9] |
| Effective Pixels (Still Image) |
4.72 megapixels [4:3] |
| SUB SENSOR |
Image Sensor |
1/4" MOS Sensor |
| Total Pixels |
5.27 megapixels |
| LENS SECTION |
MAIN LENS |
F Value |
F1.8 (WIDE) / F3.6 (TELE) |
| Optical Zoom |
20 x |
| Focal Length |
4.08 - 81.6 mm |
| 35 mm Film Camera Equivalent (Motion Image) |
29.5 - 612 mm [16:9] (Level Shot Function OFF or Normal) |
| 35 mm Film Camera Equivalent (Still Image) |
33.5 - 669.9 mm [3:2] |
| 35 mm Film Camera Equivalent (Still Image) |
29.5 - 612 mm [16:9] |
| 35 mm Film Camera Equivalent (Still Image) |
36.2 - 724.6 mm [4:3] |
| Filter Diameter |
49 mm |
| Lens Brand |
Panasonic Lens |
| SUB LENS |
F Value |
F2.2 |
| Focal Length |
3.54 mm |
| 35 mm Film Camera Equivalent (Motion Image) |
37.2 mm (Motion picture recording mode) |
| CAMERA SECTION |
Standard Illumination |
1400 lx |
| Minimum Illumination |
2 lx (Scene Mode Low Light 1/30), 1 lx (Night Mode(Colour)), 0 lx (Night Mode(IR)) |
| Focus |
Auto / Manual |
| Zoom |
Intelligent Zoom OFF |
20 x |
| Intelligent Zoom ON |
50 x |
| Digital Zoom |
60 x / 1500 x (The maximum value of zoom magnification) |
| White Balance |
Auto / Indoor1 / Indoor2 / Sunny / Cloudy / White set |
| Shutter Speed |
Motion Image |
[50p / 50i] |
| Motion Image |
Auto Slow Shutter ON : 1/25 - 1/8000 |
| Motion Image |
Auto Slow Shutter OFF : 1/50 - 1/8000 |
| Still Image |
1/2 - 1/2000 |
| Iris |
Auto / Manual |
| Image Stabilizer |
HYBRID O.I.S.+ with Active Mode, O.I.S. Lock, Level Shot Function |
| Creative Control |
Miniature Effect, Silent Movie, 8mm Movie, Time Lapse Rec |
| RECORDING SECTION |
Recording Media |
Built-in memory (16GB), SD/SDHC/SDXC Memory Card |
| Recording Format |
[AVCHD] AVCHD Progressive |
| Recording Format |
[iFrame / MP4] MP4 |
| Compression Method |
MPEG-4 AVC/H.264 |
| Recording/ Playback Mode |
1080/50p (28Mbps / VBR), (1920 x 1080) |
| Recording/ Playback Mode |
PH (24Mbps / VBR), (1920 x 1080) |
| Recording/ Playback Mode |
HA (17Mbps / VBR), (1920 x 1080) |
| Recording/ Playback Mode |
HG (13Mbps / VBR), (1920 x 1080) |
| Recording/ Playback Mode |
HE (5Mbps / VBR), (1920 x 1080) |
| Recording/ Playback Mode |
MP4/1080p(50M) (50Mbps / VBR), (1920 x 1080) |
| Recording/ Playback Mode |
MP4/1080p(28M) (28Mbps / VBR), (1920 x 1080) |
| Recording/ Playback Mode |
MP4/720p(9M) (9Mbps / VBR), (1280 x 720) |
| Recording/ Playback Mode |
iFrame (28Mbps / VBR), (960 x 540) |
| Thumbnail Display |
20 thumbnails/page, 9 thumbnails/page, 1 thumbnail/page |
| Audio Recording System |
1080/50p, PH, HA, HG, HE: Dolby Digital (5.1ch / 2ch) |
| Audio Recording System |
iFrame, MP4: AAC (2ch) |
| Microphone |
5.1ch Surround, Zoom, Focus and Stereo Microphone |
| Speaker |
Dynamic type |
| STILL IMAGE SECTION |
Recording Format |
JPEG (DCF/Exif2.2) |
| Recording Image Size |
Still Image |
[16:9] 24megapixels (6528 x 3672),12.6 megapixels (4736 x 2664), 2.1 megapixels (1920 x 1080) |
| Still Image |
[3:2] 20 megapixels (5472 x3648), 10.6 megapixels (3984 x 2656, 2.0 megapixels (1728 x 1152) |
| Still Image |
[4:3] 18 megapixels (4896 x 3672),8 megapixels (3264 x 2448), 0.3 megapixels (640 x 480) |
| Simultaneous Recording |
[16:9] 12.6 megapixels (4736 x 2664), 2.1 megapixels (1920 x 1080) |
| Flash |
Yes |
| GENERAL SECTION |
Power Supply |
3.6V (Battery) / 5.0V (AC Adaptor) |
| Power Consumption |
Max. 6.7W (Recording) / Max. 7.7W (Charging) |
| Dimensions (W x H x D) |
Approx. 65 x 73 x 139 mm (2.559 x 2.874 x 5.472 inch) |
| Weight (w/o battery and SD card) |
Approx. 361g (0.794 lb) |
| LCD Monitor |
3" Wide LCDmonitor (460,800 dots) |
| View Finder |
- |
| Manual Ring / Dial |
Yes (Dial) |
| Interface |
AV |
Yes |
| HDMI |
Yes (mini) |
| Microphones (stereo mini) |
Yes |
| Headphone (stereo mini) |
Yes |
| USB |
2.0 Hi-Speed |
| USB Charge |
Yes |
| LED Video Light |
Yes |
| Accessory Shoe |
Yes (cold) |
| On-Screen Display Language |
English, Chinese Traditional, Thai, Arabian, Persian, Hindi |
| Wi-Fi |
Standard |
IEEE 802.11b/g/n |
| Frequency |
2.4GHz band |
| NFC |
Yes |
| STANDARD ACCESSORY |
AC Adaptor |
Yes |
| AC Cable |
- |
| DC Cable |
Yes (USB Type) |
| Rechargeable Battery Pack |
Yes (1,940mAh) |
| Battery Charger |
- |
| IR Remote |
- |
| HDMI Cable |
Yes (mini) |
| AV Multi Cable |
- |
| AV Cable |
- |
| Shoe adaptor |
Yes |
| Lens Hood |
- |
| USB Cable |
Yes |
| Lens cap |
- |
| Stylus pen |
- |
| Bandled Software |
HD Writer AE 5.1 |
| NOTE |
Specifications are subject to change without notice. |
|
|
|
|
Previous Page
|
Next Page
|
|
