A Revolution in Interactive Projection





Epson is pleased to introduce the Epson EB-455Wi Interactive Ultra Short Throw 3LCD Multimedia Projector. Stylish and discreet, The EB-455Wi projector enables users to turn any hard flat wall into an interactive workspace.



With stylish, modern design and cutting edge technology, the Epson EB-455Wi sets a new standard for Ultra Short Throw projection. Offering interactivity, a sharp, square-edged image, and a brightness of up to 2,500 lumens Light Output and 2,500 lumens Colour Light Output, the EB450Wi is ideal for the modern classroom environment. Interactive lesson content has never looked so good!

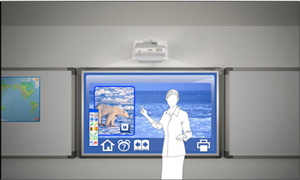

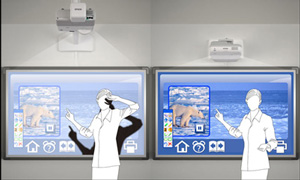

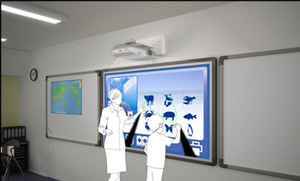

Interactive Feature
In the past, you needed a projector and an interactive whiteboard to create an interactive environment in a meeting room or class room. Now, you can make almost any wall interactive with the EB-455Wi.
This high performance projector and interactive-pen combination integrates interactive functionality into one machine. With no requirement for an interactive whiteboard, you can utilise an existing pen-based whiteboard or even a flat wall for full colour presentations, interactive brainstorming sessions, annotation on-the-fly and much more. With the EB-455Wi and its easy to use software (via download from www.epson.com.au) you can turn your whiteboard into a fully interactive business or teaching tool. At the end of your meeting, simply save the file for printing or emailing to attendees.



Capable of producing an interactive image size anywhere from 59” up to 96” diagonal (native WXGA) on nearly any wall, the Epson EB-455Wi delivers an amazing interactive work environment. Thanks to this Ultra Short Throw distance, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with up to 2,500 lumens Light Output, there is no need to dim the lights or draw the curtains, so meetings or lessons can start straight away without interruption.. By utilising the in-built 12W speakers, the EB-455Wi is able to fulfill your classroom requirements for delivery of audio included in multimedia content, or for use in conjunction with a microphone.










In keeping with the sleek, unobtrusive design of these projectors is the integrated wall mount that ships with the product. No additional purchase is required for install, and being Epson designed and manufactured, you know that the quality is second to none.





Widescreen Ultra Short Throw From the World's Number 1 Projector Manufacturer





Epson is pleased to introduce the Epson EB-450W Ultra Short Throw, 3LCD Multimedia Projector. Stylish and discreet, this Ultra Short Throw projector is the ideal companion to any interactive whiteboard installation in the Corporate environment.



With stylish, modern design and cutting edge technology, the Epson EB-450W sets a new standard for Ultra Short Throw projection. Projecting a sharp, square-edged image, at a brightness of up to 2,500 lumens Light Output and 2,500 lumens Colour Light Output, this projector is ideal for the corporate environment. Interactive lesson content and electronic whiteboarding has never looked so good!



Capable of projecting a 74 screen from as close as 58.5cm, the Epson EB-450W delivers an amazing presentation experience. Thanks to the Ultra Short Throw distance of these projectors, presenters are able to deliver rich multimedia content without the distraction of glare in the eyes, or shadows on the board disrupting vision. With the added benefit of 3LCD Technology, presentations will feature rich, vibrant colours that bring content to life. Plus, with up to 2,500 lumens Light Output, there is no need to dim the lights or draw the curtains, so meetings can start straight away without interruption.



At Epson, we know that planning for the future requires a strong commitment to the environment. Thats why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-450W conforms to the criteria of this directive.



As with all Epson products, ease of use and low cost of ownership were paramount in the design process of the EB-450W. Lamp life is estimated at up to 3,500 hours in ECO mode, making it one of the longest lasting lamps in this category. We even back these lamps with a full 12 month, 750 hour lamp warranty to give you peace of mind.


In keeping with the sleek, unobtrusive design of these projectors is the integrated wall mount that ships with the product. No additional purchase is required for install, and being Epson designed and manufactured, you know that the quality is second to none.



With the Epson mount, installation and set up is a breeze. The projector ships with the mounting plate already attached, ready to slide onto the mount arm. Featuring micro adjustment capabilities for tilt, pitch and yawl means that installers are able to get a perfect picture quickly and easily. That means less down time for each installation and less cost to your business.


With the EB-450W, monitoring and operation can be carried out from a remote PC via network connection. System Administrators can turn the projector off, switch between sources, as well as control and monitor lamp and temperature conditions. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.


Further enhancing suitability to the modern office is the ability for the EB-450W to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.


With the addition of the ELPAP03 Wireless LAN Unit, these projectors become a part of your 802.11a/b/g wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP05 Easy MP quick wireless connection USB key.







PRODUCT TYPE	Entry Level Multimedia Projectors
PRODUCT NAME	Epson EB-450W
PRODUCT CODE	V11H318053
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Ceiling Mount Front / Ceiling Mount Rear
SPECIFICATION OF MAIN PARTS
LCD	Size	0.56 inches with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	1,024,000 pixels (1280 x 800) x 3
	Native resolution	WXGA
	Aspect ratio	16:10 (which covers 16:9 and 4:3)
	Pixel arrangement	Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Digital zoom / Manual focus
	F-number	1.8
	Focal length	4.68mm
	Zoom ratio	1.0 - 1.35 (Digital)
LAMP	Type	230W UHE E-TORL
	Life (estimated)	2500Hr (Normal Mode) # 3500Hr (ECO Mode) # #Subject to operation & environmental conditions.
OPTICAL SYSTEM	Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE)	59 to 97 inch [0.465 to 0.766 m]
BRIGHTNESS
	Normal Mode	2,500 Lumens Light Output 2,500 Lumens Colour Light Output (Colour mode: Dynamic, Zoom, Wide)
	ECO Mode	1,740 Lumens Light Output 1,740 Lumens Colour Light Output (Colour mode: Dynamic, Zoom, Wide)
CONTRAST	2,000:1 (Color mode: Dynamic, High brightness mode, Zoom: Wide, Auto iris: On)
BRIGHTNESS UNIFORMITY	90% (Typ.)
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
VIDEO QUALITY	3D Y/C separation, Noise Reduction Motion compensated Interlace-Progressive conversion (2-2,3-2 film detection)
SOUND OUTPUT	10W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK	13.5MHz to 162MHz
HORIZONTAL	15KHz to 92KHz
VERTICAL	50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal Colour Temperature / Tracking / Position / Sharpness / Volume etc... /
COLOR MODE	Dynamic, Presentation, Theatre, Photo, Sports, sRGB, Blackboard, Whiteboard,
FOOT ADJUSTER	Front-centre
TILT ANGLE	0 to 13 degrees
KEYSTONE CORRECTION	Vertical: +/- 5 degrees
PASSWORD PROTECTED FUNCTION (security function)	Implemented
MICROPHONE VOLUME/MIX	Yes

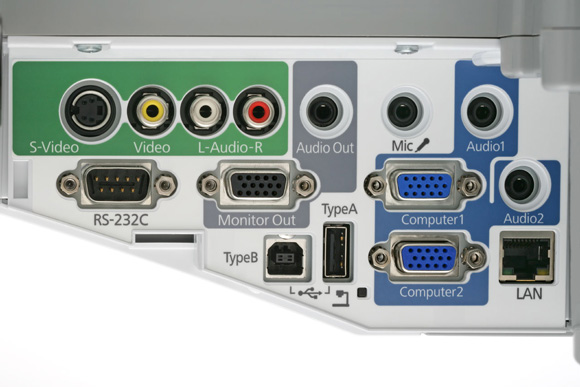

ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1280 x 800 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	D-sub 15pin x 1 Blue moulding
	Audio	Stereo mini jack x 1
OUTPUT SIGNAL	Video	Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync.	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 (Black moulding)
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 560 line PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin Blue molding
	Audio	RCA x 2 (White/Red )
USB DISPLAY	Display Performance	1280 x 800
	Video	Yes
	Audio	No
CONTROL I/O
SERIAL I/O	Terminal	D Sub 9 pin x 1
	Signal	RS-232C
USB I/O	Terminal	USB Type B x1 Ver. 2.0 (USB Display, mouse, K/B)
MICROPHONE	Terminal	Stereo mini jack 3.5 mm
MEMORY I/O
USB I/O	Terminal	USB Type A x1 Ver. 2.0 (USB Memory / document camera)
NETWORK I/O
	Network Interface	RJ45 x 1
USB I/O	Terminal	Type A x 1 (Optional wireless LAN unit I/O)
EASY MP
FUNCTION	E-mail notification
	SNMP
	Web control
	PJ-Link
	AMX Device Discovery compatible
	Slideshow (photo)
	Network Presentation
	Message Broadcasting
SOFTWARE	EasyMP Network Projection Ver.2.61 EasyMP Monitor Ver.4.40
WIRELESS SECURITY	WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES)
OPERATING TEMPERATURE	5C to 35C (41F to 95F) > (20%-80% Humidity )
COOL-DOWN PERIOD	"Instant Off"
START-UP PERIOD	Approx. 9 seconds (warm up 30 seconds)
DIRECT POWER ON	Yes
DIRECT POWER OFF	Yes
POWER SUPPLY VOLTAGE	100-240V AC10% 50/60Hz
POWER CONSUMPTION	240VAC 2.7-1.1A 50/60Hz Lamp 343W (Lamp on) 0.3W (standby, network off)
EXHAUST DIRECTION	Side
DIMENSION
EXCLUDE FEET	369(D) x 481(W) x 115(H) mm
MAXIMUM DIMENSION	369(D) x 483(W) x 115(H) mm
WEIGHT	Approx. 6.2kg (with mounting plate)
FAN NOISE
HIGH BRIGHTNESS MODE	35dB
LOW BRIGHTNESS MODE	28dB
WARRANTY
STANDARD WARRANTY	3 years* *excluding lamp
* For more information visit Epson Projector Warranty Website
ACCESSORIES
POWER CORD	5m
USB CABLE	5 m, USB A / USB B
REMOTE CONTROL	Included
BATTERY	Manganese dry cell AA x 2 (for Remote)
PASSWORD PROTECT STICKER	Included
EPSON PROJECTOR SOFTWARE	Meeting & Monitoring Ver.1.11
OWNER'S MANUAL	CD-ROM
PROJECTOR MOUNT	Included (Wall mount with adjustable arm)
#Subject to operation and environmental conditions.
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.



Supreme Flexibility and Superior Image Quality in XGA Resolution





Feature rich and offering a choice of five lenses (each sold separately) ranging from Rear Projection through Long Throw, the Epson EB-5600NL is perfect for custom installations. Producing an impressive 4,500 lumens Light Output and 4,500 lumens Colour Light Output in XGA resolution the EB-G5600NL further enhances on Epsons reputation for high performance projectors for high end installation environments.




In the new G-Series, Epsons engineers have built upon Epsons World leading Home Cinema heritage to deliver unparalleled image quality. This is thanks to Epsons famous C²Fine LCD panels. Featuring advanced vertical alignment technology, C²Fine panels provide high contrast for deeper blacks and vivid images. And because theyre 3LCD, you know that colour reproduction is second to none, and your image will be crisp and vibrant.


Multi PC projection enables users to connect and display up to four PCs simultaneously via the network with a four-way split screen. An additional 12 PCs can connect in standby. Which PCs are displayed at any one time is easily controlled with simple drag and drop functionality. With Multi PC projection, workgroup tele-meetings with remote members can now deliver collaboration results like never before!



It’s also possible to display content from two inputs simultaneously without the need for a network. Watch video via HDMI and view a presentation via VGA for an instant video conference.


Monitoring and controlling a G-Series projector is possible over a network, enabling the network manager to obtain projector information, monitor projector status, and control functions such as power on and off, change sources and even update firmware from a remote location. The Epson G-Series is also compatible with Crestron RoomView, meaning complete integration is possible if you have already invested in this infrastructure.



DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing, and transmitting information in medical imaging, which includes a file format definition and a network communications protocol. The DICOM simulation mode in the G-Series can reproduce images with gray level very close to DICOM Part 14 (Grayscale Standard Display Function). This mode is ideal for viewing grayscale medical images such as X-ray pictures for training and education in the medical institutions.




With the new G-Series range there is no need to connect an image source when setting up the image parameters thanks to the included test patterns.





Designed and manufactured by Epson, the new ELP-MB22 is made to Epsons high quality standards, so you know it will stand up to the task. Also available is a choice of two suspension adaptors for installations with high ceilings. Measuring 450mm or 700mm, these adaptors deliver versatility for your installation.









PRODUCT TYPE	Portable Multimedia Projector
PRODUCT NAME	Epson EB-G5600NL
PRODUCT CODE	V11H352953
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD	Size	0.8 inches with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	786,432 pixels (1024 x 768) x 3
	Native resolution	XGA
	Aspect ratio	4:3
	Pixel arrangement	Cross Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Manual: zoom / focus
(Specification for ELPLS05 standard lens. Sold separately.)	F-number	1.65 - 2.55
	Focus length	21.28 - 37.94mm
	Zoom ratio	1:1.8
PROJECTION LAMP	Type	E-TORL 275 W UHE
	Optical System	Dichroic Mirror Separation & Prism Combine Method
SCREEN SIZE (PROJECTED DISTANCE)	30 to 300 inch [0.77m to 8.11m] (Zoom: Wide), 30 to 300 inch [1.42m to 14.54m] (Zoom: Tele) 100" screen 2.67m 4.82m
LENS SHIFT RANGE
	MANUAL	Vertical +/-50% max (upward and downward)
		Horizontal +/-10% max (left and right)
BRIGHTNESS
	High Brightness Mode	4,500 Lumens Light Output 4,500 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide)
	Low Brightness Mode	3,600 Lumens Light Output 3,600 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide)
CONTRAST	1000:1
BRIGHTNESS UNIFORMITY	87%
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker)	7W monaural

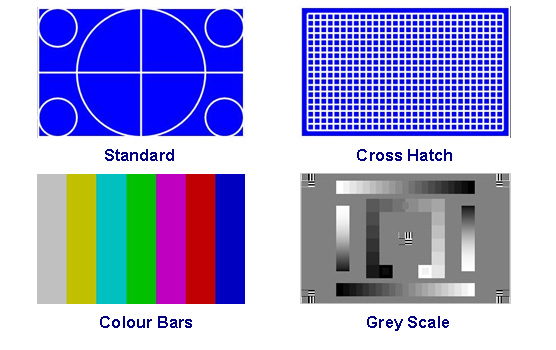

FUNCTION	Pointer, User Logo, A/V mute, Freeze, E Zoom, Test pattern
EFFECTIVE SCANNING FREQUENCY RANGE (Analog)
PIXEL CLOCK	13.5MHz to 162MHz ( up to UXGA 60Hz )
HORIZONTAL	15KHz to 99KHz
VERTICAL	50Hz to 120Hz
EFFECTIVE SCANNING FREQUENCY RANGE (Digital)
PIXEL CLOCK	13.5MHz to 162MHz ( up to UXGA 60Hz )
HORIZONTAL	15KHz to 75KHz
VERTICAL	24Hz to 60Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Keystone / Brightness / Contrast / Tint / Saturation / Sound / Input signal
FOOT ADJUSTER	Front-centre / Rear side
TILT ANGLE	-2.5 to 10 degrees
KEYSTONE CORRECTION	Vertical: -40 to +40 degrees (Zoom: Tele) Horizontal: -20 to +20 degrees (Zoom: Tele)
QUICK CORNER	Yes
SOURCE SEARCH	Yes
AUTO DETECTION OF RGB YCbCr	Yes
MULTI SCREEN COLOUR ADJUSTMENT	Yes
OPERATION PANEL PROTECTION	Yes
PASSWORD PROTECTED	Yes
HIGH ALTITUDE MODE	Yes
COLOUR MODE	PC: Photo, Presentation, Theatre, Dynamic , sRGB, DICOM SIM, Customised Video: Sports, Presentation, Theatre, Dynamic , sRGB, Customised

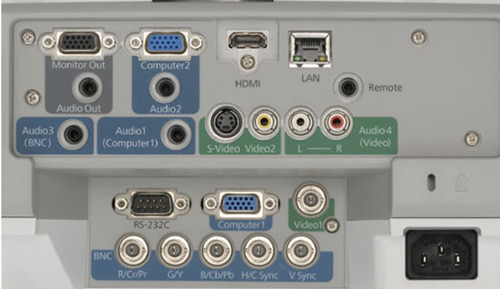

ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1280 x 800 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47K-ohm
VIDEO INPUT TERMINAL	Video	D-sub 15pin x 2 Blue-moulding
	Audio	Stereo mini-jack x 2
OUTPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync. signal	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2-0.4 Vp-p)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 Black molding
	Audio	Stereo mini-jack x 1
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Audio signal	500mVrms / 47Kohm
INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x 1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue-moulding x 2 (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin 2 x Blue-moulding (in common with Analog RGB connector)
	Audio	RCA (White/Red) x 1pair (for Composite Video and S-Video)
HDMI/th>
Input signal	Video standard	480i/576i/480p/576p/720p/1080i/1080p
	Video signal	TMDS ( signal for HDMI )
Input terminal	Audio signal	Linear PCM
	Video	HDMI x 1 (HDCP)
CONTROL I/O
Serial I/O	I/O terminal	D-sub 9 pin x 1
	I/O speed	RS-232C
Remote control input	I/O Terminal	Stereo mini jack x 1
	I/O signal	Epson Format
NETWORK I/O
	Wired LAN	RJ45 x 1
OPERATING TEMPERATURE	0C to 40C (32F to 104F), (20% - 80% Humidity unfrozen) Thermal shutdown > 45 degree C
	0C to 35C (32F to 95F), ( over 1500m with high altitude mode, High brightness)
OPERATING ALTITUDE	0m to 3000m < 0ft to 9843ft > (over 1500m / 4,921ft with high altitude mode)
DIRECT POWER ON	Yes
DIRECT POWER OFF	Yes
COOL-DOWN PERIOD	Instant off
THEFT PROOF
	Security Cable Hole	Yes
	Kensington Lock	Yes
POWER SUPPLY VOLTAGE	100-240V AC10% 50/60Hz
POWER CONSUMPTION
	lamp On	311W
	Stand by ( network on )	11W
	Stand by ( network off )	0.47W
DIMENSION
EXCLUDE FEET	311.5mm(D) x 470mm(W) x 135mm(H)
MAXIMUM DIMENSION	311.5mm(D) x 470mm(W) x 151.5mm(H)
WEIGHT	Approx. 6.7Kg
FAN NOISE
HIGH BRIGHTNESS MODE	33dB
LOW BRIGHTNESS MODE	28dB
ACCESSORIES
POWER CABLE	3m
COMPUTER CABLE	1.8m, D-sub 15pin (Male - Male)
REMOTE CONTROL	Included
BATTERY	Alkaline AA x 2
USER MANUAL SET	Included (CD-ROM)
PROJECTOR SOFTWARE	Included (CD-ROM)
PASSWORD PROTECT STICKER	Included
EASY MP
Function	Projector control and projector management via networ	Email notification SNMP Extron IP Link PJ Link AMX Device Discovery Web Control
* Software compatible with MS Vista # EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
WARRANTY
STANDARD WARRANTY	2 years* *excluding lamp
* For more information visit Epson Projector Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

Memory Card File Rescue
Sonys File Rescue Software is the world's first* now supporting AVCHD files

Memory Card File Rescue is a software program that recovers the data you've accidentally erased.
In other words, it relieves your previous memories.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

+ "Memory Card File Rescue" - Data Recovery Software

Memory Card File Rescue will allow you to recover your important photos, music and movies you deleted by mistake, just by downloading software and following a few steps.

This software is free to download for Sony memory card and USB Flash Drive owners.

Information:

---

+ What type of Sony Memory Cards / USB Flash Drive can be used with this software?

This software can be used on all Sony brand Memory Stick, SD Memory Card and USB Flash Drive* except:
- Non-Sony brand Memory Stick, SD Memory Card and USB Flash Drive
- Memory Stick for AIBO robot
- Memory Stick ROM for electronic dictionaries or e-Book readers
- PSPbrand Memory Stick, Memory Stick PRO Duo or Memory Stick Micro

This software can also be used on the following Sony brand USB Flash Drive:
- MicroVault Classic
- MicroVault Click
- MicroVault Click Turbo

Note: Defect or damage of a memory card itself cannot be recovered.

* Suported models are USM-LX(A) series, USM-L series and USM-N series.

+ What type of files can be recovered?

This software supports recovery of JPG (DCF), MPEG-1, MP4 (MPEG-4, MPEG-4 AVC), AVCHD file and other types of files, except:

- Game data, and content-protected music and movies

Note:
- This software analyzes FAT file system and recovers a file on a memory card regardless of file format where possible.
- We do not guarantee a recovery of all data. Some file may not be recoverable due to its data status. Recovered files will be stored in PC.

---

for Memory Card

creates distinctive photo presentation with unique layouts synced to effects and music. It's so easy, and so much fun!

Your photos and music of memories will be arranged into a moving photo album.
