15/06
|
PQI 16GB Compact Flash Card - 150X, Read 22.5MB/s PQI 16GB 150x CompactFlash Card
Power Quotient International (PQI), a true technology trendsetter, are one of the most respected memory module and flash memory manufacturers around. With cutting edge R&D and expansive professional knowledge, PQI offer multiple lines of world class products covering DRAM, flash cards, solid state drives and mobile hard disk drives. PQI are ranked within the top ten RAM and flash memory manufacturers worldwide and whilst memory module production was PQI's initial focus, today they offer trusted & reliable solutions for SSD, flash memory and mobile HDDs alongside their impressive memory product lines.
This Compact Flash card is an ideal choice for anyone whom requires fast read and writes for either their digital camera, or even as an operating system drive for a tiny mobile or biscuit pc! With impressive maximum read and write speeds, this flash memory ensures you have the speed you need for fast moving photography subjects like aircraft, racing cars or even breakers crashing against the beach. This blistering speed level capability also ensures a prompt, snappy data recall or writes for your tiny PC or industrial embedded system.
Features
- Memory type: Compact Flash.
- Transfer rate: 150x.
- Maximum read speed: 22.5MBS.
- Interface: Compact Flash Card standards & PC Card ATA.
- Supports Ultra DMA modes 0 - 5.
- Capacity: 16Gb.
- Dimensions: 42.8 x 36.4 x 3.3mm.
- Storage temperature: -25c to 80c.
- Operating temperature: 0c to 70c.
|
|
|
|
15/06
|
Sony MPKWG Marine Pack - Water Resistant to a depth up to 40M Sony MPKWG Marine Pack
Submerge yourself in the world of underwater photography with this marine pack and your compatible Cyber-shot digital camera.
- Water resistant to a depth up to 40 meters
- Stylish new-look PRO Black design
- Supports camera's Underwater Mode for still photos and videos
- Improved wide angle images with less blur
- LCD hood and hand strap included
Specifications
| Dimensions (W x H x D) |
148 x 112 x 89mm |
| Material |
Plastic (PC, ABS) and glass |
| Usable Depth |
Up to 40 meters |
| Water Resistance |
O-ring and buckle |
| Controllable Switch |
POWER, Shutter, Zoom (W/T), Mode, HOME, MENU, Playback, DISP, Flash, Self-timer, Enter |
| Included Accessories |
Hand strap, LCD hood, grease, O-ring, spacer, front and rear attachments, diffuser, LCD spacer, Reflex Prevention Ring and O-ring Maintenance Manual |
|
|
|
|
15/06
|
BenQ MS614 DLP Projector - 800x600, 2700 Lumens, 5000;1, 5000Hrs, VGA, HDMI, USB, Speakers MS614
Versatile Projection for Multiple Use
The ultra versatile BenQ MS614 is built meet every projection need! Featuring SVGA resolution, 2700 ANSI lumens and 5000:1 contrast ratio with 3D projection technology, the MS614 offers truly outstanding picture performance for every setting! Together with USB Display, Wireless Display and USB Reader options, making a presentation is ever so easy!
Features
Multiple Display Options for Various Office and Classroom Needs
Projectors are powerful tools for making successful presentations. To ensure a smooth presentation on your part, BenQ has integrated various display functions into the MS614 to fit every need!
USB Display offers the plug-and-play convenience of USB connection – with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

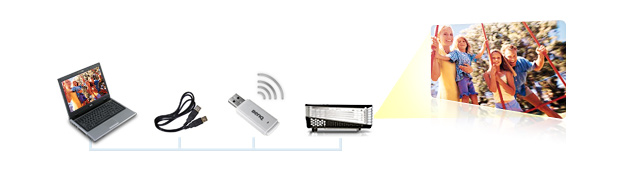

Wireless Display keeps cables and wires out of everyone’s way with the BenQ Wireless Display Adapter (optional accessory) to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.

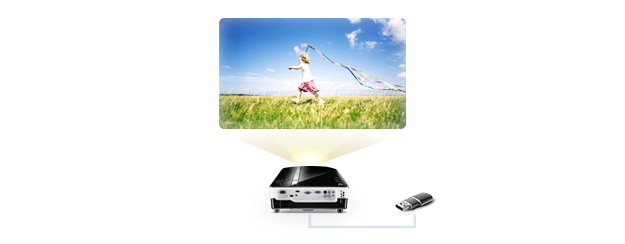

Hassle-Free PC-Less Presentation
Enjoy a hassle-free presentation with the USB Reader function! The USB Reader function enables a JPEG presentation with a USB flash drive! It’s as easy and plug and play!
Closed Captioning
Display subtitles in video content without the need for an external closed-captioning device with the MS614. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.
Thoughtful Teaching Template Design
To make your teaching job easier, BenQ has added the teaching template function to the MS614. Now, with four different line pattern designs to choose from – Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.
Long Lamp Life at up to 5000 hours
Enjoy a lamp life performance of up to 5000 hours in Eco mode– longer lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
*Lamp life results will vary depending on environmental conditions and usage.

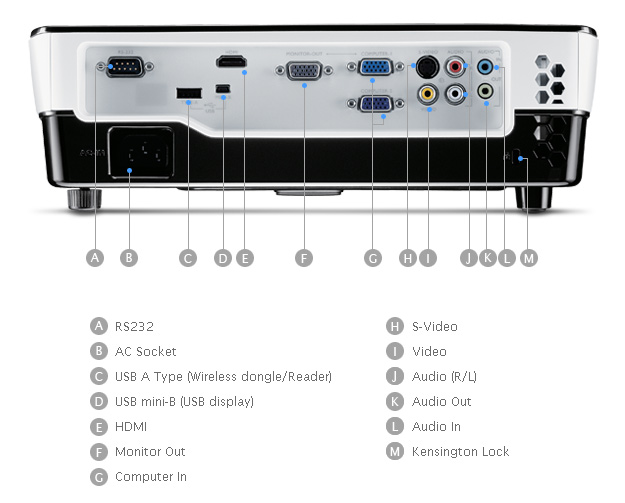

Multi-Function Connectors
Specification
| Projection System |
DLP technology by Texas Instruments
|
| Native Resolution |
SVGA (800 x 600) |
| Brightness* |
2700 ANSI lumens |
| Contrast Ratio |
5000:1 (Full on/Full off) |
| Display Color |
Full 1.07 billion color palette |
| Lens |
F=2.56- 2.8, f=21 - 23.1 mm |
| Aspect Ratio |
4:3 Native, 16:9 Selectable |
| Throw Ratio |
1.86 - 2.04 (53"@2M) |
| Image Size (Diagonal) |
24 to 300 |
| Zoom Ratio |
Manual Zoom, 1.10:1 |
| Lamp (Normal/Economic Mode)* |
210W, 3500/5000 hours (Normal/Economic mode) |
| Keystone Adjustment |
Manual Vertical 40 |
| Horizontal Frequency |
31-99 kHz |
| Vertical Scan Rate |
23-120 Hz |
| Computer Compatibility |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Dimensions(W x H x D) |
312 x 104 x 244 mm (12.3 x 4.1 x 9.6 inch) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Input Terminals |
PC:
Analog RGB: D-sub 15 pin x 2
USB connector: Type A x 1 (USB Reader); Mini-B x1 (USB Display)
A/V:
HDMI V1.3 x 1
Component Video: D-sub 15 pin x 2
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Stereo Mini Jack x 1
Audio L/R: RCA x 2 |
| Output Terminals |
PC:
D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
2W Speaker |
| Control Terminal |
Serial Connector : RS232 9 pin x 1 |
| Weight |
2.65 kg (5.84 lbs) |
| Audible Noise |
30/26 dBA (Normal/Economic mode) |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Power Consumption |
298W, Standby < 1W |
| On-Screen Display Languages |
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Indonesia/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages) |
| Picture Modes |
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
|
| Functions |
BrilliantColorTM
Quick Auto Search
Closed Captioning
Wall Color Correction
USB Display
USB Reader
Wireless Display (Optional)
3D Ready
Qucik Cooling
MyScreen
Teaching Template
3D Color Management
Digital Zoom (x2)
Auto Off
High altitude mode
Security Password
Freeze
"Q?" Hot Key for FAQ
|
| Accessories (Standard) |
Quick Start Guide
VGA Cable
Manual CD
Power Cord
Soft Carry Case
Remote Control w/battery |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
RS232 Cable
|
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to XGA,
Video: 60Hz Frame Sequential 3D for resolutions up to 480i,
*Please click to know more details about 3D Support and Compatibility.
|
|
|
|
|
15/06
|
BenQ MS510 DLP Projector - 800x600, 2700 Lumens, 4000;1, 6000Hrs, VGA, 1xHDMI, Speakers MS510
The best value choice for small-medium space
The MS510 makes the perfect projector choice for your everyday life - in business, education, even at home. Featuring an impressive brightness of 2700 ANSI lumens, a high contrast ratio of 4000:1 and a SVGA resolution, the MS510 offers a stunning full-screen presentation with the finest details regardless of the ambient light level.
Long Lamp Life at up to 6000 hours
Enjoy a lamp life performance of up to 6000 hours* – twice the lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
*when used in Economic mode. See specifications for warranty.
Go 3D with DLP® Link!
MS510 is equipped with 3D projection technology to bring you the same amazing 3D effects you get in 3D movies. Offered for no added cost, the 3D feature on 3D-ready BenQ projectors get your audience for an immersive real-life experience. All you have to do is add the 3D glasses, content and video card along with the MS510. A magical expedition is just to begin!
Visual Excellence
Sharpen up with high contrast ratios
The MS510 boasts high contrast ratio with 4000:1. High contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read.
(Simulated photos)
2700 ANSI lumen brightness
A mainstream standard 2700 ANSI lumen projection lamp ensures great viewing for small-medium size rooms even in locations with ambient light, so your hard works can always be presented as good as can be.
Vivify Your World with BrilliantColor
With the help of BrilliantColor Technology, the MS510 delivers true-to-life images with enhanced secondary color brightness for your visual enjoyment!
Independent 3D Color Management
Exclusive BenQ 3D Color Management empowers you with the freedom to fine-tune color intensity to meet your preference. 3D Color Management lets users independently adjust the hue, grain, and saturation levels of all six color wheel tones (red, green, blue, cyan, magenta, and yellow) without colors compromising each other.
Thoughtful Features

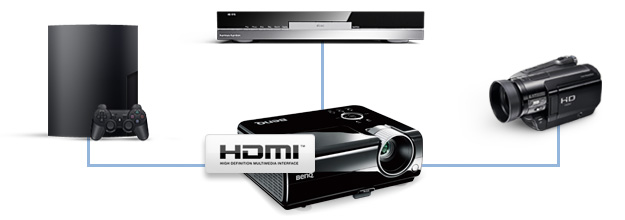

Comprehensive Connectivity with HDMI
MS510 features one HDMI port can be plugged with digital devices such as Blue-ray player, laptop...etc. HDMI is also the highest and completely future-proof connection standard, ensuring pure digital audio and video perfection.
Built-in Speaker
With built-in 2W speaker with the MS510, not only do you get the vivid visual performance, you get the same audio satisfaction, too!

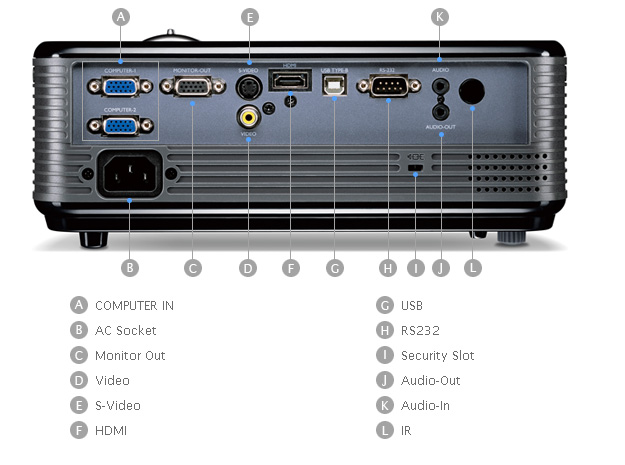

Multi-Function Connectors
Specifications
| Projection System |
DLP technology by Texas Instruments |
| Native Resolution |
SVGA (800 x 600) |
| Brightness* |
2700 ANSI lumens |
| Contrast Ratio |
4000:1 (Full on/Full off) |
| Display Color |
Full 1.07 billion color palette |
| Lens |
F= 2.51 to 2.69, f= 21.95 ~ 24.18 mm |
| Aspect Ratio |
4:3 Native, 16:9 Selectable |
| Throw Ratio |
1.97-2.17 (50"@ 2m) |
| Image Size (Diagonal) |
23 to 300 |
| Zoom Ratio |
Manual Zoom, 1.10:1 |
| Lamp (Normal/Economic Mode)* |
190W, 4500/6000 hours (Normal/Economic mode) |
| Keystone Adjustment |
Manual Vertical 40 |
| Horizontal Frequency |
31-90 kHz |
| Vertical Scan Rate |
50-120 Hz |
| Computer Compatibility |
VGA(640 x 480) to UXGA(1600 x 1200) |
| Dimensions(W x H x D) |
265 x 100 x 210 mm r(10.4 x 3.9 x 8.3 inch) |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Input Terminals |
PC:
Analog RGB: D-sub 15 pin x 2
A/V:
HDMI V1.3 x 1
Component Video: D-sub 15 pin x 2
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audi:
Stereo Mini Jack x 1 |
| Output Terminals |
PC:
Monitor Out: D-sub 15 pin x 1
Audi:
Variable Audio Out : Stereo Mini Jack x 1
o:
Speaker: 2W x 1 |
| Control Terminal |
Serial Connector : RS232 9 pin x 1 |
| Weight |
2.3 kg (5.1 lbs) |
| Audible Noise |
27/25 dBA (Normal/Economic mode) |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Power Consumption |
260W, Standby < 1W |
| On-Screen Display Languages |
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Indonesia/ Italian/ Janpanese/ Kroean/ Norwegian/ Polish/ Portuguese/ |
| Picture Modes |
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode |
| Functions |
BrilliantColorTM
Quick Auto Search
Closed Captioning
Wall Color Correction
Teaching Template
3D Ready
3D Color Management
Blank
Digital Zoom (x2)
Auto Off
Freeze
Security Password
HDTV compatible
"Q?" Hot Key for FAQ
High Altitude Mode
Auto Adjustment Hot Key |
| Accessories (Standard) |
Quick Start Guide
VGA Cable
Manual CD
Power Cord
Remote Control w/battery |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
RS232 Cable
Soft Carry Case |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to XGA,
Video: 60Hz Frame Sequential 3D for resolutions up to 480i,
*To know more about 3D Support and Compatibility details.
|
|
|
|
|
15/06
|
BenQ W1100 Home Cinema DLP Projector - 1920x1080, 2000 Lumens, 4500;1, 4000Hrs, VGA, 2xHDMI, USB, Speakers W1100
Hassle-Free Home Theater Fun
BenQs W1100 offers a simple solution for home entertainment fans looking to set up their first home theater. It features a Full HD 1080p picture with a Full HD optimized optical system, full 10-bit processing, 2000 ANSI lumen brightness and 4500:1 high contrast ratio, and completes your audiovisual enjoyment with 20W SRS WOW HDTM surround sound.
Features
Brilliant Image Quality
Full HD 1080p Resolution
The term Full HD refers to a native resolution of 1920x1080, the highest resolution HD currently available. With resolution at 1080p, you see each image in its full magnificent detail, and every viewing and gaming experience becomes more absorbing.
Full HD Optimized Optical System
The Full HD optimized optical system, which is comprised of 12 lens elements, is incorporated to ensure the best clarity and sharpness presentation in every Full HD image – giving you pristinely pure colors detail.
Enhanced Brightness and Contrast Ratio
With an ultra high brightness and an astounding contrast performance, you’ll always get a superbly rendered image projection of high definition TV, movies and sports games.
Full 10-bit Processing
Accurate color reproduction is what separates a true home theater experience from the rest. 10-bit color processing delivers over 1 billion colors in comparison to 8-bit technology, which only produces 16 million colors – painting every detail with absolute precision.

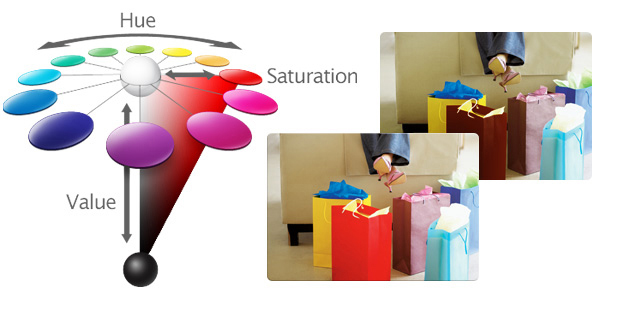

Adjustable Color Management
For home theater enthusiasts with unique preferences for picture quality and color display, the color management system allows them to fine-tune every hue as well as the contrast, brightness, color temperature, gamma and white balance levels to best match their viewing needs.
Powerful Audio Performance
SRS WOW HD Audio Technology
BenQ’s home projectors come transform your day-to-day audio experience into an over-the-top “WOW” with SRS WOW HD. This audio technology improves the dynamic audio performance of compressed and uncompressed audio by expanding the size of the audio image and creating a deep, rich bass response. What’s more, SRS WOW HD widens the horizontal sound field and raises the vertical sound image with patented techniques – retrieving information lost in the mixing process to create a more natural audio experience.

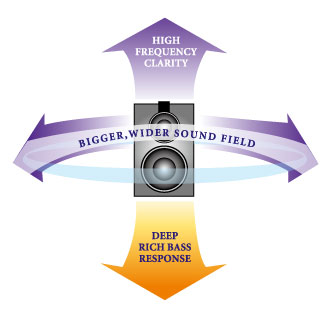

All About SRS WOW HD
*Enhances the stereo to improve dynamic audio performance
*Sculpt bass response to achieve maximum thump on small speakers
*Generates more natural audio with a wider sound field and raised sound image
*Provides high-definition control for realistic clarity
*Provides center control for dynamic extraction and positioning of dialog
20W Big Speaker with Sound Box
The BenQ home projectors complete your audiovisual experience with the dual 10W built-in speakers that come with a sound box to refine every sound – adding more definition to bass and treble. The speakers are sealed and secured within each side of the projector with BenQ’s anti-shake design to ensure projection stability while delivering surround sound audio quality.
Simple and Affordable to Set-Up

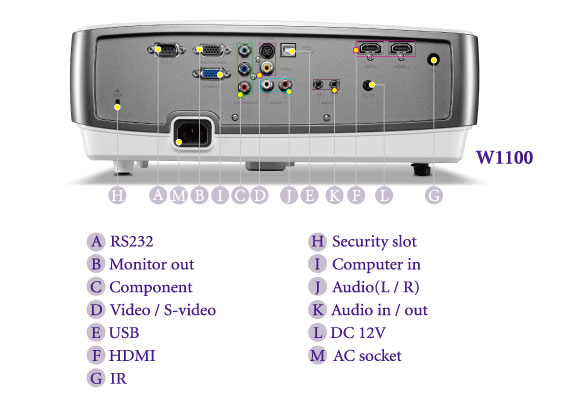

Big Speakers & HDMI 1.3
All you need is an HDMI cable to set up your audiovisual entertainment! Simply use the HDMI to connect the multimedia device to your BenQ home projector no extra speakers needed!

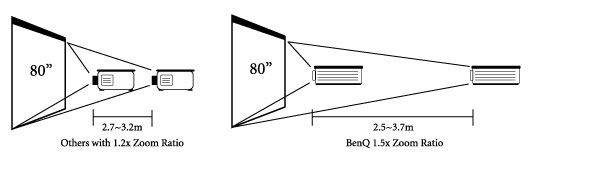

1.5X Big Zoom Ratio
Enjoy the convenience and flexibility of a big 1.5x zoom ratio! This feature opens up the space with an impressively wide range of throw distances – allowing you to set up the projector without spending extra on re-constructing the room.
±20° Auto Keystone Adjustment
With ±20°automatic keystone adjustment, you can set up the projected image quickly – turning it into a perfect square effortlessly.
Easy and Fun to Use
Picture-in-Picture (PIP)
Display more than one image source simultaneously. Now that’s how you double the big time fun!
Offline Cooling
The Offline Cooling feature allows you to unplug and pack up the projector after use. The built-in circuit system of the projector allows the cooling fan to continue the cooling process even after it is unplugged.
Digital Zoom
Zoom in real close with the Digital Zoom feature to get a closer look at every detail – Something you can enjoy with family and friends while sharing photos and homemade videos.

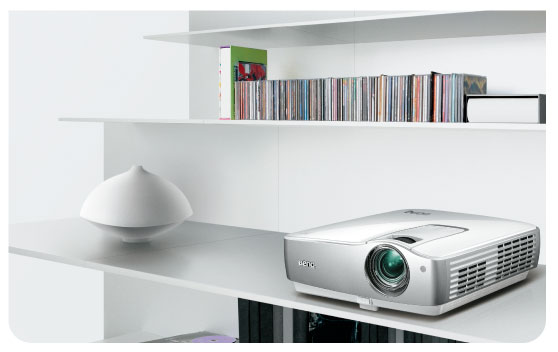

Stylish and Sleek
Snow-white and exquisitely finished with a stylish contour, the BenQ home projectors are perfect compliments to any contemporary living space.
Durable, Reliable and Low Maintenance with DLP®
4,000-Hour Long Lamp Life
BenQ’s home projectors come with a special cooling technology to prevent the lamp from overheating – significantly lowering the cost for lamp replacement. When operating under Eco mode*, the lamp life is further extended to a maximum of 9.6 years**.
*Actual lamp life may vary due to different environment conditions and usage.
*Calculated by 4 hours/day, 8 hours/weekend,for 52 weeks/year
Free of Filter Maintenance and Replacement
With the DLP filter-free design, you get to save the cost and hassles of filter maintenance and replacement all together – and get better projection quality, too.
Reliable Color Performance and Virtually Color Decay-Free
Virtually immune to color decay, the BenQ home projectors come with an extended lifespan of reliable color performance without the yellow/green tint that some projector images develop over extended period of usage.
Multi-Function Connectors
Specifications
| Projection System |
DLP technology by Texas Instruments |
| Native Resolution |
1080p (1920 x 1080) |
| Brightness* |
2000 ANSI lumens |
| Contrast Ratio |
4500:1 (Full on/Full off) |
| Aspect Ratio |
16:9 Native, 5 Aspect Ratio Selectable |
| Throw Ratio |
1.4-2.1 (65@ 2m) |
| Image Size (Diagonal) |
24 to 300 |
| Zoom Ratio |
1.5:1 |
| Lamp Type |
230W, 2500/4000 hours (Normal/Economic mode) |
| Keystone Adjustment |
Auto Keystone; Manual Vertical 20 Degree |
| Horizontal Frequency |
31-90 kHz |
| Vertical Scan Rate |
50-85 Hz |
| Computer Compatibility |
VGA(640 x 480) to WUXGA(1920 x 1200) |
| Dimensions(W x H x D) |
339 x 139 x 260 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Input Terminals |
PC
Analog RGB: D-sub 15 pin x 1
A/V
HDMI v1.3 x 2
Component Video: RCA x 3
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio
Audio L/R: RCA x 2
Stereo Mini Jack x 1
|
| Output Terminals |
PC
Monitor Out: D-sub 15 pin x 1
Audio
Variable Audio Out : Stereo Mini Jack x 1
Speaker: 10W x 2
DC 12V x1 |
| Control Terminal |
Serial Connector : RS232 9 pin x 1
USB Connector : USB Type B x 1 |
| Weight |
3.6Kg (7.9 lbs) |
| Audible Noise |
27/22 dB (Normal/Economic mode) |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Power Consumption |
290W, Standby < 1W |
| On-Screen Display Languages |
Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages) |
| Picture Modes |
Dynamic Mode
Standard Mode
Cinema Mode
User 1 Mode
User 2 Mode
User 3 Mode |
| Functions |
BrilliantColor
Quick Auto Search
PIP
SRS WOW HD TM
3D Color Management
Blank
Dual HDMI inputs
Auto Off
Closed Captioning
Security Password
Auto Keystone
HDTV compatible
Variable Audio Out
High Altitude Mode |
| Accessories (Standard) |
Quick Start Guide
VGA Cable
Manual CD
Power Cord
Remote Control with backlight
Battery |
| Accessories (Optional) |
Ceiling Mount
Spare Lamp Kit
RS232 Cable
Soft Carry Case |
|
|
|
|
15/06
|
Sony DMW-MCFT3E Underwater Case - For Panasonic DMC-FT3DMW-MCFT3E Underwater Case - For Panasonic DMC-FT3
|
|
|
|
15/06
|
Sony 8GB Memory Stick HX Pro Duo - High Speed, Read 50MB/s, Write 15MBs
- Does not include USB Adaptor MSHX8B
The Memory Stick PRO-HG Duo HX 8GB offers high speed data transfer to meet the new demand of high definition.
Features
- High capacity, ideal for high-resolution still and movie images
- Ideal for burst shooting with DSLR (ALPHA)
- Offering up to 50MB/s, it allows large amount of data to be quickly transferred
- Greater durability and reliability: working perfectly in temperatures from -25C to 85C
- Compatible with copyright protection technology ("MagicGate")
- Data Rescue service available to recover deleted data: http://support.sony-europe.com/memstick
- 10 years warranty
Specifications
General Specifications
|
Recording Capacity (GB)
|
8
|
|
Memory
|
Flash Memory
|
|
Serial interface
|
YES
|
|
Parallel interface (4 pins)
|
YES
|
|
Parallel interface (8 pins)
|
YES
|
|
Operating Voltage (V)
|
2,7-3,6
|
|
Operational current with parallel transfer (mA)
|
Up to 100
|
|
Read/Write Speed (8bit-parallel transfer - MB/s)
|
Up to 50
|
|
Minimum Write Speed (8bit-parallel transfer - MB/s)
|
15
|
|
Environmental temperature (degrees C)
|
-25~+85
|
|
Width (mm)
|
31
|
|
Height (mm)
|
20
|
|
Depth (mm)
|
1.6
|
|
Weight (g)
|
2
|
|
|
|
|
15/06
|
Panasonic HX-WA10GN-K Camcorder - Black
- SD/SDHC/SDXC Card Slot, HD 1080, 5x Optical Zoom, 2.6" Widescreen LCD, Electorical Image Stabilizer, Waterproof, Intelligent Auto, MPEG-4 AVC/H.264 HX-WA10
Upright HD Camcorder
- 3-Meter Waterproof* for Active Shooting
- Bright and Stunning Full-HD* Video Shooting with BSI Sensor
- 16-Megapixel Still Image Recording*
- 12x Advanced Zoom for Video Shooting*
- Always Optimal Settings with iA (Intelligent Auto) Mode*
- A stylish, Easy-to-hold Vertical Design
Overview
Waterproof Upright Full-HD Camcorder
Take the HX-WA10 underwater as deep as 3 meters for up to 60 minutes, and get some great photos or videos in a pool or the ocean. Swim along with tropical fish, capture shots of a beautiful coral reef, or get action footage of a friend snorkeling. Waterproofing also means you can shoot in the rain or snow with no worries. * IEC60529 IPX8 * This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.
Even with its light weight and slim design, the HX-WA10 renders images in breathtaking, Full-HD (1920 x 1080) beauty. BSI (Backside Illumination) sensor technology has improved the sensitivity of the CMOS sensor, making it possible to shoot images with high-resolution Full-HD quality even in dimly lit areas. * "Full-HD video with 1920 x 1080 pixels" in Panasonic Dual Camera refers to video recordings with 1920 pixels in the horizontal direction and 1080 pixels in the vertical direction.
The HX-WA10 shoots 16-megapixel high-resolution still pictures. Depending on the situation, you can flexibly shoot either high-quality photos or videos by using only the thumb to press the desired button, without having to change modes.. You can also capture 2-megapixel still images while recording a video by simply pressing the Still button.* * Varies depending on the Video mode used for shooting.
In addition to an optical 5x zoom, the New High-Quality Image Engine of the HX-WA10 lets you shoot videos with a maximum 12x Advanced Zoom with no image quality degradation.* You get a flexible shooting range, from wide-angle to dynamic zooming. * Only for video recording at 30p. When shooting photos, the maximum zoom is 5x.
With both phtos and videos, iA does the bothersome settings for you and makes it easy to capture beautiful images. Intelligent Scene Selector analyzes shooting situation and automatically switches the camera to the suitable scene mode. Face Detection automatically senses the ambient lighting and adjusts the exposure accordingly, so faces are bright and easy to see, and E.I.S. (Electrical Image Stabilizer) helps to correct hand-shake blurring. * The functions included in iA may not be applied when conditions do not call for them.
Specifications
GENERAL
|
| Power Supply (Battery / AC Adapter) |
DC3.7V / 5.0V |
| Dimension (W x H x D) |
approx.92.0 x 123.7 x 41.2 [mm] (3.63 x 4.87 x 1.63[mm]) |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
IMAGE SENSOR
|
| Image Sensor |
1/2.3" BSI CMOS Sensor |
| Total Pixels |
16.79 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
11.94 megapixels [16:9] / 16.02 megapixels [4:3] |
| Still Image |
11.94 megapixels [16:9] / 16.02 megapixels [4:3] |
LENS SECTION
|
| F Value |
F3.5(WIDE), F3.7(TELE) |
| Optical Zoom |
5x (Advanced Zoom 12x) |
| Focal Length |
6.8mm +/-5% - 34.0mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
60i/60p mode41.4mm - 248.4mm (16:9), 30p mode41.4mm - 496.8mm (16:9), 38mm - 456mm (4:3) |
| Still Picture |
41.4mm - 207mm (16:9), 38mm - 190mm (4:3) |
CAMERA SECTION
|
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Focus |
Auto/Manual |
| White Balance |
Auto/Manual |
| Iris |
Auto / Manual |
| Zoom |
| Optical Zoom |
5x |
| Advanced Zoom / W-Range Zoom On |
Advanced Zoom 12x (30p), 6x ( 60i/ 60p) |
| Digital Zoom |
10x / 120x (The maximum value of zoom magnification) |
MONITOR
|
| Monitor (LCD) |
6.72cm (2.6") Wide LCD ( 230,400 dots) |
STILL IMAGE SECTION
|
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Still Picture |
16 megapixels-H (4608 x 3456), 16 megapixels-S (4608 x 3456) / 12 megapixels (4608 x 2592) [16:9] / 2 megapixels (1920 x 1080) [16:9], 2 megapixels (1600 x 1200) [4:3] / 0.9 megapixels (1280 x 720) [16:9] / 0.3 megapixels (640 x 480) [4:3] |
| Simultaneous Recording |
2.1 megapixels [16:9] |
| Flash |
Yes |
RECORDING SECTION
|
|
Signal System
|
1080/60i1080/30p 720/60p720/30p 540/30p 480/30p |
| Recording Format |
MPEG-4 AVC/H.264 |
| Recording / Playback Mode |
1080/ 60i , (1920 x 1080) / 1080/ 30p , (1920 x 1080) / 720/ 60p , (1280 x 720) / 720/ 30p , (1280 x 720) / 480/ 30p , (640 x 480) / 540/30p , (960 x 540) |
| Audio Recording System |
AAC (2ch) |
| Microphone |
2ch stereo |
| Speaker |
Dynamic type |
| Media Remaining Indication |
yes |
INTERFACES
|
| AV |
OUT |
| HDMI |
Yesmini |
| USB |
2.0 Hi-Speed |
OTHERS
|
| Tough |
Waterproof( 3m) |
STANDARD ACCESSORIES
|
| AC Adaptor |
Yes |
| Rechargeable Battery Pack |
min. 700 mAh / Lithium-Ion |
| AV Cable |
Yes |
| USB Cable |
Yes |
| Included Software |
HD Writer VE1.0 |
|
|
|
|
15/06
|
Panasonic HX-WA10GN-D Camcorder - Orange
- SD/SDHC/SDXC Card Slot, HD 1080p, 5x Optical Zoom, 2.6" Widescreen LCD, Electorical Image Stabilizer, Waterproof, Intelligent Auto, MPEG-4 AVC/H.264 HX-WA10
Upright HD Camcorder
- 3-Meter Waterproof* for Active Shooting
- Bright and Stunning Full-HD* Video Shooting with BSI Sensor
- 16-Megapixel Still Image Recording*
- 12x Advanced Zoom for Video Shooting*
- Always Optimal Settings with iA (Intelligent Auto) Mode*
- A stylish, Easy-to-hold Vertical Design
Overview
Waterproof Upright Full-HD Camcorder
Take the HX-WA10 underwater as deep as 3 meters for up to 60 minutes, and get some great photos or videos in a pool or the ocean. Swim along with tropical fish, capture shots of a beautiful coral reef, or get action footage of a friend snorkeling. Waterproofing also means you can shoot in the rain or snow with no worries. * IEC60529 IPX8 * This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.
Even with its light weight and slim design, the HX-WA10 renders images in breathtaking, Full-HD (1920 x 1080) beauty. BSI (Backside Illumination) sensor technology has improved the sensitivity of the CMOS sensor, making it possible to shoot images with high-resolution Full-HD quality even in dimly lit areas. * "Full-HD video with 1920 x 1080 pixels" in Panasonic Dual Camera refers to video recordings with 1920 pixels in the horizontal direction and 1080 pixels in the vertical direction.
The HX-WA10 shoots 16-megapixel high-resolution still pictures. Depending on the situation, you can flexibly shoot either high-quality photos or videos by using only the thumb to press the desired button, without having to change modes.. You can also capture 2-megapixel still images while recording a video by simply pressing the Still button.* * Varies depending on the Video mode used for shooting.
In addition to an optical 5x zoom, the New High-Quality Image Engine of the HX-WA10 lets you shoot videos with a maximum 12x Advanced Zoom with no image quality degradation.* You get a flexible shooting range, from wide-angle to dynamic zooming. * Only for video recording at 30p. When shooting photos, the maximum zoom is 5x.
With both phtos and videos, iA does the bothersome settings for you and makes it easy to capture beautiful images. Intelligent Scene Selector analyzes shooting situation and automatically switches the camera to the suitable scene mode. Face Detection automatically senses the ambient lighting and adjusts the exposure accordingly, so faces are bright and easy to see, and E.I.S. (Electrical Image Stabilizer) helps to correct hand-shake blurring. * The functions included in iA may not be applied when conditions do not call for them.
Specifications
GENERAL
|
| Power Supply (Battery / AC Adapter) |
DC3.7V / 5.0V |
| Dimension (W x H x D) |
approx.92.0 x 123.7 x 41.2 [mm] (3.63 x 4.87 x 1.63[mm]) |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
IMAGE SENSOR
|
| Image Sensor |
1/2.3" BSI CMOS Sensor |
| Total Pixels |
16.79 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
11.94 megapixels [16:9] / 16.02 megapixels [4:3] |
| Still Image |
11.94 megapixels [16:9] / 16.02 megapixels [4:3] |
LENS SECTION
|
| F Value |
F3.5(WIDE), F3.7(TELE) |
| Optical Zoom |
5x (Advanced Zoom 12x) |
| Focal Length |
6.8mm +/-5% - 34.0mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
60i/60p mode41.4mm - 248.4mm (16:9), 30p mode41.4mm - 496.8mm (16:9), 38mm - 456mm (4:3) |
| Still Picture |
41.4mm - 207mm (16:9), 38mm - 190mm (4:3) |
CAMERA SECTION
|
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Focus |
Auto/Manual |
| White Balance |
Auto/Manual |
| Iris |
Auto / Manual |
| Zoom |
| Optical Zoom |
5x |
| Advanced Zoom / W-Range Zoom On |
Advanced Zoom 12x (30p), 6x ( 60i/ 60p) |
| Digital Zoom |
10x / 120x (The maximum value of zoom magnification) |
MONITOR
|
| Monitor (LCD) |
6.72cm (2.6") Wide LCD ( 230,400 dots) |
STILL IMAGE SECTION
|
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Still Picture |
16 megapixels-H (4608 x 3456), 16 megapixels-S (4608 x 3456) / 12 megapixels (4608 x 2592) [16:9] / 2 megapixels (1920 x 1080) [16:9], 2 megapixels (1600 x 1200) [4:3] / 0.9 megapixels (1280 x 720) [16:9] / 0.3 megapixels (640 x 480) [4:3] |
| Simultaneous Recording |
2.1 megapixels [16:9] |
| Flash |
Yes |
RECORDING SECTION
|
| Signal System |
1080/60i1080/30p 720/60p720/30p 540/30p 480/30p |
| Recording Format |
MPEG-4 AVC/H.264 |
| Recording / Playback Mode |
1080/ 60i , (1920 x 1080) / 1080/ 30p , (1920 x 1080) / 720/ 60p , (1280 x 720) / 720/ 30p , (1280 x 720) / 480/ 30p , (640 x 480) / 540/30p , (960 x 540) |
| Audio Recording System |
AAC (2ch) |
| Microphone |
2ch stereo |
| Speaker |
Dynamic type |
| Media Remaining Indication |
yes |
INTERFACES
|
| AV |
OUT |
| HDMI |
Yesmini |
| USB |
2.0 Hi-Speed |
OTHERS
|
| Tough |
Waterproof( 3m) |
STANDARD ACCESSORIES
|
| AC Adaptor |
Yes |
| Rechargeable Battery Pack |
min. 700 mAh / Lithium-Ion |
| AV Cable |
Yes |
| USB Cable |
Yes |
| Included Software |
HD Writer VE1.0 |
|
|
|
|
15/06
|
Panasonic HX-DC1GN-P Camcorder - Pink
- SD/SDHC/SDXC Card Slot, HD 1080p, 5x Optical Zoom, 3.0" Widescreen LCD, Electorical Image Stabilizer, Microphone, MPEG-4 AVC/H.264 HX-DC1
Upright HD Camcorder
- Full-HD* Recording in MP4 Format
- 14-megapixel Still Picture Recording*
- 285° Rotating, 3.0-inch Wide-screen LCD
- 12x Double Range Zoom
- MPEG-4 AVC/H.264
- A stylish, easy-to-hold vertical design
Overview
Upright Full-HD Camcorder
Even with its light weight and slim design, the HX-DC1 is able to render images in breathtaking Full-HD (1920 x 1080). Files are recorded in the MPEG-4 format and are widely used because they combine video and sound in the same file for easy saving onto a PC and quick upload to the internet. * "Full-HD video with 1920 x 1080 pixels" in Panasonic Upright HD Camcorder refers to video recordings with 1920 pixels in the horizontal direction and 1080 pixels in the vertical direction.
Depending on the situation, you can quickly switch between high-quality still images with 14-megapixel resolution or Full HD video. You can also capture 2-megapixel still images while recording a video by simply pressing the Still button (which will vary depending on the video mode used for shooting).
The HX-DC1 features a 3.0" wide-screen LCD monitor that allows the brightness to be adjusted in seven levels. It also rotates through approximately 285º, so you can easily position it at your preferred angle. Both features are designed to keep your subject clearly in view, whether you're shooting high, low, or even at yourself.
The HX-DC1 features a 12x Double Range Zoom. You can easily switch between the maximum zooming areas of 6x/12x with the press of the Zoom Range button to enable truly dynamic zooming without a degradation in image quality.
Specifications
GENERAL
|
| Power Supply (Battery / AC Adapter) |
DC3.7V / 5.0V |
| Dimension (W x H x D) |
approx. 86.2 x 120.8 x 37.7[mm] (3.40 x 4.76 x 1.49[mm]) |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
IMAGE SENSOR
|
| Image Sensor |
1/2.33" CMOS Sensor |
| Total Pixels |
14.4 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
11.90 megapixels [16:9] / 14.30 megapixels [4:3] TBD |
| Still Image |
10.65 megapixels [16:9] / 14.30 megapixels [4:3] TBD |
LENS SECTION
|
| F Value |
F3.5(WIDE), F3.7(TELE) |
| Optical Zoom |
5x ( W-Range Zoom 12x) |
| Focal Length |
6.8mm +/-5% - 34.0mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
39.7mm - 238.2mm (16:9), 38.3mm - 229.8mm (4:3) [W-Range Zoom W mode], 79.5mm - 477.0mm (16:9), 79.5mm - 477.0mm (4:3) [W-Range Zoom T mode] |
| Still Picture |
41.8mm - 209.0mm (16:9), 38.3mm - 191.5mm (4:3) |
CAMERA SECTION
|
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Focus |
Auto/Manual |
| White Balance |
Auto/Manual |
| Iris |
Auto |
| Zoom |
| Optical Zoom |
5x |
| Advanced Zoom / W-Range Zoom On |
W-Range Zoom 12x |
| Digital Zoom |
10x / 120x (The maximum value of zoom magnification) |
MONITOR
|
| Monitor (LCD) |
7.52cm (3.0") Wide LCD ( 230,400 dots) |
STILL IMAGE SECTION
|
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Still Picture |
14 megapixels-H (4352 x 3264), 14 megapixels-S (4352 x 3264) / 10 megapixels (4352 x 2448) [16:9] / 2 megapixels (1920 x 1080) [16:9], 2 megapixels (1600 x 1200) [4:3] / 0.9 megapixels (1280 x 720) [16:9] / 0.3 megapixels (640 x 480) [4:3] |
| Simultaneous Recording |
2.1 megapixels [16:9] |
| Flash |
Yes |
RECORDING SECTION
|
| Signal System |
1080/60i1080/30p 720/60p720/30p 540/30p 480/30p |
| Recording Format |
MPEG-4 AVC/H.264 |
| Recording / Playback Mode |
1080/ 60i , (1920 x 1080) / 1080/ 30p , (1920 x 1080) / 720/ 60p , (1280 x 720) / 720/ 30p , (1280 x 720) / 480/ 30p , (640 x 480) / 540/30p , (960 x 540) |
| Audio Recording System |
AAC (2ch) |
| Microphone |
2ch stereo |
| Speaker |
Dynamic type |
| Media Remaining Indication |
yes |
INTERFACES
|
| AV |
OUT |
| HDMI |
Yesmini |
| USB |
2.0 Hi-Speed |
STANDARD ACCESSORIES
|
| AC Adaptor |
Yes |
| Rechargeable Battery Pack |
min. 700 mAh / Lithium-Ion |
| AV Cable |
Yes |
| USB Cable |
Yes |
| Included Software |
HD Writer VE1.0 |
|
|
|
|
15/06
|
Panasonic HX-DC1GN-H Camcorder - Grey
- SD/SDHC/SDXC Card Slot, HD 1080p, 5x Optical Zoom, 3.0" Widescreen LCD, Electorical Image Stabilizer, Microphone, MPEG-4 AVC/H.264 HX-DC1
Upright HD Camcorder
- Full-HD* Recording in MP4 Format
- 14-megapixel Still Picture Recording*
- 285° Rotating, 3.0-inch Wide-screen LCD
- 12x Double Range Zoom
- MPEG-4 AVC/H.264
- A stylish, easy-to-hold vertical design
Overview
Upright Full-HD Camcorder
Even with its light weight and slim design, the HX-DC1 is able to render images in breathtaking Full-HD (1920 x 1080). Files are recorded in the MPEG-4 format and are widely used because they combine video and sound in the same file for easy saving onto a PC and quick upload to the internet. * "Full-HD video with 1920 x 1080 pixels" in Panasonic Upright HD Camcorder refers to video recordings with 1920 pixels in the horizontal direction and 1080 pixels in the vertical direction.
Depending on the situation, you can quickly switch between high-quality still images with 14-megapixel resolution or Full HD video. You can also capture 2-megapixel still images while recording a video by simply pressing the Still button (which will vary depending on the video mode used for shooting).
The HX-DC1 features a 3.0" wide-screen LCD monitor that allows the brightness to be adjusted in seven levels. It also rotates through approximately 285, so you can easily position it at your preferred angle. Both features are designed to keep your subject clearly in view, whether you're shooting high, low, or even at yourself.
The HX-DC1 features a 12x Double Range Zoom. You can easily switch between the maximum zooming areas of 6x/12x with the press of the Zoom Range button to enable truly dynamic zooming without a degradation in image quality.
Specifications
GENERAL
|
| Power Supply (Battery / AC Adapter) |
DC3.7V / 5.0V |
| Dimension (W x H x D) |
approx. 86.2 x 120.8 x 37.7[mm] (3.40 x 4.76 x 1.49[mm]) |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
IMAGE SENSOR
|
| Image Sensor |
1/2.33" CMOS Sensor |
| Total Pixels |
14.4 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
11.90 megapixels [16:9] / 14.30 megapixels [4:3] TBD |
| Still Image |
10.65 megapixels [16:9] / 14.30 megapixels [4:3] TBD |
LENS SECTION
|
| F Value |
F3.5(WIDE), F3.7(TELE) |
| Optical Zoom |
5x ( W-Range Zoom 12x) |
| Focal Length |
6.8mm +/-5% - 34.0mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
39.7mm - 238.2mm (16:9), 38.3mm - 229.8mm (4:3) [W-Range Zoom W mode], 79.5mm - 477.0mm (16:9), 79.5mm - 477.0mm (4:3) [W-Range Zoom T mode] |
| Still Picture |
41.8mm - 209.0mm (16:9), 38.3mm - 191.5mm (4:3) |
CAMERA SECTION
|
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Focus |
Auto/Manual |
| White Balance |
Auto/Manual |
| Iris |
Auto |
| Zoom |
| Optical Zoom |
5x |
| Advanced Zoom / W-Range Zoom On |
W-Range Zoom 12x |
| Digital Zoom |
10x / 120x (The maximum value of zoom magnification) |
MONITOR
|
| Monitor (LCD) |
7.52cm (3.0") Wide LCD ( 230,400 dots) |
STILL IMAGE SECTION
|
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Still Picture |
14 megapixels-H (4352 x 3264), 14 megapixels-S (4352 x 3264) / 10 megapixels (4352 x 2448) [16:9] / 2 megapixels (1920 x 1080) [16:9], 2 megapixels (1600 x 1200) [4:3] / 0.9 megapixels (1280 x 720) [16:9] / 0.3 megapixels (640 x 480) [4:3] |
| Simultaneous Recording |
2.1 megapixels [16:9] |
| Flash |
Yes |
RECORDING SECTION
|
| Signal System |
1080/60i1080/30p 720/60p720/30p 540/30p 480/30p |
| Recording Format |
MPEG-4 AVC/H.264 |
| Recording / Playback Mode |
1080/ 60i , (1920 x 1080) / 1080/ 30p , (1920 x 1080) / 720/ 60p , (1280 x 720) / 720/ 30p , (1280 x 720) / 480/ 30p , (640 x 480) / 540/30p , (960 x 540) |
| Audio Recording System |
AAC (2ch) |
| Microphone |
2ch stereo |
| Speaker |
Dynamic type |
| Media Remaining Indication |
yes |
INTERFACES
|
| AV |
OUT |
| HDMI |
Yesmini |
| USB |
2.0 Hi-Speed |
STANDARD ACCESSORIES
|
| AC Adaptor |
Yes |
| Rechargeable Battery Pack |
min. 700 mAh / Lithium-Ion |
| AV Cable |
Yes |
| USB Cable |
Yes |
| Included Software |
HD Writer VE1.0 |
|
|
|
|
15/06
|
Panasonic HM-TA2GN-R Camcorder - Red
- SD/SDHC/SDXC Card Slot, HD 1080p, 4x Optical Zoom, 3.0" Touchscreen LCD, Electorical Image Stabilizer, Waterproof, Shockproof, Dustproof, Microphone Panasonic - HM-TA20 - HD Camcorders
HD Mobile Camera
- Full-HD Shooting with a 3m Waterproof, 1.5m Shockproof and Dustproof*
- Night View Mode* for Bright Video Recording
- Large 3.0-inch LCD* with Touch Operation
- Tripod stand Included for Self Portraits
- Voice Recording (Linear PCM)
- E.I.S. (Electrical Image Stabilizer)
Description
The HM-TA20 is a triple-tough design with waterproofing down to 3 meters for use even in seawater, shock-proofing to withstand a 1.5-meter drop, and a dustproof structure. This tough, compact, easy-to-carry design is ideal for both everyday and highly active use. * Waterproof: IEC60529 IPX8, Shockproof: MIL-STD-810F METHOD 516.5 SHOCK, Dustproof: IEC60529 IP5X * This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.
The HM-TA20 is equipped with Night View Mode, which lets you shoot with twice the brightness* of the previous model. When shooting, this function automatically detects dark scenes and the mode selector button lights up on the LCD screen. Simply press the button to start shooting with Night View Mode. And you can shoot clear images with minimal noise even in dark scenes, such as dimly lit indoor shots or party scenes. * Compared with the HM-TA1.
The HM-TA20 has an easy-to-see 3.0-inch touch panel with intuitive operation. The touch panel has a simple button layout and is easy to operate. The vertical configuration makes the camera easy to hold for shooting, while the horizontal 3.0-inch screen simplifies playback. To further increase operating ease, the Rec button is isolated and positioned below the touch panel. So you can simply pick up your mobile camera and start shooting or playback. *The LCD in the model for Europe is described as being 7.0 cm (which equals 3.0 inches).
A tripod stand comes included with the HM-TA20. It's handy for web camera use, or to hold the camera still to prevent blurring while shooting.
The linear PCM (Pulse Code Modulation) system records sounds that are faithful to the original. You can also shoot a photo while recording sounds. Enjoy playing your recorded sounds and photos simultaneously. This is handy for a wide range of applications, including business meetings and lessons.
Specifications
| CAMERA SECTION |
| Focus |
Auto |
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Minimum Illumination |
9lx (1/30) |
| Standard Illumination |
1400 lx |
| White Balance |
Auto |
| Shutter Speed |
| Motion Image |
1/30 - 1/4000 |
| Still Image |
1/2 - 1/4000 |
| Zoom |
| Digital Zoom |
4x |
| GENERAL |
| Dimension (W x H x D) |
approx. 64.3x112.6x17.7[mm] |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
| Power Consumption |
2.6W (Recording) / 2.5W (Charging) |
| Power Supply |
DC3.7V (Battery) / 5.0V (USB) |
| Power Supply (Battery / USB ) |
DC3.7V / 5.0V |
| Weight |
| with SD card |
approx. 158g (0.348lb) |
| without SD card |
approx. 156g (0.344lb) |
| General |
| NOTES |
* In PAL regions, images are converted from 30p to 25p for playback. |
| IMAGE SENSOR |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
2.93 megapixels [16:9] |
| Still Image |
2.93 megapixels [16:9] |
| INTERFACES |
| HDMI |
Yes (mini) |
| Headphone (stereo mini) |
Yes |
| USB |
2.0 Hi-Speed |
| LENS SECTION |
| F Value |
F2.8 |
| Focal Length |
4.1mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
49mm (16:9), 59mm (4:3) |
| Still Picture |
49mm (16:9), 39mm (4:3) |
| MONITOR |
| Monitor (LCD) |
7.0cm (3.0") Touch LCD ( 230,400 dots) |
| OTHERS |
| LED Video Light |
Yes |
| Tough Design |
Waterproof 3m/10ft, |
| Voice Recording |
Yes (LPCM, ACC) |
| RECORDING SECTION |
| Audio Recording System |
AAC (2ch) |
| Media (Motion/ Still Image) |
SD/SDHC/SDXC Memory Card |
| Microphone |
2ch stereo |
| Recording / Playback Mode |
1080/ 30p, (1920 x 1080) |
| Recording Format |
MPEG-4 AVC/H.264 |
| Signal System |
1080/ 30p, 720/ 30p, 480/ 30p |
| Speaker |
Dynamic type |
| SENSOR SECTION |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Megapixels |
| Effective Pixels |
| Motion Image |
2.93 Megapixels [16:9] |
| Still Image |
2.93 Megapixels [16:9] |
| STANDARD ACCESSORIES |
| Included Software |
HD Writer PE2.0 |
| Others |
Tripod Stand |
| Rechargeable Battery Pack |
(included in body) |
| Stylus Pen |
Yes |
| USB Cable |
Yes |
| USB Extention Cord |
Yes |
| STILL IMAGE SECTION |
| DPOF |
Yes |
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Creating still picture from motion picture |
2.1 megapixels (1920 x 1080) [16:9] |
| Still Picture |
8 megapixels (3264 x 2448) [4:3] |
| TOUGH |
| Dustproof |
Yes |
| Shockproof |
Yes( 1.5m / 5ft ) |
| Waterproof |
Yes( 3m / 10ft ) |
|
|
|
|
15/06
|
Panasonic HM-TA2GN-K Camcorder - Black
- SD/SDHC/SDXC Card Slot, HD 1080p, 4x Optical Zoom, 3.0" Touchscreen LCD, Electorical Image Stabilizer, Waterproof, Shockproof, Dustproof, Microphone Panasonic - HM-TA20 - HD Camcorders
HD Mobile Camera
- Full-HD Shooting with a 3m Waterproof, 1.5m Shockproof and Dustproof*
- Night View Mode* for Bright Video Recording
- Large 3.0-inch LCD* with Touch Operation
- Tripod stand Included for Self Portraits
- Voice Recording (Linear PCM)
- E.I.S. (Electrical Image Stabilizer)
Description
The HM-TA20 is a triple-tough design with waterproofing down to 3 meters for use even in seawater, shock-proofing to withstand a 1.5-meter drop, and a dustproof structure. This tough, compact, easy-to-carry design is ideal for both everyday and highly active use. * Waterproof: IEC60529 IPX8, Shockproof: MIL-STD-810F METHOD 516.5 SHOCK, Dustproof: IEC60529 IP5X * This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.
The HM-TA20 is equipped with Night View Mode, which lets you shoot with twice the brightness* of the previous model. When shooting, this function automatically detects dark scenes and the mode selector button lights up on the LCD screen. Simply press the button to start shooting with Night View Mode. And you can shoot clear images with minimal noise even in dark scenes, such as dimly lit indoor shots or party scenes. * Compared with the HM-TA1.
The HM-TA20 has an easy-to-see 3.0-inch touch panel with intuitive operation. The touch panel has a simple button layout and is easy to operate. The vertical configuration makes the camera easy to hold for shooting, while the horizontal 3.0-inch screen simplifies playback. To further increase operating ease, the Rec button is isolated and positioned below the touch panel. So you can simply pick up your mobile camera and start shooting or playback. *The LCD in the model for Europe is described as being 7.0 cm (which equals 3.0 inches).
A tripod stand comes included with the HM-TA20. It's handy for web camera use, or to hold the camera still to prevent blurring while shooting.
The linear PCM (Pulse Code Modulation) system records sounds that are faithful to the original. You can also shoot a photo while recording sounds. Enjoy playing your recorded sounds and photos simultaneously. This is handy for a wide range of applications, including business meetings and lessons.
Specifications
| CAMERA SECTION |
| Focus |
Auto |
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Minimum Illumination |
9lx (1/30) |
| Standard Illumination |
1400 lx |
| White Balance |
Auto |
| Shutter Speed |
| Motion Image |
1/30 - 1/4000 |
| Still Image |
1/2 - 1/4000 |
| Zoom |
| Digital Zoom |
4x |
| GENERAL |
| Dimension (W x H x D) |
approx. 64.3x112.6x17.7[mm] |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
| Power Consumption |
2.6W (Recording) / 2.5W (Charging) |
| Power Supply |
DC3.7V (Battery) / 5.0V (USB) |
| Power Supply (Battery / USB ) |
DC3.7V / 5.0V |
| Weight |
| with SD card |
approx. 158g (0.348lb) |
| without SD card |
approx. 156g (0.344lb) |
| General |
| NOTES |
* In PAL regions, images are converted from 30p to 25p for playback. |
| IMAGE SENSOR |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
2.93 megapixels [16:9] |
| Still Image |
2.93 megapixels [16:9] |
| INTERFACES |
| HDMI |
Yes (mini) |
| Headphone (stereo mini) |
Yes |
| USB |
2.0 Hi-Speed |
| LENS SECTION |
| F Value |
F2.8 |
| Focal Length |
4.1mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
49mm (16:9), 59mm (4:3) |
| Still Picture |
49mm (16:9), 39mm (4:3) |
| MONITOR |
| Monitor (LCD) |
7.0cm (3.0") Touch LCD ( 230,400 dots) |
| OTHERS |
| LED Video Light |
Yes |
| Tough Design |
Waterproof 3m/10ft, |
| Voice Recording |
Yes (LPCM, ACC) |
| RECORDING SECTION |
| Audio Recording System |
AAC (2ch) |
| Media (Motion/ Still Image) |
SD/SDHC/SDXC Memory Card |
| Microphone |
2ch stereo |
| Recording / Playback Mode |
1080/ 30p, (1920 x 1080) |
| Recording Format |
MPEG-4 AVC/H.264 |
| Signal System |
1080/ 30p, 720/ 30p, 480/ 30p |
| Speaker |
Dynamic type |
| SENSOR SECTION |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Megapixels |
| Effective Pixels |
| Motion Image |
2.93 Megapixels [16:9] |
| Still Image |
2.93 Megapixels [16:9] |
| STANDARD ACCESSORIES |
| Included Software |
HD Writer PE2.0 |
| Others |
Tripod Stand |
| Rechargeable Battery Pack |
(included in body) |
| Stylus Pen |
Yes |
| USB Cable |
Yes |
| USB Extention Cord |
Yes |
| STILL IMAGE SECTION |
| DPOF |
Yes |
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Creating still picture from motion picture |
2.1 megapixels (1920 x 1080) [16:9] |
| Still Picture |
8 megapixels (3264 x 2448) [4:3] |
| TOUGH |
| Dustproof |
Yes |
| Shockproof |
Yes( 1.5m / 5ft ) |
| Waterproof |
Yes( 3m / 10ft ) |
|
|
|
|
15/06
|
Panasonic HM-TA20GN-D Camcorder - Orange
- SD/SDHC/SDXC Card Slot, HD 1080p, 4x Optical Zoom, 3.0" Touchscreen LCD, Electorical Image Stabilizer, Waterproof, Shockproof, Dustproof, Microphone Panasonic - HM-TA20 - HD Camcorders
HD Mobile Camera
- Full-HD Shooting with a 3m Waterproof, 1.5m Shockproof and Dustproof*
- Night View Mode* for Bright Video Recording
- Large 3.0-inch LCD* with Touch Operation
- Tripod stand Included for Self Portraits
- Voice Recording (Linear PCM)
- E.I.S. (Electrical Image Stabilizer)
Description
The HM-TA20 is a triple-tough design with waterproofing down to 3 meters for use even in seawater, shock-proofing to withstand a 1.5-meter drop, and a dustproof structure. This tough, compact, easy-to-carry design is ideal for both everyday and highly active use. * Waterproof: IEC60529 IPX8, Shockproof: MIL-STD-810F METHOD 516.5 SHOCK, Dustproof: IEC60529 IP5X * This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.
The HM-TA20 is equipped with Night View Mode, which lets you shoot with twice the brightness* of the previous model. When shooting, this function automatically detects dark scenes and the mode selector button lights up on the LCD screen. Simply press the button to start shooting with Night View Mode. And you can shoot clear images with minimal noise even in dark scenes, such as dimly lit indoor shots or party scenes. * Compared with the HM-TA1.
The HM-TA20 has an easy-to-see 3.0-inch touch panel with intuitive operation. The touch panel has a simple button layout and is easy to operate. The vertical configuration makes the camera easy to hold for shooting, while the horizontal 3.0-inch screen simplifies playback. To further increase operating ease, the Rec button is isolated and positioned below the touch panel. So you can simply pick up your mobile camera and start shooting or playback. *The LCD in the model for Europe is described as being 7.0 cm (which equals 3.0 inches).
A tripod stand comes included with the HM-TA20. It's handy for web camera use, or to hold the camera still to prevent blurring while shooting.
The linear PCM (Pulse Code Modulation) system records sounds that are faithful to the original. You can also shoot a photo while recording sounds. Enjoy playing your recorded sounds and photos simultaneously. This is handy for a wide range of applications, including business meetings and lessons.
Specifications
| CAMERA SECTION |
| Focus |
Auto |
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Minimum Illumination |
9lx (1/30) |
| Standard Illumination |
1400 lx |
| White Balance |
Auto |
| Shutter Speed |
| Motion Image |
1/30 - 1/4000 |
| Still Image |
1/2 - 1/4000 |
| Zoom |
| Digital Zoom |
4x |
| GENERAL |
| Dimension (W x H x D) |
approx. 64.3x112.6x17.7[mm] |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
| Power Consumption |
2.6W (Recording) / 2.5W (Charging) |
| Power Supply |
DC3.7V (Battery) / 5.0V (USB) |
| Power Supply (Battery / USB ) |
DC3.7V / 5.0V |
| Weight |
| with SD card |
approx. 158g (0.348lb) |
| without SD card |
approx. 156g (0.344lb) |
| General |
| NOTES |
* In PAL regions, images are converted from 30p to 25p for playback. |
| IMAGE SENSOR |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
2.93 megapixels [16:9] |
| Still Image |
2.93 megapixels [16:9] |
| INTERFACES |
| HDMI |
Yes (mini) |
| Headphone (stereo mini) |
Yes |
| USB |
2.0 Hi-Speed |
| LENS SECTION |
| F Value |
F2.8 |
| Focal Length |
4.1mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
49mm (16:9), 59mm (4:3) |
| Still Picture |
49mm (16:9), 39mm (4:3) |
| MONITOR |
| Monitor (LCD) |
7.0cm (3.0") Touch LCD ( 230,400 dots) |
| OTHERS |
| LED Video Light |
Yes |
| Tough Design |
Waterproof 3m/10ft, |
| Voice Recording |
Yes (LPCM, ACC) |
| RECORDING SECTION |
| Audio Recording System |
AAC (2ch) |
| Media (Motion/ Still Image) |
SD/SDHC/SDXC Memory Card |
| Microphone |
2ch stereo |
| Recording / Playback Mode |
1080/ 30p, (1920 x 1080) |
| Recording Format |
MPEG-4 AVC/H.264 |
| Signal System |
1080/ 30p, 720/ 30p, 480/ 30p |
| Speaker |
Dynamic type |
| SENSOR SECTION |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Megapixels |
| Effective Pixels |
| Motion Image |
2.93 Megapixels [16:9] |
| Still Image |
2.93 Megapixels [16:9] |
| STANDARD ACCESSORIES |
| Included Software |
HD Writer PE2.0 |
| Others |
Tripod Stand |
| Rechargeable Battery Pack |
(included in body) |
| Stylus Pen |
Yes |
| USB Cable |
Yes |
| USB Extention Cord |
Yes |
| STILL IMAGE SECTION |
| DPOF |
Yes |
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Creating still picture from motion picture |
2.1 megapixels (1920 x 1080) [16:9] |
| Still Picture |
8 megapixels (3264 x 2448) [4:3] |
| TOUGH |
| Dustproof |
Yes |
| Shockproof |
Yes( 1.5m / 5ft ) |
| Waterproof |
Yes( 3m / 10ft ) |
|
|
|
|
15/06
|
Panasonic HM-TA20GN-A Camcorder - Blue
- SD/SDHC/SDXC Card Slot, HD 1080p, 4x Optical Zoom, 3.0" Touchscreen LCD, Electorical Image Stabilizer, Waterproof, Shockproof, Dustproof, Microphone Panasonic - HM-TA20 - HD Camcorders
HD Mobile Camera
- Full-HD Shooting with a 3m Waterproof, 1.5m Shockproof and Dustproof*
- Night View Mode* for Bright Video Recording
- Large 3.0-inch LCD* with Touch Operation
- Tripod stand Included for Self Portraits
- Voice Recording (Linear PCM)
- E.I.S. (Electrical Image Stabilizer)
Description
The HM-TA20 is a triple-tough design with waterproofing down to 3 meters for use even in seawater, shock-proofing to withstand a 1.5-meter drop, and a dustproof structure. This tough, compact, easy-to-carry design is ideal for both everyday and highly active use. * Waterproof: IEC60529 IPX8, Shockproof: MIL-STD-810F METHOD 516.5 SHOCK, Dustproof: IEC60529 IP5X * This does not guarantee no destruction, no malfunction, or waterproofing in all conditions.
The HM-TA20 is equipped with Night View Mode, which lets you shoot with twice the brightness* of the previous model. When shooting, this function automatically detects dark scenes and the mode selector button lights up on the LCD screen. Simply press the button to start shooting with Night View Mode. And you can shoot clear images with minimal noise even in dark scenes, such as dimly lit indoor shots or party scenes. * Compared with the HM-TA1.
The HM-TA20 has an easy-to-see 3.0-inch touch panel with intuitive operation. The touch panel has a simple button layout and is easy to operate. The vertical configuration makes the camera easy to hold for shooting, while the horizontal 3.0-inch screen simplifies playback. To further increase operating ease, the Rec button is isolated and positioned below the touch panel. So you can simply pick up your mobile camera and start shooting or playback. *The LCD in the model for Europe is described as being 7.0 cm (which equals 3.0 inches).
A tripod stand comes included with the HM-TA20. It's handy for web camera use, or to hold the camera still to prevent blurring while shooting.
The linear PCM (Pulse Code Modulation) system records sounds that are faithful to the original. You can also shoot a photo while recording sounds. Enjoy playing your recorded sounds and photos simultaneously. This is handy for a wide range of applications, including business meetings and lessons.
| CAMERA SECTION |
| Focus |
Auto |
| Image Stabilizer |
E.I.S. [Electorical Image Stabilizer] |
| Minimum Illumination |
9lx (1/30) |
| Standard Illumination |
1400 lx |
| White Balance |
Auto |
| Shutter Speed |
| Motion Image |
1/30 - 1/4000 |
| Still Image |
1/2 - 1/4000 |
| Zoom |
| Digital Zoom |
4x |
| GENERAL |
| Dimension (W x H x D) |
approx. 64.3x112.6x17.7[mm] |
| Media |
SD/SDHC/SDXC Memory Card (Movie / Still Picture) |
| On-Screen Display Language |
English, German, French, Italian, Netherlandic, Swedish, Spanish, Polish, Czech, Turkish |
| Power Consumption |
2.6W (Recording) / 2.5W (Charging) |
| Power Supply |
DC3.7V (Battery) / 5.0V (USB) |
| Power Supply (Battery / USB ) |
DC3.7V / 5.0V |
| Weight |
| with SD card |
approx. 158g (0.348lb) |
| without SD card |
approx. 156g (0.344lb) |
| General |
| NOTES |
* In PAL regions, images are converted from 30p to 25p for playback. |
| IMAGE SENSOR |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Mega Total Pixels |
| Effective Pixels |
| Motion Image |
2.93 megapixels [16:9] |
| Still Image |
2.93 megapixels [16:9] |
| INTERFACES |
| HDMI |
Yes (mini) |
| Headphone (stereo mini) |
Yes |
| USB |
2.0 Hi-Speed |
| LENS SECTION |
| F Value |
F2.8 |
| Focal Length |
4.1mm +/-5% |
| 35mm Film camera Equivalent |
| Motion Image |
49mm (16:9), 59mm (4:3) |
| Still Picture |
49mm (16:9), 39mm (4:3) |
| MONITOR |
| Monitor (LCD) |
7.0cm (3.0") Touch LCD ( 230,400 dots) |
| OTHERS |
| LED Video Light |
Yes |
| Tough Design |
Waterproof 3m/10ft, |
| Voice Recording |
Yes (LPCM, ACC) |
| RECORDING SECTION |
| Audio Recording System |
AAC (2ch) |
| Media (Motion/ Still Image) |
SD/SDHC/SDXC Memory Card |
| Microphone |
2ch stereo |
| Recording / Playback Mode |
1080/ 30p, (1920 x 1080) |
| Recording Format |
MPEG-4 AVC/H.264 |
| Signal System |
1080/ 30p, 720/ 30p, 480/ 30p |
| Speaker |
Dynamic type |
| SENSOR SECTION |
| Image Sensor |
1/4.1" MOS Sensor |
| Total Pixels |
5.33 Megapixels |
| Effective Pixels |
| Motion Image |
2.93 Megapixels [16:9] |
| Still Image |
2.93 Megapixels [16:9] |
| STANDARD ACCESSORIES |
| Included Software |
HD Writer PE2.0 |
| Others |
Tripod Stand |
| Rechargeable Battery Pack |
(included in body) |
| Stylus Pen |
Yes |
| USB Cable |
Yes |
| USB Extention Cord |
Yes |
| STILL IMAGE SECTION |
| DPOF |
Yes |
| Recording Format |
JPEG(DCF/Exif2.2) |
| Recording Image Size |
| Creating still picture from motion picture |
2.1 megapixels (1920 x 1080) [16:9] |
| Still Picture |
8 megapixels (3264 x 2448) [4:3] |
| TOUGH |
| Dustproof |
Yes |
| Shockproof |
Yes( 1.5m / 5ft ) |
| Waterproof |
Yes( 3m / 10ft ) |
|
|
|
|
15/06
|
Swann SW361-RCN RemoteCam Video Camera & Recorder - Without SD Card - 720x480, Built-In Microphone, Up to 8GB Capacity, Handy Key Chain - Black RemoteCam Video Camera & Recorder without SD card
SW361-RCN
Captures full color 720 x 480 AVI video files at 30 fps, or 1280 x 1024 JPEG still photos. Looks like a car remote. Add a micro SD card (not included) up to 8 GB capacity. Rechargeable battery. Transfer files & charge off USB cable.

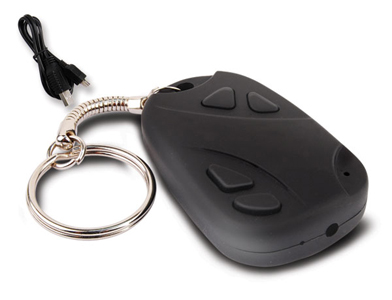

Looks like a car remote control but is a hidden video camera with a handy key chain. Record important incidents discreetly, at the push of a button!

The RemoteCam Video Camera & Recorder is yet another cool gadget in Swann's covert surveillance range. Whether you use it to record leisure activities and fun on the move or more serious hidden covert video, the RemoteCam is a tiny camera with powerful possibilities.
Swann's RemoteCam has a pinhole video camera disguised in a real-looking car remote control, complete with a keychain. It's small yet powerful, with the ability to create clear, full color AVI video files with a resolution of 720 x 480, or 1280 x 1024 JPEG still images. Recording is a breeze with push-button operation onto a micro SD card (not included). Add a micro SD card up to 8GB capacity for recording at an impressive 30 frames per second. For easy identification of your video and images, the time and date can be stamped onto your recordings. Once recorded, you can easily transfer the AVI files to your PC via the micro SD, or connect the RemoteCam directly to your computer via the included USB 2.0 cable! From there it's easy to upload videos to your favorite websites like YouTube, Facebook, MySpace and more.
The RemoteCam has a built-in lithium ion battery that you can recharge via your PC's USB port - just connect it using the included USB 2.0 cable. The recording time per charge is 60 minutes.
Swann's RemoteCam is lightweight and discreet, perfect for anyone wanting to record videos or photos with a minimum of fuss. With its handy keychain you can attach your regular keys to it and no one will know that it's a camera. The RemoteCam is perfect for sales people, lawyers, law enforcement, mystery shopping, covert surveillance or internet fun. It's an affordable business person's accessory or a cool gift idea for anyone looking to create discreet videos or photos!
Product Info
Make videos or still photos at the push of a button
A mini video camera & DVR housed in a real-looking car remote control with keychain
Keep a record of important moments Create time & date stamped 720 x 480 color AVI video files
Easy to backup & save on your PC
Add a Micro SD card (not included) for up to 8GB of storage, then upload to PC via USB cable
Share with friends or the world!
Shoot & upload videos to social networking sites such as YouTube, Facebook, MySpace and more
Simple to recharge & use
Built-in battery lasts 60 minutes & recharges via your PC's USB port
Built for an active life
With a handy key ring you can keep it with you all day. It's perfect for videos on the move for lawyers, sales people, law enforcement, mystery shopping, covert surveillance or internet fun!
Specifications
| RemoteCam |
|
|
Video
|
|
Video Format
|
AVI |
|
Resolution
|
720 x 480 |
|
Video Bit Rate
|
6500 kbps |
|
Photo Format
|
JPEG |
|
Photo Resolution
|
1280 x 1024 |
|
Image File Size
|
Approx. 350KB |
|
|
Audio
|
|
Built in Microphone
|
Yes |
|
Audio Range
|
3m |
|
|
Recording
|
|
Recording Mode
|
Manual |
|
Frame Rate
|
30 fps |
|
Storage Type
|
Micro SD Card (not included) |
|
Storage Capacity
|
Up to 8GB |
|
Storage Time
|
Approximately 20min/GB |
|
|
General
|
|
Record Time per Charge
|
60 mins |
|
Battery Type
|
Rechargeable Lithium-ion |
|
Charging Method
|
USB via computer |
|
Dimensions
|
2.0" x 1.2" x 0.5" / 50mm x 30mm x 13mm |
|
Weight
|
0.8oz / 20g |
Labelled Diagram
What's in the Box?
|
|
|
|
15/06
|
Vivotek IP8162 Fixed Network Camera - 2MP CMOS Sensor, Full HD 1080p, Up to 30fps, Removable IR-cut Filter for Day & Night Function, H.264 Real-time - White
2MP Full HD Focus Assist WDR Enhanced Fixed Network Camera IP8162
Overview
VIVOTEK IP8162 is part of the SUPREME series product line offering 2-megapixel resolution with superb image quality. The camera can capture a much more comprehensive area than a standard VGA camera, significantly reducing the number of cameras required. It is especially suitable for monitoring wide open indoor spaces such as building entrances, airports, or applications requiring accurate identification, as well as outdoor applications when placed inside an enclosure.
The IP8162 employs many advanced features to allow users to fully enjoy the high definition video. With high performance H.264/MPEG-4/MJPEG compression technology and Gigabit Ethernet transmission, the IP8162 offers extra smooth video quality with resolution up to 1080p full HD @ 30fps. The Video Cropping feature allows a user to only transfer user-defined thumbnails for viewing instead of an entire scene so as to optimize bandwidth and enhance storage efficiency. The ePTZ function enables users to zoom in and focus on a region of interest (ROI) in the camera view with only a few clicks.
As with all VIVOTEK true day/night cameras, the IP8162 features a removable IR-cut filter, maintaining clear images 24 hours a day. The built-in SD/SDHC card slot offers a convenient and portable storage option to prevent data loss in case of network disconnection. Additionally, the IP8162 can connected directly to an analog monitor with an RCA connector, providing integrators with more flexibility and hassle-free installation for a variety of applications.
Data security with the IP8162 is further enhanced with HTTPS encryption and 802.1X authentication. Together with PoE, QoS, time-shift streaming, and the included 32-CH recording software, the IP8162 is indisputably the top choice for reliable and high performance megapixel surveillance.
Features
- 2-megapixel CMOS Sensor
- 3.1 ~ 8 mm Vari-focal, Auto-iris Lens
- Up to 30 fps @ 1080p Full HD
- Removable IR-cut Filter for Day & Night Function
- Built-in Focus Assist Button for Precise Focus Adjustment
- Supports WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- Simultaneous Multiple Streams
- Video Cropping for Bandwidth Saving
- ePTZ for Data Efficiency
- Activity Adaptive Streaming for Dynamic Frame Rate Control
- Built-in SD/SDHC Card Slot for On-board Storage
- Built-in 802.3af Compliant PoE
Specifications
| System |
CPU: TI DM368 SoC
Flash: 128MB
RAM: 256MB
Embedded OS: Linux 2.6 |
| Lens |
f=3.1 ~ 8 mm
F 1.2
auto iris
CS-mount
Vari-focal
Removable IR-cut filter for day & night function
|
| Angle of View |
105.4 ~ 42.2 (horizontal)
57.9 ~ 23.8 (vertical)
123.1 ~ 48.3 (diagonal)
|
| Shutter Time |
1/5 ~ 1/32000 sec |
| Image sensor |
1/2.7" CMOS in 1920x1080 Resolution |
| Minimum Illumination |
0.06 Lux / F1.2 ( typical )
in 0.001 Lux / F1.2 ( B/W ) |
| Video |
Compression: H.264, MPEG-4 & MJPEG
Streaming:
Simultaneous multiple streams
H.264 streaming over UDP, TCP, HTTP or HTTPS
H.264/MPEG-4 multicast streaming
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MJPEG streaming over HTTP or HTTPS
Supports activity adaptive streaming for dynamic frame rate control
Supports video cropping for bandwidth efficiency
Supports ePTZ for data efficiency
Supports 3GPP mobile surveillance
Frame rates:
H.264: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
MPEG-4: Up to 30 fps @ 1280 x 720, Up to 27 fps @ 1920 x 1080
MJPEG: Up to 30 fps @ 1280 x 720, Up to 30 fps @ 1920 x 1080
BNC connector for video output
NTSC/PAL video output switch
Focus Assist
|
| Image Settings |
Adjustable image size, quality, and bit rate
Time stamp and text caption overlay
Flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance and exposure
AGCAWBAES
Automatic, manual or scheduled day/night mode
Supports privacy masks
BLC (Backlight compensation)
WDR enhanced |
| Audio |
Compression
GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps
G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law
Interface:
Built-in microphone
External microphone input
Audio output
External/Internal microphone switch
Supports two-way audio
Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45
ONVIF support
Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management |
Triple-window video motion detection
1 D/I & 1 D/O for external sensor and alarm
Event notification using HTTP, SMTP, or FTP
Local recording of MP4 files
Tamper Detection
|
| On-board Storage |
SD/SDHC card slot
Stores snapshots and video clips
|
| Security |
Multi-level user access with password protection
IP address filtering
HTTPS encrypted data transmission
802.1X port-based authentication for network protection
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
Depth: 154mm
Width: 72mm
Height: 62mm
|
| LED Indicator |
System power and status indicator
System activity and network link indicator
|
| Power |
12V DC
24V AC
Power consumption: Max. 4.92 W
802.3af compliant Power-over-Ethernet (Class 3)
|
| Approvals |
CEC-TickFCCLVDVCCI |
| Operating Environments |
Temperature: -10 ~ 50 C (14 ~ 122 F )
Humidity: 90%
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7
Browser: Mozilla Firefox, Internet Explorer 6.x or above
Cell phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
RS-485 interface for scanners, pan/tilts
Installation Wizard 2
32-CH central management software
Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
36 months |
|
|
|
|
Previous Page
|
Next Page
|
|
