Supreme Flexibility and Superior Image Quality in WUXGA Resolution



Feature rich and offering a choice of five lenses (each sold separately) ranging from Rear Projection through Long Throw, the Epson EB-G5750WUNL is perfect for custom installations. Producing an impressive 4,500 lumens Light Output and 4,500 lumens Colour Light Output in WUXGA resolution the EB-G5750WUNL further enhances on Epsons reputation for high performance projectors for high end installation environments.



FEATURES AND BENEFITS:

Amazing Image Quality
In the new G-Series, Epsons engineers have built upon Epsons World leading Home Cinema heritage to deliver unparalleled image quality. This is thanks to Epsons famous C²Fine LCD panels. Featuring advanced vertical alignment technology, C²Fine panels provide high contrast for deeper blacks and vivid images. And because theyre 3LCD, you know that colour reproduction is second to none, and your image will be crisp and vibrant.

Wide Ultra XGA (WUXGA)
When image quality is paramount, the EB-G5750WUNL stands out from the crowd. Wide Ultra XGA is a resolution greater than that of Full High Definition 1080p. With 1,920 x 1,200 pixels, you not only see more, you enjoy amazing image quality surpassing High Definition. Colour gradations are smoother, image details are clearer, and the impact on your audience is amazing!



Multi PC Projection
Multi PC projection enables users to connect and display up to four PCs simultaneously via the network with a four-way split screen. An additional 12 PCs can connect in standby. Which PCs are displayed at any one time is easily controlled with simple drag and drop functionality. With Multi PC projection, workgroup tele-meetings with remote members can now deliver collaboration results like never before!

Its also possible to display content from two inputs simultaneously without the need for a network. Watch video via HDMI and view a presentation via VGA for an instant video conference.

Monitor and Control via the Network
Monitoring and controlling a G-Series projector is possible over a network, enabling the network manager to obtain projector information, monitor projector status, and control functions such as power on and off, change sources and even update firmware from a remote location. The Epson G-Series is also compatible with Crestron RoomView, meaning complete integration is possible if you have already invested in this infrastructure.

DICOM Simulation Mode
DICOM (Digital Imaging and Communication in Medicine) is a standard for handling, storing, printing, and transmitting information in medical imaging, which includes a file format definition and a network communications protocol. The DICOM simulation mode in the G-Series can reproduce images with gray level very close to DICOM Part 14 (Grayscale Standard Display Function). This mode is ideal for viewing grayscale medical images such as X-ray pictures for training and education in the medical institutions.

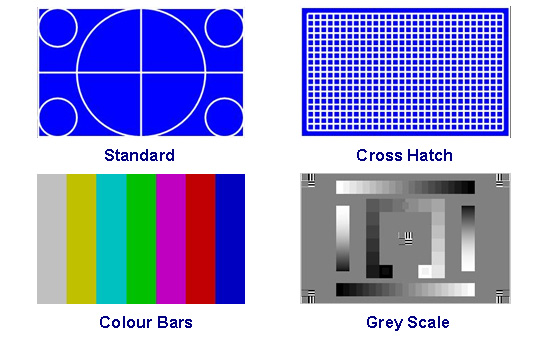

New Test Patterns for Precise Installation
With the new G-Series range there is no need to connect an image source when setting up the image parameters thanks to the included test patterns.

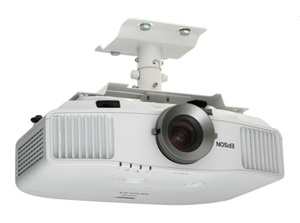

New Epson Designed and Manufactured Mount
Designed and manufactured by Epson, the new ELP-MB22 is made to Epsons high quality standards, so you know it will stand up to the task. Also available is a choice of two suspension adaptors for installations with high ceilings. Providing up to 1,168mm drop, these adaptors deliver versatility for your installation.

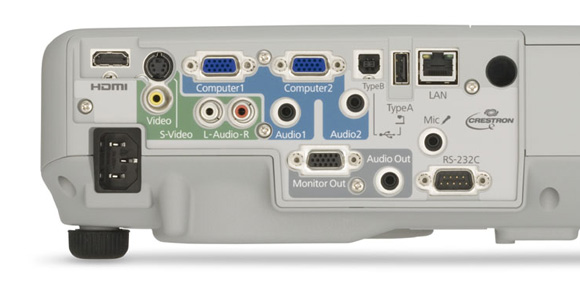

Connectivity

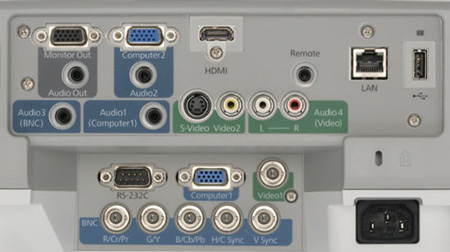

EB-G5750WUNL Rear Panel



Portable Multimedia Projector
PRODUCT NAME	Epson EB-G5750WUNL
PRODUCT CODE	V11H345953
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD	Size	0.76 inches with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	2,304,000 pixels (1920 x 1200 x 3)
	Native resolution	WUXGA
	Aspect ratio	16:10
	Pixel arrangement	Cross Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Manual: zoom / focus
(Specification for ELPLS05 standard lens. Sold separately.)	F-number	1.65 - 2.55
	Focus length	21.28 - 37.94mm
	Zoom ratio	1:1.8
PROJECTION LAMP	Type	E-TORL 330 W UHE
	Optical System	Dichroic Mirror Separation & Prism Combine Method
SCREEN SIZE (PROJECTED DISTANCE)	50 to 300 inch [1.36m to 8.38m] (Zoom: Wide), 50 to 300 inch [2.46m to 14.99m] (Zoom: Tele) 100" screen 2.76m 4.97m
LENS SHIFT RANGE
	MANUAL	Vertical +/-58% max (upward / downward)
		Horizontal +/-9% max (left / right)
BRIGHTNESS
	High Brightness Mode	4,500 Lumens Light Output 4,500 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide)
	Low Brightness Mode	3,600 Lumens Light Output 3,600 Lumens Colour Light Output (Colour mode: Game, Zoom: Wide)
CONTRAST	1500:1
BRIGHTNESS UNIFORMITY	88%
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
SOUND OUTPUT (Internal speaker)	7W monaural
FUNCTION	Pointer, User Logo, A/V mute, Freeze, E Zoom, Test Pattern
EFFECTIVE SCANNING FREQUENCY RANGE (Analog)
PIXEL CLOCK	13.5MHz to 162MHz ( up to UXGA 60Hz )
HORIZONTAL	15KHz to 92KHz
VERTICAL	50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Sharpness / Input signal / Sync / Tracking / Position / Color temperature / Volume etc.
FOOT ADJUSTER	Front-centre / Rear side
TILT ANGLE	-2.5 to 10 degrees
KEYSTONE CORRECTION	Vertical: -40 to +40 degrees (Zoom: Tele) Horizontal: -20 to +20 degrees (Zoom: Tele)
QUICK CORNER	Yes
SOURCE SEARCH	Yes
AUTO DETECTION OF RGB YCbCr	Yes
MULTI SCREEN COLOUR ADJUSTMENT	Yes
OPERATION PANEL PROTECTION	Yes
PASSWORD PROTECTED	Yes
HIGH ALTITUDE MODE	Yes
COLOUR MODE	PC: Photo, Presentation, Theatre, Dynamic , sRGB, DICOM SIM, Customized Video: Sports, Presentation, Theatre, Dynamic , sRGB, Customized
ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1920 x 1200 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47K-ohm
VIDEO INPUT TERMINAL	Video	D-sub 15pin x1 Blue molding 5-BNC x1
	Audio	Stereo mini-jack x 2
OUTPUT SIGNAL	Signal Type	Separate signal
	Video signal	Analogue (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync. signal	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2-0.4 Vp-p)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 Black molding
	Audio	Stereo mini-jack x 1
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 560 lines PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / sync negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75ohm / sync negative 0.3V or 3-state +/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Audio signal	500mVrms / 47Kohm
VIDEO INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x 1 S-Video: Mini DIN Component Video: Mini D-sub 15pin Blue-moulding x 2 (in common with Analog RGB connector) Video-RGB: Mini D-sub 15pin 2 x Blue-moulding (in common with Analog RGB connector
	Audio	RCA (White/Red) x 1pair (for Composite Video and S-Video)
HDMI
INPUT SIGNAL	Video standard Video signal	480i/576i/480p/576p/720p/1080i/1080p TMDS ( signal for HDMI )
INPUT TERMINAL	Audio signal Video	Linear PCM HDMI x 1 (HDCP)
CONTROL I/O
Serial I/O	I/O Terminal	D-sub 9 pin x 1
	I/O Signal	RS-232C
Remote Control Input	I/O Terminal	Stereo mini jack x 1
	I/O signal	Epson Format
NETWORK I/O
USB I/O	Type	Type A x 1
	Wireless LAN unit	Optional
	Wired LAN	RJ45 x 1
Wireless Specification	Supported speeds for each mode	IEEE 802.11b: 11Mbps IEEE 802.11g: 54Mbps IEEE 802.11a: 54Mbps Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.
	Supported mode	Adhoc, infrastructure
	Certification	Wi-Fi Certified
OPERATING TEMPERATURE	0C to 40C (32F to 104F), (20% - 80% Humidity unfrozen) Thermal shutdown > 45 degree C
	0C to 35C (32F to 95F), (over 1500m with high altitude mode, High brightness)
OPERATING ALTITUDE	0m to 3000m < 0ft to 9843ft > (over 1500m / 4,921ft with high altitude mode)
DIRECT POWER ON	Yes
DIRECT POWER OFF	Yes
COOL-DOWN PERIOD	Instant Off
THEFT PROOF
	Wireless LAN Unit Lock	Yes
	Security Cable	Yes
	Kensington Lock	Yes
POWER SUPPLY VOLTAGE	100-240V AC10% 50/60Hz
POWER CONSUMPTION
	Lamp On	451W
	Stand by ( network on )	11W
	Stand by ( network off )	0.47W
DIMENSION
EXCLUDE FEET	311.5mm(D) x 470mm(W) x 135mm(H)
MAXIMUM DIMENSION	311.5mm(D) x 470mm(W) x 151.5mm(H)
WEIGHT	Approx. 6.8Kg
FAN NOISE
HIGH BRIGHTNESS MODE	39dB
LOW BRIGHTNESS MODE	33dB
ACCESSORIES
POWER CABLE	3m
COMPUTER CABLE	1.8m, D-sub 15pin (Male - Male)
REMOTE CONTROL	Included
BATTERY	Alkaline AA x 2
USER MANUAL SET	Included (CD-ROM)
PROJECTOR SOFTWARE	Included (CD-ROM)
PASSWORD PROTECT STICKER	Included
EASY MP
Function	Projector control and projector management via network	Email notification SNMP Crestron Integrated Partner / RoomView Extron IP Link PJ Link AMX Device Discovery Web Control
	PC FREE	Yes
	Message Broadcasting	Yes
	Multi PC Projection	Yes
	Windows network projector	Yes
	Quick Wireless Connection	Yes
	Software	EasyMP Network Projection V 2.70 (Win and Mac) EasyMP Multi PC Projection V 1.00 (Win and Mac) EasyMP Slide converter V.1.01 (Win only) EasyMP Monitor Ver.4.50 (Win only)
	Security (Wireless LAN)	WEP, WPA-PSK(TKIP/AES), WPA2-PSK(TKIP/AES), EAP-TLS, EAP-TTLS/MD5, EAP-TTLS/MS-CHAPv2, PEAP/MS-CHAPv2, PEAP/GTC LEAP, EAP-Fast/MS-CHAPv2, EAP-Fast/GTC
* Software compatible with MS Vista # EMP NS Connection, EMP Monitor or EMP Slidemaker2 software does not support Win XP 64bit or Win Vista 64bit.
WARRANTY
STANDARD WARRANTY	3 years* *excluding lamp
* For more information visit Epson Projector Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

Light, Bright And Portable Projector | 120HZ AND 3D Ready

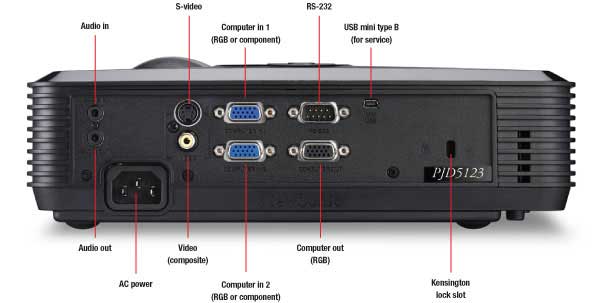

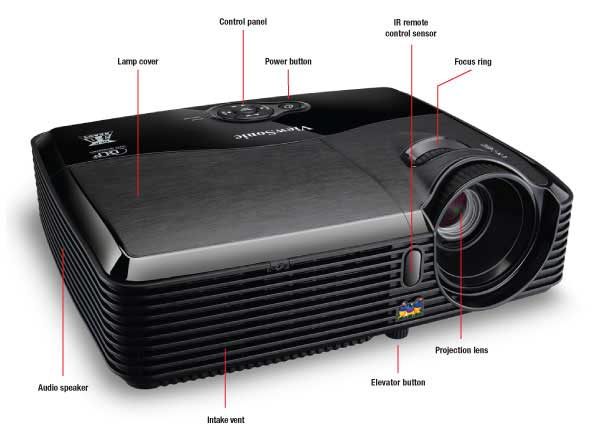

The ViewSonic PJD5123 is a high-performance SVGA 800x600 DLP projector with 2700 ANSI lumens and 3000:1 contrast ratio. With new slim design at only 3.2 inches high, makes it ideal to move from room to room on the campus or throughout the office. This projector offers a variety of hardware and software features including multiple PC and video input options, 1.1x manual optical zoom, auto vertical keystone correction, 120Hz/3D-ready, support HD video signal and integrated speaker. Filter-less design and energy-saving Eco-mode provide for easy maintenance and longer product life. The PJD5123 lightweight design is ideal for tabletop use or ceiling mounting in both classrooms and corporate offices.




Using less watts per lumen than other comparable projectors. And with a 3000:1 dynamic contrast ratio, its the bright choice for business, education, mobile and home presenters.





Business







Home

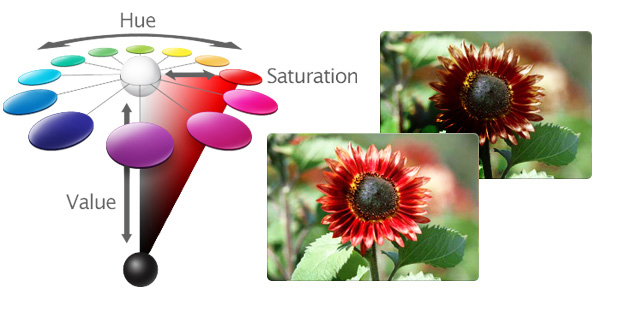

Color is one of the most important characteristics of a good projection system, and the latest BrilliantColor technology delivers stunning all-digital clarity with lifelike color, sharp graphics and outstanding video. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.


Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology that Hollywood relies on. For fast action, the response time is also on the order of 1,000 times faster than similiar LCD based projectors. And with no air filters to clean or change, the latest generation of DLP based projectors from ViewSonic offer amongst the lowest TCO (total cost of ownership) in the industry. Check out the TCO calculators at http://www.viewsonic.com/viewschool/dlp-tco-calculator/








With support for TIs DLP Link technology, youll have amazing 3D capabilities at your disposal. The projectors embedded emitter function means all thats required to unlock 3D capabilities is a pair of DLP Link compatible glasses, such as the optional ViewSonic PGD-150 active shutter glass kit.




With only a slight 20% decrease in brightness, the ECO-mode function can extend the life of your lamp by almost 50% and up to 6,000 hours in some cases. Other benefits of ECO-mode operation include reduced power consumption, as well as less heat and audible noise output. Its good for the environment and great for your budget. The ECO-mode function will definitely help lower your total cost of ownership (TCO).






At only 3.2 inches height and lightweight 5.7 pounds, its light and compact, making it ideal for mobility and portability.








Choose a projector that fits your space, as well as your lifestyle and needs. Simply determine your desired image size and then cross reference on this chart to locate the required projection distance. An interactive distance calculator specific to each and every ViewSonic projector is also available here to help calculate desired image size and throw distance based on your screen size.





Backed by our 20+ year reputation for quality and reliability, ViewSonic offers one of the industry´s best overall projector warranty with 3-year limited parts, 1-year lamp and first year free Express Exchange® service. Don´t be fooled by seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts.









Epson is pleased to introduce the Epson EB925 3LCD Multimedia Projector. Powerful and easy to use, this projector offers low cost of ownership, and ease of maintenance. Beautiful crisp, clear images make the EB925 is the ideal choice for use in a wide variety of Corporate and Education environments.



Light + Colour Light Output of 3,500 lumens – The Epson EB-925 is capable of producing a bright image of up to 3,500 Lumens Light + Colour Light Output. With this powerful projector you don’t have to dim the lights or close the windows in order to see a bright, clear image.



Wide Ranging Connectivity – The EB-925 is very versatile in the classroom or office, featuring a host of input options. The units boast a HDMI, Video, S-Video, 2x VGA, USB A & B, Mic, RS232C, Monitor Out, Audio In + Out, and LAN inputs.
Easy integration and advanced connectivity features allow you to evolve your classroom or office as you incorporate additional technology. This projector can also be connected directly to the Epson DC06 to help facilitate effective presentations and lessons without the need for a PC.



1.6x Zoom Lens – The high level zoom of the EB-925 provides installation flexibility, allowing the unit to be place in a wide range of mount placements. This feature could allow you to mount the new projector unit in pre-existing mounts, avoiding the cost and time of setting up a new mount to suit the projector.

Network Functionality With Epson Network monitoring and control software (Easy MP monitor), a single PC allows you to see which projectors are available and if they are running efficiently, even across the largest of networks. This series can be configured remotely, and you can receive instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps. Using this feature you can be sure that all projectors are operating correctly and be certain that all units are turned off at the end of the day and in the process, save time, money and reduce drain on the environment.



Long Life Lamp - Lamp life for the EB-925 has an impressive 5,000 hours in high brightness mode or an amazing 6,000 hours in low brightness mode. We even back our lamps with a full 12 month, 750 hour* lamp warranty giving you the peace of mind. By the time you need to change the lamp in any of these products, you may have changed up to 2.5 lamps if you had used a competitors product from this category.



Maintaining the EB-925 is easy even when ceiling mounted. Changing the filter or lamp is a simple in-situ, end-user changeable operation meaning you dont require the additional expense of a visit from a service agent.
*Which ever comes first

Wireless Connectivity - With the addition of the ELPAP07 Wireless LAN Unit, the EB-925 becomes a part of your 802.11 b/g/n wireless network. For incredibly easy peer-to-peer wireless connection on the fly without the need for additional software, add the ELPAP08 Easy MP quick wireless connection USB key.





PRODUCT TYPE	Entry Level Multimedia Projectors
PRODUCT NAME	Epson EB-925
PRODUCT CODE	V11H389053
PROJECTION SYSTEM	RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD	Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD	Size	0.63 inches with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Pixel number	786432 pixels (1024 x 768) x 3
	Native resolution	XGA
	Aspect ratio	4:3
	Pixel arrangement	Stripe
	Refresh Rate	50Hz-60Hz
PROJECTION LENS	Type	Manual zoom / focus
	F-number	1.51 - 1.99
	Focal length	18.2mm - 29.2mm
	Zoom ratio	1.0 ~ 1.6 Digital
LAMP	Type	230W UHE E-TORL
	Life (estimated)	5000Hr# (High bright), 6000Hr# (Low bright)
# Subject to operation and environmental conditions.
OPTICAL SYSTEM	Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE)	30 to 300 inch [0.84 to 8.4m] (Zoom: Wide) 30 to 300 inch [1.36 to 13.9m] (Zoom: Tele),
BRIGHTNESS
	High Brightness Mode	3,500 Lumens Light Output 3,500 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide)
	Low Brightness Mode	2,450 Lumens Light Output 2,450 Lumens Colour Light Output (Colour mode: Dynamic, Zoom: Wide)
CONTRAST	2,000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY	89% (Typ.)
COLOUR REPRODUCTIVITY	Full colour (16.77 million colours)
VIDEO QUALITY	3D Y/C separation (NTSC only), Motion compensated Interlace-Progressive conversion (2-2, 3-2 film detection)
SOUND OUTPUT	16W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK	13.5MHz to 162MHz
HORIZONTAL	15KHz to 92KHz
VERTICAL	50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
TILT ANGLE	0 to 16 degrees
KEYSTONE CORRECTION	Vertical: +/-30 degrees Horizontal: +/-30 degrees
AUTO KEYSTONE CORRECTION	Vertical: +/-30 degrees
PASSWORD PROTECTED FUNCTION (security function)	Implemented
ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1024 x 768 pixels
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
	Sync. signal	Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
	Audio signal	500mVrms / 47K-ohm
INPUT TERMINAL	Video	Video D-sub 15pin x 2 (Blue moulding)
	Audio	Stereo mini jack x 2
OUTPUT SIGNAL	Video	Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
	Sync.	Separate (positive & negative,TTL) / Composite (positive & negative,TTL) / Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL	Video	D-sub 15pin x 1 (Black moulding)
VIDEO I/O
DISPLAY PERFORMANCE		NTSC: 480 lines, PAL: 576 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / Sync. negative, 75ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) / Component Video (Analog Y level 0.75V 75ohm / Cr Cb level +/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) / Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
	Audio signal	500mVrms / 47k-ohm
INPUT TERMINAL	Video	Composite Video: RCA (Yellow) x1 S-Video: Mini DIN Component Video: D-sub 15pin x 2 (Blue moulding)
MIC
Input Signal	Audio	-50dBV to -40dBV (0dB=1V/Pa,1kHz) (TBD)
Input Terminal	Audio	Stereo mini jack (Plug in power is available)
CONTROL I/O
SERIAL I/O	Terminal	D Sub 9 pin x 1
	Signal	RS-232C
EASY MP
FUNCTION	ESC/VP.net
	E-mail notification
	SNMP
	Web control
	PJ-Link
	AMX Device Discovery
	Crestron Room View
	Message Broadcast
PC FREE	File Browser
	Still Image	JPG; Thumbnail
	Slideshow
WIRELESS Connectivity	802.11 b/g	With optional wireless adapter
SECURITY (Wireless LAN)	WEP (64bit/128bit)
	WPA-PSK (TKIP/AES)
	WPA2-PSK(TKIP/AES)
SOFTWARE	EMP Monitor (for Windows)	Epson IP Link Projector Control (for Windows)
	NS Connection	For wireless connectivity (Win & Mac OSX)
OPERATING TEMPERATURE	5C to 35C (41F to 95F) > (20%-80% Humidity )
COOL-DOWN PERIOD	"Instant off"
START-UP PERIOD	Approx. 7 seconds (warm up 30 seconds)
DIRECT POWER ON	Yes
DIRECT POWER OFF	Yes
DIMENSION
EXCLUDE FEET	263(D) x 345(W) x 93(H) mm
MAXIMUM DIMENSION	263(D) x 345(W) x 106(H) mm
WEIGHT	Approx. 3.13kg
FAN NOISE
HIGH BRIGHTNESS MODE	33dB
LOW BRIGHTNESS MODE	28dB
WARRANTY
STANDARD WARRANTY	3 years* *excluding lamp
* For more information visit Epson Projector Warranty Website
ACCESSORIES
POWER CORD	3m
COMPUTER CABLE	1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male)
REMOTE CONTROL	Included
PASSWORD PROTECT STICKER	Included
AIR FILTER	Included
OWNER'S MANUAL	CD-ROM
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.



The Ultra Mobile, Ultra Bright Solution for Busy Executives





Capable of producing a bright 2,600 lumen image, the EB-1750 is ideal for use by busy executives on the go. Weighing in at only 1.7kg, and boasting a broad range of user friendly functionality including V + H keystone correction, and small enough to fit in one bag along with your notebook PC, the EB-1750 is a lightweight projector that really packs a punch.

Easy to use Features Horizontal and Vertical keystone correction makes setup a breeze



Small and lightweight Only 45mm thick, and 1.7kg in weight



One Bag Solution for Busy Executives So small you can carry both your notebook PC and projector in the one carry bag!



Low Cost Total Cost of Ownership Lamp price only $119RRP

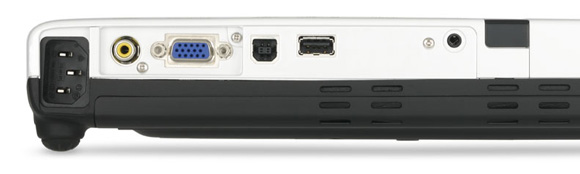

Broad Connectivity VGA, Video (RCA), USB Type B, USB Type A, Audio (stereo mini)




The Epson EB-1750 was designed for absolute ease of use. Horizontal and Vertical keystone correction enables users to project a square image from an offset position. Perfect for executives presenting in a clients meeting room.






The EB-1750 can display your presentation with image, audio and mouse control via a connection to a PC with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.




At Epson, we know that planning for the future requires a strong commitment to the environment. Thats why these products conform to the new European Directive on Eco-Design of energy using products. The main objective of this directive is to ensure energy efficiency throughout a products lifecycle. The EB-1750 conforms to the criteria of this directive.




Further enhancing suitability to the modern corporate environment is the ability for the EB-1750 to connect directly to the Epson ELP-DC06 document camera / visualiser. These Epson products feature unique technology enabling them to connect via USB and provide full operation without the need for a PC.







Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.


Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.



BenQ introduces to you the ultimate home entertainment - the W6000. Engineered with Texas Instrument's DLP technology, the W6000 delivers outstanding Full HD cinematic enjoyment via 2500 ANSI lumen high brightness, 50000:1 ultra-high contrast ratio, and HQV image quality. Who said you can't enjoy real cinema luxury at home?









The BenQ W6000 only has the highest standard of home cinema viewing to offer! Built to support multiple video formats including 480P, 576P, 720P, 1080i and 1080P, the W6000 allows you to enjoy the latest video formats in Full HD - from HDTV or blu-ray DVD to video games such as Xbox or PS3. It's the new standard of video performance that delivers 5X more detail than traditional 480P projectors.









Sophisticated HQV processing not only renders HD video sources in true 1080p high definition, but enhances standard definition content to new levels of clarity and vibrancy. Lower-resolution video sources such as 480i, whether analog or digital, are automatically converted to produce full HD-like image quality.





The combined expertise of BenQ’s projector know-how, Texas Instruments’ DynamicBlack™ and Philip’s VIDI™ lamp technology delivers an astounding 50,000:1 contrast ratio for superbly rendered image definition, even in the darkest scenes, and a brilliant 2,500AL to counter any ambient room lighting.







The W6000 gives you the truest, liveliest color ever with advanced BrilliantColor™ technology from Texas Instruments, where mid-tone colors are boosted to heighten brightness levels, making images more precisely rendered than ever.







The W6000 uses the VIDI™ lighting technology to produce more brightness by delivering more lumens on screen than competing systems and normal lamps while increasing brightness by 15% for red & blue. With VIDI™ lighting, the W6000 can boost specific colors in different application modes for a stunning picture.





10-bit color processing allows us to distinguish and display more than 1 billion colors. This results in dramatically greater color precision and a more life-like picture than is possible with 8-bit technology, which produces only 16 million colors.









Home theater enthusiasts have high standards and unique preferences when it comes to picture quality and the W6000 more than exceeds expectation. For 100% color customization, Independent Color Management lets users fine-tune luminance, saturation, and hue of individual tones without colors compromising each other.

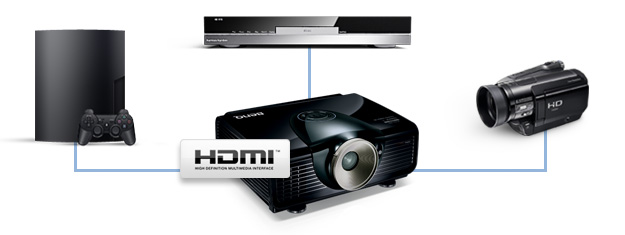

The W6000 is thoughtfully designed with two HDMI(v1.3) slots so that you won’t have to swap cables each time you want to view digital content from a second source. When your movie is over, and you and your guests want to view something else, the transition from one enjoyment to the next will be effortless.







Panamorph™ lenses allow you to show 2.35:1 aspect format video – such as major studio movies - in their original widescreen format at maximum resolution with no image distortion or letterboxing.





Obtaining professional results is easy with the Imaging Science Foundation's highly reputed ISFccc calibration service. Thanks to ISF technicians during the delivery process, it allows you to enjoy a perfectly calibrated picture quality, along with two optimized modes-- ISF Day and Night mode--for a viewing experience that is pure pleasure.

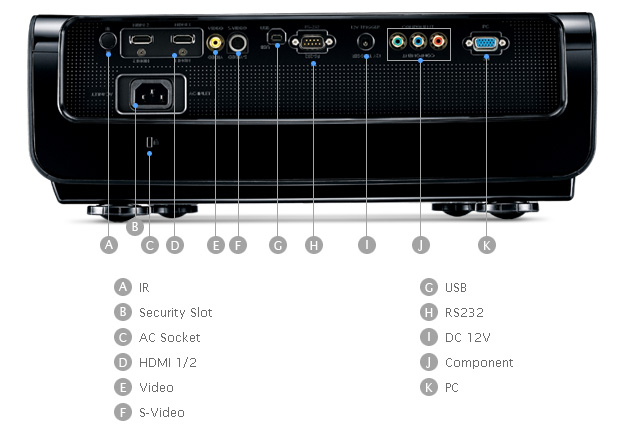

Multi-Function Connectors







The Ultimate High Definition Projector for Home Theatre Enthusiasts





Epson is pleased to introduce the Epson EH-TW5500 Home Theatre Projector. Featuring a contrast ratio of 200,000:1, improved Deep Black Technology and HQV Processor the EH-TW5500 sets a new benchmark in High Definition home cinema. The EH-TW5500 delivers superb quality through cutting-edge technology. Exactly what you expect from the worlds number one projector manufacturer Epson.



The Epson EH-TW5500 sets a new benchmark in 1080p High Definition home theatre projection. The EH-TW5500 is targeted to satisfy the most discerning of home theatre enthusiasts seeking best-in-class contrast ratio and superb picture quality. The EH-TW5500 can be used on a table top, or as the centrepiece of a full home theatre installation.




With unrivalled Silicon Optix HQV Reon-VX video processing and a best-in-class 200,000:1 contrast ration, Epsons flagship EH-TW5500 projector offers the most discerning home theatre enthusiast a stunning visual experience. Whether youre watching movies or sports, this 1080p projector ensures amazing image quality with the latest generation Epson D7 chip, UltraBlackTM technology and a bright 1,600 lumens of light output.



With innovative colour adjustment features and a state-of-the-art Fujinon lens, a brand trusted by renowned Hollywood filmmakers, the EH-TW5500 delivers superb video performance. And, with Epsons 3LCD, 3-chip optical engine, it offers such incredible quality, youre sure to achieve a true cinematic experience. Setup is easy with the colour isolation feature and ISF calibration, which allows you to adjust colours as the filmmaker intended. The EH-TW5500 brings big-screen entertainment home in a whole new way.



The Silicon Optix HQV processor is the reference standard in deinterlacing and scaling. With standard definition (SD) and high definition (HD) interlaced content (DVDs, TV shows, 1080i HDTV broadcasts), the HQV Reon-VX processor reduces jagged edges on low angle solid lines and flat edges. This superior video processor minimizes MPEG compression-related artifacts, such as mosquito noise and restores the image to a more natural picture.


3LCD technology delivers amazing colour and detail. Whether its a blockbuster movie or live sporting event, 3LCD technology takes video performance to the next level. Delivering legendary image quality, this innovative technology always ensures a thrilling cinematic experience.




Certified by the ISF, the EH-TW5500 has been built to the strictest video standards. Calibration tools include multiple picture memories, and lockout to prevent accidental, post-calibration user misadjustments. ISF Cinema Day and Cinema Night modes are available.


The OptiCinema lens system is a precision, high quality optical grade system. Co-developed with Fujinon, a top supplier of precision camera optics to the worlds leading HD camera makers, the system offers:




Achieve incredibly deep blacks with an astounding 200,000:1 contrast ratio, UltraBlack technology and Epsons exclusive Vertical Alignment (VA) LCD technology. With VA LCD technology, opaque (black) is the natural state. Signal voltage is applied to increase translucence (transmittance) as needed. This is a fundamental design and performance advantage a complete rethinking of LCD chip design

Film is encoded on Blu-ray at 24 frames per second. FineFrame deconstructs and reconstructs these sources for a 1080p frame rate output of up to 120Hz, virtually eliminating flicker and frame-to-frame judder. The 4:4 pulldown function also makes corrections for improperly encoded sources, and features a reverse 2:3 pulldown detection and correction function.



The innovative E-TORL lamp, exclusively from Epson, is a reliable performer that delivers more lumens per watt and lasts up to 4,000 hours. Switch the projector to High Brightness Mode and the E-TORL lamp still produces up to 4,000 hours of light performance. The special E-TORL design minimizes both light diffraction and light leakage, providing the ultimate in lamp longevity.



The EH-TW5500 comes with a full 3 year warranty on both the lamp as well as the projector itself. Absolute peace of mind protection for your state-of-the-art projector.




Bundled with the EH-TW5500 is an attractive colour coded cable cover, continuing the clean lines of the projector and hiding away untidy cabling.







PRODUCT TYPE	Home Theatre Projectors
PRODUCT NAME	Epson EH-TW5500
PRODUCT CODE	V11H338453
PROJECTION SYSTEM	RGB Liquid Crystal Display
PROJECTION METHOD	Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD	Size	0.74 inches wide D7 panel with MLA
	Driving method	Poly-Silicon TFT Active Matrix
	Native resolution	1080P Full HD (1920 x 1080)
	Pixel number	2073600 pixels (1920 x 1080 pixels) x 3
	Aspect ratio	16:9
	Pixel arrangement	Stripe
	Refresh Rate	100Hz or 120Hz (based on input signal)
PROJECTION LENS	Type	manual: zoom / focus
	F-number	2.0 - 3.17
	Focus length	22.5 - 47.2mm
	Zoom ratio	1.0:2.1
LAMP	Type	200 W UHE E-TORL Lamp
SCREEN SIZE (PROJECTED DISTANCE)	30 to 300 inch (0.87m to 9.03m) (Wide) 30 to 300 inch (1.88m to 19.15m) (Tele)
LENS SHIFT RANGE	Vertical: 96.3% max. (upward & downwards) Horizontal: 47.1% max. (Left and Right)
BRIGHTNESS
	Normal Mode	1,600 Lumens Light Output 1,600 Lumens Colour Light Output
		Colour Mode ( Dynamic, Zoom: Wide, Lens shift: V5.5 / H Centre )
	*For further information on Colour Light Output click here
CONTRAST	200000:1 ( Colour Mode: Dynamic, Zoom: Wide, Lens shift: : V10 / H Centre , Auto iris: On )
COLOUR PROCESSING	Full 10 bit
COLOUR REPRODUCTIVITY	Full Colour (1.07 Billion Colours)
COLOUR SPACE	115% of NTSC
VIDEO QUALITY	Interlace - Progressive conversion 3D Y/C separation, Noise reduction, Mosquito NR, Block NR
EFFECTIVE SCANNING FREQUENCY RANGE (Digital)
PIXEL CLOCK	13.5MHz to 150MHz
HORIZONTAL	15 to 80KHz
VERTICAL	24, 50 to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL	Brightness / Contrast / Tint / Saturation / Input signal etc.
TILT ANGLE	0 to 8.0 degrees
KEYSTONE CORRECTION	N/A
COLOUR MODE	Dynamic, Living Room, Natural, Theatre, Theatre Black 1, Theatre Black 2, x.v. Color
EPSON CINEMA FILTER	Controlled automatically with colour mode (ON: Natural / Theatre / Theatre Black 1 / Theatre Black 2 / x.v.Color, OFF: Dynamic / Living room)
AUTO IRIS	Controlled automatically adjusting to video source. (Available at all colour modes except x.v.Color; user selectable Off/Normal/Fast on OSD)
EPSON SUPER WHITE	Controlled automatically adjusting to video source (Available at Natural/Theatre/Theatre Black 1 and 2; user selectable ON/OFF on OSD)
4:4 Pull Down (1080p/24p, 1080/60i, or480i capability)	On/Off, convert 3:2 pull down signal to 4:4 pull down (Default on:1080/24p, Default off:1080/60i or 480i, HDMI & Component Input)
ASPECT MODE	Auto / Normal / Full / Zoom / Wide / Anamorphic Wide
ANALOGUE RGB I/O
DISPLAY PERFORMANCE	Native	1080p
	Resize	1280 x 1024 / 1360 x 768 / 1024 x 768 / 800 x 600 / 640 x 480
INPUT SIGNAL	Signal type	Separate signal
	Video signal	Analog (0.7V p-p,75 ohm/ Mac0.714Vp-p, 75ohm)
	Sync.signal	Separate (positive & negative, bi-polarity 2-5Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
INPUT TERMINAL	Video	Mini D-sub 15 pin x 1 Blue molding
HDMI Ver.1.3
DISPLAY PERFORMANCE	Native	1080p
	Video standard	480i / 576i / 480p / 576p / 720p / 1080i / 1080p
	Video signal	TMDS ( Signal for HDMI)
	Input Terminal	HDMI x 2 (HDCP)

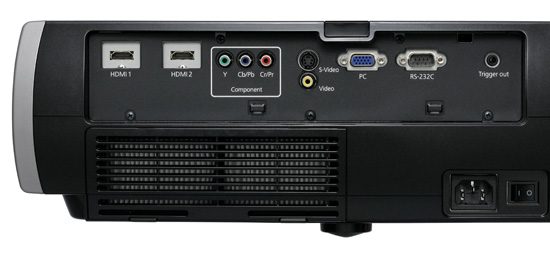

VIDEO I/O
COMPONENT INPUT
INPUT SIGNAL	Video standard	480i / 576i / 480p / 576p / 720p / 1080i / 1080p
	Video signal	Component Video (Analog Y level 0.7V 75 ohm / Cr Cb level +/-0.35V 75 ohm / sync. negative 0.3V or 3-state +/-0.3V on Y)
INPUT TERMINAL		RCA x 3 (Red / Green / Blue)
COMPOSITE / S VIDEO
INPUT SIGNAL	Video standard	NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
	Video signal	Composite Video (1.0Vpp / Sync.negative, 75 ohm) / S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75 ohm)
INPUT TERMINAL	S-Video	Mini DIN x1
	Composite Video	RCA (Yellow) x 1
CONTROL I/O
SERIAL I/O	I/O terminal	D-sub 9 pin x 1
	I/O signal	RS-232c
TRIGGER OUT	Output terminal	3.5 mm mini-jack x 1
	Output Signal	Power on: 12v DC, 200mA max Power off: 0v
LOCK FUNCTION	Operation Lock & child-lock
OPERATING TEMPERATURE	5C to 35 C (41F to 95 F) at 20% ~ 80% Humidity
DIRECT POWER ON	Yes
COOL-DOWN PERIOD	Approx 16 seconds
POWER SUPPLY VOLTAGE	100-240 VAC 10%, 50/60Hz
POWER CONSUMPTION	299W (Lamp High)
DIMENSIONS
EXCLUDE FEET	450mm(W) x 360mm(D) x 136mm(H)
MAXIMUM DIMENSION	450mm(W) x 390mm(D) x 145mm(H)
WEIGHT	Approx. 7.3 kg
FAN NOISE
HIGH BRIGHTNESS MODE	30dB (Colour mode: Dynamic)
WHISPER MODE	22dB (Colour mode: Theatre Black 1 and 2)
ACCESSORIES
POWER CORD	3m
REMOTE CONTROL	Stick type (backlight)
BATTERY	Alkaline, AA x2 (Included)
USER'S MANUAL	Included
LENS CAP	Included
WARRANTY*	3 years
* including lamp
* For more information visit Epson Projector Warranty
PRODUCT OPTIONS
Product Code	Item Code	Description
V13H010L49	V13H010L49	Lamp
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.



Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.
