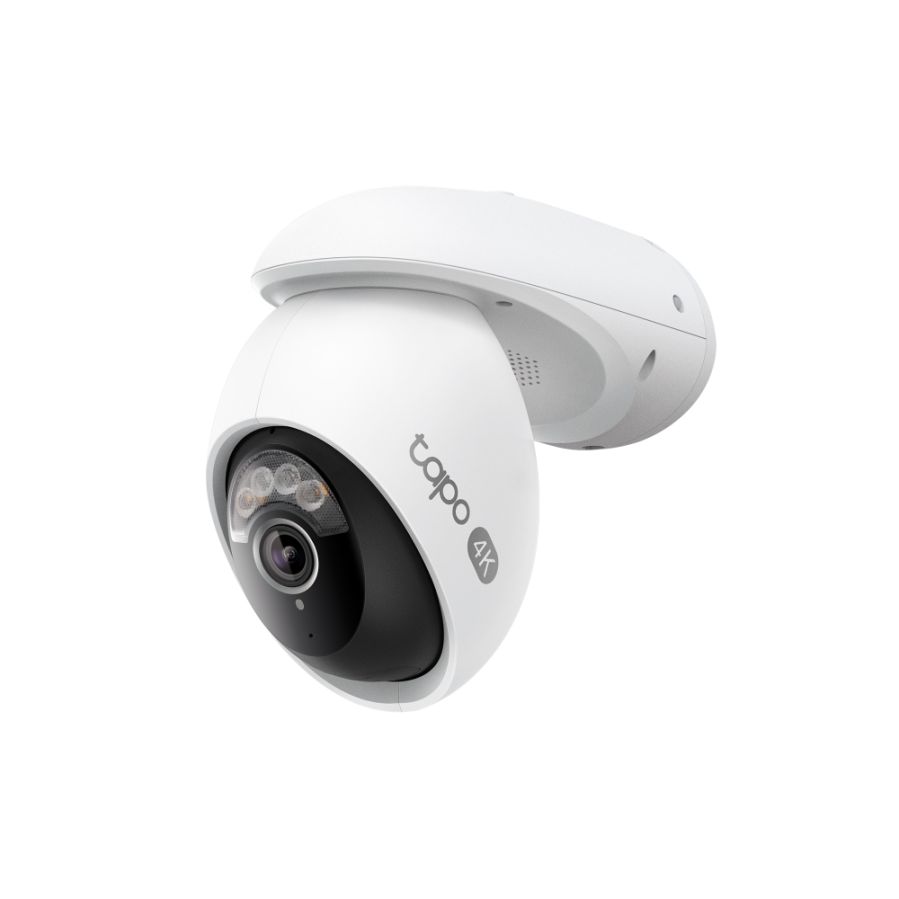

Outdoor Pan/Tilt Security Wi-Fi Camera
- 4K Ultimate Clarity: The camera features 4K 8MP resolution for superior clarity with upgraded image sensor, processor and lens.
- Local Facial Recognition: The camera boasts free and powerful Al that recognises and tags strangers, family, and friends for easy identification.

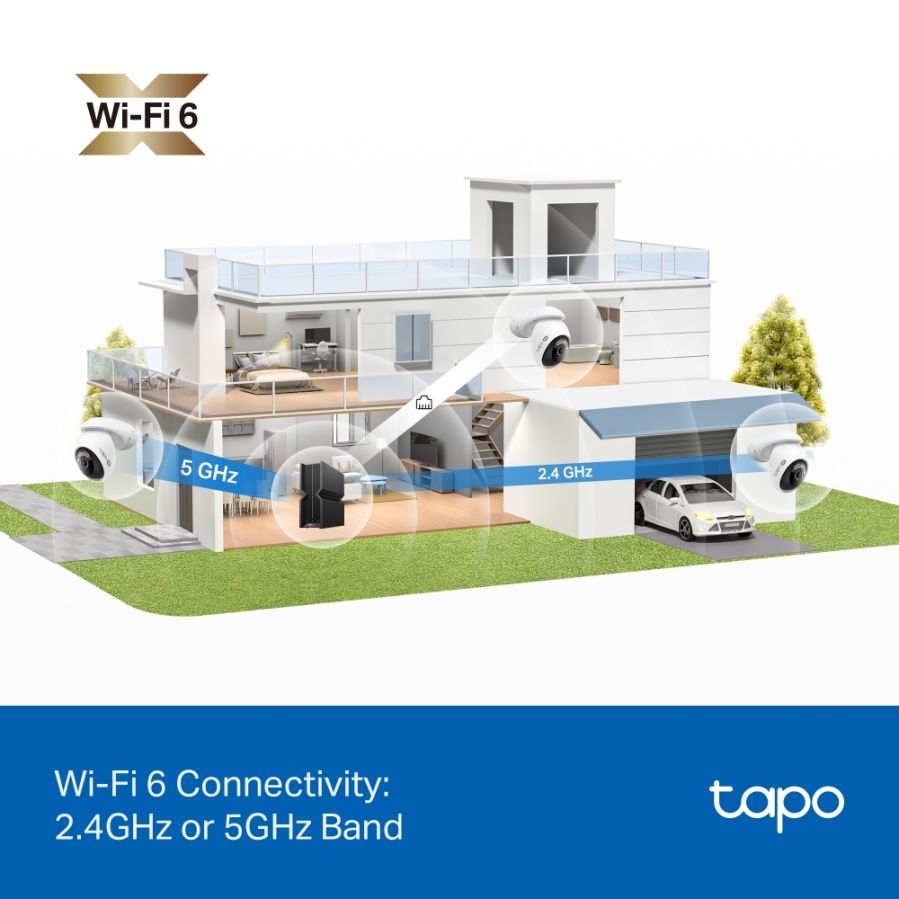

- Wi-Fi 6 Dual-Band Connection: Connect the camera to a Wi-Fi 6 router and enjoy improved speed, greater stability.
- Starlight Colour Night Vision: Capture vibrant images in low light. Enhance security with an F1.6 lens, starlight sensor, and spotlights.
- Free Person/Pet/Vehicle Detection: Using Al technology, the camera provides alerts as it identifies people, pets, and vehicles, reducing false alerts and unnecessary notifications.
- Flexible Storage Options: Choose from local microSDstorage up to 512GB or the secure Tapo Carecloud service for additional peace of mind.
- IP66 Weatherproof:Offers excellent waterproof and dustproof performance for outdoor scenarios.
CAMERA |
|---|
| Image Sensor | 1/27 Progressive Scan CMOS Starlight Sensor |
|---|
| Lens | Focal Length: 4 mm 5%
Aperture: F1.6 5%
Field of View: 105 (Diagonal), 88(Horizontal), 45(Vertical) |
|---|
| Night Vision | 850 nm IR LED
Starlight Color Night Vision |
|---|
| Lighting | 2 Built-in Spotlights |
|---|
| Interface & Button | 1 Ethernet Port
1 RESET Button
1 MicroSD Card Slot (Up to 512GB) |
|---|
| Pan/Tilt Range | Pan Mechanical Range: 326 (360 Pan Coverage)
Tilt Mechanical Range: 53 (98 Tilt Coverage) |
|---|
VIDEO & AUDIO |
|---|
| Maximum Resolution | 4K 8MP (3840 2160 px) |
|---|
| Frame Rate | 25 fps |
|---|
| Digital Zoom | 18x |
|---|
| Video Compression | H.264 |
|---|
| Live View | Yes |
|---|
| Image Enhancement | 3DNR
WDR |
|---|
| Audio Input & Output | Built-in Microphone and Speaker |
|---|
| Audio Communication | Two-Way Audio with Noise Cancellation |
|---|
| Siren Volume | 99 dB (Level measured at 4-inch/10-cm distance) |
|---|
STORAGE |
|---|
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards > |
|---|
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
|---|
DETECTION and NOTIFICATIONS |
|---|
| AI Detection | Motion Detection
Person Detection
Pet Detection
Vehicle Detection |
|---|
| Activity Zones | Yes |
|---|
| Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
|---|
NETWORK |
|---|
| Network Connectivity | Connect via Wi-Fi or Ethernet |
|---|
| Wireless Connectivity | IEEE 802.11a/b/g/n/ac/ax, 2.4 GHz /5 GHz |
|---|
| Ethernet Port | Yes |
|---|
| RTSP | Yes |
|---|
| ONVIF | Yes |
|---|
SECURITY |
|---|
| Security | SSL/TLS,AES |
|---|
POWER |
|---|
| Power Source | 12V DC Power Adapter |
|---|
| Input Voltage | 100-240 V, 50/60 Hz |
|---|
| Output Voltage | 12 V, 1 A (DC Power) |
|---|
GENERAL |
|---|
| Smart Integration | Google Assistant, Amazon Alexa |
|---|
| Weather Resistance | IP66 |
|---|
| System Requirements | Tapo App: iOS 12.0+ and Android 5.0+ operating systems. |
|---|
| Mounting Options | Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included) |
|---|
| Operating Temperature | -30~60 (-22F~140F) |
|---|
| Storage Temperature | -40~60 (-40F~140F) |
|---|
| Operating Humidity | 10%~90% RH, Non-condensing |
|---|
| Storage Humidity | 0~90% RH, Non-condensing |
|---|
| Dimensions ( W x D x H ) | 147.4 74.7 165.4mmMounting Bracket Included
147.4 74.7 157.4mmMounting Bracket Excluded)
|
|---|
| Package Content | Tapo C560WS Camera1
DC Power Adapter1
Mounting Template Sticker1
Mounting Bracket1
Mounting Anchors and Screws
Bracket Screws2
Waterproof Seal1
Waterproof Cable Attachments1
Quick Start Guide |
|---|
| Certifications | FCC, RoHS, RCM |
|---|
Scanning and cruising times are limited every day.
5 GHz band has more bandwidth but has decreased Wi-Fi range compared to 2.4 GHz band. Ensure that your router is in range to use the 5 GHz connection.
microSD card purchased separately. Actual storage capacity depends on the size of the microSD card used.
Subscribe for cloud storage at https://www.tapo.com/tapocare/
Tapo H500 is not included. 16TB storage capacity is based on the maximum size of the HDD/SSD drive that can be used. HDD/SSD drive purchased separately. Actual storage capacity will vary depending on the size and type (HDD or SSD) of the drive selected.
