DESCRIPTION
Network Video Recorder Instant Kit
Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
4x G5 Turret Ultra cameras
1TB 3.5" drive
Vantage Point support
(1) GbE RJ45, (6) GbE PoE RJ45, (1) HDMI port (Viewport)
Compact Desktop form factor
Door Access Support
Note. Requires connection to a Gateway or Layer 3 switch.
A New Era of Security for Everyone
Today marks a big step forward in making professional-grade physical security accessible to everyone. The new UNVR Instant is a compact, all-in-one solution built to deliver enterprise-class performance without complexity or high costs.

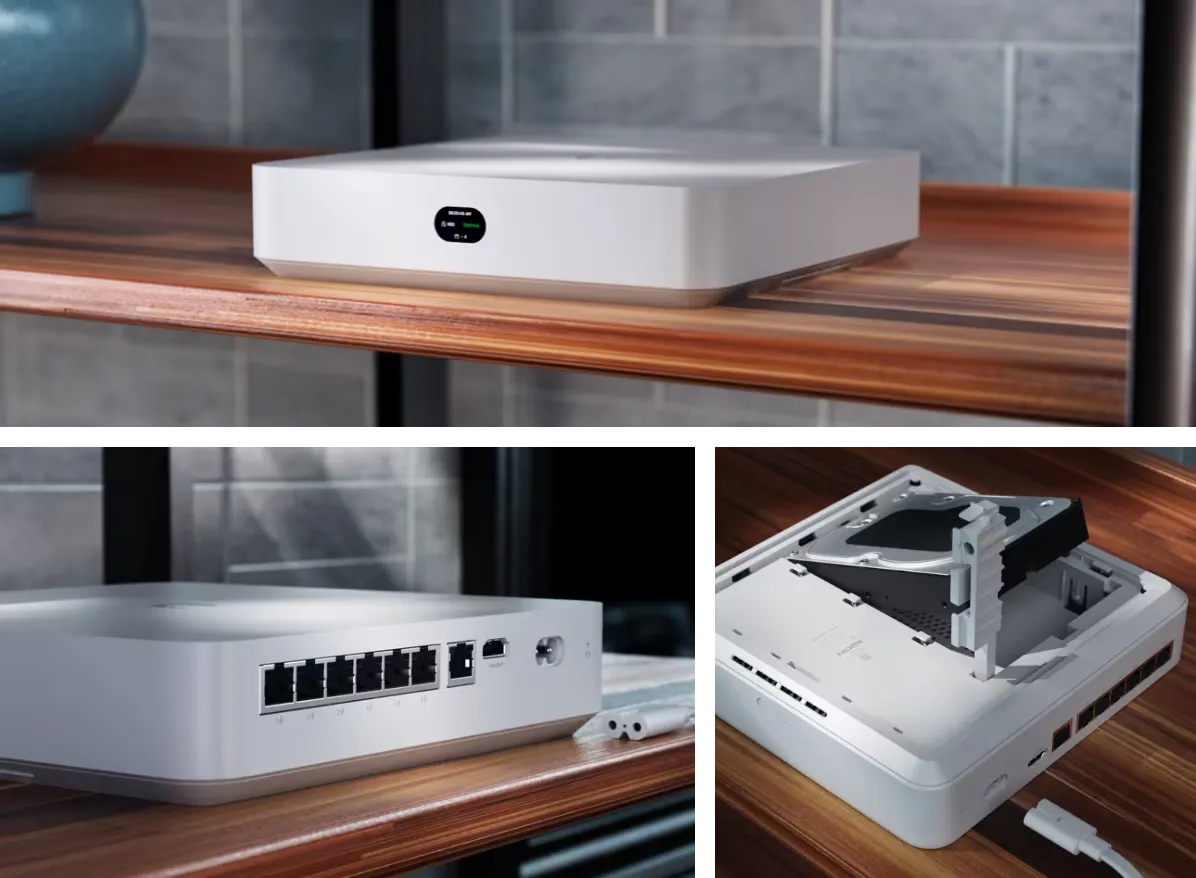

Power and Flexibility in One Device
UNVR Instant is equipped with a 3.5 HDD bay, an integrated 6-port PoE switch, and a ViewPort output for real-time monitoring. Supporting up to (8) 2K cameras or (6) 4K cameras, it redefines whats possible at this price point.

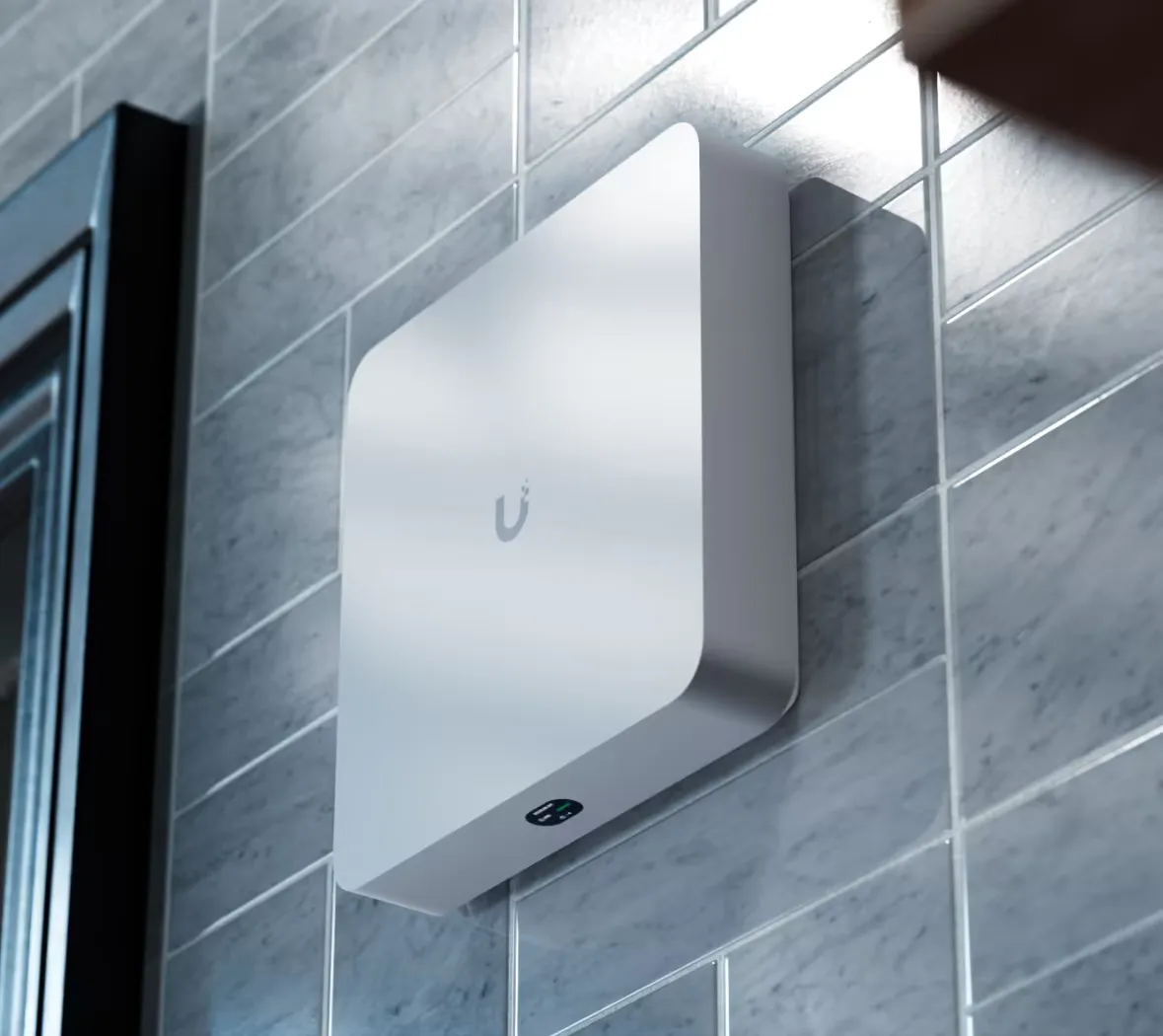

Compact Yet Powerful
UNVR Instant makes enterprise-class security simple and affordable. Compact, powerful, and easy to set up, its built for anyone who needs reliable protection.
- Designed for homes, small businesses, and enterprises alike
- 3.5 HDD bay for expandable storage
- Built-in 6-port PoE switch for simple connectivity

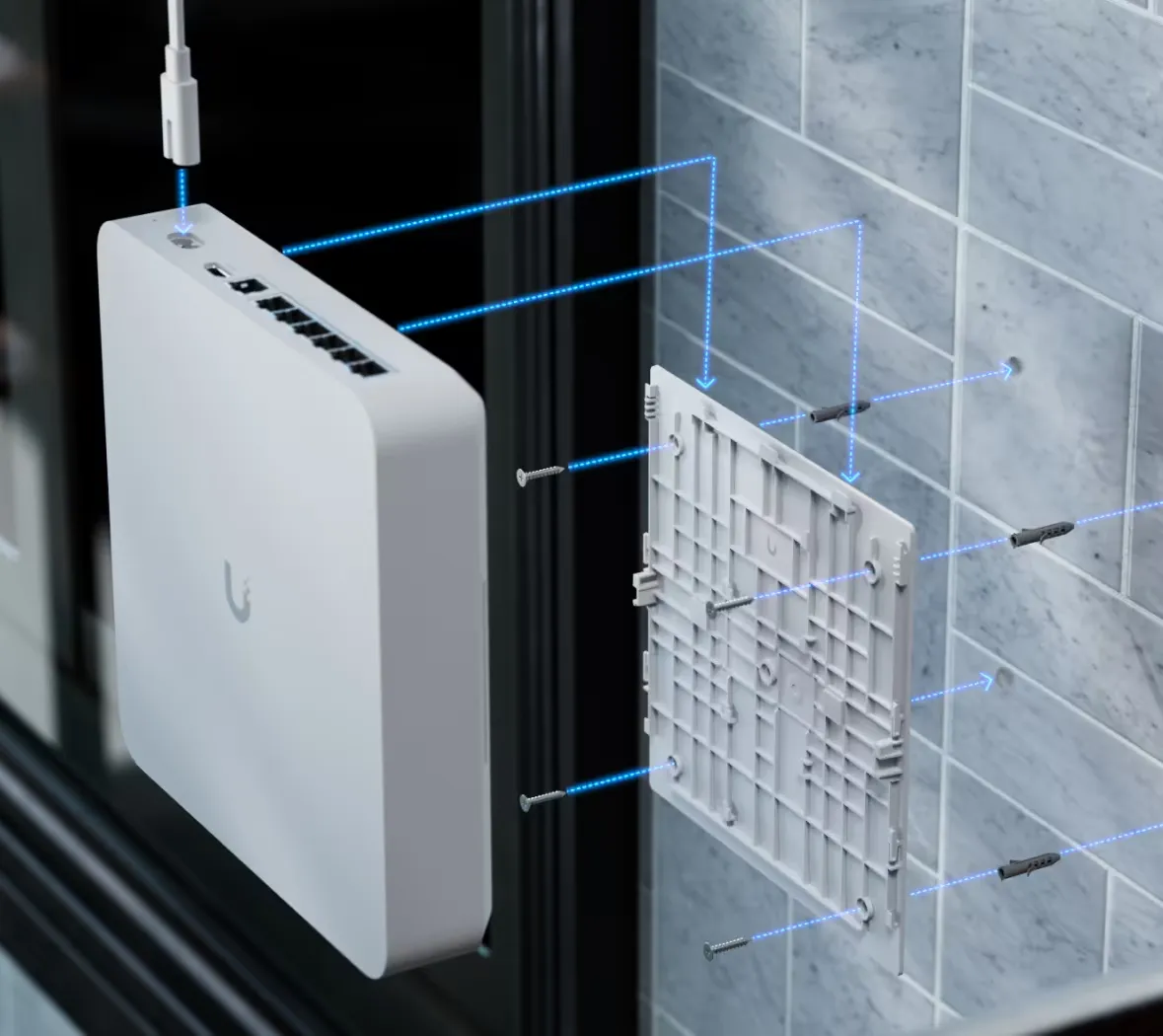

Breaking the Barrier
UNVR Instant brings professional-grade physical security within reach, making it simpler, faster, and more affordable than ever.
- Live monitoring via ViewPort output
- Quick installation for fast deployment
- Cloud-based management with no hidden costs
Setup That Just Works
Getting started with UNVR Instant takes only seconds. Powered by the UniFi Protect platform, it combines user-friendly design with advanced functionality. Local storage ensures high-speed access and privacy, while cloud-based management gives you control from anywhere, all with zero licensing fees.

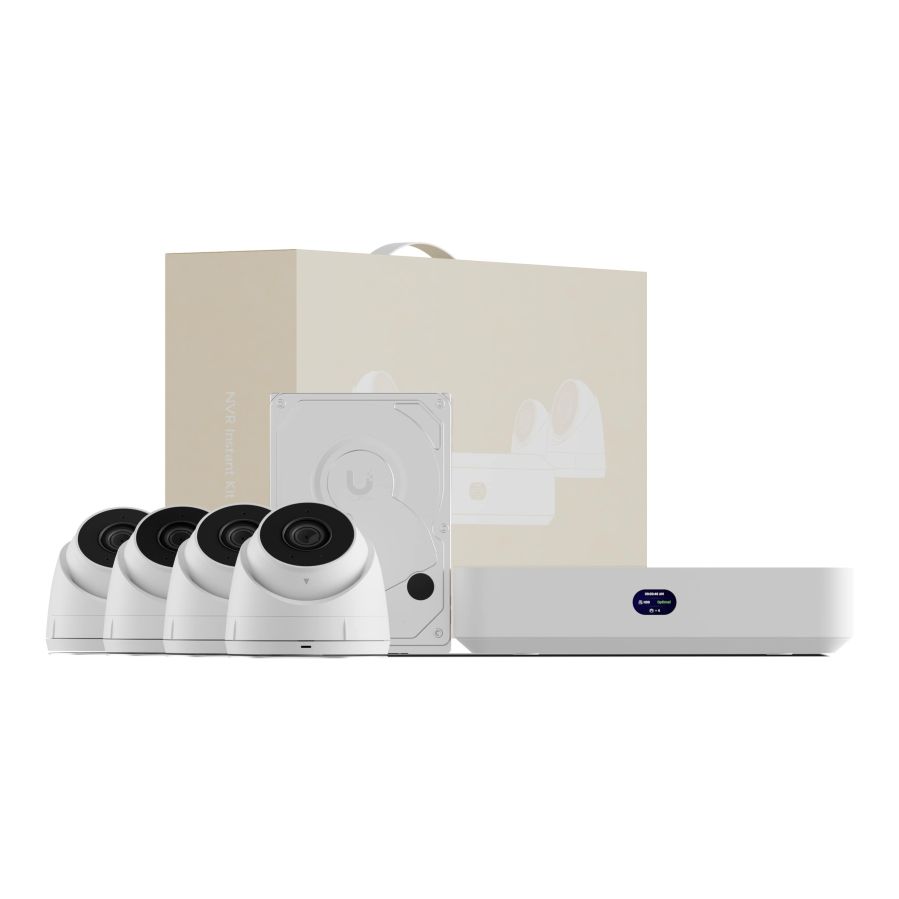

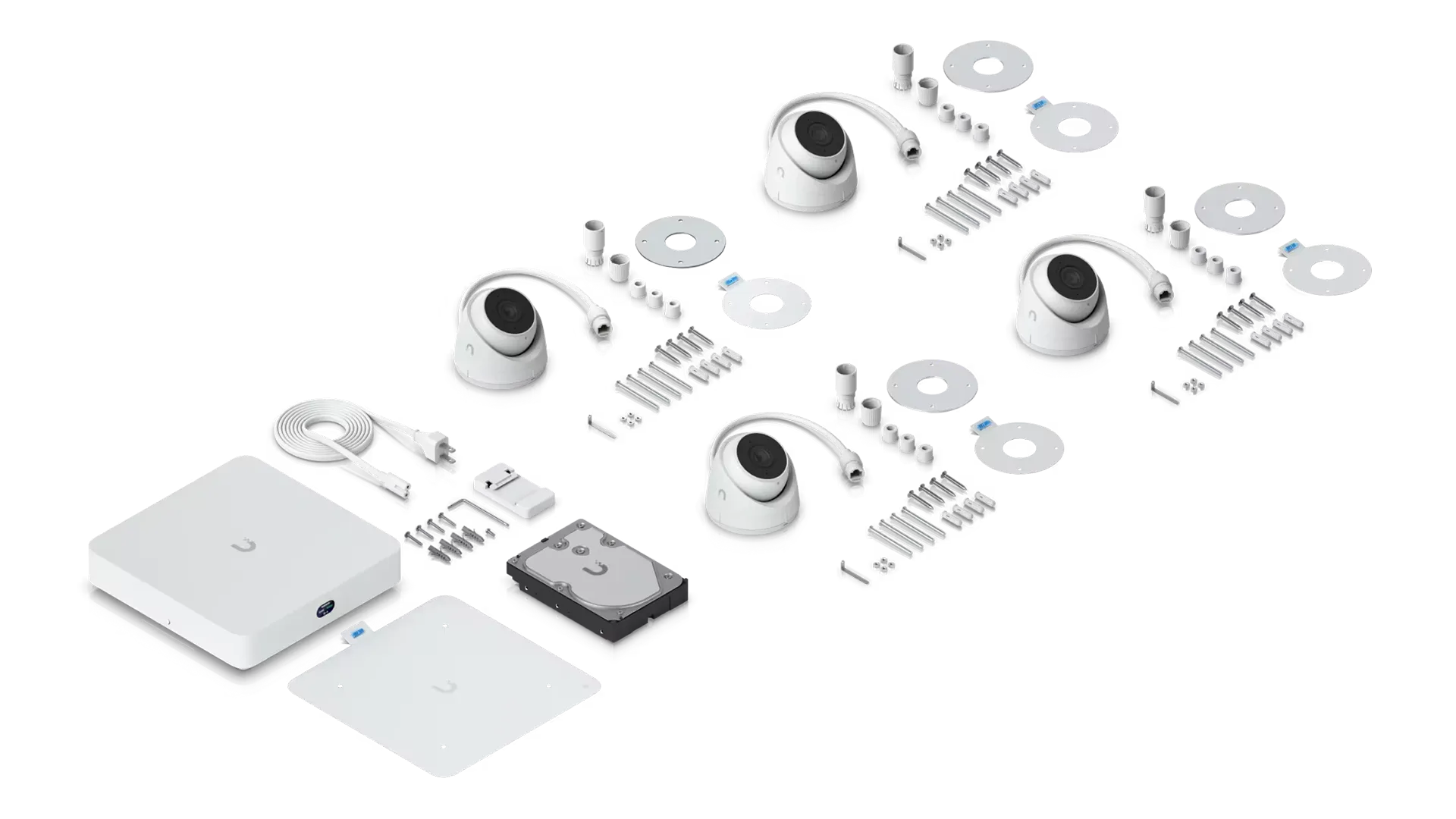

A 4-Camera Bundled Kit
The UNVR Instant kit delivers an all-in-one security solution right out of the box. Bundled with a 1TB HDD and 4x G5 Turret Ultra cameras for a complete setup.

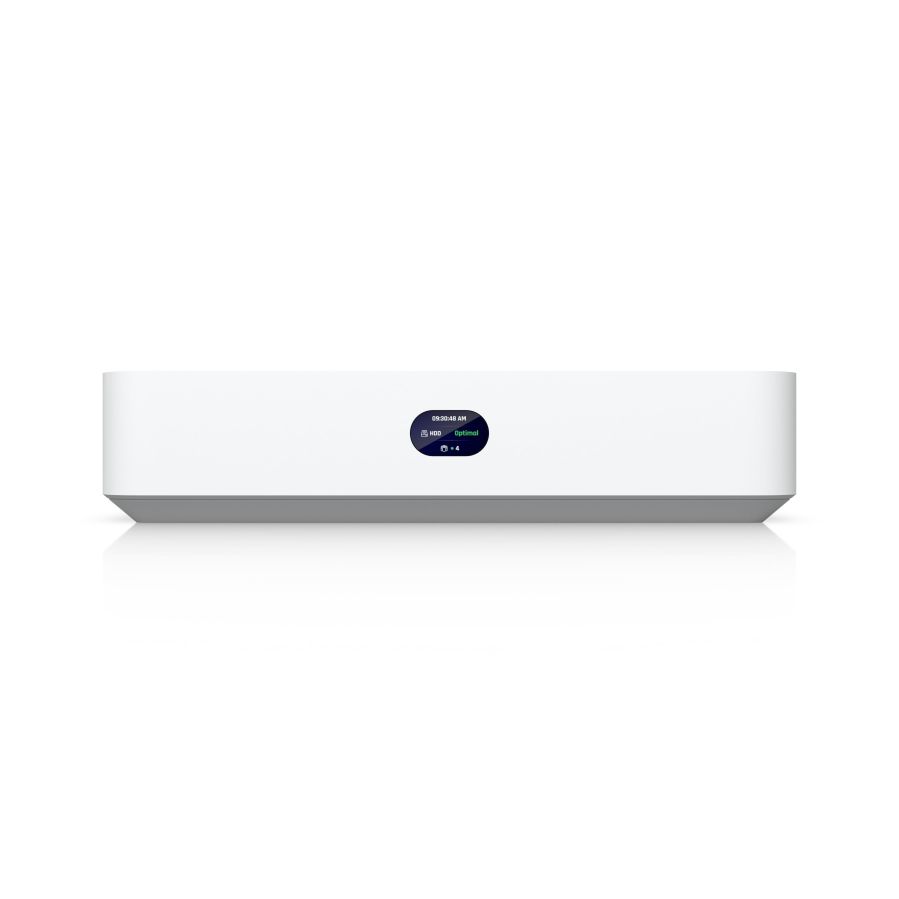

Network Video Recorder Instant
Dimensions
220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Application Suite
Protect: Yes
Access: Yes
Managed Cameras
(15) HD
(8) 2K
(6) 4K
Storage Capacity
(1) 3.5" drive bay
Networking Interface
(1) GbE RJ45 uplink port
(6) GbE PoE RJ45 downlink ports
(1) HDMI port (Viewport)
Form Factor
Compact Desktop
Mounting
Wall, DIN rail mount (Included)
Hard Drive Capacity
(1) 3.5" HDD support
Max. Power Budget for Drives
11W
Max. Power Consumption
9W*
*Excluding PoE output & HDD power consumption
Power Method
Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
AC/DC, Internal, 60W
Max. PoE Wattage per Port by PSE
PoE: 15.4W
Voltage Range PoE Mode
44-57V
Processor
Quad-core ARM Cortex-A55 at 1.7 GHz
Management
Ethernet, Bluetooth
Enclosure Material
Polycarbonate
Mount Material
Polycarbonate
Ambient Operating Temperature
0 to 40 C (32 to 104 F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE, Electrical Safety

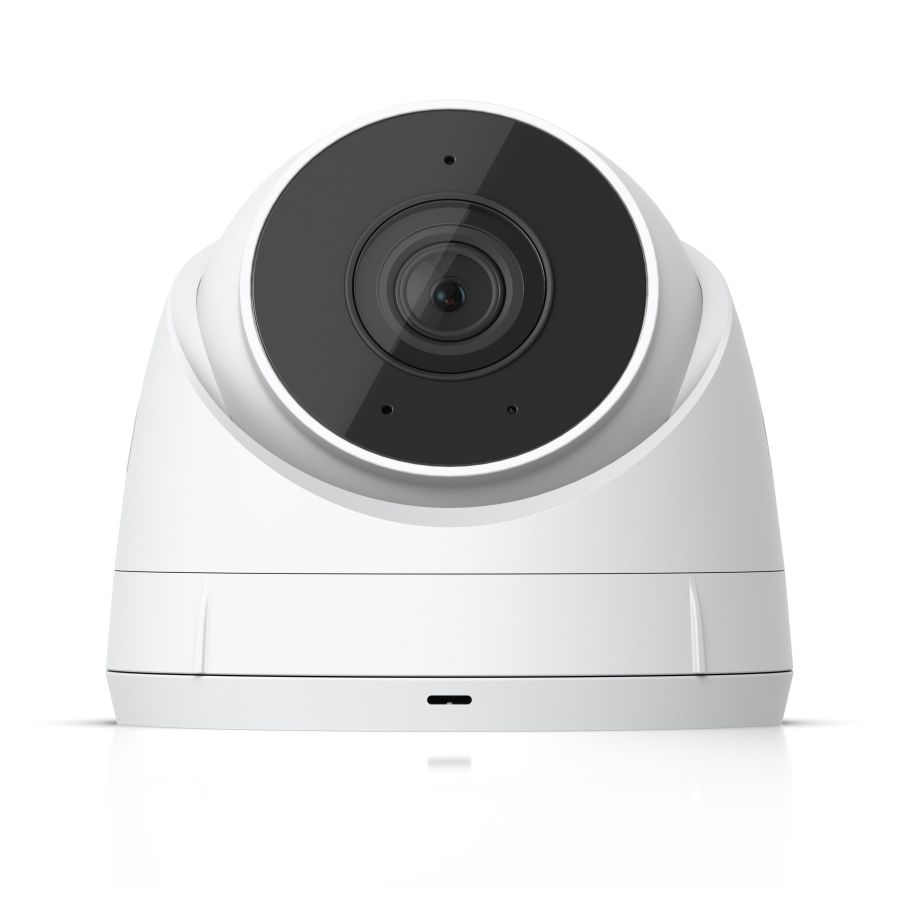

G5 Turret Ultra
Dimensions
90 x 71.2 mm (3.5 x 2.8")
IR Night Vision
30 m (98 ft)
Smart Detections (People, Vehicles, Animals)
Yes
Field of View
H: 102.4
V: 54.9
D: 120.6
Mounting
Wall, ceiling mount (Included)
Junction box, arm mount (Sold separately)
Networking Interface
10/100 MbE RJ45 port
Video
Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Max. Frame Rate: 30 FPS
Resolution: 4MP 2688 x 1512 (16:9)
Optics
Sensor: 1/2.4" CMOS
Lens: Fixed focal length
Night Mode: Built-in IR LED illumination and IR cut filter
Supported Voltage Range
3757V DC
Processor
Dual-core Arm Cortex-A7 based chip
Enclosure Material
Aluminium alloy, UV-stabilised polycarbonate
Mount Material
Polycarbonate
Cable
Cable Connector Type: RJ45
Cable Diameter: 5 mm (0.2")
Cable Length: 30 cm (1 ft)
Jacket Material: Polycarbonate
Jacket Enclosure Dimensions: 20 x 70.6 mm (0.8 x 2.8")
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature
-30 to 50 C (-22 to 122 F)
Ambient Operating Humidity
0 to 90% noncondensing
Certifications
CE, FCC, IC

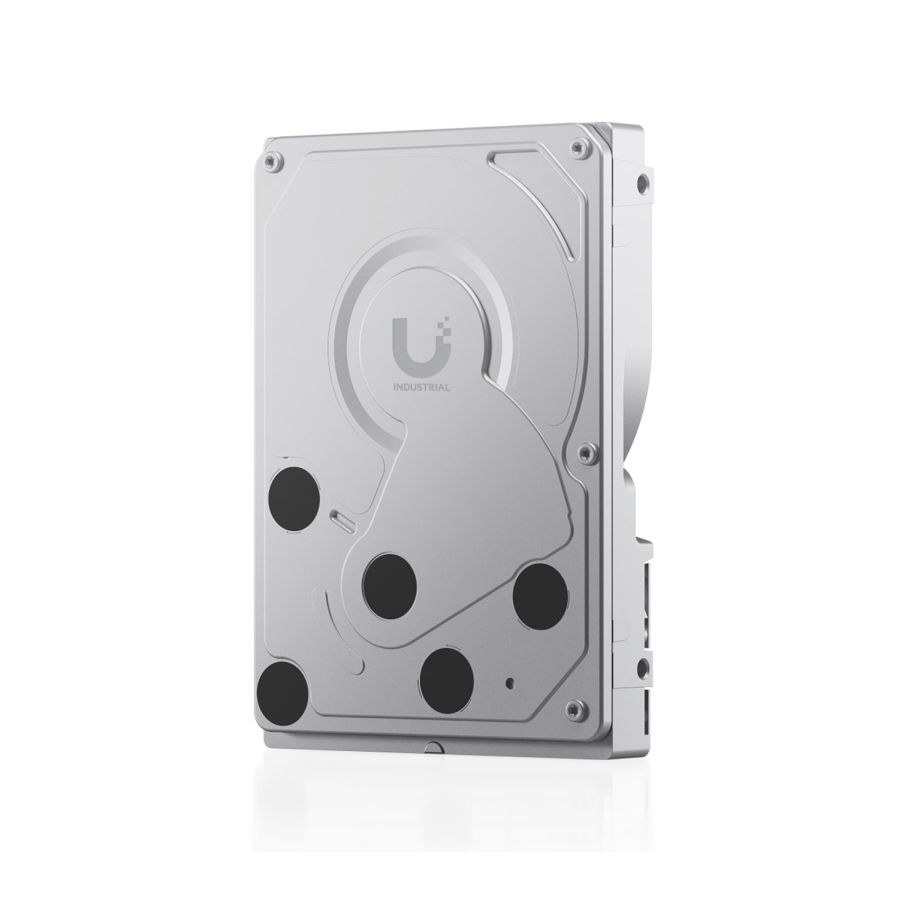

HDD
Dimensions
147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor
3.5-inch
Management Interface
SATA 6 Gb/s
Workload Rating
180 TB/year
Mean Time Between Failure (MTBF)
1,000,000 h
Ambient Operating Temperature
0 to 65 C (32 to 149 F)
Ambient Operating Humidity
5 to 95% noncondensing
Certifications
FCC, CE, TUV, RCM, KC, BSMI
