| Performance |
|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| PTZ modes | Digital PTZ, Preset point |

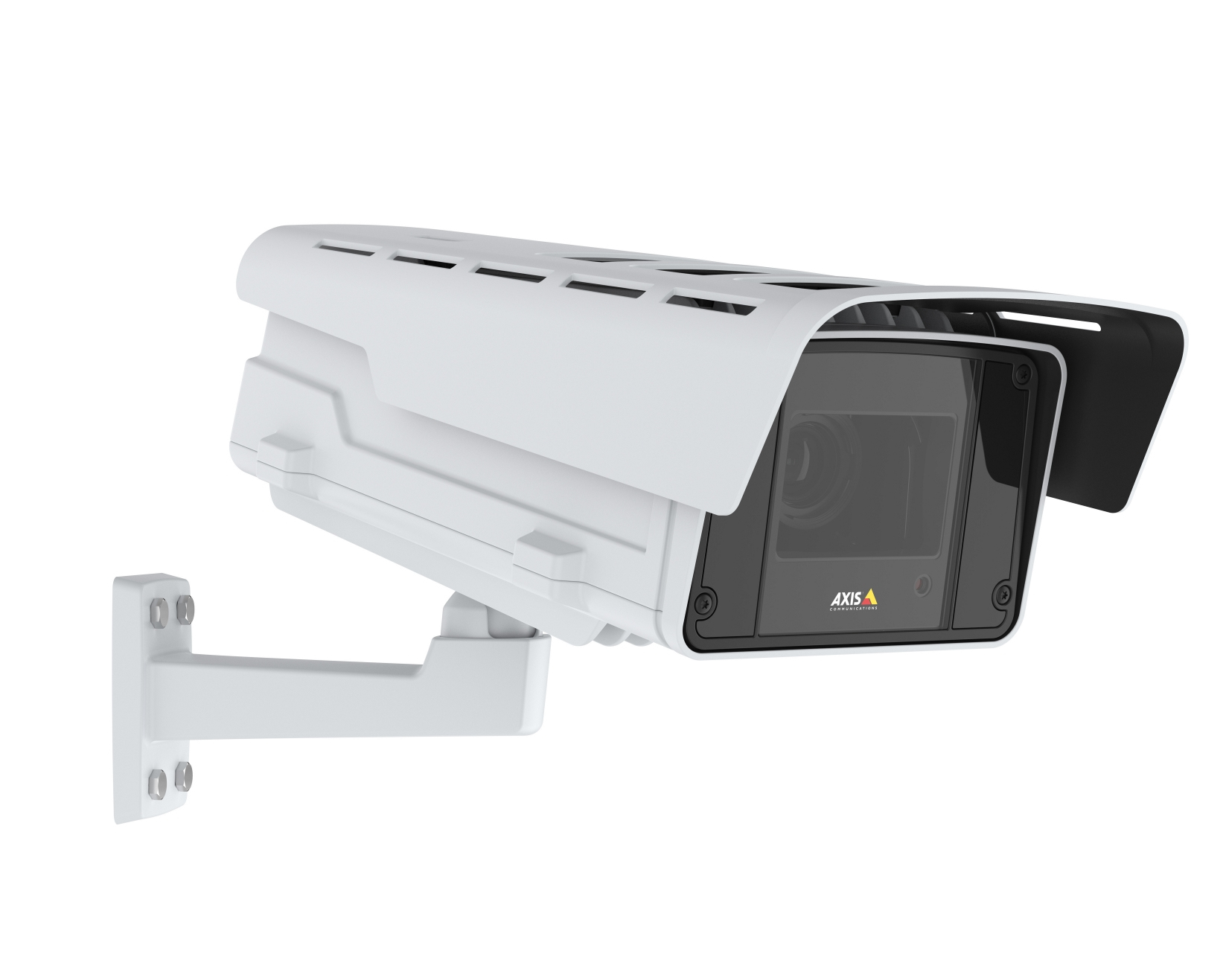

| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | EN 50121-4, IEC 62236-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, CAN/CSA C22.2 No. 62368-1, IEC 62471
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9)
NIST SP500-267 |
| Design |
|---|
| IK code | IK10 |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium |
| Camera |
|---|
| Camera shutter speed | 1/125000 - 2 s |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 58° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Number of sensors | 1 |
| Lens system |
|---|
| Number of lenses | 1 |
| Maximum aperture number | 1.2 |
| Focal length range | 2.8 - 8.5 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video |
|---|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Maximum resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 120 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Audio |
|---|
| Voice codecs | G.711, G.726, OPUS |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, PCM |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
| Storage |
|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Built-in HDD | No |
| Internal memory | 2048 MB |
| Flash memory | 1024 MB |
| Ports & interfaces |
|---|
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, FIPS 140-2, HTTPS |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Power |
|---|
| Power source type | PoE |
| Power consumption (Power over Ethernet (PoE)) | 25.5 W |
| Certificates |
|---|
| Certification | EN 50121-4, IEC 62236-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, CAN/CSA C22.2 No. 62368-1, IEC 62471
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14,
IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 4X, NEMA TS 2 (2.2.7-2.2.9)
NIST SP500-267 |
| Operational conditions |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions |
|---|
| Width | 201 mm |
| Depth | 179 mm |
| Length | 494 mm |
| Weight | 6.96 kg |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Logistics data |
|---|
| Harmonized System (HS) code | 85258900 |
