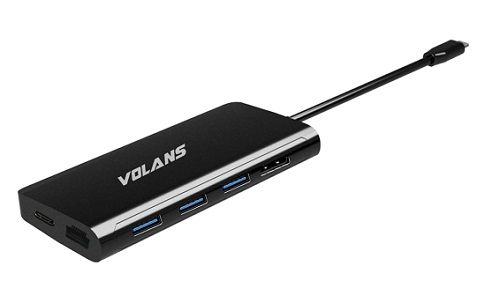

Volans VL-UCH3CLR Aluminium USB-C Multiport Adapter - Power
Delivery - HDMI2.0 - LAN - 3xUSB3.0 - Card
Reader
Overview
Truly Universal: Connect all you want
This multi-port adapter features a full array of ports ranging from 1 x
HDMI2.0 with support for 4K@60Hz (DP1.4), 1 x Gigabit Ethernet for wired
ethernet, 3 x USB 3.0 ports for your standard USB accessories, 1 x Micro SD and
SD Card Reader and 1 x USB-C port with support for up to 100W of Power Delivery
for charging your laptop when connected to a suitable USB-C
Charger.
Power Delivery 3.0 Technology
It uses the latest Power Delivery (PD 3.0) specifications, that lets you
charge your Chromebook, MacBook or other USB-C enabled laptop with up to 100W of
power.
Eliminate Magnetic Interference
It also features comprehensive shielding to eliminate all magnetic
interference caused by Bluetooth, Wi-fi or any other frequencies. This help
improves the performance of your laptop and tablet across different locations
and environments.
Specifications
|
WARRANTY
INFORMATION |
|
Warranty |
1
Year |
|
HARDWARE |
|
4K
Support |
Yes |
|
Bus
Type |
USB-C |
|
Chipset
ID |
VL102+PS186+RTS8411+RTL8153+FE8.1+GL823K*2 |
|
Displays
Supported |
1 |
|
Fast-Charge
Port(s) |
Yes |
|
Industry
Standards |
IEEE
802.3, IEEE 802.3u, IEEE 802.3ab |
|
USB
3.0 Backward compatible with USB 2.0 and 1.1 |
|
PERFORMANCE |
|
Auto
MDIX |
Yes |
|
Compatible
Networks |
10/100/1000
Mbps |
|
Full
Duplex Support |
Yes |
|
Maximum
Data Transfer Rate |
5
Gbps (USB 3.0) |
|
2
Gbps (Ethernet; Full-Duplex) |
|
Maximum
Digital Resolutions |
4K@60Hz
(only DP1.4 can support 4K@60Hz, 4K@30Hz for
DP1.2) |
|
Type
and Rate |
USB
3.0 5 Gbit/s |
|
UASP
Support |
Yes |
|
CONNECTOR(S) |
|
Connector
Type(s) |
1
USB Type-C (24 pin) USB 3.1 Male |
|
|
1
HDMI2.0 (19 pin) Female |
|
|
1
RJ-45 Female |
|
|
1
SD Card Slot (USB2.0) |
|
|
1
Micro SD Card Slot (USB2.0) |
|
|
3
USB Type-A (9 pin) USB 3.1 Female |
|
|
1
USB Type-C (24 pin) USB 3.1 Female |
|
SOFTWARE |
|
OS
Compatibility |
Windows
7, 8, 8.1, 10 |
|
Mac
OS 10.9 to 10.13 |
|
Chrome
OS |
|
SPECIAL
NOTES / REQUIREMENTS |
|
Note |
Not
all USB-C ports support the full functionality of the USB Type-C standard.
Ensure that your host USB-C port supports USB Power Delivery 3.0 and DP
alt mode. |
|
|
The
adapter can connect to a host laptops USB-C port that doesnt support USB
Power Delivery 3.0. However, in this configuration if a power adapter is
connected to the multifunction adapter, it will not pass power through to
your host laptop. |
|
|
A
4K-capable display is required to achieve 3840 x 2160p resolution (4K is
also known as 4K x 2K) |
|
|
USB
3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers
speeds up to 5Gbps. |
|
System
and Cable Requirements |
A
host laptop with an available USB-C port (to ensure full adapter
functionality, the host USB-C port must support USB Power Delivery 3.0 and
DP alt mode) |
|
|
Optional:
USB-C power adapter (for example, your laptops USB-C based power
adapter) |
|
POWER |
|
Power
Delivery |
100W |
|
Power
Source |
USB-Powered |
|
ENVIRONMENTAL |
|
Humidity |
0~85%
RH (Non-condensing) |
|
Operating
Temperature |
0C
to 50C (32F to 122F) |
|
Storage
Temperature |
-10C
to 65C (14F to 149F) |
|
PHYSICAL
CHARACTERISTICS |
|
Color |
Black |
|
Enclosure
Type |
Aluminium |
|
WHATS
IN THE BOX |
|
Included
in Package |
1
VL-UCH3CLR |
|
|
1
quick-start
guide |
