Classroom LCD Data Projector
SP-M255
3LCD Technology
Multi-Media Functions
Designed for Mobility
Reliable Operation
Be ready to present at a moments notice. The Samsung M255 3LCD mobile data projector transports easily, sets up quickly and displays brilliantly. Weighing just 5.3 lbs., it's a willing and able travel partner. Quick-release legs and auto keystone correction get you ready to go, and once you begin your presentation, 3LCD technology and Samsung engineering give you up to 2,500 ANSI lumens for bright color and images. Blackboard mode enables projection on a black or green screen, and closed captioning can display audio as text on the screen. And a 5,000-h lamp and integrated speaker mean less to worry about.

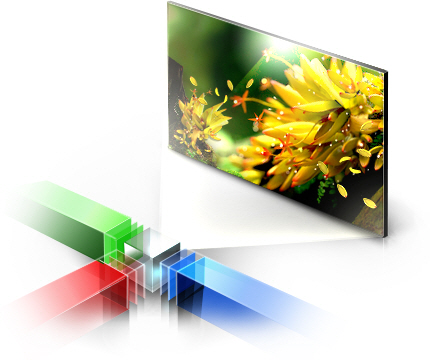

Experience the incredible intensity of 3LCD
3LCD technology reaches a new level of realism by using mirrors to split a white light source into primary colorsred, blue and yellow. Each color is then reflected onto its own LCD chip, which creates an image that combines into a vibrant full color image once it passes through a prism. The spectacular color image shoots through a lens and is projected onto the screen. What your eyes finally see is so unbelievably intense, it sets a new precedent in what you can expect from a projector.
Project confidence.
Samsung makes it their business to help you impress your colleagues and clients with dynamic presentations. The projectors USB drive supports all your files without the need for a computer, so you can directly view PDF, TXT, HTML, MPEGS, JPGS, and the whole suite of MS Office files. Everything you need to make an effective presentation is here and thanks to Samsung, youll have the most important thing of allconfidence.

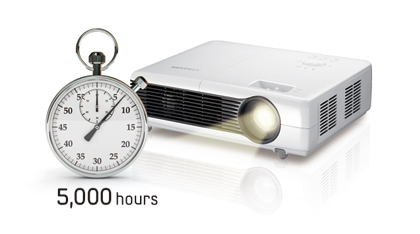

5,000 hour lamp life
The Samsung M series projector has an intelligent Economy mode that not only reduces power consumption and operating noise but also extends lamp life to an incredible 5,000 hours. Economy mode is specifically designed for use with screens that are 100 inches or less.

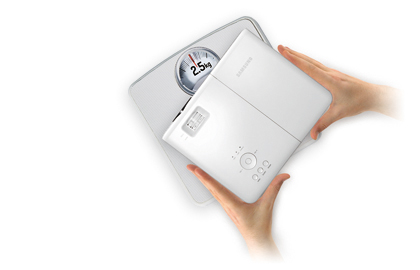

Created for your convenience
At only 2.5 Kg, the ultra-portable Samsung M seires projector enables you to make professional presentations in any environment. Its pristine white body, compact size, and user-friendly design features make it ideal for mobile use. With easy lamp and filter replacement and one-touch foot release, it can be set-up and maintained in seconds.
Low noise
Noise level is almost inaudible in normal living environments.
User satisfaction is maximized with low noise design that meets highest standard.
Clear, focused images
You can select between wide screen (16:9) and normal screen (4:3) sizes to help you present perfectly focused images that fully fit your needs.
Specifications
|
|
| Power |
Supply |
100-240V @ 50 -60 Hz |
| Power Consumption |
260W |
| Stand By Power Consumption |
<1 Watts |
| General |
Display Technology |
3 panel LCD(p-Si TFT Active-matrix) |
| Native Aspect Ratio |
4:3 |
| Supported Aspect Ratio |
4:3, Zoom1, Zoom2, 16:9 |
| Audible Noise |
Eco-Mode: 31 [dB], Bright-Mode: 36 [dB] |
| Pictures |
Brightness |
High Bright: 2500 ANSI Lumens |
| Contrast Ratio |
500:1 Full On/Off |
| Lamp Life Time |
High Bright: 3000 Hours / Eco Mode: 5000 Hours |
| Native Resolution |
XGA |
| Function |
Speaker |
7w Mono |
| Rear Input |
HDMI |
1 |
| DVI |
Requires HDMI to DVI cable |
| Composite In |
1 |
| S-Video |
No |
| Component 1 |
Requires D-sub to RCA component cable |
| Computer |
1 |
| Stereo 3.5 mm Mini-jack Inputs |
No |
| RS-232C |
Yes |
| Physical Specification |
Dimension : Net (WxHxD, mm) |
279 X 229 X 79mm |
| Dimension : Package (WxHxD, mm) |
412 X 322 X 215mm |
| Weight : Net (kg) |
2.5Kg |
| Weight : Package (kg) |
4.5Kg |
