05/08

Vivotek 900002903G AM-311_V04 Pole Mount Adaptor

Vivotek AM-311_V04 Pole Mount Adaptor


Vivotek AM-311_V04 Pole Mount Adaptor

900002902G (v03):
900002903G (v04):

Bracket: AM-212, AM-221 for Dome Camera

Camera: IB8373-EH, IB8381, IB8381-E, IP8335H, IP8355H, IP8355EH, IP8362, IP8365H, IP8365EH, IP8371, IP8371E, IP8372

Add: IB8338-H, IB8338-HR, IB8354-C, IB8367, IB8367-R, IB8367-T, IB8367-RT, IP8337H-C, IP8364-C
Link contains in-depth information about this product    NA
05/08

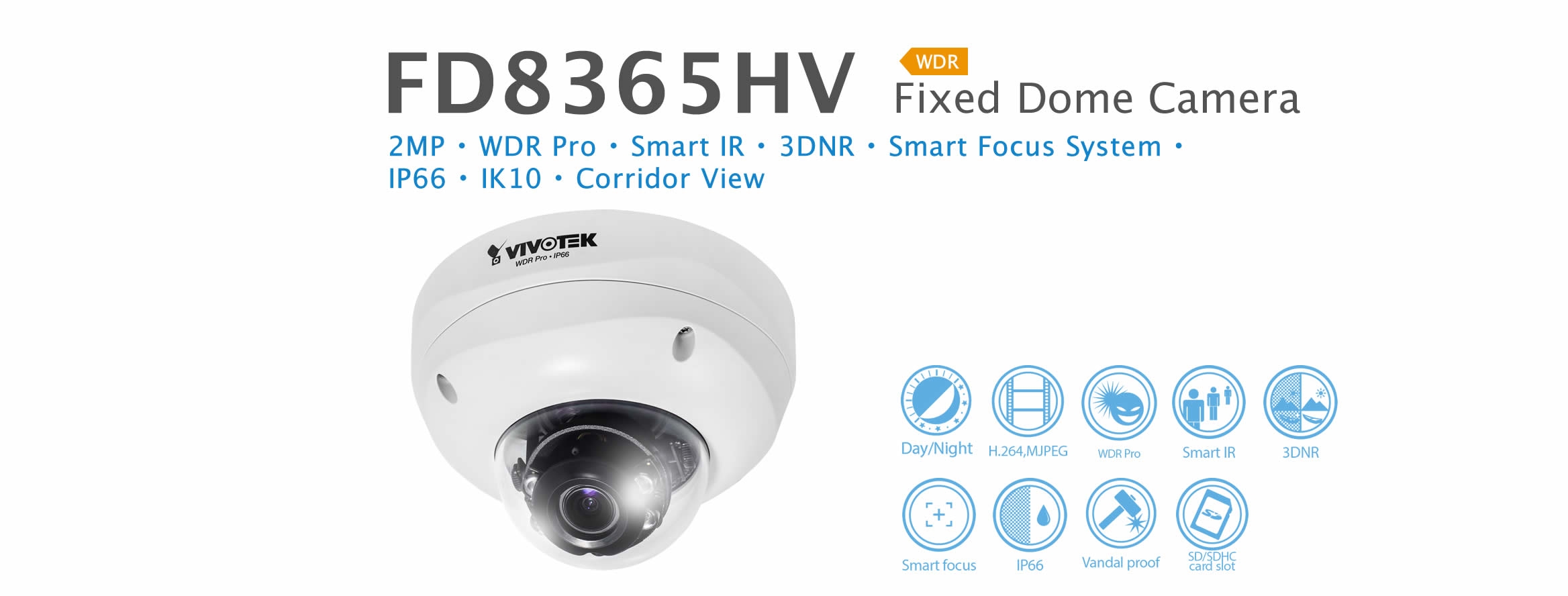

Vivotek FD8365HV Fixed Dome Camera - 2 Megapixel CMOS Sensor, 30FPS @ 1920x1080, Motorized, P-iris Lens & DC-Iris, Removable IR-Cut Filter For Day & Night Function, Two-Way Audio, IP66 - White

FD8365HV

Overview

VIVOTEK FD8365HV is a professional outdoor network dome camera offering 30 fps @ 2-Megapixel resolution with superb image quality.

Featuring the Wide Dynamic Range Technology WDR Pro, it provides improved visibility in the extremely dark & light environment. Combined 3D Noise Reduction Technology, which enables the FD8365HV to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can identify an increased level of image details in pretty bright as well as dark environments.

Additionally, as a professional day/night camera, FD8365HV adopts a Smart IR technology which prevents overexposure and provides noise reduction to adjust the IR lighting intensity instantaneously based on changes in lighting in the ambient environment.

To provide top-notch image quality, FD8365HV also comes with a P-iris lens, which controls the iris with extreme precision with its built-in stepper motor. By using software controls, the lens maintains the iris opening at an optimal level at all times, resulting in superior sharpness and depth of field as well as image quality. Furthermore, for installers, properly adjusting the focus of a megapixel network camera can be difficult due to the level of image detail. Thus, FD8365HV is also designed with VIVOTEK's Smart Focus System to make installation and adjustment easier by using remote focus and zoom adjustment.

The camera's IP66-rated housing is designed to help the camera body withstand rain and dust and high pressure water jets from any direction while the IK10-rated vandalproof rating provides protection against the vandalism and impact.

Key Features

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • Motorized, P-iris Lens & DC-iris
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 20 Meters
  • Smart IR Technology to Avoid Overexposure
  • 3D Noise Reduction for Low-light Conditions
  • WDR Pro (100dB) to Provide Improved Visibility in Extremely Bright or Dark Environments
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Two-way Audio
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • Video Rotation for Corridor Format
  • EIS (Electronic Image Stabilization) to Control Image Stability

Specifications

System Information

CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 256 MB
RAM
  • 384 MB
Camera Features

Image sensor
  • 1/2.8" Progressive CMOS
Maximum Resolution
  • 1920x1080 (2MP)
Lens Type
  • Vari-focal, remote focus
Focal Length
  • f = 3 ~ 10 mm
Aperture
  • F1.3 ~ F2.5
Auto-iris
  • P-iris/DC-Iris(Reserved)
Field of View
  • 33 ~ 104 (horizontal)
  • 19 ~ 56 (vertical)
  • 39 ~ 121 (diagonal)
Shutter Time
  • 1/5 sec. to 1/10,000 sec.
WDR Technology
  • WDR Pro
Day & Night
  • Removable IR-cut filter for day & night function
  • Smart IR Technology to Avoid Overexposure
Minimum Illumination
  • 0.42 Lux @ F1.3, 50 IRE (Color)
  • 0.001 Lux @ F1.3, 50 IRE (B/W)
Pan / Tilt / Zoom
  • ePTZ
  • 48x digital zoom ( 4x on IE plug-in,12x built-in )
IR Illuminators
  • Built-in IR illuminators, effective up to 20 meters
  • IR LED*4, with Smart IR Technology
On-board Storage
  • MicroSD/SDHC/SDXC card slot
Video

Compression
  • H.264, MJPEG
Maximum Frame Rate
  • In both compression modes:
    • 30 fps @ 1920x1080
Maximum Streams
  • 2 simultaneous streams
S/N Ratio
  • 62 dB
Dynamic Range
  • 100 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
Image Settings
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, seamless recording, video rotation, EIS
Audio
Audio Capability
  • Two-way Audio (full duplex)
Compression
  • AAC, G.711, G.726
Interface
  • External microphone input
  • Audio output
Network

Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Interface
  • 10Base-T / 100BaseTX Ethernet (RJ-45)
  • * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video

Video Motion Detection
  • Triple-window video motion detection
Alarm and Event

Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General

Smart Focus System
  • Remote focus
Connectors
  • RJ-45 for Network/PoE connection
  • Audio input/output
  • AV output
  • AC 24V power input
  • DC 12V power input
  • Digital input * 1
  • Digital output * 1
LED Indicator
  • System power and status indicator
Power input
  • 24V AC
  • 12V DC
  • IEEE 802.3af PoE
Power consumption
  • DC Max. 7.6W
  • AC Max. 8.6W
  • PoE Max. 10.6W
Dimensions
  • : 173 mm x 115 mm
Weight
  • Net: 1215 g
Casing
  • Weather-proof IP66-rated housing
  • Vandal-proof IK10-rated housing
Safety Certifications
  • CE, C-Tick, FCC Class A, LVD, VCCI, UL
Operating Temperature
  • Starting Temperature: -10C ~ 50C (14F ~ 122F)
  • Working Temperature: -20C ~ 50C (-4F ~ 122F)
Warranty
  • 36 months
System Requirements

Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
Browser
  • Mozilla Firefox 7~10 ( Streaming only )
  • Internet Explorer 7 / 8 / 9 / 10
Other Players
  • VLC: 1.1.11 or above
  • QuickTime: 7 or above
Link contains in-depth information about this product Link contains a picture of this product    NA
05/08

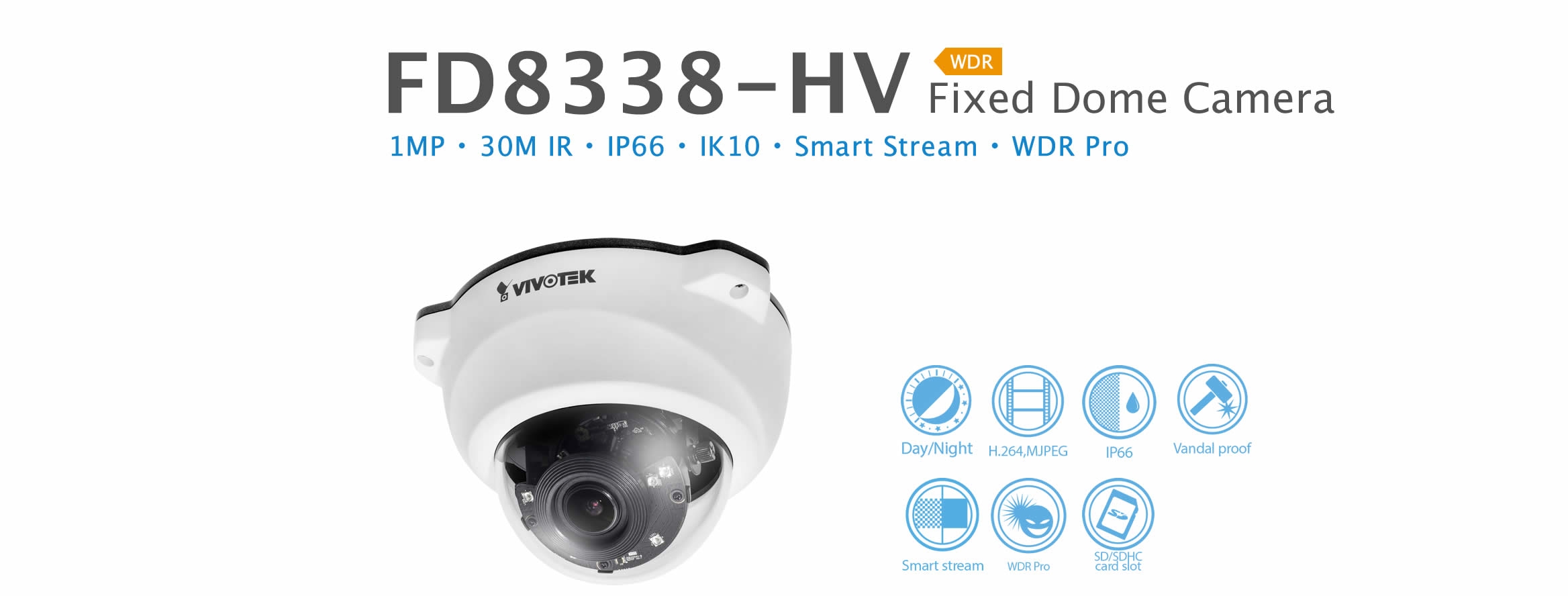

Vivotek FD8338-HV Fixed Dome Camera - 1 Megapixel CMOS Sensor, 30FPS @ 1280x800, 2.8 ~ 12 mm Vari-focal, P-iris Lens, Removable IR-Cut Filter For Day & Night Function, Two-Way Audio, IP66 - White

FD8338-HV

Overview

The VIVOTEK FD8338-HV is a robust, fixed-dome style network camera designed for diverse outdoor applications. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at a smooth 30 fps, the FD8338- HV is an all-in-one outdoor camera capable of capturing high quality images with 720P resolution, even in high-contrast lighting environments. While providing exceptional image quality, the FD8338-HV is also equipped with VIVOTEK Smart Stream and 3DNR to save substantial bandwidth for our users.

To meet the harsh demands of outdoor applications, the FD8338-HV is also armed with IP66-rated housing to help the camera body withstand rain, dust and even high-pressure water jets from any angle, while its IK10-rated housing provides protection against attempted acts of vandalism or any violent impact.

Key Features

  • 1-Megapixel CMOS Sensor
  • 30 fps @ 1280x800
  • 2.8 ~ 12 mm Vari-focal, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 30 Meters
  • Real-time H.264, and MJPEG Compression
  • Two-way Audio
  • WDR Pro for Clear Visibility in Extremely Bright and Dark Environments
  • Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
  • 3D Noise Reduction

Specifications

Model FD8338-HV
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128MB
RAM 256MB
Camera Features
Image Sensor 1/3" Progressive CMOS
Maximum Resolution 1280x800
Lens Type Vari-focal, Manual Focus
Focal Length f = 2.8 ~ 12 mm
Aperture F1.8 ~ F2.85
Auto-iris P-Iris
Field of View 33 ~ 87 (Horizontal)
21 ~ 54 (Vertical)
39 ~ 110 (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Pro
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.27 Lux @ F1.8 (Color)
0.001 Lux @ F1.8 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*6
On-board Storage MicroSD/SDHC/SDXC card slot

Video

Compression H.264, MJPEG
Maximum Frame Rate H.264:
30 fps @ 1280x800
MJPEG:
30 fps @ 1280x800
Maximum Streams 3 simultaneous streams
S/N Ratio Above 61 dB
Dynamic Range 110 dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings, 3D noise reduction, seamless recording

Audio

Audio Capability Audio input/output (full duplex)
Compression G.711, G.726
Interface External microphone input
Audio output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface 10Base-T / 100BaseTX Ethernet (RJ-45)
* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Connectors RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE
DC 12V
Power Consumption PoE: Max. 9.7 W
DC 12V: Max. 9.96 W
Dimensions : 141 x 103 mm
Weight Net: 836g
Casing Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing
Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: -10C ~ 50C (14F~ 122F)
Working Temperature: -20C ~ 50C (-4F~ 122F)
Warranty 36 months

System Requirements

Operating System Microsoft Windows 8/7/Vista/XP/2000
Web Browser Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x or 8.x, 9.x, 10.x
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above

Included Accessories

CD User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software
Others Quick installation guide, warranty card, alignment sticker/desiccant bag, waterproof connector
Link contains in-depth information about this product Link contains a picture of this product    NA
05/08

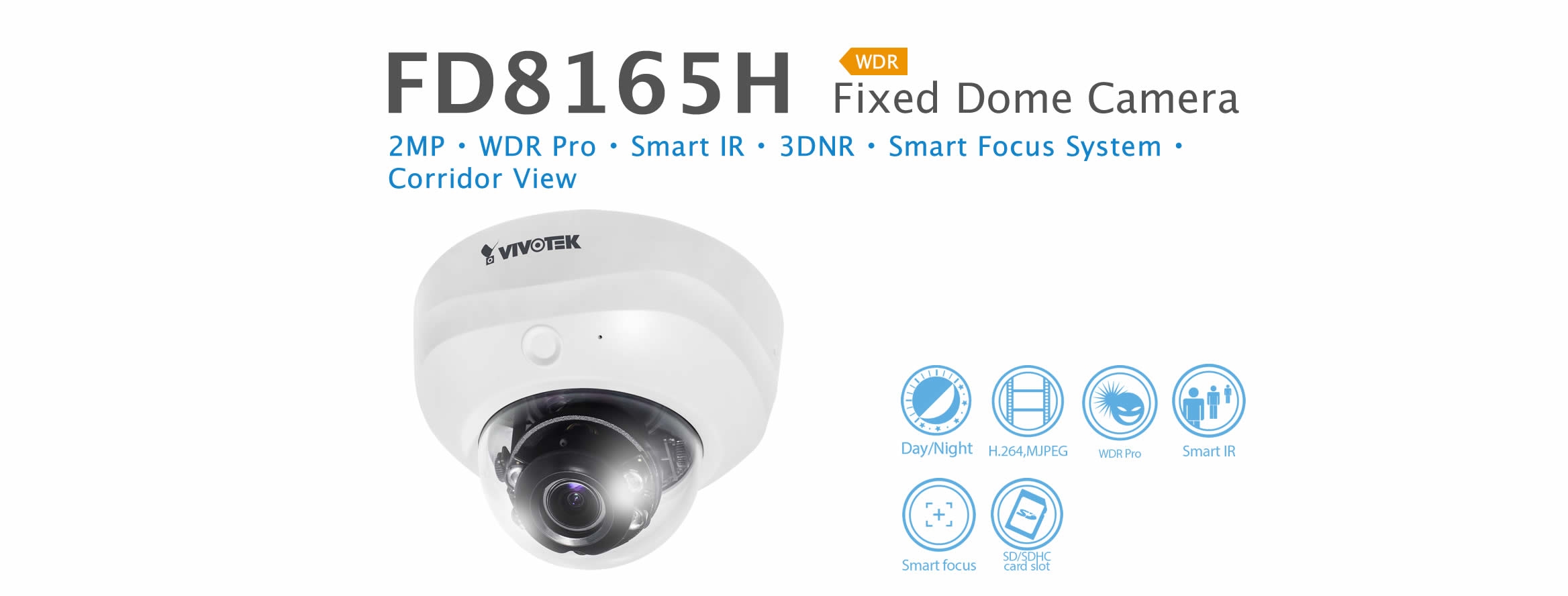

Vivotek FD8165H Fixed Dome Camera - 2 Megapixel CMOS Sensor, 30FPS @ 1920x1080, 60FPS @ 1920x1080 (One-Stream Mode Only), Motorized, P-iris Lens, Removable IR-Cut Filter For Day & Night Function - White

FD8165H

Overview

VIVOTEK FD8165H is a professional indoor network dome camera offering up to 60 fps @ 2-Megapixel resolution with superb image quality.

Featuring the Wide Dynamic Range Technology WDR Pro, this camera provides improved visibility in dark & light environments. Combined with 3D Noise Reduction Technology, which enables the FD8165H to capture clear, polished video under low-light conditions and reduce bandwidth from sensor noise, users can enjoy superb image detail in all lighting conditions.

Additionally, as a professional day/night camera, FD8165H adopts Smart IR technology which prevents overexposure and provides noise reduction by instantaneously adjusting IR lighting intensity to suit changes in ambient light.

To provide top-notch image quality, the FD8165H also comes with a P-iris lens, which controls the iris with extreme precision via its built-in stepper motor. The iris opening is kept at an optimal level at all times, resulting in superior image sharpness and depth of field. Furthermore, because installation and adjustment of a megapixel network camera can be difficult due to the level of image detail, the FD8165H is equipped with VIVOTEK's Smart Focus System to allow remote focus and zoom adjustment.

Key Features

  • 2-Megapixel CMOS Sensor
  • 30 fps @ 1920x1080
  • 60 fps @ 1920x1080 (one-stream mode only)
  • Motorized, P-iris Lens
  • Removable IR-cut Filter for Day & Night Function
  • Built-in IR Illuminators, Effective up to 20 Meters
  • Smart IR Technology to Avoid Overexposure
  • 3D Noise Reduction for Low-light Conditions
  • WDR Pro to Provide Improved Visibility in Extremely Bright and Dark Environments
  • Smart Focus System for Remote and Precise Focus Adjustment
  • Two-way Audio
  • Video Rotation for Corridor Format
  • EIS (Electronic Image Stabilization) to Control Image Stability

Specifications

System Information

CPU
  • Multimedia SoC (System-on-Chip)
Flash
  • 256 MB
RAM
  • 384 MB
Camera Features

Image sensor
  • 1/2.8" Progressive CMOS
Maximum Resolution
  • 1920x1080 (2MP)
Lens Type
  • Vari-focal, Remote Focus
Focal Length
  • f = 3 ~ 10 mm
Aperture
  • F1.3 ~ F2.5
Auto-iris
  • P-iris/DC-iris (Reserved)
Field of View
  • 33 ~ 104 (horizontal)
  • 19 ~ 56 (vertical)
  • 33 ~ 121 (diagonal)
Shutter Time
  • 1/5 sec. to 1/10,000 sec.
WDR Technology
  • WDR Pro
Day & Night
  • Removable IR-cut filter for day & night function
  • Smart IR Technology to avoid overexposure
Minimum Illumination
  • 0.16 Lux @ F1.3 (Color)
  • 0.001 Lux @ F1.3 (B/W)
Pan / Tilt / Zoom
  • ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
IR Illuminators
  • Built-in IR illuminators, effective up to 20 meters
  • IR LED*4, with Smart IR Technology
On-board Storage
  • MicroSD/SDHC/SDXC card slot
Video

Compression
  • H.264, MJPEG
Maximum Frame Rate
  • In both compression modes:
    • 30 fps @ 1920x1080
    • 60 fps @ 1920x1080 (one-stream mode only)
Maximum Streams
  • 2 simultaneous streams
S/N Ratio
  • 62 dB
Dynamic Range
  • Up to 100 dB
Video Streaming
  • Adjustable resolution, quality and bitrate
Image Settings
  • Time stamp, text overlay, flip & mirror
  • Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, seamless recording, video rotation, EIS
Audio

Audio Capability
  • Two-way audio (full duplex)
Compression
  • AAC, G.711, G.726
Interface
  • External microphone input
  • Audio output
Network

Users
  • Live viewing for up to 10 clients
Protocols
  • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Interface
  • 10Base-T / 100BaseTX Ethernet (RJ-45)
  • * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard.
ONVIF
  • Supported, specification available at www.onvif.org
Intelligent Video

Video Motion Detection
  • Triple-window video motion detection
Alarm and Event

Alarm Triggers
  • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm Events
  • Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
General

Smart Focus System
  • Remote focus
Connectors
  • RJ-45 for Network/PoE connection
  • Audio input/output
  • AV output
  • AC 24V power input
  • DC 12V power input
  • Digital input*1
  • Digital output*1
LED Indicator
  • System power and status indicator
Power input
  • DC12V/AC24V
  • IEEE 802.3af PoE
Power consumption
  • DC 12V: Max. 7.6 W
  • AC 24V: Max. 8.6 W
  • PoE: Max. 10.6 W
Dimensions
  • : 157 mm x 109 mm
Weight
  • Net: 758 g
Safety Certifications
  • CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature
  • Starting Temperature: -10C ~ 50C (14F ~ 122F)
  • Working Temperature: -20C ~ 50C (-4F ~ 122F)
Warranty
  • 36 months
System Requirements

Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
Browser
  • Mozilla Firefox 7~10 (Streaming only)
  • Internet Explorer 7 / 8 / 9 / 10 / 11
Other Players
  • VLC: 1.1.11 or above
  • Quicktime: 7 or above
Link contains in-depth information about this product Link contains a picture of this product    NA
Previous Page Next Page
