04/08
|
IVSEC NC309A Dome IP Camera - 1 Megapixel @ 25FPS, 1/2.8" Sony, 2.8mm Lens, PoE, IP65, Vandal Resistant, IR - White NC309A IP Cameras
Overview
Product description
The NC309A security camera uses a 2.8mm fixed lens, records at 25fps at 1280x720 resolution, and has a Sony sensor.
Its infrared illumination enables recording in darkness or poor lighting situations up to a range of 15 metres.
Reduce installation labour and parts required by using one cable for both data and electricity with Power over Ethernet.
It has a vandal and water resistant dome which means this surveillance camera can also be used both indoors and out.
The NC309A is a sound option for an entry level IP surveillance camera.
Main features:Dome IP Camera, 1MP @ 25fps, Sony sensor, 2.8 mm lens, PoE, Vandal Resistant, IP65, IR, 3 year warranty.
Specifications
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" Sony 1MP |
| Maximum Video Resolution |
1280x720 |
| Maximum Video Resolution (Megapixels) |
1 |
| Frame Rate Resolution |
25 |
| Lens |
2.8 mm |
| Lens Type |
Fixed |
| Minimum Illumination |
0 Lux (IR ON) |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
15 |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Exception |
| Software |
Device Tool Manager, Video Monitoring Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45, DC Power Input |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC309A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
93x83.3 mm |
| Weight |
0.550000 |
|
|
|
|
04/08
|
IVSEC NR536A Network Video Recorder - 36 Channels, NVR, Up To 36 Channels, 1-5MP, Up To 900FPS, H.264, MPEG-4, MJPEG, HD-1080p, HD-720p, 1.3 MP, D1, VGA, Continuous, Scheduling, Event Triggered IVSEC NR536A Network Video Recorder (36 Channels, NVR)
Product description
The NR536A is an NVR that can handle different configurations. The options of channels (ch) meaning the maximum capacity of cameras at a resolution and a total system frame per second as follows: 36ch 960P@900fps or 25ch 1080P@625fps or 8ch 3M@200fps or 4ch 5M@100fps having flexibility like this gives this NVR more applications.
There is an alarm port that can be connected to devices like sensors or door contacts. When the contacts change, an event is detected. There is also an alarm output that can be used to control external devices, such as alarms and doors. Pre & post alarm recording allow you to capture the lead-up to events.
Motion Detection zones can be configured in specific areas with specific sensitivity to detect changes in the scene. When the motion threshold is crossed, an event will be generated. As with alarm inputs, pre & post alarm recording allow you to capture the lead-up to events. This increase the storage time of footage and reduces the amount of time needed to search for an event.
Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet. The NVR can have up to 32TB storage over 8 bays, has optional motion detection mode to maximise storage, plus15x electronic zoom.
Main features: Network Video Recorder, up to 36 channels, 1-5MP, up to 900fps decoding, 8 bays, 2RU, 2 year warranty RTB
Specifications
Additional Information
| Maximum Channels |
36 |
| Max Video Resolution (MP) |
5 |
| Examples of Channels at resolution FPS |
36ch 960P@900fps or 25ch 1080P@625fps or 8ch 3M@200fps or 4ch 5M@100fps |
| Video Compression |
H.264, MPEG-4, MJPEG |
| Video Output Resolution |
HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Display Layout |
1, 4, 9, 16, 25, 36 |
| Search Method |
Continuous, Scheduling, Event Triggered |
| Total Storage (TB) |
32 |
| HDD Bays Size |
Bays x 8, Up to 4TB per HDD |
| Bundled Software |
Device Manager Tool, Mobile Application |
| Protocols |
TCP, HTTP, DHCP, DDNS, NTP, SMTP, PPPOE, UPnP, ONVIF, P2P |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, etc. |
| Audio Streaming |
Two Way |
| Power Supply |
100 to 240 Vac |
| Connectors |
HDD: 3.5" SATA HDD Slot x 8, eSATA x 1, USB3 Female x 1, USB2 Female x 1, Ethernet: RJ-45 Gigabit Port x 2, Dual Video Out (VGA/HDMI), Audio In/Out, Alarm Input x 16 Alarm Output x 4, RS485, AC Power Jack for 90 to 240 Vac Input |
| Operating Environment |
0C to 50C (32F-122F), Humidity: 20% to 80% RH |
| In the Box |
CD-Rom (User Manual), Power Cable |
| Warranty |
24 months parts & labour warranty |
| Dimensions |
440x430x90 mm |
| Weight |
7.7 |
| Model |
NR536A |
|
|
|
|
04/08
|
IVSEC HC718A Bullet HC718A HD Analogue Cameras - 2MP @ 30fps, 1/2.8" SONY Exmor, 2.8-12mm, IP66, IR, ICR, Low Lux, Vari-Focal - White HC718A HD Analogue Cameras
Product description

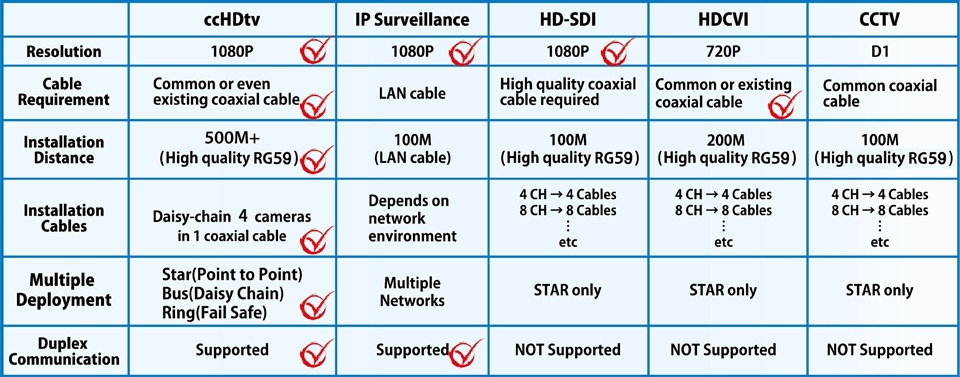

The HC718A is part of the high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution with a Sony Exmor image sensor, and has a 2.8-12mm varifocal lens. With resolution of 1080p this security camera has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than the standard D1 analogue cameras.
The coax cabling can run from camera to camera, rather than in each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
The HC718A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
The HC718A employs Infrared Cut Filter Removal (ICR) to give distanced footage at night up to a maximum of 40 metres.
These white, visually appealing bullet-style CCTV security cameras are designed for use in outdoor settings, with existing coaxial cable infrastructure.
Main features: Bullet ccHDtv Camera, 2MP @30fps, Sony sensor, 2.8-12mm, IP66, IR, ICR, Low lux, 2 year warranty.
Specifications
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/2.8 SONY Exmor |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.01 Low Lux |
| Day/Night Mode |
ICR |
| Maximum Night IR Distance (M) |
40 |
| Image Enhancement |
Brightness, Contrast, Saturation, Sharpness, Hue, Image Adjustment, Back Light Compensation (BLC), Anti-Flicker, De-Noise, Defog |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| Model |
HC718A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
270x148 mm |
| Weight |
1.200000 |
|
|
|
|
04/08
|
IVSEC NC532B Box IP Camera - 2 Megapixel, 25 FPS, 1/2.8" SONY 2MP, PoE, IP66, Low Lux, 0.05 Lux, Low Light Solution, MicroSD/SDHC Card Support, 32G - White/Black NC532B IP Cameras
Product description
A box type security camera, the NC532B is versatile with interchangeable lens options.
With its low lux level of 0.05, colour is recorded substantially longer as light levels diminish before automatically switching to night mode.
This IP camera comes with an analogue video output which can be used with TV monitors, which is an excellent criminal deterrent.
There is a MicroSD card slot to record directly to the camera.
The NC532B is a CCTV camera and has simple installation software and Power over Ethernet (PoE) for reduced installation time, and setup costs.
With its choice of housing options, the P1BX-N surveillance camera can be used internally or externally.
Main features:Box IP Camera, 2MP @ 25fps, SONY sensor, PoE, Low lux, 3 year warranty.
Specifications
Additional Information
| Camera Type |
Box |
| Outdoor Use |
Indoor Use |
| Image Sensor |
1/2.8" SONY 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Auto |
| Edge Recording |
microSD/SDHC Card Support, 32G |
| Audio Compression |
G.711A |
| Audio Streaming |
Yes |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPNP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Tampering Detection, Storage Exception |
| Software |
Device Manager Tool, Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45 , 2-pin Terminal Block for DC Power Input, Analog Video Output, Audio Line In/Out, Alarm In/Out, RS-485, microSD Card Slot, USB, Reset |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD Rom (User Manual, Free Bundle Software) |
| Comments |
With housing this can be used outdoors |
| Model |
NC532B |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
147x80.67 mm |
| Weight |
1.100000 |
|
|
|
|
04/08
|
IVSEC NC514A Mini Dome IP Camera - 2 Megapixel, 25FPS, 1/2.8" Sony, Vandal Resistant, 2.8mm Lens, PoE, IP65, Vandal Resistant, 0.05 Lux, Low Light Solution - White NC514A IP Cameras
Overview
Product description
The NC514A security camera uses a 2.8mm fixed lens, records at 25fps at 1080p (1920x1080) resolution, and has a Sony sensor.
Automatic day and night mode and a very low lux level of 0.05, means colour is recorded for longer as light levels diminish before the camera switches to night mode.

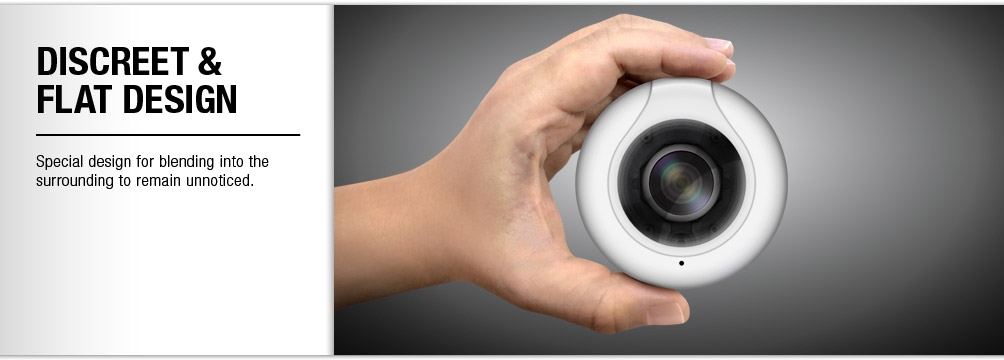

Together with its sleek low profile and mini-dome design, these CCTV cameras are an excellent indoor and general use surveillance camera, with smooth footage and clarity. Its vandal and water resistance means this surveillance camera can also be used externally.
The NC514A IP cameras Power over Ethernet (PoE), and simple to use software can reduce installation costs for cabling and labour.
Main features: Mini Dome IP Camera, 2MP @ 25fps, Sony sensor, 2.8 mm lens, PoE, Vandal Resistant, IP65, 3 year warranty.
Additional Information
| Camera Type |
Mini Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" Sony 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
2.8 mm |
| Lens Type |
Fixed |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Auto |
| Audio Compression |
G.711A |
| Audio Streaming |
Yes |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Exception |
| Software |
Device Manager Tool,Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45, DC Power Input, Analogue Video Output |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-Rom (User Manual, Free Bundle Software) |
| Model |
NC514A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
110x59 mm |
| Weight |
0.500000 |
|
|
|
|
04/08
|
IVSEC NR525A Network Video Recorder - 25 Channels, NVR, 1-5MP, Up to 625FPS, H.264, MPEG-4, MJPEG, 8-Bay, Two-Way Audio, Continuous, Scheduling, Event Triggered IVSEC NR525A Network Video Recorder (25 Channels, NVR)
Product description
The NR525A is a network video recorder (NVR) that can handle different configurations. The options of channels (ch) meaning the maximum capacity of cameras at a resolution and a total system frame per second as follows: 25ch 960P@500fps or 16ch 1080P@400fps or 4ch 3M@100fps or 4ch 5M@100fps or 8ch 720@200fps+8ch 1080P@200fps having flexibility like this gives this NVR more applications.
There is an alarm port that can be connected to devices like sensors or door contacts. When the contacts change, an event is detected. There is also an alarm output that can be used to control external devices, such as alarms and doors. Pre & post alarm recording allow you to capture the lead-up to events.
Motion Detection zones can be configured in specific areas with specific sensitivity to detect changes in the scene. When the motion threshold is crossed, an event will be generated. As with alarm inputs, pre & post alarm recording allow you to capture the lead-up to events. This increase the storage time of footage and reduces the amount of time needed to search for an event.
Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet. The NVR can have up to 8TB storage over 2 bays, has optional motion detection mode to maximise storage, plus15x electronic zoom.
Main features: Network Video Recorder, up to 25 channels, 1-5MP, up to 625fps decoding, 2 bays, 2 year warranty RTB
Specifications
Additional Information
| Maximum Channels |
25 |
| Max Video Resolution (MP) |
5 |
| Examples of Channels at resolution FPS |
25ch 960P@500fps or 16ch 1080P@400fps or 4ch 3M@100fps or 8ch 720@200fps+8ch 1080P@200fps 3M@100/120fps or 8ch 720@200/240fps+8ch 1080P@200/240fps |
| Video Compression |
H.264, MPEG-4, MJPEG |
| Video Output Resolution |
HD-1080p, HD-720p, 1.3 MP, D1, VGA |
| Display Layout |
1, 4, 8, 16, 25 |
| Search Method |
Continuous, Scheduling, Event Triggered |
| Total Storage (TB) |
8 |
| HDD Bays Size |
Bays x 2, Up to 4TB per HDD |
| Bundled Software |
Device Manager Tool, Mobile Application |
| Protocols |
TCP, HTTP, DHCP, DDNS, NTP, SMTP, PPPOE, UPnP, ONVIF, P2P |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, etc. |
| Audio Streaming |
Two Way |
| Power Supply |
DC12V/3A |
| Connectors |
HDD: 3.5" SATA HDD Slot x 2, eSATA x 2, USB2 Female x 2, Ethernet: RJ-45 Gigabit Port x 1, Dual Video Out (VGA/HDMI), Audio In/Out, Alarm Input x 4 Alarm Output x 1, RS485, Power Jack for DC12V/3A Input |
| Operating Environment |
0C to 50C (32F-122F), Humidity: 20% to 80% RH |
| In the Box |
CD-Rom (User Manual), Power Cable |
| Warranty |
24 months parts & labour warranty |
| Dimensions |
360x242.4x48 mm |
| Weight |
1.7 |
| Model |
NR525A |
|
|
|
|
04/08
|
IVSEC HC787A CCHDTV Camera - 2 Megapixel, 1/2.7" Image Sensor, 30FPS, Low Lux - White HC787A HD Analogue Cameras
Product description

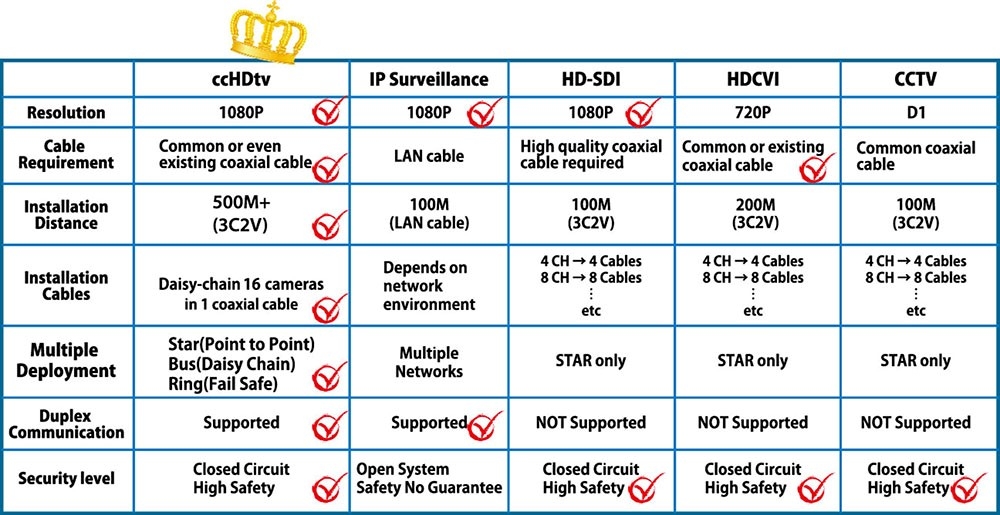

The HC787A is part of our range of high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution., and has an interchangeable lenses (not included) using CS-Mount. 1080p has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than standard D1 analogue cameras.
The cabling can run from camera to camera, rather than each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
The HC787A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
Customise your image through the following image enhancements available to this security camera: Brightness, Contrast, Color Saturation, Sharpness, White Balance, Backlight Compensation, Exposure Control, Flicker Control, Fine Tuning of Behavior under Low Light Conditions, Noise Filter, Vertical and Horizontal.
Main features: Box ccHDtv Camera, 2MP @30fps, Low lux, 2 year warranty.
Additional Information
| Camera Type |
Box |
| Outdoor Use |
Indoor Use |
| Image Sensor |
1/2.7 2 MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Minimum Illumination |
0.03 Lux |
| Image Enhancement |
Brightness, Contrast, Color Saturation, Sharpness, White Balance, Backlight Compensation, Exposure Control, Flicker Control, Fine Tuning of Behavior under Low Light Conditions, Noise Filter, Vertical and Horizontal |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| Model |
HC787A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
61x120 mm |
| Weight |
1.000000 |
|
|
|
|
04/08
|
IVSEC HR716A ccHDtv Digital Video Recorder - 16 Channel, 2 Megapixel, 25FPS Per Channel, 8x 3.5" SATA HDD Slot, 4xUSB2.0, 1xGigLAN, HDMI, Two-Way Audio, Continuous, Scheduling, Event Triggered IVSEC HR716A ccHDtv Digital Video Recorder (2MP, DVR)
Product description
The HR716A is a ccHDtv Digital Video Recorder which takes up to sixteen 1080p (2MP) CCTV high definiton analogue cameras.
Use your PC, mobile, or tablet device to remotely view the footage from your security cameras, and make the most of 32TB supported storage with motion sensing recording. The HR716A has bidirectional audio and also supports dual video output in VGA or HDMI.
This closed circuit High Definition Digital Video Recorder is a security cameras system that has the ability to record 1080p (1920x1080) resolution. With the resolution of 1080p this security camera recorder has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than the standard D1 analogue cameras. The coax cabling can run from camera to camera, rather than in each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
Using the fail save ring or mesh topology gives the cameras more than one data transmission route back to the HD DVR this creates a far more reliable system. If a cable to a camera is cut or fails the other cables can be used to carry the data back to the recorder.
Below is a summary of the advantages of the HR71A ccHDtv Digital Video Recorder:
Main features: ccHDtv Digital Recorder, 16 channel, 2MP, 25fps per channel, 8 bay, 2 year warranty RTB
Specifications
Additional Information
| Maximum Channels |
16 |
| Max Video Resolution (MP) |
2 |
| Video Compression |
H.264 |
| Video Output Resolution |
1920*1080 |
| Display Layout |
1, 4, 8, 12, 16 |
| Search Method |
Continuous, Scheduling, Event Triggered |
| Total Storage (TB) |
32 |
| HDD Bays Size |
Bays x 8, Up to 4TB per HDD |
| Bundled Software |
Mobile Application |
| Protocols |
HTTP, DHCP, Static IP, DNS, PPPoE, DDNS, FTP, NTP, RDATE, SSH, UPnP and SMTP |
| Language |
English, Japanese, Russian, Simplified & Traditional Chinese |
| Audio Streaming |
Two Way |
| Power Supply |
300W |
| Connectors |
HDD: 3.5" SATA HDD Slot x 8, USB2 Female x 4, Ethernet: RJ-45 Gigabit Port x 1, Dual Video Out (HDMI), BNC video in x 16, IEC power input |
| Operating Environment |
5C to 40C (41F-104F), Humidity: 0% to 90% RH |
| In the Box |
Power Cable |
| Warranty |
24 months parts & labour warranty |
| Dimensions |
434.20x480x88.80 mm |
| Weight |
9.6 |
| Model |
HR716A |
|
|
|
|
04/08
|
IVSEC AR116A Digital Video Recorder - 16 Channels, DVR, Up to 400FPS, 2x3.5" SATA HDD Slot, 2xUSB2.0, VGA, HDMI, H.264, 1xGigLAN AR116A DVR
Product description
The AR116A takes up to sixteen 960H analogue cameras with 30% greater resolution than the standard 760H security cameras.
Use your PC, mobile, or tablet device to remotely view the footage from your security cameras, and make the most of 4TB supported storage with motion sensing recording. The AR116A has bidirectional audio and also supports dual video output in VGA or HDMI.
For budget performance, this 8 channel DVR security camera system is suited to basic needs of small to medium businesses, and residential customers.
Main features:Digital Video Recorder, 16 channel, 960H, 25fps per channel, 2 bay, 2 year warranty RTB
Additional Information
| Maximum Channels |
16 |
| Video Compression |
H.264 |
| Video Output Resolution |
1920*1080,1440*900,1280*1024,1366*768,1024*768,800*600 |
| Display Layout |
1, 4, 9, 16 |
| Search Method |
Continuous, Scheduling, Event Triggered |
| Total Storage (TB) |
8 |
| HDD Bays Size |
Bays x 2, Up to 4TB per HDD |
| Bundled Software |
Device Manager Tool, Mobile Application |
| Protocols |
TCP/IP, HTTP, DHCP, DDNS, NTP, SMTP, PPPOE, UPnP, P2P |
| Language |
English, French, Dutch, German, Italian, Polish, Portuguese, Spanish, Thai, Turkish, Hungarian, Simplified Chinese, Etc. |
| Audio Streaming |
Two Way |
| Power Supply |
DC12V/3A |
| Connectors |
HDD: 3.5" SATA HDD Slot x 2, USB2 Female x 2, Ethernet: RJ-45 Gigabit Port x 1, Dual Video Out (VGA/HDMI), Alarm input x 16 Alarm output x 3, Audio in 4/out 1, BNC video in/out, RS485, Power Jack for DC12V/3A Input |
| Operating Environment |
0C to 50C (32F~122F), Humidity: 20% to 80% RH |
| In the Box |
CD-Rom (User Manual), Power Cable |
| Warranty |
24 months parts & labour warranty |
| Dimensions |
360x250x44 mm |
| Weight |
1.7 |
| Model |
AR116A |
| In Depth |
Please refer to the Downloads Tab |
|
|
|
|
04/08
|
IVSEC AC118A Analogue CCTV Dome Camera - 1/3" SONY Super HAD II CCD 960H, 2.8-12mm, Vari-Focal, 0.06 Lux, Motion Detection, Privacy Zones - Black AC118A Analogue CCTV Cameras
Product description
From the analogue range of security cameras, the AC118A uses a 2.8-12mm varifocal lens, and has a Sony Super HAD II CCD 960H (976x582) sensor. This CCTV camera has 30% greater resolution (700TVL) than standard analogue cameras.
With automatic day/night recording, this security camera uses infrared, recording up to a maximum of 25 metres without external light sources.
The subtle dark grey housing blends well in environments such as hotels and clubs with dark ceilings. The housing incorporates a rotating ball joint, allowing easy adjustment of the cameras recording position.
Use for internal or external applications, the AC118A surveillance cameras are resistant to water and vandals.
Main features: Dome Analogue, 960H, Sony sensor, 2.8-12 mm lens, IR, 3 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
700TVL |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.06 Lux |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
25 |
| Image Enhancement |
White Balance (ATW) |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Model |
AC118A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 Months Parts & Labour Warranty |
| Dimensions |
70x95 mm |
| Weight |
0.750000 |
|
|
|
|
04/08
|
IVSEC AC132A Box Analogue CCTV Cameras - 1/3" SONY Super HAD II CCD 960H, 0.03 Low Lux, SWDR up to 128 dB, Low-Lux - White/Black AC132A Analogue CCTV Cameras
Overview
Product description
A box type security camera, the AC132A is versatile with interchangeable lens options.On board is a Sony Super HAD II CCD 960H (976x582) sensor, 750TVL.
The AC132A records at 30% better resolution than standard analogue cameras. With its low lux level of 0.03, colour is recorded substantially longer as light levels diminish before automatically switching to night mode.
Loaded with multiple image enhancement functions for greater picture quality, the AC132A utilises: White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, Anti-flickerWhite Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation and Anti-flicker.
This analogue camera comes with an analogue video output which can be used with TV monitors, which is an excellent criminal deterrent.
Main features: Box Analogue, 960H, Sony sensor, Low-Lux, 3 year warranty. (Lens not included)
Additional Information
| Camera Type |
Box |
| Outdoor Use |
Indoor Use |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
750TVL |
| Frame Rate Resolution |
25 |
| Minimum Illumination |
0.03 Low Lux |
| Day/Night Mode |
Auto |
| Dynamic Range |
SWDR up to 128 dB |
| Image Enhancement |
White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, Anti-flicker |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Comments |
Sony Effio-V DSP, Can be used outdoors with additional housing |
| Model |
AC132A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
241x121 mm |
| Weight |
0.600000 |
|
|
|
|
04/08
|
IVSEC AC158A Bullet Analogue Camera - 1/3" SONY Super HAD II CCD 960H, Vari-Focal, 2.8-12mm, IP66, WDR Up to 128dB, IR, ICR, Low-Lux - White AC158A Analogue CCTV Cameras
Product description
The peak performer among analogue surveillance cameras, the AC158A has 66 LEDs, and Infrared Cut Filter Removal (ICR) for a night mode maximum of up to 45 metres. It records at 30% better resolution than standard analogue cameras.
On board is a Sony Super HAD II CCD 960H (976x582) sensor, 750TVL, and a 2.8-12mm varifocal lens.
It has a super low lux level of 0.03 which means colour is recorded for substantially longer as light levels diminish, before this security camera switches to infrared (night) mode.
Loaded with multiple image enhancement functions for greater picture quality, the AC158A utilises: White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, and Anti-flicker.
Due to their Wide Dynamic Range (WDR) up to 128dB, these sleek white bullet style CCTV security cameras are ideal for capturing optimum footage in difficult lighting situations.
Main features:Bullet Analogue, 960H, Sony sensor, 2.8-12mm, IP66, WDR up to 128dB, IR, ICR, Low-Lux, 3 year warranty.
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
750TVL |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.03 Low Lux |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
45 |
| Dynamic Range |
SWDR up to 128 dB |
| Image Enhancement |
White Balance (AWB), 3DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), SWDR up to 128 dB, BLC/HLC, AGC, Mirror, Lens Shading Compensation, IR Optimisation, Digital Image Stabilisation, Anti-flicker |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Comments |
Sony Effio-V |
| Model |
AC158A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 Months Parts & Labour Warranty |
| Dimensions |
241x121 mm |
| Weight |
1.400000 |
|
|
|
|
04/08
|
IVSEC AC125A Bullet Analogue CCTV Cameras - 1/3" SONY Super HAD II CCD 960H, 2.8-12 mm, Vari-Focal, IP66, IR, Motion Detection, Privacy Zones - Black AC125A Analogue CCTV Cameras
Overview
Product description
The AC125A is an analogue surveillance camera with a Sony Super HAD II CCD 960H (976x582) sensor, 700TVL, and a 2.8-12mm varifocal lens. It has 30% better resolution than standard analogue cameras.
With infrared, these CCTV cameras record in light and dark conditions without external light sources, to a maximum of 25 metres.
This dark grey bullet camera is great for high external installations, for example, service stations and warehouses.
Main features:Bullet Analogue Camera, 960H, Sony Sensor, 2.8-12 mm, IP66, IR, 3 year warranty.
Additional Information
| Camera Type |
Bullet |
| Outdoor Use |
Outdoor Use |
| Image Sensor |
1/3" SONY Super HAD II CCD 960H |
| Maximum Video Resolution |
700TVL |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.06 Lux |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
25 |
| Image Enhancement |
White Balance (AWB), 2DNR, Image Adjustable (Lightness, Contrast, Sharpness, Hue, Gain), DWDR, BLC, AGC, Mirror |
| Intelligent Video |
Motion Detection, Privacy Zones |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, 1.0V p-p, 75 Ohms (BNC) |
| In The Box |
CD-ROM (User Manual, Free Bundle Software) |
| Model |
AC125A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 Months Parts & Labour Warranty |
| Dimensions |
269x77.3 mm |
| Weight |
1.100000 |
|
|
|
|
04/08
|
IVSEC NC591A Speed Dome IP Camera - 2 Megapixel, 1/2.9" Sony, 4.3mm-129mm, IP66, IR, Vandal Resistant, 0.05 Lux, Low Light Solution - White NC591A IP Cameras
Overview
Product description
The NC591A IP is a speed dome security camera that has a SONY sensor, and records as 25fps at 1080p (1920x1080) resolution with a mechanical optical lens of 4.7-94 mm. This PTZ camera can be remotely controlled to Pan, tilt and zoom covering a very large area.
In dimly lit to pitch dark areas, continue to capture footage without light sources with the NC591A's outstanding infrared technology. The resolution, varifocal lens and infrared give you vision in darkness to a massive maximum range of 100 metres.
This low noise and double metallic structure has this surveillance camera well protected from water and vandal resistant. The NC591A is an excellent outdoor camera option that can have presets to send the PTZ on a 360 degree patrol with lens angles of 54 degrees in wide angle to a large zoom of 2.93 degrees. This quality speed dome is easy to use and will be sure to exceed expectations.
Main features:Speed Dome IP Camera, 2MP @ 25fps, SONY sensor, 4.7mm-94mm, Vandal Resistant, IP66, IR, 3 year warranty.
Specifications
Additional Information
| Camera Type |
Speed Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.9" SONY 2 MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
4.7-94 mm |
| Lens Type |
PTZ |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Auto |
| Maximum Night IR Distance (M) |
100 |
| Edge Recording |
32G |
| Audio Compression |
G.711A |
| Audio Streaming |
Yes |
| Protocols |
TCP/IP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss |
| Software |
Device Manager Tool, Video Monitor Software, Mobile app |
| Power Supply |
DC12V 5A |
| Connectors |
RJ-45 , 2-pin Terminal Block for DC Power Input, Analog Video Output, Audio Line In/Out, Alarm 2CH in and 1CH out, RS-485 |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC591A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-30C to 60C (-22F-140F) Humidity: 0%-90% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
415x243 mm |
| Weight |
15.250000 |
|
|
|
|
04/08
|
IVSEC HC784A CCHDTV Analogue Cameras - 2 Megapixel, 1/2.8" Sony Exmor, 2.8-12mm, IP66, IR, ICR, Vari-Focal, Low Lux - White HC784A HD Analogue Cameras
Overview
Product description
The HC784A is part of our range of high-definition analogue security cameras. It achieves a substantial 1080p (1920x1080) resolution with a Sony Exmor image sensor, and has a 2.8-12mm varifocal lens. 1080p has approximately 200% larger recording area than 720p, 400% more than 960H, and 600% more than standard D1 analogue cameras.
The cabling can run from camera to camera, rather than each of the CCTV cameras running directly to the HD DVR. This substantially reduces the costs of expensive cabling, and the labour to run and connect it.
The HC784A surveillance cameras can connect in a variety of different network topologies for additional data transmission redundancy. As an advantage of effective use of topologies, in a fail-safe ring or mesh configuration, if one cable fails all other cameras will continue to operate normally.
The HC784A employs Infrared Cut Filter Removal (ICR) to give you distanced footage at night up to a maximum of 40 metres.
These white, visually appealing dome-style CCTV security cameras are designed for use in outdoor settings, with existing coaxial cable infrastructure.
Main features:Dome ccHDtv Camera, 2MP @30fps, Sony sensor, 2.8-12mm, IP66, IR, ICR, Low lux, 2 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8 SONY Exmor |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
30 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.01Low Lux |
| Day/Night Mode |
ICR |
| Maximum Night IR Distance (M) |
20 |
| Image Enhancement |
Brightness, contrast, Saturation, sharpness, Hue |
| Power Supply |
DC12V |
| Connectors |
DC Power Input, BNC |
| In The Box |
Wall Bracket |
| Model |
HC784A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 50C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
148x122 mm |
| Weight |
2.000000 |
|
|
|
|
04/08
|
IVSEC NC543A Dome IP Camera - 2 Megapixel, 1/2.8" Sony Sensor, 2.8-12mm, Vari-Focal, PoE, IP65, Vandal Resistant, IR, ICR - Grey NC543A IP Cameras
Overview
Product Description
The NC543A is an IP camera that records at 25fps at 1080p (1920x1080) resolution with a 2.8-12mm varifocal lens, and has a Sony sensor.
Record footage in even pitch black conditions with this CCTV cameras infrared illumination, up to a range of 15 metres.
An attractive dome surveillance camera with modern white housing, it comes with multiple brackets and mounting options available for a professional install.
Remotely view footage from your security cameras (live or playback) over the internet via your PC, mobile, or tablet.
Simple installation software and Power over Ethernet (PoE) may reduce the installation cost of your surveillance cameras.
Resistant to water and vandals, this security camera is a good choice for both indoor and outdoor applications.
Main features:Dome IP Camera, 2MP @ 25fps, Sony sensor, 2.8-12 mm lens, PoE, IP65, Vandal resistant, IR, ICR, 3 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" SONY 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0 Lux (IR ON) |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
15 |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Exception |
| Software |
Device Manager Tool, Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC12V |
| Connectors |
RJ-45, DC Power Input, Analog Video Output |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC543A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (-14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
150x112 mm |
| Weight |
1.200000 |
|
|
|
|
04/08
|
IVSEC NC537A IP Camera - 2 Megapixel, 1/2.8" Sony Image Sensor, 25FPS, 2.8-12mm Lens, PoE, IP65, Vandal Resistant, IR, ICR - Black NC537A IP Cameras
Product description
The IVSEC NC537A security camera uses a 2.8-12 mm varifocal lens, records at 25fps at 1080p (1920x1080) resolution, and has a Sony sensor.
Automatic day and night mode and a very low lux level of 0.05, means colour is recorded for longer as light levels diminish before the camera switches to infrared. Its infrared illumination enables recording in darkness or poor lighting situations, up to a range of 30 metres.
The dark grey housing of this IP camera suits purposes where a standard white camera would be appear obtrusive or unattractive, for example, a club or hotel with dark ceilings.
The NC537As Power over Ethernet (PoE), and simple to use software can reduce IP camera system installation costs on cabling and labour.
These CCTV cameras provide excellent clarity in day and night conditions. Resistant to water and vandals, the versatile NC537A IP camera is ideal for internal or external CCTV surveillance.
Main features:Dome IP Camera, 2MP @ 25fps, Sony sensor, 2.8-12 mm lens, PoE, Vandal Resistant, IP65,IR, ICR, 3 year warranty.
Additional Information
| Camera Type |
Dome |
| Outdoor Use |
Outdoor Use |
| Vandal Resistant |
Yes |
| Image Sensor |
1/2.8" SONY 2MP |
| Maximum Video Resolution |
1920x1080 |
| Maximum Video Resolution (Megapixels) |
2 |
| Frame Rate Resolution |
25 |
| Lens |
2.8-12 mm |
| Lens Type |
Vari-Focal |
| Minimum Illumination |
0.05 Lux, Low Light Solution |
| Day/Night Mode |
Built in ICR |
| Maximum Night IR Distance (M) |
30 |
| Protocols |
TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPOE, UPnP, SMTP |
| Intelligent Video |
Motion Detection, Video Loss, Network Anomaly, Tampering Detection, Storage Detection |
| Software |
Device Manager Tool, Video Monitor Software, Mobile App. |
| Power Supply |
Power over Ethernet IEEE 802.3af, DC1V |
| Connectors |
RJ-45, DC Power Input, Analogue Video Output |
| UPNP |
Yes |
| In The Box |
Power Adapter, Power Cable, CD-ROM (User Manual, Free Bundle Software) |
| Model |
NC537A |
| In Depth |
Please refer to the Downloads Tab |
| Operating Environment |
-10C to 55C (14F-131F) Humidity: 20%-80% RH |
| Warranty |
36 months parts & labour warranty |
| Dimensions |
120x95 mm |
| Weight |
0.900000 |
|
|
|
|
04/08
|
Vivotek VT-AM-520_V03 Mounting Adapter - For Vivotek FD8135H, FD8137HV, FD8154, FD8154V, FD8155H Vivotek VT-AM-520_V03 Mounting Adapter
FD8135H, FD8137HV, FD8154, FD8154V, FD8155H, FD8162, FD8163, FD8164, FD8164V, FD8165H, FD8169, FD8171, FD8173-H, FD8181, FD8335H, FD8355HV, FD8355EHV, FD8362, FD8362E, FD8363, FD8365HV, FD8365EHV, FD8373-EHV, FD8381-EV, FE8173, FE8174, FE8174V, FE8181, FE8181V
v03: Add
FD8138-H, FD8167, FD8167-T, FD8338-HV, FD8367-TV, FD8367-V
|
|
|
|
04/08
|
Grandview GRUC070V 70" Scissor Lift Pull Up Projection Screen - 1420x1065mm, 4;3, There Is A Lockable Handle Built Into The Casing, Making It Easy To Carry, Projection Surface is Plana R Grandview 70" scissor lift pull up Grandview Scissor Lift Pull Up - 70" (4:3) Image size 1420 x 1065mm, casing 1585mm, 5.2kg
Grandview Scissor Lift Screens
The Grandview Scissor Lift Portable Screen ticks all of the boxes for a portable screen. From its flip out legs that tuck away for transport and self-levelling feet, to its unique scissor lift mechanism, this well designed product is easy to use.
The scissor mechanism is self-supporting, and ensures it extends or retracts under constant pressure.
Why is this important?
It makes your screen super easy to use - you don't need to be strong or tall, and it won't suddenly retract risking injury or damage.
The Grandview Scissor Lift Portable Screen has many applications - from business presentations, home use or in training scenarios.
Choose from various sizes and 4:3 or 16:9 format.
Features:
- An alternative to the traditional tripod screen.
- Screen occupies a smaller footprint on the floor ideal for smaller meeting rooms or where you want to put the screen up against a wall.
- Screen is smoothly pulled up from the casing and is supported at the back by an innovative scissor design.
- This unique design maintains screen flatness.
- Available up to 100" in 4:3 aspect ratio.
- The casing is stabilised by feet that swivel outwards from the casing.
- These feet are self-levelling ideal for uneven floors.
- Quick and easy to raise and lower particularly for smaller people.
- There is a lockable handle built into the casing, making it easy to carry.
- Lightweight and very easy to transport.
- Projection surface is Plana R.
- Black casing.
| Product code |
Aspect ratio |
Image size
(Diagonal) inch |
Image size
(W x H) mm |
| GRUC070V |
4:3 |
70" |
1420 X 1065mm |
|
|
|
|
04/08
|
Grandview GRUA060V Pull Up Projection Screens - 1220x910mm, 4;3, The Casing Is Stabilised By Feet That Swivel Outwards From The Casing, Quick And EasyTo Raise And Lower
Grandview Pull Up Screens
This unique, portable screen is easy to use and very stable with its sturdy casing on the bottom.
The Grandview Pull Up is an ideal screen for travelling, whether it's from room to room or around the country.
This screen is available in both business presentation and home theatre formats.
These screens are also great for rental properties when you are unable to mount a screen to the wall.
Features:
- A very clever and neat alternative to the traditional tripod screen.
- Screen occupies a smaller footprint on the floor ideal for smaller meeting rooms or where you want to put the screen up against a wall.
- Screen is pulled up from the casing and held in place with support rod
at the back.
- The casing is stabilised by feet that swivel outwards from the casing.
- Quick and easy to raise and lower.
| Product code |
Aspect ratio |
Image size
(Diagonal) inch |
Image size
(W x H) mm |
| GRUA060V |
4:3 |
60" |
1220 x 910mm |
|
|
|
|
04/08
|
Samsung 32GB Micro SDHC UHS-I Card - EVO, Class 10, Up to 48MB/s
MicroSDHC 32GB EVO Memory Card (MB-MP32D)
Full Specifications
Type
-
Product Type microSDXC Memory Card
-
Class 10
-
Series EVO
-
Usage Application Mobile phone, Smartphone, Tablet, etc
-
Interface UHS-I
Storage
Features
General
Environmental Specs
Dimensions (W x H x D)
Weight
Warranty
|
|
|
|
04/08
|
Grandview GRPC072V 72" Deluxe Pull Down Projector Screen - 1460x1100, 4;3, Projection Surface Is Plana R, Casing Is Extruded Aluminium, Finished In White Grandview deluxe pull down 72" (4:3) Grandview Deluxe Pull Down - 72" (4:3) Image size 1460 x 1100mm, casing 1585mm, 6.5kg
| Product code |
Aspect ratio |
Image size
(Diagonal) inch |
Image size
(W x H) mm |
| GRPC072V |
4:3 |
72" |
1460 x 1100 |
Grandview Deluxe Pull Down Screen
The Grandview Deluxe Pull Down Screen comes in a stylish contoured white casing with the option of either wall or ceiling mount brackets. Featuring an advanced auto-decelerator braking system for slow screen retraction.The benefit of this gearing system is that it will extend the life of your pull down screen considerably.
With an internal brake to slowly guide it into the casing when finished. It has the option of wall or ceiling mounting and is an ideal screen for business and home use.
The Deluxe Pull Down Screen is an ideal option when you don't want your screen permanently in view just roll the screen down when needed and put it away when not in use.Available in 4:3, 16:9 and 16:10 formats for education, home and business applications.
Features:
- This screen is the best featured pull down screen on the market for the money.
- Two key features screen has an advanced auto decelerator this ensures that the screen retracts slowly and steadily. Plus it has an inbuilt braking system. Together this means that the screen will have an extended product life.
- Install is simplified with multi fit brackets that can be installed anywhere along the length of the casing allowing for mounting to wall stud positions.
- Brackets suit wall, ceiling or suspended installation.
- Projection surface is Plana R.
- Casing is extruded aluminium, finished in white.
|
|
|
|
04/08
|
Zmodo ZM-SS814-1TB (1000TB HDD) 4 Channel 1080P Full HD sPoE NVR Security System - 4x 1080P Bullet IP Network Camera, 100FPS For 4 Channels, H.264, VGA & HDMI, 1xGigLAN, 2xUSB2.0
Zmodo 4 Channel 1080P Full HD sPoE NVR Security System
ZM-SS814-1TB
This All-in-one four channel NVR kit allows 4 outdoor 1080P cameras to connect and set up in just minutes. You don't need to know deeply about computer or network, this time we've made the setup even more simpler. Four out of five people know how to live view on the Smartphone in minutes. No extra power cables or adapters are needed for the included IP cameras. With the latest upgraded Zsight app setup process, just enjoy the super easy monitoring among your smartphone or our meshare web client (user.meshare.com).
HDMI and VGA outputs for monitoring live and recorded video.
Specifications
|
ZP-NE24-S
|
| Video Input/ Output |
| IP video input |
4 channel IP camera inputs |
| Video output |
VGA & HDMI |
| Recording resolution |
1080P |
| Compression |
H.264 |
| Record rate |
100fps for 4 Channels |
| Image Resolution |
1024768@60Hz, 12801024@60Hz, 19201080@60Hz, 1280720@60Hz |
| Record Mode |
Normal Record / Intelligent Record / Motion Detection / External Alarm |
| Playback |
Fast forward / Rewind / Slow Play |
| Hard Disk Drive |
| Interface type |
1 SATA (3.5") |
| Capacity |
Up to 2TB |
| External Interface |
| Network interface |
1 RJ45 10M/ 100M self-adaption & 4 independent 10/ 100 Mbps ethernet interfaces |
| USB interface |
2 USB 2.0 interfaces |
| Alarm inputs/ output |
4 channel sensor inputs / 1 channel alarm output |
| General |
| Application support |
Remote configuration, video browse, local recording, local and remote playback |
| Motion detection |
Yes |
| Protocol support |
TCP/IP, UDP, DNS/DDNS, SMTP, UPNP, DHCP, HTTP, P2P |
| Alarm |
Support remote notification |
| Smart phone |
iOS 6 up, Android 2.3 up |
| Power supply |
DC19V, 3A |
| sPoE ports |
4 |
| Power consumption |
<12W (Without hard disks) |
| Operating temperature |
32F~104F / 0 C to 40 C |
| Dimensions |
220mm 205mm 40mm (8.6" 8.1" 1.7") |
| Weight |
1.49lbs (Without hard disks) |
| Language |
11 languages (Chinese * English * Czech * Japanese * German * Russian * Spanish * French * Italian * Portuguese * Arabic) |
|
ZP-IBH23-S1
|
| Camera |
| Image sensor |
1080P Color Sensor |
| Min. illumination |
0.1Lux (IR LED On) / F 1.2 |
| Shutter speed |
Auto |
| Lens |
3.6mm |
| Angle of view (diagonal) |
77 Degree |
| IR distance |
IR Night Vision up to 20m (65ft) |
| Day & night |
Electronic (IR-CUT filter with auto switch) |
| Compression Standard |
| Video compression |
H.264 |
| Bit rate |
16Kbps~2Mbps |
| Dual stream |
Yes |
| Image |
| Image resolution |
1080P |
| Frame rate |
25fps Real-time |
| White balance |
Auto |
| Backlight balance |
Auto |
| Image setting |
Brightness, contrast, saturation |
| Network |
| Alarm trigger |
Intelligent motion detection |
| Alarm action |
E-mail alarm, video record |
| Network protocols |
TCP/IP, UDP, DNS/DDNS, SMTP, UPNP, DHCP, HTTP, P2P |
| ONVIF |
ONVIF Ver.2.0 |
| Supported OS |
Microsoft XP/Vista/Win7/Win8, Internet Explorer 7.0/8.0/9.0/10.0 |
| Security |
User authentication, software encryption |
| Interface |
| Communication interface |
RJ45 10 / 100M self-adaptive |
| General |
| User management |
Multi-lever user management, support up to 16 users |
| Weather proof |
IP65 |
| Operating temperature |
14F~122F / 10 C to 50 C |
| Color / Material |
White /Aluminum |
| Powered by |
simplified Power over Ethernet |
| Power consumption |
2W~4W |
| Weight |
0.794lbs |
| PC Monitor |
| Windows |
XP / Win7 |
| Mobile Monitor |
| APP |
Zsight |
| Android support |
2.3 up |
| iOS support |
6 up |
Product Requirements
1.A Monitor
2.A VGA cable
3.A Router for the Cameras to stream video onto the NVR
4.A CAT-5 cable connecting the NVR to your router.
5.A physical internet connection such as Cable, DSL, or Fiber. Not Supported: satellite internet, 3G/4G hotspots, or city-wide wireless (for remote viewing)
6.A minimum upload speed of at least 256kbps at the location of the DVR (for remote viewing)
7.A Windows based computer. Windows XP, Vista, or 7. *
*Depending on the hardware within the machine*
8. Please protect all cable ends in a conduit box if installing cameras outside.
9. Not intended for submersion in water. Installation in a sheltered location recommended.
|
|
|
|
Previous Page
|
Next Page
|
|
