Epson DURABrite Ultra ink is ideal for general purpose printing. It lasts up to 120 years, is water and smudge resistant and produces ultra sharp detail on plain and speciality papers.



Colour:



WPD-100

• Full HD 1080p Resolution
• Dual HDMI
• 1.5x Wide Optical Zoom Lens
• Network Management
• Optional Wireless









The ViewSonic Pro8520HD is a high brightness, Full HD 1080p projector ideal for use in any large venue installationeven in rooms with high ambient light.Built with BrilliantColor technology, this projector produces vibrant colors, while 5000 ANSI lumens and 1080p (1920x1080) Hi-Def resolution deliver stunning, razor-sharp images anywhere from auditoriums, to lecture halls, and boardrooms. With a 1.5x optical zoom lens and a multitude of connectivity options such as dual HDMI, wired and wireless LAN display, USB display, and PC-less JPG slideshows, the Pro8520HD provides maximum installation flexibility for a variety of uses.Equipped with Crestron LAN controller, the Pro8520HD makes it easy for IT admin to remotely control and manage multiple projectors from their workstations. A filter-less design and extended lamp lifeprovide for easy maintenance and alow total cost of ownership (TCO). The Pro8520HD projector offers excellent performance forlarge installations and commercial applications.









Packed with 5,000 lumens and a high contrast ratio of 15,000:1 (DCR), the Pro8520HD is guaranteed to project vibrant and clear images, even in high ambient light environments.









Native 1080p (1920x1080) resolution is perfect for the sharpest and clearest picture available. It delivers exceptional details and outstanding color saturation for incredible pixel-by-pixel performance and superior image quality. The Pro8520HD features 1920x1080 native resolution for a total of 2,073,600 pixels. That is 4.3x more pixels than SVGA, 2.6x more than XGA,and 2.0x more than WXGA. Whether for multimedia presentations, graphic design, or video production, the Pro8520HDprojects crisp details and enhances presentation quality without any distortion or scaling of the original format.







Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1,000 times faster than similar LCD-based projectors. And with no air filters to clean or change, the latest generation of DLP-based projectors from ViewSonic is among the lowest TCO (Total Cost of Ownership) in the industry.

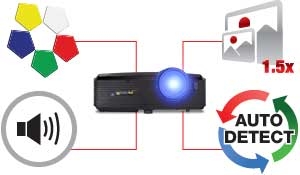

The ViewSonic Pro8520HD projector with BrilliantColor technology features multi-color processing to produce stunning, vibrant colors. Unlike other technologies that use just 3 primary colors to produce the image (such as LCD), the Pro8520HD uses up to 5 separate colors. The sophisticated 5-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.

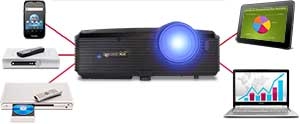

Equipped with dual HDMI inputs, the Pro8520HD delivers the highest picture and sound quality without any degradation. It's perfect for connecting to any HDMI-enabled devices such as smart phones, tablets, laptops, computers,and Blu-ray DVD players.

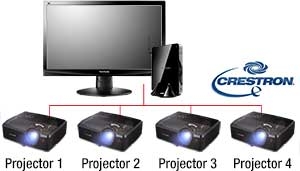

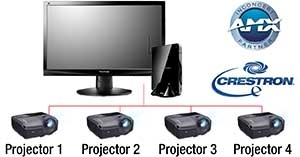

The ViewSonic Pro8520HD offers seamless integration and full support for Crestron control systems. In addition, IT admin can monitor, schedule, and manage multiple projectors remotely, as well as receive projector status alerts, with the included Crestron RoomView Express control software.

















• ViewSonic Pro8520HD projector
• Power cable
• VGA cable
• HDMI cable
• Laser remote control with batteries
• Lens cap
• Quick start guide
• ViewSonic Wizard CD (with User Guide)
• Soft carrying case


Networkable WXGA Projector



WXGA 1280x800, DLP, 3000 lumens, 15,000:1 contrast ratio
Ultra short throw – 81” image from 2.1 feet (throw ratio 0.375)

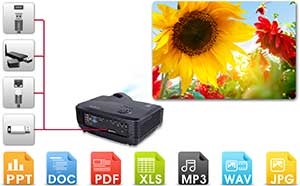

LAN control, wired & wireless LAN display, USB display, PC-less presentations

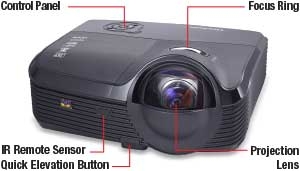

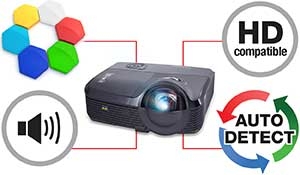

The ViewSonic PJD8633ws is an advanced networkable widescreen WXGA DLP ultra short throw projector that offers advanced connectivity for classrooms and meeting rooms. With an ultra short throw lens, the PJD8633ws can project an 81" image from only 2.1 feet away. Present and project content any way you like with Advanced Connect Technologydisplay presentations over a wired or wireless LAN, via USB port, directly from a USB flash drive, or from smart phones and tablets using a mobile app. Equipped with Crestron LAN controller and AMX Device Discovery, the PJD8633ws makes it easy for IT admin to remotely control and manage multiple projectors from their workstations and easily integrates into any size campus or enterprise. Built with BrilliantColor technology, this projector produces vibrant colors, while 3,000 ANSI lumens and 15,000:1 contrast ratio deliver bright, razor-sharp images In addition, the PJD8633s is packed with advanced features including integrated 16w speaker, HDMI that is 3D Blu-ray ready, and DynamicEco. The PJD8633ws is the perfect widescreen projector for small spaces and corporate environments.









Uses fewer watts per lumen than other comparable projectors. And with 15,000:1 contrast (with DynamicEco), the PJD8633ws is the bright choice for business and education.









Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1,000 times faster than similar LCD-based projectors. With no air filters to clean or change, the latest generation of DLP-based projectors from ViewSonic is among the lowest TCO (Total Cost of Ownership) in the industry.







The ViewSonic PJD8633ws projector with BrilliantColor technology features multi-color processing to produce stunning, vibrant colors. Unlike other technologies that use just 3 primary colors to produce the image (such as LCD), the PJD8633ws uses up to 6 separate colors. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.







A wide format projector supporting a native 1280x800 (WXGA) resolution offers a tremendous degree of flexibility and compatibility. Whether you are connecting your widescreen notebook in a conference room, or showing the latest HD 720p / 1080p content in a classroom, you are guaranteed a distortion-free image with a matching aspect ratio.



With WXGA resolution, the ViewSonic PJD8633ws delivers exceptional pixel-by-pixel image performance for a total of 1,024,000 pixels. That is 2.1x more pixels than SVGA or 1.3x more than XGA. A higher pixel count enhances image details and picture quality.

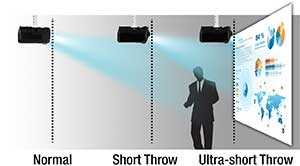

With an ultra short throw lens, the PJD8333s can project a 81 image from only 2.1 feet awaymaking it perfect for small rooms with space limitations. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the whiteboard, are eliminated because the projectors light source is closer to the screen.





The ViewSonic PJD8633ws is equipped with Advanced Connect Technology that offers advanced connectivity options for remote conferencing or collaborative meetings.

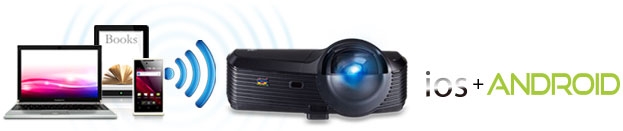

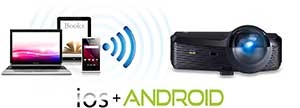

Mobile app: With the ViewSonic mobile app, mobile users now can share content or run PowerPoint presentations wirelessly from smart phones or tablets. Mobile app is available on both Google Play (for Android devices) and Apple App Store (for iOS devices). Optional wireless adapter, WPD-100, is required for wireless display.











IT admins can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because the PJD6544w is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.

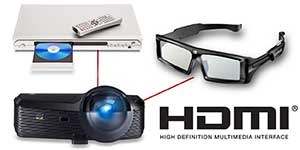

With the latest HDMI interface, the ViewSonic PJD8633ws projector can now display 3D images directly from 3D Blu-ray players. The PJD8633ws is designed to provide an amazing 3D visual experience for classroom, office, and even home environments





With the DynamicEco button on the remote control, users can take command of presentations by dimming the screen brightness by 70%. DynamicEco mode is auto-activated whenever the projector is idleallowing users to easily shift the audiences focus away from the presentation and back to the presenter when the projector is not in use. When idle, the projector will auto-activate DynamicEco mode as well. When DynamicEco mode is activated, the lamps power consumption is significantly reduceda great energy-saving design that lowers the total cost of ownership (TCO).







With the DICOM (Digital Imaging and Communications in Medicine) SIM mode, ViewSonics PJD8633ws is able to simulate and display multiple screens of X-rays, sonograms, and nuclear magnetic resonance (NMR) images. Whether for medical or educational presentations, the PJD8633ws is guaranteed to display the most accurate and detailed images.





Maintenance Free with Filter-Less Design



The ViewSonic PJD8633ws projector features a filter-less design. Unlike LCD projectors that require users to clean, or sometimes replace, filters every 100 to 300 hours of operation, the ViewSonic PJD8633ws projectors filter-less design eliminates filter cleaning or filter replacement. This provides zero maintenance, saves you significant dollars and labor over the projectors lifespan, and lowers your total cost of ownership (TCO).



ViewSonic DLP projectors provide reliable picture quality you can trust and superior color performance you can count on, after thousands of hours of usage. Built on DLP technology, ViewSonics PJD8633ws projector virtually eliminates image degradation known as color decay a yellow/faded tint that LCD projectors may develop after extended use. Even after years of use, the PJD8633ws will continue to produce a stunning, sharp image that lasts.





Integrated 16-watt speaker ideal for impactful multimedia applications







With support for DLP Link technology, youll have amazing 3D capabilities at your disposal. All that's required to unlock 3D capabilities on the ViewSonic PJD8633ws 3D-ready projector is ViewSonic's PGD-series 3D active shutter glasses, 3D content, and 3D-enabled video card. Unleash a vivid 3D experience with the ViewSonic PJD8633ws projector today.



The new advanced lamp technology from ViewSonic extends the lamp life up to 5,000 hours and saves you on replacement lamp costs.



With only a slight 20% decrease in brightness, the Eco-mode function can extend the life of your lamp by almost 50% and up to 5,000 hours in some cases. Other benefits of Eco-mode operation include reduced power consumption, as well as less heat and audible noise output. Its good for the environment and great for your budget. The Eco-mode function will definitely help lower your total cost of ownership (TCO).





Backed by our 25-year reputation for quality and reliability, ViewSonic offers one of the industrys best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service**. Dont be fooled by the seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts of a projector



ViewSonic PJD8 Series Feature Comparison



Model	PJD8333s	PJD8633ws	PJD8353s	PJD8653ws
Resolution	XGA 1024x768	WXGA 1280x800	XGA 1024x768	WXGA 1280x800
Brightness	3000 Lumens	3000 Lumens	3000 Lumens	3000 Lumens
Throw Ratio	0.468:1	0.375:1	0.43:1	0.35:1
Aspect Ratio	4:3	16:10	4:3	16:10
VGA In/Out	2/1	2/1	2/1	2/1
HDMI
Dual Interactive Pens*
LAN Control
Wired & Wireless LAN Display+
USB Display
PC-less Presentation
Mobile App+













Program specifications and availability are subject to change without notice. DLP and DLP logo are registered trademarks of Texas Instruments and BrilliantColor is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Corporate names, trademarks stated herein are the property of their respective companies.





• Type
• 0.65" Digital Micromirror Device (DLP)

• Resolution
• WXGA 1200x800 (native)

• Lens
• Fixed zoom / Manual optical focus

• Zoom Factor
• N/A

• Keystone
• Vertical digital keystone correction (+/- 40)

• Display Size
• 60 250 in. / 1.52 6.35 m (diagonal)

• Throw Distance
• 1.6 6.6 ft. / 0.5 2.0 m

• Throw Ratio
• 0.375:1

• Lamp Type
• 240 watt

• Lamp Life (normal/eco-mode)
• 3500 / 5000 / 7000 hours* (Normal / Eco-mode / DynamicEco)

• Brightness
• 3000 Lumens

• Contrast Ratio
• 15,000:1 (w/ DynamicEco)

• Aspect Ratio
• 16:10 (native)

• Color Wheel
• 6-seg RGBCYW / 7200rpm

• Color Depth
• 30 bits, 1.07B Color (10+10+10)

• Color Gamut
• N/A

• Computer and Video
• NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p

• Frequency
• Fh: 31100KHz, Fv: 24120Hz

• PC
• VGA to 1680x1050 WUXGA

• Mac
• Up to WUXGA (may require MAC adapter)

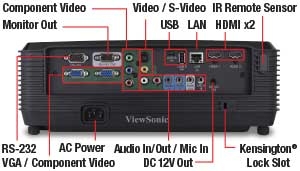

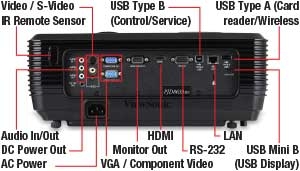

• Audio Input
• 3.5mm mini jack (x2)

• Audio Out
• 3.5mm mini jack

• RGB Input
• 15-pin mini D-sub (x2)

• Composite Input
• RCA jack

• S-Video Input
• 4-pin mini-DIN

• Component
• 15-pin mini D-sub (x2, shared with RGB)

• RGB Output
• 15-pin mini D-sub

• Control
• RS232 (DB-9)

• Digital
• HDMI

• Network
• RJ45

• USB
• Type A (card reader and wireless dongle) Type B (mouse control and service) Mini Type B (USB display)

• Mic-In
• 3.5mm mini jack (shared with Audio 2)

• Screen Trigger
• 3.5mm plug 12V/1A

• Card Reader
• N/A

• Speakers
• 16-watt (x1)

• Amplifier
• N/A

• Voltage
• 100~240VAC (Auto Switching), 50/60Hz (universal)

• Consumption
• 350W (typ) / <0.5W (stand-by mode)

• Basic
• Power, keystone/arrow keys, left, menu/exit, right, source, enter

• OSD
• Picture, Video/Audio, Setting, Option, Language, Information (See user guide for full OSD functionality)

• Temperature
• 32F104F (0C40C)

• Humidity
• 10%90% (non-condensing)

• Altitude
• 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)

• Normal
• 34dB

• Eco-Mode
• 32dB

• Physical
• 13.2 x 5.1 x 10.4 in. / 335 x 128.3 x 265 mm

• Packaging
• 15.0 x 13.5 x 9.5 in. / 383 x 342 x 242 mm

• Net
• 8.0 lbs. / 3.6 kg

• Gross
• 12.5 lbs. / 5.7 kg
