14/05
|
View Sonic PJD8353S DLP Projector - 1024x768, 3000 Lumens, 15,000;1, 3500Hrs, Mini D-Sub, RS232, HDMI, RJ45, RCA, 3.5mm Mini Jack, Speakers PJD8353S
Engage Your Audience with Dual Interactive Pens
Features
- XGA 1024x768, DLP, 3000 lumens
- 10,000:1 contrast ratio
- Ultra short throw – 70” image from 2 feet (throw ratio 0.43)
- Optional dual interactive pen & interactive drawing software for collaborative learning
Overview
Product Description
The ViewSonic PJD8353s is an XGA DLP ultra short throw projector with an interactive whiteboard feature. With an optional interactive package, the PJD8353s supports dual interactive pens for collaborative teaching and turns any surface into an interactive whiteboard. Dual pens and the ViewDraw2 software allows two users to simultaneously write, draw, or annotate, making presentations more engaging than ever. With an ultra short throw lens, the PJD8353s is great for use in small areas with space constraintsit can project a 70" 4:3 image from only 2 feet away. Built with BrilliantColor technology, this projector produces vibrant colors, while 3,000 ANSI lumens and 15,000:1 contrast ratio deliver sharp images. Equipped with Crestron LAN controller, the PJD8353s makes it easy for IT admin to remotely control and manage multiple projectors from their workstations. Certified with AMX Device Discovery, the PJD8353s easily integrates into any size campus or enterprise. In addition, the PJD8353s is packed with advanced features including HDMI, two integrated 8-watt speakers, keystone correction, and DynamicEco. The PJD8353s is the perfect projector to deliver large images within small spaces in need of an interactive whiteboard feature.
Key Features:
- 3,000 ANSI lumens with 15,000:1 contrast ratio for clear, razor-sharp images
- Dual interactive pens for collaborative learning
- Digitally write, draw, or annotate on the projected image with ViewDraw2 interactive drawing software
- Project large, stunning images from short distances with ultra short throw lens
- BrilliantColor technology provides exceptional display quality
- LAN control for centralized remote management
- 3D Blu-ray ready HDMI
- DynamicEco technology for total control of audiences focus
- Long-lasting reliable picture quality & superior color performance
- 6-segment color wheel design, auto source detection, support for HD signals, integrated speakers
- PC 3D-ready & up to 120Hz refresh rate powered by DLP Link Technology
- Long lamp life up to 5,000 hours**
- Environmentally friendly Eco-mode saves money and power
- Industry-leading warranty: 3-year limited on parts and labor, 1-year on lamp, and free 1st year Express Exchange service
3,000 lumens shine in classrooms and meeting rooms
Uses fewer watts per lumen than other comparable projectors. And with 15,000:1 contrast (with DynamicEco), the PJD8353s is the bright choice for business and education.
Settings where the PJD8353s is the perfect solution
- Small spaces small to medium size rooms
- Business conference rooms, meeting rooms, boardrooms.
- Classrooms projection on whiteboards
Dual Interactive Pens for Collaborative Learning
With the optional interactive package, PJ-PEN-003, the PJD8353s becomes an interactive projector that transforms any surface into an interactive whiteboard. It also works well with standard dry-erase whiteboards.
With the dual interactive pens and the included ViewDraw2 interactive drawing software, two users can simultaneously annotate, write, or draw on the projected image to interact with the content and share ideas. The ViewDraw2 software offers other user-friendly features such as background templates, a save copy (jpg format) feature, and reveal curtain/spotlight. Users can also use the interactive pen as a wireless mouse to drag or open files.

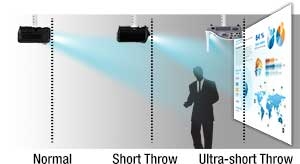

Large, Stunning Images from Short Distances
With an ultra short throw lens, the PJD8353s can project a 70 4:3 image from only 2 feet awaymaking it perfect for small rooms with space limitations. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the whiteboard, are all eliminated because the projectors light source is closer to the screen.
DLP Technology
Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1,000 times faster than similar LCD-based projectors. And with no air filters to clean or change, the latest generation of DLP-based projectors from ViewSonic is among the lowest TCO (Total Cost of Ownership) in the industry.
BrilliantColor Technology
High color quality is one of the most important characteristics of a good projection system. The latest BrilliantColor technology delivers stunning clarity with lifelike color, sharp graphics and outstanding video performance. Unlike other technologies that use just 3 primary colors to produce the image (such as LCD), ViewSonic projectors use up to 6 separate colors. The sophisticated 6-segment color wheel enhances yellow color performance, which is essential for accurate and vivid color reproduction. With multi-color processing, the projected images are richer and more vibrant with precise details.

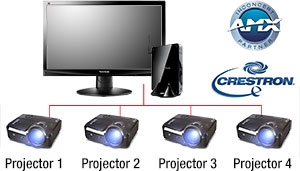

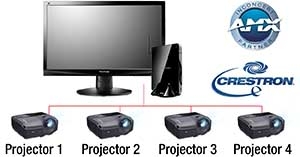

LAN Control & Monitoring with Crestron & AMX
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because thePJD8353s is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.
3D Blu-ray ready with HDMI
With the latest HDMI, the ViewSonic PJD8353s projector can now display 3D images directly from 3D Blu-ray players. The PJD8353s is designed to provide an amazing 3D visual experience for classroom and office environments.

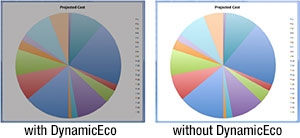

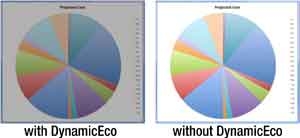

Command the Attention of Your Audience
With the DynamicEco button on the remote, take command of presentations by dimming the screen brightness by 70%. This feature allows presenters to easily shift the audience's focus when the projector is not in use. When idle, the projector will auto-activate DynamicEco as well. When DynamicEco is activated, the lamp's power consumption is significantly reduced a great energy-saving design for low total cost of ownership (TCO).
Long-lasting reliable picture quality & superior color performance
ViewSonic DLP projectors provide reliable picture quality you can trust and superior color performance you can count on, after thousands of hours of usage. Built on DLP technology, ViewSonics PJD8353s projector virtually eliminates image degradation known as color decay a yellow/faded tint that LCD projectors may develop after extended use. Even after years of use, the PJD8353s will continue to produce a stunning, sharp image that lasts.

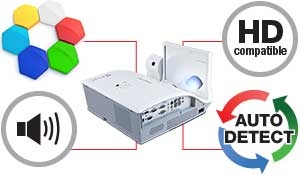

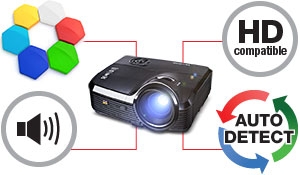

Packed with features
- 6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors
- Auto source detection senses the source input and syncs with your computer automatically
- Supports wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)
- Integrated 16-watt speaker ideal for impactful multimedia applications
PC 3D-Ready / 120Hz refresh rate powered DLP Link Technology
With support for DLP Link technology, youll have amazing 3D capabilities at your disposal. All thats required to unlock 3D capabilities on the ViewSonic PJD8353s 3D-ready projector is ViewSonics PGD-series 3D active shutter glasses, 3D content, and 3D-enabled video card. Unleash a vivid 3D experience with the ViewSonic PJD8353s projector today.
Long lamp life up to 5,000 hours
The new advanced lamp technology from ViewSonic extends the lamp life up to 5,000 hours and saves you on replacement lamp costs.
Environmentally friendly Eco-mode saves money and power
With only a slight 20% decrease in brightness, the Eco-mode function can extend the life of your lamp by almost 50% and up to 5,000 hours in some cases. Other benefits of Eco-mode operation include reduced power consumption, as well as less heat and audible noise output. Its good for the environment and great for your budget. The Eco-mode function will definitely help lower your total cost of ownership (TCO).
Peace of mind with industry-leading warranty
Backed by our 25-year reputation for quality and reliability, ViewSonic offers one of the industrys best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service***. Dont be fooled by the seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts of a projector
ViewSonic PJD8 Series Feature Comparison
| Model |
PJD8333s |
PJD8633ws |
PJD8353s |
PJD8653ws |
|
Resolution
|
XGA 1024x768
|
WXGA 1280x800
|
XGA 1024x768
|
WXGA 1280x800
|
|
Brightness
|
3000 Lumens
|
3000 Lumens
|
3000 Lumens
|
3000 Lumens
|
|
Throw Ratio
|
0.468:1
|
0.375:1
|
0.43:1
|
0.35:1
|
|
Aspect Ratio
|
4:3
|
16:10
|
4:3
|
16:10
|
|
VGA In/Out
|
2/1
|
2/1
|
2/1
|
2/1
|
|
HDMI
|
|
|
|
|
|
Dual Interactive Pens*
|
|
|
|
|
|
LAN Control
|
|
|
|
|
|
Wired & Wireless LAN Display+
|
|
|
|
|
|
USB Display
|
|
|
|
|
|
PC-less Presentation
|
|
|
|
|
|
Mobile App+
|
|
|
|
|
| |
|
|
|
|
What is in the box:
- ViewSonic PJD8353s projector
- Power cable
- VGA cable
- Remote control with batteries
- Quick start guide
- ViewSonic Wizard DVD (with User Guide)
Dimensions and Other Features:
Optional PJ-PEN-003 is required.
Lamp life and energy savings may vary based on actual usage and other factors.
One year Express Exchange Service requires product registration. +Optional WPD-100 is required for wireless.
Program, specifications and availability are subject to change without notice. DLP and DLP logo are registered trademarks of Texas Instruments and BrilliantColor is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Corporate names, trademarks stated herein are the property of their respective companies.
DISPLAY
- Type
- 0.55" Digital Micromirror Device (DLP)
- Resolution
- XGA 1024x768 (native)
- Lens
- Fixed zoom / Manual optical focus
- Zoom Factor
- N/A
- Keystone
- Vertical digital keystone correction (+/- 20)
- Display Size
- Focus: 60 90 in. / 1.5 2.3 m (diagonal)
Visible: 47 150 in. / 1.2 3.8 m (diagonal)
Active: 60 100 in. / 1.5 2.5 m (with optional PJ-PEN-003)
- Throw Distance
- 1.7 2.6 ft. / 0.5 0.8 m
- Throw Ratio
- 0.43:1
- Lamp Type
- 240 watt
- Lamp Life (normal/eco-mode)
- 3500 / 5000 / 7000 hours** (Normal / Eco-mode / DynamicEco)
- Brightness
- 3000 Lumens
- Contrast Ratio
- 15,000:1 (w/ DynamicEco)
- Aspect Ratio
- 4:3 (native)
- Color Wheel
- 6-seg RGBCYW / 7200rpm
- Color Depth
- 30 bits, 1.07B Color (10+10+10)
- Color Gamut
- N/A
INPUT SIGNAL
- Computer and Video
- NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p
- Frequency
- Fh: 31100KHz, Fv: 48120Hz
COMPATIBILITY
- PC
- VGA to 1600x1200 UXGA
- Mac
- Up to UXGA (may require MAC adapter)

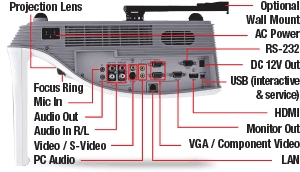

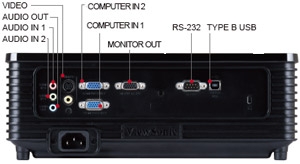

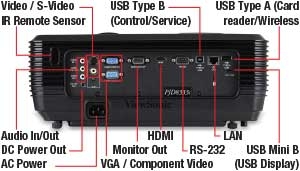

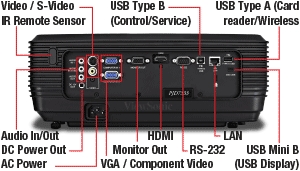

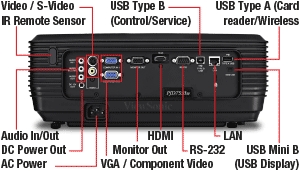

CONNECTOR
- Audio Input
- RCA L/R (x2) / PC: 3.5mm mini jack (x2)
- Audio Out
- 3.5mm mini jack (x1)
- RGB Input
- 15-pin mini D-sub (x2)
- Composite Input
- RCA jack
- S-Video Input
- 4-pin mini-DIN
- Component
- 15-pin mini D-sub (x2, shared with RGB)
- RGB Output
- 15-pin mini D-sub
- Control
- RS232 (DB-9)
- Digital
- HDMI
- Network
- RJ45
- USB
- N/A
- Mic-In
- 3.5mm mini jack (x1)
- Screen Trigger
- 3.5mm plug 12V/1A
- Card Reader
- N/A
AUDIO
- Speakers
- 8-watt (x2)
- Amplifier
- N/A
POWER
- Voltage
- 100~240VAC (Auto Switching), 50/60Hz (universal)
- Consumption
- 300W (typ) / <0.5W (stand-by mode)
CONTROLS
- Basic
- Power, keystone/arrow keys, left, menu/exit, right, source, enter
- OSD
- Picture, Video/Audio, Setting, Option, Language, Information (See user guide for full OSD functionality)
OPERATING CONDITIONS
- Temperature
- 32F104F (0C40C)
- Humidity
- 10%90% (non-condensing)
- Altitude
- 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL
- Normal
- 34dB
- Eco-Mode
- 32dB
DIMENSIONS (WxHxD)
- Physical
- 14.1 x 9.9 x 14.4 in. / 357 x 231 x 367 mm
- Packaging
- 18.3 x 14.0 x 17.7 in. / 465 x 355 x 450 mm
WEIGHT
- Net
- 16.1 lbs. / 7.3 kg
- Gross
- 23.2 lbs. / 10.5 kg
LANGUAGE
N/A
Regulations
UL/cUL, FDA (CDRH report), CB, FCC, TUV, GS+PAH, KC, TUV (IEC60825-1), CE EMC Report, CCC, PSB, NOM, GOST-R, C-tick
PACKAGE CONTENTS
PJD8353s projector, power cable, VGA cable, remote control with batteries, Quick Start Guide, ViewSonic Wizard DVD (with User Guide).
Warranty
3-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange service** / PJ-PEN-003 1-year limited warranty on parts and labor
OTHER
N/A
Notices
Optional PJ-PEN-003 required. **Lamp life may vary based on actual usage and other factors. ***One year free Express Exchange service requires product registration.
|
|
|
|
14/05
|
View Sonic PJD8333S Networkable DLP Projector - 1024x768, 3500 Lumens, 15,000;1, 3500Hrs, Mini-D-Sub, RS232, HDMI, RCA, RJ45, 3.5mm Mini-Jack, USB, Speakers PJD8333S
Networkable XGA Projector
Features
- XGA 1024x768, DLP, 3000 lumens, 15,000:1 contrast ratio
- Ultra short throw – 70” image from 2.2 feet (throw ratio 0.468)
- LAN control, wired & wireless LAN display, USB display, PC-less presentations
Overview
Product Description
The ViewSonic PJD8333s is an advanced networkable, ultra short throw XGA DLP projector that offers advanced connectivity for classrooms and meeting rooms. With an ultra short throw lens, the PJD8333s can project a 70" image from only 2.2 feet away. Present and project content any way you like with Advanced Connect Technologydisplay presentations over a wired or wireless LAN, via USB port, directly from a USB flash drive, or from smart phones and tablets using a mobile app. Equipped with Crestron LAN controller and AMX Device Discovery, the PJD8333s makes it easy for IT admin to remotely control and manage multiple projectors from their workstations and easily integrates into any size campus or enterprise. Built with BrilliantColor technology, this projector produces vibrant colors, while 3,000 ANSI lumens and 15,000:1 contrast ratio deliver bright, razor-sharp images. The PJD8333s is the perfect projector for small spaces and corporate environments.
Key Features:
- 3,000 ANSI lumens with 15,000:1 contrast ratio for clear, razor-sharp images
- BrilliantColor technology provides exceptional display quality
- Project large, stunning images from short distances with ultra short throw
- Presentations made easy with Advanced Connect Technology Wireless LAN, Wired LAN, USB cable, directly from USB flash drive, or through ViewSonic mobile app for smart phones and tablets
- LAN control for centralized remote management
- 3D Blu-ray ready HDMI
- DynamicEco technology for total control of audience 's focus
- DICOM SIM mode support
- Maintenance-free with filter-less design
- Long-lasting reliable picture quality and superior color performance
- 6-segment color wheel design, auto source detection, HD signals support, and integrated speaker
- PC 3D-ready and up to 120Hz refresh rate powered by DLP Link Technology
- Long lamp life up to 5,000 hours*
- Environmentally friendly Eco-mode saves money and power
- Industry-leading warranty: 3-year limited on parts and labor, 1-year on lamp, and free 1st year Express Exchange service
3,000 Lumens Shine in Large Spaces
Uses fewer watts per lumen than other comparable projectors. And with 15,000:1 contrast (with DynamicEco), the PJD8333s is the bright choice for business and education.
Settings Where the PJD8333s is the Perfect Solution
- Small spaces small to medium size room
- Business conference rooms, meeting rooms, boardrooms.
- Classrooms closer to the whiteboard
DLP Technology
Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1,000 times faster than similar LCD-based projectors. With no air filters to clean or change, the latest generation of DLP-based projectors from ViewSonic is among the lowest TCO (Total Cost of Ownership) in the industry.
BrilliantColor Technology
The ViewSonic PJD8333s projector with BrilliantColor technology features multi-color processing to produce stunning, vibrant colors. Unlike other technologies that use just 3 primary colors to produce the image (such as LCD), the PJD8333s uses up to 6 separate colors. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.

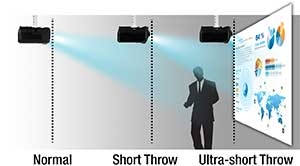

Large, Stunning Images from Short Distances
With an ultra short throw lens, the PJD8333s can project a 70 image from only 2.2 feet awaymaking it perfect for small rooms with space limitations. In addition, any blinding lights in front of the presenter, distracting shadows on the projected image, or glaring hotspots on the whiteboard, are eliminated because the projectors light source is closer to the screen.
Advanced Connect Technology Offers Display Flexibility for Presenters
The ViewSonic PJD8333s is equipped with Advanced Connect Technology that offers advanced connectivity options for remote conferencing or collaborative meetings.
- Wireless & Wired LAN display: With its advanced networking capability, the projector can project images via wireless, or wired, LAN. The LAN display offers a quad split screen for simultaneously projecting content from up to 4 PCs, with the ability to broadcast from up to 8 projectors. The WPD-100 wireless adapter is required for wireless display.
- Plug 'n play USB display: Present your presentations using a quick, simple plug-and-play USB connection without running a bulky connection cable. This feature also enables automatic resolution detection for the best imaging experience.

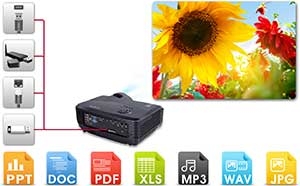

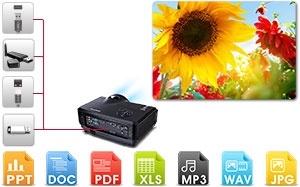

- PC-less presentations: You can jump start your presentations without waiting for your PC to boot up. With this feature, you can start your presentations or content directly from a USB flash drive.
- Mobile app: Using ViewSonic 's mobile app, you can send information from your mobile device to the projector and project content such as MS Office documents, PDFs, videos, or images. In addition, the ViewSonic mobile app offers live draw and live cam functions to create an interactive experience for your presentation. The mobile app is available on both Google Play (for Android devices) and the Apple App Store (for iOS devices).

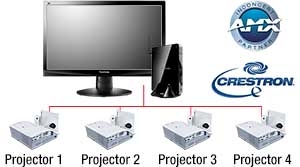

LAN Control & Monitoring with Crestron & AMX
IT admins can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because the PJD8333s is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.
3D Blu-ray Ready HDMI
With the latest HDMI interface, the ViewSonic PJD8333s projector can now display 3D images directly from 3D Blu-ray players. The PJD8333s is designed to provide an amazing 3D visual experience for classroom, office, and even home environments.
Command the Attention of Your Audience
With the DynamicEco button on the remote control, users can take command of presentations by dimming the screen brightness by 70%. DynamicEco mode is auto-activated whenever the projector is idleallowing users to easily shift the audience's focus away from the presentation and back to the presenter when the projector is not in use. When idle, the projector will auto-activate DynamicEco mode as well. When DynamicEco mode is activated, the lam's power consumption is significantly reduceda great energy-saving design that lowers the total cost of ownership (TCO).
DICOM SIM Mode Support
With the DICOM (Digital Imaging and Communications in Medicine) SIM mode, ViewSonic's PJD8333s is able to simulate and display multiple screens of X-rays, sonograms, and nuclear magnetic resonance (NMR) images. Whether for medical or educational presentations, the PJD8333s is guaranteed to display the most accurate and detailed images.
Maintenance Free with Filter-Less Design
The ViewSonic PJD8333s projector features a filter-less design. Unlike LCD projectors that require users to clean, or sometimes replace, filters every 100 to 300 hours of operation, the ViewSonic PJD8333s projector's filter-less design eliminates filter cleaning or filter replacement. This provides virtually zero maintenance, saves you significant dollars and labor over the projector's lifespan, and lowers your total cost of ownership (TCO).
Long-Lasting Reliable Picture Quality & Superior Color Performance
ViewSonic DLP projectors provide reliable picture quality you can trust and superior color performance you can count on, after thousands of hours of usage. Built on DLP technology, ViewSonic's PJD8333s projector virtually eliminates image degradation known as color decay a yellow/faded tint that LCD projectors may develop after extended use. Even after years of use, the PJD8333s will continue to produce a stunning, sharp image that lasts.
Packed with Features
- 6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors
- Auto source detection senses the source input and syncs with your computer automatically
- Supports wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)
- Integrated 16-watt speaker ideal for impactful multimedia applications
PC 3D-Ready / 120Hz Refresh Rate Powered DLP Link Technology
With support for DLP Link technology, you'll have amazing 3D capabilities at your disposal. All that's required to unlock 3D capabilities on the ViewSonic PJD8333s 3D-ready projector is ViewSoni's PGD-series 3D active shutter glasses, 3D content, and 3D-enabled video card. Unleash a vivid 3D experience with the ViewSonic PJD8333s projector today.
Long Lamp Life up to 5,000 Hours
The new advanced lamp technology from ViewSonic extends the lamp life up to 5,000 hours and saves you on replacement lamp costs.
Environmentally Friendly Eco-mode Saves Money and Power
With only a slight 20% decrease in brightness, the Eco-mode function can extend the life of your lamp by almost 50% and up to 5,000 hours in some cases. Other benefits of Eco-mode operation include reduced power consumption, as well as less heat and audible noise output. It's good for the environment and great for your budget. The Eco-mode function will definitely help lower your total cost of ownership (TCO).
Peace of Mind with Industry-Leading Warranty
Backed by our 25-year reputation for quality and reliability, ViewSonic offers one of the industry's best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service**. Don't be fooled by the seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts of a projector
ViewSonic PJD8 Series Feature Comparison
| Model |
PJD8333s |
PJD8633ws |
PJD8353s |
PJD8653ws |
|
Resolution
|
XGA 1024x768
|
WXGA 1280x800
|
XGA 1024x768
|
WXGA 1280x800
|
|
Brightness
|
3000 Lumens
|
3000 Lumens
|
3000 Lumens
|
3000 Lumens
|
|
Throw Ratio
|
0.468:1
|
0.375:1
|
0.43:1
|
0.35:1
|
|
Aspect Ratio
|
4:3
|
16:10
|
4:3
|
16:10
|
|
VGA In/Out
|
2/1
|
2/1
|
2/1
|
2/1
|
|
HDMI
|
|
|
|
|
|
Dual Interactive Pens*
|
|
|
|
|
|
LAN Control
|
|
|
|
|
|
Wired & Wireless LAN Display+
|
|
|
|
|
|
USB Display
|
|
|
|
|
|
PC-less Presentation
|
|
|
|
|
|
Mobile App+
|
|
|
|
|
What is in the box:
- ViewSonic PJD8333s projector
- Power cable
- VGA cable
- Remote control with batteries
- Quick start guide
- ViewSonic Wizard CD (with User Guide)
- Soft carry case
Dimensions and Other Features:
- Product Dimensions (W x H x D): 13.2" x 5.1" x 10.4"
Lamp life and energy savings may vary based on actual usage and other factors.
One year Express Exchange Service requires product registration.
Optional PJ-PEN-003 is required. Optional WPD-100 is required for wireless.
Program specifications and availability are subject to change without notice. DLP and DLP logo are registered trademarks of Texas Instruments and BrilliantColor is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Corporate names, trademarks stated herein are the property of their respective companies.
Specifications
DISPLAY
- Type
- 0.55" Digital Micromirror Device (DLP)
- Resolution
- XGA 1024x768 (native)
- Lens
- Fixed zoom / Manual optical focus
- Zoom Factor
- N/A
- Keystone
- Vertical digital keystone correction (+/- 40)
- Display Size
- 60 250 in. / 1.5 6.3 m (diagonal)
- Throw Distance
- 1.6 6.6 ft. / 0.5 2.0 m
- Throw Ratio
- 0.468:1
- Lamp Type
- 240 watt
- Lamp Life (normal/eco-mode)
- 3500 / 5000 / 7000 hours* (Normal / Eco-mode / DynamicEco)
- Brightness
- 3000 Lumens
- Contrast Ratio
- 15,000:1 (w/ DynamicEco)
- Aspect Ratio
- 4:3 (native)
- Color Wheel
- 6-seg RGBCYW / 7200rpm
- Color Depth
- 30 bits, 1.07B Color (10+10+10)
- Color Gamut
- N/A
INPUT SIGNAL
- Computer and Video
- NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p
- Frequency
- Fh: 31100KHz, Fv: 24120Hz
COMPATIBILITY
- PC
- VGA to 1600x1200 UXGA
- Mac
- Up to UXGA (may require MAC adapter)
CONNECTOR
- Audio Input
- 3.5mm mini jack (x2)
- Audio Out
- 3.5mm mini jack
- RGB Input
- 15-pin mini D-sub (x2)
- Composite Input
- RCA jack
- S-Video Input
- 4-pin mini-DIN
- Component
- 15-pin mini D-sub (x2, shared with RGB)
- RGB Output
- 15-pin mini D-sub
- Control
- RS232 (DB-9)
- Digital
- HDMI
- Network
- RJ45
- USB
- Type A (card reader and wireless dongle) Type B (mouse control and service) Mini Type B (USB display)
- Mic-In
- 3.5mm mini jack (shared with Audio 2)
- Screen Trigger
- 3.5mm plug 12V/1A
- Card Reader
- N/A
AUDIO
- Speakers
- 16-watt (x1)
- Amplifier
- N/A
POWER
- Voltage
- 100~240VAC (Auto Switching), 50/60Hz (universal)
- Consumption
- 350W (typ) / <0.5W (stand-by mode)
CONTROLS
- Basic
- Power, keystone/arrow keys, left, menu/exit, right, source, enter
- OSD
- Picture, Video/Audio, Setting, Option, Language, Information (See user guide for full OSD functionality)
OPERATING CONDITIONS
- Temperature
- 32F104F (0C40C)
- Humidity
- 10%90% (non-condensing)
- Altitude
- 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL
- Normal
- 34dB
- Eco-Mode
- 32dB
DIMENSIONS (WxHxD)
- Physical
- 13.2 x 5.1 x 10.4 in. / 335 x 128.3 x 265 mm
- Packaging
- 15.0 x 13.5 x 9.5 in. / 383 x 342 x 242 mm
WEIGHT
- Net
- 8.0 lbs. / 3.6 kg
- Gross
- 12.5 lbs. / 5.7 kg
LANGUAGE
N/A
Regulations
CB, UL/cUL, FCC-B, NOM, KC, REACH, ErP, SVHC UL-Argentina, PSB, C-tick, SASO, CE, GOST-R, CCC, RoHS, WEEE, UkrSEPRO
PACKAGE CONTENTS
PJD8333s projector, power cable, VGA cable, remote control with batteries, carrying case, Quick Start Guide, ViewSonic Wizard DVD (with User Guide).
Warranty
3-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange service**
OTHER
N/A
|
|
|
|
14/05
|

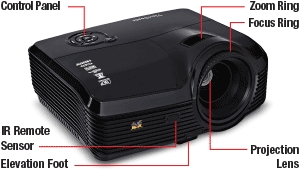

View Sonic PJD7533W High Bright Networkable DLP Projector - 1200x800, 4000 Lumens, 15,000;1, 2000Hrs, HDMI, RS232, Mini D-Sub, RCA, Speakers PJD7533w
High Bright Networkable WXGA Projector
Features
- WXGA 1280x800, DLP, 4000 lumens, 15,000:1 contrast ratio, 1.6x optical zoom lens
- LAN control, wired & wireless LAN display, USB display, PC-less presentations
- HDMI, dual VGA, composite, S-video, microphone, VGA/audio out, USB, RJ45, RS232
Overview
Product Description
The ViewSonic PJD7533w is a high brightness networkable WXGA DLP projector that delivers bright widescreen images for large university classrooms and corporate boardrooms. With Advanced Connect Technology, ViewSonic offers superior connectivity options for added convenience and flexibility. Present and project content any way you likedisplay presentations over a wired or wireless LAN, via USB port, directly from a USB flash drive, or from smart phones and tablets using a mobile app. Built with BrilliantColor technology, this projector produces vibrant colors, while 4000 ANSI lumens and 15000:1 contrast ratio deliver bright, razor-sharp images. Equipped with Crestron LAN controller, the PJD7533w makes it easy for IT admin to remotely control and manage multiple projectors from their workstations. Certified with AMX Device Discovery, the PJD7533w easily integrates into any size campus or enterprise. In addition, the PJD7533w is packed with advanced features including integrated speaker, HDMI that is 3D Blu-ray ready, and 1.6x optical zoom lens. The PJD7533w is the perfect projector for university classrooms and corporate settings where a powerful widescreen projection is necessary.
Key Features:
- 4,000 ANSI lumens with 15000:1 contrast ratio for clear, razor-sharp images
- Widescreen WXGA resolution perfect for 720p HD viewing
- BrilliantColor technology provides exceptional display quality
- Presentations made easy with Advanced Connect Technology display presentations over a wired or wireless LAN, via USB port, directly from a USB flash drive, or from smart phones and tablets using a mobile app
- LAN control for centralized remote management
- 3D Blu-ray ready with HDMI
- DynamicEco technology for total control of audiences focus
- DICOM SIM mode support
- Wide 1.6x optical zoom for mounting flexibility
- Maintenance free with filter-less design
- Long-lasting reliable picture quality & superior color performance
- 6-segment color wheel design, auto source detection, support HD signals & integrated speaker
- PC 3D ready & up to 120Hz refresh rate powered by DLP Link Technology
- Long lamp life up to 3,500 hours
- Environmentally friendly Eco-mode saves money and power
- Industry-leading warranty: 3-year limited warranty on parts and labor, 1 year on lamp, and free 1st year Express Exchange service
4000 lumens shine in large spaces
Uses fewer watts per lumen than other comparable projectors. And with 15000:1 contrast (with DynamicEco), the PJD7533w is the bright choice for business and education.
Settings where the PJD7533w is the perfect solution
- Business - conference rooms, meeting rooms, boardrooms.
- Classrooms - lectures, videos, lesson plans, project presentations, and even auditorium presentations.
Widescreen WXGA resolution perfect for 720p HD viewing
A wide format projector supporting a native 1280x800 (WXGA) resolution offers a tremendous degree of flexibility and compatibility. Whether you are connecting your widescreen notebook in a conference room, or showing the latest HD 720p / 1080p content in a classroom, you are guaranteed a distortion-free image with a matching aspect ratio.
With WXGA resolution, the ViewSonic PJD7533w delivers exceptional pixel-by-pixel image performance for a total of 1,024,000 pixels. That is 2.1x more pixels than SVGA or 1.3x more than XGA. A higher pixel count enhances image details and picture quality.
DLP Technology
Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1,000 times faster than similar LCD-based projectors. And with no air filters to clean or change, the latest generation of DLP-based projectors from ViewSonic is among the lowest TCO (Total Cost of Ownership) in the industry.
BrilliantColor Technology
The ViewSonic PJD7533w projector with BrilliantColor technology features multi-color processing to produce stunning, vibrant colors. Unlike other technologies that use just 3 primary colors to produce the image (such as LCD), the PJD7533w uses up to 6 separate colors. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.
Advanced Connect Technology offers display flexibility for presenters
The ViewSonic PJD7533w is equipped with Advanced Connect Technology that offers advanced connectivity options for remote conferencing or collaborative meeting.
- Wireless & Wired LAN display: With its advanced networking capability, the projector can project images via wireless, or wired, LAN. The LAN display offers a quad split screen for simultaneously projecting content from up to 4 PCs, with the ability to broadcast from up to 8 projectors. The WPD-100 wireless adapter is required for wireless display.
- Plug 'n play USB display: Present your presentations using a quick, simple plug-and-play USB connection without running a bulky connection cable. This feature also enables automatic resolution detection for the best imaging experience.
- PC-less presentations: You can jump start your presentations without waiting for your PC to boot up. With this feature, you can start your presentations or content directly from a USB flash drive.
- Mobile app: Using ViewSonics mobile app, you can send information from your mobile device to the projector and project content such as MS Office documents, PDFs, videos, or images. In addition, the ViewSonic mobile app offers live draw and live cam functions to create an interactive experience for your presentation.You can also use your Android or iOS devices as a remote control for the projector. The mobile app is available on both Google Play (for Android devices) and the Apple App Store (for iOS devices). Optional WPD-100 Wireless Adapter is required.

LAN Control & Monitoring with Crestron & AMX
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because the PJD7533w is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.
3D Blu-ray ready with HDMI
With the latest HDMI, the ViewSonic PJD7533w projector can now display 3D images directly from 3D Blu-ray players. The PJD7533w is designed to provide an amazing 3D visual experience for classroom, office, and even home environments.
DynamicEco technology for total control of audience's focus
With the DynamicEco button on the remote, take command of presentations by dimming the screen brightness by 70%. This feature allows presenters to easily shift the audience's focus when the projector is not in use. When idle, the projector will auto-activate DynamicEco as well. When DynamicEco is activated, the lamp's power consumption is significantly reduced a great energy-saving design for low total cost of ownership (TCO).
DICOM SIM mode support
With the DICOM (Digital Imaging and Communications in Medicine) SIM mode, ViewSonics PJD7533w is able to simulate and display multiple screens of X-rays, sonograms, and nuclear magnetic resonance (NMR) images. Whether for medical or educational presentations, the PJD7533w is guaranteed to display the most accurate and detailed images.
Wide 1.6x optical zoom for mounting flexibility
1.6x optical zoom provides more than twice the mounting flexibility over a standard 1.2x optical zoom. This translates to less installation hassle and more flexible mounting options.
Virtually maintenance free with filter-less design
The ViewSonic PJD7533w projector features a filter-less design. Unlike LCD projectors that require users to clean, or sometimes replace, filters every 100 to 300 hours of operation, the ViewSonic PJD7533w projectors filter-less design eliminates filter cleaning or filter replacement. This provides virtually zero maintenance, saves you significant dollars and labor over the projectors lifespan, and lowers your total cost of ownership (TCO).
Long-lasting reliable picture quality & superior color performance
ViewSonic DLP projectors provide reliable picture quality you can trust and superior color performance you can count on, after thousands of hours of usage. Built on DLP technology, ViewSonics PJD7533w projector virtually eliminates image degradation known as color decay a yellow/faded tint that LCD projectors may develop after extended use. Even after years of use, the PJD7533w will continue to produce a stunning, sharp image that lasts.
Packed with features
- 6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors
- Auto source detection senses the source input and syncs with your computer automatically
- Supports wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)
- Integrated speaker ideal for multimedia applications, videos, audio-enabled presentations
PC 3D-Ready / 120Hz refresh rate powered DLP Link Technology
With support for DLP Link technology, youll have amazing 3D capabilities at your disposal. All thats required to unlock 3D capabilities on the ViewSonic PJD7533w 3D-ready projector is ViewSonics PGD-series 3D active shutter glasses, 3D content, and 3D-enabled video card. Unleash a vivid 3D experience with the ViewSonic PJD7533w projector today.
Long lamp life up to 3,500 hours
The new advanced lamp technology from ViewSonic extends the lamp life up to 3,500 hours and saves you on replacement lamp costs.
Environmentally friendly Eco-mode saves money and power
With only a slight 20% decrease in brightness, the Eco-mode function can extend the life of your lamp by almost 50% and up to 3,500 hours in some cases. Other benefits of Eco-mode operation include reduced power consumption, as well as less heat and audible noise output. Its good for the environment and great for your budget. The Eco-mode function will definitely help lower your total cost of ownership (TCO).
Peace of mind with industry-leading warranty
Backed by our 25-year reputation for quality and reliability, ViewSonic offers one of the industrys best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service**. Dont be fooled by the seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts of a projector
ViewSonic Projector Comparison Chart
|
Model
|
PJD7820HD
|
PJD7333
|
PJD7533w
|
|
Resolution
|
1080p 1920x1080
|
XGA 1024x768
|
WXGA 1280x800
|
|
Brightness
|
3000 Lumens
|
4000 Lumens
|
4000 Lumens
|
|
Aspect Ratio
|
16:9
|
4:3
|
16:10
|
|
VGA In/Out
|
2/1
|
2/1
|
2/1
|
|
HDMI
|
|
|
|
|
LAN Control
|
|
|
|
|
Wired & Wireless LAN Display
|
|
|
|
|
USB Display
|
|
|
|
|
PC-less Prese
tation
|
|
|
|
|
Mobile App
|
|
|
|
What is in the box:
- Item 1: PJD7533w projector
- Item 2: Power cable
- Item 3: VGA cable
- Item 4: Remote control with batteries
- Item 5: Carrying case
- Item 6: Quick start guide
- Item 7: ViewSonic Wizard DVD (with User Guide)
Other features:
- Product Dimensions (w x h x d) with stand: 13.2 x 5.1 x 10.4

Optional Wireless Adapter WPD-100 is required. *Lamp life and energy savings may vary based on actual usage and other factors. **One year Express Exchange Service requires product registration.
Program specifications and availability are subject to change without notice. Corporate names, trademarks stated herein are the property of their respective companies, DLP and DLP logo are registered trademarks of Texas Instruments and BrilliantColor is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Specifications:
DISPLAY
- Type
- 0.65" Digital Micromirror Device (DLP)
- Resolution
- WXGA 1200x800 (native)
- Lens
- 1.6x Manual optical zoom / manual optical focus
- Zoom Factor
- N/A
- Keystone
- Vertical digital keystone correction (+/- 40)
- Display Size
- 30 300 in. / 0.7 7.6 m (diagonal)
- Throw Distance
- 3.9 32.8 ft. / 1.2 10.0 m
- Throw Ratio
- 1.47~1.83:1
- Lamp Type
- 330 watt
- Lamp Life (normal/eco-mode)
- 2000 / 3500 hours* (Normal / Eco-mode)
- Brightness
- 4000 Lumens
- Contrast Ratio
- 15,000:1 (w/ DynamicEco)
- Aspect Ratio
- 16:10 (native)
- Color Wheel
- 6-seg RGBCYW / 7200rpm
- Color Depth
- 30 bits, 1.07B Color (10+10+10)
- Color Gamut
- N/A
INPUT SIGNAL
- Computer and Video
- NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p
- Frequency
- Fh: 31100KHz, Fv: 24120Hz
COMPATIBILITY
- PC
- VGA to 1600x1200 UXGA
- Mac
- Up to UXGA (may require MAC adapter)
CONNECTOR
- Audio Input
- 3.5mm mini jack (x2)
- Audio Out
- 3.5mm mini jack
- RGB Input
- 15-pin mini D-sub (x2)
- Composite Input
- RCA jack
- S-Video Input
- 4-pin mini-DIN
- Component
- 15-pin mini D-sub (x2, shared with RGB)
- RGB Output
- 15-pin mini D-sub
- Control
- RS232 (DB-9)
- Digital
- HDMI
- Network
- RJ45
- USB
- Type A (card reader and wireless dongle) Type B (mouse control and service), Mini Type B (USB display),
- Mic-In
- 3.5mm mini jack (shared with Audio 2)
- Screen Trigger
- 3.5mm plug 12V/1A
- Card Reader
- N/A
AUDIO
- Speakers
- 16-watt (x1)
- Amplifier
- N/A
POWER
- Voltage
- 100~240VAC (Auto Switching), 50/60Hz (universal)
- Consumption
- 350W (typ) / <0.5W (stand-by mode)
CONTROLS
- Basic
- Power, keystone/arrow keys, left, menu/exit, right, source, enter
- OSD
- Picture, Video/Audio, Setting, Option, Language, Information (See user guide for full OSD functionality)
OPERATING CONDITIONS
- Temperature
- 32F104F (0C40C)
- Humidity
- 10%90% (non-condensing)
- Altitude
- 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL
- Normal
- 34dB
- Eco-Mode
- 32dB
DIMENSIONS (WxHxD)
- Physical
- 13.2 x 5.1 x 10.4 in. / 335 x 128.3 x 265 mm
- Packaging
- 15.0 x 13.5 x 9.5 in. / 383 x 342 x 242 mm
WEIGHT
- Net
- 6.7 lbs. / 3.0 kg
- Gross
- 11.2 lbs. / 5.1 kg
LANGUAGE
N/A
Regulations
CB, UL/cUL, FCC-B, NOM, KC, REACH, ErP, SVHC UL-Argentina, PSB, C-tick, SASO, CE, GOST-R, CCC, RoHS, WEEE, UkrSEPRO
PACKAGE CONTENTS
PJD7533w projector, power cable, VGA cable, remote control with batteries, carrying case, Quick Start Guide, ViewSonic Wizard DVD (with User Guide).
Warranty
3 yrs parts & labor, 1 yr lamp, free 1 yr Express Exchange
OTHER
N/A
|
|
|
|
14/05
|
View Sonic PJD7333 High Bright Networkable DLP Projector - 1024x768, 4000 Lumens, 15,000;1, 2500Hrs, VGA, HDMI, RCA, RJ45, Speakers PJD7333
High Bright Networkable XGA Projector
Features
- XGA 1024x768, DLP, 4000 lumens, 15,000:1 contrast ratio, 1.6x optical zoom lens
- LAN control, wired & wireless LAN display, USB display, PC-less presentations
- Mobile app for smart phones & tablets, 3D Blu-ray ready, integrated 16w speaker
Overview
Product Description
The ViewSonic PJD7333 is a high brightness, networkable XGA DLP projector that offers advanced connectivity for large university classrooms and corporate boardrooms. With Advanced Connect Technology, ViewSonic offers superior connectivity options for added convenience and flexibility. Present and project content any way you likedisplay presentations over a wired or wireless LAN, via USB port, directly from a USB flash drive, or from smart phones and tablets using a mobile app. Built with BrilliantColor technology, this projector produces vibrant colors, while 4000 ANSI lumens and 15000:1 contrast ratio deliver bright, razor-sharp images. Equipped with Crestron LAN controller and AMX Device Discovery, the PJD7333 makes it easy for IT admin to remotely control and manage multiple projectors from their workstations and easily integrates into any size campus or enterprise. In addition, the PJD7333 is packed with advanced features including integrated speaker, 3D Blu-ray ready HDMI, and 1.6x optical zoom lens. The PJD7333 isthe perfect projector for large university classrooms and corporate environments.
Key Features:
- 4,000 ANSI lumens with 15000:1 contrast ratio for clear, razor-sharp images
- BrilliantColor technology provides exceptional display quality
- Presentations made easy with Advanced Connect Technology display presentations over a wired or wireless LAN, via USB port, directly from a USB flash drive, or from smart phones and tablets using a mobile app
- LAN control for centralized remote management
- 3D Blu-ray ready with HDMI
- DynamicEco technology for total control of audiences focus
- DICOM SIM mode support
- Wide 1.6x optical zoom lens for mounting flexibility
- Virtually maintenance free with filter-less design
- Long-lasting reliable picture quality & superior color performance
- 6-segment color wheel design, auto source detection, support HD signals & integrated speaker
- PC 3D ready & up to 120Hz refresh rate powered by DLP Link Technology
- Long lamp life up to 3,500 hours
- Environmentally friendly Eco-mode saves money and power
- Industry-leading warranty: 3-year limited warranty on parts and labor, 1 year on lamp, and free 1st year Express Exchange service
4000 lumens shine in large spaces
Uses fewer watts per lumen than other comparable projectors. And with 15000:1 contrast (with DynamicEco), the PJD7333 is the bright choice for business and education.
Settings where the PJD7333 is the perfect solution
- Business - conference rooms, meeting rooms, boardrooms.
- Classrooms - lectures, videos, lesson plans, project presentations, and even auditorium presentations.
DLP Technology
Advanced DLP (Digital Light Processing) technology allows you to experience crystal clear, razor-sharp and lifelike images with the same DLP technology used in Hollywood. For fast action, the response time is 1,000 times faster than similar LCD-based projectors. And with no air filters to clean or change, the latest generation of DLP-based projectors from ViewSonic is among the lowest TCO (Total Cost of Ownership) in the industry.
BrilliantColor Technology
The ViewSonic PJD7333 projector with BrilliantColor technology features multi-color processing to produce stunning, vibrant colors. Unlike other technologies that use just 3 primary colors to produce the image (such as LCD), the PJD7333 uses up to 6 separate colors. The sophisticated 6-segment color wheel enhances the yellow color performance that is key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.
Advanced Connect Technology offers display flexibility for presenters
- Wireless & Wired LAN display: With its advanced networking capability, the projector can project images via wireless, or wired, LAN. The LAN display offers a quad split screen for simultaneously projecting content from up to 4 PCs, with the ability to broadcast from up to 8 projectors. The WPD-100 wireless adapter is required for wireless display.
- Plug 'n play USB display: Present your presentations using a quick, simple plug-and-play USB connection without running a bulky connection cable. This feature also enables automatic resolution detection for the best imaging experience.
- PC-less presentations: You can jump start your presentations without waiting for your PC to boot up. With this feature, you can start your presentations or content directly from a USB flash drive.
- Mobile app: With the optional WPD-100 wireless USB adapter, you can use your Android or iOS devices as a remote control for the projector. Using ViewSonics mobile app, you can send information from your mobile device to the projector and project content such as MS Office documents, PDFs, videos, or images. In addition, the ViewSonic mobile app offers live draw and live cam functions to create an interactive experience for your presentation. The mobile app is available on both Google Play (for Android devices) and the Apple App Store (for iOS devices).

LAN Control & Monitoring with Crestron & AMX
IT admin can monitor, schedule, and manage the projector remotely, as well as receive projector status alerts, with the integrated Crestron e-Control system and RoomView Express management software. Because the PJD7333 is Crestron and AMX certified, IT admin can control and monitor the projector for any size campus or enterprise.
3D Blu-ray ready with HDMI
With the latest HDMI, the ViewSonic PJD7333 projector can now display 3D images directly from 3D Blu-ray players. The PJD7333 is designed to provide an amazing 3D visual experience for classroom, office, and even home environments.
DynamicEco technology for total control of audience's focus
With the DynamicEco button on the remote, take command of presentations by dimming the screen brightness by 70%. This feature allows presenters to easily shift the audience's focus when the projector is not in use. When idle, the projector will auto-activate DynamicEco as well. When DynamicEco is activated, the lamp's power consumption is significantly reduced a great energy-saving design for low total cost of ownership (TCO).
DICOM SIM mode support
With the DICOM (Digital Imaging and Communications in Medicine) SIM mode, ViewSonics PJD7333 is able to simulate and display multiple screens of X-rays, sonograms, and nuclear magnetic resonance (NMR) images. Whether for medical or educational presentations, the PJD7333 is guaranteed to display the most accurate and detailed images.
Wide 1.6x optical zoom for mounting flexibility
1.6x optical zoom provides more than twice the mounting flexibility over a standard 1.2x optical zoom. This translates to less installation hassle and more flexible mounting options.
Virtually maintenance free with filter-less design
The ViewSonic PJD7333 projector features a filter-less design. Unlike LCD projectors that require users to clean, or sometimes replace, filters every 100 to 300 hours of operation, the ViewSonic PJD7333 projectors filter-less design eliminates filter cleaning or filter replacement. This provides virtually zero maintenance, saves you significant dollars and labor over the projectors lifespan, and lowers your total cost of ownership (TCO).
Long-lasting reliable picture quality & superior color performance
ViewSonic DLP projectors provide reliable picture quality you can trust and superior color performance you can count on, after thousands of hours of usage. Built on DLP technology, ViewSonics PJD7333 projector virtually eliminates image degradation known as color decay a yellow/faded tint that LCD projectors may develop after extended use. Even after years of use, the PJD7333 will continue to produce a stunning, sharp image that lasts.
Packed with features
- 6-segment color wheel design improves color performance and accuracy to provide natural, vivid colors
- Auto source detection senses the source input and syncs with your computer automatically
- Supports wide range of digital signals from SD (480i/480p) to HD (720p/1080i/1080p)
- Integrated speaker ideal for multimedia applications, videos, audio-enabled presentations
PC 3D-Ready / 120Hz refresh rate powered DLP Link Technology
With support for DLP Link technology, youll have amazing 3D capabilities at your disposal. All thats required to unlock 3D capabilities on the ViewSonic PJD7333 3D-ready projector is ViewSonics PGD-series 3D active shutter glasses, 3D content, and 3D-enabled video card. Unleash a vivid 3D experience with the ViewSonic PJD7333 projector today.
Long lamp life up to 3,500 hours
The new advanced lamp technology from ViewSonic extends the lamp life up to 3,500 hours and saves you on replacement lamp costs.
Environmentally friendly Eco-mode saves money and power
With only a slight 20% decrease in brightness, the Eco-mode function can extend the life of your lamp by almost 50% and up to 3,500 hours in some cases. Other benefits of Eco-mode operation include reduced power consumption, as well as less heat and audible noise output. Its good for the environment and great for your budget. The Eco-mode function will definitely help lower your total cost of ownership (TCO).
Peace of mind with industry-leading warranty
Backed by our 25-year reputation for quality and reliability, ViewSonic offers one of the industrys best overall projector warranties with 3-year limited parts and labor, 1-year lamp, and first year free Express Exchange service**. Dont be fooled by the seemingly longer warranties out there in the market that exclude the more vulnerable systems and moving parts of a projector
ViewSonic Projector Comparison Chart
|
Model
|
PJD7820HD
|
PJD7333
|
PJD7533w
|
|
Resolution
|
1080p 1920x1080
|
XGA 1024x768
|
WXGA 1280x800
|
|
Brightness
|
3000 Lumens
|
4000 Lumens
|
4000 Lumens
|
|
Aspect Ratio
|
16:9
|
4:3
|
16:10
|
|
VGA In/Out
|
2/1
|
2/1
|
2/1
|
|
HDMI
|
|
|
|
|
LAN Control
|
|
|
|
|
Wired & Wireless LAN Display
|
|
|
|
|
USB Display
|
|
|
|
|
PC-less Prese
tation
|
|
|
|
|
Mobile App
|
|
|
|
What is in the box:
- PJD7333 projector
- Power cable
- VGA cable
- Remote control with batteries
- Soft carry case
- Quick start guide
- ViewSonic Wizard CD (with User Guide)
Other features:
- Product Dimensions (w x h x d) with stand: 13.2 x 5.1 x 10.4
Optional wireless adapter is required*Lamp life and energy savings may vary based on actual usage and other factors. **One year Express Exchange Service requires product registration.
Program specifications and availability are subject to change without notice. Corporate names, trademarks stated herein are the property of their respective companies, DLP and DLP logo are registered trademarks of Texas Instruments and BrilliantColor is a trademark of Texas Instruments. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Specifications
DISPLAY
- Type
- 0.55" Digital Micromirror Device (DLP)
- Resolution
- XGA 1024x768 (native)
- Lens
- 1.6x Manual optical zoom / manual optical focus
- Zoom Factor
- N/A
- Keystone
- Vertical digital keystone correction (+/- 40)
- Display Size
- 30 300 in. / 0.7 7.6 m (diagonal)
- Throw Distance
- 3.9 32.8 ft. / 1.2 10.0 m
- Throw Ratio
- 1.39 2.23:1
- Lamp Type
- 330 watt
- Lamp Life (normal/eco-mode)
- 2500 / 3500 hours* (Normal / Eco-mode)
- Brightness
- 4000 Lumens
- Contrast Ratio
- 15,000:1 (w/ DynamicEco)
- Aspect Ratio
- 4:3 (native)
- Color Wheel
- 6-seg RGBCYW / 7200rpm
- Color Depth
- 30 bits, 1.07B Color (10+10+10)
- Color Gamut
- N/A
INPUT SIGNAL
- Computer and Video
- NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p
- Frequency
- Fh: 31100KHz, Fv: 24120Hz
COMPATIBILITY
- PC
- VGA to 1600x1200 UXGA
- Mac
- Up to UXGA (may require MAC adapter)
CONNECTOR
- Audio Input
- 3.5mm mini jack (x2)
- Audio Out
- 3.5mm mini jack
- RGB Input
- 15-pin mini D-sub (x2)
- Composite Input
- RCA jack
- S-Video Input
- 4-pin mini-DIN
- Component
- 15-pin mini D-sub (x2, shared with RGB)
- RGB Output
- 15-pin mini D-sub
- Control
- RS232 (DB-9)
- Digital
- HDMI
- Network
- RJ45
- USB
- Type A (card reader and wireless dongle) Type B (mouse control and service) Mini Type B (USB display)
- Mic-In
- 3.5mm mini jack (shared with Audio 2)
- Screen Trigger
- 3.5mm plug 12V/1A
- Card Reader
- N/A
AUDIO
- Speakers
- 16-watt (x1)
- Amplifier
- N/A
POWER
- Voltage
- 100~240VAC (Auto Switching), 50/60Hz (universal)
- Consumption
- 350W (typ) / <0.5W (stand-by mode)
CONTROLS
- Basic
- Power, keystone/arrow keys, left, menu/exit, right, source, enter
- OSD
- Picture, Video/Audio, Setting, Option, Language, Information (See user guide for full OSD functionality)
OPERATING CONDITIONS
- Temperature
- 32F104F (0C40C)
- Humidity
- 10%90% (non-condensing)
- Altitude
- 0~6,000 ft (1,800m), operational up to 10,000 ft (3,048m)
NOISE LEVEL
- Normal
- 34dB
- Eco-Mode
- 32dB
DIMENSIONS (WxHxD)
- Physical
- 13.2 x 5.1 x 10.4 in. / 335 x 128.3 x 265 mm
- Packaging
- 15.0 x 13.5 x 9.5 in. / 383 x 342 x 242 mm
WEIGHT
- Net
- 6.7 lbs. / 3.0 kg
- Gross
- 11.2 lbs. / 5.1 kg
LANGUAGE
N/A
Regulations
CB, UL/cUL, FCC-B, NOM, KC, REACH, ErP, SVHC UL-Argentina, PSB, C-tick, SASO, CE, GOST-R, CCC, RoHS, WEEE, UkrSEPRO
PACKAGE CONTENTS
PJD7333 projector, power cable, VGA cable, remote control with batteries, carrying case, Quick Start Guide, ViewSonic Wizard DVD (with User Guide).
Warranty
3-year limited warranty on parts and labor, 1-year limited warranty on lamp, 1st year free Express Exchange service**
OTHER
N/A
|
|
|
|
14/05
|
View Sonic PJD7223 Portable DLP Projector - 1024x768, 4000 Lumens, 15000;1, 7000Hrs, VGA, RCA, DB-15, Mini-Din, USB, RS232, Speakers PJD7223
High Brightness XGA Projector. Light, Bright, and Portable Projector
Features
ViewSonics new PJD7223 is a 4000 lumens and 15,000:1 projector for medium-sized rooms that delivers clear, bright and sharp images with vivid and accurate colors, even in bright environments. This projector features DynamicEco Technology to adjust lamp brightness, thereby prolonging the lamp lifespan, lowering power consumption and reducing the total cost of ownership. By pressing the D.Eco button on the remote control, the presenter can dim the screen to refocus the audiences attention to the presenter. Equipped with versatile I/O ports, the PJD7223 provides a flexible connectivity to a wide range of devices. The PJD7223 is integrated with a variety of functions and tools, making it a costeffective option that efficiently and impressively upgrades your presentations.The efficient Off-to-Go mode on the PJD7223 enables quick shutdown and turn-on, saving every second of your valuable time. The PJD7223 takes only 3 seconds to turn on, while shutting down instantly and requiring zero power consumption to cool down the projector.
High brightness and contrast ratio ensures stunning image quality
The PJD7223 features 4,000 lumens brightness and a 15,000:1 contrast ratio to ensure the image will be crystal clear and vivid even in the bright environments. This feature allows the PJD7223 to adapt to various environments for greater flexibility in use.
DynamicEco Technology gives more and consumes less
ViewSonics proprietary DynamicEco technology can conserve up to 70% more power by automatically reducing lamp brightness when there are no source inputs; this also lowers total cost of ownership. By clicking D.Eco on the remote control, the presenter can dim the projection and easily regain the audiences attention.
BrilliantColor Technology
ViewSonic PJD7223 projector with BrilliantColor technology features multi-color processing to produce stunning, vibrant colors. Unlike other technologies such as LCD which use just 3 primary colors to produce the image, the PJD7223 uses up to 5 separate colors. The sophisticated 5-segment color wheel enhances the yellow color performance that is the key to accurate and vivid color reproduction. With multi-color processing, colors are richer and more vibrant with exquisite and precise detail.
Maintenance Free
ViewSonic PJD7223 projector enables a filter-less design. Unlike LCD projectors require to clean, sometimes to replace, filters after every 100 to 300 hours of operation, ViewSonic PJD7223 projector is filter-less that eliminates the need for filter cleaning or filter replacement. This saves you significant maintenance dollars and labor over the projectors lifespan, and lowers your total cost of ownership (TCO).
Long Lamp Life up to 7000 Hours
The new advanced lamp technology extends the lamp life up to 7000 hours* and saves on maintenance costs.(*Under DynamicEco mode)
Keystone: easily correct projection distortion
Keystone correction is the answer to fix projection distortion caused by uneven environmental settings. With this function, images are instantly squared for a comfortable and proportionate viewing experience.
Versatile digital interface and input/output
The PJD7223 features a wide range of compatibility for high-definition content input including Composite, S-video, and VGA input. The built-in 2W speaker, complemented with a microphone input, provides high volume audio without the need for external speakers.
Specifications
| Display |
Type |
TI DMD 0.55 |
| Resolution |
1024x768 (XGA) |
| Lens |
1.1x |
| Size |
30 - 300 inch |
| Throw Distance |
1.2m - 10.0m |
| Lamp |
OSRAM |
| Lamp Life |
7,000 hours (Eco mode)1 |
| Brightness |
4000 ANSI Lumens |
| Contrast Ratio |
15000:1 (DCR) |
| Keystone Correction |
+40 ~ -40 |
| Aspect Ratio |
4:3 |
| Audio |
Speakers |
2W *1 |
| Input Signal |
Video |
NTSC M (3.58 MHz), 4.43MHz PAL (B, D, G, H, I, M, N, 60) SECAM (B, D, G, K, K1, L) 480i and 576i 480p and 576p 720p,1080i, 1080p |
| Frequency |
Fh: 31-100KHz; Fv: 24-120Hz |
| Compatibility |
PC |
1024 x 768 @ 60Hz (Native) |
| Mac |
1024 x 768@ 75Hz |
| Connector |
RGB Input |
DB-15 x 2 |
| RGB Output |
DB-15 x 1 |
| Composite Video |
RCA x 1 |
| S Video |
Mini-Din 4 pin x 1 |
| Component Video |
Share with RGB x 2 |
| Audio |
Input:3.5mm mini-stereo Jack *2; Output:3.5mm mini-stereo Jack *1 |
| Control |
RS232(DB-9 x 1) |
| USB |
Type B for mouse control |
| Power |
Voltage |
100V ~ 240Vac 50 / 60Hz |
| Consumption |
350w |
| Operating Conditions |
Temperature |
32 ~ 104 F (0 ~ 40 C) |
| Humidity |
10 ~ 80% (non-condensation) |
| Dimensions |
Physical |
294mm (width) x 219mm (height) x 113mm (depth) |
| Weight |
Net |
2.1 kg |
| Regulations |
|
CB, UL/cUL, FCC-B, NOM, Argentina, SASO, KC, CE, GOST-R, UkrSEPRO, CCC, CECP |
| Package Contents |
|
1.8 Meter Power Cord *1, 1.8 Meter VGA Cable *1, Laser Remote Control with AAA Batteries, Quick Start Guide (One Sheet Version) *1, ViewSonic CD Wizard (with user manual) *1, Warranty Card & Sticker (only for China) *1 |
|
|
|
|
14/05
|
HP C1Q33A #773B Ink Cartridge - Magenta, 775mL - For HP Designjet Z6800 Photo Production Printer HP 773B 775ml Lt Magenta Ink Cartridge
|
General Information
|
| Brand Name: |
HP |
| Manufacturer Part Number: |
C1Q33A |
| Manufacturer Website Address: |
http://www.hp.com |
| Manufacturer: |
Hewlett-Packard |
| Product Model: |
773B |
| Product Name: |
773B 775-ml Light Magenta Designjet Ink Cartridge |
| Product Type: |
Ink Cartridge |
|
Miscellaneous
|
| Compatibility: |
HP Designjet Z6800 Photo Production Printer
|
|
Technical Information
|
| Ink Volume: |
775 mL |
| Print Colour: |
Light Magenta |
| Print Technology: |
Inkjet |
|
|
|
|
14/05
|
Panasonic PT-EW540W LCD Projector - 1280x800, 5000 Lumens, 2000;1 PT-EZ540W 5000 LUMEN WXGA LCD (1280X800) H&V LENS SHIFT EXTENDED LAMP REPLACEMENT AND ECO FILTER OPTIONAL LENSES 16:10 ASPECT RATIO 2000:1 CONT
Specifications
|
General Information
|
| Brand Name: |
Panasonic |
| Manufacturer Part Number: |
PT-EW540W |
| Manufacturer Website Address: |
http://www.panasonic.com |
| Manufacturer: |
Panasonic |
| Product Model: |
PT-EW540W |
| Product Name: |
PT-EW540W LCD Projector |
| Product Type: |
LCD Projector |
|
|
| Contrast Ratio: |
2,000:1 |
| Graphic Mode: |
WXGA |
| Native Aspect Ratio: |
16:10 |
| Native Resolution: |
1280 x 800 |
| Standard Mode Brightness: |
5000 lm |
|
Technical Information
|
| Projection Method: |
Front |
|
|
|
|
Previous Page
|
Next Page
|
|
