12/03
|
Vivotek 612000400G O-Ring - For Vivotek FD8362E612000400G O-Ring - For Vivotek FD8362E
|
|
|
|
12/03
|

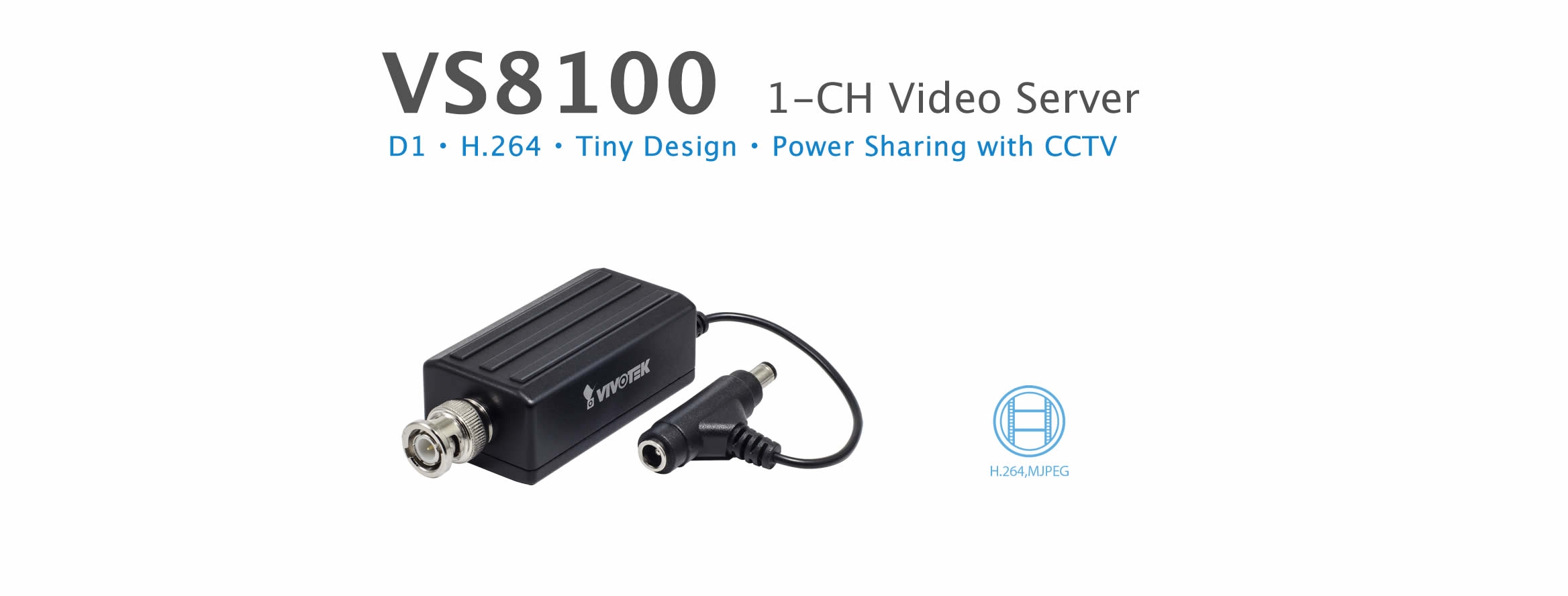

Vivotek VS8100 1 Channel Video Server - Up to 30 fps at D1 Resolution, Real-time H.264, MJPEG Compression (Dual Codec), Simultaneous Multiple Streaming, One Way Audio - Black
Overview
VIVOTEK VS8100 is a small-sized H.264 1-CH video server that helps you migrate from analog to digital surveillance system with ease. Its power sharing with CCTV and tiny design make it ideal for front-end installation and surveillance applications such as home, offices, retail stores, banks, and city surveillance, where their power supply and IP network connections are already settled. VS8100 supports a variety types of analog cameras, including PTZ cameras with its Pan/Tilt/Zoom control through the built-in RS-485 port.
With the high-performance H.264 compression format, it drastically reduces the file sizes and conserves valuable bandwidth and storage space. Supporting simultaneous multiple streams, the video streams can be transmitted in either of H.264 or MJPEG formats for versatile applications. The streams can also be individually configured with separate frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.
Together with the ST7501 multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease. VIVOTEK also provides the smart phone application iViewer, both for iPhone and Android phones, enable users to monitor live video off-site.
Key Features
- Up to 30 fps at D1 Resolution
- Real-time H.264, MJPEG Compression (Dual Codec)
- Simultaneous Multiple Streaming
- One Way Audio
- RS-485 Interface for PTZ Camera Control
- Ultra-mini Size for Front-end Installation and Discreet Surveillance Application
- DC 12V Power Sharing with Analog Camera
- Green Product
Specifications
|
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Control
| Camera Control |
- PTZ camera control through RS-485
- Supports CGI command serial driver
|
|
|
Video
| Compression |
|
| Maximum Frame Rate |
- 30 fps @ 720x480
- 25 fps @ 720x576
- In both compression
|
| Maximum Streams |
|
| Video Streaming |
- Adjustable resolution, quality and bitrate
|
| Image Settings |
- Adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness
- Privacy masks
- Aspect ratio correction
- Deinterlace, 2D De-noise
|
|
|
Audio
| Audio Capability |
|
| Compression |
|
| Interface |
|
|
|
Network
| Users |
- Live viewing for up to 10 clients
|
| Protocols |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
|
| Interface |
- 10Base-T/100 BaseTX Ethernet (RJ-45)
|
| ONVIF |
|
|
Intelligent Video
| Video Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| Alarm Triggers |
- Video motion detection, Video loss/restore detection, periodical trigger, manual trigger, recording notification, system boot, camera tampering detection
|
| Alarm Events |
- Event notification using HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Connectors |
- RJ-45 for Network connection
- Male BNC for Analog video input
- RS-485 Terminal Block
- 3.5mm Phone Jack
|
| Supported P/T/Z Protocol |
- DynaDome/SmartDome, Pelco D, Pelco P, Lilin, Samsung scc643 and customized
|
| LED Indicator |
- System power and status indicator
|
| Power input |
|
| Power consumption |
|
| Dimensions |
- 65 mm (D) x 34 mm (W) x 25 mm (H)
|
| Weight |
|
| Casing |
|
| Safety Certifications |
- CE C-Tick FCC ( Class A ) LVD VCCI
|
| Operating Temperature |
|
| Warranty |
|
|
|
System Requirements
| Operating System |
- Microsoft Windows XP/Vista/7/2000
|
| Browser |
- Mozilla Firefox 7~10, Google Chrome, Safari (streaming only)
- Internet Explorer 7.x or 8.x or 9.x
- 32 bit
|
| Other Players |
- VLC: 1.1.11 or above
- QuickTime: 7 or above
|
|
|
|
|
|
12/03
|
Vivotek 612020000G O-Ring - For Vivotek SD8362E612020000G O-Ring - For Vivotek SD8362E
|
|
|
|
12/03
|
Canon PowerShot SX530 HS Digital Camera - Black - 20.5MP, 50x Optical Zoom, 5.0-40.0mm (35mm Equivalent; 28-224 mm), 2.7" LCD TFT, Image Stabilisation, DIGIC 4+ with iSAPS Technology PowerShot SX530 HS
Capture moments with 50x Zoom and built-in Wi-Fi and NFC.
The PowerShot SX530HS gives you the power to capture amazing images & movies from a distance with its 50x zoom and 100x ZoomPlus premium Canon lens. With outstanding optical quality, fast responsive photographic controls, a design you can take anywhere and built in Wi-Fi and NFC controls, the SX530HS is the ideal camera for budding travellers on the go.
At a glance
Get in Close
Capture quality images from a distance with the huge 50x Optical Zoom and 100x ZoomPlus lens.
Zoom Framing Assist Button
The Seek button quickly zooms out to help you find moving subjects while the Lock button prevents camera shake.
Connected to your World
With built in NFC and Wi-Fi its so easy to share your happy snaps to your favourite social media platforms.
Remote Shooting
Capture images remotely and view live images from the camera via your phone and the Camera Connect app.
Manual Control
Complete manual control so you can exercise your photographic skills.
Creative Shot
Expand your creative photography skills through applying a range of artistic presets such as toy camera or fish eye effect.
In Detail
Detailed Features
Get in Close
The 50x optical zoom allows you to get closer to your subject, reaching 1200mm equivalent at the telephoto end. The 24mm wide-angle lens enables wide range of shooting and capturing beautiful landscapes or great group shots.
Zoom Framing Assist Button
Thisfunction allows you to automatically detect the movement of your subject during high-powered zoom. Track the subject and keep it in frame without losing it, due to shaking of hand or fast subject movement. This function remembers your previous zoom position while zooming out to track the moving subject, and then zoom back in to the saved position for the shot.
Connected to your World
The camera is equipped with built in Wi-Fi technology for convenient sharing and transferring of your still images and video. You can easily post your images to social networking and media sites such as Facebook, Twitter, Youtube and Flickr or save them to your photo album to share anytime, anywhere. The camera can also connect directly to both iOS and Android devices, and upload images via the free Canon CameraWindow app without a computer. You can control the destination of your uploads to share with everyone or to selected groups, and even add comments. With the one touch connection to your Mobile Device Connect Button, you can choose to transfer images to your smartphone or tablet for immediate sharing with the CameraWindow app, or to your computer on the same network with Image Sync to make saving and organising your images easier. When the camera finds a linked computer on the same wireless network, images are sent directly to it.
Remote Shooting
This feature allows you to capture group or landscape images with ease. It gives you the opportunity to be more flexible and creative with your photography as you are able to view, compose and take images via devices such as your phone.
Manual Control
Get creative with your photography and enjoy full flexibility with manual control. This will allow you to experiment and capture breathtaking images by controlling the aperture, shutter speed and ISO in each setting. This feature gives you that extra ability to still capture your images the way you wish without the size and weight of a DSLR camera.
Creative Shot
The camera features an advanced Creative Shot mode to make creating artistic photos even more fun. In Creative Shot mode, the camera captures the original composition and automatically produces and saves five additional variations by using advanced Canon technologies to apply filter options based on the individual scene, subject and exposure. On the camera, over 40 filter choices are available and are grouped into Retro, Monochrome, Special and Natural categories to make exploring the world of artistic photography fun and easy. With Creative Shot mode, the result is stunning artistic photos that are perfect for sharing.
Specifications:
Detailed Specifications
Image Sensor
Type1/2.3 type CCD
Effective PixelsApprox. 20.0M [7]
Effective / Total PixelsApprox. 20.5M
Colour Filter TypePrimary Colour
Image Processor
TypeDIGIC 4+ with iSAPS technology
Lens
Focal Length5.0 40.0 mm (35 mm equivalent: 28 224 mm)
ZoomOptical 8xZoomPlus 16xDigital Approx. 4xCombined Approx. 32x [1]
Maximum f/numberf/3.2 f/6.9
Construction8 elements in 7 groups (1 double-sided aspherical lens)
Image StabilisationYes (lens shift-type), approx. 2.5-stop [6]. Intelligent IS plus Enhanced Dynamic IS
Focusing
TypeTTL
AF System/ PointsAiAF (Face Detection / 9-point), 1-point AF (fixed to centre)
AF ModesSingle, Continuous (Auto mode only), Servo AF/AE, Tracking AF[4]
AF LockYes
AF Assist BeamYes
Closest Focusing Distance1 cm (W) from front of lens in Macro
Exposure Control
Metering modesEvaluative (linked to Face Detection AF frame), Centre-weighted average, Spot (centre)
AE LockYes
Exposure Compensation+/- 2 EV in 1/3 stop increments. Enhanced i-Contrast for automatic dynamic range correction
ISO sensitivityAUTO, 100, 200, 400, 800, 1600
Shutter
Speed1 1/2000 sec. (factory default) 15 1/2000 sec. (total range varies by shooting mode)
White Balance
TypeTTL
SettingsAuto (including Face Detection WB), Daylight, Cloudy, Tungsten, Fluorescent, Fluorescent H, Custom
Colour Matrix
TypesRGB
LCD Monitor
Monitor6.8 cm (2.7") LCD (TFT), Approx. 230,000 dots
CoverageApprox. 100%
BrightnessAdjustable to one of five levels. Quick-bright LCD
Flash
ModesAuto, Manual Flash On / Off, Slow Synchro
Slow Sync SpeedYes. Fastest speed 1/2000 sec.
Red-Eye ReductionYes
Flash Exposure CompensationFace Detection FE, Smart Flash Exposure
Flash Exposure LockYes
Built-in Flash Range50 cm 3.0 m (W) / 1.3 1.5 m (T)
External FlashCanon High Power Flash HF-DC1 Canon High Power Flash HF-DC2
Shooting
ModesSmart Auto (32 scenes detected), P, Portrait, Live View Control, FaceSelf-Timer, Low Light (5.0 MP), Fish-eye Effect, Miniature Effect, Toy Camera Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks, Long Shutter
Modes in MovieSmart Auto (21 scenes detected), P, Portrait, Miniature Effect, Monochrome, Super Vivid, Poster Effect, Snow, Fireworks
Drive modesSingle, Continuous, Self-Timer
Continuous ShootingApprox. 0.8 shots/sec. (until memory card becomes full) [2][3]
Recording Pixels / Compression
Image Size4:3 - (L) 5152 x 3864, (M1) 3648 x 2736, (M2) 2048 x 1536, (S) 640 x 480, (W) 5152 x 2896 Resize in playback (M2, S)
CompressionFine
Movies(HD) 1280 x 720, 25 fps, (L) 640 x 480, 30 fps Miniature Effect (HD) 5 fps, 2.5 fps, 1.25 fps Miniature Effect (L) 6 fps, 3 fps, 1.5 fps
Movie Length(HD) Up to 4 GB or 29 min. 59 sec. [5] (L) up to 4 GB or 1 hour [3]
File Types
Still Image TypeJPEG compression, (Exif 2.3 [Exif Print] compliant) / Design rule for Camera File system, Digital Print Order Format [DPOF] Version 1.1 compliant
MoviesMOV [Video:MPEG-4 AVC / H.264, Audio: Linear PCM (monaural)]
Direct Print
Canon PrintersCanon SELPHY Compact Photo Printers and Canon Inkjet Printers supporting PictBridge
PictBridgeYes
Other Features
Red-Eye CorrectionYes, during shooting and playback
Intelligent Orientation SensorYes, with Auto Rotate
Playback zoomApprox. 2x 10x
Self TimerApprox. 2 or 10 sec. or Custom
Menu LanguagesEnglish, German, French, Dutch, Danish, Finnish, Italian, Norwegian, Swedish, Spanish, Simplified Chinese, Chinese (traditional), Japanese, Russian, Portuguese, Korean, Greek, Polish, Czech, Hungarian, Turkish, Thai, Arabic, Ukrainian, Romanian, Farsi, Malaysian, Hindi, Indonesian, Vietnamese, Hebrew
Interface
ComputerHi-Speed USB (MTP, PTP) dedicated connector (Mini-B compatible)
OtherA/V output, dedicated connector (PAL/NTSC)
Memory Card
TypeSD, SDHC, SDXC
Supported Operating Systems
PC & MacintoshWindows 8 / 8.1 / 7 SP1 Mac OS X 10.8 / 10.9
Power Source
BatteriesRechargeable Li-ion Battery NB-11L/ NB-11LH (NB-11L battery and charger supplied)
Battery lifeApprox. 200 shots Eco Mode: Approx. 260 shots Approx. 240min. playback
A/C Power SupplyOptional, AC Adapter Kit ACK-DC90
Accessories
Cases / StrapsSoft Case DCC-1370 Soft Case DCC-1350 Soft Case DCC-1320
FlashCanon High Power Flash HF-DC1 Canon High Power Flash HF-DC2
Power Supply & Battery ChargersAC Adapter Kit ACK-DC90, Battery Charger CB-2LFE / CB-2LDE
OtherCanon AV Cable AVC-DC400 Interface cable IFC-400PCU
Physical Specifications
Operating Environment0 40 C, 10 90% humidity
Dimensions (WxHxD)95.2 x 54.3 x 22.1 mm
WeightApprox. 128 g (including battery and memory card)
Footnotes
PowerShot SX530 HSAll data is based on Canon standard testing methods (according to CIPA Standards) except where indicated.Subject to change without notice.[1] Depending on the image size selected.[2] Under conditions where the flash does not fire.[3] Depending on memory card speed / capacity / compression setting.[4] Some settings limit availability.[5] The following Speed Class memory cards are required for maximum record time: (HD) 1280 x 720 Speed Class 4 or above. (Full HD) 1920 x 1080 Speed Class 6 or above. (iFrame) 1280 x 720 Speed Class 6 or above.[6] Values at maximum optical focal length. Cameras whose focal length exceeds 350 mm (35 mm equivalent) are measured at 350
|
|
|
|
