05/12
|
Brateck 6.35m (250") Fast-Folding Projector Screen - Portable 4m x 3m (4;3) - Includes Solid Aluminium Carry Case BT-PSKC250 Fast-Folding Projection Screen
The BT-PSKC250 is a Fast-Folding Projection Screen that ideal for projection in anywhere, which can be easily set and dismantle in a few minutes, can be very convenient for transport and storage, as it is packed into a solid aluminium storage carry case with wheel. The Lockable Aluminium carry case features a foam padded interior to protect the projector screen during transit.
The frame and legs are constructed of steady aluminium leg and feature easy release latches for simple, quick set up and tear down of the screen. Front and rear projection screen surfaces can be interchanged at any time. Trainers, presenters, producers, everyone who takes a show on the road will appreciate this fast-folding projector screen with many advantages.
Features:
- Full folding design for easy carry
- Lightweight and steady aluminum frame and legs
- Quick and easy assembly without using any tools
- Screen height adjustable
- Flight case with pull rod and wheels; ideal for travel
Material
- White soft projection screen fabric is more resilient, flame retardant & mildew resistant
- Create1.10 gain presentation
- 140 wide viewing angle

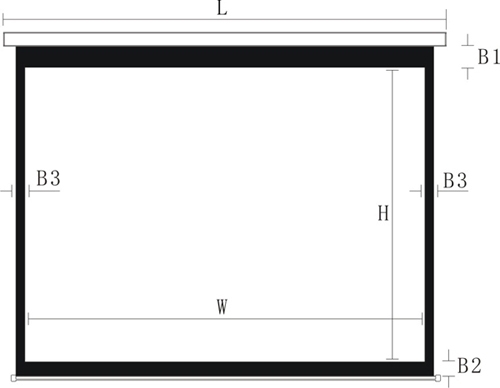

Screen and Border Dimensions
|
Ratio
|
Model
|
diagonal
|
with(m)
|
height(m)
|
B1(cm)
|
B2(cm)
|
B3(cm)
|
|
4:3
|
PSKC200
|
200"
|
4.00
|
3.00
|
5
|
5
|
5
|
|
PSKC250
|
250"
|
5.00
|
3.75
|
5
|
5
|
5
|
|
|
|
|
05/12
|
KGuard EL821-4HW212B Easy Link 8 Channel 960x480 DVR 1TB HDD + 4x600TVL CMOS Cameras Easy Link Series Combo Kit: EL821-4HW212B
KGUARDs Easy Link series allows even the most novice user to quickly and easily connect their surveillance system to the internet for remote monitoring. The introduction of a QR-code system streamlines the previously tricky networking setup into a simple 3-step process. Simply connect the DVR to an internet-connected router, download the free KGUARD app for your smartphone or tablet, and scan the QR-code right on the DVR it is that simple! Once the scan is complete, you can use your device to watch live right away without limitation.
The EL Combo kits also support 960H resolution, cloud backup service and high resolution cameras, allowing customers to easily secure their home or business for peace of mind. The included four or eight high resolution cameras support 600-TVL resolution combining with our KGUARD Fulcolor image sensor to provide you with high quality colour images.
The 3.6mm fixed lens with a 75-degree viewing angle helps you monitor particular areas, such as yards or warehouses. They have powerful night vision with a range of up to 20-metres in total darkness and have waterproof cases to protect the camera and survive rainy days.
EL821-4HW212B Features:
-
H.264 compression latest recording technology
-
HD recording resolution quality is better than D1
-
Full HD output with 1080P display standard for connection to HDTV
-
Easy to set up network without difficult configuration
-
Exclusive DVR to connect Cloud Service and you have a personal space
-
Advanced motion schedule can manage email alerts easily
-
Free "kview" allows remote monitoring on your smartphones and tablets
-
KGUARD Fulcolor to provide excellent colorful images
-
Using 3.6mm fixed lens with 75 degrees viewing angle to monitor particular areas
-
600 TVL high resolution to make video clearer
-
Night vision up to 20m/65ft in total darkness
-
Waterproof case to protect the camera and survive rainy days
EL821-4HW212B Specification:
EL821-4HW212B Specifications
|
|
| Model No. |
EL821 |
| No. of Channel |
8 Channels |
Cloud
|
|
| Cloud Storage |
Yes |
| Storage Mode |
Schedule / Motion Detection |
Video
|
|
| Video Format |
NTSC / PAL |
| Video Input |
8 BNC Inputs |
| Video Output |
1 VGA, 1 BNC, 1 HDMI Outputs |
| Video Output Resolution |
"VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p" |
Audio
|
|
| Audio Input |
2 RCA Inputs |
| Audio Output |
1 RCA Output |
Recording
|
|
| Video Compression |
H.264 |
| Recording Frame Rate D1 NTSC |
240fps@CIF (360240), 240fps@HD1 (720x240), 240fps@D1 (720x480) |
| PAL |
200fps@CIF (360288), 200fps@HD1 (720x288), 200fps@D1 (720x576) |
| 960H NTSC |
240fps@WCIF (480240), 88fps@WHD1 (960240), 88fps@WD1 (960480) |
| PAL |
200fps@WCIF (480288), 72fps@WHD1 (960288), 72fps@WD1 (960576) |
| Recording Mode |
Always / Manual / Motion Detection / Schedule |
| HDD Interface |
1 SATA |
| HDD Support |
Up to 2TB |
Network
|
|
| Plug & Play |
Yes |
| Network Interface |
RJ45, 10M/100M |
| Network Type |
DHCP, PPPoE, Static IP |
Playback
|
|
| Local Playback |
Max. 8 Channels Simultaneously |
| Playback Search |
Date & Time / Event List / Time Bar |
| Playback Mode |
Play, Fast Forward, Fast Rewind, Slow Motion, Zoom |
General
|
|
| PTZ Control |
RS485 Built-In, supports PELCO-P & PELCO-D |
| Backup Method |
HDD, USB, Network |
| Power Supply |
12V/2A |
| Operating Temperature (W/O HDD) |
-10 to 50 ( 14F to 122F ) |
| Storage Temperature |
-20 to 70 ( -4F to 158F ) |
| Dimension (LxWxH) in mm |
250x230x45 |
CCTV Camera Specifications
|
|
Video
|
|
| Image Sensor |
KGUARD Fulcolor |
| Horizontal Resolution |
600 TVL |
| Electronics Shutter |
NTSC 1/60-1/100,000(sec) |
| |
PAL 1/50-1/100,000(sec) |
| Lens |
3.6mm Fixed |
| Viewing Angle |
75 Degrees |
| Video Output |
1.0VP-P, 75 |
| S/N Ratio |
More than 48dBAGC OFF |
| Day / Night Mode |
Color during day / switches to B&W at night |
| Minimum Illumination |
While Infrared LED on "0" lux |
| Gain Control |
Auto |
| Backlight Compensation |
Auto |
Night Vision
|
|
| Night Vision Distance |
20m / 65ft |
| Illumination |
Mini Infrared Array |
| Infra-Red Wavelength |
850nm |
| Infra-Red LED Life |
10,000hrs |
General
|
|
| Indoor / Outdoor |
Weatherproof (Both) |
| Operating Temperature |
-10~50C / 14~122F |
| Storage Temperature |
-20~70C / -4~158F |
| Body Construction |
Aluminum |
| "Dimensions - Camera with Stand (WxDxH)" |
68x58x153mm |
| Weight - Camera with Stand |
240g / 0.53lbs |
|
|
|
|
05/12
|
Wansview NCH-530W Wireless IP Cloud Plug and Play Tilt Infra-Red Camera WANSVIEW NCH-530W
640x480 VGA H.264 Wireless IP Cloud Plug and Play Pan Tilt IR Camera
The Wansview NCH530W has simplified the abilty to remotely monitor your home or business. With its unique CLOUD feature you can be remote viewing from anywhere on the internet in just 4 easy steps. With its easy Plug and Play Installation even the most novice network user can set up the Wansview Cloud view camera.
The Wansview Cloud View Camera is perfect for:
- Home monitoring
- Baby Monitoring
- Pet Monitoring
- Elderly Monitoring
For advanced users, there is no need for a PC Connection, Port Forwarding, Dynamic DNS Serice. Simply follow the below instructions to remote monitoring FREEDOM.
Function and Features
- 32-bits RISC processor and special video encoder which can be up to 3M pixels encoding performance
- Support H.264 Main [email protected] compression format, bit rate is smaller, and the image is more clear.
- It is more convenient for transferring through Internet and save more storage space.
- VGA/QVGA/QQVGA resolution optional. User can change some specification according to their demands to satisfy
- his own visual prefer.
- Support 3 kinds of video stream, suitable for Local, Internet and Cross-platform view.
- Built-in microphone, and also support to connect external audio capturing device (like MIC phone or sound
- pick-up) to capture the audio. External speaker can play the voice sent to the live scene, to achieve two-way
- intercom function. Audio support G.711 and G.726 types.
- Built-in Pan/Tilt, horizontally 350, vertically 100. This equipment is smart and beautiful, very easy to install
- and use in many occasions.
- Support IR and color filter change automatically, no any color difference.
- Built-in web server, support video view and parameter settings by browser; use one port to send all the data,
- it facilitates network setting.
- Support 802.11b/g /n protocol, can build up wireless monitoring.
- Support mobile phone watching.
- Support UPNP, port forwarding automatically on the router.
- Support maxim 32G SD card for video and picture storage.
- Motion detection and alarm pin can be connected to external sensors to detect environmental situation.
- Alarming record can be stored by email, SD card, and FTP server. External alarm can be open when detecting
- unusuality. It also sends alarm info to the alarm server.
- Infrared LED for night vision covers 5m area, to realize 24 hours monitoring.
- Support three level of user authority.
- Support upgrading online.
- Manufacture attached a label at the bottom of each IP Camera, it include Device ID, DDNS. When IP Camera
- is connected to the internet, this URL can be used to visit the device.
- Manufacture provides free software, support Multi-view, Long time recording, video replay etc.
- Support video view by other browsers like as Firefox, safari etc.
Specifications:
| Hardware performance |
Product type |
IP camera |
| Operation system |
Embedded operating system |
| Web environment |
Web protocol |
IP TCP UDP HTTP SMTP FTP DHCP DDNS UPNP NTP PPPOE |
| LAN port |
10Base-T/100Base-TX(RJ-45) |
| Wifi |
WIFI,802.11 b/g/n |
| Image performance |
Resolution |
VGA QVGA QQVGA |
| Compression mode |
H.264/JPEG,Support both the the two H.264 stream and a JPEG stream |
| Max frame rate |
30fps |
| Other parameters |
Lens |
4mm Black & White |
| Min. illumination |
0 lux |
| Electronic shutter |
1/50s(1/60s)-1/100,000 s |
| SNR |
>48db |
| Safety performance |
Three levels of user rights |
| Install mode |
Wall-mounted / ceiling-mounted |
| Other performance |
PC software,support for Microsoft Windows 98/2000/XP/Vista/Windows 7,And the Internet Explorer6.0 and above version or browser compatibility, Firefox, etc.,
provide IPCMonitor.exe client software |
| Power supply |
DC 5V |
| Sensor |
0.3 Million CMOS Sensor |
| IP camera performance |
Support video control, Two-way voice talkback, motion detection, external alarm(sends information to alarm the server by Email, FTP);
Manufacturers provide free DDNS, and has been written into equipment;
Platform level angle 350 ,100 vertical angle;
8 infrared lamps, 5 meters effectively;
automatically control through the photoresistor |
| Audio input |
With microphone, and provide the audio input interface |
| Audio output |
provide the audio output interface |
| Alarm in |
In support of the 1 road |
| Alarm out |
In support of the 1 road |
| Power consumption |
Power<6W |
| Appearance parameters |
Body size |
102*107*148mm |
| Product weight |
659g |
| Environment parameters |
Environment temperature |
-10C-50C |
| Environment humidity |
below 85% RH |
|
|
|
|
