04/12
|
KGuard BR801-4CW214H 8 Channel DVR Combo Kit With 4 CCD camera - NTSC;240/PAL;200fps
KGUARDAll-In-One Combo kit: BR801-4CW214H
8 Channel DVR with 4 CCTV Cameras
This total surveillance package for home-and-small business owners includes all the required items for quick & easy DIY installation. To monitor and control surveillance video on your mobile devices, simply download the KGUARD exclusive software series KView. Experience boundless surveillance at your fingertips!
Includes everything you need for safety and security at your home or office.

Includes KView innovative software for real time multi-device camera viewing on most Windows & Mac systems, as well as iPhone and Android smartphones.

Features
- H.264 compression technology
- Supports D1 recording and playback
- Advanced and friendly user interface with USB mouse control
- Supports simultaneous multi-channel playback with IE browser of videos recorded in different time frames
- Total online surveillance via IE/Safari browser for remote video & audio live view, playback, setup, backup and filing
- Built-in RS-485 port for PTZ control
- Pre-recording feature that allows additional images to be captured prior to the motion detected event
- Instant E-mail notification for alarm-triggered events
- Supports clock synchronization with NTP
- Viewable on widescreen LCD (max. resolution: 1440 x 900)
- Quad, single and PIP (Picture-In-a-Picture) display mode for live view
- User Authorization and Authentication Management
- Privacy masks for private area protection (max. 4 areas per channel)
- Free downloadable KView series for remote monitoring and control via iPhone, iPad and Android hand-held devices
- USB 2.0 interface for easy backup
- KGUARD DDNS Service (kguard.org) included
Package Contents
- BR108
- Power Adapter
- RCA to BNC Cable
- Remote Control
- USB Mouse
- Software CD
- Quick Guide
- 4 Cameras
- Slim Cable
- Screw Kit
- 4-Way Split Power Cable
- Camera Quick Guide
- Power Adapter
- Position Gasket
Specifications:
| BR801-4CW214H |
|
| Model No. |
BR801-4CW214H |
| Product Name |
8CH DVR Kit with 4 CCD Cameras |
Standalone DVR Specifications |
|
| Model |
BR801 |
| Video Format |
NTSC / PAL |
| Operating System |
LINUX |
| Video |
|
| Input / Output |
8 BNC Inputs /1 VGA Output, 2 BNC Outputs |
| Video Compression |
H.264 |
| Audio |
|
| Input / Output |
1 RCA Input / 1RCA Output |
| Display |
|
| Resolution |
NTSC: 704x480 / PAL: 704x576 |
| Frame Rate |
NTSC: 240fps / PAL: 200fps |
| Recording |
|
| Resolution |
NTSC: CIF(352x240) / HD1(704x240) / D1(704x480) |
| |
PAL: CIF(352x288) / HD1(704x288) / D1(704x576) |
| Frame Rate |
NTSC: 240fps-CIF / 120fps-HD1 / 60fps-D1 |
| |
PAL: 200fps-CIF / 100fps-HD1 / 50fps-D1 |
| Modes |
Always / Schedule / Motion Detection / Remote Control |
| HDD |
|
| Interface |
1 SATA Fixed HDD Rack |
| Capacity |
Up to 2TB |
| Playback |
|
| Search |
Time & Date / Event List / Time Bar |
| Channel |
Max. 8CH Simultaneous Playback / Network 4CH |
| Mode |
Play, Fast Forward, Fast Rewind, Frame by Frame |
| Network |
|
| Network Interface |
RJ45, 10M/100M, Supports TCP/IP, DHCP,DDNS, PPPoE |
| Network Function |
IE and Safari Browser Supported |
| General |
|
| USB Interface |
USB for Mouse and File Backup |
| PTZ Control |
Built-in RS-485 / supports PELCO-P & PELCO-D |
| Sensor & Alarm I/O |
N/A |
| Backup |
USB to Flash Drive / Network |
| Power Supply |
DC12V / 2A |
| Working Temperature |
-10C ~ 50C (14F~122F) |
| Storage Temperature |
-20C ~ 70C (-4F~158F) |
| Working Humidity |
10%~90% |
CCTV Camera Specifications |
|
| Model No. |
CW214H |
| Video |
|
| Image Sensor |
1/4" SHARP Color CCD |
| Effective pixels - NTSC |
512(H) x 492(V) |
| Effective pixels - PAL |
500(H) x 582(V) |
| Electronics Shutter NTSC |
1/60-1/120,000(sec) |
| Electronics Shutter PAL |
1/50-1/120,000(sec) |
| Horizontal Resolution |
420 TV Lines |
| Lens |
3.6mm Fixed |
| View Angle |
65 Degrees |
| Video Output |
1.0VP-P,75 |
| S/N Ratio |
More than 52dB(AGCOFF) |
| Day / Night Mode |
Color during day / switches to B&W at night |
| Minimum Illumination |
While Infrared LED ON "0" lux |
| Gain Control |
Auto |
| Backlight Compensation |
Auto |
| Night Vision |
|
| Night Vision Distance |
Up to 20M / 65ft. |
| Number of Infra-Red LED |
24 pcs |
| Infra-Red Wavelength |
850 mm |
| Infra-Red LED Life |
10,000 hrs |
| General |
|
| Indoor / Outdoor |
Weatherproof(Both) |
| Operating Temperature |
-10 ~ 50C (14F~122F) |
| Storage Temperature |
-20 ~ 70C (-4F~158F) |
| Camera Dimension |
L179xW65xH63 |
| Body Construction |
Aluminum |
|
|
|
|
04/12
|
KGuard EL1621-8HW212B Easy Link 16 Channel 960x480 DVR + 8x600TVL Cameras 1TB
Easy Link Series Combo Kit: EL1621-8HW212B
The most important function of Easy Link Series can let customers easily connect to the internet. No network setup is required. Just plug your cable into your DVR and connect your internet without any setup. You can download KGUARDs free app that supports smartphones and tablets and use the device to scan the QR code on your DVR. One the scan is complete, you can use your device to watch live right away without limitation. The product also includes 960H resolution, cloud service and high resolution cameras. Customers can use the product to secure their home and business easily.
In addition, another advantage of the EL Combo kits is four/eight high resolution cameras. New cameras use 600 TVL high resolution with our Kguard Fulcolor image sensor to provide you with high quality color images. The 3.6mm fixed lens with a 75 degree viewing angle helps you monitor particular areas, such as yards or warehouses. They have powerful night vision with a range of up to 65ft/20m in total darkness and have waterproof cases to protect the camera and survive rainy days.
Features:
- H.264 compression latest recording technology
- HD recording resolution quality is better than D1
- Full HD output with 1080P display standard for connection to HDTV
- Easy to set up network without difficult configuration
- Exclusive DVR to connect Cloud Service and you have a personal space
- Advanced motion schedule can manage email alerts easily
- Free "kview" allows remote monitoring on your smartphones and tablets
- KGUARD Fulcolor to provide excellent colorful images
- Using 3.6mm fixed lens with 75 degrees viewing angle to monitor particular areas
- 600 TVL high resolution to make video clearer
- Night vision up to 20m/65ft in total darkness
- Waterproof case to protect the camera and survive rainy days
Specifications:
EL1621-8HW212B Specifications
|
|
Model No.
|
EL1621 |
| No. of Channel |
16 Channels |
Cloud
|
|
| Cloud Storage |
Yes |
| Storage Mode |
Schedule / Motion Detection |
Video
|
|
| Video Format |
NTSC / PAL |
| Video Input |
16 BNC Inputs |
| Video Output |
1 VGA, 1 BNC, 1 HDMI Outputs |
| Video Output Resolution |
"VGA: 800x600, 1024x768, 1280x1024, 1440x900, 1920x1080 HDMI: 1080p" |
Audio
|
|
| Audio Input |
4 RCA Inputs |
| Audio Output |
1 RCA Output |
Recording
|
|
| Video Compression |
H.264 |
| Recording Frame Rate D1 NTSC |
480fps@CIF (360240), 240fps@HD1 (720x240), 240fps@D1 (720x480) |
| PAL |
400fps@CIF (360288), 192fps@HD1 (720x288), 192fps@D1 (720x576) |
| 960H NTSC |
480fps@WCIF (480240), 176fps@WHD1 (960240), 176fps@WD1 (960480) |
| PAL |
400fps@WCIF (480288), 144fps@WHD1 (960288), 144fps@WD1 (960576) |
| Recording Mode |
Always / Manual / Motion Detection / Schedule / Sensor / Alarm |
| HDD Interface |
1 SATA |
| HDD Support |
Up to 2TB |
Network
|
|
| Plug & Play |
Yes |
| Network Interface |
RJ45, 10M/100M |
| Network Type |
DHCP, PPPoE, Static IP |
Playback
|
|
| Local Playback |
Max. 16 Channels Simultaneously |
| Playback Search |
Date & Time / Event List / Time Bar |
| Playback Mode |
Play, Fast Forward, Fast Rewind, Slow Motion, Zoom |
General
|
|
| PTZ Control |
RS485 Built-In, supports PELCO-P & PELCO-D |
| Sensor & Alarm I/O Port |
Yes |
| IR Extender Port |
Yes |
| Backup Method |
HDD, USB, Network |
| Power Supply |
12V/5A |
| Operating Temperature (W/O HDD) |
-10 to 50 ( 14F to 122F ) |
| Storage Temperature |
-20 to 70 ( -4F to 158F ) |
| Dimension (LxWxH) in mm |
300x220x50 |
CCTV Camera Specifications
|
|
Video
|
|
| Image Sensor |
KGUARD Fulcolor |
| Horizontal Resolution |
600 TVL |
| Electronics Shutter |
NTSC 1/60-1/100,000(sec) |
| |
PAL 1/50-1/100,000(sec) |
| Lens |
3.6mm Fixed |
| Viewing Angle |
75 Degrees |
| Video Output |
1.0VP-P, 75 |
| S/N Ratio |
More than 48dBAGC OFF |
| Day / Night Mode |
Color during day / switches to B&W at night |
| Minimum Illumination |
While Infrared LED on "0" lux |
| Gain Control |
Auto |
| Backlight Compensation |
Auto |
Night Vision
|
|
| Night Vision Distance |
20m / 65ft |
| Illumination |
Mini Infrared Array |
| Infra-Red Wavelength |
850nm |
| Infra-Red LED Life |
10,000hrs |
General
|
|
| Indoor / Outdoor |
Weatherproof (Both) |
| Operating Temperature |
-10~50C / 14~122F |
| Storage Temperature |
-20~70C / -4~158F |
| Body Construction |
Aluminum |
| "Dimensions - Camera with Stand (WxDxH)" |
68x58x153mm |
| Weight - Camera with Stand |
240g / 0.53lbs |
Package Contents
- EL1621 DVR
- Power Adapter
- HDMI Cable
- Remote Control
- USB Mouse
- Software CD
- Quick Guide
- Ethernet Cable
- Camera
- Slim Cable
- 4-Way Split Power Cable
- Power Adapter
|
|
|
|
04/12
|
KGuard TC401-4FW426AF Touch Cloud 4 Channel Cloud DVR + 4x480TVL CMOS Cameras
Touching Cloud Series: TC401- 4FW426AF
Traditional security systems are great for deterring thieves, except of course if they steal the actual video recorder and with it all of your evidence! KGUARDs new Touching Cloud (TC) series combines trusted surveillance functions along with their essential cloud backup service. The system uploads a snapshot to your personal online backup space every few seconds, meaning you no longer need to worry about your recorder being stolen because your images are safe through the power of the internet.
Those images will be ready to enter into evidence thanks to the four included high resolution cameras, each supporting 480 TVL with KGUARDs Fulcolor image sensors to provide you with high quality colour images. The 6mm fixed lens with 40-degree viewing angle helps you monitor particular areas, such as yards or warehouses. They have powerful night vision for up to 10-metres in total darkness and waterproof cases to protect the camera and survive rainy days.
KGUARDs Touching Cloud series shares advantages with their previous combo kits, featuring an All-in-One DIY setup including all devices and accessories required to install a complete surveillance system included in one box. KGUARD also offers free KView Series remote viewing software, suitable for use on PCs and Macs as well as Android and iOS smartphones and tablets.
Features:
- Quick Do-It-Yourself installation
- 4 Channels & H.264 compression latest recording technology
- Exclusive DVR to connect Cloud Service and you have a personal space
- Pre-recording feature allows additional images to be captured prior to the motion detected event
- Free Kview series allows remote monitoring and control on your smartphones and tablets
- KGUARD Fulcolor to provide excellent colorful images
- Using 6mm fixed lens with 40 degrees viewing angle to monitor particular areas
- 480 TVL high resolution to make video clearer
- Night vision up to 10m / 33ft in total darkness
- Waterproof case to protect the camera and survive rainy days
Specifications:
TC401-FW426AF Specifications
|
|
| Model No. |
TC401-4FW426AF |
| Product Name |
4CH Cloud DVR with 4 X 480TVL Cameras |
Standalone DVR Specifications
|
|
| Model |
TC401 |
Cloud
|
|
| Cloud Storage |
Yes |
| Storage Mode |
Schedule / Motion Detection |
Video
|
|
| Video Format |
NTSC / PAL |
| Video Input |
4 BNC inputs |
| Video Output |
1 VGA output, 1 BNC output |
| Display Frame Rate |
NTSC: 120 fps / PAL: 100 fps |
Audio
|
|
| Audio Input |
4 RCA inputs |
| Audio Output |
1 RCA output |
Recording
|
|
| Video Compression |
H.264 |
| Recording Resolution |
NTSC: CIF(352x240), HD1(704x240), D1(704x480) |
| |
PAL: CIF(352x288), HD1(704x288), D1(704x576) |
| Recording Frame Rate |
NTSC: 120fps@CIF, 120fps@HD1, 120fps@D1 |
| |
PAL: 100fps@CIF, 100fps@HD1, 100fps@D1 |
| Recording Mode |
Always / Schedule / Motion detection / Remote Recording |
| Recording Pack Time |
15 / 30 / 45 / 60mins |
| HDD Interface |
SATA (supports up to 2TB) |
Network
|
|
| Network Interface |
RJ45, 10M/100M |
| Network Protocol |
TCP/IP, DHCP, DDNS, PPPoE |
Playback
|
|
| Local Playback |
4 channels simultaneously |
| Playback Search |
Date / Time / File list |
| Playback Mode |
PLAY / FWD / Fast / Rewind / Frame by Frame |
General
|
|
| PTZ Control |
RS485 built-in, supports PELCO-P & PELCO-D |
| Alarm Mode |
Motion Detection / Video Loss / HDD Loss / HDD Full |
| Backup Method |
USB flash disk / USB HDD disk / Network |
| Power Supply |
DC 12V/2A |
| Operating Temperature (W/O HDD) |
-10 to 50 ( 14F to 122F ) |
| Dimension (WxDxH) |
274*214.5*45mm |
| |
|
CCTV Camera Specifications
|
|
| Model No. |
FW426AF |
Video
|
|
| Image Sensor |
1/4" CMOS with IR Cut Filter |
| Horizontal Resolution |
480 TVL |
| Effective pixels |
648(H) x 488(V) |
| Electronics Shutter |
NTSC 1/60-1/100,000(sec) |
| |
PAL 1/50-1/100,000(sec) |
| Lens |
6mm Fixed |
| Viewing Angle |
40 Degrees |
| Video Output |
1.0VP-P, 75 |
| S/N Ratio |
More than 48dBAGC OFF |
| Day / Night Mode |
Color during day / switches to B&W at night |
| Minimum Illumination |
While Infrared LED on "0" lux |
| Gain Control |
Auto |
| Backlight Compensation |
Auto |
Night Vision
|
|
| Night Vision Distance |
10m / 33ft |
| Illumination |
Infrared LED |
| Infra-Red Wavelength |
850nm |
| Infra-Red LED Life |
10,000hrs |
General
|
|
| Indoor / Outdoor |
Weatherproof (Both) |
| Operating Temperature |
-10~50C / 14~122F |
| Storage Temperature |
-20~70C / -4~158F |
| Body Construction |
Aluminum |
| "Dimensions - Camera with Stand (WxDxH)" |
95x58x138mm |
| Weight - Camera with Stand |
295g / 0.65lbs |
Package Contents:
- TC401 DVR
- Power Adapter
- Remote Control
- USB Mouse
- Software CD
- Quick Guide
- Camera
- Slim Cable
- 4-Way Split Power Cable
- Warranty Card
|
|
|
|
04/12
|

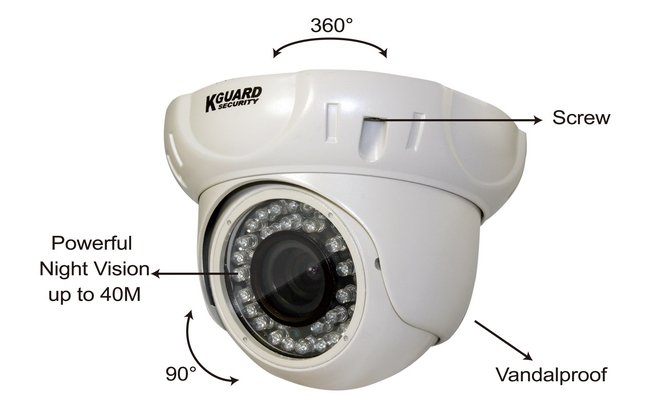

KGuard KGUARD VD405E 700TVL Outdoor Waterproof Camera - 1/3 Colour CCD Image Sensor, Infrared LED, 40m Powerful Night Vision, Digital Wide Dynamic Range, 4~9mm Variable-Focal Lens withe 35~70 Degrees Focus Outdoor Camera: VD405E
VD405E Camera not only has 700 TVL super high resolution with D-WDR to give you excellent video quality and eliminate shadows. but it also includes in Vari-focal lens to zoom and focus on the object or large areas.
VD405E Features:
- 1/3" 960H CCD image sensor to provide you excellent colorful image
- 700 TVL super high resolution to give you excellent video quality
- 4~9mm Vari-Focal Lens with 35 ~ 70 Degrees to focus on particular areas.
- Digital Wide Dynamic Range to eliminate shadows
- Waterproof case to protect the camera and survive rainy days
- Housed in a Rugged Vandal Resistant Enclosure
- Powerful night vision distance up to 131ft/40M in total darkness
VD405E Specification
Camera Kit-VD405E Specifications
|
|
| Model Name |
VD405E |
Video
|
|
| Image Sensor |
1/3" 960H Color CCD |
| Effective pixels |
NTSC 976(H) x 494(V) |
| |
PAL 976(H) x 582(V) |
| Electronics Shutter |
NTSC 1/60-1/100,000(sec) |
| |
PAL 1/50-1/100,000(sec) |
| Horizontal Resolution |
700 TV Lines |
| Lens |
4~9mm Vari-focal |
| Viewing Angle |
35~70 Degrees |
| Video Output |
1.0VP-P,75 |
| S/N Ratio |
More than 52dBAGC OFF |
| Day / Night Mode |
Color during day / switches to B&W at night |
| Minimum Illumination |
While Infrared LED ON "0" lux |
| Gain Control |
Auto |
| Backlight Compensation |
Auto
|
Night Vision
|
|
| Night Vision Distance |
Up to 40m/131ft |
| Illumination |
Infrared LED |
| Infra-Red Wavelength |
850nm |
| Infra-Red LED Life |
10,000hrs
|
General
|
|
| D-WDR |
Yes |
| Indoor / Outdoor |
Weatherproof (Both) |
| Operating Temperature |
-10~50C / 14~122F |
| Storage Temperature |
-20~70C / -4~158F |
| Camera Dimension |
140x140x105mm / 5.5x5.5x4.1" |
| Body Construction |
Aluminum |
| Weight - Camera with Stand |
655g / 1.44lbs |
VD405E Package:
- VD405E Camera
- DC 12V Power Adapter
- Slim Type Video & Power Cable (18m / 60ft) 24AWG
- Quick Installation Guide
- Position Gasket Sticker
- Screw Kit
- Warranty Card
|
|
|
|
04/12
|
Sekonic JQ7D RT-32CTL Transmitter ModuleJQ7D RT-32CTL Transmitter Module
|
|
|
|
04/12
|
Sekonic 478VF 5-Degree Viewfinder - For L478DR/D478VF 5-Degree Viewfinder - For L478DR/D
|
|
|
|
Previous Page
|
Next Page
|
|
