28/08
|
Edimax ND-233E Varifocal PoE True Day & Night Dome Network Camera - 5 Megapixel CMOS Sensor, 2-Way Audio, Night Vision With Built-In IR LED (Up to 20M) & Varifocal 3-9mm Lens, Auto Iris, PoE - White ND-233E
3Mpx Varifocal PoE True Day & Night Dome Network Camera
- 5megapixel CMOS sensor
- Night vision with built-in IR LED (up to 20 meters) & varifocal 3-9mm lens, auto iris
- QXGA resolution at 20fps, 1080p resolution (full HD) at real-time 30fps
- H.264, MPEG-4 & M-JPEG multi-stream output
- 3 axis mechanical design for ceiling and wall mount installation
- Supports IEEE802.3af Power over Ethernet (PoE) standard.
- Simultaneous live monitoring and high resolution recording
- Comprehensive I/O ports: audio in, audio out, DI, DO, RS485, RJ45
- 3GPP mobile application
Overview
Description
The Edimax ND-233E is a 3 megapixel fixed dome network camera. It has a 3-axis mechanical design for ceiling and wall mount installation. The ND-233E records 2048 x 1536 resolution videos at 20 frames per second. The high resolution and frame rate allow the user to capture detailed videos across an area several times larger than conventional network cameras.
High Quality Videos with Small File Sizes
With H.264 video compression technology, the ND-233E is capable of recording videos at high resolution and clarity, while at the same time keeping file sizes small. This allows for optimized network bandwidth and storage efficiency. The ND-233E also comes with a Micro SD/SDHC memory card slot for local storage, in the event of network transmission interruption.
Night Vision
The ND-233E is equipped with 12 built-in IR LEDs providing night vision capability up to a range of 20 meters, meaning the ND-233E can record crisp, clear videos and images even in low light situations.
Power over Ethernet
The Edimax ND-233E model complies with the IEEE 802.3af Power over Ethernet standard, allowing power and data transmission over a single Ethernet cable and eliminating the hassle of installing an additional power cable and adapter.
Free 32-Channel Viewer Software and Remote Viewing
The ND-233E comes with EdiView32 software - a 32-channel viewing, recording and management program that allows for simultaneous live monitoring and high-resolution video recording. Additionally, with the Edisecurity Smartphone Viewer application, users will be able to see images from the ND-233E from anywhere in the world with an Internet connection.

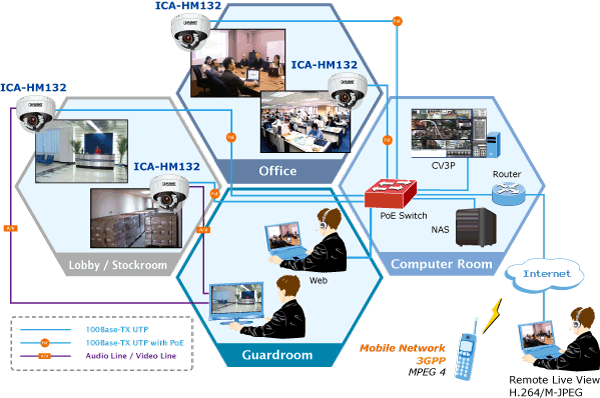

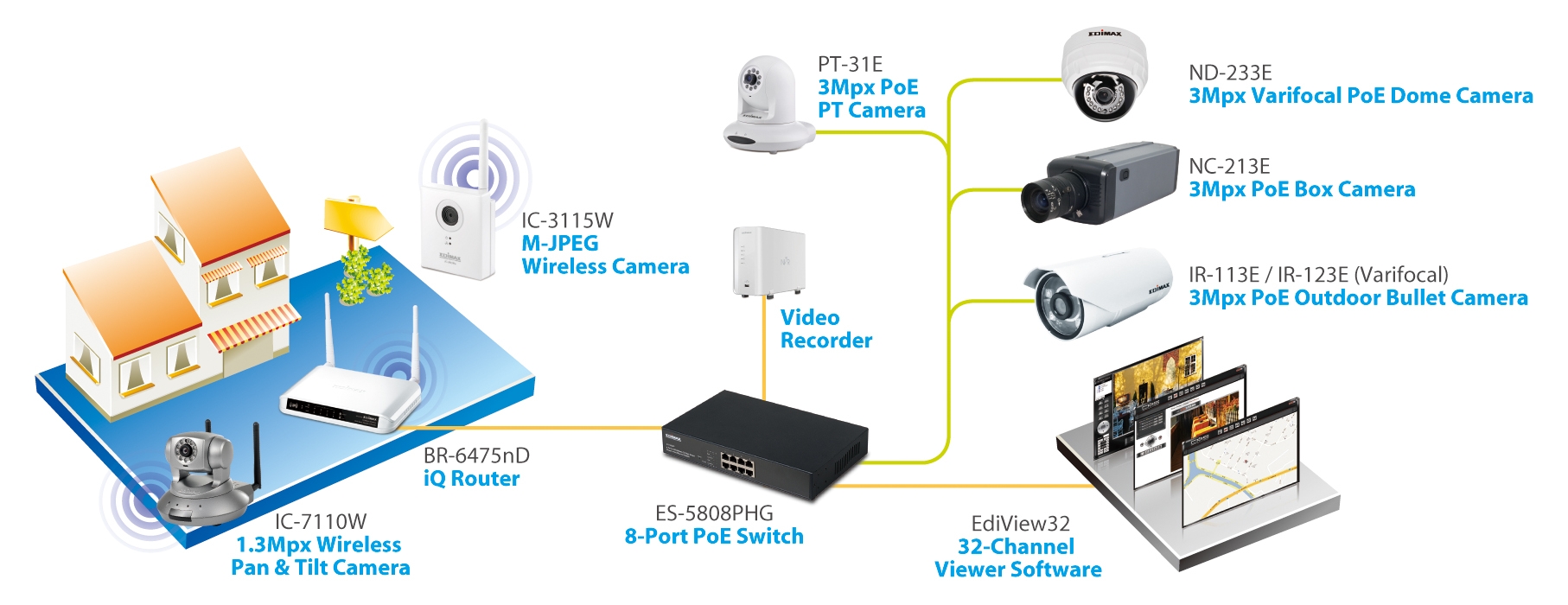

IP SURVEILLANCE APPLICATIONS
Specifications
|
Image Sensor
|
Type
|
1/2.5" CMOS
|
|
Lens
|
Focal Length / F-Number
|
Vari-focal Lens, f = 3.0-9.0mm, F1.2-2.3, Auto Iris
|
|
Day Night Operation / IR Distance
|
Mechanical ICR , IR 20 Meters
|
|
Min. Illumination
|
1 Lux at F1.2
|
|
Video Compression
|
H.264 / MPEG-4 / M-JPEG
|
|
Max Resolution
|
QXGA (2048 x1536) @ 20 FPS
|
|
Special Features
|
Event Trigger
|
Motion Detection, Alarm, Schedule
|
|
Digital In / Out Points
|
2 In / 1 Out
|
|
Digital Zoom
|
10x
|
|
RS-485 Support
|
Yes
|
|
Smartphone Monitoring
|
Free iPhone, Android App
|
|
WDR Support
|
-
|
|
Storage
|
1 Micro SD Card Slot, up to 32GB
|
|
Audio Interface
|
1 In / 1 Out
|
|
Network
|
10BASE-T / 100BASE-TX
|
|
Power Supply
|
DC 12V / AC 24V / PoE (IEEE 802.3af)
|
|
Operating Temperature
|
0C - 50C
|
|
Dimensions (mm)
|
137.5(D) x 123.5(H)
|
|
Weigh (g)
|
560
|
|
Weather-proof
|
-
|
|
Vandal-proof
|
-
|
|
Certification (EMI, IP, RoHS)
|
CE / FCC / RoHS
|
|
ONVIF Support
|
v 1.02
|
Package Contents
- 1 x Network camera
- 1 x Power adapter
- 1 x Tools package
- 1 x CD with utility software and user manual
- 1 x Quick installation guide
|
|
|
|
28/08
|
Edimax NC-213E PoE True Day & Night Box Network Camera - 5 Megapixel CMOS Sensor, 2-Way Audio Support, Multi-Area Motion Detection, QXGA Resolution @ 20fps, SD/SDHC Memory Card Slot, H.264 NC-213E
3Mpx PoE True Day & Nbight Box Network Camera
- True day and night support
- 5 megapixel CMOS sensor
- QXGA resolution at 20fps
- H.264, MPEG-4 & M-JPEG multi-stream output
- Simultaneous live monitoring and high resolution recording
- IEEE 802.3af Power over Ethernet support
- SD/SDHC memory card slot for local storage
- Multi-area motion detection
- 2-way audio support
- 3GPP mobile surveillance support
- RS-485 communication support
- ONVIF compliant
Overview
The Edimax NC-213E is an ONVIF compliant true day and night network camera with QXGA (2048 x 1536) video resolution at 20fps, which allow you to capture detailed videos in daylight or at night. With Edimaxs superior H.264 video compression technology, the NC-213E can create high quality videos with small file sizes, allowing for optimized network bandwidth efficiency.
The NC-213E comes with EdiView32 software - a 32-channel viewing, recording and management program that allows for simultaneous live monitoring and high-resolution video recording. Additionally, with the Edisecurity Smartphone Viewer application users will be able to see images from the NC-213E from any Internet connection, anywhere in the world.
The Edimax NC-213E is built to produce high quality 3 megapixel videos that capture every detail in a monitored area. You can set the camera to record Full HD 1080p (1920 x 1080) videos at 30 frames per second, or even QXGA (2048 x 1536) videos at 20 frames per second. It offers true day and night functionality to capture clear videos 24 hours a day, and the built-in SD/SDHC card slot allows for local data storage in the case of a network disconnection.
The NC-213E complies with the IEEE 802.3af Power over Ethernet standard, which enables power and data transmission over a single Ethernet cable and eliminates the hassle of needing to install an additional power adapter.
IP SURVEILLANCE APPLICATIONS
Specifications
|
Image Sensor
|
Type
|
1/2.5" CMOS
|
|
Lens
|
Focal Length / F-Number
|
C Mount Fixed Lens, f = 6.0, F1.4
|
|
DC-Iris
|
DC-Iris Support
|
|
Day Night Operation / IR Distance
|
Mechanical ICR
|
|
Min. Illumination
|
1 Lux at F1.2
|
|
Video Compression
|
H.264 / MPEG-4 / M-JPEG
|
|
Max Resolution
|
QXGA (2048 x1536) @ 20 FPS
|
|
Special Features
|
Event Trigger
|
Motion Detection, Alarm, Schedule
|
|
Digital In / Out Points
|
2 In / 1 Out
|
|
Digital Zoom
|
10x
|
|
RS-485 Support
|
Yes
|
|
Smartphone Monitoring
|
Free iPhone, Android App
|
|
WDR Support
|
-
|
|
Storage
|
1 SD/SDHC Card Slot, up to 32GB
|
|
Audio Interface
|
1 Built-In Microphone / 1 In / 1 Out
|
|
Network
|
10BASE-T / 100BASE-TX
|
|
Power Supply
|
DC 12V / AC 24V / PoE (IEEE 802.3af)
|
|
Operating Temperature
|
0C - 50C
|
|
Dimensions (mm)
|
131(D) x 72.2(W) x 206.7(H)
|
|
Weigh (g)
|
390
|
|
Weather-proof
|
-
|
|
Vandal-proof
|
-
|
|
Certification (EMI, IP, RoHS)
|
CE / FCC / RoHS
|
|
ONVIF Support
|
v 1.02
|
Package Contents
- 1 x Network camera
- 1 x Power adapter
- 1 x CD (with utility software, user manual & multilanguage QIG)
- 1 x Quick installation guide
- 1 x Mounting Kit
|
|
|
|
28/08
|
Edimax IR-113E Outdoor PoE True Day & Night Network Camera - 5 Megapixel CMOS Sensor, Night Vision With Built-In IR LED (Up to 25m), 20FPS, 1080P Resolution FullHD @ Real-Time 30FPS, IP66 Weather-Proof, PoE IR-113E
3Mpx Outdoor PoE True Day & Night Network Camera
- 5 megapixel CMOS sensor
- Night vision with built-in IR LED (up to 25m)
- QXGA resolution at 20fps, 1080p resolution (full HD) at real-time 30fps
- H.264, MPEG-4 & M-JPEG multi-stream output
- Support IEEE 802.3af Power over Ethernet (PoE) standard
- Simultaneous live monitoring and high resolution recording
- Comprehensive I/O ports: audio in, audio out, video out, DI, DO, RS485, RJ45 and SD/SDHC
- IP66 weather-proof construction
Overview
Overview
The Edimax IR-113E is an ONVIF compliant true day and night network camera with QXGA (2048 x 1536) video resolution at 20fps, which allow you to capture detailed videos in daylight or at night. With Edimaxs superior H.264 video compression technology, the IR-113E can create high quality videos with small file sizes, allowing for optimized network bandwidth efficiency. It complies with the IEEE 802.3af Power over Ethernet standard, which enables power and data transmission over a single Ethernet cable and eliminates the hassle of needing to install an additional power adapter. Additionally, the IR-113E is housed in an IP66 enclosure, making it perfect for outdoor surveillance applications..
High Quality Videos with Small File Sizes
With H.264 video compression technology, the IR-113E is capable of recording videos at high resolution and clarity while at the same time keeping file sizes small. This allows for optimized network bandwidth and storage efficiency. The IR-113E also comes with a SD/SDHC slot memory card slot for local storage, in the event of network transmission interruption.
Night Vision
The IR-113E is equipped with built-in IR LEDs with mechanical ICR, providing night vision capability up to a range of 25 meters. The IR-113E can record crisp, clear videos and images even in low light situations.
Power over Ethernet
The Edimax IR-113E model complies with the IEEE 802.3af Power over Ethernet standard, allowing power and data transmission over a single Ethernet cable and eliminating the hassle of installing an additional power cable and adapter.
Free 32-Channel Viewer Software and Remote Viewing
The IR-113E comes with EdiView32 software - a 32-channel viewing, recording and management program that allows for simultaneous live monitoring and high-resolution video recording. Additionally, with the Edisecurity Smartphone Viewer application users will be able to see images from the IR-113E from any Internet connection, anywhere in the world.
IP SURVEILLANCE APPLICATIONS
Specifications
|
Image Sensor
|
Type
|
1/2.5" CMOS
|
|
Lens
|
Focal Length / F-Number
|
Fixed Lens, f = 6.0, F1.8
|
|
Day Night Operation / IR Distance
|
Mechanical ICR, IR 25 Meters
|
|
Min. Illumination
|
1 Lux at F1.2
|
|
Video Compression
|
H.264 / MPEG-4 / M-JPEG
|
|
Max Resolution
|
QXGA (2048 x1536) @ 20 FPS
|
|
Special Features
|
Event Trigger
|
Motion Detection, Alarm, Schedule
|
|
Digital In / Out Points
|
1 In / 1 Out
|
|
Digital Zoom
|
10x
|
|
RS-485 Support
|
Yes
|
|
Smartphone Monitoring
|
Free iPhone, Android App
|
|
WDR Support
|
-
|
|
Storage
|
1 SD/SDHC Card Slot, up to 32GB
|
|
Audio Interface
|
1 In / 1 Out
|
|
Network
|
10BASE-T / 100BASE-TX
|
|
Power Supply
|
DC 12V / PoE (IEEE 802.3af)
|
|
Operating Temperature
|
-20C - 50C
|
|
Dimensions (mm)
|
81.6(D) x 206.7(L)
|
|
Weigh (g)
|
980
|
|
Weather-proof
|
IP66
|
|
Vandal-proof
|
-
|
|
Certification (EMI, IP, RoHS)
|
CE / FCC / RoHS
|
|
ONVIF Support
|
v 1.02
|
Package Contents
- 1 x Network camera
- 1 x Power adapter
- 1 x Sun shield
- 2 x Screw
- 1 x CD (with utility software, user manual & multi-language QIG)
- 1 x Quick installation guide
- 1 x Bracket
|
|
|
|
28/08
|
YODN Replacement Lamp - To Suit Toshiba TDP-PX10U ProjectorReplacement Lamp - To Suit Toshiba TDP-PX10U Projector
|
|
|
|
28/08
|
Planet ICA-HM351 35M IR Outdoor Box PoE IP Camera - 1/2.7" Progressive CMOS, 2-Way Audio Supported With External Speaker & Mic, Built-In IR LED, Visible Distance Up to 35M, 10 Motion Detection, 1xRJ45 ICA-HM351
2 Mega-Pixel 35M IR Outdoor Box PoE IP Camera
Overview
PLANET announces new generation 2 Mega-Pixel series IP Camera, the ICA-HM351, to bring users high resolution surveillance both at day and night in outdoor. The ICA-HM351, the 2 Mega-Pixel (1920 x 1080) 35 meters IR Outdoor PoE IP Camera, supports the highest video compression H.264, which provides small video size and save you lots of bandwidth usage. The new video compression is the best solution for Internet video transmission.
Multi Profiles Streaming
The Multi-Profile Streaming function supported enables the ICA-HM351 to generate H.264, MPEG-4 and M-JPEG streaming simultaneously to differentiate users in different resolutions and frame rates. This state-of-the-art design is considerable to fit in various network environments.
2-Way Audio
The ICA-HM351 provides 2-Way audio function for surveillance. It can remotely talk to anyone at the ICA-HM351 site with additional speaker connected to the camera. Via two ICA-HM351, users can easily communicate to each other for surveillance control.
PoE Makes Installation Conveniently Anywhere
Compliant with IEEE 802.3af PoE standard, the ICA-HM351 can be located in any place where there is no power outlet available. Through Power over Ethernet, the installers are fearless for the power breakdown at the remote site because the network devices can be powered from the central station where UPS is installed.
Day & Night Operations
The ICA-HM351 features zero-lux illumination. Its 35 IR illuminators built around the lens bring the clearest vision at night. Through the new LED technology, the illuminator ensures high-quality monochrome images in complete darkness up to 35 meters.
Weather Proof / Built-in Fan and Heater
The ICA-HM351 infrared Internet camera performs reliable operation in any environment. With the Aluminum rugged all-weather housing enclosure, the ICA_HM351 maintains the reliable operation in any environment. Moreover, it has built-in fan and heater to prevent the machine overheated or sub cooling.
ONVIF Certified / Professional Software
The ICA-HM351 follows the ONVIF v1.01 and v1.02 standard SDK for users to integrate with the third party software. The ICA-HM351 can also work with PLANET Cam Viewer 3 Lite / Pro Management software and Network Video Recorder products for video surveillance application and provides monitoring, recording and event management functions to secure your property and life.

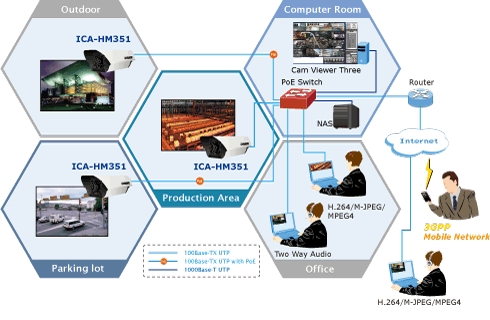

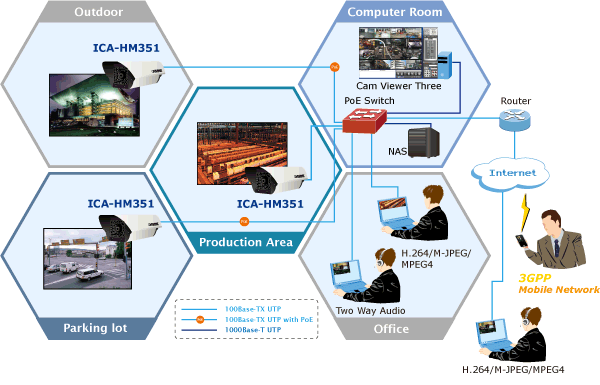

Application
PLANET ICA-HM351 is providing integrated surveillance applications to deliver crisp and clear images, perfect for the identification of objects and persons.
Key Features
- H.264, MPEG4 and MJPEG simultaneously (Tri-encoders)
- High Quality Full HD 1080p Resolution
- Built-in IR LED and visible distance up to 35 meters
- IR-Cut filter brings better video quality in the daytime and nighttime
- Compliant with IEEE 802.3af PoE interface
- 2-Way audio supported with external speaker and microphone
- Supports 3GPP via iPhone and Android phone for remote view
- DDNS, PPPoE and FTP uploading offers more alternatives in surveillance network
- 10 Motion Detection features can monitor any suspicious movement in a specific area
- Easy configuration and management via Windows-Based utility or web browser
- Supports ONVIF v1.0 and v1.02 / v1.01 Standard
- Industrial design with -30 to 60 Degree C operating temperature
Specifications:
| Video Specification |
| Image Sensor |
1/2.7" Progressive CMOS |
| Lens |
4mm fixed lens with Fixed Iris |
| Sensitivity |
0.5 Lux @ F1.4 |
| View Angle |
H: 66 Degree
V: 52 Degree
|
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Rate Control |
CBR (Constant Bit Rate) / VBR (Variable Bit Rate) |
| Video Resolution |
1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 90 |
| Frame Rate |
Up to 30fps for all resolutions (2M Real-time) |
| Image Control |
AE, AWB
3D Noise reduction
Color, Brightness, Sharpness, Contrast, Hue
Mirror/Flip
8 Privacy Masks
Text, time and date overlay
|
| Audio Specification |
| Audio Codec |
RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR
|
| Audio Streaming |
One-Way or Two-Way |
| Microphone (Audio Input) |
External microphone input, Phone Jack |
| Audio Output |
Adjustable audio output gain, Phone Jack |
| Network and Configuration |
| Network Interface |
1 x RJ-45 |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP |
| Browser / Software |
Microsoft Internet Explorer 6.0 or later
PLANET Cam Viewer 3 Lite/Pro
|
| Motion Detection |
10 areas definable |
| Environment Specifications |
| Power Requirement |
12V DC, 1A |
| PoE |
IEEE 802.3af (PoE is for IP cam & IR LED only, Heater & fan require external adaptor) |
| Dimension (W x D x H) |
141 x 310 x 120 mm |
| Weight |
1335 g |
| Power Consumption |
Max. 8W for camera and IR LEDs
Max. 5W for heater only
|
| Protection Class |
IP-66 classification with Weather proof |
| Operating Temperature |
-30 ~ 60 Degree C |
| Operating Humidity |
0 ~ 95% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
28/08
|
Planet ICA-HM718 18x Optical Zoom WDR IP Camera - 1/2.8" 3M Sony Progressive CMOS Sensor, H.264 & M-JPEG Dual Codec, Two-Way Audio, 30fps@Full HD 1080p, Day/Night Surveillance Switch With ICR, 1xRJ45 ICA-HM718
18x Optical Zoom WDR IP Camera
Overview
The PLANET ICA-HM718 is a box type CCTV camera featuring 18x Optical Zoom and a wide dynamic range (WDR) sensor. It supports dual H.264 / M-JPEG stream video up to Full HD 1080p (1920 x 1080 pixels) and D1 resolution simultaneously. The equipped 18x optical zoom lens is with auto focus and auto iris, so that users can adjust the image to have a super wide angle or zoom in close on specific areas for better surveillance. This wide dynamic range camera adjusts automatically for bright and dark areas and eliminates the effect of overexposure and under exposure conditions.
Crystal Clear Images in Day & Night
The ICA-HM718 offers high flexibility to be applied in various kinds of IP surveillance environment as it has built-in ICR (IR-cut Filter removable) capable of supporting low light surveillance as low as 0.02 LUX illumination in both day and night. The ICA-HM718 also applies the 3D noise reduction technology so environmental noise is removed to provide crystal clear video. Moreover, the camera will automatically switch from colorful surveillance to black and white at night or when the light becomes dark in order to provide optimal image quality at all times.
Flexible Installations
The ICA-HM718 is compatible with IEEE 802.3af PoE (Power over Ethernet) for easy installation without concerning the electric outlet / socket locations. It supports Two-Way audio that can directly make audio communication between local and remote sites by using the external microphone and speaker. Users can further build a more advanced security system by connecting external sensors or alarm to DI / DO ports of the ICA-HM718.
Full Featured Central Management
PLANET ICA-HM718 is the perfect solution for surveillance application in the stores, office or other indoor environment. The ICA-HM718 is also able to perform surveillance in outdoor when installed with the outdoor protection case ICA-BOX30. The ICA-HM718 can be managed by PLANET Cam Viewer 3 IP-Surveillance management software (CV3) or PLANET Network Video Recorder (NVR) that provides central monitoring, recording and event management functions for your surveillance system and helps to effectively to protect your property and life.
Features
- H.264 and M-JPEG dual codec
- 18x Optical, 8x Digital Zoom
- High quality Full HD 1080p Resolution
- 30fps at Full HD 1080p and all resolution
- Day / Night surveillance switch with ICR (IR-cut Filter removable)
- Slot for Micro SD card storage
- Compliant with IEEE 802.3af Power over Ethernet standard
- IPv6 support
- ONVIF Compliance
- External I /O trigger for various surveillance applications
- Two-Way Audio communication with external microphone and speaker
- Motion Detection feature can monitor any suspicious movement in specific area
- DDNS and FTP uploading provide more alternatives in surveillance network
- Easy configuration and management via Windows-Based utility or web interface
Specifications:
| Model |
ICA-HM718 |
| Video Specification |
| Image Sensor |
1/2.8" 3M Sony Progressive CMOS Sensor |
| Lens |
4.7 ~ 84.6.5mm Optical 18x lens with
auto iris, auto focus and IR cut filter / F=1.6 (Wide), F-2.0 (Tele) |
| Minimum illumination |
Color : 0.2lux @ F1.6
B/W : 0.02lux @ F1.6 |
| Video Resolution |
H.264 / M-JPEG
Full HD 1080p/HD 720p/XGA/SVGA/D1/VGA/CIF |
| Frame Rate |
30fps for all resolutions |
| Shutter Speed |
1 ~ 1/10000 sec |
| White Balance |
Manual / ATW / Auto |
| View Angle (Horizontal / Vertical) |
H3.3 ~ 61.5 Degree
V1.86 ~ 37 Degree |
| Scan Method |
Progressive |
| Video Encoder |
H.264 / M-JPEG |
| Rate Control |
VBR (Variable Bit Rate) / CBR |
| Image Setting |
Brightness, Exposure, Sharpness, Contrast, White Balance, Saturation, Hue
Digital Zoom, WDR, 3D Noise Reduction |
| ICR |
Auto, On, Off |
| Audio Specification |
| Audio Codec |
G.711, G.726 |
| Audio I/O |
MIC in, Line out |
| Audio Streaming |
One-Way and Two-Way |
| Network and Configuration |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
IPv4 / IPv6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, QoS, ONVIF |
| Users |
20 |
| Security |
HTTPS, IP Filter, IEEE 802.1X |
| Interface Specifications |
| Network |
1 x RJ-45 10/100 Base-TX |
| Storage Interface |
Micro-SD, SDHC support |
| Video Out |
1 x BNC video output (1.0 Vp-p / 75 , BNC) |
| Audio Out |
1 x Line Out (phone jack, 3.5 mm) |
| Audio In |
1 x Mic In (phone jack, 3.5 mm)) |
| Alarm |
4 pins terminal block, pitch 3.5mm |
| System Integrate |
| Application Programming Interface |
Open API for software integration and SDK |
| Digital Input |
1 x Digital Input (5V 10k pull up) |
| Digital Output |
1 x Digital Output (Photo Relay Output 300VDC/AC) |
| Alarm Triggers |
Intelligent video motion detection and external input |
| Motion Detection |
10 zone video motion detection |
| Alarm Events |
File upload via FTP, email and save to MicroSD Card |
| Event Notification |
HTTP, FTP, SMTP |
| Multiple Languages |
English, French, German, Italian, Korean, Simplified Chinese, Russian |
| Environment Specifications |
| Power Connector |
3 pins terminal block |
| Power System* |
12V DC, 1 A
AC 24V 0.6A
IEEE 802.3af (PoE) |
| Dimension (W x D x H) |
80.2 x 183.3 x 52.4 mm |
| Weight |
450g |
| Power Consumption |
6W (500mA) max |
| PoE Consumption |
6W Max |
| Operating Temperature |
0 ~ 40 Degree C |
| Operating Humidity |
10 ~ 90% (non-condensing) |
| Emission |
CE, FCC |
| Viewing System |
| OS |
Windows XP, 2000/ Vista 32/64bit , Win 7 32/64bit |
| Browser |
Microsoft Internet Explorer 7.0 or later, Chrome, Firefox, Safari |
| Software |
| Monitor/ Recording / Management |
PLANET CV3P (2-ch Cam Viewer 3 Pro Trail Version)
PLANET CV3L (64-ch Cam Viewer 3 Lite Bundle Version) |
| Search & Installation |
Planet Device Search |
|
|
|
|
28/08
|
Planet ICA-150W Wireless IP Webcam - CMOS Sensor, F2.0 Fixed Focus, Motion Detection, Built-In, And External Microphone Jack, Simultaneous Video/Audio Streaming, 1xRJ45 ICA-150W
Wireless IP Webcam
Internet Camera ICA-150W PLANET has a built-in microcomputer and high-quality CMOS sensor. It enables transmission of high quality video through a wired network, wireless or Internet.
With a CMOS image sensor and high-quality, dual encoder video in MPEG4 and MJPEG technology, the ICA-150W provides high-quality audio and video. In addition, easy-to-use webcam software controls up to 9 cameras, allows you to manage and carry out the tasks of recording and monitoring via existing network connection. ICA-150W can be integrated with web pages with images and sound live.
The motion detection in the ICA-150W can notify users when motion is detected in the monitored area via email. With the Plug-N-Watch capability of the surveillance network runs fast and easy and does not require experience.
The basic features.
- Easy to use. Plug-N-Watch capability to simplify integration with existing network environment.
- Meets surveillance systems SOHO, business and public places. PLANET ICA-150W can be used in different situations, in the library, train station or on the production floor. The camera offers an effective, flexible, convenient and reliable remote monitoring.
- Two modes MPEG4 / MJPEG. The camera supports both MPEG4 video compression and JPEG.
- Easy to set up. The network administrator can configure and manage ICA-150W via webcam software designed for Windows, through a network of 10BaseT/100BaseTX Ethernet with Auto-MDIX or 802.11g wireless. Supports TCP / IP networking, SMTP e-mail, and standard HTTP allows the use of camera ICA-150W in any IP network.
- The included recording software. You can record and makes it easier to schedule recordings.
- Simultaneous audio and video. Supports G.726 audio compression, the simultaneous streaming of video and audio through the camera software or browser.
- Rotate the image. When the unit is installed "upside down" image can be rotated, so that the display properly.
- Motion Detection. The camera can monitor the movement of the four defined areas of observation.
- DDNS. To watch images of ICA-150W via the Internet user must know the IP address of the gateway used by the camera. An easy to remember domain name makes it easy to use the camera.
Specifications:
|
Product
|
Wireless IP Webcam
|
|
Model
|
ICA-150W
|
|
Hardware Specification
|
|
Sensor
|
CMOS
|
|
Focal
|
F2.0 Fixed
|
|
LAN
|
1 x 10/100Base-TX RJ-45
|
|
Wireless Interface
|
802.11g: Modes Ad-Hoc and Infrastructure
|
|
Encryption
|
WEP 64/128 bits, WPA-PSK
|
|
Sound
|
Built-in microphone, and an additional jack for connecting an external microphone
|
|
Image (Video setting)
|
|
Image Compression
|
MPEG4 / MJPEG
|
|
Resolution and Frame Rate
|
640 x 480 (30 fps), 320 x 240 (30 fps), 160 x 128 (30fps)
|
|
Display Options
|
Timestamp. Text overlay
|
|
Network and Configuration
|
|
Types of connection
|
Static IP, DHCP
|
|
Management
|
Browser Web camera software
|
|
Operating Conditions
|
|
Operating Conditions
|
0 ~ 50 C, Humidity 10 ~ 90%
|
|
Power
|
5V DC
|
|
Certifications
|
FCC, CE
|
|
|
|
|
28/08
|
Planet ICA-HM132 H.264 20M IR Vari-Focal Dome IP Camera - 2 Megapixel CMOS Image Sensor, 2-Way Audio Supported With External Speaker & Mic, Motion Detection, Built-In IR LED, 1xRJ45 - White ICA-HM132
H.264 2 Mega-Pixel 20M IR Vari-Focal Dome IP Camera
Overview
PLANET announces new H.264 2Mega-Pixel infrared Vari-Focal Internet Camera, the ICA-HM132, for meeting the next generation demands in worldwide market. The ICA-HM132 is the indoor fixed dome Internet camera and is part of the PLANET H.264 2Mega-Pixel series. Through high performance 2Mega-Pixel CMOS sensor, the ICA-HM132 is also equipped with 2.7mm to 9mm Vari-Focal auto iris lens allowing easy installation and camera angle adjustment. The high performance chipset applied provides the UXGA images at 1600x1200 up to 15 frames per second, and 720p HD images at 1280x720 up to 30 frames per second with Multiple H.264 streams and M-JPEG/MPEG-4 streams that ensure simultaneous real time monitoring and high resolution recording at a lower bandwidth.
The ICA-HM132 features zero-lux illumination. Via the new LED technology, the 18 IR LED built around the lens and it has built-in ICR (IR-cut filter Removable), the ICA-HM132 can provide high-quality surveillance in both day and night up to 20 meters. The ICA-HM132 supports the network and analog video output interfaces for flexible viewing and recording implementations.
Compliant with IEEE 802.3af PoE interface, the ICA-HM132 can be installed in places where there are no power outlets. The ICA-HM132 is built with Store-to-NAS function, therefore it works alone and saves the video files to a NAS directly, which can save the PC resource and keep monitoring the environment with motion detection at 24/7. The ICA-HM132 includes DI/DO alarm application and SD/SDHC card support for local storage application, and supports 2-Way audio that enables audio communication between local and remote ICA-HM132 sites by using the external microphone and speaker.
The ICA-HM132 is the perfect surveillance application for the store, office or other indoor environment. It can be managed by PLANET Cam Viewer 3 IP-Surveillance management software or Network Video Recorder (NVR) for multi-camera video surveillance application that provides monitoring, recording and event management functions to secure environment and protect your property and life.
Application
PLANET ICA-HM132 is providing various surveillance applications to deliver crisp and clear images, perfect for the identification of objects and persons.
Key Features
- High resolution pictures for day and night surveillance with high quality 2Mega-Pixel CMOS image sensor
- Built-in IR LED and visible distance up to 20 meters
- IR-Cut filter brings better video quality both in the daytime and nighttime
- Supports H.264, MPEG-4 and M-JPEG video compression
- Compliant with IEEE 802.3af PoE interface
- 2-Way audio supported with external speaker and microphone
- Supports 3GPP and JAVA for remote view via iPhone and Windows mobile phone
- DDNS, PPPoE and FTP uploading offers more alternatives in surveillance network
- Motion Detection feature can monitor any suspicious movement in a specific area
- Easy configuration and management via Windows-Based utility or web browser
- SD card to save recording video and image locally
Specifications:
| Video Specification |
| Image Sensor |
2 Mega-Pixel CMOS image sensor |
| Lens |
2.7 ~ 9mm Vari-Focal lens with auto iris and IR cut filter / F=1.2 |
| Sensitivity |
1 Lux |
| View Angle |
H:101~30.4 Degree / V: 75~23 Degree / D: 127.5~38 Degree |
| IR LED |
High light IR LED x 18pcs |
| IR Wavelength |
850 nm |
| IR Distance |
20M |
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Rate Control |
CBR (Constant Bit Rate) / VBR (Variable Bit Rate) |
| Video Resolution |
H.264 UXGA / 720p / SXGA / VGA / QVGA / QCIF
M-JPEG UXGA / 720p / SXGA / VGA / QVGA
MPEG4 QCIF (Only for 3GPP)
|
| Frame Rate |
UXGA Up to 15fps
SXGA Up to 22fps
HD-720p / SVGA / VGA / QVGA / QCIF Up to 30fps
|
| Image Control |
Brightness, Sharpness, Contrast, AGC, BLC, Night Mode
Text, Time and date overlay
|
| Audio Specification |
| Audio Codec |
G.711 / AMR |
| Audio I/O |
Audio in: External Microphone
Audio out: External Speaker
|
| Audio Streaming |
One-Way or Two-Way |
| Audio Output |
RCA |
| Network and Configuration |
| Network Interface |
1 x RJ-45 |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS,
DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP
|
| Browser / Software |
Microsoft Internet Explorer 6.0 or later
PLANET Cam Viewer 3 Lite/Pro
|
| Motion Detection |
3 areas definable |
| Environment Specifications |
| Power Requirement |
12V DC, 1A
IEEE 802.3af Power over Ethernet
|
| Dimension (H x ) |
108 x 132 mm |
| Weight |
564 g (gross weight) |
| Power Consumption |
510mA max (IR LED on) |
| Operating Temperature |
0 ~ 50 Degree C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
28/08
|
Planet ICA-HM126 H.264 Full HD Box IP Camera - 1/2.7" Progressive CMOS, Supports 1080p Full-HD Resolution, 2-Way Audio Function With The External Mic & Speaker, Motion Detection, SD Card, 1xRJ45 ICA-HM126
H.264 Full HD Box IP Camera
Overview
PLANET announces new H.264 Full-HD Box IP camera, ICA-HM126, to feedback the requirements from worldwide market. The ICA-HM126 supports Full HD recording for high quality images. Integrated with the next generation video compression technology H.264, the ICA-HM126 can compress the video size to smaller one for users to transfer the Full-HD images on Internet easily and quickly.
The ICA-HM126 features Multi-Profile to provide video stream simultaneously. It can deliver clear images with dual H.264/M-JPEG stream video up to 1080p (1920 x 1080 pixels). The IP Camera uses progressive scan to perform full resolution images of moving objects without distortion, in 30 frames per second, which is perfect for critical areas surveillance such as at entrances or exits of the building where needs to be monitored in greater details. The ICA-HM126 IP camera is compatible with IEEE 802.3af PoE (Power over Ethernet) for easy installation without concerning the outlet / socket locations. Network and analog video output interfaces are equipped in the IP camera for flexible viewing and recording implementations.
The ICA-HM126 supports 2-Way audio that can directly make audio communication between local and remote sites by using the external microphone and speaker. Users can build a more advanced security system by connecting external sensors or alarm to DI / DO ports of the ICA-HM126.
The ICA-HM126 can be managed by PLANET Cam Viewer 3, the professional central management software for multi-camera video surveillance application, to provide monitoring, recording and event management functions. The Cam Viewer 3 enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM126 managed by the Cam Viewer 3, it provides an enhanced professional security environment to protect your property and life.

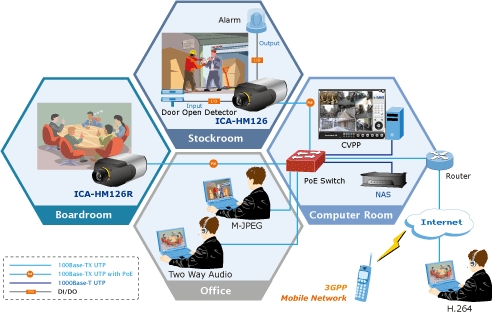

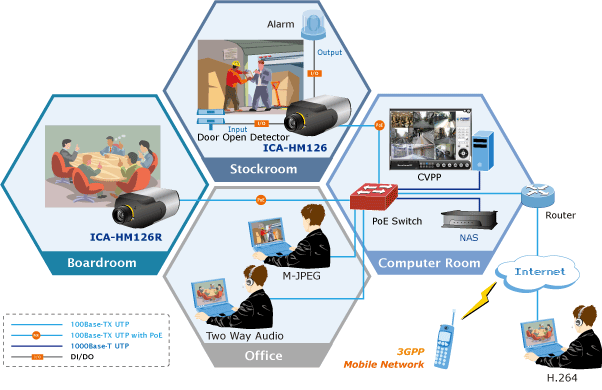

Remote monitoring for indoor application

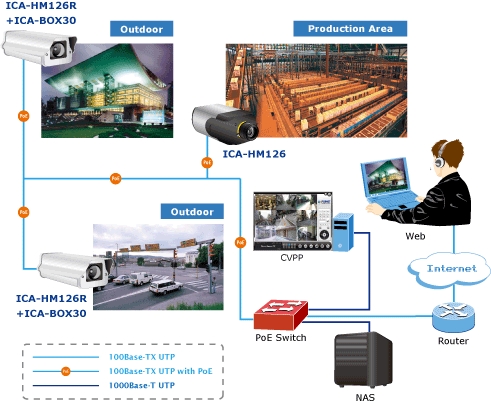

Day-and-night vision application with ICA-BOX30
Key Features
- 1/2.7" progressive CMOS
- Dual video stream : H.264 and M-JPEG video compression simultaneously
- Supports 1080p Full-HD resolution (1920 x 1080 pixels)
- Compliant with IEEE 802.3af PoE interface
- 3GPP for 3G mobile remote applications
- 2-Way audio function with the external microphone and speaker
- Supports Micro SD card storage
- External I/O trigger for various surveillance applications
- Motion Detection feature can monitor any suspicious movement in specific areas, up to 10 motion detection areas setup
- Easy configuration and management via Windows-Based utility or web interface
- DDNS, PPPoE and FTP uploading supports more alternatives in surveillance network
- Cam Viewer 3 - Central management software supported
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
Specifications
| Video Specification |
| Image Sensor |
1/2.7" Progressive CMOS |
| Lens |
Focal Length 4.0 mm, F1.5, CS mount type |
| Minimum illumination |
0.2 Lux @ F1.2 |
| Video Resolution |
H.264 1080p / 720p
M-JPEG 1080p / 720p / D1 / CIF
|
| Frame Rate |
15fps for 1080p
30fps for other resolutions
|
| Shutter Speed |
1 ~ 1/10000 sec |
| White Balance |
Manual / ATW (1500 ~ 15000K) |
| View Angle (Horizontal / Vertical) |
66 / 52 Degree |
| Scan Method |
Progressive |
| Video Encoder |
H.264 / M-JPEG |
| Rate Control |
VBR (Variable Bit Rate) |
| Image Control |
AWB, AES |
| ICR |
Auto, On, Off |
| Audio Specification |
| Audio Codec |
G.711, G.726 |
| Audio I/O |
Line in/MIC in, Line out, |
| Audio Streaming |
One-Way or Two-Way |
| Network and Configuration |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
TCP/IP, UDP, RTP, RTSP, HTTP, ICMP,FTP, SMTP, DHCP, IGMP |
| Browser / Software |
Microsoft Internet Explorer 6.0 or later, Cam Viewer Plus Lite/Pro |
| Interface Specifications |
| Network |
1 x RJ-45 10/100 Base-TX |
| Lens Mounting |
CS mount |
| Storage Interface |
Micro-SD, SDHC support |
| Video Out |
1 x BNC video output |
| Audio Out |
1 x audio output (3.5 mm) |
| Auto Iris |
1 x Auto Iris connector, DC Drive |
| Alarm |
4 pins terminal block, pitch 3.5mm |
| Environment Specifications |
| Power Requirement |
12V DC, 1 A, IEEE 802.3af |
| Dimension (W x D x H) |
82 x 125 x 52 mm |
| Weight |
360g |
| Power Consumption |
3.8W max. |
| Operating Temperature |
0 ~ 50 Degree C |
| Operating Humidity |
10 ~ 90% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
28/08
|
Planet ICA-HM100 Wired H.264 Mega-Pixel IP Camera - 1.3 Megapixel CMOS Image Sensor, 2-Way Audio With Built-In Mic & Connected Speaker, Motion Detection, Up to 10M Visible Distance At Night, 1xRJ45 - Silver ICA-HM100
Wired H.264 Mega-Pixel IP Camera
With the market trend of H.264 compression, PLANET has announced the wired Mega-pixel CMOS IR IP camera, ICA-HM100, to meet the need of the market. The ICA-HM100 with built-in high performance 1.3Mega-Pixel CMOS sensor delivers high quality image at maximum 1280 x 1024 resolutions. Integrated the next generation video compression technology H.264, the ICA-HM100 can compress the video file size to smaller one for users to transfer the Mega-Pixel image on Internet easily. The ICA-HM100 provides multi-profile function to generate H.264 / MPEG-4 and M-JPEG streaming to different users at the same time and allows up to 20 users to access the ICA-HM100 simultaneously. With this state-of-the-art design, the ICA-HM100 is considerable to fit in various network environments.
The ICA-HM100 features zero-lux illumination. There are 6 white LEDs around the lens of the ICA-HM100 to bring the clearest vision at night. The new High-Light LED provides greater performance in the dark and lasts longer life. The ICA-HM100 also provides color pictures both in the day and night with built-in CMOS sensor supporting up to 10 meters.
With Store-to-NAS function, the ICA-HM100 can work alone and save the video files to a NAS directly, which can save the PC resource and keep monitoring the environment with motion detection at 24/7. The ICA-HM100 takes surveillance using 2-Way audio. The administrator can speak to anyone at ICA-HM100 remote site with a speaker connected. Compliant with IEEE 802.3af PoE interface, the ICA-HM100 can be located in places where there are no power outlets.
The ICA-HM100 can be managed by PLANET Cam Viewer Plus, the professional central management software for multi-camera video surveillance application, to provide monitoring, recording and event management functions. The Cam Viewer Plus enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM100 managed by the Cam Viewer Plus, it provides an enhanced professional security environment to protect your property and life.
Features
- 1.3Mega-Pixel CMOS sensor built-in
- 2-Way audio with built-in microphone and connected speaker
- 6 white-light LEDs support up to 10 meters visible distance at night
- Multi-profile encoder supports H.264 / MPEG-4 and M-JPEG video compression simultaneously
- 3GPP for 3G mobile remote applications
- Plug-N-Watch simplifies system integration in existing network environment
- Store-to-NAS function saves video files without operating software
- Easy configuration and management via Windows-based utility or web interface
- DDNS, PPPoE and FTP uploading supports more alternatives in surveillance network
- Motion Detection feature can monitor any suspicious movement in specific area
- Compliant with IEEE 802.3af PoE interface
- Cam Viewer Plus - Central management software supported
Specifications
| Model |
ICA-HM100 |
| Video Specification |
| Image Sensor |
1.3 Mega-Pixel CMOS image sensor |
| Lens |
4.3 mm, F1.8 |
| View Angle (Horizontal / Vertical) |
44 / 35 Degree |
| Scan Method |
Progressive |
| Signal to Noise |
44 dB |
| LED |
6 x White-light LED |
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Rate Control |
CBR (Constant Bit Rate) / VBR (Variable Bit Rate) |
| Video Resolution |
H.264 SXGA / VGA / QVGA / QQVGA MPEG4 VGA / QVGA / QQVGA M-JPEG SXGA / VGA / QVGA / QQVGA |
| Frame Rate |
Mega-Pixel mode up to 15fps for all resolution VGA mode up to 30fps for VGA / QVGA / QQVGA |
| Image Control |
AWB, AES |
| Audio Specification |
| Audio Codec |
G.726 / AMR |
| Audio I/O |
Audio in: Internal Microphone / Audio out: External Speaker |
| Network and Configuration |
| Network Interface |
1 xRJ-45 |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
TCP/IP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP |
| Browser / Software |
Microsoft Internet Explorer 6.0 or later, Cam Viewer Plus Lite/Pro |
| Motion Detection |
10 area definable/td> |
| Environment Specifications |
| Power Requirement |
12V DC, 1A IEEE 802.3af |
| Dimension (W x D x H) |
88 x 30 x 105 mm |
| Weight |
300g |
| Power Consumption |
5W max (LED on) |
| Operating Temperature |
0 ~ 40 Degree C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
28/08
|
Planet ICA-HM100W Wireless H.264 IP Camera - 1.3 Megapixel CMOS Image Sensor, 2-Way Audio With Built-In Microphone & Connected Speaker, Motion Detection, Support Up To 10M Visible Distance At Night - Silver ICA-HM100W
Wireless H.264 Mega-Pixel IP Camera
Overview
With the market trend of H.264 compression, PLANET has announced the wireless Mega-pixel CMOS IR IP camera, ICA-HM100W, to meet the need of the market. The ICA-HM100W with built-in high performance 1.3Mega-Pixel CMOS sensor delivers high quality image at maximum 1280 x 1024 resolutions. Integrated the next generation video compression technology H.264, the ICA-HM100W can compress the video file size to smaller one for users to transfer the Mega-Pixel image on Internet easily. The ICA-HM100W provides multi-profile function to generate H.264 / MPEG-4 and M-JPEG streaming to different users at the same time and allows up to 20 users to access the ICA-HM100W simultaneously. With this state-of-the-art design, the ICA-HM100W is considerable to fit in various network environments.
The ICA-HM100W features zero-lux illumination. There are 6 white LEDs around the lens of the ICA-HM100W to bring the clearest vision at night. The new High-Light LED provides greater performance in the dark and lasts longer life. The ICA-HM100W also provides color pictures both in the day and night with built-in CMOS sensor supporting up to 10 meters.
With Store-to-NAS function, the ICA-HM100W can work alone and save the video files to a NAS directly, which can save the PC resource and keep monitoring the environment with motion detection at 24/7. The ICA-HM100W takes surveillance using 2-Way audio. The administrator can speak to anyone at ICA-HM100W remote site with a speaker connected. The ICA-HM100W applies IEEE 802.11n wireless technology to communicate at a maximum wireless signal rate and brings security features including WEP and WPA encryption.
The ICA-HM100W can be managed by PLANET Cam Viewer Plus, the professional central management software for multi-camera video surveillance application, to provide monitoring, recording and event management functions. The Cam Viewer Plus enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM100W managed by the Cam Viewer Plus, it provides an enhanced professional security environment to protect your property and life.
Features
- 1.3Mega-Pixel CMOS sensor built-in
- 2-Way audio with built-in microphone and connected speaker
- 6 white-light LEDs support up to 10 meters visible distance at night
- Multi-profile encoder supports H.264 / MPEG-4 and M-JPEG video compression simultaneously
- 3GPP for 3G mobile remote applications
- Plug-N-Watch simplifies system integration in existing network environment
- Store-to-NAS function saves video files without operating software
- Easy configuration and management via Windows-based utility or web interface
- DDNS, PPPoE and FTP uploading supports more alternatives in surveillance network
- Motion Detection feature can monitor any suspicious movement in specific area
- IEEE 802.11n Wireless LAN Capability
- Cam Viewer Plus - Central management software supported
Specifications:
| Model |
ICA-HM100W |
| Video Specification |
| Image Sensor |
1.3 Mega-Pixel CMOS image sensor |
| Lens |
4.3 mm, F1.8 |
| View Angle (Horizontal / Vertical) |
44 / 35 Degree |
| Scan Method |
Progressive |
| Signal to Noise |
44 dB |
| LED |
6 x White-light LED |
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Rate Control |
CBR (Constant Bit Rate) / VBR (Variable Bit Rate) |
| Video Resolution |
H.264 SXGA / VGA / QVGA / QQVGA
MPEG4 VGA / QVGA / QQVGA
M-JPEG SXGA / VGA / QVGA / QQVGA |
| Frame Rate |
Mega-Pixel mode up to 15fps for all resolution
VGA mode up to 30fps for VGA / QVGA / QQVGA |
| Image Control |
AWB, AES |
| Audio Specification |
| Audio Codec |
G.726 / AMR |
| Audio I/O |
Audio in: Internal Microphone / Audio out: External Speaker |
| Network and Configuration |
| Network Interface |
1 xRJ-45 |
| Network Standard |
IEEE 802.3 / IEEE 802.3u
IEEE 802.11 b/g/n |
| Network Protocol |
TCP/IP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP,
ARP, Bonjour, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP |
| Browser / Software |
Microsoft Internet Explorer 6.0 or later, Cam Viewer Plus Lite/Pro |
| Motion Detection |
10 area definable/td> |
| Environment Specifications |
| Power Requirement |
12V DC, 1A IEEE 802.3af |
| Dimension (W x D x H) |
88 x 30 x 105 mm |
| Weight |
300g |
| Power Consumption |
7W max (with WLAN and LED on) |
| Operating Temperature |
0 ~ 40 Degree C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
28/08
|
Planet ICA-HM127 H.264 Box IP Camera - 1/2.5" Progressive CMOS, 3MP, 30FPS @ 1080p Full HD, 2-Way Audio & 3GPP For Real Time Surveillance Communication, 1-Port 10/100 Mbps, IPv6/ONVIF Support - Black ICA-HM127
3 Mega-Pixel H.264 Box IP Camera
Overview
PLANET 3 Mega-Pixel IP Camera - the ICA-HM127 supports Full HD (2048 x 1536) Resolution and efficient H.264 video compression to bring the best solution for Internet video surveillance. It is perfect for indoor and outdoor* surveillance to secure the locations such as campuses, government, business / Industrial buildings, stores, airports, railway stations and etc.
Multi-Profiles Streaming
Supporting Multi-Profile Streaming function, the ICA-HM127 can generate H.264, MPEG-4, and M-JPEG streaming simultaneously to differentiate users in different resolutions and frame rates. This state-of-the-art design is considerable to fit in various network environments.
2-Way Audio
The ICA-HM127 provides 2-Way audio function for real time video communication. It enables the administrator remotely talk to anyone at the ICA-HM127 site with additional speaker connected. Users can also easily communicate to each other between two ICA-HM127 sites even just for chat.
PoE makes Flexible Installation Anywhere
Compliant with IEEE 802.3af PoE interface, the ICA-HM127 can be flexibly located in any place where there is no power outlet. Moreover, through Power over Ethernet support, the administrators can be fearless of the power breakdown because the ICA-HM127 can receive power via Ethernet cable from UPS which installed in the surveillance control center or in any specific place.
Day & Night Operations
The ICA-HM127 offers high flexibility to be applied in various kinds of IP surveillance environment as it has built-in ICR (IR-Cut filter Removable) for day and night surveillance applications. It supports low light surveillance as low as 0.5 LUX illumination.
ONVIF Certified / Professional Software
The ICA-HM127 follows the ONVIF v1.01 and v1.02 standard SDK for user easily to integrate with the 3rd party software. It can work with the PLANET Cam Viewer 3 Lite/Pro Management software and Network Video Recorder products for video surveillance application and provides enhanced monitoring, recording and event management functions to secure your property and life.
Work with the ICA-BOX30 for Outdoor day and night vision surveillance.
Remote monitoring for indoor application

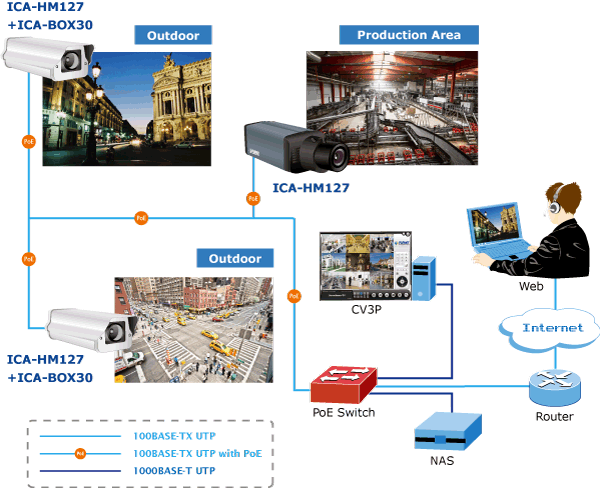

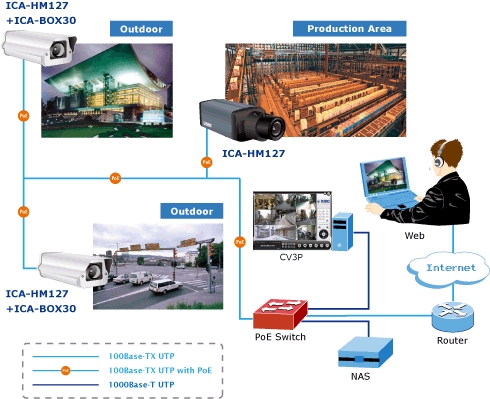

Outdoor day and night vision application of the ICA-HM127 with the ICA-BOX30
Key Features
Lens
- Focal Length 3.1-8mm, F1.2 Vari-focal Lens, CS mounts
- Auto Iris connector, DC Drive
- Minimum illumination down to 0.05Lux at 30 IRE
Video & Audio
- IPv6 / ONVIF support
- 1/2.5" Progressive CMOS
- H.264 / MPEG-4 / M-JPEG multiple video streams
- 3 Mega-Pixel (2048 x 1536), Full HD (1920 x 1080) Resolution
- 30 fps @ 1080p Full HD
- ICR for day and night sharp vision surveillance
- 2-Way Audio and 3GPP for real time surveillance communication
- PLANET IP Finder, CV3L and CV3P can manage the IP camera easily
Hardware
- 1-Port 10/100 Mbps Auto-Negotiation and Auto MDI/MDI-X
- Flexible installation by IEEE 802.3af PoE support
- Local storage backup with SD/SDHC memory card
- Analog video (BNC) output, works with conventional video devices such as TV Monitors,
- analog DVRs,
- RS-485 communication supported.
Specifications:
| Camera Specification |
| Image Device |
1/2.5" Progressive CMOS |
| Sensitivity |
Color: 0.05 Lux @ 30 IRE
B/W: 0 Lux @ IR ON
|
| Lens |
Focal Length 3.1-8mm , F1.2 Varifocal Lens, |
| Lens Mounting |
CS mount |
| Auto Iris |
1 x Auto Iris connector, DC Drive |
| Night vision function |
Built-in removable IR cut filter |
| View Angle(4:3) |
H: 38.7~95.9 Degree
V: 29.1~71.0 Degree
|
| Storage Interface |
SD, SDHC support |
| Video Specification |
| Video Compression |
H.264 / MPEG4 / M-JPEG |
| High Resolution mode |
H.264@QXGA / 1080P
MPEG4@1080P
MJPEG@720P |
| Video Resolution |
QXGA (2048 x1536): 20 fps
1080p (1920 x 1080): 30 fps
Quad-VGA (1280 x 960): 30 fps
720p (1280 x 720): 30 fps
VGA (640 x 480): 30 fps
QVGA (320 x 240): 30 fps
|
| Multi-stream mode |
H.264 @720p / D1 / VGA / QVGA / QCIF
MPEG4@720p / D1 / VGA / QVGA and 3GPP
MJPEG@720p / D1 / VGA / QVGA / QCIF
|
| Auto Exposure Control |
Yes |
| Auto White Balance |
Yes |
| Auto Gain Control |
Yes |
| Text Overlay |
Text and Date-time |
| Image Overlay |
Supports JPG and Bitmap image format |
| Audio/Video Specification |
| Audio Input |
Internal Omni-directional Microphone
Sensitivity: more than -42Db +/- 3dB
Freq Response: 100~10000Hz
External Mic. In
|
| Audio Output |
Line level out, 1 Vrms, 3.5mm phone jack, Mono |
| Compression method |
PCM / AMR |
| Audio S/N ratio |
More than 60dB |
| Operation mode |
2-Way audio |
| Composite |
CVBS / 1 Vp-p0.2 / 75 Ohms ; BNC connecter |
| Network and Configuration |
| Network Interface |
One RJ-45 port, IEEE 802.3u compliant 10/100 Mbps Fast Ethernet with Auto-MDIX |
| Network Protocol |
TCP/IP, IPv4/v6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP and RTCP |
| General |
| Power Supply |
DC 12V / 1A |
| PoE |
IEEE 802.3af |
| PoE Consumption |
Max. 8W |
| Operating Temperature |
0 ~ 50 Degree C |
| Operating Humidity |
20 ~ 85% |
| Weight |
390g (Camera only, excluding lens) |
| Dimension (W x D x H) |
72.15 x 130.40 x 58.30 mm |
| Viewing System |
| OS |
Windows XP, 2000/2003/2008 Server, Vista, Win 7 |
| best view system |
CPU: Intel Core2 Duo E5300 2.6GHz
RAM: 1 GB
Graphic card: 128MB
Display Resolution: 1024 x 768 24bits
Note: Best viewed is depends on "bandwidth" and "PC performance".
|
| Browser |
IE 6.0 or latter |
| Search & Installation |
PLANET IPFinder |
| Bundled Monitor / Recording / Management |
PLANET CV3P (4-Ch Cam Viewer Three Pro Trial Version)
PLANET CV3L (64-Ch Cam Viewer Three Lite Bundle Version) |
|
|
|
|
Previous Page
|
Next Page
|
|
