27/08
|
Planet NVR-420 Network Video Recorder - Supports 2x 3.5" SATA HDD, 4 Channel, 2-Way Audio Function, Up to Full HD Resolution For Local Display, 120fps @ 1920x1080, HDMI, RJ45 NVR-420
4-Ch Network Video Recorder with HDMI
Overview
The PLANET NVR-420 is designed for small scale surveillance applications such as home, SOHO, SMB and retail stores. It can connect up to 4 IP cameras via a network and perform recordings and playbacks pictures from cameras in the system.
The NVR-420 provides user-friendly management interface enabling users to remotely operate the NVR, view live monitoring videos and play back the recorded videos via a web browser in the computer or any mobile devices.

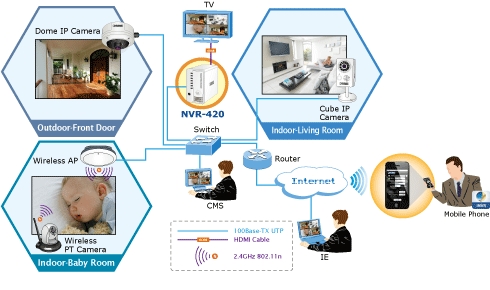

The NVR system is also expandable for multi-sites management with the bundled CMS software. For instance, the CMS software in the NVR-420 can manage up to 64 units of NVRs at the same time; that means, there shall be 256 channels of IP cameras being viewed simultaneously. With multi-monitor and E-Map function, the NVR-420 can help the administrators to monitor the surveillance system more efficiently and effectively.
The NVR-420 supports HDMI interface that allows users to connect it directly to a HDMI capable HDTV / monitor. It then can be operated with the bundled remote control and mouse. The NVR-420 is compatible with most major camera brands in the market. It can automatically search and find the available cameras on the network, which greatly reduce the user's effort when configuring the system.
The NVR-420 can be controlled and monitored on both the local site and the Internet simultaneously. Users can also login from their mobile phones to check the monitoring screen when there is no PC available. It provides an easy and effective way to manage your surveillance system and enhance the security of your home or office environment.
Video / Audio
- HDMI / AV local display with remote controller or mouse
- Simultaneous Recording and Live Video Streams
- Up to Full HD resolution for local display
- Supports M-JPEG / MPEG-4 / H.264 multiple compressions
- 2-Way Audio function
Record
- Video recycle function makes the video recording in 7/24
- Record 120fps @ 1920x1080
- Manual or schedule recording of 4 IP cameras simultaneously
- Exports record video file to AVI format
Management
- Web-Based and management utility for easy configuration
- E-Map interface in web and utility configuration
- Auto discover by management software
- Smart IP camera search
- Multiple languages support
- Supports mobile phone remote view with Android, WinMo, Symbian S60, iPhone, Blackberry 4.6
- Manage multiple NVR with the bundle management software
Hardware
- Supports Real Time Clock (RTC)
- HDMI / RCA / USB interfaces supported
- Auto power-on and recording after power recovery
- Supports 3.5" SATA x 2 HDD
Specifications:
| Video / Audio |
| Video Input |
4 Channels IP Cameras |
| Video output |
HDMI / RCA Local Display, Web Interface |
| Resolution |
Full HD / Mega Pixel / FD1 / CIF / QCIF |
| Local video display |
Video Streaming: H.264 / MPEG4
30fps at 1920 x 1080, H.264, 8Mbps
Snapshot: MJPEG
|
| Audio |
Yes (G.711 / G.726)
Web: 2-Way
Local: One Way
|
| Record |
| Recording Mode |
Manual, Schedule, Event |
| Frame Rate / Resolution |
120fps at 1920 x 1080 |
| Export File Format |
AVI |
| Storage Device |
2 x 3.5" SATA Hard Disk Connectors
Max. Capacity: 4TB (2TB per HDD)
|
| System |
| Management |
Web-Based Administration
Local Mouse / Remote Controller
Network Time Protocol
Multiple Users Account
E-mail Notification
System Log
Firmware Upgrade
|
| User Interface |
Web Browser, HDMI/AV Local Output |
| E-Map |
Web Browser, Local Display |
| USB Interface |
Firmware Upgrade, USB Mouse |
| Network |
| Ethernet |
1 x RJ-45, 10/100Base-TX, Auto-Negotiation |
| Network Service |
TCP/IP, DHCP, DNS, HTTP, FTP, NTP, SMTP, UPnP |
| Network File Protocol |
Microsoft Networks (CIFS/SMB), Internet (HTTP), FTP |
| Hardware |
| Button |
Power, Reset |
| LED Display |
1 x Power
2 x HDD
4 x Channel
|
| Power |
DC 12V, 4A, Max. 50/60Hz |
| Operating Temperature |
5 ~ 40 Degree C |
| Dimension (W x D x H) |
213 x 80 x 150 mm |
| Weight |
0.8kg |
|
|
|
|
27/08
|
Planet ICA-HM126R Real-Time H.264 Full HD Box IP Camera - 1/2.7" Progressive CMOS, 2-Way Audio Function with Mic, Dual Video Stream H.264, M-JPEG Video Compression Simultaneously, Supports 1080p Full-HD ICA-HM126
H.264 Full HD Box IP Camera
PLANET announces new H.264 Full-HD Box IP camera, ICA-HM126, to feedback the requirements from worldwide market. The ICA-HM126 supports Full HD recording for high quality images. Integrated with the next generation video compression technology H.264, the ICA-HM126 can compress the video size to smaller one for users to transfer the Full-HD images on Internet easily and quickly.
The ICA-HM126 features Multi-Profile to provide video stream simultaneously. It can deliver clear images with dual H.264/M-JPEG stream video up to 1080p (1920 x 1080 pixels). The IP Camera uses progressive scan to perform full resolution images of moving objects without distortion, in 30 frames per second, which is perfect for critical areas surveillance such as at entrances or exits of the building where needs to be monitored in greater details. The ICA-HM126 IP camera is compatible with IEEE 802.3af PoE (Power over Ethernet) for easy installation without concerning the outlet / socket locations. Network and analog video output interfaces are equipped in the IP camera for flexible viewing and recording implementations.
The ICA-HM126 supports 2-Way audio that can directly make audio communication between local and remote sites by using the external microphone and speaker. Users can build a more advanced security system by connecting external sensors or alarm to DI / DO ports of the ICA-HM126.
The ICA-HM126 can be managed by PLANET Cam Viewer 3, the professional central management software for multi-camera video surveillance application, to provide monitoring, recording and event management functions. The Cam Viewer 3 enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM126 managed by the Cam Viewer 3, it provides an enhanced professional security environment to protect your property and life.
| ICA-HM126R |
Full HD Real-Time H.264 Box IP Camera |

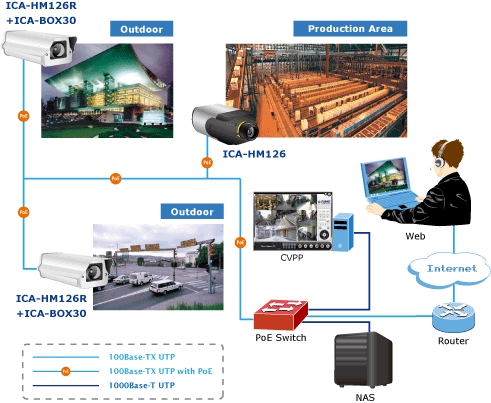

Application
Remote monitoring for indoor application
Day-and-night vision application with ICA-BOX30
Key Features
- 1/2.7" progressive CMOS
- Dual video stream : H.264 and M-JPEG video compression simultaneously
- Supports 1080p Full-HD resolution (1920 x 1080 pixels)
- Compliant with IEEE 802.3af PoE interface
- 3GPP for 3G mobile remote applications
- 2-Way audio function with the external microphone and speaker
- Supports Micro SD card storage
- External I/O trigger for various surveillance applications
- Motion Detection feature can monitor any suspicious movement in specific areas, up to 10 motion detection areas setup
- Easy configuration and management via Windows-Based utility or web interface
- DDNS, PPPoE and FTP uploading supports more alternatives in surveillance network
- Cam Viewer 3 - Central management software supported
- Supports ONVIF Standard to Simplify Integration and Enhance Interoperability
Specifications:
| Video Specification |
| Image Sensor |
1/2.7" Progressive CMOS |
| Lens |
Focal Length 4.0 mm, F1.5, CS mount type |
| Minimum illumination |
0.2 Lux @ F1.2 |
| Video Resolution |
H.264 1080p / 720p
M-JPEG 1080p / 720p / D1 / CIF
|
| Frame Rate |
15fps for 1080p
30fps for other resolutions
|
| Shutter Speed |
1 ~ 1/10000 sec |
| White Balance |
Manual / ATW (1500 ~ 15000K) |
| View Angle (Horizontal / Vertical) |
66 / 52 Degree |
| Scan Method |
Progressive |
| Video Encoder |
H.264 / M-JPEG |
| Rate Control |
VBR (Variable Bit Rate) |
| Image Control |
AWB, AES |
| ICR |
Auto, On, Off |
| Audio Specification |
| Audio Codec |
G.711, G.726 |
| Audio I/O |
Line in/MIC in, Line out, |
| Audio Streaming |
One-Way or Two-Way |
| Network and Configuration |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
TCP/IP, UDP, RTP, RTSP, HTTP, ICMP,FTP, SMTP, DHCP, IGMP |
| Browser / Software |
Microsoft Internet Explorer 6.0 or later, Cam Viewer Plus Lite/Pro |
| Interface Specifications |
| Network |
1 x RJ-45 10/100 Base-TX |
| Lens Mounting |
CS mount |
| Storage Interface |
Micro-SD, SDHC support |
| Video Out |
1 x BNC video output |
| Audio Out |
1 x audio output (3.5 mm) |
| Auto Iris |
1 x Auto Iris connector, DC Drive |
| Alarm |
4 pins terminal block, pitch 3.5mm |
| Environment Specifications |
| Power Requirement |
12V DC, 1 A, IEEE 802.3af |
| Dimension (W x D x H) |
82 x 125 x 52 mm |
| Weight |
360g |
| Power Consumption |
3.8W max. |
| Operating Temperature |
0 ~ 50 Degree C |
| Operating Humidity |
10 ~ 90% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
27/08
|
Planet ICA-HM317 IP Box Camera - Sensor 1/2.5" CMOS Progressive, 30FPS @ 1080p Full HD, 2-Way Audio And Support For 3GPP, 1-Port 10/100 Mbps Auto-Negotiation, Auto MDI/MDI-X - Silver ICA-HM317
Camera 3 Mega-Pixel PoE with IR illumination up to 25m
PLANET ICA-HM317 is the external webcam, fitted with 3M pixel CMOS sensor, which generates a stream of color video resolution up to Full HD 2048 x 1536 pixels, and with infrared light enables to observe in the dark at distances up to 25 meters. Support H.264 compression reduces the size of the video stream, while maintaining very high quality.
Streaming Multi Profile
Built-profile multi-codec H.264, MPEG-4 and M-JPEG allows you to reduce the size of the video stream while maintaining high quality and simultaneous video streams to multiple recipients at different resolutions. The device is well suited for use in a variety of network environments.
Weather resistant IP67 housing
Aluminum IP67 waterproof enclosure allows for reliable operation of the ICA-HM317 in all conditions, regardless of the weather.
Flexible installation with support for PoE
Compatible with IEEE 802.3af PoE allows you to install the camera in places where no power outlet is available. The ability to provide power and data via a single cable not only simplifies installation, it also prevents disruptions camera because of a power failure - continuity of supply can be secured centrally installed UPSem.
Observation of the day and night
ICA-HM317 allows to observe in total darkness. 4 IR illuminators built around the lens provides clear and crisp monochrome images at night at a distance of 25 meters from the camera. ICA-HM317 also has a filter ICR (IR-Cut filter Removable) ensures perfect picture both day and in very low light row 0.05 LUX.
Certified software ONVIF
ICA-HM317 is compatible with ONVIF v1.01 and v1.02 SDK which allows for convenient integration with third-party software. The ICA-HM317 also works perfectly with the software, PLANET Cam Viewer 3 Lite / Pro and network video recorders, which allow you to monitor, record and manage multiple cameras to create professional security surveillance environment lives and property.
Basic features
Lens
- F1.8, 6mm CS connector
- Minimum illumination 0.05Lux
- High quality auto iris lens
Image and sound
- Support for IPv6 / ONVIF
- Sensor 1/2.5 "CMOS Progressive
- Encoding H.264 / MPEG-4 / M-JPEG
- Resolution 3 Mega-pixel (2048 x 1536) Full HD (1920 x 1080)
- 30 fps @ 1080p Full HD
- ICR filter
- 2 way audio, and support for 3GPP
- Software PLANET IP Finder and CV3P CV3L
Hardware
- 1-port 10/100 Mbps auto-negotiation, auto MDI / MDI-X
- IEEE 802.3af PoE Support
- 4 LED IR LED illumination for distances up to 25 m
- RS-485
- IP67 enclosure with fan
- Analog Video Output (BNC), working with existing analog surveillance systems

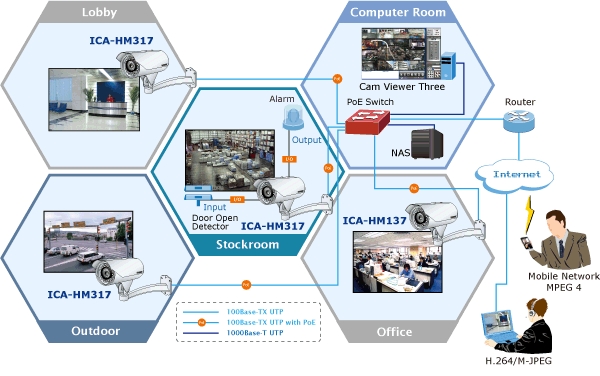

Application
Specifications
|
Image Sensor
|
|
Sensor
|
1/2.5 "CMOS
|
|
Pixel size
|
2.2 x 2.2m
|
|
Resolution
|
2592H x 1944V
|
|
Active Screen Size
|
5.70mm (H) x 4.28mm (V) 7.13mm diagonal
|
|
Lens
|
|
Lens
|
Focal length 6mm
|
|
Focal
|
F 1.8
|
|
Viewing Angle
|
H: 56 degrees
V: 43 degrees
|
|
Iris
|
So
|
|
Observation of the day / night
|
|
IRCF
|
Yes, the sensor
|
|
Range of Light
|
25m
|
|
IR wavelength
|
850nm
|
|
Minimum illumination
|
Color: 0.05 Lux @ 30 IRE
Black & White: 0 Lux @ IR on
|
|
Video / Audio
|
|
Compression
|
H.264 / MPEG4 / M-JPEG
|
|
HD resolution
|
H.264 QXGA / 1080p
MJPEG @ QXGA / 1080p
MPEG4 @ 1080p
|
|
Liquidity image
|
QXGA (2048 x1536): 20 fps
1080p (1920 x 1080): 30 fps
Quad-VGA (1280 x 960) 30 fps
720p (1280 x 720) 30 fps
D1 (720 x 480): 30 fps
VGA (640 x 480): 30 fps
QVGA (320 x 240): 30 fps
|
|
Multi-stream mode
|
H.264 @ 720p / D1 / VGA / QVGA
MPEG4 @ 720p / D1 / VGA / QVGA
MJPEG @ 720p / D1 / VGA / QVGA
|
|
Audio Codecs
|
G.711 -law
|
|
Options quality codecs
|
H.264: 5 levels or Bit Rate
MPEG4: 5 levels or Bit Rate
MJPEG: 5 levels or Bit Rate
|
|
Network and Configuration
|
|
Network Interface
|
1 x RJ-45
|
|
Protocols
|
TCP / IP, IPv4, IPv6, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP
|
|
Standards
|
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af
|
|
Video output
|
So
|
|
I / O AUDIO
|
1/1
|
|
LEDs
|
1 x Power, 1 x Ethernet
|
|
RS-485
|
So
|
|
Reset
|
So
|
|
PoE
|
IEEE 802.3af
|
|
Power
|
DC 12V / 2A
|
|
Special Features
|
|
Motion Detection
|
3 resizable windows
|
|
Image Settings
|
Brightness, contrast, sharpness, saturation
|
|
Alarm buffer
|
2 sec. pre-alarm / 5 sec. post-alarm
|
|
Mirror
|
Vertical / horizontal
|
|
Digital zoom
|
Yes, 10x
|
|
3GPP
|
So
|
|
IP Filter
|
So
|
|
QoS
|
So
|
|
Time
|
Manual, NTP, real time clock
|
|
Hardware Specification
|
|
Enclosure
|
IP-67
|
|
Dimensions
|
73 x 186 mm
|
|
Temperature
|
Operating: -30 ~ 50 C
|
|
Humidity
|
Job: 20-85%
|
|
Software
|
|
OS
|
Windows XP, 2000/2003/2008 server, Vista, Win 7
|
|
Recommended System Requirements
|
CPU: Intel Core i3 2.5GHz
RAM: 1 GB
Graphics: 128MB
Resolution: 1024 x 768 24bits
|
|
Browser
|
Mozilla Firefox, IE7 or higher, chrome, safari
|
|
Installation
|
PLANET IPFinder
|
|
The included software
|
PLANET CV3P (4-Ch Cam Viewer 3 Pro Trail Version)
PLANET CV3L (64-Ch Cam Viewer 3 Lite Bundle Version)
|
|
|
|
|
27/08
|
Planet ICA-HM316W 11N Outdoor IR IP Camera - 1/3.2" 2MP Progressive Scan CMOS Sensor, Two-Way Audio Support with Enhanced Audio Quality, Removable IR-Cut Filter for Day & Night Function - Silver ICA-HM316W
2 Mega-Pixel 11n Outdoor IR IP Camera
Overview
Professional Outdoor Wireless Surveillance with Superb UXGA Quality
The PLANET ICA-HM316W Network Camera with IR Illuminator is a high resolution camera for round-the-clock surveillance over IP networks. It supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in 2 Mega-Pixel resolutions at 15 frames per second (fps). Compliant with IEEE 802.11b/g/n, the ICA-HM316W enables users to access to Internet through up to 150Mbps high speed and secure Wireless transmission with WEP / WPA encryptions. The IP66-rated housing protects the ICA-HM316W against rain and dust and ensures stable operation under extreme weather conditions. The ICA-HM316W is an ideal solution for outdoor surveillance applications such as buildings, roads, parking areas, garages, railway stations and airports.
Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-HM316W comes with a removable IR-Cut filter and built-in IR illuminators, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICA-HM316W is able to maintain clear images 24 hours a day.
Exceptional Image Quality with Vari-Focal Lens
With 3.6~16mm Vari-Focal lens, the ICA-HM316W meets various demands of installation. For instance, traffic monitoring either on more than two lanes or just focus on one specified lane, It brings an extremely clear and exquisite picture quality.

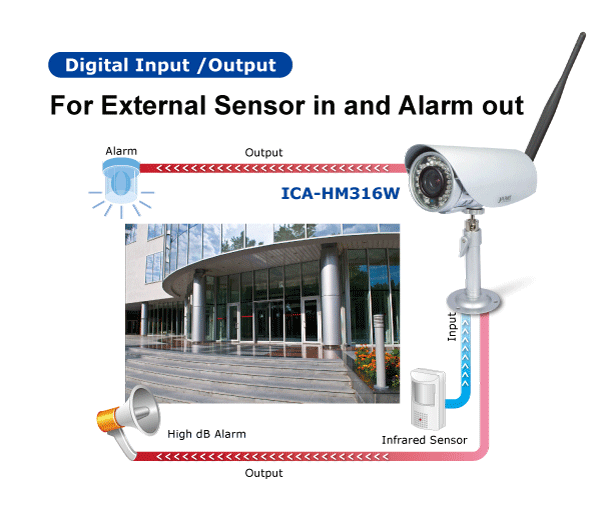

Advanced Event Management
To enhance surveillance flexibility and event management capabilities, the ICA-HM316W supports a number of advanced features including Auto-Iris to avoid over exposure, AV out to perform the two-way audio function and inputs/outputs to connect with external devices such as door sensors and relays to activate light or close doors.
Flexible installation and Power functionality
The ICA-HM316W is ONVIF compliant and therefore interoperable with other manufacturers products. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-HM316W is indisputably the top choice for reliable and high performance outdoor surveillance. The IP66-rated housing protects the ICA-HM316W against rain and dust and ensures stable operation under extreme weather conditions. The ICA-HM316W is an ideal solution for both indoor and outdoor surveillance applications such as buildings, hospital, bank, hotel lobby, garages, hallway, stores and offices.

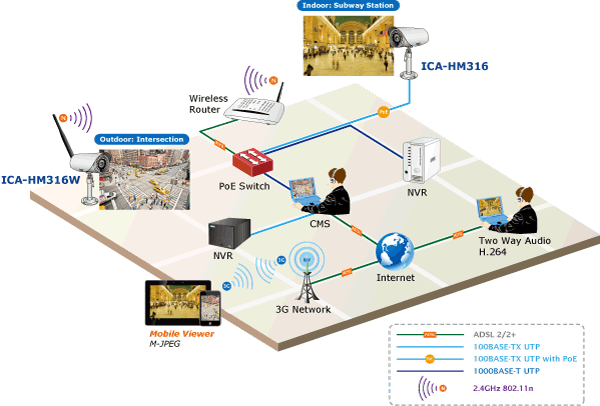

PLANET ICA-HM316W is providing various surveillance applications via wireless technology. It captures clear images and is perfect for identifying objects and persons
Camera
- 1/3.2" 2MP progressive scan CMOS sensor
- 3.6~16 mm Vari-focal, DC Auto-Iris Lens
- 0 lux Minimum Illumination at F1.2
- Maximum resolution 1600 x 1200
- Removable IR-Cut Filter for Day & Night Function
Video / Audio
- H.264, MPEG-4 and M-JPEG video compression simultaneously
- Simultaneous multi-stream support
- Up to 30fps for 1280 x 720 resolutions and 15fps for 1600 x 1200 resolutions
- Two-Way audio support with enhanced audio quality
Network and Configuration
- Complies IEEE 802.11b/g/n wireless standard with WEP and WPA encryption
- Auto MDI/MDI-X supported
- RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management
- ONVIF compliant for interoperability
- Built-in 35 IR Illuminators, effective up to 25 meters
- IP66 outdoor classifications for stable operation under rigorous environment
- Built-in Samba client for NAS
- 3GPP for 3G mobile remote applications
- Digital Input/Output for integration with sensors and alarms
- Cam Viewer 3 Central management software supported
Specifications:
| Camera |
| Image Device |
1/3.2" 2 Mega-Pixel progressive scan CMOS sensor |
| Lens |
Vari-Focal 3.6~16 mm, DC Auto-Iris
Mechanical IR Cut Filter
Angle of view : horizontal: 20.8 ~ 75.4 Degree / vertical: 15.7 ~ 54.9 Degree
|
| Min Illuminator |
0 lux @ F1.2 |
| IR Illumination LED |
IR LED*35, 850nm
Built-in IR illuminators, effective up to 25 meter
|
| Effective Pixels |
1600 x 1200 pixels |
| Image |
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Video Profile |
H.264: UXGA / 720P / SXGA / VGA / QVGA / QCIF
M-JPEG: UXGA / 720P / SXGA / VGA / QVGA
MPEG-4: QCIF (Only for 3GPP)
|
| Frame Rate |
UXGA Up to 15fps
SXGA Up to 22fps
HD-720P / SVGA / VGA / QVGA / QCIF Up to 30fps
|
| Image Setting |
Brightness, sharpness, contrast, AGC, Night Mode
Text, time and date overlay
|
| Streaming |
Simultaneously multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG-4 / H.264)
|
| Audio |
| Audio Streaming |
Two-Way Audio |
| Audio Encoder |
RTSP: G.711
3GPP: AMR
|
| Microphone |
External microphone input |
| Audio Output |
Phone Jack |
| Network and Configuration |
| Network Standard |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
IEEE 802.11b/g/n
|
| Antenna connector |
5dBi Dipole Antenna |
| Frequency |
2.4GHz ~ 2.4835GHz |
| RF Transmit Power |
OFDM: 14 dBm
CCK: 17 dBm
|
| Receiver Sensitivity |
802.11b:
1M: -90 dBm
11M: -85 dBm
802.11g:
6M: -87 dBm
54M: -70 dBm
802.11n (BW20):
MCS0: -85 dBm
MCS7: -67 dBm
802.11n (BW40):
MCS0: -84 dBm
MCS7: -64 dBm |
| Data Rate |
IEEE 802.11b Standard Data Rates: 1, 2, 5.5 and 11Mbps
IEEE 802.11g Standard Data Rates: 6, 9, 12, 18, 24, 36, 48, 54Mbps
IEEE 802.11n Standard Data Rates: Legacy and High Throughput Modes, supports 20 / 40MHz Bandwidth MCS0~7 (150Mbps PHY Rate)
|
| Supported Protocols |
IPv4, TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP |
| Security |
Password protection, user access log
WEP 64/128, WPA, WPA2, TKIP, AES
|
| Users |
10 simultaneous unicast users |
| System Integration |
| Application Programming Interface |
Open API for software integration
SDK
|
| Alarm Triggers |
Intelligent video motion detection and external input
3-zone video motion detection
|
| Alarm Events |
File upload via FTP, email and SAMBA
External output activation
Configurable Pre/Post alarm buffering
|
| General |
| Power Supply |
12V DC, 1A |
| Power Consumption |
Max 6.24 W while IR LED ON
Max 4.44 W while IR LED OFF
|
| Housing |
Weather-proof IP66-rated housing |
| Operating Temperature |
-20 ~ 50 Degree C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Weight |
850g |
| Dimension ( x L) |
83 x 180 mm |
| Emission |
CE, FCC |
| Connectors |
10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input, 1 output and factory default reset
External MIC input
Audio out
Composited video out (Max. resolution: D1 720 x 480 pixel)
RP-SMA Type |
|
|
|
|
27/08
|
Planet ICA-HM316 Outdoor IR PoE IP Camera - 1/3.2" 2 Megapixel Progressive Scan CMOS Sensor, Two-Way Audio Support with Enhanced Audio Quality, Removable IR-Cut Filter for Day & Night Function - Silver ICA-HM316
2 Mega-Pixel Outdoor IR PoE IP Camera
Overview
Professional Outdoor Surveillance with Superb UXGA Quality
The PLANET ICA-HM316 Network Camera with IR Illuminator is a high resolution camera for round-the-clock surveillance over IP networks. It supports H.264, MPEG-4, and JPEG compression formats and delivers excellent picture quality in 2 Mega-Pixel resolutions at 15 frames per second (fps). The IP66-rated housing protects the ICA-HM316 against rain and dust and ensures stable operation under extreme weather conditions. The ICA-HM316 is an ideal solution for outdoor surveillance applications such as buildings, roads, parking areas, garages, railway stations and airports.
Day & Night Functionality
To adapt to constantly changing lighting conditions, the ICA-HM316 comes with a removable IR-Cut filter and built-in IR illuminators, which enables the camera to provide color video when there is sufficient light, and black/white video in dark conditions. The ICAHM316 is able to maintain clear images 24 hours a day.
Exceptional Image quality with Vari-Focal Lens
With 3.6~16mm Vari-focal lens, the ICA-HM316 meets various demands of installation. For instance, traffic monitoring either on more than two lanes or just focus on one specific lane, it brings an extremely clear and exquisite picture quality.
Advanced Event Management
To enhance surveillance flexibility and event management capabilities, the ICA-HM316 supports a number of advanced features including Auto-Iris to avoid over exposure, AV out to perform two-way audio function and inputs/outputs to connect with external devices such as door sensors and relays to activate light or close doors.
Flexible Installation and Power functionality
The ICA-HM316 incorporates IEEE 802.3af Power over Ethernet standard and able to be powered via the network cable from a PoE power sourcing equipment such as PoE Switch and PoE injector. It thus eliminates the need of extra power cables and reduces installation costs while increases the deployment flexibility. The ICA-HM316 is ONVIF compliant and therefore interoperable with other manufacturer’s products. It also includes 64-CH central management software for ease of maintenance and remote monitoring. The ICA-HM316 is indisputably the top choice for reliable and high performance surveillance. The IP66-rated housing protects the ICA-HM316 against rain and dust and ensures stable operation under extreme weather conditions. The ICA-HM316 is an ideal solution for both indoor and outdoor surveillance applications such as buildings, hospital, bank, hotel lobby, garages, hallway, stores and offices.
Application
PLANET ICA-HM316 is suitable to be applied in various surveillance applications. With high resolution design, it can capture clear images and is perfect for identifying objects and persons. Moreover, the ICA-HM316 supports 802.3af PoE interface to facilitate the outdoor surveillance without worrying the electric source.
Key Features
Camera
- 1/3.2" 2MP progressive scan CMOS sensor
- 3.6~16 mm Vari-focal, DC Auto-iris Lens
- 0 lux Minimum Illumination at F1.2
- Maximum resolution 1600 x 1200
- Removable IR-Cut Filter for Day & Night Function
Video / Audio
- H.264, MPEG-4 and M-JPEG video compression simultaneously
- Simultaneous multi-stream support
- Up to 30fps for 1280 x 720 resolutions and 15fps for 1600 x 1200 resolutions
- Two-Way audio support with enhanced audio quality
Network and Configuration
- Compliant with IEEE 802.3af PoE interface for flexible deployment
- Auto MDI/MDI-X supported
- RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management
- ONVIF compliant for interoperability
- Built-in 35 IR Illuminators, effective up to 25 meters
- IP66 outdoor classifications for stable operation under rigorous environment
- Built-in Samba client for NAS
- 3GPP for 3G mobile remote applications
- Digital Input/Output for integration with sensors and alarms
- Cam Viewer 3 Central management software supported
Specifications:
| Camera |
| Image Device |
1/3.2" 2 Mega-Pixel progressive scan CMOS sensor |
| Lens |
Vari-Focal 3.6~16 mm, DC Auto-Iris
Mechanical IR Cut Filter
Angle of view : horizontal: 20.8 ~ 75.4 Degree / vertical: 15.7 ~ 54.9 Degree
|
| Min Illuminator |
0 lux @ F1.2 |
| IR Illumination LED |
IR LED*35, 850nm
Built-in IR illuminators, Effective up to 25 meter
|
| Effective Pixels |
1600 x 1200 pixels |
| Image |
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Video Profile |
H.264: UXGA / 720P / SXGA / VGA / QVGA / QCIF
M-JPEG: UXGA / 720P / SXGA / VGA / QVGA
MPEG-4: QCIF (Only for 3GPP)
|
| Frame Rate |
UXGA Up to 15fps
SXGA Up to 22fps
HD-720P / SVGA / VGA / QVGA / QCIF Up to 30fps
|
| Image Setting |
Brightness, sharpness, contrast, AGC, Night Mode
Text, time and date overlay
|
| Streaming |
Simultaneously multi-profile streaming
M-JPEG streaming over HTTP
Supports 3GPP mobile surveillance
Controllable frame rate and bandwidth
Constant and variable bit rate (MPEG-4 / H.264)
|
| Audio |
| Audio Streaming |
Two-Way Audio |
| Audio Encoder |
RTSP: G.711
3GPP: AMR
|
| Microphone |
External microphone input |
| Audio Output |
Phone Jack |
| Network and Configuration |
| Network Standard |
IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX
|
| Supported Protocols |
IPv4, TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS, DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP |
| Security |
Password protection, user access log |
| Users |
10 simultaneous unicast users |
| System Integration |
| Application Programming Interface |
Open API for software integration
SDK
|
| Alarm Triggers |
Intelligent video motion detection and external input
3-zone video motion detection
|
| Alarm Events |
File upload via FTP, email and SAMBA
External output activation
Configurable Pre/Post alarm buffering
|
| General |
| Power Supply |
12V DC, 1A
IEEE 802.3af Class 0
|
| Power Consumption |
Max 10.8 W while IR LED ON
Max 7.7 W while IR LED OFF
|
| Housing |
Weather-proof IP66-rated housing |
| Operating Temperature |
-20 ~ 50 Degree C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Weight |
850g |
| Dimension ( x L) |
83 x 180 mm |
| Emission |
CE, FCC |
| Connectors |
10/100 Mbps Ethernet, RJ-45
DC power jack
Terminal block for 1 alarm input, 1 output and factory default reset
External MIC input
Audio out
Composited video out (Max. resolution: D1 720 x 480 pixel) |
|
|
|
|
27/08
|
Planet ICA-HM312 25M IR Outdoor Bullet PoE IP Camera - 1/2.7" 2 Megapixel Sensor, 2-Way Audio Supported with External Speaker & Microphone, IP66 Weather Proof, Full HD 1080p Resolution - White ICA-HM312
2 Mega-Pixel 25M IR Outdoor Bullet PoE IP Camera
Overview
PLANET announces new generation 2Mega-Pixel series IP Camera, the ICA-HM312, to offer 1920 x 1080 high resolution IR surveillance up to 25 meters in outdoor. It supports the highest video compression H.264 to provide small video size and save you lots of bandwidth usage. The new video compression is the best solution for Internet video transmission.
Multi-Profile Streaming
The Multi-Profile Streaming function supported enables the ICA-HM312 to generate H.264 / MPEG-4 / M-JPEG streaming simultaneously to differentiate users in different resolutions and frame rates. This state-of-the-art design is considerable to fit in various network environments.
2-Way Audio
The ICA-HM312 provides 2-Way audio function for immediate surveillance applications. It can remotely talk to anyone at the ICA-HM312 site with additional speaker connected to the camera. Via two ICA-HM312, users can easily communicate to each other even for a personal chat.
PoE makes Flexible Installation Anywhere
Compliant with IEEE 802.3af PoE standard, the ICA-HM312 can be flexibly located in any place where there are no power outlets. Through Power over Ethernet functions, the installers are fearless of the power breakdown because the ICA-HM312 can be powered centrally from the UPS installed.
Day & Night Operations
The ICA-HM312 features zero-lux illumination and its 25 IR illuminators built around the lens bring the clearest vision at night. Via the new LED technology, the illuminator ensures high-quality monochrome images in complete darkness up to 25 meters.
ONVIF Certified Professional Software
The ICA-HM312 follows the ONVIF v1.01 and v1.02 standard SDK for users to conveniently integrate with the third party software. The ICA-HM312 can also work perfectly with PLANET Cam Viewer 3 Lite/Pro Management software and Network Video Recorder products for efficient video surveillance applications, including monitoring, recording and event management to secure your property and life.

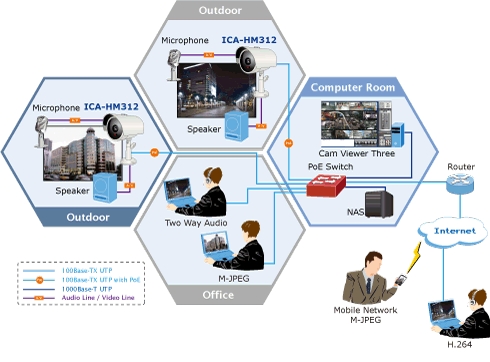

Application
PLANET ICA-HM312 is providing integrated surveillance applications to deliver crisp and clear images, perfect for the identification of objects and persons.
Key Features
- H.264, MPEG4 and MJPEG simultaneously (Tri-encoders)
- High quality Full HD 1080p resolution
- Built-in IR LED and visible distance up to 25 meters
- IR-Cut filter brings better video quality in the daytime and nighttime
- Compliant with IEEE 802.3af PoE interface

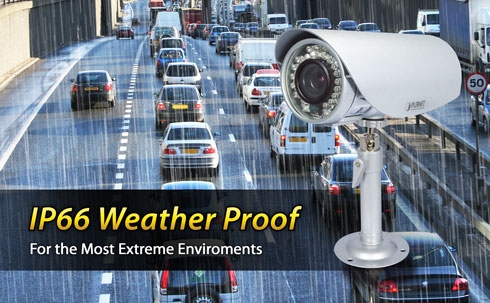

- IP66 weather proof construction
- 2-Way audio supported with external speaker and microphone
- Supports 3GPP for iPhone and Android phone for remote view
- DDNS, PPPoE and FTP uploading offers more alternatives in surveillance network
- 10 Motion Detection features can monitor any suspicious movement in a specific area
- Easy configuration and management via Windows-Based utility or web browser
- Supports ONVIF v1.0, v1.02 and v1.01 standard
Specifications:
| Video Specification |
| Image Sensor |
1/2.7" 2Mega Sensor |
| Lens |
4mm Fixed Lens with Fixed Iris |
| Sensitivity |
0.2 Lux @ F1.2 |
| View Angle |
H: 71 Degree
V: 49 Degree
|
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Rate Control |
CBR (Constant Bit Rate) / VBR (Variable Bit Rate) |
| Video Resolution |
1920 x 1080 / 1280 x 720 / 640 x 360 / 320 x 180 / 160 x 90 |
| Frame Rate |
Up to 30fps for all resolutions (2M Real-time) |
| Image Control |
AE, AWB
3D Noise reduction
Color, Brightness, Sharpness, Contrast, Hue
Mirror/Flip
8 Privacy Masks
Text, time and date overlay
|
| Audio Specification |
| Audio Codec |
RTSP: G.711 64kbps, G.726 32kbps
3GPP: AMR
|
| Audio Streaming |
One-Way or Two-Way |
| Microphone (Audio Input) |
External microphone input, Phone Jack |
| Audio Output |
Adjustable audio output gain, Phone Jack |
| Network and Configuration |
| Network Interface |
1 x RJ-45 |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
IPv4, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, 3GPP, Samba, ICMP |
| Browser / Software |
Microsoft Internet Explorer 6.0 or later
PLANET Cam Viewer 3 Lite/Pro
|
| Motion Detection |
10 areas definable |
| Environment Specifications |
| Power Requirement |
12V DC, 1A |
| PoE |
IEEE 802.3af |
| Dimension (W x D x H) |
86 x 81 x 97 mm |
| Weight |
900 g |
| Power Consumption |
Max. 8W for camera and IR LEDs |
| Protection Class |
IP66 classification with Weather proof |
| Operating Temperature |
-20 ~ 50 Degree C |
| Operating Humidity |
0 ~ 95% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
27/08
|
Planet ICA-HM136 H.264 20M IR Vandal Proof Dome IP Camera - 2 Megapixel CMOS Image Sensor, 2-Way Audio Supported with External Speaker & Microphone, IP-66 Protection, PoE, Built-In IR LED & Visible Up to 15M ICA-HM136
H.264 2 Mega-Pixel 20M IR Vandal Proof Dome IP Camera
Overview
PLANET announces new H.264 2Mega-Pixel outdoor infrared vandal proof Internet Camera, the ICA-HM136, for meeting the next generation demands in worldwide market. The ICA_HM136 can simultaneously provide H.264, MPEG-4 and M-JPEG video streaming in small video size; therefore it saves you lots of bandwidth usage. Through high performance 2Mega-Pixel CMOS sensor, the ICA-HM136 delivers high quality image at maximum 1600x1200(UXGA) resolutions for color images. It is also equipped with 2.7mm to 9mm Vari-focal auto iris lens allowing easy installation and camera angle adjustment for different installed sites.
With built-in 18 IR LED around the lens and the IR-cut filter, the ICA-HM136 can provide good video quality in both day and night surveillance up to 15 meters. The network and analog video output interfaces are also provided in the ICA-HM136 for flexible viewing and recording implementations.
The ICA-HM136 complies with IEEE 802.3af PoE interface for flexible and easy installation in the ceiling without concerning the outlet / socket locations and thus it further eliminates the need of power cables and installation costs. In addition, the ICA-HM136 supports 2-Way audio that enables audio communication between local and remote ICA-HM136 installed sites by using the external microphone and adding an external speaker.
The ICA-HM136 is the perfect choice for outdoor surveillance system by providing IP-66 certified water-proof protection. It is designed with vandal-proof and IP66 weather-proof case that can shield 400 pounds of impact. The vandal-proof design with die-cast aluminum body prevents the intentional destruction. Water-resistant construction with weather-proof solid housing performs reliable operation in any environment.
The ICA-HM136 can be managed by PLANET Cam Viewer 3, the professional IP-Surveillance management software that provides monitoring, recording and event management functions for multi-camera video surveillance applications. The Cam Viewer 3 enables you to setup a comprehensive and effective surveillance system quickly and easily to protect your property and life.
Application
PLANET ICA-HM136 is providing various surveillance applications to deliver crisp and clear images, perfect for the identification of objects and persons.
Key Features
- High resolution pictures for day and night surveillance with high quality
- 2 Mega-Pixel CMOS image sensor
- Built-in IR LED and visible distance up to 15 meters
- IR-Cut filter brings better video quality both in the daytime and nighttime
- Supports H.264, MPEG-4 and M-JPEG video compression
- Compliant with IEEE 802.3af PoE interface
- IP-66 protection for outdoor application
- 2-Way audio supported with external speaker and microphone
- Supports 3GPP and JAVA for remote view via iPhone and Windows mobile phone
- DDNS, PPPoE and FTP uploading offers more alternatives in surveillance network
- Motion Detection feature can monitor any suspicious movement in a specific area
- Easy configuration and management via Windows-Based utility or web browser
Specifications:
| Video Specification |
| Image Sensor |
2 Mega-Pixel CMOS image sensor |
| Lens |
2.7-9mm Vari-Focal lens with ICR and DC Iris |
| Sensitivity |
0.5 Lux |
| View Angle |
H: 30.4~101 Degree / V: 23~75 Degree |
| IR LED |
High light IR LED x 18pcs |
| IR Wavelength |
850 nm |
| IR Distance |
20M |
| Video Encoder |
H.264 / MPEG-4 / M-JPEG |
| Rate Control |
CBR (Constant Bit Rate) / VBR (Variable Bit Rate) |
| Video Resolution |
H.264 UXGA / 720p / SXGA/ VGA / QVGA / QCIF
M-JPEG UXGA / 720p / SXGA/ VGA / QVGA
MPEG4 QCIF (Only for 3GPP)
|
| Frame Rate |
UXGA Up to 15fps
SXGA Up to 22fps
HD-720p / SVGA / VGA / QVGA / QCIF Up to 30fps
|
| Image Control |
Brightness, Sharpness, Contrast, AGC, BLC, Night Mode
Text, Time and date overlay
|
| Audio Specification |
| Audio Codec |
G.711 / AMR |
| Audio I/O |
Audio in: External Microphone
Audio out: External Speaker
|
| Audio Streaming |
One-Way or Two-Way |
| Audio Output |
Phone Jack |
| Network and Configuration |
| Network Interface |
1 x RJ-45 |
| Network Standard |
IEEE 802.3 / IEEE 802.3u / IEEE 802.3af |
| Network Protocol |
TCP, UDP, HTTP, SMTP, FTP, NTP, DNS, DDNS,
DHCP, UPnP, RTSP, RTP, RTCP, PPPoE, 3GPP, ICMP
|
| Browser / Software |
Microsoft Internet Explorer 6.0 or later
PLANET Cam Viewer 3 Lite/Pro
|
| Motion Detection |
3 areas definable |
| Environment Specifications |
| Protection Class |
IP-66 classification with Vandal and Weather proof |
| Power Requirement |
12V DC, 1A
IEEE 802.3af Power over Ethernet
|
| Dimension (W x D x H) |
126 x 100 x 126 mm |
| Weight |
835 g |
| Power Consumption |
500mA max (IR LED on) |
| Operating Temperature |
-20 ~ 50 Degree C |
| Operating Humidity |
20 ~ 80% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
27/08
|
Planet ICA-HM131 H.264 Full-HD Fixed Dome IP Camera - 1/2.7" Progressive CMOS, Built-In Microphone For One-Way Audio, Motion Detection, Supports Micro SD Card Storage, 1080p Full HD Resolution - White ICA-HM131
H.264 Full-HD Fixed Dome IP Camera
Overview
PLANET announces new H.264 Full-HD Fixed Mini Dome IP Camera, ICA-HM131, to feedback the requirements from worldwide market. The ICA-HM131 supports Full HD recording for high quality images. Integrated with the H.264 video compression technology, the ICA-HM131 can compress the video size to smaller one for users to transfer the Full HD images on Internet easily and fast.
The ICA-HM131 is innovatively designed with IEEE 802.3af PoE power supply and recessed mount case for quick and easy installation in the ceiling or the wall without concerning the outlet / socket locations. It thus eliminates the need of power cables and installation costs.
The ICA-HM131 features Multi-Profile to provide video stream simultaneously. It can deliver clear images with dual H.264 / M-JPEG stream video up to 1080p (1920 x 1080 pixels) @15fps. The IP Camera uses progressive scan to perform full resolution images of the moving objects without distortion, which is perfect for critical areas surveillance such as the entrances or exits of the building where are needed to be monitored in greater details.
The ICA-HM131 can be managed by PLANET Cam Viewer 3, the professional central management software for multi-camera video surveillance application, to provide monitoring, recording and event management functions. The Cam Viewer 3 enables you to setup a comprehensive and effective surveillance system quickly and easily. With the ICA-HM131 managed by the Cam Viewer 3, it provides an enhanced professional security environment to protect your property and life.
| ICA-HM131 |
H.264 Full-HD Fixed Dome IP Camera |

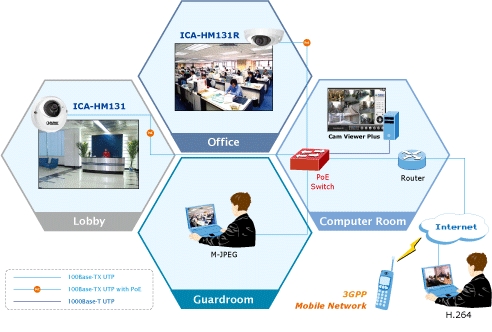

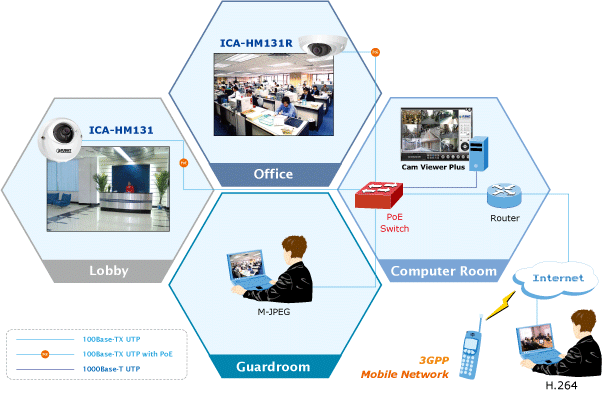

PLANET ICA-HM131 provides various surveillance applications to deliver users crisp and clear images that is perfect for identification of objects and people.
Key Features
Camera
- 1/2.7" progressive CMOS
- Dual video stream : H.264 and M-JPEG video compression simultaneously
- Supports 1080p Full HD resolution (1920 x 1080 pixels)
- Compliant with IEEE 802.3af PoE interface
- Supports ONVIF standard to simplify integration and enhance interoperability
- Easy recessed mount design
Video & Audio
- 3GPP for 3G mobile remote applications
- Built-in Microphone for One-Way audio
- Supports Micro SD card storage
Management
- Easy configuration and management via Windows-Based utility or web interface
- Cam Viewer 3 - Central management software supported
- DDNS, PPPoE and FTP uploading supports more alternatives in surveillance network
Feature
- Motion Detection feature can monitor any suspicious movement in specific area
- Supports Wide Dynamic Range (WDR) / 3D Noise Reduction (3DNR)
- PLANET DDNS supported
Specifications:
| Video Specification |
| Image Sensor |
1/2.7" Progressive CMOS |
| Lens |
4 mm, F1.5 |
| Minimum illumination |
0.2 Lux @ F1.2 |
| View Angle (Horizontal / Vertical) |
66 / 52 Degree |
| Scan Method |
Progressive |
| Video Encoder |
H.264 / M-JPEG |
| Rate Control |
VBR (Variable Bit Rate) |
| Video Resolution |
H.264 1080P / 720P
M-JPEG 1080P / 720P / D1 / CIF
|
| Frame Rate |
15fps for 1080p
30fps for other resolutions
|
| Image Control |
AWB, AES |
| Audio Specification |
| Audio Codec |
G.711, G.726 |
| Audio In |
Internal Microphone |
| Network and Configuration |
| Network Interface |
1 x RJ-45 |
| Network Standard |
IEEE 802.3 / IEEE 802.3u |
| Network Protocol |
TCP/IP, UDP, RTP, RTSP, HTTP, ICMP, FTP, SMTP, DHCP, IGMP |
| Browser / Software |
Microsoft Internet Explorer 6.0 or later, Cam Viewer 3 Lite/Pro |
| Motion Detection |
10 area definable |
| Environment Specifications |
| Power Requirement |
IEEE 802.3af |
| Dimension ( x H) |
110 x 50 mm |
| Weight |
180g |
| Power Consumption |
3.8W max. |
| Operating Temperature |
0 ~ 50 Degree C |
| Operating Humidity |
10 ~ 90% (non-condensing) |
| Emission |
CE, FCC |
|
|
|
|
Previous Page
|
Next Page
|
|
