Expression
Lens
 With D-SLRs, expression range is remarkably widened by changing lenses. You can enjoy a variety of expression that cannot be achieved with compact digital cameras. The extensive NIKKOR lens lineup includes bright, single-focal-length lenses that offer large and beautiful background blur, wide-angle zoom lenses that capture wide-spread landscapes, telephoto zoom lenses that let you get closer to distant subjects, fisheye lenses for creatively deformed images that only diagonal type fisheye lenses can offer, and micro lenses that are ideal for close-up shooting of flowers and other small subjects.
Note: AF-S or AF-I lens with a built-in motor is required to activate AF with the D3200.
5.5x zoom lens with super-telephoto reach AF-S DX NIKKOR 55-300mm f/4.5-5.6G ED VR
5.5x compact and lightweight super-telephoto zoom lens that covers an angle of view equivalent to a focal length of up to 300 mm. Suitable for getting closer to distant subjects or capturing them in a natural way without distracting or disturbing them in situations such as sports and wildlife shooting. Vibration Reduction (VRII) offers an effective vibration reduction function for comfortable super-telephoto shooting.
DX-format micro lens that can be used in a wide applications from close-ups to portrait/landscape photography AF-S DX Micro NIKKOR 40mm f/2.8GThis micro lens features a compact and light body that makes it suitable for carrying anywhere with the compact D3200. With a focal length close to that of a standard lens, you can easily enjoy close-up photography at up to 1:1 reproduction ratio (minimum focus distance is 0.163 m/0.53 ft*) utilizing high resolution and large, beautiful image blur. It also provides a particular nuance to portrait and landscape photography.
Lightweight and compact Nikon DX-format standard lens providing the beautiful blur that only a fixed focal-length lens can offer AF-S DX NIKKOR 35mm f/1.8GIt enables you to carry out handheld shooting even in low-light situations such as indoors with a maximum aperture of f/1.8. Shooting utilizing beautiful blur is also available. Ideal in candid or landscape shooting for capturing subjects naturally. Ultra-wide-angle zoom lens that fully captures the scene AF-S DX NIKKOR 10-24mm f/3.5-4.5G ED2.4x ultra-wide-angle zoom lens covering 109 angle of view. Come closer to a subject to capture the scene with wide background and dynamically rendered subject. It is also available as a standard lens because it includes an angle of view suited for candid shooting, etc. Furthermore, close-up shooting is possible at the telephoto position. Optimal for situations such as interiors with limited space, architecture and landscapes, or when you want to emphasize perspective. Built-in flash and optional SpeedlightsAdjusts the light automatically pop-up type built-in flashWhen you shoot in low-light, backlit or shaded conditions, the D3200 detects the situation of the subject, pops up the built-in flash automatically and fires*. An optimal amount of light for the scene realizes naturally reproduced images.
Lets you enjoy shooting with flash easily optional SpeedlightIf light with the built-in flash is insufficient, it is recommended to use an optional Speedlight. Bounce flash operation, which bounces the flash light off the ceiling or a wall, is made possible with a Speedlight. It fills your shooting scenes with soft light, minimizes unnatural shadows caused by direct flash light and produces a more natural-looking image.
Bounce shooting is suitable to portray a subject with natural ambience (SB-700 is used).
-SB-400 SpeedlightCompact and lightweight. The flash head (light-emitting section) can be tilted in four steps vertically for bounce flash operation. Recommended as a first Speedlight because of its simple, useful functions and operability. -SB-700 SpeedlightThe flash head (light-emitting section) can be tilted both vertically and horizontally. You can take advantage of a variety of bounce flash operations. The latest functions are condensed in this Speedlight to enable a wide range of users, from entry to advanced level, to enjoy flash shooting. Customizes colors and tones of your movies and images to your preferences before shooting Picture ControlThe D3200 employs six types of Picture Control, selectable according to your subjects and shooting scenes. Each Picture Control lets you fine-tune sharpening, contrast, etc. to match your own image creation ideas. Picture Control can also be set from Guide Mode [Advanced operation] [More settings].
Expanded creativityAdding creativity in-camera after shooting Retouch menuThe D3200 comes equipped with various in-camera image-editing functions. These in-camera functions let you retouch images easily. There are a variety of options such as Selective color that creates a black-and-white image except for the color(s) you want to emphasize, Miniature effect for a diorama-like image, or Color sketch for a sketch-style image. In each case, a duplicate image is created, leaving the original securely intact.
Retouch menus incorporated in the D3200D-Lighting Red-eye correction Trim (3:2, 4:3, 5:4, 16:9 and 1:1) Monochrome (Black-and-white, Sepia and Cyanotype) Filter effects (Skylight, Warm filter, Red/Green/Blue intensifier, Cross screen and Soft) Color balance Image overlay NEF (RAW) processing Resize Quick retouch Straighten Distortion control Fisheye Color outline Color sketch Perspective control Miniature effect Selective color Edit movie Exclusive Nikon software expand your creativityYour Imaging Toolbox ViewNX 2 (supplied)This simple and intuitive software helps you get the most out of your images and movies. ViewNX 2 provides importing and browsing capability while also incorporating image-editing functions such as Resize, Brightness, Crop, Straighten and NEF (RAW) image processing. High-definition and high-quality RAW processing is achieved by utilizing the same processing algorithm as Capture NX 2 that faithfully reproduces Nikon image quality. Its movie-editing functions help you create your own original movies quickly and easily, and Nikon's smart photo sharing and storage service, my Picturetown, works smoothly with ViewNX 2, allowing you to log in directly from the software for easy uploading without activating a browser.
Quick and simple image-editing software with intuitive operation Capture NX 2 (optional)Capture NX 2 delivers superior operability and a variety of image-editing functions empowered by U Point technology. Achieve a vast array of image-editing techniques easily by just placing various types of Control Points on your image and adjusting the sliders. Selection Control Points enable you to apply numerous enhancements such as D-Lighting and brightness to a designated area at any level you desire.
Smart photo sharing and storage service my PicturetownNikon's own image-sharing website, my Picturetown, allows you to easily store, manage and share your images with your family and friends, and post to blogs and social networking services (SNS). Membership is free and permits storage of up to 2 GB of photos and/or movies. And with an additional paid registration, you can expand your capacity to 200 GB*. Also, utilizing free applications compatible with smart device, you can enjoy images using a PC or a smart device anytime, anywhere.
Enables playback of still images and movies on High-Definition TV HDMI supportedThe D3200 supports HDMI (High-Definition Multimedia Interface) that allows you to play back still images and movies with High-Definition TV*1. HDMI mini connector (Type C) is employed as the interface. Also, the D3200 is compatible with HDMI-CEC (Consumer Electric Control) that enables remote operation of the camera using a TV remote control*2.
Transmits taken images from the camera to a computer wirelessly Eye-Fi card (on the market) compatibleThe D3200 can transmit taken image data (JPEG) from the D3200 to a computer wirelessly. You can also use online photo sharing and storage services such as "my Picturetown" and transmit images to a computer automatically.
Note: The D3200 can turn Eye-Fi cards on and off, but may not support other Eye-Fi functions. Direct any inquiries to the manufacturer. Eye-Fi cards are for use only in the country of purchase (As of December, 2011). Observe all local laws concerning the use of wireless devices. Nikon Digital SLR Camera D3200 Specifications
Memory card capacityThe following table shows the approximate number of pictures that can be stored on a 8 GB SanDisk Extreme Pro SDHC UHS-I card at different image quality and size settings. Note that buffer capacity drops at ISO sensitivity of 1600 or higher.
Approved memory cardsThe following SD memory cards have been tested and approved for use in the D3200. Cards with class 6 or faster write speeds are recommended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used.
|
NA
|
|
22/02
|
|

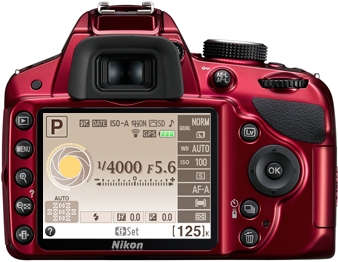

Nikon D3200 Digital SLR Camera - 24.2MP (Red)- 3.0"TFT LCD, Live View, Live View AF-Area Mode - Twin Lens Kit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

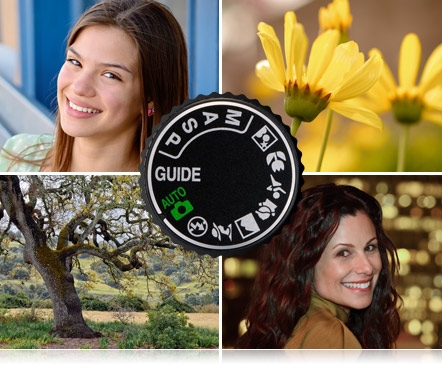

Portrait
Landscape
Child
Sports
Close up
Night portrait
(single frame),
(continuous),
(self-timer),
(delayed remote),
(quick-response remote),
(quiet shutter release)
auto;
auto [flash off]); scene modes (
portrait;
landscape;
child;
sports;
close up;
night portrait); programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M)
(
) button
Portrait
Landscape
Child
Sports
Close up
Night portrait
|
Recording mode
|
Frame size (pixels)
|
Frame rate1,2
|
Maximum length
|
|---|---|---|---|
|
Full HD
|
1,920 x 1,080
|
30p
|
20 min.
|
|
25p
|
|||
|
24p
|
|||
|
HD
|
1,280 x 720
|
60p
|
|
|
50p
|
|||
|
SD
|
640 x 424
|
30p
|
|
|
25p
|
- 1Listed value. Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively.
- 230p/60p: available when NTSC is selected for Video mode; 25p/50p: available when PAL is selected for Video mode.
Expression

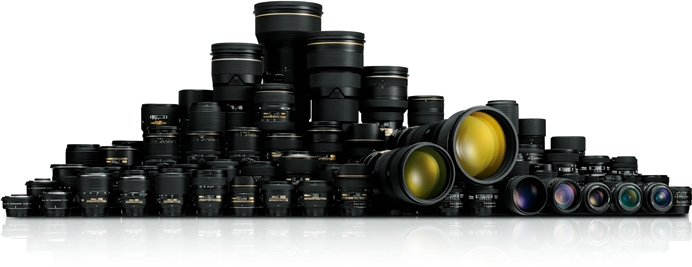

Lens

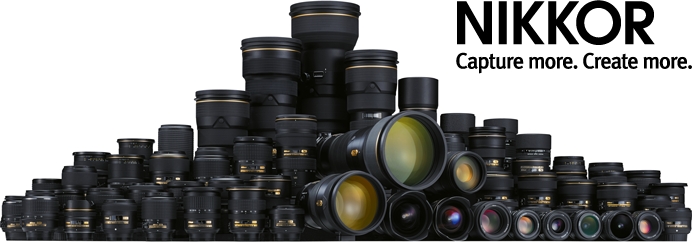

With D-SLRs, expression range is remarkably widened by changing lenses. You can enjoy a variety of expression that cannot be achieved with compact digital cameras. The extensive NIKKOR lens lineup includes bright, single-focal-length lenses that offer large and beautiful background blur, wide-angle zoom lenses that capture wide-spread landscapes, telephoto zoom lenses that let you get closer to distant subjects, fisheye lenses for creatively deformed images that only diagonal type fisheye lenses can offer, and micro lenses that are ideal for close-up shooting of flowers and other small subjects.
Note: AF-S or AF-I lens with a built-in motor is required to activate AF with the D3200.
5.5x zoom lens with super-telephoto reach AF-S DX NIKKOR 55-300mm f/4.5-5.6G ED VR
5.5x compact and lightweight super-telephoto zoom lens that covers an angle of view equivalent to a focal length of up to 300 mm. Suitable for getting closer to distant subjects or capturing them in a natural way without distracting or disturbing them in situations such as sports and wildlife shooting. Vibration Reduction (VRII) offers an effective vibration reduction function for comfortable super-telephoto shooting.

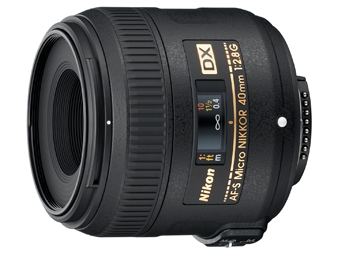

DX-format micro lens that can be used in a wide applications from close-ups to portrait/landscape photography AF-S DX Micro NIKKOR 40mm f/2.8G
This micro lens features a compact and light body that makes it suitable for carrying anywhere with the compact D3200. With a focal length close to that of a standard lens, you can easily enjoy close-up photography at up to 1:1 reproduction ratio (minimum focus distance is 0.163 m/0.53 ft*) utilizing high resolution and large, beautiful image blur. It also provides a particular nuance to portrait and landscape photography.
- * Minimum focus distance is the distance from a camera's focal plane mark to the subject.

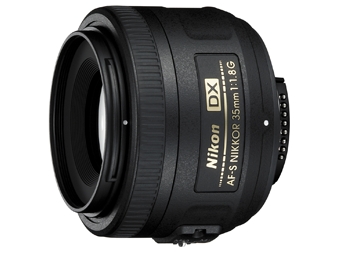

Lightweight and compact Nikon DX-format standard lens providing the beautiful blur that only a fixed focal-length lens can offer AF-S DX NIKKOR 35mm f/1.8G
It enables you to carry out handheld shooting even in low-light situations such as indoors with a maximum aperture of f/1.8. Shooting utilizing beautiful blur is also available. Ideal in candid or landscape shooting for capturing subjects naturally.
Ultra-wide-angle zoom lens that fully captures the scene AF-S DX NIKKOR 10-24mm f/3.5-4.5G ED
2.4x ultra-wide-angle zoom lens covering 109 angle of view. Come closer to a subject to capture the scene with wide background and dynamically rendered subject. It is also available as a standard lens because it includes an angle of view suited for candid shooting, etc. Furthermore, close-up shooting is possible at the telephoto position. Optimal for situations such as interiors with limited space, architecture and landscapes, or when you want to emphasize perspective.
Built-in flash and optional Speedlights

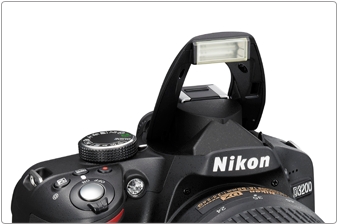

Adjusts the light automatically pop-up type built-in flash
When you shoot in low-light, backlit or shaded conditions, the D3200 detects the situation of the subject, pops up the built-in flash automatically and fires*. An optimal amount of light for the scene realizes naturally reproduced images.
- *When shooting mode is set to Auto, Portrait, Child, Close up or Night portrait.
Lets you enjoy shooting with flash easily optional Speedlight
If light with the built-in flash is insufficient, it is recommended to use an optional Speedlight. Bounce flash operation, which bounces the flash light off the ceiling or a wall, is made possible with a Speedlight. It fills your shooting scenes with soft light, minimizes unnatural shadows caused by direct flash light and produces a more natural-looking image.
- More information
Bounce shooting is suitable to portray a subject with natural ambience (SB-700 is used).
- With bounce flash
- Without bounce flash

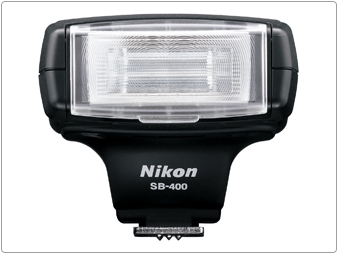

-SB-400 Speedlight
Compact and lightweight. The flash head (light-emitting section) can be tilted in four steps vertically for bounce flash operation. Recommended as a first Speedlight because of its simple, useful functions and operability.

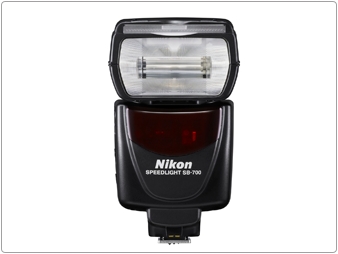

-SB-700 Speedlight
The flash head (light-emitting section) can be tilted both vertically and horizontally. You can take advantage of a variety of bounce flash operations. The latest functions are condensed in this Speedlight to enable a wide range of users, from entry to advanced level, to enjoy flash shooting.
Customizes colors and tones of your movies and images to your preferences before shooting Picture Control
The D3200 employs six types of Picture Control, selectable according to your subjects and shooting scenes. Each Picture Control lets you fine-tune sharpening, contrast, etc. to match your own image creation ideas. Picture Control can also be set from Guide Mode [Advanced operation] [More settings].
- More information
- Set Picture Control display
- Adjusting display
- Standard
- Standard processing for balanced results. Recommended for most situations.
- Neutral
- Minimal processing for natural results. Choose for photographs that will later be extensively processed or retouched.
- Vivid
- Provides distinct, colorful, fresh-looking images. Choose for situations where you want to emphasize primary colors such as blue, red and green.
- Monochrome
- Gives you monochromatic shadings, such as black-and-white or sepia. You can select filter effects and toning.
- Portrait
- Portrait delivers natural-appearing skin. Natural texture gives the skin of portrait subjects a smoother look.
- Landscape
- Produces vibrant landscapes and cityscapes. Suitable for any kinds of nature scenes.
Expanded creativity
Adding creativity in-camera after shooting Retouch menu
The D3200 comes equipped with various in-camera image-editing functions. These in-camera functions let you retouch images easily. There are a variety of options such as Selective color that creates a black-and-white image except for the color(s) you want to emphasize, Miniature effect for a diorama-like image, or Color sketch for a sketch-style image. In each case, a duplicate image is created, leaving the original securely intact.
- Selective color
- All colors other than the color(s) you want to emphasize are recorded in black and white. Up to three colors are selectable and the color range can be adjusted.
- Miniature effect
- Distant subjects appear as if they are miniature scale models. The position of the focus point remains sharp while the peripheral area is defocused.
- Color sketch
- Sketch-style images can be created.
- Straighten
- Corrects inclination of the image within a range of 5 (in approx. 0.25 steps).
- Trim
- The desired part of the image can be trimmed and enlarged.

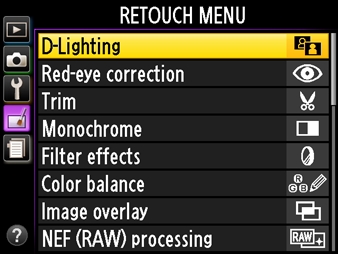

Retouch menus incorporated in the D3200
D-Lighting Red-eye correction Trim (3:2, 4:3, 5:4, 16:9 and 1:1) Monochrome (Black-and-white, Sepia and Cyanotype) Filter effects (Skylight, Warm filter, Red/Green/Blue intensifier, Cross screen and Soft) Color balance Image overlay NEF (RAW) processing Resize Quick retouch Straighten Distortion control Fisheye Color outline Color sketch Perspective control Miniature effect Selective color Edit movie
Exclusive Nikon software expand your creativity

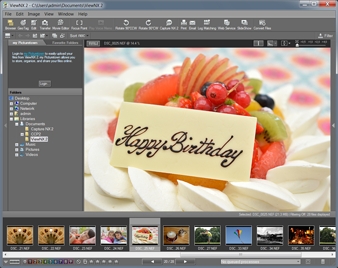

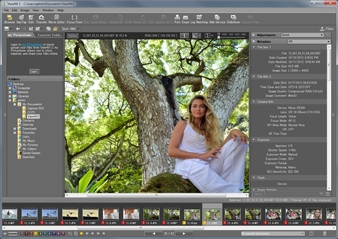

Your Imaging Toolbox ViewNX 2 (supplied)
This simple and intuitive software helps you get the most out of your images and movies. ViewNX 2 provides importing and browsing capability while also incorporating image-editing functions such as Resize, Brightness, Crop, Straighten and NEF (RAW) image processing. High-definition and high-quality RAW processing is achieved by utilizing the same processing algorithm as Capture NX 2 that faithfully reproduces Nikon image quality. Its movie-editing functions help you create your own original movies quickly and easily, and Nikon's smart photo sharing and storage service, my Picturetown, works smoothly with ViewNX 2, allowing you to log in directly from the software for easy uploading without activating a browser.
- More information

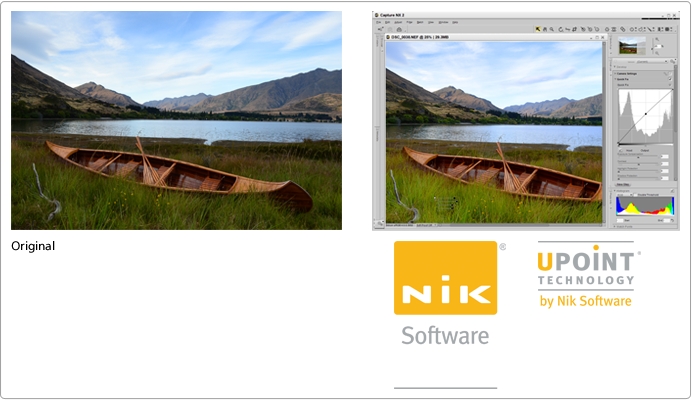

Quick and simple image-editing software with intuitive operation Capture NX 2 (optional)
Capture NX 2 delivers superior operability and a variety of image-editing functions empowered by U Point technology. Achieve a vast array of image-editing techniques easily by just placing various types of Control Points on your image and adjusting the sliders. Selection Control Points enable you to apply numerous enhancements such as D-Lighting and brightness to a designated area at any level you desire.
- More information

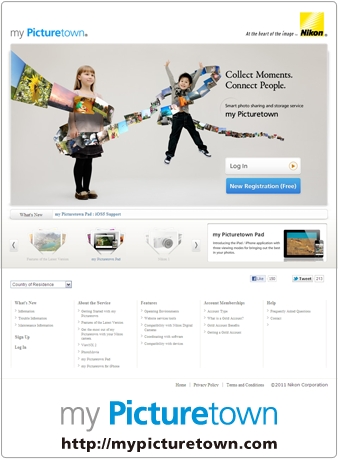

Smart photo sharing and storage service my Picturetown
Nikon's own image-sharing website, my Picturetown, allows you to easily store, manage and share your images with your family and friends, and post to blogs and social networking services (SNS). Membership is free and permits storage of up to 2 GB of photos and/or movies. And with an additional paid registration, you can expand your capacity to 200 GB*. Also, utilizing free applications compatible with smart device, you can enjoy images using a PC or a smart device anytime, anywhere.
- *Fees and availability may vary by country.
- More information

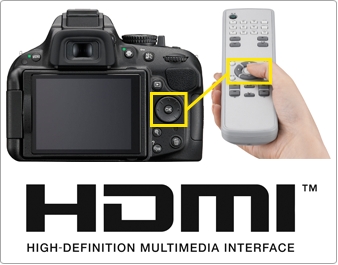

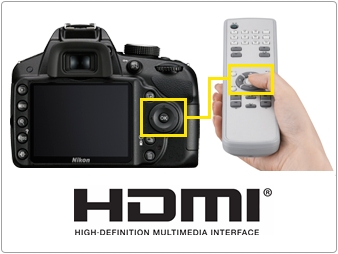

Enables playback of still images and movies on High-Definition TV HDMI supported
The D3200 supports HDMI (High-Definition Multimedia Interface) that allows you to play back still images and movies with High-Definition TV*1. HDMI mini connector (Type C) is employed as the interface. Also, the D3200 is compatible with HDMI-CEC (Consumer Electric Control) that enables remote operation of the camera using a TV remote control*2.
- *1Requires optional HDMI connection for playback.
- *2Remote control of HDMI-CEC supported TV.
- HDMI-CEC enables remote operation of multi selector and OK button of the D3200 using a TV remote control.

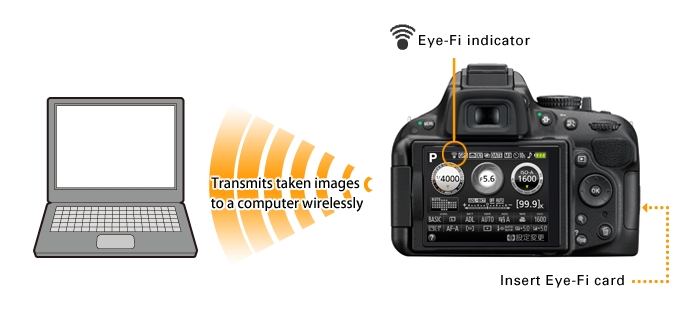

Transmits taken images from the camera to a computer wirelessly Eye-Fi card (on the market) compatible
The D3200 can transmit taken image data (JPEG) from the D3200 to a computer wirelessly. You can also use online photo sharing and storage services such as "my Picturetown" and transmit images to a computer automatically.
- More information
Note: The D3200 can turn Eye-Fi cards on and off, but may not support other Eye-Fi functions. Direct any inquiries to the manufacturer. Eye-Fi cards are for use only in the country of purchase (As of December, 2011). Observe all local laws concerning the use of wireless devices.
Nikon Digital SLR Camera D3200 Specifications
|
Type
|
|
|---|---|
|
Type
|
Single-lens reflex digital camera
|
|
Lens mount
|
Nikon F mount (with AF contacts)
|
|
Effective angle of view
|
Approx. 1.5x lens focal length (35 mm format equivalent); Nikon DX format
|
|
Effective pixels
|
|
|
Effective pixels
|
24.2 million
|
|

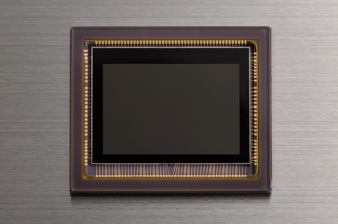

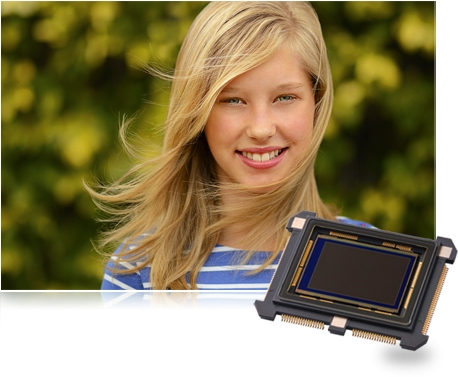

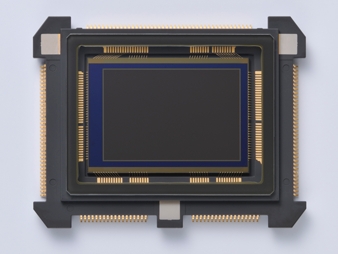

Image sensor
|
|
|
Image sensor
|
23.2 x 15.4 mm CMOS sensor
|
|
Total pixels
|
24.7 million
|
|
Dust-reduction System
|
Image sensor cleaning
Image Dust Off reference data (optional Capture NX 2 software required) |
|
Storage
|
|
|
Image size (pixels)
|
6,016 x 4,000 [L], 4,512 x 3,000 [M], 3,008 x 2,000 [S]
|
|
File format
|
|
|
Picture Control System
|
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified
|
|
Media
|
SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards
|
|
File system
|
DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
|
|

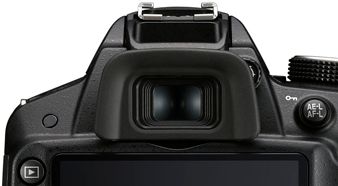

Viewfinder
|
|
|
Viewfinder
|
Eye-level pentamirror single-lens reflex viewfinder
|
|
Frame coverage
|
Approx. 95% horizontal and 95% vertical
|
|
Magnification
|
Approx. 0.8x (50 mm f/1.4 lens at infinity, -1.0 m-1)
|
|
Eyepoint
|
18 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)
|
|
Diopter adjustment
|
-1.7 to +0.5 m-1
|
|
Focusing screen
|
Type B BriteView Clear Matte Mark VII screen
|
|
Reflex mirror
|
Quick return
|
|
Lens aperture
|
Instant return, electronically controlled
|
|
Lens
|
|
|
Compatible lenses
|
Autofocus is available with AF-S and AF-I lenses; Autofocus is not available with other type G and D lenses, AF lenses (IX-NIKKOR and lenses for the F3AF are not supported) and AI-P lenses; Non-CPU lenses can be used in mode M but the camera exposure meter will not function
The electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster |
|
Shutter
|
|
|
Type
|
Electronically-controlled vertical-travel focal-plane shutter
|
|
Speed
|
1/4,000 to 30 s in steps of 1/3 EV; Bulb; Time (requires optional ML-L3 Remote Control)
|
|
Flash sync speed
|
X=1/200 s; synchronizes with shutter at 1/200 s or slower
|
|
Release
|
|
|
Release mode
|
 (single frame), (continuous), (self-timer), (delayed remote), (quick-response remote), (quiet shutter release) |
|
Frame advance rate
|
Up to 4 fps (manual focus, mode M or S, shutter speed 1/250 s or faster, and other settings at default values)
|
|
Self-timer
|
2 s, 5 s, 10 s, 20 s; 1 to 9 exposures
|
|
Exposure
|
|
|
Metering
|
TTL exposure metering using 420-pixel RGB sensor
|
|
Metering method
|
|
|
Range
(ISO 100, f/1.4 lens, 20C/68F) |
|
|
Exposure meter coupling
|
CPU
|
|
Mode
|
Auto modes (
 auto;  auto [flash off]); scene modes ( portrait;  landscape;  child;  sports;  close up;  night portrait); programmed auto with flexible program (P); shutter-priority auto (S); aperture-priority auto (A); manual (M) |
|
Exposure compensation
|
-5 to +5 EV in increments of 1/3 EV
|
|
Exposure lock
|
Luminosity locked at detected value with
 (  ) button |
|
ISO sensitivity
(Recommended Exposure Index) |
ISO 100 to 6400 in steps of 1 EV; can also be set to approx. 1 EV above ISO 6400 (ISO 12800 equivalent); auto ISO sensitivity control available
|
|
Active D-Lighting
|
On, off
|
|
Focus
|
|
|
Autofocus
|
Nikon Multi-CAM 1000 autofocus sensor module with TTL phase detection, 11 focus points (including one cross-type sensor) and AF-assist illuminator (range approx. 0.5 to 3 m/1 ft 8 in. to 9 ft 10 in.)
|
|
Detection range
|
-1 to +19 EV (ISO 100, 20C/68F)
|
|
Lens servo
|
|
|
Focus point
|
Can be selected from 11 focus points
|
|
AF-area mode
|
Single-point AF, dynamic-area AF, auto-area AF, 3D-tracking (11 points)
|
|
Focus lock
|
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing
( ) button |
|
Flash
|
|
|
Built-in flash
|
, , , , : Auto flash with auto pop-up P, S, A, M: Manual pop-up with button release |
|
Guide number
|
Approx. 12/39, 13/43 with manual flash (m/ft, ISO 100, 20C/68F)
|
|
Flash control
|
TTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600 or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering
|
|
Flash mode
|
Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off
|
|
Flash compensation
|
-3 to +1 EV in increments of 1/3 EV
|
|
Flash-ready indicator
|
Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
|
|
Accessory shoe
|
ISO 518 hot-shoe with sync and data contacts and safety lock
|
|
Nikon Creative Lighting
System (CLS) |
Advanced Wireless Lighting supported with SB-910, SB-900, SB-800 or SB-700 as a master flash and SB-600 or SB-R200 as remotes, or SU-800 as commander; Flash Color Information Communication supported with all CLS-compatible flash units
|
|
Sync terminal
|
AS-15 Sync Terminal Adapter (available separately)
|
|
White balance
|
|
|
White balance
|
Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine-tuning
|
|

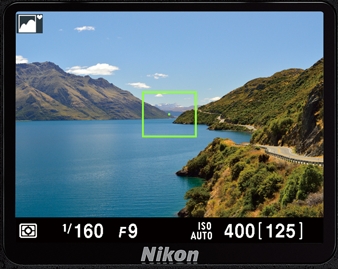

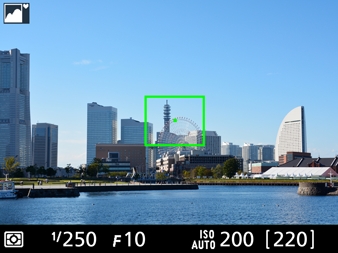

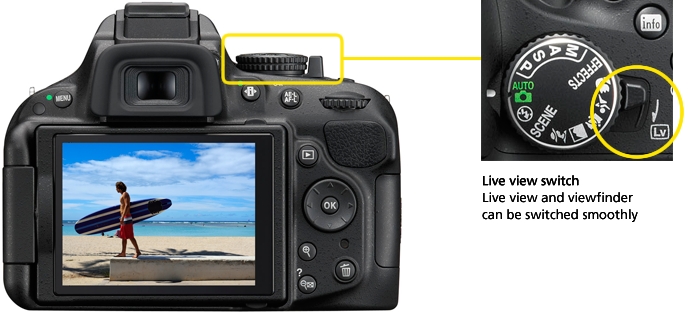

Live View
|
|
|
Lens servo
|
|
|
AF-area mode
|
Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
|
|
Autofocus
|
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
|
|
Automatic scene selection
|
Available in
and modes |
|

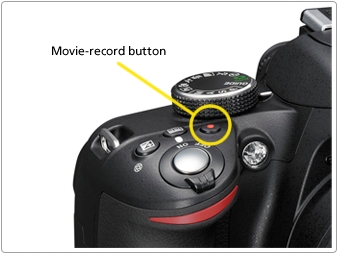

Movie
|
|
|
Metering
|
TTL exposure metering using main image sensor
|
|
Metering method
|
Matrix
|
|
Frame size (pixels)
and frame rate |
|
|
File format
|
MOV
|
|
Video compression
|
H.264/MPEG-4 Advanced Video Coding
|
|
Audio recording format
|
Linear PCM
|
|
Audio recording device
|

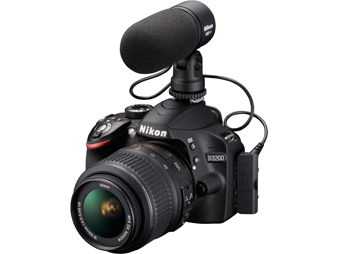

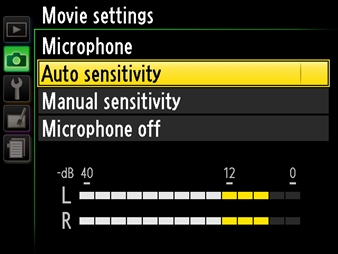

Built-in monaural or external stereo microphone; sensitivity adjustable
|
|
ISO sensitivity
|
ISO 200 to 6400; can also be set to approx. 1 EV above ISO 6400 (ISO 12800 equivalent)
|
|
Monitor
|
|
|
Monitor
|

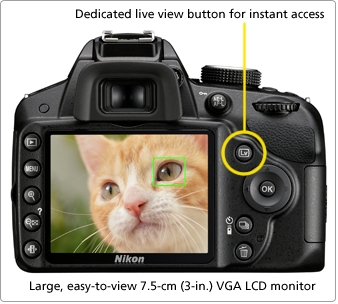

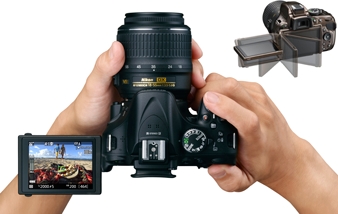

7.5-cm/3-in., approx. 921k-dot (VGA) TFT LCD with 160 viewing angle, approx. 100% frame coverage, and brightness adjustment
|
|
Playback
|
|
|
Playback
|

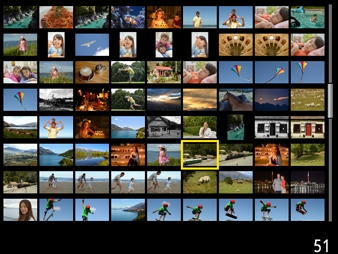

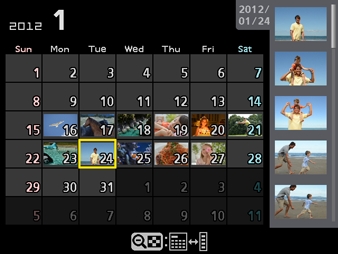

Full-frame and thumbnail (4, 9 or 72 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, auto image rotation and image comment (up to 36 characters)
|
|
Interface
|
|
|
USB
|
Hi-Speed USB
|
|
Video output
|
NTSC, PAL
|
|
HDMI output
|
Type C mini-pin HDMI connector
|
|
Accessory terminal
|
MC-DC2 Remote Cord (available separately), GP-1 GPS Unit (available separately)
|
|
Audio input
|
Stereo mini-pin jack (3.5-mm diameter)
|
|
Supported languages
|
|
|
Supported languages
|
Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian
|
|

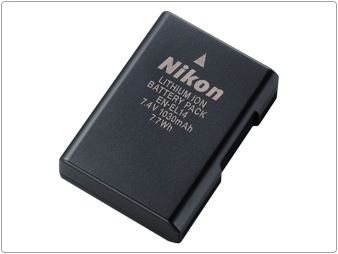

Power source
|
|
|
Battery
|
One EN-EL14 Rechargeable Li-ion Battery
|
|
AC adapter
|
EH-5b AC Adapter; requires EP-5A Power Connector (available separately)
|
|
Tripod socket
|
|
|
Tripod socket
|
1/4 in. (ISO 1222)
|
|
Dimensions / weight
|
|
|
Dimensions
(W x H x D) |
Approx. 125 x 96 x 76.5 mm/5.0 x 3.8 x 3.1 in.
|
|
Weight
|
Approx. 505 g/1 lb 1.8 oz (with battery and memory card but without body cap); approx. 455 g/1 lb (camera body only)
|
|
Operating environment
|
|
|
Temperature
|
0 to 40C/32 to 104F
|
|
Humidity
|
Less than 85% (no condensation)
|
|
Accessories
|
|
|
Supplied accessories
(may differ by country or area) |
EN-EL14 Rechargeable Li-ion Battery, MH-24 Battery Charger, DK-5 Eyepiece Cap, DK-20 Rubber Eyecup, UC-E17 USB Cable, EG-CP14 Audio Video Cable, AN-DC3 Camera Strap, BF-1B Body Cap, BS-1 Accessory Shoe Cover, ViewNX 2 CD-ROM
|
- Microsoft and Windows, Windows 7 are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
- Macintosh and QuickTime are registered trademarks or trademarks of Apple Inc. in the United States and/or other countries.
- The SD, SDHC and SDXC logos are trademarks of the SD Card Association.
- PictBridge is a trademark.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
- Google, Android and Google Play Store are registered trademarks or trademarks of Google Inc.
- Products and brand names are trademarks or registered trademarks of their respective companies.
- Images in viewfinders, on LCDs and monitors shown in this website are simulated.
Memory card capacity
The following table shows the approximate number of pictures that can be stored on a 8 GB SanDisk Extreme Pro SDHC UHS-I card at different image quality and size settings. Note that buffer capacity drops at ISO sensitivity of 1600 or higher.
|
Image quality
|
Image size
|
File size1
|
No. of images1
|
Buffer capacity2
|
|---|---|---|---|---|
|
NEF (RAW) + JPEG fine3
|
Large
|
31.9 MB
|
171
|
10
|
|
NEF (RAW)
|
-
|
20.4 MB
|
259
|
18
|
|
JPEG fine
|
Large
Medium Small |
11.9 MB
7.4 MB 3.8 MB |
509
853 1600 |
80
100 100 |
|
JPEG normal
|
Large
Medium Small |
6.2 MB
3.7 MB 1.9 MB |
1000
1600 3200 |
100
100 100 |
|
JPEG basic
|
Large
Medium Small |
3.0 MB
1.9 MB 1.0 MB |
1900
3200 6300 |
100
100 100 |
- 1All figures are approximate. Results will vary with card type, camera settings, and scene recorded.
- 2Maximum number of exposures that can be stored in memory buffer at ISO 100. Drops when noise reduction or auto distortion control is on.
- 3Image size applies to JPEG images only. Size of NEF (RAW) images can not be changed. File size is the total for NEF (RAW) and JPEG images.
Approved memory cards
The following SD memory cards have been tested and approved for use in the D3200. Cards with class 6 or faster write speeds are recommended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used.
|
|
SD memory cards
|
SDHC memory cards2
|
SDXC memory cards3
|
|
|---|---|---|---|---|
|
SanDisk
|
2 GB1
|
4 GB, 8 GB, 16 GB, 32 GB
|
64 GB
|
|
|
Toshiba
|
2 GB1
|
4 GB, 8 GB, 16 GB, 32 GB
|
64 GB
|
|
|
Panasonic
|
2 GB1
|
4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 32 GB
|
48 GB, 64 GB
|
|
|
Lexar Media
|
|
2 GB1
|
4 GB, 8 GB, 16 GB, 32 GB
|
-
|
|
Platinum II
|
2 GB1
|
4 GB, 8 GB, 16 GB, 32 GB
|
-
|
|
|
Professional
|
2 GB1
|
4 GB, 8 GB, 16 GB, 32 GB, 64 MB, 128 MB
|
-
|
|
|
Full-HD Video
|
-
|
4 GB, 8 GB, 16 GB
|
-
|
|
 |
Nikon D3200 Digital SLR Camera - 24.2MP (Red)
- 3.0"TFT LCD, Live View, Live VIew AF-Area Mode
- 18-55mm Lens

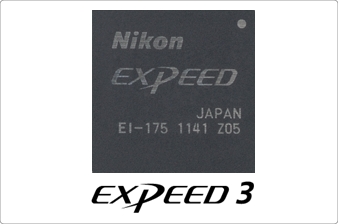

24.2 MP DX-format CMOS sensor and EXPEED 3
Why do photos and videos shot with a Nikon HD-SLR look so good? It all starts with Nikon’s exclusive image sensors, and the D3200 has the most powerful CMOS sensor we’ve ever put in a HD-SLR at this level. Boasting an astounding 24.2 effective megapixels, it captures sharper, richer images—even in low light. Combine that with EXPEED 3 image processing, the processing power behind the acclaimed Nikon D4, for super-fast operation, exceptional image capture, in-camera filter effects and more. Your photos and videos will amaze even you.

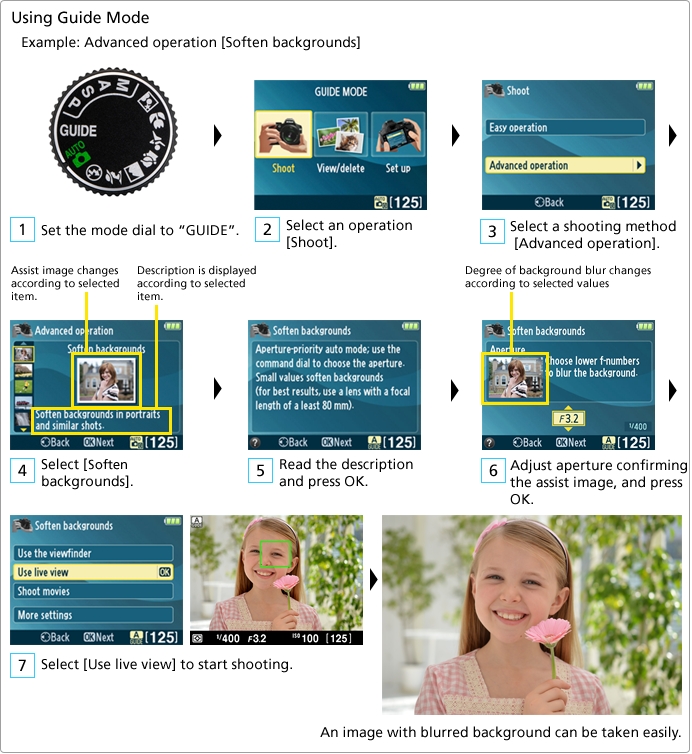

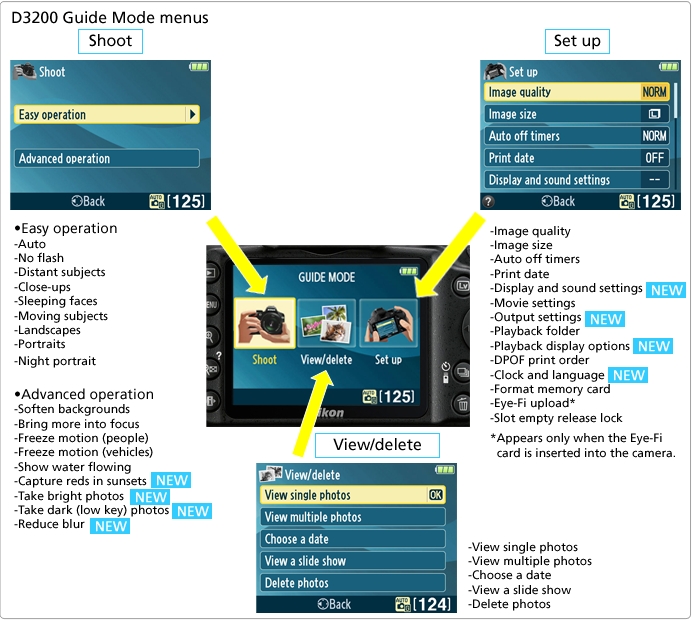

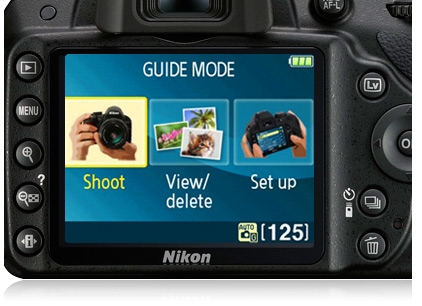

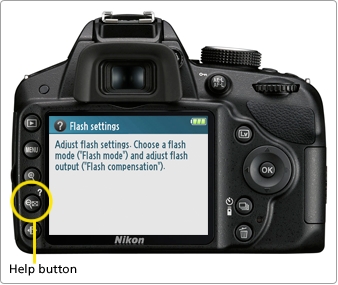

Guide Mode ensures success
It’s never been easier to create HD-SLR quality photos, thanks to the D3200’s Guide Mode. Learn the camera's key features and controls while you shoot, and even get advice and sample images to succeed in difficult shooting situations. Guide Mode is easy to access and easy to understand. You’re never shooting alone with the D3200.
Six Scene Modes and Scene Auto Selector
Experienced photographers optimize their camera settings for the scene they’re shooting. With the D3200, optimizing your camera settings is as easy as turning a dial. Choose from six common Scene Modes like Portrait, Night Portrait, Landscape, Close up and more, for flawless results even in demanding circumstances. When using Live View, Scene Auto Selector automatically sets the D3200 for the most suitable Scene Mode for the situation. A highly accurate 420-pixel RGB sensor powers Nikon's Scene Recognition System, which compares scene data against an extensive database to optimize the shot accordingly.

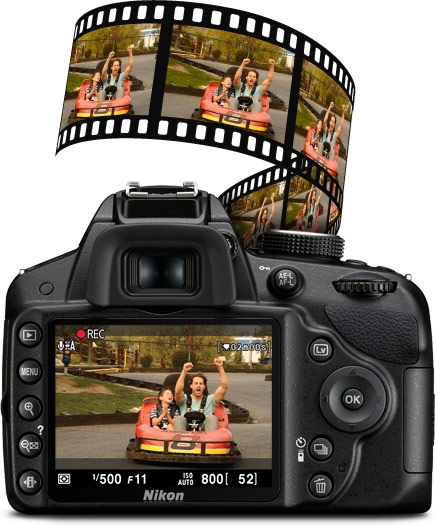

One-touch Full HD 1080p movie recording with stereo sound
Nikon is committed to developing HD-SLRs that are not just superlative still image cameras, but superlative video cameras, as well. With a touch of a button, the D3200 starts recording Full HD 1080p video with full-time autofocus, manual exposure control and stereo sound. Its breathtaking 921,000-dot, ultra-high-resolution display makes it easy to frame, monitor and review your footage. Even record in super-smooth slow motion up to 60 fps! Unleash your inner cinematographer.
Versatile AF-S Zoom-NIKKOR 18-55mm
Nikon’s renowned NIKKOR lenses have long been the choice of pros and serious photographers. Marvels of clarity, consistency, precision and reliability, they draw peak performance from Nikon HD-SLRs. The D3200 comes equipped with the AF-S DX Zoom-NIKKOR 18-55mm, a versatile, high performance VR image stabilized lens. And when you’re ready to expand your system and extend your creativity, you'll have your choice of over 70 legendary NIKKOR lenses.
The D3200's 11-point Autofocusing System is as fast as it is precise. Check your focus points, track your subject or shoot carefree right from the viewfinder. And when the action speeds up, simply aim, hold down the shutter and fire off approx. 4 fps at 24.2 MP resolution.

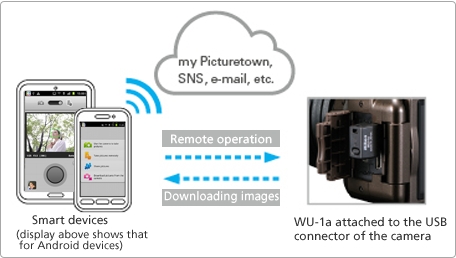

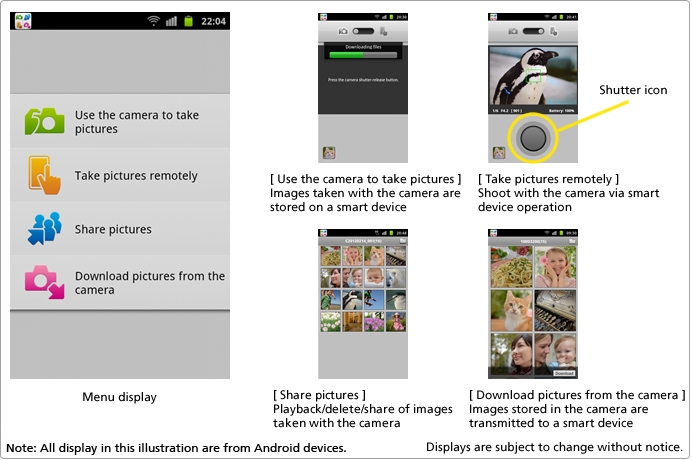

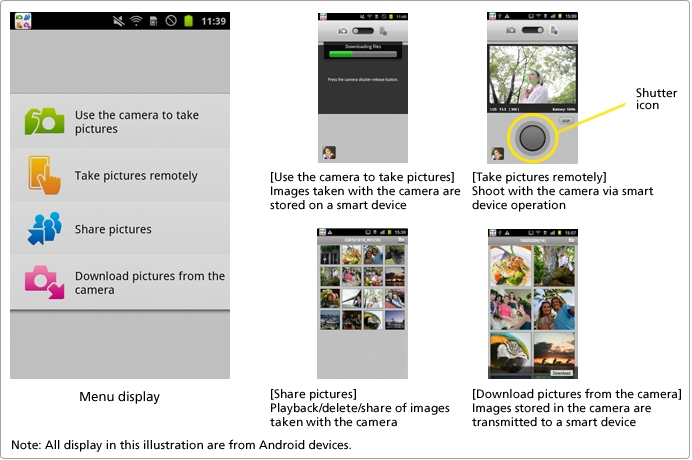

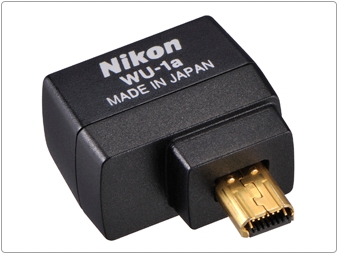

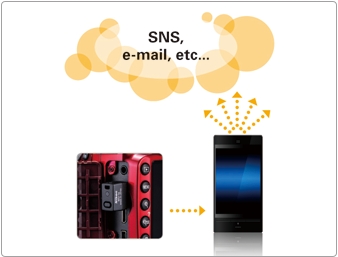

Using the WU-1a optional wireless mobile adapter you can now automatically send great images to your smartphone and even use your smartphone to remotely capture images from your D3200. With an easy to use app, now, when you can't wait to share that great shot, you don't have to. Share it to your smartphone in an instant.

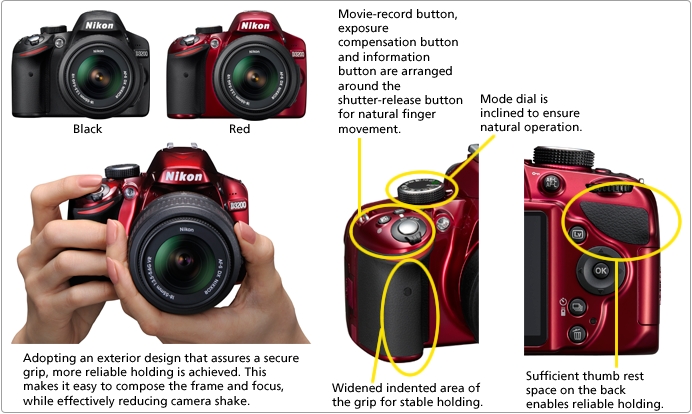

Compact, lightweight and durable
Your D3200 is designed for comfort, intuitive use and durability. Its compact, lightweight and rugged body puts key controls at your fingertips. You'll never hesitate to bring along your D3200.
Dramatic low-light photos
The D3200’s wide ISO range of 100 to 6400 allows for shooting in very low light without a flash or in very bright light with zoom, macro, fixed focal length or wide aperture lenses. For extreme low-light situations, set the ISO to Hi 1 and achieve ISO 12800 equivalent sensitivity.
-
TypeSingle-lens reflex digital camera
-
Lens MountNikon F bayonet mount
-
Picture AngleNikon DX format (Effective picture angle 1.5x [Approx.] conversion factor)
-
Effective Pixels24.2 million
-
Sensor Size23.2mm x 15.4mm
-
Image Sensor FormatDX
-
Image Sensor TypeCMOS
-
Total Pixels24.7 million
-
Dust-reduction systemImage sensor cleaning
-
Image Area (pixels)DX-format
(L) 6,016 4,000
(M) 4,512 3,000
(S) 3,008 2,000 -
File Format Still ImagesCompressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline Compliant with fine (approx 1:4), Normal (approx 1:8) or Basic (approx 1:16) Compression
NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats -
Picture ControlLandscape
Monochrome
Neutral
Portrait
Selected Picture Control can be Modified
Standard
Vivid -
Storage MediaSD
SDHC
SDXC -
Card Slot1 Secure Digital (SD)
-
File SystemCompliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras) -
ViewfinderEye-level Pentamirror Single-Lens Reflex viewfinder
-
Viewfinder Frame Coverage95% Horizontal Approx.
-
Viewfinder Magnification0.78x Approx.
-
Viewfinder Eyepoint18mm (-1.0m)
-
Viewfinder Diopter Adjustment-1.7 to +0.5m
-
Focusing ScreenType B BriteView Clear Matte Mark VII screen
-
Reflex MirrorQuick-return type
-
Lens ApertureInstant-return type
-
Lens Compatibility at a Glance***AF-S Lens Required for Autofocus
-
Compatible LensesAF NIKKOR for F3AF not Supported
AF-S, AF-I: All Functions Supported
AI-P NIKKOR: All Functions Supported Except Autofocus and 3D Color Matrix Metering II
Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster
IX NIKKOR Lenses Cannot be Used
Non-CPU: Autofocus not supported. Can be used in mode M, but exposure meter does not function.
Other AF NIKKOR: All Functions Supported Except autofocus and 3D Color Matrix Metering II
Type G or D AF NIKKOR: All Functions Supported Except Autofocus
Type D PC NIKKOR: All Functions Supported Except Autofocus and some Shooting Modes -
Shutter typeElectronically controlled vertical-travel focal-plane
-
Shutter Speed1/4000 to 30 sec.
-
Fastest Shutter Speed1/4000 sec.
-
Slowest Shutter Speed30 sec.
-
Flash Sync SpeedUp to 1/200 sec.
-
Shutter Release ModesContinuous
Delayed remote
Quick Response Remote Mode
Quiet shutter-release
Self-timer mode
Single-frame [S] mode -
Frame Advance RateUp to 4 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
-
Top Continuous Shooting Speed at full resolution4 frames per second
-
Self-timer2, 5, 10, 20 sec. Timer duration electronically controlled
-
Exposure Metering SystemTTL exposure metering using 420-pixel RGB sensor
-
Metering MethodCenter-weighted: Weight of 75% given to 8mm circle in center of frame
Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
Spot: Meters 3.5mm circle (about 2.5% of frame) centered on selected focus point -
Metering Range0 to 20 EV (Matrix or center-weighted metering at ISO 100 equivalent, f/1.4 lens, at 20C/68F)
2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20C/68F) -
Exposure Meter CouplingCPU
-
Exposure ModesAperture-Priority Auto (A)
Auto
Auto (flash off)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S) -
Scene ModesAuto
Auto [Flash Off]
Child
Close-up
Landscape
Night Portrait
Portrait
Sports -
Exposure Compensation5 EV in increments of 1/3EV
-
Exposure LockLuminosity locked at detected value with AE-L/AF-L button
-
Mirror Lock UpYes (for image sensor cleaning)
-
ISO SensitivityISO 100 - 6400
Hi-1 (ISO 12,800) -
Lowest Standard ISO Sensitivity100
-
Highest Standard ISO Sensitivity6400
-
Highest Expanded ISO Sensitivity1 EV above ISO 6400 (ISO 12800 equivalent)
-
Expanded ISO Sensitivity Options1 EV above ISO 6400 (ISO 12800 equivalent)
Auto ISO sensitivity control available -
High ISO Noise ReductionLow
Normal
High
Off -
Active D-LightingOn
Off -
Single-point AF ModeYes
-
Dynamic AF ModeNumber of AF points: 11 (3D-tracking)
-
Auto-area AF ModeYes
-
Autofocus SystemNikon Multi-CAM 1000 autofocus sensor module with TTL phase detection
-
Detection Range-1 to 19 EV (ISO 100, 68F/20C)
-
Lens ServoAutofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used -
Focus PointCan be selected from 11 focus points
-
Focus LockFocus can be locked by pressing AE-L/AF-L button
Focus can be locked by pressing shutter-release button halfway (single-servo AF) -
Focus ModesAuto AF-S/AF-C selection (AF-A)
Continuous-servo (AF-C)
Face-Priority AF available in Live View only and D-Movie only
Full-time Servo (AF-A) available in Live View only
Manual (M) with electronic rangefinder
Normal area available in Live View and D-Movie only
Predictive focus tracking activated automatically according to subject status
Single-servo AF (AF-S)
Wide area available in Live View and D-Movie only -
Maximum Autofocus Areas/Points11
-
Autofocus Sensitivity-1 to +19 EV (ISO 100, 20C/68F)
-
Built-in FlashYes
-
X-Sync Speed1/200
-
Flash ControlTTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted
-
Flash Sync ModesFront-curtain sync (normal)
Rear-curtain sync
Red-Eye reduction
Red-Eye reduction with slow sync
Slow sync -
Flash Compensation-3 to +1 EV in increments of 1/3 EV
-
Flash-ready indicatorLights when built-in flash or optional flash unit such as SB-910, SB-900, SB-400, SB-80DX, SB-28DX or SB-50DX is fully charged
-
Accessory ShoeYes
-
Nikon Creative Lighting System (CLS)CLS Supported
-
Flash Sync TerminalSync Terminal Adapter AS-15 (available separately)
-
White BalanceAuto
Cloudy
Direct Sunlight
Flash
Fluorescent (7 types)
Incandescent
Preset Manual
Shade -
Live View ShootingYes
-
Live View Lens servoAutofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF) -
Live View AF-area modeFace-priority AF
Wide-area AF
Normal-area AF
Subject-tracking AF -
Live View AutofocusContrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
-
Live View Scene Auto SelectorAuto mode
Auto (flash off) mode -
Movie MeteringTTL exposure metering using main image sensor
-
Movie Maximum recording time20 min.
-
Movie File FormatMOV
-
Movie Video CompressionH.264/MPEG-4 Advanced Video Coding
-
Movie Audio recording formatLinear PCM
-
MovieHD 1,920x1,080 / 30 fps
HD 1,920x1,080 / 25 fps
HD 1,920x1,080 / 24 fps
HD 1,280x720 / 60 fps
HD 1,280x720 / 50 fps
VGA 640x424 / 30 fps
VGA 640x424 / 25 fps -
Movie AudioBuilt-in microphone, monaural
Optional external stereo mini-pin jack (3.5mm diameter)
Microphone sensitivity can be adjusted -

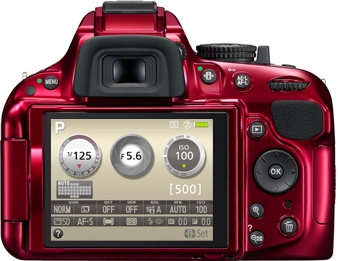

Monitor Size3.0 in. diagonal
-
Monitor Resolution921,000 Dots
-
Monitor TypeWide Viewing Angle TFT-LCD
-
Monitor Angle of View160-degree wide-viewing angle
-
Playback FunctionsAuto Image Rotation
Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
Highlights
Histogram Display
Image Comment
Movie Playback
Playback with Zoom
Slideshow -
In-Camera Image EditingColor Balance
Color Outline
Color Sketch
D-Lighting
Distortion Control
Filter Effects
Fisheye
Image Overlay
Miniature Effect
Monochrome
NEF (RAW) Processing
Perspective Control
Quick Retouch
Red-Eye Correction
Resize
Selective Color
Straighten
Trim -
InterfaceAccessory Terminal: Remote Cord: MC-DC2 (available separately); GPS unit: GP-1 (available separately)
Audio input: Stereo mini-pin jack (3.5-mm diameter)
HDMI output: Type C mini-pin HDMI connector
Hi-speed USB
Video Output: NTSC, PAL -
Wi-Fi FunctionalityEye-Fi Compatible
-
GPSGP-1 GPS unit
-
Recent SettingsYes
-
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norweigan
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukrainian -
Date, Time and Daylight Savings Time SettingsYes
-
World Time SettingYes
-
Battery / BatteriesEN-EL14 Rechargeable Li-ion Battery
-
Battery Life (shots per charge)540 shots (CIPA)
-
AC AdapterEH-5b AC Adapter; requires EP-5A Power Connector (available separately)
-
Battery ChargerMH-24 Quick Charger
-
Tripod Socket1/4 in.
-
Approx. DimensionsWidth: 5.0 in. (125mm)
Height: 3.8 in. (96mm)
Depth: 3.1 in. (76.5mm) -
Approx. Weight16 oz. (455g)camera body only
-
Operating Environment040 C (+32104 F)
-
Supplied Accessories
- EN-EL14 Rechargeable Li-ion Battery
- MH-24 Quick Charger
- EG-CP14 Audio/Video Cable
- UC-E17 USB Cable
- DK-20 Rubber Eyecup
- AN-DC3 Camera Strap
- DK-5 Eyepiece Cap
- BF-1B Body Cap
- BS-1 Accessory Shoe Cover
- NikonView NX CD-ROM
 |
Nikon D3200 Digital SLR Camera - 24.2MP (Red)
- 3.0"TFT LCD, Live View, Live View AF-Area Mode
- 18-105mm Lens
Don't let the D3200's compact size and price fool you—packed inside this easy to use HD-SLR is serious Nikon power: a 24.2 MP DX-format CMOS sensor that excels in any light, EXPEED 3 image-processing for fast operation and creative in-camera effects, Full HD (1080p) movie recording, in-camera tutorials and much more. What does this mean for you? Simply stunning photos and videos in any setting. And now, with Nikon's optional Wireless Mobile Adapter, you can share those masterpieces instantly with your Smartphone or tablet!
It’s never been easier to create HD-SLR quality photos, thanks to the D3200’s Guide Mode. Learn the camera's key features and controls while you shoot, and even get advice and sample images to succeed in difficult shooting situations. Guide Mode is easy to access and easy to understand. You’re never shooting alone with the D3200.
One-touch Full HD 1080p movie recording with stereo sound
Nikon is committed to developing HD-SLRs that are not just superlative still image cameras, but superlative video cameras, as well. With a touch of a button, the D3200 starts recording Full HD 1080p video with full-time autofocus, manual exposure control and stereo sound. Its breathtaking 921,000-dot, ultra-high-resolution display makes it easy to frame, monitor and review your footage. Even record in super-smooth slow motion up to 60 fps! Unleash your inner cinematographer.
Versatile AF-S Zoom-NIKKOR 18-55mm
Nikon’s renowned NIKKOR lenses have long been the choice of pros and serious photographers. Marvels of clarity, consistency, precision and reliability, they draw peak performance from Nikon HD-SLRs. The D3200 comes equipped with the AF-S DX Zoom-NIKKOR 18-55mm, a versatile, high performance VR image stabilized lens. And when you’re ready to expand your system and extend your creativity, you'll have your choice of over 70 legendary NIKKOR lenses.
Using the WU-1a optional wireless mobile adapter you can now automatically send great images to your smartphone and even use your smartphone to remotely capture images from your D3200. With an easy to use app, now, when you can't wait to share that great shot, you don't have to. Share it to your smartphone in an instant.
Compact, lightweight and durable
Your D3200 is designed for comfort, intuitive use and durability. Its compact, lightweight and rugged body puts key controls at your fingertips. You'll never hesitate to bring along your D3200.
-
TypeSingle-lens reflex digital camera
-
Lens MountNikon F bayonet mount
-
Picture AngleNikon DX format (Effective picture angle 1.5x [Approx.] conversion factor)
-
Effective Pixels24.2 million
-
Sensor Size23.2mm x 15.4mm
-
Image Sensor FormatDX
-
Image Sensor TypeCMOS
-
Total Pixels24.7 million
-
Dust-reduction systemImage sensor cleaning
-
Image Area (pixels)DX-format
(L) 6,016 4,000
(M) 4,512 3,000
(S) 3,008 2,000 -
File Format Still ImagesCompressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline Compliant with fine (approx 1:4), Normal (approx 1:8) or Basic (approx 1:16) Compression
NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats -
Picture ControlLandscape
Monochrome
Neutral
Portrait
Selected Picture Control can be Modified
Standard
Vivid -
Storage MediaSD
SDHC
SDXC -
Card Slot1 Secure Digital (SD)
-
File SystemCompliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras) -
ViewfinderEye-level Pentamirror Single-Lens Reflex viewfinder
-
Viewfinder Frame Coverage95% Horizontal Approx.
-
Viewfinder Magnification0.78x Approx.
-
Viewfinder Eyepoint18mm (-1.0m)
-
Viewfinder Diopter Adjustment-1.7 to +0.5m
-
Focusing ScreenType B BriteView Clear Matte Mark VII screen
-
Reflex MirrorQuick-return type
-
Lens ApertureInstant-return type
-
Lens Compatibility at a Glance***AF-S Lens Required for Autofocus
-
Compatible LensesAF NIKKOR for F3AF not Supported
AF-S, AF-I: All Functions Supported
AI-P NIKKOR: All Functions Supported Except Autofocus and 3D Color Matrix Metering II
Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster
IX NIKKOR Lenses Cannot be Used
Non-CPU: Autofocus not supported. Can be used in mode M, but exposure meter does not function.
Other AF NIKKOR: All Functions Supported Except autofocus and 3D Color Matrix Metering II
Type G or D AF NIKKOR: All Functions Supported Except Autofocus
Type D PC NIKKOR: All Functions Supported Except Autofocus and some Shooting Modes -
Shutter typeElectronically controlled vertical-travel focal-plane
-
Shutter Speed1/4000 to 30 sec.
-
Fastest Shutter Speed1/4000 sec.
-
Slowest Shutter Speed30 sec.
-
Flash Sync SpeedUp to 1/200 sec.
-
Shutter Release ModesContinuous
Delayed remote
Quick Response Remote Mode
Quiet shutter-release
Self-timer mode
Single-frame [S] mode -
Frame Advance RateUp to 4 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
-
Top Continuous Shooting Speed at full resolution4 frames per second
-
Self-timer2, 5, 10, 20 sec. Timer duration electronically controlled
-
Exposure Metering SystemTTL exposure metering using 420-pixel RGB sensor
-
Metering MethodCenter-weighted: Weight of 75% given to 8mm circle in center of frame
Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
Spot: Meters 3.5mm circle (about 2.5% of frame) centered on selected focus point -
Metering Range0 to 20 EV (Matrix or center-weighted metering at ISO 100 equivalent, f/1.4 lens, at 20C/68F)
2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20C/68F) -
Exposure Meter CouplingCPU
-
Exposure ModesAperture-Priority Auto (A)
Auto
Auto (flash off)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S) -
Scene ModesAuto
Auto [Flash Off]
Child
Close-up
Landscape
Night Portrait
Portrait
Sports -
Exposure Compensation5 EV in increments of 1/3EV
-
Exposure LockLuminosity locked at detected value with AE-L/AF-L button
-
Mirror Lock UpYes (for image sensor cleaning)
-
ISO SensitivityISO 100 - 6400
Hi-1 (ISO 12,800) -
Lowest Standard ISO Sensitivity100
-
Highest Standard ISO Sensitivity6400
-
Highest Expanded ISO Sensitivity1 EV above ISO 6400 (ISO 12800 equivalent)
-
Expanded ISO Sensitivity Options1 EV above ISO 6400 (ISO 12800 equivalent)
Auto ISO sensitivity control available -
High ISO Noise ReductionLow
Normal
High
Off -
Active D-LightingOn
Off -
Single-point AF ModeYes
-
Dynamic AF ModeNumber of AF points: 11 (3D-tracking)
-
Auto-area AF ModeYes
-
Autofocus SystemNikon Multi-CAM 1000 autofocus sensor module with TTL phase detection
-
Detection Range-1 to 19 EV (ISO 100, 68F/20C)
-
Lens ServoAutofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used -
Focus PointCan be selected from 11 focus points
-
Focus LockFocus can be locked by pressing AE-L/AF-L button
Focus can be locked by pressing shutter-release button halfway (single-servo AF) -
Focus ModesAuto AF-S/AF-C selection (AF-A)
Continuous-servo (AF-C)
Face-Priority AF available in Live View only and D-Movie only
Full-time Servo (AF-A) available in Live View only
Manual (M) with electronic rangefinder
Normal area available in Live View and D-Movie only
Predictive focus tracking activated automatically according to subject status
Single-servo AF (AF-S)
Wide area available in Live View and D-Movie only -
Maximum Autofocus Areas/Points11
-
Autofocus Sensitivity-1 to +19 EV (ISO 100, 20C/68F)
-
Built-in FlashYes
-
X-Sync Speed1/200
-
Flash ControlTTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted
-
Flash Sync ModesFront-curtain sync (normal)
Rear-curtain sync
Red-Eye reduction
Red-Eye reduction with slow sync
Slow sync -
Flash Compensation-3 to +1 EV in increments of 1/3 EV
-
Flash-ready indicatorLights when built-in flash or optional flash unit such as SB-910, SB-900, SB-400, SB-80DX, SB-28DX or SB-50DX is fully charged
-
Accessory ShoeYes
-
Nikon Creative Lighting System (CLS)CLS Supported
-
Flash Sync TerminalSync Terminal Adapter AS-15 (available separately)
-
White BalanceAuto
Cloudy
Direct Sunlight
Flash
Fluorescent (7 types)
Incandescent
Preset Manual
Shade -
Live View ShootingYes
-
Live View Lens servoAutofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF) -
Live View AF-area modeFace-priority AF
Wide-area AF
Normal-area AF
Subject-tracking AF -
Live View AutofocusContrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
-
Live View Scene Auto SelectorAuto mode
Auto (flash off) mode -
Movie MeteringTTL exposure metering using main image sensor
-
Movie Maximum recording time20 min.
-
Movie File FormatMOV
-
Movie Video CompressionH.264/MPEG-4 Advanced Video Coding
-
Movie Audio recording formatLinear PCM
-
MovieHD 1,920x1,080 / 30 fps
HD 1,920x1,080 / 25 fps
HD 1,920x1,080 / 24 fps
HD 1,280x720 / 60 fps
HD 1,280x720 / 50 fps
VGA 640x424 / 30 fps
VGA 640x424 / 25 fps -
Movie AudioBuilt-in microphone, monaural
Optional external stereo mini-pin jack (3.5mm diameter)
Microphone sensitivity can be adjusted -
Monitor Size3.0 in. diagonal
-
Monitor Resolution921,000 Dots
-
Monitor TypeWide Viewing Angle TFT-LCD
-
Monitor Angle of View160-degree wide-viewing angle
-
Playback FunctionsAuto Image Rotation
Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
Highlights
Histogram Display
Image Comment
Movie Playback
Playback with Zoom
Slideshow -
In-Camera Image EditingColor Balance
Color Outline
Color Sketch
D-Lighting
Distortion Control
Filter Effects
Fisheye
Image Overlay
Miniature Effect
Monochrome
NEF (RAW) Processing
Perspective Control
Quick Retouch
Red-Eye Correction
Resize
Selective Color
Straighten
Trim -
InterfaceAccessory Terminal: Remote Cord: MC-DC2 (available separately); GPS unit: GP-1 (available separately)
Audio input: Stereo mini-pin jack (3.5-mm diameter)
HDMI output: Type C mini-pin HDMI connector
Hi-speed USB
Video Output: NTSC, PAL -
Wi-Fi FunctionalityEye-Fi Compatible
-
GPSGP-1 GPS unit
-
Recent SettingsYes
-
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norweigan
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukrainian -
Date, Time and Daylight Savings Time SettingsYes
-
World Time SettingYes
-
Battery / BatteriesEN-EL14 Rechargeable Li-ion Battery
-
Battery Life (shots per charge)540 shots (CIPA)
-
AC AdapterEH-5b AC Adapter; requires EP-5A Power Connector (available separately)
-
Battery ChargerMH-24 Quick Charger
-
Tripod Socket1/4 in.
-
Approx. DimensionsWidth: 5.0 in. (125mm)
Height: 3.8 in. (96mm)
Depth: 3.1 in. (76.5mm) -
Approx. Weight16 oz. (455g)camera body only
-
Operating Environment040 C (+32104 F)
-
Supplied Accessories
- EN-EL14 Rechargeable Li-ion Battery
- MH-24 Quick Charger
- EG-CP14 Audio/Video Cable
- UC-E17 USB Cable
- DK-20 Rubber Eyecup
- AN-DC3 Camera Strap
- DK-5 Eyepiece Cap
- BF-1B Body Cap
- BS-1 Accessory Shoe Cover
- NikonView NX CD-ROM
 |
Nikon D3200 Digital SLR Camera - 24.2MP (Black)
- 3.0"TFT LCD, Live View, Live View AF-Area Mode
- 18-55mm Lens
DX
Format
24.2
Megapixels
4 FPS
Continuous Shooting
100-6400
ISO Expandable to 12800 (Hi 1)
HD Video
1080p with stereo sound
24.2 MP DX-format CMOS sensor and EXPEED 3
Why do photos and videos shot with a Nikon HD-SLR look so good? It all starts with Nikon’s exclusive image sensors, and the D3200 has the most powerful CMOS sensor we’ve ever put in a HD-SLR at this level. Boasting an astounding 24.2 effective megapixels, it captures sharper, richer images—even in low light. Combine that with EXPEED 3 image processing, the processing power behind the acclaimed Nikon D4, for super-fast operation, exceptional image capture, in-camera filter effects and more. Your photos and videos will amaze even you.
It’s never been easier to create HD-SLR quality photos, thanks to the D3200’s Guide Mode. Learn the camera's key features and controls while you shoot, and even get advice and sample images to succeed in difficult shooting situations. Guide Mode is easy to access and easy to understand. You’re never shooting alone with the D3200.
One-touch Full HD 1080p movie recording with stereo sound
Nikon is committed to developing HD-SLRs that are not just superlative still image cameras, but superlative video cameras, as well. With a touch of a button, the D3200 starts recording Full HD 1080p video with full-time autofocus, manual exposure control and stereo sound. Its breathtaking 921,000-dot, ultra-high-resolution display makes it easy to frame, monitor and review your footage. Even record in super-smooth slow motion up to 60 fps! Unleash your inner cinematographer.
Versatile AF-S Zoom-NIKKOR 18-55mm
Nikon’s renowned NIKKOR lenses have long been the choice of pros and serious photographers. Marvels of clarity, consistency, precision and reliability, they draw peak performance from Nikon HD-SLRs. The D3200 comes equipped with the AF-S DX Zoom-NIKKOR 18-55mm, a versatile, high performance VR image stabilized lens. And when you’re ready to expand your system and extend your creativity, you'll have your choice of over 70 legendary NIKKOR lenses.
The D3200's 11-point Autofocusing System is as fast as it is precise. Check your focus points, track your subject or shoot carefree right from the viewfinder. And when the action speeds up, simply aim, hold down the shutter and fire off approx. 4 fps at 24.2 MP resolution.
Using the WU-1a optional wireless mobile adapter you can now automatically send great images to your smartphone and even use your smartphone to remotely capture images from your D3200. With an easy to use app, now, when you can't wait to share that great shot, you don't have to. Share it to your smartphone in an instant.
Compact, lightweight and durable
Your D3200 is designed for comfort, intuitive use and durability. Its compact, lightweight and rugged body puts key controls at your fingertips. You'll never hesitate to bring along your D3200.
Dramatic low-light photos
The D3200’s wide ISO range of 100 to 6400 allows for shooting in very low light without a flash or in very bright light with zoom, macro, fixed focal length or wide aperture lenses. For extreme low-light situations, set the ISO to Hi 1 and achieve ISO 12800 equivalent sensitivity.
-
TypeSingle-lens reflex digital camera
-
Lens MountNikon F bayonet mount
-
Picture AngleNikon DX format (Effective picture angle 1.5x [Approx.] conversion factor)
-
Effective Pixels24.2 million
-
Sensor Size23.2mm x 15.4mm
-
Image Sensor FormatDX
-
Image Sensor TypeCMOS
-
Total Pixels24.7 million
-
Dust-reduction systemImage sensor cleaning
-
Image Area (pixels)DX-format
(L) 6,016 4,000
(M) 4,512 3,000
(S) 3,008 2,000 -
File Format Still ImagesCompressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline Compliant with fine (approx 1:4), Normal (approx 1:8) or Basic (approx 1:16) Compression
NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats -
Picture ControlLandscape
Monochrome
Neutral
Portrait
Selected Picture Control can be Modified
Standard
Vivid -
Storage MediaSD
SDHC
SDXC -
Card Slot1 Secure Digital (SD)
-
File SystemCompliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras) -
ViewfinderEye-level Pentamirror Single-Lens Reflex viewfinder
-
Viewfinder Frame Coverage95% Horizontal Approx.
-
Viewfinder Magnification0.78x Approx.
-
Viewfinder Eyepoint18mm (-1.0m)
-
Viewfinder Diopter Adjustment-1.7 to +0.5m
-
Focusing ScreenType B BriteView Clear Matte Mark VII screen
-
Reflex MirrorQuick-return type
-
Lens ApertureInstant-return type
-
Lens Compatibility at a Glance***AF-S Lens Required for Autofocus
-
Compatible LensesAF NIKKOR for F3AF not Supported
AF-S, AF-I: All Functions Supported
AI-P NIKKOR: All Functions Supported Except Autofocus and 3D Color Matrix Metering II
Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster
IX NIKKOR Lenses Cannot be Used
Non-CPU: Autofocus not supported. Can be used in mode M, but exposure meter does not function.
Other AF NIKKOR: All Functions Supported Except autofocus and 3D Color Matrix Metering II
Type G or D AF NIKKOR: All Functions Supported Except Autofocus
Type D PC NIKKOR: All Functions Supported Except Autofocus and some Shooting Modes -
Shutter typeElectronically controlled vertical-travel focal-plane
-
Shutter Speed1/4000 to 30 sec.
-
Fastest Shutter Speed1/4000 sec.
-
Slowest Shutter Speed30 sec.
-
Flash Sync SpeedUp to 1/200 sec.
-
Shutter Release ModesContinuous
Delayed remote
Quick Response Remote Mode
Quiet shutter-release
Self-timer mode
Single-frame [S] mode -
Frame Advance RateUp to 4 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
-
Top Continuous Shooting Speed at full resolution4 frames per second
-
Self-timer2, 5, 10, 20 sec. Timer duration electronically controlled
-
Exposure Metering SystemTTL exposure metering using 420-pixel RGB sensor
-
Metering MethodCenter-weighted: Weight of 75% given to 8mm circle in center of frame
Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
Spot: Meters 3.5mm circle (about 2.5% of frame) centered on selected focus point -
Metering Range0 to 20 EV (Matrix or center-weighted metering at ISO 100 equivalent, f/1.4 lens, at 20C/68F)
2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20C/68F) -
Exposure Meter CouplingCPU
-
Exposure ModesAperture-Priority Auto (A)
Auto
Auto (flash off)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S) -
Scene ModesAuto
Auto [Flash Off]
Child
Close-up
Landscape
Night Portrait
Portrait
Sports -
Exposure Compensation5 EV in increments of 1/3EV
-
Exposure LockLuminosity locked at detected value with AE-L/AF-L button
-
Mirror Lock UpYes (for image sensor cleaning)
-
ISO SensitivityISO 100 - 6400
Hi-1 (ISO 12,800) -
Lowest Standard ISO Sensitivity100
-
Highest Standard ISO Sensitivity6400
-
Highest Expanded ISO Sensitivity1 EV above ISO 6400 (ISO 12800 equivalent)
-
Expanded ISO Sensitivity Options1 EV above ISO 6400 (ISO 12800 equivalent)
Auto ISO sensitivity control available -
High ISO Noise ReductionLow
Normal
High
Off -
Active D-LightingOn
Off -
Single-point AF ModeYes
-
Dynamic AF ModeNumber of AF points: 11 (3D-tracking)
-
Auto-area AF ModeYes
-
Autofocus SystemNikon Multi-CAM 1000 autofocus sensor module with TTL phase detection
-
Detection Range-1 to 19 EV (ISO 100, 68F/20C)
-
Lens ServoAutofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used -
Focus PointCan be selected from 11 focus points
-
Focus LockFocus can be locked by pressing AE-L/AF-L button
Focus can be locked by pressing shutter-release button halfway (single-servo AF) -
Focus ModesAuto AF-S/AF-C selection (AF-A)
Continuous-servo (AF-C)
Face-Priority AF available in Live View only and D-Movie only
Full-time Servo (AF-A) available in Live View only
Manual (M) with electronic rangefinder
Normal area available in Live View and D-Movie only
Predictive focus tracking activated automatically according to subject status
Single-servo AF (AF-S)
Wide area available in Live View and D-Movie only -
Maximum Autofocus Areas/Points11
-
Autofocus Sensitivity-1 to +19 EV (ISO 100, 20C/68F)
-
Built-in FlashYes
-
X-Sync Speed1/200
-
Flash ControlTTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted
-
Flash Sync ModesFront-curtain sync (normal)
Rear-curtain sync
Red-Eye reduction
Red-Eye reduction with slow sync
Slow sync -
Flash Compensation-3 to +1 EV in increments of 1/3 EV
-
Flash-ready indicatorLights when built-in flash or optional flash unit such as SB-910, SB-900, SB-400, SB-80DX, SB-28DX or SB-50DX is fully charged
-
Accessory ShoeYes
-
Nikon Creative Lighting System (CLS)CLS Supported
-
Flash Sync TerminalSync Terminal Adapter AS-15 (available separately)
-
White BalanceAuto
Cloudy
Direct Sunlight
Flash
Fluorescent (7 types)
Incandescent
Preset Manual
Shade -
Live View ShootingYes
-
Live View Lens servoAutofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF) -
Live View AF-area modeFace-priority AF
Wide-area AF
Normal-area AF
Subject-tracking AF -
Live View AutofocusContrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
-
Live View Scene Auto SelectorAuto mode
Auto (flash off) mode -
Movie MeteringTTL exposure metering using main image sensor
-
Movie Maximum recording time20 min.
-
Movie File FormatMOV
-
Movie Video CompressionH.264/MPEG-4 Advanced Video Coding
-
Movie Audio recording formatLinear PCM
-
MovieHD 1,920x1,080 / 30 fps
HD 1,920x1,080 / 25 fps
HD 1,920x1,080 / 24 fps
HD 1,280x720 / 60 fps
HD 1,280x720 / 50 fps
VGA 640x424 / 30 fps
VGA 640x424 / 25 fps -
Movie AudioBuilt-in microphone, monaural
Optional external stereo mini-pin jack (3.5mm diameter)
Microphone sensitivity can be adjusted -
Monitor Size3.0 in. diagonal
-
Monitor Resolution921,000 Dots
-
Monitor TypeWide Viewing Angle TFT-LCD
-
Monitor Angle of View160-degree wide-viewing angle
-
Playback FunctionsAuto Image Rotation
Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
Highlights
Histogram Display
Image Comment
Movie Playback
Playback with Zoom
Slideshow -
In-Camera Image EditingColor Balance
Color Outline
Color Sketch
D-Lighting
Distortion Control
Filter Effects
Fisheye
Image Overlay
Miniature Effect
Monochrome
NEF (RAW) Processing
Perspective Control
Quick Retouch
Red-Eye Correction
Resize
Selective Color
Straighten
Trim -
InterfaceAccessory Terminal: Remote Cord: MC-DC2 (available separately); GPS unit: GP-1 (available separately)
Audio input: Stereo mini-pin jack (3.5-mm diameter)
HDMI output: Type C mini-pin HDMI connector
Hi-speed USB
Video Output: NTSC, PAL -
Wi-Fi FunctionalityEye-Fi Compatible
-
GPSGP-1 GPS unit
-
Recent SettingsYes
-
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norweigan
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukrainian -
Date, Time and Daylight Savings Time SettingsYes
-
World Time SettingYes
-
Battery / BatteriesEN-EL14 Rechargeable Li-ion Battery
-
Battery Life (shots per charge)540 shots (CIPA)
-
AC AdapterEH-5b AC Adapter; requires EP-5A Power Connector (available separately)
-
Battery ChargerMH-24 Quick Charger
-
Tripod Socket1/4 in.
-
Approx. DimensionsWidth: 5.0 in. (125mm)
Height: 3.8 in. (96mm)
Depth: 3.1 in. (76.5mm) -
Approx. Weight16 oz. (455g)camera body only
-
Operating Environment040 C (+32104 F)
-
Supplied Accessories
- EN-EL14 Rechargeable Li-ion Battery
- MH-24 Quick Charger
- EG-CP14 Audio/Video Cable
- UC-E17 USB Cable
- DK-20 Rubber Eyecup
- AN-DC3 Camera Strap
- DK-5 Eyepiece Cap
- BF-1B Body Cap
- BS-1 Accessory Shoe Cover
- NikonView NX CD-ROM
 |
Nikon D3200 Digital SLR Camera - 24.2MP (Black)
- 3.0"TFT LCD, Live View, Live View AF-Area Mode
- Twin Lens Kit
Nikon D3200 Twin Lens Kit - Black
Six Scene Modes and Scene Auto Selector
Experienced photographers optimize their camera settings for the scene they’re shooting. With the D3200, optimizing your camera settings is as easy as turning a dial. Choose from six common Scene Modes like Portrait, Night Portrait, Landscape, Close up and more, for flawless results even in demanding circumstances. When using Live View, Scene Auto Selector automatically sets the D3200 for the most suitable Scene Mode for the situation. A highly accurate 420-pixel RGB sensor powers Nikon's Scene Recognition System, which compares scene data against an extensive database to optimize the shot accordingly.
One-touch Full HD 1080p movie recording with stereo sound
Nikon is committed to developing HD-SLRs that are not just superlative still image cameras, but superlative video cameras, as well. With a touch of a button, the D3200 starts recording Full HD 1080p video with full-time autofocus, manual exposure control and stereo sound. Its breathtaking 921,000-dot, ultra-high-resolution display makes it easy to frame, monitor and review your footage. Even record in super-smooth slow motion up to 60 fps! Unleash your inner cinematographer.
Versatile AF-S Zoom-NIKKOR 18-55mm
Nikon’s renowned NIKKOR lenses have long been the choice of pros and serious photographers. Marvels of clarity, consistency, precision and reliability, they draw peak performance from Nikon HD-SLRs. The D3200 comes equipped with the AF-S DX Zoom-NIKKOR 18-55mm, a versatile, high performance VR image stabilized lens. And when you’re ready to expand your system and extend your creativity, you'll have your choice of over 70 legendary NIKKOR lenses.
The D3200's 11-point Autofocusing System is as fast as it is precise. Check your focus points, track your subject or shoot carefree right from the viewfinder. And when the action speeds up, simply aim, hold down the shutter and fire off approx. 4 fps at 24.2 MP resolution.
Your D3200 is designed for comfort, intuitive use and durability. Its compact, lightweight and rugged body puts key controls at your fingertips. You'll never hesitate to bring along your D3200.
-
TypeSingle-lens reflex digital camera
-
Lens MountNikon F bayonet mount
-
Picture AngleNikon DX format (Effective picture angle 1.5x [Approx.] conversion factor)
-
Effective Pixels24.2 million
-
Sensor Size23.2mm x 15.4mm
-
Image Sensor FormatDX
-
Image Sensor TypeCMOS
-
Total Pixels24.7 million
-
Dust-reduction systemImage sensor cleaning
-
Image Area (pixels)DX-format
(L) 6,016 4,000
(M) 4,512 3,000
(S) 3,008 2,000 -
File Format Still ImagesCompressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline Compliant with fine (approx 1:4), Normal (approx 1:8) or Basic (approx 1:16) Compression
NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats -
Picture ControlLandscape
Monochrome
Neutral
Portrait
Selected Picture Control can be Modified
Standard
Vivid -
Storage MediaSD
SDHC
SDXC -
Card Slot1 Secure Digital (SD)
-
File SystemCompliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras) -
ViewfinderEye-level Pentamirror Single-Lens Reflex viewfinder
-
Viewfinder Frame Coverage95% Horizontal Approx.
-
Viewfinder Magnification0.78x Approx.
-
Viewfinder Eyepoint18mm (-1.0m)
-
Viewfinder Diopter Adjustment-1.7 to +0.5m
-
Focusing ScreenType B BriteView Clear Matte Mark VII screen
-
Reflex MirrorQuick-return type
-
Lens ApertureInstant-return type
-
Lens Compatibility at a Glance***AF-S Lens Required for Autofocus
-
Compatible LensesAF NIKKOR for F3AF not Supported
AF-S, AF-I: All Functions Supported
AI-P NIKKOR: All Functions Supported Except Autofocus and 3D Color Matrix Metering II
Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster
IX NIKKOR Lenses Cannot be Used
Non-CPU: Autofocus not supported. Can be used in mode M, but exposure meter does not function.
Other AF NIKKOR: All Functions Supported Except autofocus and 3D Color Matrix Metering II
Type G or D AF NIKKOR: All Functions Supported Except Autofocus
Type D PC NIKKOR: All Functions Supported Except Autofocus and some Shooting Modes -
Shutter typeElectronically controlled vertical-travel focal-plane
-
Shutter Speed1/4000 to 30 sec.
-
Fastest Shutter Speed1/4000 sec.
-
Slowest Shutter Speed30 sec.
-
Flash Sync SpeedUp to 1/200 sec.
-
Shutter Release ModesContinuous
Delayed remote
Quick Response Remote Mode
Quiet shutter-release
Self-timer mode
Single-frame [S] mode -
Frame Advance RateUp to 4 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
-
Top Continuous Shooting Speed at full resolution4 frames per second
-
Self-timer2, 5, 10, 20 sec. Timer duration electronically controlled
-
Exposure Metering SystemTTL exposure metering using 420-pixel RGB sensor
-
Metering MethodCenter-weighted: Weight of 75% given to 8mm circle in center of frame
Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
Spot: Meters 3.5mm circle (about 2.5% of frame) centered on selected focus point -
Metering Range0 to 20 EV (Matrix or center-weighted metering at ISO 100 equivalent, f/1.4 lens, at 20C/68F)
2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20C/68F) -
Exposure Meter CouplingCPU
-
Exposure ModesAperture-Priority Auto (A)
Auto
Auto (flash off)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S) -
Scene ModesAuto
Auto [Flash Off]
Child
Close-up
Landscape
Night Portrait
Portrait
Sports -
Exposure Compensation5 EV in increments of 1/3EV
-
Exposure LockLuminosity locked at detected value with AE-L/AF-L button
-
Mirror Lock UpYes (for image sensor cleaning)
-
ISO SensitivityISO 100 - 6400
Hi-1 (ISO 12,800) -
Lowest Standard ISO Sensitivity100
-
Highest Standard ISO Sensitivity6400
-
Highest Expanded ISO Sensitivity1 EV above ISO 6400 (ISO 12800 equivalent)
-
Expanded ISO Sensitivity Options1 EV above ISO 6400 (ISO 12800 equivalent)
Auto ISO sensitivity control available -
High ISO Noise ReductionLow
Normal
High
Off -
Active D-LightingOn
Off -
Single-point AF ModeYes
-
Dynamic AF ModeNumber of AF points: 11 (3D-tracking)
-
Auto-area AF ModeYes
-
Autofocus SystemNikon Multi-CAM 1000 autofocus sensor module with TTL phase detection
-
Detection Range-1 to 19 EV (ISO 100, 68F/20C)
-
Lens ServoAutofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used -
Focus PointCan be selected from 11 focus points
-
Focus LockFocus can be locked by pressing AE-L/AF-L button
Focus can be locked by pressing shutter-release button halfway (single-servo AF) -
Focus ModesAuto AF-S/AF-C selection (AF-A)
Continuous-servo (AF-C)
Face-Priority AF available in Live View only and D-Movie only
Full-time Servo (AF-A) available in Live View only
Manual (M) with electronic rangefinder
Normal area available in Live View and D-Movie only
Predictive focus tracking activated automatically according to subject status
Single-servo AF (AF-S)
Wide area available in Live View and D-Movie only -
Maximum Autofocus Areas/Points11
-
Autofocus Sensitivity-1 to +19 EV (ISO 100, 20C/68F)
-
Built-in FlashYes
-
X-Sync Speed1/200
-
Flash ControlTTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted
-
Flash Sync ModesFront-curtain sync (normal)
Rear-curtain sync
Red-Eye reduction
Red-Eye reduction with slow sync
Slow sync -
Flash Compensation-3 to +1 EV in increments of 1/3 EV
-
Flash-ready indicatorLights when built-in flash or optional flash unit such as SB-910, SB-900, SB-400, SB-80DX, SB-28DX or SB-50DX is fully charged
-
Accessory ShoeYes
-
Nikon Creative Lighting System (CLS)CLS Supported
-
Flash Sync TerminalSync Terminal Adapter AS-15 (available separately)
-
White BalanceAuto
Cloudy
Direct Sunlight
Flash
Fluorescent (7 types)
Incandescent
Preset Manual
Shade -
Live View ShootingYes
-
Live View Lens servoAutofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF) -
Live View AF-area modeFace-priority AF
Wide-area AF
Normal-area AF
Subject-tracking AF -
Live View AutofocusContrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
-
Live View Scene Auto SelectorAuto mode
Auto (flash off) mode -
Movie MeteringTTL exposure metering using main image sensor
-
Movie Maximum recording time20 min.
-
Movie File FormatMOV
-
Movie Video CompressionH.264/MPEG-4 Advanced Video Coding
-
Movie Audio recording formatLinear PCM
-
MovieHD 1,920x1,080 / 30 fps
HD 1,920x1,080 / 25 fps
HD 1,920x1,080 / 24 fps
HD 1,280x720 / 60 fps
HD 1,280x720 / 50 fps
VGA 640x424 / 30 fps
VGA 640x424 / 25 fps -
Movie AudioBuilt-in microphone, monaural
Optional external stereo mini-pin jack (3.5mm diameter)
Microphone sensitivity can be adjusted -
Monitor Size3.0 in. diagonal
-
Monitor Resolution921,000 Dots
-
Monitor TypeWide Viewing Angle TFT-LCD
-
Monitor Angle of View160-degree wide-viewing angle
-
Playback FunctionsAuto Image Rotation
Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
Highlights
Histogram Display
Image Comment
Movie Playback
Playback with Zoom
Slideshow -
In-Camera Image EditingColor Balance
Color Outline
Color Sketch
D-Lighting
Distortion Control
Filter Effects
Fisheye
Image Overlay
Miniature Effect
Monochrome
NEF (RAW) Processing
Perspective Control
Quick Retouch
Red-Eye Correction
Resize
Selective Color
Straighten
Trim -
InterfaceAccessory Terminal: Remote Cord: MC-DC2 (available separately); GPS unit: GP-1 (available separately)
Audio input: Stereo mini-pin jack (3.5-mm diameter)
HDMI output: Type C mini-pin HDMI connector
Hi-speed USB
Video Output: NTSC, PAL -
Wi-Fi FunctionalityEye-Fi Compatible
-
GPSGP-1 GPS unit
-
Recent SettingsYes
-
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norweigan
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukrainian -
Date, Time and Daylight Savings Time SettingsYes
-
World Time SettingYes
-
Battery / BatteriesEN-EL14 Rechargeable Li-ion Battery
-
Battery Life (shots per charge)540 shots (CIPA)
-
AC AdapterEH-5b AC Adapter; requires EP-5A Power Connector (available separately)
-
Battery ChargerMH-24 Quick Charger
-
Tripod Socket1/4 in.
-
Approx. DimensionsWidth: 5.0 in. (125mm)
Height: 3.8 in. (96mm)
Depth: 3.1 in. (76.5mm) -
Approx. Weight16 oz. (455g)camera body only
-
Operating Environment040 C (+32104 F)
-
Supplied Accessories
- EN-EL14 Rechargeable Li-ion Battery
- MH-24 Quick Charger
- EG-CP14 Audio/Video Cable
- UC-E17 USB Cable
- DK-20 Rubber Eyecup
- AN-DC3 Camera Strap
- DK-5 Eyepiece Cap
- BF-1B Body Cap
- BS-1 Accessory Shoe Cover
- NikonView NX CD-ROM
 |
Nikon D3200 Digital SLR Camera - 24.2MP (Red)
- 3.0"TFT LCD, Live View, Live View AF-Area Mode
- 18-55VR
Nikon D3200 + 18-105VR - Red
24.2 MP DX-format CMOS sensor and EXPEED 3
Why do photos and videos shot with a Nikon HD-SLR look so good? It all starts with Nikon’s exclusive image sensors, and the D3200 has the most powerful CMOS sensor we’ve ever put in a HD-SLR at this level. Boasting an astounding 24.2 effective megapixels, it captures sharper, richer images—even in low light. Combine that with EXPEED 3 image processing, the processing power behind the acclaimed Nikon D4, for super-fast operation, exceptional image capture, in-camera filter effects and more. Your photos and videos will amaze even you.
It’s never been easier to create HD-SLR quality photos, thanks to the D3200’s Guide Mode. Learn the camera's key features and controls while you shoot, and even get advice and sample images to succeed in difficult shooting situations. Guide Mode is easy to access and easy to understand. You’re never shooting alone with the D3200.
Experienced photographers optimize their camera settings for the scene they’re shooting. With the D3200, optimizing your camera settings is as easy as turning a dial. Choose from six common Scene Modes like Portrait, Night Portrait, Landscape, Close up and more, for flawless results even in demanding circumstances. When using Live View, Scene Auto Selector automatically sets the D3200 for the most suitable Scene Mode for the situation. A highly accurate 420-pixel RGB sensor powers Nikon's Scene Recognition System, which compares scene data against an extensive database to optimize the shot accordingly.
Versatile AF-S Zoom-NIKKOR 18-55mm
Nikon’s renowned NIKKOR lenses have long been the choice of pros and serious photographers. Marvels of clarity, consistency, precision and reliability, they draw peak performance from Nikon HD-SLRs. The D3200 comes equipped with the AF-S DX Zoom-NIKKOR 18-55mm, a versatile, high performance VR image stabilized lens. And when you’re ready to expand your system and extend your creativity, you'll have your choice of over 70 legendary NIKKOR lenses.
Using the WU-1a optional wireless mobile adapter you can now automatically send great images to your smartphone and even use your smartphone to remotely capture images from your D3200. With an easy to use app, now, when you can't wait to share that great shot, you don't have to. Share it to your smartphone in an instant.
Compact, lightweight and durable
Your D3200 is designed for comfort, intuitive use and durability. Its compact, lightweight and rugged body puts key controls at your fingertips. You'll never hesitate to bring along your D3200.
Dramatic low-light photos
The D3200’s wide ISO range of 100 to 6400 allows for shooting in very low light without a flash or in very bright light with zoom, macro, fixed focal length or wide aperture lenses. For extreme low-light situations, set the ISO to Hi 1 and achieve ISO 12800 equivalent sensitivity.
-
TypeSingle-lens reflex digital camera
-
Lens MountNikon F bayonet mount
-
Picture AngleNikon DX format (Effective picture angle 1.5x [Approx.] conversion factor)
-
Effective Pixels24.2 million
-
Sensor Size23.2mm x 15.4mm
-
Image Sensor FormatDX
-
Image Sensor TypeCMOS
-
Total Pixels24.7 million
-
Dust-reduction systemImage sensor cleaning
-
Image Area (pixels)DX-format
(L) 6,016 4,000
(M) 4,512 3,000
(S) 3,008 2,000 -
File Format Still ImagesCompressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline Compliant with fine (approx 1:4), Normal (approx 1:8) or Basic (approx 1:16) Compression
NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats -
Picture ControlLandscape
Monochrome
Neutral
Portrait
Selected Picture Control can be Modified
Standard
Vivid -
Storage MediaSD
SDHC
SDXC -
Card Slot1 Secure Digital (SD)
-
File SystemCompliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras) -
ViewfinderEye-level Pentamirror Single-Lens Reflex viewfinder
-
Viewfinder Frame Coverage95% Horizontal Approx.
-
Viewfinder Magnification0.78x Approx.
-
Viewfinder Eyepoint18mm (-1.0m)
-
Viewfinder Diopter Adjustment-1.7 to +0.5m
-
Focusing ScreenType B BriteView Clear Matte Mark VII screen
-
Reflex MirrorQuick-return type
-
Lens ApertureInstant-return type
-
Lens Compatibility at a Glance***AF-S Lens Required for Autofocus
-
Compatible LensesAF NIKKOR for F3AF not Supported
AF-S, AF-I: All Functions Supported
AI-P NIKKOR: All Functions Supported Except Autofocus and 3D Color Matrix Metering II
Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster
IX NIKKOR Lenses Cannot be Used
Non-CPU: Autofocus not supported. Can be used in mode M, but exposure meter does not function.
Other AF NIKKOR: All Functions Supported Except autofocus and 3D Color Matrix Metering II
Type G or D AF NIKKOR: All Functions Supported Except Autofocus
Type D PC NIKKOR: All Functions Supported Except Autofocus and some Shooting Modes -
Shutter typeElectronically controlled vertical-travel focal-plane
-
Shutter Speed1/4000 to 30 sec.
-
Fastest Shutter Speed1/4000 sec.
-
Slowest Shutter Speed30 sec.
-
Flash Sync SpeedUp to 1/200 sec.
-
Shutter Release ModesContinuous
Delayed remote
Quick Response Remote Mode
Quiet shutter-release
Self-timer mode
Single-frame [S] mode -
Frame Advance RateUp to 4 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
-
Top Continuous Shooting Speed at full resolution4 frames per second
-
Self-timer2, 5, 10, 20 sec. Timer duration electronically controlled
-
Exposure Metering SystemTTL exposure metering using 420-pixel RGB sensor
-
Metering MethodCenter-weighted: Weight of 75% given to 8mm circle in center of frame
Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
Spot: Meters 3.5mm circle (about 2.5% of frame) centered on selected focus point -
Metering Range0 to 20 EV (Matrix or center-weighted metering at ISO 100 equivalent, f/1.4 lens, at 20C/68F)
2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20C/68F) -
Exposure Meter CouplingCPU
-
Exposure ModesAperture-Priority Auto (A)
Auto
Auto (flash off)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S) -
Scene ModesAuto
Auto [Flash Off]
Child
Close-up
Landscape
Night Portrait
Portrait
Sports -
Exposure Compensation5 EV in increments of 1/3EV
-
Exposure LockLuminosity locked at detected value with AE-L/AF-L button
-
Mirror Lock UpYes (for image sensor cleaning)
-
ISO SensitivityISO 100 - 6400
Hi-1 (ISO 12,800) -
Lowest Standard ISO Sensitivity100
-
Highest Standard ISO Sensitivity6400
-
Highest Expanded ISO Sensitivity1 EV above ISO 6400 (ISO 12800 equivalent)
-
Expanded ISO Sensitivity Options1 EV above ISO 6400 (ISO 12800 equivalent)
Auto ISO sensitivity control available -
High ISO Noise ReductionLow
Normal
High
Off -
Active D-LightingOn
Off -
Single-point AF ModeYes
-
Dynamic AF ModeNumber of AF points: 11 (3D-tracking)
-
Auto-area AF ModeYes
-
Autofocus SystemNikon Multi-CAM 1000 autofocus sensor module with TTL phase detection
-
Detection Range-1 to 19 EV (ISO 100, 68F/20C)
-
Lens ServoAutofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used -
Focus PointCan be selected from 11 focus points
-
Focus LockFocus can be locked by pressing AE-L/AF-L button
Focus can be locked by pressing shutter-release button halfway (single-servo AF) -
Focus ModesAuto AF-S/AF-C selection (AF-A)
Continuous-servo (AF-C)
Face-Priority AF available in Live View only and D-Movie only
Full-time Servo (AF-A) available in Live View only
Manual (M) with electronic rangefinder
Normal area available in Live View and D-Movie only
Predictive focus tracking activated automatically according to subject status
Single-servo AF (AF-S)
Wide area available in Live View and D-Movie only -
Maximum Autofocus Areas/Points11
-
Autofocus Sensitivity-1 to +19 EV (ISO 100, 20C/68F)
-
Built-in FlashYes
-
X-Sync Speed1/200
-
Flash ControlTTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted
-
Flash Sync ModesFront-curtain sync (normal)
Rear-curtain sync
Red-Eye reduction
Red-Eye reduction with slow sync
Slow sync -
Flash Compensation-3 to +1 EV in increments of 1/3 EV
-
Flash-ready indicatorLights when built-in flash or optional flash unit such as SB-910, SB-900, SB-400, SB-80DX, SB-28DX or SB-50DX is fully charged
-
Accessory ShoeYes
-
Nikon Creative Lighting System (CLS)CLS Supported
-
Flash Sync TerminalSync Terminal Adapter AS-15 (available separately)
-
White BalanceAuto
Cloudy
Direct Sunlight
Flash
Fluorescent (7 types)
Incandescent
Preset Manual
Shade -
Live View ShootingYes
-
Live View Lens servoAutofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF) -
Live View AF-area modeFace-priority AF
Wide-area AF
Normal-area AF
Subject-tracking AF -
Live View AutofocusContrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
-
Live View Scene Auto SelectorAuto mode
Auto (flash off) mode -
Movie MeteringTTL exposure metering using main image sensor
-
Movie Maximum recording time20 min.
-
Movie File FormatMOV
-
Movie Video CompressionH.264/MPEG-4 Advanced Video Coding
-
Movie Audio recording formatLinear PCM
-
MovieHD 1,920x1,080 / 30 fps
HD 1,920x1,080 / 25 fps
HD 1,920x1,080 / 24 fps
HD 1,280x720 / 60 fps
HD 1,280x720 / 50 fps
VGA 640x424 / 30 fps
VGA 640x424 / 25 fps -
Movie AudioBuilt-in microphone, monaural
Optional external stereo mini-pin jack (3.5mm diameter)
Microphone sensitivity can be adjusted -
Monitor Size3.0 in. diagonal
-
Monitor Resolution921,000 Dots
-
Monitor TypeWide Viewing Angle TFT-LCD
-
Monitor Angle of View160-degree wide-viewing angle
-
Playback FunctionsAuto Image Rotation
Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
Highlights
Histogram Display
Image Comment
Movie Playback
Playback with Zoom
Slideshow -
In-Camera Image EditingColor Balance
Color Outline
Color Sketch
D-Lighting
Distortion Control
Filter Effects
Fisheye
Image Overlay
Miniature Effect
Monochrome
NEF (RAW) Processing
Perspective Control
Quick Retouch
Red-Eye Correction
Resize
Selective Color
Straighten
Trim -
InterfaceAccessory Terminal: Remote Cord: MC-DC2 (available separately); GPS unit: GP-1 (available separately)
Audio input: Stereo mini-pin jack (3.5-mm diameter)
HDMI output: Type C mini-pin HDMI connector
Hi-speed USB
Video Output: NTSC, PAL -
Wi-Fi FunctionalityEye-Fi Compatible
-
GPSGP-1 GPS unit
-
Recent SettingsYes
-
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norweigan
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukrainian -
Date, Time and Daylight Savings Time SettingsYes
-
World Time SettingYes
-
Battery / BatteriesEN-EL14 Rechargeable Li-ion Battery
-
Battery Life (shots per charge)540 shots (CIPA)
-
AC AdapterEH-5b AC Adapter; requires EP-5A Power Connector (available separately)
-
Battery ChargerMH-24 Quick Charger
-
Tripod Socket1/4 in.
-
Approx. DimensionsWidth: 5.0 in. (125mm)
Height: 3.8 in. (96mm)
Depth: 3.1 in. (76.5mm) -
Approx. Weight16 oz. (455g)camera body only
-
Operating Environment040 C (+32104 F)
-
Supplied Accessories
- EN-EL14 Rechargeable Li-ion Battery
- MH-24 Quick Charger
- EG-CP14 Audio/Video Cable
- UC-E17 USB Cable
- DK-20 Rubber Eyecup
- AN-DC3 Camera Strap
- DK-5 Eyepiece Cap
- BF-1B Body Cap
- BS-1 Accessory Shoe Cover
- NikonView NX CD-ROM
 |
Nikon JAA816DA AF-S NIKKOR 24-85mm f/3.5-4.5G ED VR, Zoom Lens
AF-S NIKKOR 24-85mm f/3.5-4.5G ED VR
Popular zoom lens for use with FX-format SLRs.
Offering a highly convenient combination of broad focal range and compact build, this is a great walkabout lens.
The 2485mm range easily covers the most commonly used focal lengths from wide-angle up to telephoto. Nikons Vibration Reduction system ensures sharp, steady images. ED glass elements help deliver stunning sharpness and contrast, even at maximum aperture.
FX-format standard zoom lens with 2485mm focal range (36127.5mm when used with a Nikon DX-format SLR).
Vibration Reduction (VRII) system enables more stable handheld shooting and lets you shoot at shutter speeds up to four stops slower.
Nikon Super Integrated Coating greatly reduces ghosting and flare and ensures outstanding color reproduction.
Designed specifically for use with Nikon FX-format digital SLR sensors.
ED (extra-low dispersion) glass and three aspherical lens elements ensure high resolution and contrast while minimizing aberrations and distortions.
SWM (Silent Wave Motor) for quiet and accurate autofocus.
Two focus modes: M/A (manual-priority autofocus) and M (manual focus).
Lightweight and compact body.
Weather-sealed rubber lens mount.
Weight
Approx. 465 g (16.4 oz)
Minimum aperture
f/22-29
Maximum reproduction ratio
Approx. 0.22x
Focal length
24-85 mm
Dimensions
Approx. 78 mm maximum diameter x 82 mm (distance from camera lens mount flange)
Focusing
Nikon Internal Focusing (IF) System with autofocus controlled by Silent Wave Motor and separate focus ring for manual focus
Filter-attachment size
72 mm (P=0.75 mm)
Minimum focus distance
0.38 m (1.25 ft) from focal plane at all zoom positions
Angle of view
Nikon film SLR and FX-format D-SLR cameras: 8428 30 Nikon DX-format D-SLR cameras: 6118 50 IX240 system cameras: 7122 50
Maximum aperture
f/3.5-4.5
No. of diaphragm blades
7 (rounded diaphragm opening)
Lens construction
16 elements in 11 groups (including 1 ED lens element and 3 aspherical lens elements)
 |
Nikon D3200 Digital SLR Camera - 24.2MP (Black)
- 3.0"TFT LCD, Live View, Live View AF-Area Mode
- 18-55VR + 55-300VB
It’s never been easier to create HD-SLR quality photos, thanks to the D3200’s Guide Mode. Learn the camera's key features and controls while you shoot, and even get advice and sample images to succeed in difficult shooting situations. Guide Mode is easy to access and easy to understand. You’re never shooting alone with the D3200.
Six Scene Modes and Scene Auto Selector
Experienced photographers optimize their camera settings for the scene they’re shooting. With the D3200, optimizing your camera settings is as easy as turning a dial. Choose from six common Scene Modes like Portrait, Night Portrait, Landscape, Close up and more, for flawless results even in demanding circumstances. When using Live View, Scene Auto Selector automatically sets the D3200 for the most suitable Scene Mode for the situation. A highly accurate 420-pixel RGB sensor powers Nikon's Scene Recognition System, which compares scene data against an extensive database to optimize the shot accordingly.
One-touch Full HD 1080p movie recording with stereo sound
Nikon is committed to developing HD-SLRs that are not just superlative still image cameras, but superlative video cameras, as well. With a touch of a button, the D3200 starts recording Full HD 1080p video with full-time autofocus, manual exposure control and stereo sound. Its breathtaking 921,000-dot, ultra-high-resolution display makes it easy to frame, monitor and review your footage. Even record in super-smooth slow motion up to 60 fps! Unleash your inner cinematographer.*
Versatile AF-S Zoom-NIKKOR 18-55mm
Nikon’s renowned NIKKOR lenses have long been the choice of pros and serious photographers. Marvels of clarity, consistency, precision and reliability, they draw peak performance from Nikon HD-SLRs. The D3200 comes equipped with the AF-S DX Zoom-NIKKOR 18-55mm, a versatile, high performance VR image stabilized lens. And when you’re ready to expand your system and extend your creativity, you'll have your choice of over 70 legendary NIKKOR lenses.
The D3200's 11-point Autofocusing System is as fast as it is precise. Check your focus points, track your subject or shoot carefree right from the viewfinder. And when the action speeds up, simply aim, hold down the shutter and fire off approx. 4 fps at 24.2 MP resolution.
Using the WU-1a optional wireless mobile adapter you can now automatically send great images to your smartphone and even use your smartphone to remotely capture images from your D3200. With an easy to use app, now, when you can't wait to share that great shot, you don't have to. Share it to your smartphone in an instant.
Compact, lightweight and durable
Your D3200 is designed for comfort, intuitive use and durability. Its compact, lightweight and rugged body puts key controls at your fingertips. You'll never hesitate to bring along your D3200.
-
TypeSingle-lens reflex digital camera
-
Lens MountNikon F bayonet mount
-
Picture AngleNikon DX format (Effective picture angle 1.5x [Approx.] conversion factor)
-
Effective Pixels24.2 million
-
Sensor Size23.2mm x 15.4mm
-
Image Sensor FormatDX
-
Image Sensor TypeCMOS
-
Total Pixels24.7 million
-
Dust-reduction systemImage sensor cleaning
-
Image Area (pixels)DX-format
(L) 6,016 4,000
(M) 4,512 3,000
(S) 3,008 2,000 -
File Format Still ImagesCompressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline Compliant with fine (approx 1:4), Normal (approx 1:8) or Basic (approx 1:16) Compression
NEF (RAW) + JPEG: Single Photograph Recorded in both NEF (RAW) and JPEG Formats -
Picture ControlLandscape
Monochrome
Neutral
Portrait
Selected Picture Control can be Modified
Standard
Vivid -
Storage MediaSD
SDHC
SDXC -
Card Slot1 Secure Digital (SD)
-
File SystemCompliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras) -
ViewfinderEye-level Pentamirror Single-Lens Reflex viewfinder
-
Viewfinder Frame Coverage95% Horizontal Approx.
-
Viewfinder Magnification0.78x Approx.
-
Viewfinder Eyepoint18mm (-1.0m)
-
Viewfinder Diopter Adjustment-1.7 to +0.5m
-
Focusing ScreenType B BriteView Clear Matte Mark VII screen
-
Reflex MirrorQuick-return type
-
Lens ApertureInstant-return type
-
Lens Compatibility at a Glance***AF-S Lens Required for Autofocus
-
Compatible LensesAF NIKKOR for F3AF not Supported
AF-S, AF-I: All Functions Supported
AI-P NIKKOR: All Functions Supported Except Autofocus and 3D Color Matrix Metering II
Electronic Rangefinder can be used if Maximum Aperture is f/5.6 or Faster
IX NIKKOR Lenses Cannot be Used
Non-CPU: Autofocus not supported. Can be used in mode M, but exposure meter does not function.
Other AF NIKKOR: All Functions Supported Except autofocus and 3D Color Matrix Metering II
Type G or D AF NIKKOR: All Functions Supported Except Autofocus
Type D PC NIKKOR: All Functions Supported Except Autofocus and some Shooting Modes -
Shutter typeElectronically controlled vertical-travel focal-plane
-
Shutter Speed1/4000 to 30 sec.
-
Fastest Shutter Speed1/4000 sec.
-
Slowest Shutter Speed30 sec.
-
Flash Sync SpeedUp to 1/200 sec.
-
Shutter Release ModesContinuous
Delayed remote
Quick Response Remote Mode
Quiet shutter-release
Self-timer mode
Single-frame [S] mode -
Frame Advance RateUp to 4 fps (manual focus, mode M or S, shutter speed 1/250 sec or faster, and other settings at default values)
-
Top Continuous Shooting Speed at full resolution4 frames per second
-
Self-timer2, 5, 10, 20 sec. Timer duration electronically controlled
-
Exposure Metering SystemTTL exposure metering using 420-pixel RGB sensor
-
Metering MethodCenter-weighted: Weight of 75% given to 8mm circle in center of frame
Matrix: 3D color matrix metering II (type G and D lenses); color matrix metering II (other CPU lenses)
Spot: Meters 3.5mm circle (about 2.5% of frame) centered on selected focus point -
Metering Range0 to 20 EV (Matrix or center-weighted metering at ISO 100 equivalent, f/1.4 lens, at 20C/68F)
2 to 20 EV (Spot metering at ISO 100 equivalent, f/1.4 lens at 20C/68F) -
Exposure Meter CouplingCPU
-
Exposure ModesAperture-Priority Auto (A)
Auto
Auto (flash off)
Manual (M)
Programmed Auto with flexible Program (P)
Shutter-Priority Auto (S) -
Scene ModesAuto
Auto [Flash Off]
Child
Close-up
Landscape
Night Portrait
Portrait
Sports -
Exposure Compensation5 EV in increments of 1/3EV
-
Exposure LockLuminosity locked at detected value with AE-L/AF-L button
-
Mirror Lock UpYes (for image sensor cleaning)
-
ISO SensitivityISO 100 - 6400
Hi-1 (ISO 12,800) -
Lowest Standard ISO Sensitivity100
-
Highest Standard ISO Sensitivity6400
-
Highest Expanded ISO Sensitivity1 EV above ISO 6400 (ISO 12800 equivalent)
-
Expanded ISO Sensitivity Options1 EV above ISO 6400 (ISO 12800 equivalent)
Auto ISO sensitivity control available -
High ISO Noise ReductionLow
Normal
High
Off -
Active D-LightingOn
Off -
Single-point AF ModeYes
-
Dynamic AF ModeNumber of AF points: 11 (3D-tracking)
-
Auto-area AF ModeYes
-
Autofocus SystemNikon Multi-CAM 1000 autofocus sensor module with TTL phase detection
-
Detection Range-1 to 19 EV (ISO 100, 68F/20C)
-
Lens ServoAutofocus (AF): Single-servo AF (AF-S); Continuous-servo AF (AF-C); auto AF-S/AF-C selection (AF-A); predictive focus tracking activated automatically according to subject status
Manual focus (MF): Electronic rangefinder can be used -
Focus PointCan be selected from 11 focus points
-
Focus LockFocus can be locked by pressing AE-L/AF-L button
Focus can be locked by pressing shutter-release button halfway (single-servo AF) -
Focus ModesAuto AF-S/AF-C selection (AF-A)
Continuous-servo (AF-C)
Face-Priority AF available in Live View only and D-Movie only
Full-time Servo (AF-A) available in Live View only
Manual (M) with electronic rangefinder
Normal area available in Live View and D-Movie only
Predictive focus tracking activated automatically according to subject status
Single-servo AF (AF-S)
Wide area available in Live View and D-Movie only -
Maximum Autofocus Areas/Points11
-
Autofocus Sensitivity-1 to +19 EV (ISO 100, 20C/68F)
-
Built-in FlashYes
-
X-Sync Speed1/200
-
Flash ControlTTL: i-TTL flash control using 420-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600, or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted
-
Flash Sync ModesFront-curtain sync (normal)
Rear-curtain sync
Red-Eye reduction
Red-Eye reduction with slow sync
Slow sync -
Flash Compensation-3 to +1 EV in increments of 1/3 EV
-
Flash-ready indicatorLights when built-in flash or optional flash unit such as SB-910, SB-900, SB-400, SB-80DX, SB-28DX or SB-50DX is fully charged
-
Accessory ShoeYes
-
Nikon Creative Lighting System (CLS)CLS Supported
-
Flash Sync TerminalSync Terminal Adapter AS-15 (available separately)
-
White BalanceAuto
Cloudy
Direct Sunlight
Flash
Fluorescent (7 types)
Incandescent
Preset Manual
Shade -
Live View ShootingYes
-
Live View Lens servoAutofocus (AF): Single-servo AF (AF-S); full-time-servo AF (AF-F)
Manual focus (MF) -
Live View AF-area modeFace-priority AF
Wide-area AF
Normal-area AF
Subject-tracking AF -
Live View AutofocusContrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
-
Live View Scene Auto SelectorAuto mode
Auto (flash off) mode -
Movie MeteringTTL exposure metering using main image sensor
-
Movie Maximum recording time20 min.
-
Movie File FormatMOV
-
Movie Video CompressionH.264/MPEG-4 Advanced Video Coding
-
Movie Audio recording formatLinear PCM
-
MovieHD 1,920x1,080 / 30 fps
HD 1,920x1,080 / 25 fps
HD 1,920x1,080 / 24 fps
HD 1,280x720 / 60 fps
HD 1,280x720 / 50 fps
VGA 640x424 / 30 fps
VGA 640x424 / 25 fps -
Movie AudioBuilt-in microphone, monaural
Optional external stereo mini-pin jack (3.5mm diameter)
Microphone sensitivity can be adjusted -
Monitor Size3.0 in. diagonal
-
Monitor Resolution921,000 Dots
-
Monitor TypeWide Viewing Angle TFT-LCD
-
Monitor Angle of View160-degree wide-viewing angle
-
Playback FunctionsAuto Image Rotation
Full-Frame and Thumbnail (4, 9, or 72 images or calendar)
Highlights
Histogram Display
Image Comment
Movie Playback
Playback with Zoom
Slideshow -
In-Camera Image EditingColor Balance
Color Outline
Color Sketch
D-Lighting
Distortion Control
Filter Effects
Fisheye
Image Overlay
Miniature Effect
Monochrome
NEF (RAW) Processing
Perspective Control
Quick Retouch
Red-Eye Correction
Resize
Selective Color
Straighten
Trim -
InterfaceAccessory Terminal: Remote Cord: MC-DC2 (available separately); GPS unit: GP-1 (available separately)
Audio input: Stereo mini-pin jack (3.5-mm diameter)
HDMI output: Type C mini-pin HDMI connector
Hi-speed USB
Video Output: NTSC, PAL -
Wi-Fi FunctionalityEye-Fi Compatible
-
GPSGP-1 GPS unit
-
Recent SettingsYes
-
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norweigan
Polish
Portuguese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukrainian -
Date, Time and Daylight Savings Time SettingsYes
-
World Time SettingYes
-
Battery / BatteriesEN-EL14 Rechargeable Li-ion Battery
-
Battery Life (shots per charge)540 shots (CIPA)
-
AC AdapterEH-5b AC Adapter; requires EP-5A Power Connector (available separately)
-
Battery ChargerMH-24 Quick Charger
-
Tripod Socket1/4 in.
-
Approx. DimensionsWidth: 5.0 in. (125mm)
Height: 3.8 in. (96mm)
Depth: 3.1 in. (76.5mm) -
Approx. Weight16 oz. (455g)camera body only
-
Operating Environment040 C (+32104 F)
-
Supplied Accessories
- EN-EL14 Rechargeable Li-ion Battery
- MH-24 Quick Charger
- EG-CP14 Audio/Video Cable
- UC-E17 USB Cable
- DK-20 Rubber Eyecup
- AN-DC3 Camera Strap
- DK-5 Eyepiece Cap
- BF-1B Body Cap
- BS-1 Accessory Shoe Cover
- NikonView NX CD-ROM
 |
Nikon JAA812DA AF-S DX 18-300mm f/3.4-5.6G ED VR, Zoom Lens
AF-S DX NIKKOR 18-300mm f/3.5-5.6G ED VR
Nikons second-generation Vibration Reduction system delivers sharp results, even when shooting handheld at the super-telephoto end of the range, and enables a steady image in the cameras viewfinder. The high quality optical design boasts three ED glass elements for outstanding sharpness and contrast. A practical zoom-lock switch keeps the lens secure when not in use.
Incredibly versatile, this lens is perfect for travel, or for days when you only want to take one lens out with you.
 |
Nikon Coolpix S6400 Digital Camera - Purple
- 16MP, 12x Optical Zoom, 4.5-54.0mm, 3.0" Touchscreen LCD, VR Image Stabilization, Motion Detection, EXPEED C2, Full HD 1080p Movie Recording
The 16-megapixel, backlit CMOS sensor combines with the 12x optical zoom to deliver vivid photos and movies in any light. Sophisticated touch screen menus allow intuitive navigation and rapid access to a range of photo effects.
The COOLPIX S6400 For every beautiful moment.
Beautifully sharp: the NIKKOR 12x wide-angle optical zoom lens (25300mm) with ED glass delivers superior sharpness and color in all your photos and movies.
Super-slim: with a slender 19.8 mm body, this easy-to-carry camera gives you the freedom to zoom in for a portrait photo, or zoom out to film the action, wherever you go.
7.5 cm (3.0-in.) 460k-dot, wide LCD touch screen: enjoy intuitive fingertip control over shooting and playback, thanks to smooth touch technology and Nikons Clear Color Display anti-reflective coating.
Quick effect mode: add some style to photos youve taken. Press the effect icon to choose from thumbnails of 19 different effects, including Toy Camera, Cross Process, Selective Color, and Painting.
Intelligent AF Control System: the camera automatically selects the best focus method for sharp results whatever your subject is, and wherever its positioned in the frame.
20 Scene Modes: achieve great results just by selecting the mode that matches your shooting situation, or let Scene Auto Selector choose the optimum scene mode for you.
Lens-shift Vibration Reduction: capture steady photos and movies, thanks to Nikons automatic vibration reduction technology, which counters the effects of camera shake in real time.
Anti-blur: High ISO (up to 3200) light sensitivity for sharper images in low light. Motion detection compensates for camera and subject movement. Night Portrait and Landscape modes capture clear photos in low light. Auto HDR delivers a detailed image of a high-contrast scene, such as a sunny beach.
Full HD (1080p) movie with stereo sound: start filming at the touch of the movie-record button and zoom in on the action with the 12x optical zoom lens. A Record Pause function lets you pause and then continue filming, and the camera creates one movie file for smooth playback.
Easy Panorama 360/180: move the camera vertically or horizontally to create dynamic panoramas.
3D shooting mode: create a 3D image that can be played back on 3D-capable TVs and computers.
High-speed continuous shooting: capture sharp shots of the action with ease. The camera can shoot up to seven consecutive shots at a fast seven frames-per-second.
EXPEED C2 image processing system: provides enhanced movie recording, high-sensitivity performance, and maximum image quality.
Wireless transfer: compatible with Eye-Fi X2 (or later) cards. Transmit your digital photos (in JPEG format) directly to your phone or personal computer, and then connect to the Internet to take advantage of Nikons photo-sharing service, my Picturetown.
Specifications:
| Product name | COOLPIX S6400 |
| Type | Compact digital camera |
| Number of effective pixels | 16.0 million |
| Image sensor | 1/2.3-in. type CMOS; approx. 16.79 million total pixels |
| Lens | 12x optical zoom, NIKKOR lens |
| Focal length | 4.5-54.0 mm (angle of view equivalent to that of 25-300 mm lens in 35mm [135] format) |
| f/-number | f/3.1-6.5 |
| Lens construction | 8 elements in 8 groups (1 ED lens element) |
| Digital zoom magnification | Up to 4x (angle of view equivalent to that of approx. 1200 mm lens in 35mm [135] format) |
| Vibration reduction | Lens shift |
| Motion blur reduction | Motion detection (still pictures) |
| Autofocus (AF) | Contrast-detect AF |
| Focus range | [W]: Approx. 50 cm (1 ft 8 in.) to infinity, [T]: Approx. 1.2m (4 ft) to infinity, Macro mode: Approx. 10 cm (4 in.) to infinity (wide-angle position), (All distances measured from center of front surface of lens) |
| Focus-area selection | Face priority, auto (9-area automatic selection), center, manual (focus area can be selected using the touch panel), subject tracking, Target finding AF |
| Monitor | 7.5 cm (3-in.), widescreen, approx. 460k-dot, TFT LCD (touch panel) with anti-reflection coating and 5-level brightness adjustment |
| Frame coverage (shooting mode) | Approx. 96% horizontal and 96% vertical |
| Frame coverage (playback mode) | Approx. 96% horizontal and 96% vertical |
| Media | Internal memory (approx. 78 MB), SD/SDHC/SDXC memory card * |
| File system | DCF, Exif 2.3, DPOF, and MPF compliant |
| File formats | Still pictures: JPEG, 3D images: MPO, Sound files (Voice Memo): WAV, Movies: MOV (Video: H.264/MPEG-4 AVC, Audio: AAC stereo) |
| Image size (pixels) | 16M (High) [4608 x 3456(fine)], 16M [4608 x 3456], 8M [3264 x 2448], 4M [2272 x 1704], 2M [1600 x 1200], VGA [640 x 480], 16:9 [4608 x 2592] |
| Shooting Modes | Auto, Scene (Scene auto selector, Portrait, Landscape, Sports, Night portrait, Party/indoor, Beach, Snow, Sunset, Dusk/dawn, Night landscape, Close-up, Food, Museum, Fireworks show, Black and white copy, Draw, Backlighting, Easy panorama, Pet portrait, 3D photography), Special effects, Smart portrait |
| Continuous Shooting | Single (default setting), Continuous H (images are captured continuously at a rate of about 10 fps), Continuous L (up to 19 images are captured continuously at a rate of up to about 2 fps), Pre-shooting cache (up to 5 frames at a rate of up to 18 fps), Continuous H: 120 fps (50 frames are captured at a speed of about 1/120 s or faster), Continuous H: 60 fps (25 frames are captured at a speed of about 1/60 s or faster), BSS (Best Shot Selector), Multi-shot 16 |
| Movie | HD 1080p(fine) (default setting): 1920 x 1080/approx. 30 fps, HD 1080p: 1920 x 1080/approx. 30 fps, HD 720p: 1280 x 720/approx. 30 fps, HS 60 fps: 1280 x 720, HS 15 fps: 1920 x 1080 |
| ISO sensitivity (Standard output sensitivity) | ISO 125-1600, ISO 3200 (available when using Auto mode) |
| Metering mode | 256-segment matrix, center-weighted (digital zoom less than 2x), spot (digital zoom 2x or more) |
| Exposure control | Programmed auto exposure and exposure compensation (-2.0 - +2.0 EV in steps of 1/3 EV) |
| Shutter | Mechanical and CMOS electronic shutter |
| Shutter speed | 1/2000-1 s, 1/4000 s (maximum speed during high-speed continuous shooting), 4 s (Fireworks show scene mode) |
| Aperture | Electronically-controlled ND filter (-2 AV) selection |
| Range | 2 steps (f/3.1 and f/6.2 [W]) |
| Self-timer | Can be selected from 10 s and 2 s |
| Range (approx.) (ISO sensitivity: Auto) | [W]: 0.5-6.2 m (1 ft 8 in.-20 ft), [T]: 1.2-2.9 m (4 ft-9 ft 6 in.) |
| Flash control | TTL auto flash with monitor preflashes |
| Interface | Hi-Speed USB |
| Data Transfer Protocol | MTP, PTP |
| Video output | Can be selected from NTSC and PAL |
| HDMI output | Can be selected from Auto, 480p, 720p, and 1080i |
| I/O terminal | Audio/video (A/V) output; digital I/O (USB), HDMI mini connector (Type C) (HDMI output) |
| Supported languages | Arabic, Bengali, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (European and Brazilian), Romanian, Russian, Spanish, Swedish, Tamil, Thai, Turkish, Ukrainian, Vietnamese |
| Power sources | One Rechargeable Li-ion Battery EN-EL19 (included), AC Adapter EH-62G (available separately) |
| Charging time | Approx. 3 h (when using Charging AC Adapter EH-69P and when no charge remains) |
| Battery life * | Still pictures: Approx. 160 shots when using EN-EL19, Movies (actual battery life for recording) *: HD 1080p(fine) (1920 x 1080): Approx. 20 min when using EN-EL19; HD 1080p (1920 x 1080): Approx. 20 min when using EN-EL19; HD 720p (1280 x 720): Approx. 25 min when using EN-EL19 |
| Tripod socket | 1/4 (ISO 1222) |
| Dimensions (W x H x D) | Approx. 95.4 x 58.6 x 26.7 mm (3.8 x 2.4 x 1.1 in.) (excluding projections) |
| Weight | Approx. 150 g (5.3 oz) (including battery and SD memory card) |
| Temperature | 0C-40C (32F-104F) |
| Humidity | 85% or less (no condensation) |
| Supplied accessories | Camera Strap, Stylus TP-1, Rechargeable Li-ion Battery EN-EL19 (with battery case), Charging AC Adapter EH-69P, USB Cable UC-E6, Audio Video Cable EG-CP16, ViewNX 2 CD, Reference Manual CD |
| Optional accessories | Battery Charger MH-66, AC Adapter EH-62G |
 |
Nikon Coolpix S6400 Digital Camera - Red
- 16MP, 12x Optical Zoom, 4.5-54.0mm, 3.0" Touchscreen LCD, VR Image Stabilization, Motion Detection, EXPEED C2, Full HD 1080p Movie Recording
The 16-megapixel, backlit CMOS sensor combines with the 12x optical zoom to deliver vivid photos and movies in any light. Sophisticated touch screen menus allow intuitive navigation and rapid access to a range of photo effects.
Pop this camera into your pocket when you party with friends, or slip it into your bag when you travel the world. From perfect portraits to superb landscapes, shoot with style wherever you go.
The COOLPIX S6400 For every beautiful moment.
| Product name | COOLPIX S6400 |
| Type | Compact digital camera |
| Number of effective pixels | 16.0 million |
| Image sensor | 1/2.3-in. type CMOS; approx. 16.79 million total pixels |
| Lens | 12x optical zoom, NIKKOR lens |
| Focal length | 4.5-54.0 mm (angle of view equivalent to that of 25-300 mm lens in 35mm [135] format) |
| f/-number | f/3.1-6.5 |
| Lens construction | 8 elements in 8 groups (1 ED lens element) |
| Digital zoom magnification | Up to 4x (angle of view equivalent to that of approx. 1200 mm lens in 35mm [135] format) |
| Vibration reduction | Lens shift |
| Motion blur reduction | Motion detection (still pictures) |
| Autofocus (AF) | Contrast-detect AF |
| Focus range | [W]: Approx. 50 cm (1 ft 8 in.) to infinity, [T]: Approx. 1.2m (4 ft) to infinity, Macro mode: Approx. 10 cm (4 in.) to infinity (wide-angle position), (All distances measured from center of front surface of lens) |
| Focus-area selection | Face priority, auto (9-area automatic selection), center, manual (focus area can be selected using the touch panel), subject tracking, Target finding AF |
| Monitor | 7.5 cm (3-in.), widescreen, approx. 460k-dot, TFT LCD (touch panel) with anti-reflection coating and 5-level brightness adjustment |
| Frame coverage (shooting mode) | Approx. 96% horizontal and 96% vertical |
| Frame coverage (playback mode) | Approx. 96% horizontal and 96% vertical |
| Media | Internal memory (approx. 78 MB), SD/SDHC/SDXC memory card * |
| File system | DCF, Exif 2.3, DPOF, and MPF compliant |
| File formats | Still pictures: JPEG, 3D images: MPO, Sound files (Voice Memo): WAV, Movies: MOV (Video: H.264/MPEG-4 AVC, Audio: AAC stereo) |
| Image size (pixels) | 16M (High) [4608 x 3456(fine)], 16M [4608 x 3456], 8M [3264 x 2448], 4M [2272 x 1704], 2M [1600 x 1200], VGA [640 x 480], 16:9 [4608 x 2592] |
| Shooting Modes | Auto, Scene (Scene auto selector, Portrait, Landscape, Sports, Night portrait, Party/indoor, Beach, Snow, Sunset, Dusk/dawn, Night landscape, Close-up, Food, Museum, Fireworks show, Black and white copy, Draw, Backlighting, Easy panorama, Pet portrait, 3D photography), Special effects, Smart portrait |
| Continuous Shooting | Single (default setting), Continuous H (images are captured continuously at a rate of about 10 fps), Continuous L (up to 19 images are captured continuously at a rate of up to about 2 fps), Pre-shooting cache (up to 5 frames at a rate of up to 18 fps), Continuous H: 120 fps (50 frames are captured at a speed of about 1/120 s or faster), Continuous H: 60 fps (25 frames are captured at a speed of about 1/60 s or faster), BSS (Best Shot Selector), Multi-shot 16 |
| Movie | HD 1080p(fine) (default setting): 1920 x 1080/approx. 30 fps, HD 1080p: 1920 x 1080/approx. 30 fps, HD 720p: 1280 x 720/approx. 30 fps, HS 60 fps: 1280 x 720, HS 15 fps: 1920 x 1080 |
| ISO sensitivity (Standard output sensitivity) | ISO 125-1600, ISO 3200 (available when using Auto mode) |
| Metering mode | 256-segment matrix, center-weighted (digital zoom less than 2x), spot (digital zoom 2x or more) |
| Exposure control | Programmed auto exposure and exposure compensation (-2.0 - +2.0 EV in steps of 1/3 EV) |
| Shutter | Mechanical and CMOS electronic shutter |
| Shutter speed | 1/2000-1 s, 1/4000 s (maximum speed during high-speed continuous shooting), 4 s (Fireworks show scene mode) |
| Aperture | Electronically-controlled ND filter (-2 AV) selection |
| Range | 2 steps (f/3.1 and f/6.2 [W]) |
| Self-timer | Can be selected from 10 s and 2 s |
| Range (approx.) (ISO sensitivity: Auto) | [W]: 0.5-6.2 m (1 ft 8 in.-20 ft), [T]: 1.2-2.9 m (4 ft-9 ft 6 in.) |
| Flash control | TTL auto flash with monitor preflashes |
| Interface | Hi-Speed USB |
| Data Transfer Protocol | MTP, PTP |
| Video output | Can be selected from NTSC and PAL |
| HDMI output | Can be selected from Auto, 480p, 720p, and 1080i |
| I/O terminal | Audio/video (A/V) output; digital I/O (USB), HDMI mini connector (Type C) (HDMI output) |
| Supported languages | Arabic, Bengali, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (European and Brazilian), Romanian, Russian, Spanish, Swedish, Tamil, Thai, Turkish, Ukrainian, Vietnamese |
| Power sources | One Rechargeable Li-ion Battery EN-EL19 (included), AC Adapter EH-62G (available separately) |
| Charging time | Approx. 3 h (when using Charging AC Adapter EH-69P and when no charge remains) |
| Battery life * | Still pictures: Approx. 160 shots when using EN-EL19, Movies (actual battery life for recording) *: HD 1080p(fine) (1920 x 1080): Approx. 20 min when using EN-EL19; HD 1080p (1920 x 1080): Approx. 20 min when using EN-EL19; HD 720p (1280 x 720): Approx. 25 min when using EN-EL19 |
| Tripod socket | 1/4 (ISO 1222) |
| Dimensions (W x H x D) | Approx. 95.4 x 58.6 x 26.7 mm (3.8 x 2.4 x 1.1 in.) (excluding projections) |
| Weight | Approx. 150 g (5.3 oz) (including battery and SD memory card) |
| Temperature | 0C-40C (32F-104F) |
| Humidity | 85% or less (no condensation) |
| Supplied accessories | Camera Strap, Stylus TP-1, Rechargeable Li-ion Battery EN-EL19 (with battery case), Charging AC Adapter EH-69P, USB Cable UC-E6, Audio Video Cable EG-CP16, ViewNX 2 CD, Reference Manual CD |
| Optional accessories | Battery Charger MH-66, AC Adapter EH-62G |
 |
Nikon D5200 Digital SLR Camera - 24.1MP (Red)
- 3.0"TFT LCD, Airflow Control System, Live View, AF-Area Mode
- 18-55VR Kit
- Special Effects that enable you to enjoy various creative expressions in still images and movies by setting prior to shoot. ...
- High-speed, multifunctional and high-performance image-processing engine "EXPEED 3", equivalent to that of the Nikon's flagship model, D4. ...
- Wide sensitivity range of ISO 100 to 6400 (expandable to ISO 25600 equivalent) that delivers sharp images with reduced image blur even in low-lit situations or sports scenes. ...
- High-speed continuous shooting at approx. 5 fps that surely captures decisive moments. ...
- Stereo microphone employed [NEW], Full HD (1920 x 1080) D-Movie with selectable 60i/50i frame rate. ...
- Easy-to-understand and easy-to-operate, new GUI that effectively utilizes graphic processing. [NEW] ...
- Large, easy-to-view, approx. 921k-dot, wide viewing angle (170), 7.5-cm (3-in.) horizontal-opening vari-angle LCD monitor. ...
- Energy-saving design that achieves approx. 500 shots* per charge (with EN-EL14, in single-frame mode). ...
- *Based on CIPA Standards.
- Compatible with the WU-1a Wireless Mobile Adapter (optional) that enables transmission of images to smartphone or tablet PC wirelessly. ...
- Compatible with the WR-R10/WR-T10 Wireless Remote Controllers (optional). Remote control is ensured even if there are obstacles in the way. [NEW] ...
- 16 options of Scene Modes that enable selection of the most appropriate mode according to the shooting scene or subject. ...
- Variety of image-editing functions that allow you to retouch images easily after shooting, such as NEF (RAW) processing, Trim and Fisheye. ...
- ISO 100
- ISO 200
- ISO 400
- ISO 800
- ISO 1600
- ISO 3200
- ISO 6400
Reproduces brightness in highlights and shadowy areas as you see them Active D-Lighting with improved image quality
Active D-Lighting is effective for shooting, for example, a dark room including outside scenery seen through a window, high-contrast scenes such as at the seaside under strong sunlight, and backlit situations. It preserves details in both highlights and shadowy areas in such situations, maintaining moderate contrast to reproduce brightness as you see it. Select the preferred setting from "auto", "extra high", "high", "normal", "low" or "off". The D5200 employs a new image-processing system that causes less shift of color even when the strength level is increased. Image-processing time is shortened by highly accurate and high-speed real-time processing. And color reproduction is further enhanced with new image-processing engine EXPEED 3. Unlike HDR (High Dynamic Range), Active D-Lighting does not require the process of combining images, therefore it is effective for shooting moving subjects such as people.
- Extra high
- Off
Delivers beautiful images even in high-contrast scenes HDR (High Dynamic Range)
Two images taken with one shutter release at varying exposure are combined to produce a single image that has a wider dynamic range (range of contrast to reproduce tonal gradation) with less loss of detail in highlights and shadows. The result is images with less noise and rich tonal gradation throughout the entire frame including shadows and highlights even in high-contrast shooting scenes. HDR mode is selectable from "auto", "extra high", "high", "normal", "low" and "off". The exposure differential of the two images up to 3 EV and the smoothness of the edge where the two exposures meet are automatically set according to the strength level. Effective for stationary subjects such as landscapes or still lifes.
Note: It is recommended to use a tripod.
- Overexposed
- Underexposed
- HDR
NIKKOR
Nikon's original technologies
- VR "On"
- VR "Off"
Precise subject acquisition
Faithfully reproduces the shooting scene as you see it high-precision Scene Recognition System that analyzes a subject more finely with the 2016-pixel RGB sensor
The Scene Recognition System determines the subject's situation accurately prior to shooting and enables highly precise auto control. The D5200 analyzes brightness and color information of the shooting scenes more finely with Nikon's original Scene Recognition System that utilizes the 2016-pixel RGB sensor, which has been incorporated in higher-end models. And applies that information to autofocus, auto exposure, i-TTL flash and auto white balance control. In 3D-tracking, it is possible to track even a moving subject accurately. Also, in subject identification, smaller subjects compared with the D5100 can be detected which contributes to the improvement of subject identification performance in auto-area AF. Furthermore, the D5200 detects up to 35 human faces utilizing the image sensor when using face-priority AF during live view and movie recording, and playback zoom of people's faces for still images.
- Scene Recognition System
Accurate light source identification with Scene Recognition System auto white balance
The D5200 utilizes color and brightness information of the shooting scenes acquired by light source identification of the Scene Recognition System for auto white balance. It identifies the light source by referencing the in-camera database for auto white balance. In this way, it can determine the ideal white balance even with difficult light sources.
Captures even fast-moving scenes high-density 39-point AF system
The D5200 incorporates the Multi-CAM 4800DX autofocus sensor module, the same as that used in the D7000. With their high density, the 39 focus points, the top level among models in this class, that widely cover the image area acquire and track even fast-moving subjects such as sports or action accurately. Nine cross-type sensors cover the most frequently used center area to deliver higher subject acquisition and focusing performance. There are selectable AF area modes according to the scene single-point AF, dynamic-area AF (9 points, 21 points and 39 points), 3D-tracking and auto-area AF. In 3D-tracking mode, the camera keeps tracking not only a subject in a changed composition but also a moving subject. This is very convenient when shooting a fast-moving subject. Combined with the Scene Recognition System utilizing a 2016-pixel RGB sensor, the D5200 shows further improved subject-tracking performance in 3D-tracking and subject-identification performance in auto-area AF.
You can also choose to shoot with 11 focus points for quicker focus-point selection. Additionally, in the viewfinder, it is possible to display grid lines that are effective for rigorous composition.
- Bright and easy-to-see viewfinder
- Viewfinder display (framing grid)
Four selectable AF-area modes according to the subject in optical viewfinder shooting
The D5200 offers four AF-area modes. You can choose how the focus point for autofocus is selected according to the subject in viewfinder shooting.
-Single-point AF mode
Ideal for stationary subjects. You can focus on the subject selecting one of the 39 focus points according to your composition. It is effective to focus on an aimed point in situations such as shooting a flower or portrait.
- Single-point AF mode
-Dynamic-area AF mode
Suitable for capturing an erratically moving subject. Select one of the 39 focus points. If the subject briefly leaves the selected focus point, the camera will focus based on information from the surrounding points.
Selectable when focus mode is set to AF-A or AF-C.
|
9 points
|
Choose when there is time to compose the photograph or when photographing subjects that are moving predictably.
|
|---|---|
|
21 points
|
Choose when photographing subjects that are moving unpredictably.
|
|
39 points
|
Choose when photographing subjects that are moving quickly and cannot be easily framed in the viewfinder.
|
- 9 points
- 21 points
- 39 points
-3D-tracking mode
Suitable for shooting a moving subject. Pursues your subject using all 39 focus points. Once focusing is achieved with a selected focus point, the focus point automatically changes to track the subject according to its movement while the shutter-release button is pressed halfway.
Selectable when focus mode is set to AF-A or AF-C.
- 3D-tracking mode
-Auto-area AF mode
The D5200 detects the main subject using all 39 focus points and automatically focuses on it. The D5200 can recognize human skin tone using "subject identification" of the Scene Recognition System for improved human subject acquisition.
- Auto-area AF mode
Note: Only the selected focus point is shown on actual images. Also, if you select focus points in a peripheral area of an image when "9 points" or "21 points" is chosen, the number of focus points actually used may be less than 9 or 21.
Captures the decisive moment release mode button that supports quick selection of release mode and approx. 5 fps high-speed continuous shooting
The release mode button is located next to the mode dial. The release mode setting menu is displayed on the LCD monitor by pressing the release mode button so that quick switching of modes is possible. For release modes, the D5200 employs quiet shutter-release mode, "Q", that allows shooting with reduced mirror movement sound. This is effective for occasions such as a ceremony or when taking pictures of insects or a sleeping child. Also, the D5200 realizes high-speed continuous shooting at approx. 5 fps, while approx. 3 fps is also selectable, which is optimal for capturing natural facial expressions. The number of shots in continuous shooting is up to 100 in JPEG. It does not miss a moment of a subject's movements or facial expression. The shutter unit is tested for approx. 100,000 cycles with the shutter actually loaded to prove its high durability.
- Release mode button
- Release mode setting menu
- Approx. 5 fps high-speed continuous shooting ensures you capture decisive moments.
Shooting with the mirror in the up position is achieved in live view newly designed, independently driven mirror mechanism [NEW]
Nikon newly designed the high-speed and highly precise sequential control mechanism for the D5200. It contributes to high-speed continuous shooting at up to approx. 5 fps with a release time lag of approx. 0.09 s*. This new sequential control mechanism drives the mirror independently. In live view shooting, the shutter is released with the mirror in the up position. Because the impact of the mirror's up and down movement is eliminated, smooth and quiet shooting can be expected in single-frame and continuous shooting (low-speed/high-speed).
- *Based on CIPA Guidelines.
Live view shooting that enables accurate focusing using the large, east-to-see 7.5-cm (3-in.), approx. 921k-dot, vari-angle LCD monitor
The D5200 incorporates a large, easy-to-see, 7.5-cm (3-in.), approx. 921k-dot (VGA), 170 viewing angle, movable vari-angle LCD monitor that realizes comfortable live view shooting. Approx. 100% frame coverage of the LCD monitor is effective when you want to compose your image firmly before shooting in a situation such as landscape or portrait shooting. Simply rotate the live view switch on top of the camera to shift from viewfinder shooting to live view shooting. The position of a focus point can be moved using a multi selector to focus on the desired point.
- More information about shooting with the vari-angle monitor
- 7.5-cm (3-in.), 921k-dot (VGA), 170 viewing angle LCD monitor
Three focus modes selectable focusing that suits your subject
-Single-servo AF (AF-S)
Suitable for a stationary subject such as landscapes, architecture or flowers.
-Full-time-servo AF (AF-F)
Convenient for shooting a moving subject which is usually difficult to focus on, such as a person or pet. Available in both live view mode and movie recording. Camera focuses continuously as the subject moves.
-Manual focus (MF)
Manual focusing. Suitable for a subject for which autofocus is difficult, such as an animal in a cage or a person in the shade with the sun in the background.
Four AF-area modes in live view selectable according to your subject
-Face-priority AF
Suitable for focusing on someone's face such as for a commemorative photo.
-Wide-area AF
Suitable for handheld shooting such as for a landscape. Focus point can be moved to a desired point within the frame.
-Normal-area AF
Convenient for shooting with pin-point focus such as for a close-up of a flower and other small subjects. Using a tripod is recommended for more precise focusing.
-Subject-tracking AF
After focusing is activated, focus point tracks the subject automatically. Suitable for a moving subject such as a child or pet.
Recommended combination of focus mode and AF-area mode
- Single-servo AF and normal-area AF
Suitable for a stationary subject
- Full-time-servo AF and subject-tracking AF
Suitable for a moving subject
Camera selects the optimal scene mode automatically Scene Auto Selector (only available in live view shooting)
In live view shooting, if you point the camera at your subject, the camera automatically identifies the scene and selects the most appropriate scene mode from Portrait, Landscape, Close up and Night portrait*. Smooth shooting is achieved without setting the scene mode for each subject.
- *When mode dial is set to Auto or Auto (flash off) and using AF.
- Scene Auto Selector (Landscape)
-Scene Auto Selector employed on the D5200
Note: Selected when the camera identifies situations not covered by Portrait, Landscape, Close up or Night portrait mode, or for scenes suited to Auto or Auto (flash off).
Flicker reduction function
Flicker and banding visible in the monitor under fluorescent or mercury vapor light during live view or movie recording can be reduced using the flicker reduction function. When "Auto" mode is set in the flicker reduction menu, the camera can automatically identify the light source frequency for the appropriate exposure control. You can also manually switch between 50 Hz and 60 Hz according to your local area.
Creative expression
More advanced expression by combining creative angle and Special Effects
The D5200's LCD monitor opens horizontally from 0 to 180 and flips up and down from +180 to -90. It allows you to set the monitor at your preferred angle for the creative expression you desire in your composition. You can shoot comfortably from a high or low angle with a stable posture, when it would otherwise be difficult to shoot using the optical viewfinder. Even if shooting from ground level, it is possible to shoot confirming composition. Moreover, the vari-angle LCD monitor helps you to shoot more creative images than ever before in combination with the Special Effects, for both still images and movies.
- More information about Special Effects
Enable you to confirm an effect in real time while shooting and deliver more creative expression Special Effects
The D5200 comes equipped with seven options of Special Effects. It is easy to shoot images applying various effects without using image-editing software. The result of an effect is displayed on the LCD monitor in real time, therefore you can set the effects while checking the appearance of your image. The wide range of effects greatly expands your creative possibilities in combination with the vari-angle LCD monitor for both still images and movies.
Special Effects incorporated in the D5200
Color sketch*, Miniature effect*, Selective color*, Silhouette, Night vision, High key, Low key
- *It is possible to apply these effects to still images after shooting using retouch menus.
Ideal for movies to create a dynamic impression for a commercial or a cinematic effect [Selective color]
- All colors other than the color(s) you want to emphasize are recorded in black and white. Up to three colors are selectable and the color range can be adjusted in values between 1 to 7.
The image can be pop or artistic [Color sketch]
- The camera detects and colors subjects' outlines to create sketch-style images. Vividness of colors and density of outlines are adjustable.
Note: Movies shot in this mode play back like a slide show made up of a series of stills.
Landscape appears as if it is miniature scale model when shooting from a high place [Miniature effect]
- Distant subjects appear as if they are miniature scale models. The position of the focus point remains sharp while the peripheral area is defocused.
Note: Miniature effect movies play back at high speed.
Easy to enjoy super-high sensitivity shooting [Night vision]
- Enables shooting in extremely low-light conditions. Records monochrome (black and white) images.
Renders a woman or child, for example, with a gentle and soft atmosphere [High key]
- Creates beautiful bright images filled with light by intentional overexposure.
Suitable for metallic materials or a portrait of a man with a dignified and somber atmosphere [Low key]
- Creates dark and somber images to emphasize highlights by intentional underexposure.
Creates a dramatic effect on a subject [Silhouette]
- Creates dramatic images with silhouettes of subjects against a bright background.
Shoots the scene beautifully and automatically 16 options of Scene Modes
If you select a mode according to the scene, the D5200 automatically chooses the most appropriate settings to deliver a beautiful image. Five frequently used Scene Modes such as Portrait and Landscape can be directly selected using the mode dial. For other modes such as Sunset, Dusk/dawn and Food, set the mode dial to SCENE and select the mode by rotating the command dial. You can capture scenes which previously had been difficult to shoot, easily and beautifully.
Scene Modes employed on the D5200
Portrait, Landscape, Child, Sports, Close up, Night portrait, Night landscape, Party/indoor, Beach/snow, Sunset, Dusk/dawn, Pet portrait, Candlelight, Blossom, Autumn colors, Food
- Sports
- Close up
- Night landscape
- Party/indoor
- Dusk/dawn
- Food
Customizes colors and tones of your movies and images to your preferences before shooting Picture Control
The D5200 employs six types of Picture Control, selectable according to your subjects and shooting scenes for both still images and movies. Selected Picture Control lets you fine-tune sharpening, contrast, etc. to match your own image creation ideas. Changes can be saved as custom Picture Controls and used with image-browsing/editing software ViewNX 2 (supplied) and image-editing software Capture NX 2 (optional).
Picture Control employed on the D5200
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape
- More information
- Set Picture Control display
- Adjusting display
- Standard
- Standard processing for balanced results. Recommended for most situations.
- Neutral
- Minimal processing for natural results. Choose for photographs that will later be extensively processed or retouched.
- Vivid
- Provides distinct, colorful, fresh-looking images. Choose for situations where you want to emphasize primary colors such as blue, red and green.
- Monochrome
- Gives you monochromatic shadings, such as black-and-white or sepia. You can select filter effects and toning.
- Portrait
- Portrait delivers natural-appearing skin. Natural texture gives the skin of portrait subjects a smoother feel.
- Landscape
- Produces vibrant landscapes and cityscapes. Suitable for any kinds of nature scenes.
Easy in-camera image editing Retouch menus
The D5200 comes equipped with 19 kinds of image-editing functions. These in-camera functions let you retouch images easily. There are a variety of options such as Fisheye that produces effects similar to those obtained with a fisheye lens and Filter effects that achieve images similar to those taken with a filter. Edit movie allows you to delete unwanted parts by choosing the start or end point, or save a selected frame as a JPEG image. In each case, a duplicate image or movie is created, leaving the original securely intact.
Retouch menus employed on the D5200
D-Lighting, Red-eye correction, Trim, Monochrome, Filter effects, Color balance, Image overlay, NEF (RAW) processing, Resize, Quick retouch, Straighten, Distortion control, Fisheye, Color outline, Color sketch*, Perspective control, Miniature effect*, Selective color*, Edit movie
- *It is possible to apply these effects to still images/movies prior to shooting using Special Effects.
- Straighten
- Corrects inclination of the image within a range of 5 (in approx. 0.25 steps).
- Trim
- The desired part of the image can be trimmed and enlarged.
- Fisheye
- Creates images that resemble those taken with a fisheye lens.
Effective for backlit or shaded conditions built-in flash
Even when the subject's face is backlit or, for example, shaded by a hat, you can shoot with appropriate brightness using the built-in flash. The D5200 detects the brightness situation of the subject, pops up* the built-in flash automatically and fires. Using i-TTL flash control that achieves high-precision metering, an optimal amount of light for the scene realizes naturally reproduced images.
- *When shooting mode is set to Auto, Portrait, Child, Close up, Night portrait, Party/indoor, Pet portrait or Color sketch.
Exclusive Nikon software expand your creativity
Your Imaging Toolbox ViewNX 2 (supplied)
This simple and intuitive software helps you get the most out of your images and movies after shooting. ViewNX 2 provides importing and browsing capability while also incorporating image-editing functions such as Resize, Brightness, Crop, Straighten and NEF (RAW) image processing. High-definition and high-quality RAW processing is achieved by utilizing the same processing algorithm as Capture NX 2 that faithfully reproduces Nikon image quality. Its movie-editing functions help you create your own original movies quickly and easily, and Nikon's smart photo sharing and storage service, my Picturetown, works smoothly with ViewNX 2, allowing you to log in directly from the software for easy uploading without activating a browser.
- More information
Quick and simple image-editing software with intuitive operation Capture NX 2 (optional)
Nikon's RAW images (NEF: Nikon Electronic Format) maintain extremely rich data. Only Nikon's Capture NX 2 can fully utilize this data with its optimized file format and software processing algorithms. With the enhanced speed of the algorithms, high-speed processing is achieved. This enables high-speed, stress-free editing even if the data size is large. Also, Capture NX 2 supports 64-bit (native) to realize a comfortable working environment. You can focus on editing with ease because it is possible to leave the original image intact with NEF editing. In addition to the intuitive and simple editing using Color Control Points, it incorporates various functions such as Auto Retouch brush, Batch Processing, Quick Fix, Straighten Tool, Vignette Control, Auto Color Aberration Control and Distortion Control.
- *Compared with conventional versions, under test conditions established by Nikon.
Note: For further details of the latest version or operating environment, please visit Nikon's website.
D-Movie
Reproduces even fast-moving scenes beautifully D-Movie compatible with 1920 x 1080 60i/50i
The D5200 allows you to record movie with sharpness, clarity and fluid motion easily. Utilizing the newly developed Nikon DX-format CMOS sensor and EXPEED 3, which is equivalent to that of higher models, the D5200 deliver movies with reduced noise, jaggies and moir. It renders various fast-moving scenes naturally, such as galloping horses, the splashing of water or the view from a moving car. The D5200 also employs subject-tracking AF that tracks and maintains focusing on a moving subject and face-priority AF that is optimal for portrait shooting. The movie-record button is located next to the shutter-release button. You can start/stop movie recording as if shooting still images while holding the camera stably and camera shake that may occur during operation is minimized. If you want to shoot according to your creative intention, it is possible to set the shutter speed and ISO sensitivity manually* (in mode M). In combination with unique shooting angles using the vari-angle LCD monitor and NIKKOR lenses that feature high resolution, you can enjoy advanced, creative movie recording by making clips, short films or video projects combining stills and video.
The D5200 also employs a variety of movie-editing features that can be accomplished easily inside the camera and without the need for a computer. It is possible to delete unwanted parts by choosing the start and end point in single frame units, and save a selected frame as a JPEG image with the same image size as that of the selected movie frame.
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
Note: The video shown here was taken in 1920 x 1080 60i, then converted to Flash Video format for ease of handling. Image quality varies from the original.
- *Selectable shutter speed varies according to the frame rate of the movie. ISO sensitivity can be set to values between ISO 100 to 6400 or Hi 0.3 to Hi 2.
Sample movies utilizing the Special Effects of the D5200
- Selective color
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
- Low key
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
Note: The video shown here was taken using the D-Movie function, then converted to Flash Video format for ease of handling. Image quality varies from the original.
Built-in stereo microphone that enables you to record rich, high-quality sound [NEW]
The D5200's built-in stereo microphone lets you enjoy recording rich, high-quality sound. The sensitivity level can be adjusted, choosing from auto and manual (1 to 20 steps) according to the shooting situation. Select low level (smaller value) for scenes in louder environments, such as a concert hall; high level (large value) for quieter environments, with more delicate ambient sounds, such as a murmuring stream.
ME-1 Stereo Microphone (optional) compatible
In addition to the built-in microphone, the D5200 lets you record stereo sound with the optional ME-1 Stereo Microphone. Using the ME-1 Stereo Microphone reduces noise caused by lens vibration recorded during autofocus shooting. You can select the microphone sensitivity setting in the same way as with the built-in stereo microphone.
Specifications
|
Frame size (pixels)
|
Frame rate*1
|
Maximum bit rate
(high quality/Normal) |
Maximum length
(high quality/Normal)*4 |
|---|---|---|---|
|
1920 x 1080
|
60i*2
|
24 Mbps/12 Mbps
|
20 min./29 min. 59 s
|
|
50i*2
|
|||
|
30p*2
|
|||
|
25p*3
|
|||
|
24p
|
|||
|
1280 x 720
|
60p*2
|
||
|
50p*2
|
|||
|
640 x 424
|
30p*2
|
8 Mbps/5 Mbps
|
29 min. 59 s/29 min. 59 s
|
|
25p*3
|
- *1Listed value. Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively.
- *2Available when NTSC is selected for Video mode.
- *3Available when PAL is selected for Video mode.
- *4Movies recorded in miniature effect mode are up to three minutes long when played back.
Enables playback of still images and movies on High-Definition TV HDMI supported
The D5200 supports HDMI (High-Definition Multimedia Interface) that allows you to play back still images and movies with High-Definition TV*1. HDMI mini connector is employed as the interface. Also, the D5200 is compatible with HDMI-CEC (Consumer Electric Control) that enables remote operation of the camera using a TV remote control*2.
- *1Requires optional commercially available HDMI connection cable (Type C) for playback.
- *2Remote control of HDMI-CEC supported TV.
Ease of use
Compact and lightweight body with three color variations and enhanced holding
The D5200's compact and lightweight body of approx. 505 g (1 lb 1.8 oz)* is easy to carry around. A sub-grip is newly employed on the lower left of the front of the camera to improve holding in combination with the thumb pad on the upper right of the rear of the camera. You can shoot sharp images using 24.1 effective megapixels, without blur caused by camera shake. The color of the body can be chosen from black, red and bronze.
- *Body only.
- Dimensions (W x H x D): approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
Weight: approx. 555 g/1 lb 3.6 oz (including battery, SD memory card, excluding body cap), approx. 505 g/1 lb 1.8 oz (body only)
Selectable body colors
- Black
- Red
- Bronze
Sub-grip and thumb pad improve holding
- Front
- Rear
Easier and more intuitive to operate newly designed GUI
The D5200 incorporates an easier and more fluid new GUI, utilizing graphic-processing performance enhanced by EXPEED 3. For the info display design, you can choose from two options Classic or Graphic. Background color can be selected from black, blue and brown. A new design is also employed for each setting display.
In optical viewfinder shooting
-Classic
- Black
- Blue
- Brown
-Graphic
- Black
- Blue
- Brown
In live view shooting
-Graphic
Information edit button
Pressing the information edit button when shooting information is displayed gives you direct access to the menu of the setting you would like to adjust.
- Information edit button
In optical viewfinder shooting
- Info display
- Setting menu display
In live view shooting
- Info display
- Setting menu display
WU-1a Wireless Mobile Adapter (optional) that enables wireless transmission of images to a smart device, and remote shooting
By attaching the optional WU-1a Wireless Mobile Adapter to the D5200's USB connector, two-way communication between the camera and a smart device such as a smartphone or tablet computer with Wi-Fi communication function is possible. With the remote shooting function that enables release of the shutter from a distance, you can use your smart device as a remote live view monitor, to confirm the best angle and shoot. Images can be transmitted wirelessly and you can easily upload them to SNS or attach them to a mail. The WU-1a is compatible with smart devices using the iOS or Android.
Note: This function requires installing of Wireless Mobile Adapter Utility to the smart device prior to use.
Wireless Mobile Adapter Utility
Wireless Mobile Adapter Utility is software enabling download of images from a camera to a smart device or operation of a camera from a smart device for taking an image by attaching the WU-1a Wireless Mobile Adapter.
Note: Can be downloaded from the application store of each smart device (free).
Comfortable remote control without worrying about obstacles in the way
WR-R10/WR-T10 Wireless Remote Controllers (optional) that achieve multiple camera control [NEW]
WR-R10/WR-T10 Wireless Remote Controllers expand the flexibility of remote control. Unlike remote controls using infrared light, it is possible to release the shutter even if there are obstacles such as a tree in the way. The communication distance for a combination of the WR-R10 with WR-T10 is approx. 20 m (66 ft). You can control a single or multiple cameras with the WR-R10 attached using the WR-T10 as a transmitter*. With the WR-R10/WR-T10, you can enjoy a variety of shooting, such as attaching different lenses to the cameras, changing angles for each camera, or shooting still images and movies simultaneously by switching channels.
- *WR-T10 and WR-R10(s) have to be set to the same channel and paired in advance to achieve simultaneous release. (For further information, please refer to the user's manual of the WR-R10/WR-T10.)
- Comfortable remote shooting is assured even if there are people or objects between the remote controller and camera.
Examples of use
Controlling multiple cameras with one WR-T10 (Simultaneous release)
- The shutters on all cameras can be released simultaneously by pressing the WR-T10's shutter-release button all the way down.
Specifications of the WR-R10/WR-T10
|
|
WR-R10
|
WR-T10
|
|---|---|---|
|
Product images
|
 |
 |
|
Compatible cameras
|
D4*1, D3 series*1, D800 series*1, D700*1, D600, D300 series*1, D7000, D5200, D5100, D3200, D3100, etc., D-SLR cameras that employ a ten-pin remote terminal*1 or accessory terminal
|
-
|
|
Channels
|
5 (2.425 GHz), 10 (2.450 GHz), 15 (2.475 GHz)
|
|
|
Range (line of sight)
|
Approx. 50 m (164 ft) at height of about 1.2 m (4 ft) between WR-R10s*2
|
Approx. 20 m (66 ft) at height of about 1.2 m (4 ft) from WR-T10 to WR-R10
|
|
Pairing
|
Unlimited
|
|
|
Controllable functions
|
Live view*3, movie*3, continuous shooting, shutter-release button (half/full pressing available), possible to activate a function assigned to an Fn button*4
|
|
- *1Requires WR-A10 WR adapter. Cameras other than the D4 or D800 series that employ a ten-pin remote terminal, including F-SLRs, are capable of using the controller for half/full pressing of the shutter-release button only (except D1, D1H, D1X, D100 [+MB-D100])
- *2Only available when master D-SLR camera employs a ten-pin remote terminal.
- *3Available only with the D4, D800 series, D600, D5200 and D3200.
- *4Available only with the D4, D800 series and D5200.
Note: Depending on the camera, there may be a limitation to the accessories that can be attached simultaneously with the WR-R10 Wireless Remote Controller. Attempting to forcibly attach accessories can damage the camera or accessory.
Versatile playback functions
The D5200 gives you a variety of playback display options that take advantage of the large 7.5-cm (3-in.) monitor. The number of images displayed at one time can be selected from 1, 4, 9 and 72, and calendar display arranges images in chronological order. You can also display histograms of a magnified area of an image and check the focus using playback zoom of face.
- 72-thumbnail display
- Calendar display
- Histogram display for magnified area
- Playback zoom of face
Transmits taken images from the camera to a computer wirelessly to expand your photographic creativity Eye-Fi card (on the market) compatible
The D5200 can transmit taken image data (JPEG) from the camera to a computer wirelessly. You can also transmit images to online photo sharing and storage services such as "my Picturetown" and a computer automatically.
- More information
Note: The D5200 can turn Eye-Fi cards on and off, but may not support other Eye-Fi functions. Direct any inquiries to the manufacturer. Eye-Fi cards are for use only in the country of purchase (As of October, 2012). Observe all local laws concerning the use of wireless devices.
Embeds location information on an image GP-1 GPS Unit (optional)
The D5200 is compatible with the Nikon GP-1 GPS Unit that is able to embed location information on an image. Latitude, longitude and altitude of a shooting location are recorded as Exif data. Images with location information can be displayed on a GeoTag workspace of ViewNX 2 (supplied with the D5200). What's more, Nikon's image sharing and storage website my Picturetown, online image sharing services and commercially available digital mapping software are all there to enhance your photographic enjoyment.
- More information
High-capacity (SDXC), high-speed (UHS-I) SD memory card compatible
The D5200 supports SDXC (Secure Digital eXtended Capacity) and UHS-I. Combined with the enhanced speed of the image-processing engine EXPEED 3, it processes and writes image data of 24.1 megapixels at high speed. In high-speed continuous shooting, this allows the shooting of 100 frames in JPEG (fine/Medium)*.
- *With an 8 GB SanDisk Extreme Pro SDHC UHS-I card (SDSDXPA-008G). Results will vary with card type, camera settings, and scene recorded. The maximum number of exposures that can be stored in memory buffer at ISO 100; number drops when long-exposure noise reduction or auto distortion control is on.
Long-life battery due to energy-saving design EN-EL14 Rechargeable Li-ion Battery
The D5200's superior energy-saving design allows you to shoot approx. 500 shots per charge* with the EN-EL14 Rechargeable Li-ion Battery.
- *Based on CIPA Standards.
- EN-EL14 Rechargeable Li-ion Battery (supplied)
Nikon's photo sharing and storage service my Picturetown
- *Fees and availability may vary by country.
Nikon Digital SLR Camera D5200 Specifications
|
Type
|
|
|---|---|
|
Type
|
Single-lens reflex digital camera
|
|
Lens mount
|
Nikon F mount (with AF contacts)
|
|
Effective angle of view
|
Nikon DX format; focal length equivalent to approx. 1.5x that of lenses with FX-format angle of view
|
|
Effective pixels
|
|
|
Effective pixels
|
24.1 million
|
|
Image sensor
|
|
|
Image sensor
|
23.5 x 15.6 mm CMOS sensor
|
|
Total pixels
|
24.71 million
|
|
Dust-reduction system
|
Image sensor cleaning, Airflow Control System, Image Dust Off reference data (optional Capture NX 2 software required)
|
|
Storage
|
|
|
Image size (pixels)
|
|
|
File format
|
|
|
Picture Control System
|
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls
|
|
Media
|
SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards
|
|
File system
|
DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
|
|
Viewfinder
|
|
|
Viewfinder
|
Eye-level pentamirror single-lens reflex viewfinder
|
|
Frame coverage
|
Approx. 95% horizontal and 95% vertical
|
|
Magnification
|
Approx. 0.78x (50 mm f/1.4 lens at infinity, -1.0 m-1)
|
|
Eyepoint
|
17.9 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)
|
|
Diopter adjustment
|
-1.7 to +0.7 m-1
|
|
Focusing screen
|
Type B BriteView Clear Matte Mark VII screen
|
|
Reflex mirror
|
Quick return
|
|
Lens aperture
|
Instant return, electronically controlled
|
|
Lens
|
|
|
Compatible lenses
|
Autofocus is available with AF-S and AF-I lenses; autofocus is not available with other type G and D lenses, AF lenses (IX NIKKOR and lenses for the F3AF are not supported), and AI-P lenses; non-CPU lenses can be used in mode
 , but the camera exposure meter will not functionThe electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster |
|
Shutter
|
|
|
Type
|
Electronically controlled vertical-travel focal-plane shutter
|
|
Speed
|
1/4000 to 30 s in steps of 1/3 or 1/2 EV, bulb, time (requires optional ML-L3 Remote Control)
|
|
Flash sync speed
|
X=1/200 s; synchronizes with shutter at 1/200 s or slower
|
|
Release
|
|
|
Release modes
|
 (single frame),  (continuous low speed),  (continuous high speed),  (self-timer),  (delayed remote; ML-L3),  (quick-response remote; ML-L3),  (quiet shutter release); interval timer photography supported |
|
Frame advance rate
|
Up to 3 fps (
) or 5 fps () |
|
Self-timer
|
2 s, 5 s, 10 s, 20 s; 1 to 9 exposures
|
|
Exposure
|
|
|
Metering mode
|
TTL exposure metering using 2016-pixel RGB sensor
|
|
Metering method
|
|
|
Range
(ISO 100, f/1.4 lens, 20C/68F) |
|
|
Exposure meter coupling
|
CPU
|
|
Exposure modes
|
Auto modes (
 auto;  auto [flash off]); programmed auto with flexible program ( ); shutter-priority auto ( ); aperture-priority auto ( ); manual (); scene modes ( portrait;  landscape;  child;  sports;  close up;  night portrait;  night landscape;  party/indoor;  beach/snow;  sunset;  dusk/dawn;  pet portrait;  candlelight;  blossom;  autumn colors;  food); special effects modes ( night vision;  color sketch;  miniature effect;  selective color;  silhouette;  high key;  low key) |
|
Exposure compensation
|
Can be adjusted by -5 to +5 EV in increments of 1/3 or 1/2 EV in
, , and modes |
|
Exposure bracketing
|
3 shots in steps of 1/3 or 1/2 EV
|
|
Exposure lock
|
Luminosity locked at detected value with
 (  ) button |
|
ISO sensitivity
(Recommended Exposure Index) |
ISO 100 to 6400 in steps of 1/3 EV; can also be set to approx. 0.3, 0.7, 1 or 2 EV (ISO 25600 equivalent) above ISO 6400; auto ISO sensitivity control available
|
|
Active D-Lighting
|
Auto, extra high, high, normal, low, off
|
|
ADL bracketing
|
2 shots
|
|
Focus
|
|
|
Autofocus
|
Nikon Multi-CAM 4800DX autofocus sensor module with TTL phase detection, 39 focus points (including 9 cross-type sensors), and AF-assist illuminator (range approx. 0.5 to 3 m/1 ft 8 in. to 9 ft 10 in.)
|
|
Detection range
|
-1 to +19 EV (ISO 100, 20C/68F)
|
|
Lens servo
|
|
|
Focus point
|
Can be selected from 39 or 11 focus points
|
|
AF-area modes
|
Single-point AF, 9-, 21- or 39-point dynamic-area AF, 3D-tracking, auto-area AF
|
|
Focus lock
|
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing
( ) button |
|
Flash
|
|
|
Built-in flash
|
, , , , , , , : Auto flash with auto pop-up , , , , : Manual pop-up with button release |
|
Guide number
|
Approx. 12/39, 13/43 with manual flash (m/ft, ISO 100, 20C/68F)
|
|
Flash control
|
TTL: i-TTL flash control using 2016-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600 or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering
|
|
Flash modes
|
Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off
|
|
Flash compensation
|
-3 to +1 EV in increments of 1/3 or 1/2 EV
|
|
Flash-ready indicator
|
Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
|
|
Accessory shoe
|
ISO 518 hot-shoe with sync and data contacts and safety lock
|
|
Nikon Creative Lighting
System (CLS) |
Advanced Wireless Lighting supported with SB-910, SB-900, SB-800 or SB-700 as a master flash or SU-800 as commander; Flash Color Information Communication supported with all CLS-compatible flash units
|
|
Sync terminal
|
AS-15 Sync Terminal Adapter (available separately)
|
|
White balance
|
|
|
White balance
|
Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine-tuning
|
|
White balance bracketing
|
3 shots in steps of 1
|
|
Live View
|
|
|
Lens servo
|
|
|
AF-area modes
|
Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
|
|
Autofocus
|
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
|
|
Automatic scene selection
|
Available in
and modes |
|
Movie
|
|
|
Metering
|
TTL exposure metering using main image sensor
|
|
Metering method
|
Matrix
|
|
Frame size (pixels)
and frame rate |
|
|
File format
|
MOV
|
|
Video compression
|
H.264/MPEG-4 Advanced Video Coding
|
|
Audio recording format
|
Linear PCM
|
|
Audio recording device
|
Built-in monaural or external stereo microphone; sensitivity adjustable
|
|
Maximum length
|
29 min. 59 s (3 min. in miniature effect mode)
|
|
ISO sensitivity
|
ISO 100 to 6400; can also be set to approx. 0.3, 0.7, 1, or 2 EV (ISO 25600 equivalent) above ISO 6400
|
|
Monitor
|
|
|
Monitor
|
7.5-cm (3-in.), approx. 921k-dot (VGA), vari-angle TFT monitor with 170 viewing angle, approx. 100% frame coverage, and brightness adjustment
|
|
Playback
|
|
|
Playback
|
Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, auto image rotation, and image comment (up to 36 characters)
|
|
Interface
|
|
|
USB
|
Hi-Speed USB
|
|
Video output
|
NTSC, PAL
|
|
HDMI output
|
Type C mini-pin HDMI connector
|
|
Accessory terminal
|
Wireless remote controller: WR-R10 (available separately)
Remote cord: MC-DC2 (available separately) GPS unit: GP-1 (available separately) |
|
Audio input
|
Stereo mini-pin jack (3.5-mm diameter)
|
|
Supported languages
|
|
|
Supported languages
|
Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian
|
|
Power source
|
|
|
Battery
|
One EN-EL14 Rechargeable Li-ion Battery
|
|
AC adapter
|
EH-5b AC Adapter; requires EP-5A Power Connector (available separately)
|
|
Tripod socket
|
|
|
Tripod socket
|
1/4 in. (ISO 1222)
|
|
Dimensions / weight
|
|
|
Dimensions
(W x H x D) |
Approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
|
|
Weight
|
Approx. 555 g/1 lb 3.6 oz with battery and memory card but without body cap; approx. 505 g/1 lb 1.8 oz (camera body only)
|
|
Operating environment
|
|
|
Temperature
|
0 to 40C/32 to 104F
|
|
humidity
|
85% or less (no condensation)
|
|
Accessories
|
|
|
Supplied accessories
(may differ by country or area) |
EN-EL14 Rechargeable Li-ion Battery, MH-24 Battery Charger, DK-5 Eyepiece Cap, DK-20 Rubber Eyecup, UC-E17 USB Cable, EG-CP16 Audio Video Cable, AN-DC3 Camera Strap, BF-1B Body Cap, BS-1 Accessory Shoe Cover, ViewNX 2 CD-ROM
|
- The SD, SDHC and SDXC logos are trademark of the SD Card Association.
- PictBridge is a trademark.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
- Google and Android are registered trademarks or trademarks of Google Inc.
- Products and brand names are trademarks or registered trademarks of their respective companies.
- Images in viewfinders, on LCDs and monitors shown in this site are simulated.
Memory card capacity
The following table shows the approximate number of pictures that can be stored on an 8 GB SanDisk Extreme Pro SDHC UHS-I card at different image quality and size settings.
|
Image quality
|
Image size
|
File size*1
|
No. of images*1
|
Buffer capacity*2
|
|---|---|---|---|---|
|
NEF (RAW) + JPEG fine*3
|
Large
Medium Small |
37.0 MB
32.2 MB 28.5 MB |
152
173 192 |
6
6 6 |
|
NEF (RAW) + JPEG normal*3
|
Large
Medium Small |
30.9 MB
28.4 MB 26.5 MB |
178
192 203 |
6
6 6 |
|
NEF (RAW) + JPEG basic*3
|
Large
Medium Small |
27.7 MB
26.6 MB 25.6 MB |
196
204 210 |
6
6 6 |
|
NEF (RAW)
|
-
|
24.6 MB
|
217
|
8
|
|
JPEG fine
|
Large
Medium Small |
12.2 MB
7.4 MB 3.8 MB |
507
853 1600 |
35
100 100 |
|
JPEG normal
|
Large
Medium Small |
6.2 MB
3.7 MB 1.9 MB |
1000
1600 3200 |
100
100 100 |
|
JPEG basic
|
Large
Medium Small |
3.0 MB
1.9 MB 1.0 MB |
1900
3200 6000 |
100
100 100 |
- *1All figures are approximate. Results will vary with card type, camera settings, and scene recorded.
- *2Maximum number of exposures that can be stored in memory buffer at ISO 100. Drops when long exposure noise reduction or auto distortion control is on.
- *3Image size applies to JPEG images only. Size of NEF (RAW) images cannot be changed. File size is the total for NEF (RAW) and JPEG images.
Approved memory cards
The following SD memory cards have been tested and approved for use in the D5200. Cards with class 6 or faster write speeds are recommended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used.
|
|
SD memory cards
|
SDHC memory cards*2
|
SDXC memory cards*3
|
|
|---|---|---|---|---|
|
SanDisk
|
2GB*1
|
4 GB, 8 GB, 16 GB, 32 GB
|
64 GB
|
|
|
Toshiba
|
||||
|
Panasonic
|
4 GB, 6 GB, 8 GB, 12 GB,
16 GB, 24 GB, 32 GB |
48 GB, 64 GB
|
||
|
Lexar Media
|
4 GB, 8 GB, 16 GB, 32 GB
|
-
|
||
|
Platinum II
|
||||
|
Professional
|
64 GB, 128 GB
|
|||
|
Full-HD Video
|
-
|
4 GB, 8 GB, 16 GB
|
-
|
|
- *1Check that any card readers or other devices with which the card will be used support 2 GB cards.
- *2Check that any card readers or other devices with which the card will be used are SDHC-compliant. The camera supports UHS-I.
- *3Check that any card readers or other devices with which the card will be used are SDXC-compliant. The camera supports UHS-I.
 |
Nikon D5200 Digital SLR Camera - 24.1MP (Bronze)
- 3.0"TFT LCD, Airflow Control System, Live View, AF-Area Mode
- 18-55VR Kit
- Special Effects that enable you to enjoy various creative expressions in still images and movies by setting prior to shoot. ...
- High-speed, multifunctional and high-performance image-processing engine "EXPEED 3", equivalent to that of the Nikon's flagship model, D4. ...
- Wide sensitivity range of ISO 100 to 6400 (expandable to ISO 25600 equivalent) that delivers sharp images with reduced image blur even in low-lit situations or sports scenes. ...
- High-speed continuous shooting at approx. 5 fps that surely captures decisive moments. ...
- Stereo microphone employed [NEW], Full HD (1920 x 1080) D-Movie with selectable 60i/50i frame rate. ...
- Easy-to-understand and easy-to-operate, new GUI that effectively utilizes graphic processing. [NEW] ...
- Large, easy-to-view, approx. 921k-dot, wide viewing angle (170), 7.5-cm (3-in.) horizontal-opening vari-angle LCD monitor. ...
- Energy-saving design that achieves approx. 500 shots* per charge (with EN-EL14, in single-frame mode). ...
- *Based on CIPA Standards.
- Compatible with the WU-1a Wireless Mobile Adapter (optional) that enables transmission of images to smartphone or tablet PC wirelessly. ...
- Compatible with the WR-R10/WR-T10 Wireless Remote Controllers (optional). Remote control is ensured even if there are obstacles in the way. [NEW] ...
- 16 options of Scene Modes that enable selection of the most appropriate mode according to the shooting scene or subject. ...
- Variety of image-editing functions that allow you to retouch images easily after shooting, such as NEF (RAW) processing, Trim and Fisheye. ...
High image quality of the D5200 realized by the high pixel count of 24.1 effective megapixels, image-processing engine EXPEED 3 and NIKKOR lenses
Effective for shooting in low-lit situations such as interiors or night scenes and for moving subjects ISO sensitivity range up to 6400
The D5200's wide ISO sensitivity range is from ISO 100 to 6400, expandable to Hi 1 (ISO 12800 equivalent) and Hi 2 (ISO 25600 equivalent). The camera reduces noise effectively even at high ISO sensitivity setting while maintaining definition as much as possible to deliver sharp images. Setting high ISO sensitivity enables you to shoot at faster shutter speeds and capture pictures without worrying about image degradation caused by camera shake even in low-light situations or when shooting a moving subject. This superior high-sensitivity performance is also effective for D-Movie and you can record beautiful movies without large-scale lighting equipment even when light is scarce.
- Shot at ISO 3200
- Shot at ISO 1600
Wide ISO sensitivity range from ISO 100 to 6400 at normal setting
- ISO 100
- ISO 200
- ISO 400
- ISO 800
- ISO 1600
- ISO 3200
- ISO 6400
Reproduces brightness in highlights and shadowy areas as you see them Active D-Lighting with improved image quality
Active D-Lighting is effective for shooting, for example, a dark room including outside scenery seen through a window, high-contrast scenes such as at the seaside under strong sunlight, and backlit situations. It preserves details in both highlights and shadowy areas in such situations, maintaining moderate contrast to reproduce brightness as you see it. Select the preferred setting from "auto", "extra high", "high", "normal", "low" or "off". The D5200 employs a new image-processing system that causes less shift of color even when the strength level is increased. Image-processing time is shortened by highly accurate and high-speed real-time processing. And color reproduction is further enhanced with new image-processing engine EXPEED 3. Unlike HDR (High Dynamic Range), Active D-Lighting does not require the process of combining images, therefore it is effective for shooting moving subjects such as people.
- Extra high
- Off
Delivers beautiful images even in high-contrast scenes HDR (High Dynamic Range)
Two images taken with one shutter release at varying exposure are combined to produce a single image that has a wider dynamic range (range of contrast to reproduce tonal gradation) with less loss of detail in highlights and shadows. The result is images with less noise and rich tonal gradation throughout the entire frame including shadows and highlights even in high-contrast shooting scenes. HDR mode is selectable from "auto", "extra high", "high", "normal", "low" and "off". The exposure differential of the two images up to 3 EV and the smoothness of the edge where the two exposures meet are automatically set according to the strength level. Effective for stationary subjects such as landscapes or still lifes.
Note: It is recommended to use a tripod.
- Overexposed
- Underexposed
- HDR
NIKKOR
Nikon's original technologies
- VR "On"
- VR "Off"
Precise subject acquisition
Faithfully reproduces the shooting scene as you see it high-precision Scene Recognition System that analyzes a subject more finely with the 2016-pixel RGB sensor
- Scene Recognition System
Accurate light source identification with Scene Recognition System auto white balance
Captures even fast-moving scenes high-density 39-point AF system
You can also choose to shoot with 11 focus points for quicker focus-point selection. Additionally, in the viewfinder, it is possible to display grid lines that are effective for rigorous composition.
- Bright and easy-to-see viewfinder
- Viewfinder display (framing grid)
Four selectable AF-area modes according to the subject in optical viewfinder shooting
- Single-point AF mode
Selectable when focus mode is set to AF-A or AF-C.
|
9 points
|
Choose when there is time to compose the photograph or when photographing subjects that are moving predictably.
|
|---|---|
|
21 points
|
Choose when photographing subjects that are moving unpredictably.
|
|
39 points
|
Choose when photographing subjects that are moving quickly and cannot be easily framed in the viewfinder.
|
- 9 points
- 21 points
- 39 points
Selectable when focus mode is set to AF-A or AF-C.
- 3D-tracking mode
- Auto-area AF mode
Captures the decisive moment release mode button that supports quick selection of release mode and approx. 5 fps high-speed continuous shooting
- Release mode button
- Release mode setting menu
- Approx. 5 fps high-speed continuous shooting ensures you capture decisive moments.
Shooting with the mirror in the up position is achieved in live view newly designed, independently driven mirror mechanism [NEW]
- *Based on CIPA Guidelines.
Live view shooting that enables accurate focusing using the large, east-to-see 7.5-cm (3-in.), approx. 921k-dot, vari-angle LCD monitor
- More information about shooting with the vari-angle monitor
- 7.5-cm (3-in.), 921k-dot (VGA), 170 viewing angle LCD monitor
Three focus modes selectable focusing that suits your subject
Four AF-area modes in live view selectable according to your subject
Recommended combination of focus mode and AF-area mode
- Single-servo AF and normal-area AF
Suitable for a stationary subject
- Full-time-servo AF and subject-tracking AF
Suitable for a moving subject
Camera selects the optimal scene mode automatically Scene Auto Selector (only available in live view shooting)
- *When mode dial is set to Auto or Auto (flash off) and using AF.
- Scene Auto Selector (Landscape)
Flicker reduction function
Creative expression
More advanced expression by combining creative angle and Special Effects
The D5200's LCD monitor opens horizontally from 0 to 180 and flips up and down from +180 to -90. It allows you to set the monitor at your preferred angle for the creative expression you desire in your composition. You can shoot comfortably from a high or low angle with a stable posture, when it would otherwise be difficult to shoot using the optical viewfinder. Even if shooting from ground level, it is possible to shoot confirming composition. Moreover, the vari-angle LCD monitor helps you to shoot more creative images than ever before in combination with the Special Effects, for both still images and movies.
- More information about Special Effects
Enable you to confirm an effect in real time while shooting and deliver more creative expression Special Effects
The D5200 comes equipped with seven options of Special Effects. It is easy to shoot images applying various effects without using image-editing software. The result of an effect is displayed on the LCD monitor in real time, therefore you can set the effects while checking the appearance of your image. The wide range of effects greatly expands your creative possibilities in combination with the vari-angle LCD monitor for both still images and movies.
Special Effects incorporated in the D5200
Color sketch*, Miniature effect*, Selective color*, Silhouette, Night vision, High key, Low key
- *It is possible to apply these effects to still images after shooting using retouch menus.
Ideal for movies to create a dynamic impression for a commercial or a cinematic effect [Selective color]
- All colors other than the color(s) you want to emphasize are recorded in black and white. Up to three colors are selectable and the color range can be adjusted in values between 1 to 7.
The image can be pop or artistic [Color sketch]
- The camera detects and colors subjects' outlines to create sketch-style images. Vividness of colors and density of outlines are adjustable.
Note: Movies shot in this mode play back like a slide show made up of a series of stills.
Landscape appears as if it is miniature scale model when shooting from a high place [Miniature effect]
- Distant subjects appear as if they are miniature scale models. The position of the focus point remains sharp while the peripheral area is defocused.
Note: Miniature effect movies play back at high speed.
Easy to enjoy super-high sensitivity shooting [Night vision]
- Enables shooting in extremely low-light conditions. Records monochrome (black and white) images.
Renders a woman or child, for example, with a gentle and soft atmosphere [High key]
- Creates beautiful bright images filled with light by intentional overexposure.
Suitable for metallic materials or a portrait of a man with a dignified and somber atmosphere [Low key]
- Creates dark and somber images to emphasize highlights by intentional underexposure.
Creates a dramatic effect on a subject [Silhouette]
- Creates dramatic images with silhouettes of subjects against a bright background.
Shoots the scene beautifully and automatically 16 options of Scene Modes
If you select a mode according to the scene, the D5200 automatically chooses the most appropriate settings to deliver a beautiful image. Five frequently used Scene Modes such as Portrait and Landscape can be directly selected using the mode dial. For other modes such as Sunset, Dusk/dawn and Food, set the mode dial to SCENE and select the mode by rotating the command dial. You can capture scenes which previously had been difficult to shoot, easily and beautifully.
Scene Modes employed on the D5200
Portrait, Landscape, Child, Sports, Close up, Night portrait, Night landscape, Party/indoor, Beach/snow, Sunset, Dusk/dawn, Pet portrait, Candlelight, Blossom, Autumn colors, Food
- Sports
- Close up
- Night landscape
- Party/indoor
- Dusk/dawn
- Food
Customizes colors and tones of your movies and images to your preferences before shooting Picture Control
The D5200 employs six types of Picture Control, selectable according to your subjects and shooting scenes for both still images and movies. Selected Picture Control lets you fine-tune sharpening, contrast, etc. to match your own image creation ideas. Changes can be saved as custom Picture Controls and used with image-browsing/editing software ViewNX 2 (supplied) and image-editing software Capture NX 2 (optional).
Picture Control employed on the D5200
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape
- More information
- Set Picture Control display
- Adjusting display
- Standard
- Standard processing for balanced results. Recommended for most situations.
- Neutral
- Minimal processing for natural results. Choose for photographs that will later be extensively processed or retouched.
- Vivid
- Provides distinct, colorful, fresh-looking images. Choose for situations where you want to emphasize primary colors such as blue, red and green.
- Monochrome
- Gives you monochromatic shadings, such as black-and-white or sepia. You can select filter effects and toning.
- Portrait
- Portrait delivers natural-appearing skin. Natural texture gives the skin of portrait subjects a smoother feel.
- Landscape
- Produces vibrant landscapes and cityscapes. Suitable for any kinds of nature scenes.
Easy in-camera image editing Retouch menus
The D5200 comes equipped with 19 kinds of image-editing functions. These in-camera functions let you retouch images easily. There are a variety of options such as Fisheye that produces effects similar to those obtained with a fisheye lens and Filter effects that achieve images similar to those taken with a filter. Edit movie allows you to delete unwanted parts by choosing the start or end point, or save a selected frame as a JPEG image. In each case, a duplicate image or movie is created, leaving the original securely intact.
Retouch menus employed on the D5200
D-Lighting, Red-eye correction, Trim, Monochrome, Filter effects, Color balance, Image overlay, NEF (RAW) processing, Resize, Quick retouch, Straighten, Distortion control, Fisheye, Color outline, Color sketch*, Perspective control, Miniature effect*, Selective color*, Edit movie
- *It is possible to apply these effects to still images/movies prior to shooting using Special Effects.
- Straighten
- Corrects inclination of the image within a range of 5 (in approx. 0.25 steps).
- Trim
- The desired part of the image can be trimmed and enlarged.
- Fisheye
- Creates images that resemble those taken with a fisheye lens.
Effective for backlit or shaded conditions built-in flash
Even when the subject's face is backlit or, for example, shaded by a hat, you can shoot with appropriate brightness using the built-in flash. The D5200 detects the brightness situation of the subject, pops up* the built-in flash automatically and fires. Using i-TTL flash control that achieves high-precision metering, an optimal amount of light for the scene realizes naturally reproduced images.
- *When shooting mode is set to Auto, Portrait, Child, Close up, Night portrait, Party/indoor, Pet portrait or Color sketch.
Exclusive Nikon software expand your creativity
Your Imaging Toolbox ViewNX 2 (supplied)
- More information
Quick and simple image-editing software with intuitive operation Capture NX 2 (optional)
- *Compared with conventional versions, under test conditions established by Nikon.
D-Movie
Reproduces even fast-moving scenes beautifully D-Movie compatible with 1920 x 1080 60i/50i
The D5200 also employs a variety of movie-editing features that can be accomplished easily inside the camera and without the need for a computer. It is possible to delete unwanted parts by choosing the start and end point in single frame units, and save a selected frame as a JPEG image with the same image size as that of the selected movie frame.
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
Note: The video shown here was taken in 1920 x 1080 60i, then converted to Flash Video format for ease of handling. Image quality varies from the original.
- *Selectable shutter speed varies according to the frame rate of the movie. ISO sensitivity can be set to values between ISO 100 to 6400 or Hi 0.3 to Hi 2.
Sample movies utilizing the Special Effects of the D5200
- Selective color
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
- Low key
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
Built-in stereo microphone that enables you to record rich, high-quality sound [NEW]
ME-1 Stereo Microphone (optional) compatible
Specifications
|
Frame size (pixels)
|
Frame rate*1
|
Maximum bit rate
(high quality/Normal) |
Maximum length
(high quality/Normal)*4 |
|---|---|---|---|
|
1920 x 1080
|
60i*2
|
24 Mbps/12 Mbps
|
20 min./29 min. 59 s
|
|
50i*2
|
|||
|
30p*2
|
|||
|
25p*3
|
|||
|
24p
|
|||
|
1280 x 720
|
60p*2
|
||
|
50p*2
|
|||
|
640 x 424
|
30p*2
|
8 Mbps/5 Mbps
|
29 min. 59 s/29 min. 59 s
|
|
25p*3
|
- *1Listed value. Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively.
- *2Available when NTSC is selected for Video mode.
- *3Available when PAL is selected for Video mode.
- *4Movies recorded in miniature effect mode are up to three minutes long when played back.
Enables playback of still images and movies on High-Definition TV HDMI supported
- *1Requires optional commercially available HDMI connection cable (Type C) for playback.
- *2Remote control of HDMI-CEC supported TV.
Ease of use
Compact and lightweight body with three color variations and enhanced holding
The D5200's compact and lightweight body of approx. 505 g (1 lb 1.8 oz)* is easy to carry around. A sub-grip is newly employed on the lower left of the front of the camera to improve holding in combination with the thumb pad on the upper right of the rear of the camera. You can shoot sharp images using 24.1 effective megapixels, without blur caused by camera shake. The color of the body can be chosen from black, red and bronze.
- *Body only.
- Dimensions (W x H x D): approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
Weight: approx. 555 g/1 lb 3.6 oz (including battery, SD memory card, excluding body cap), approx. 505 g/1 lb 1.8 oz (body only)
Selectable body colors
- Black
- Red
- Bronze
Sub-grip and thumb pad improve holding
- Front
- Rear
Easier and more intuitive to operate newly designed GUI
The D5200 incorporates an easier and more fluid new GUI, utilizing graphic-processing performance enhanced by EXPEED 3. For the info display design, you can choose from two options Classic or Graphic. Background color can be selected from black, blue and brown. A new design is also employed for each setting display.
In optical viewfinder shooting
-Classic
- Black
- Blue
- Brown
-Graphic
- Black
- Blue
- Brown
In live view shooting
-Graphic
Information edit button
Pressing the information edit button when shooting information is displayed gives you direct access to the menu of the setting you would like to adjust.
- Information edit button
In optical viewfinder shooting
- Info display
- Setting menu display
In live view shooting
- Info display
- Setting menu display
WU-1a Wireless Mobile Adapter (optional) that enables wireless transmission of images to a smart device, and remote shooting
By attaching the optional WU-1a Wireless Mobile Adapter to the D5200's USB connector, two-way communication between the camera and a smart device such as a smartphone or tablet computer with Wi-Fi communication function is possible. With the remote shooting function that enables release of the shutter from a distance, you can use your smart device as a remote live view monitor, to confirm the best angle and shoot. Images can be transmitted wirelessly and you can easily upload them to SNS or attach them to a mail. The WU-1a is compatible with smart devices using the iOS or Android.
Note: This function requires installing of Wireless Mobile Adapter Utility to the smart device prior to use.
Wireless Mobile Adapter Utility
Wireless Mobile Adapter Utility is software enabling download of images from a camera to a smart device or operation of a camera from a smart device for taking an image by attaching the WU-1a Wireless Mobile Adapter.
Note: Can be downloaded from the application store of each smart device (free).
Comfortable remote control without worrying about obstacles in the way
WR-R10/WR-T10 Wireless Remote Controllers (optional) that achieve multiple camera control [NEW]
WR-R10/WR-T10 Wireless Remote Controllers expand the flexibility of remote control. Unlike remote controls using infrared light, it is possible to release the shutter even if there are obstacles such as a tree in the way. The communication distance for a combination of the WR-R10 with WR-T10 is approx. 20 m (66 ft). You can control a single or multiple cameras with the WR-R10 attached using the WR-T10 as a transmitter*. With the WR-R10/WR-T10, you can enjoy a variety of shooting, such as attaching different lenses to the cameras, changing angles for each camera, or shooting still images and movies simultaneously by switching channels.
- *WR-T10 and WR-R10(s) have to be set to the same channel and paired in advance to achieve simultaneous release. (For further information, please refer to the user's manual of the WR-R10/WR-T10.)
- Comfortable remote shooting is assured even if there are people or objects between the remote controller and camera.
Examples of use
Controlling multiple cameras with one WR-T10 (Simultaneous release)
- The shutters on all cameras can be released simultaneously by pressing the WR-T10's shutter-release button all the way down.
Specifications of the WR-R10/WR-T10
|
|
WR-R10
|
WR-T10
|
|---|---|---|
|
Product images
|
 |
 |
|
Compatible cameras
|
D4*1, D3 series*1, D800 series*1, D700*1, D600, D300 series*1, D7000, D5200, D5100, D3200, D3100, etc., D-SLR cameras that employ a ten-pin remote terminal*1 or accessory terminal
|
-
|
|
Channels
|
5 (2.425 GHz), 10 (2.450 GHz), 15 (2.475 GHz)
|
|
|
Range (line of sight)
|
Approx. 50 m (164 ft) at height of about 1.2 m (4 ft) between WR-R10s*2
|
Approx. 20 m (66 ft) at height of about 1.2 m (4 ft) from WR-T10 to WR-R10
|
|
Pairing
|
Unlimited
|
|
|
Controllable functions
|
Live view*3, movie*3, continuous shooting, shutter-release button (half/full pressing available), possible to activate a function assigned to an Fn button*4
|
|
- *1Requires WR-A10 WR adapter. Cameras other than the D4 or D800 series that employ a ten-pin remote terminal, including F-SLRs, are capable of using the controller for half/full pressing of the shutter-release button only (except D1, D1H, D1X, D100 [+MB-D100])
- *2Only available when master D-SLR camera employs a ten-pin remote terminal.
- *3Available only with the D4, D800 series, D600, D5200 and D3200.
- *4Available only with the D4, D800 series and D5200.
Note: Depending on the camera, there may be a limitation to the accessories that can be attached simultaneously with the WR-R10 Wireless Remote Controller. Attempting to forcibly attach accessories can damage the camera or accessory.
Versatile playback functions
The D5200 gives you a variety of playback display options that take advantage of the large 7.5-cm (3-in.) monitor. The number of images displayed at one time can be selected from 1, 4, 9 and 72, and calendar display arranges images in chronological order. You can also display histograms of a magnified area of an image and check the focus using playback zoom of face.
- 72-thumbnail display
- Calendar display
- Histogram display for magnified area
- Playback zoom of face
Transmits taken images from the camera to a computer wirelessly to expand your photographic creativity Eye-Fi card (on the market) compatible
The D5200 can transmit taken image data (JPEG) from the camera to a computer wirelessly. You can also transmit images to online photo sharing and storage services such as "my Picturetown" and a computer automatically.
- More information
Note: The D5200 can turn Eye-Fi cards on and off, but may not support other Eye-Fi functions. Direct any inquiries to the manufacturer. Eye-Fi cards are for use only in the country of purchase (As of October, 2012). Observe all local laws concerning the use of wireless devices.
Embeds location information on an image GP-1 GPS Unit (optional)
The D5200 is compatible with the Nikon GP-1 GPS Unit that is able to embed location information on an image. Latitude, longitude and altitude of a shooting location are recorded as Exif data. Images with location information can be displayed on a GeoTag workspace of ViewNX 2 (supplied with the D5200). What's more, Nikon's image sharing and storage website my Picturetown, online image sharing services and commercially available digital mapping software are all there to enhance your photographic enjoyment.
- More information
High-capacity (SDXC), high-speed (UHS-I) SD memory card compatible
The D5200 supports SDXC (Secure Digital eXtended Capacity) and UHS-I. Combined with the enhanced speed of the image-processing engine EXPEED 3, it processes and writes image data of 24.1 megapixels at high speed. In high-speed continuous shooting, this allows the shooting of 100 frames in JPEG (fine/Medium)*.
- *With an 8 GB SanDisk Extreme Pro SDHC UHS-I card (SDSDXPA-008G). Results will vary with card type, camera settings, and scene recorded. The maximum number of exposures that can be stored in memory buffer at ISO 100; number drops when long-exposure noise reduction or auto distortion control is on.
Long-life battery due to energy-saving design EN-EL14 Rechargeable Li-ion Battery
The D5200's superior energy-saving design allows you to shoot approx. 500 shots per charge* with the EN-EL14 Rechargeable Li-ion Battery.
- *Based on CIPA Standards.
- EN-EL14 Rechargeable Li-ion Battery (supplied)
Nikon's photo sharing and storage service my Picturetown
Nikon's own image-sharing website, my Picturetown, allows you to easily store, manage and share your images with your family and friends, and post to social networking services (SNS). Membership is free and permits storage of up to 2 GB of photos and/or movies. And with an additional paid registration, you can expand your capacity to 200 GB*. Also, utilizing free applications compatible with a smart device, you can enjoy images using a PC or a smart device anytime, anywhere.
Nikon Digital SLR Camera D5200 Specifications
|
Type
|
|
|---|---|
|
Type
|
Single-lens reflex digital camera
|
|
Lens mount
|
Nikon F mount (with AF contacts)
|
|
Effective angle of view
|
Nikon DX format; focal length equivalent to approx. 1.5x that of lenses with FX-format angle of view
|
|
Effective pixels
|
|
|
Effective pixels
|
24.1 million
|
|
Image sensor
|
|
|
Image sensor
|
23.5 x 15.6 mm CMOS sensor
|
|
Total pixels
|
24.71 million
|
|
Dust-reduction system
|
Image sensor cleaning, Airflow Control System, Image Dust Off reference data (optional Capture NX 2 software required)
|
|
Storage
|
|
|
Image size (pixels)
|
|
|
File format
|
|
|
Picture Control System
|
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls
|
|
Media
|
SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards
|
|
File system
|
DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
|
|
Viewfinder
|
|
|
Viewfinder
|
Eye-level pentamirror single-lens reflex viewfinder
|
|
Frame coverage
|
Approx. 95% horizontal and 95% vertical
|
|
Magnification
|
Approx. 0.78x (50 mm f/1.4 lens at infinity, -1.0 m-1)
|
|
Eyepoint
|
17.9 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)
|
|
Diopter adjustment
|
-1.7 to +0.7 m-1
|
|
Focusing screen
|
Type B BriteView Clear Matte Mark VII screen
|
|
Reflex mirror
|
Quick return
|
|
Lens aperture
|
Instant return, electronically controlled
|
|
Lens
|
|
|
Compatible lenses
|
Autofocus is available with AF-S and AF-I lenses; autofocus is not available with other type G and D lenses, AF lenses (IX NIKKOR and lenses for the F3AF are not supported), and AI-P lenses; non-CPU lenses can be used in mode
 , but the camera exposure meter will not functionThe electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster |
|
Shutter
|
|
|
Type
|
Electronically controlled vertical-travel focal-plane shutter
|
|
Speed
|
1/4000 to 30 s in steps of 1/3 or 1/2 EV, bulb, time (requires optional ML-L3 Remote Control)
|
|
Flash sync speed
|
X=1/200 s; synchronizes with shutter at 1/200 s or slower
|
|
Release
|
|
|
Release modes
|
 (single frame),  (continuous low speed),  (continuous high speed),  (self-timer),  (delayed remote; ML-L3),  (quick-response remote; ML-L3),  (quiet shutter release); interval timer photography supported |
|
Frame advance rate
|
Up to 3 fps (
) or 5 fps () |
|
Self-timer
|
2 s, 5 s, 10 s, 20 s; 1 to 9 exposures
|
|
Exposure
|
|
|
Metering mode
|
TTL exposure metering using 2016-pixel RGB sensor
|
|
Metering method
|
|
|
Range
(ISO 100, f/1.4 lens, 20C/68F) |
|
|
Exposure meter coupling
|
CPU
|
|
Exposure modes
|
Auto modes (
 auto;  auto [flash off]); programmed auto with flexible program ( ); shutter-priority auto ( ); aperture-priority auto ( ); manual (); scene modes ( portrait;  landscape;  child;  sports;  close up;  night portrait;  night landscape;  party/indoor;  beach/snow;  sunset;  dusk/dawn;  pet portrait;  candlelight;  blossom;  autumn colors;  food); special effects modes ( night vision;  color sketch;  miniature effect;  selective color;  silhouette;  high key;  low key) |
|
Exposure compensation
|
Can be adjusted by -5 to +5 EV in increments of 1/3 or 1/2 EV in
, , and modes |
|
Exposure bracketing
|
3 shots in steps of 1/3 or 1/2 EV
|
|
Exposure lock
|
Luminosity locked at detected value with
 (  ) button |
|
ISO sensitivity
(Recommended Exposure Index) |
ISO 100 to 6400 in steps of 1/3 EV; can also be set to approx. 0.3, 0.7, 1 or 2 EV (ISO 25600 equivalent) above ISO 6400; auto ISO sensitivity control available
|
|
Active D-Lighting
|
Auto, extra high, high, normal, low, off
|
|
ADL bracketing
|
2 shots
|
|
Focus
|
|
|
Autofocus
|
Nikon Multi-CAM 4800DX autofocus sensor module with TTL phase detection, 39 focus points (including 9 cross-type sensors), and AF-assist illuminator (range approx. 0.5 to 3 m/1 ft 8 in. to 9 ft 10 in.)
|
|
Detection range
|
-1 to +19 EV (ISO 100, 20C/68F)
|
|
Lens servo
|
|
|
Focus point
|
Can be selected from 39 or 11 focus points
|
|
AF-area modes
|
Single-point AF, 9-, 21- or 39-point dynamic-area AF, 3D-tracking, auto-area AF
|
|
Focus lock
|
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing
( ) button |
|
Flash
|
|
|
Built-in flash
|
, , , , , , , : Auto flash with auto pop-up , , , , : Manual pop-up with button release |
|
Guide number
|
Approx. 12/39, 13/43 with manual flash (m/ft, ISO 100, 20C/68F)
|
|
Flash control
|
TTL: i-TTL flash control using 2016-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600 or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering
|
|
Flash modes
|
Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off
|
|
Flash compensation
|
-3 to +1 EV in increments of 1/3 or 1/2 EV
|
|
Flash-ready indicator
|
Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
|
|
Accessory shoe
|
ISO 518 hot-shoe with sync and data contacts and safety lock
|
|
Nikon Creative Lighting
System (CLS) |
Advanced Wireless Lighting supported with SB-910, SB-900, SB-800 or SB-700 as a master flash or SU-800 as commander; Flash Color Information Communication supported with all CLS-compatible flash units
|
|
Sync terminal
|
AS-15 Sync Terminal Adapter (available separately)
|
|
White balance
|
|
|
White balance
|
Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine-tuning
|
|
White balance bracketing
|
3 shots in steps of 1
|
|
Live View
|
|
|
Lens servo
|
|
|
AF-area modes
|
Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
|
|
Autofocus
|
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
|
|
Automatic scene selection
|
Available in
and modes |
|
Movie
|
|
|
Metering
|
TTL exposure metering using main image sensor
|
|
Metering method
|
Matrix
|
|
Frame size (pixels)
and frame rate |
|
|
File format
|
MOV
|
|
Video compression
|
H.264/MPEG-4 Advanced Video Coding
|
|
Audio recording format
|
Linear PCM
|
|
Audio recording device
|
Built-in monaural or external stereo microphone; sensitivity adjustable
|
|
Maximum length
|
29 min. 59 s (3 min. in miniature effect mode)
|
|
ISO sensitivity
|
ISO 100 to 6400; can also be set to approx. 0.3, 0.7, 1, or 2 EV (ISO 25600 equivalent) above ISO 6400
|
|
Monitor
|
|
|
Monitor
|
7.5-cm (3-in.), approx. 921k-dot (VGA), vari-angle TFT monitor with 170 viewing angle, approx. 100% frame coverage, and brightness adjustment
|
|
Playback
|
|
|
Playback
|
Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, auto image rotation, and image comment (up to 36 characters)
|
|
Interface
|
|
|
USB
|
Hi-Speed USB
|
|
Video output
|
NTSC, PAL
|
|
HDMI output
|
Type C mini-pin HDMI connector
|
|
Accessory terminal
|
Wireless remote controller: WR-R10 (available separately)
Remote cord: MC-DC2 (available separately) GPS unit: GP-1 (available separately) |
|
Audio input
|
Stereo mini-pin jack (3.5-mm diameter)
|
|
Supported languages
|
|
|
Supported languages
|
Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian
|
|
Power source
|
|
|
Battery
|
One EN-EL14 Rechargeable Li-ion Battery
|
|
AC adapter
|
EH-5b AC Adapter; requires EP-5A Power Connector (available separately)
|
|
Tripod socket
|
|
|
Tripod socket
|
1/4 in. (ISO 1222)
|
|
Dimensions / weight
|
|
|
Dimensions
(W x H x D) |
Approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
|
|
Weight
|
Approx. 555 g/1 lb 3.6 oz with battery and memory card but without body cap; approx. 505 g/1 lb 1.8 oz (camera body only)
|
|
Operating environment
|
|
|
Temperature
|
0 to 40C/32 to 104F
|
|
humidity
|
85% or less (no condensation)
|
|
Accessories
|
|
|
Supplied accessories
(may differ by country or area) |
EN-EL14 Rechargeable Li-ion Battery, MH-24 Battery Charger, DK-5 Eyepiece Cap, DK-20 Rubber Eyecup, UC-E17 USB Cable, EG-CP16 Audio Video Cable, AN-DC3 Camera Strap, BF-1B Body Cap, BS-1 Accessory Shoe Cover, ViewNX 2 CD-ROM
|
- The SD, SDHC and SDXC logos are trademark of the SD Card Association.
- PictBridge is a trademark.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
- Google and Android are registered trademarks or trademarks of Google Inc.
- Products and brand names are trademarks or registered trademarks of their respective companies.
- Images in viewfinders, on LCDs and monitors shown in this site are simulated.
Memory card capacity
The following table shows the approximate number of pictures that can be stored on an 8 GB SanDisk Extreme Pro SDHC UHS-I card at different image quality and size settings.
|
Image quality
|
Image size
|
File size*1
|
No. of images*1
|
Buffer capacity*2
|
|---|---|---|---|---|
|
NEF (RAW) + JPEG fine*3
|
Large
Medium Small |
37.0 MB
32.2 MB 28.5 MB |
152
173 192 |
6
6 6 |
|
NEF (RAW) + JPEG normal*3
|
Large
Medium Small |
30.9 MB
28.4 MB 26.5 MB |
178
192 203 |
6
6 6 |
|
NEF (RAW) + JPEG basic*3
|
Large
Medium Small |
27.7 MB
26.6 MB 25.6 MB |
196
204 210 |
6
6 6 |
|
NEF (RAW)
|
-
|
24.6 MB
|
217
|
8
|
|
JPEG fine
|
Large
Medium Small |
12.2 MB
7.4 MB 3.8 MB |
507
853 1600 |
35
100 100 |
|
JPEG normal
|
Large
Medium Small |
6.2 MB
3.7 MB 1.9 MB |
1000
1600 3200 |
100
100 100 |
|
JPEG basic
|
Large
Medium Small |
3.0 MB
1.9 MB 1.0 MB |
1900
3200 6000 |
100
100 100 |
- *1All figures are approximate. Results will vary with card type, camera settings, and scene recorded.
- *2Maximum number of exposures that can be stored in memory buffer at ISO 100. Drops when long exposure noise reduction or auto distortion control is on.
- *3Image size applies to JPEG images only. Size of NEF (RAW) images cannot be changed. File size is the total for NEF (RAW) and JPEG images.
Approved memory cards
The following SD memory cards have been tested and approved for use in the D5200. Cards with class 6 or faster write speeds are recommended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used.
|
|
SD memory cards
|
SDHC memory cards*2
|
SDXC memory cards*3
|
|
|---|---|---|---|---|
|
SanDisk
|
2GB*1
|
4 GB, 8 GB, 16 GB, 32 GB
|
64 GB
|
|
|
Toshiba
|
||||
|
Panasonic
|
4 GB, 6 GB, 8 GB, 12 GB,
16 GB, 24 GB, 32 GB |
48 GB, 64 GB
|
||
|
Lexar Media
|
4 GB, 8 GB, 16 GB, 32 GB
|
-
|
||
|
Platinum II
|
||||
|
Professional
|
64 GB, 128 GB
|
|||
|
Full-HD Video
|
-
|
4 GB, 8 GB, 16 GB
|
-
|
|
- *1Check that any card readers or other devices with which the card will be used support 2 GB cards.
- *2Check that any card readers or other devices with which the card will be used are SDHC-compliant. The camera supports UHS-I.
- *3Check that any card readers or other devices with which the card will be used are SDXC-compliant. The camera supports UHS-I.
 |
Nikon D5200 Digital SLR Camera - 24.1MP (Black)
- 3.0"TFT LCD, Airflow Control System, Live View, AF-Area Mode
- 18-55VR Kit
- Special Effects that enable you to enjoy various creative expressions in still images and movies by setting prior to shoot. ...
- High-speed, multifunctional and high-performance image-processing engine "EXPEED 3", equivalent to that of the Nikon's flagship model, D4. ...
- Wide sensitivity range of ISO 100 to 6400 (expandable to ISO 25600 equivalent) that delivers sharp images with reduced image blur even in low-lit situations or sports scenes. ...
- High-speed continuous shooting at approx. 5 fps that surely captures decisive moments. ...
- Stereo microphone employed [NEW], Full HD (1920 x 1080) D-Movie with selectable 60i/50i frame rate. ...
- Easy-to-understand and easy-to-operate, new GUI that effectively utilizes graphic processing. [NEW] ...
- Large, easy-to-view, approx. 921k-dot, wide viewing angle (170), 7.5-cm (3-in.) horizontal-opening vari-angle LCD monitor. ...
- Energy-saving design that achieves approx. 500 shots* per charge (with EN-EL14, in single-frame mode). ...
- *Based on CIPA Standards.
- Compatible with the WU-1a Wireless Mobile Adapter (optional) that enables transmission of images to smartphone or tablet PC wirelessly. ...
- Compatible with the WR-R10/WR-T10 Wireless Remote Controllers (optional). Remote control is ensured even if there are obstacles in the way. [NEW] ...
- 16 options of Scene Modes that enable selection of the most appropriate mode according to the shooting scene or subject. ...
- Variety of image-editing functions that allow you to retouch images easily after shooting, such as NEF (RAW) processing, Trim and Fisheye. ...
High image quality
Reproduces minute details of the subject with the sharp depiction performance of NIKKOR lenses and high pixel count of the D5200 — Nikon DX-format CMOS sensor [NEW]
Wide ISO sensitivity range from ISO 100 to 6400 at normal setting
Precise subject acquisition
Faithfully reproduces the shooting scene as you see it high-precision Scene Recognition System that analyzes a subject more finely with the 2016-pixel RGB sensor
The Scene Recognition System determines the subject's situation accurately prior to shooting and enables highly precise auto control. The D5200 analyzes brightness and color information of the shooting scenes more finely with Nikon's original Scene Recognition System that utilizes the 2016-pixel RGB sensor, which has been incorporated in higher-end models. And applies that information to autofocus, auto exposure, i-TTL flash and auto white balance control. In 3D-tracking, it is possible to track even a moving subject accurately. Also, in subject identification, smaller subjects compared with the D5100 can be detected which contributes to the improvement of subject identification performance in auto-area AF. Furthermore, the D5200 detects up to 35 human faces utilizing the image sensor when using face-priority AF during live view and movie recording, and playback zoom of people's faces for still images.
- Scene Recognition System
Accurate light source identification with Scene Recognition System auto white balance
The D5200 utilizes color and brightness information of the shooting scenes acquired by light source identification of the Scene Recognition System for auto white balance. It identifies the light source by referencing the in-camera database for auto white balance. In this way, it can determine the ideal white balance even with difficult light sources.
Captures even fast-moving scenes high-density 39-point AF system
The D5200 incorporates the Multi-CAM 4800DX autofocus sensor module, the same as that used in the D7000. With their high density, the 39 focus points, the top level among models in this class, that widely cover the image area acquire and track even fast-moving subjects such as sports or action accurately. Nine cross-type sensors cover the most frequently used center area to deliver higher subject acquisition and focusing performance. There are selectable AF area modes according to the scene single-point AF, dynamic-area AF (9 points, 21 points and 39 points), 3D-tracking and auto-area AF. In 3D-tracking mode, the camera keeps tracking not only a subject in a changed composition but also a moving subject. This is very convenient when shooting a fast-moving subject. Combined with the Scene Recognition System utilizing a 2016-pixel RGB sensor, the D5200 shows further improved subject-tracking performance in 3D-tracking and subject-identification performance in auto-area AF.
You can also choose to shoot with 11 focus points for quicker focus-point selection. Additionally, in the viewfinder, it is possible to display grid lines that are effective for rigorous composition.
- Bright and easy-to-see viewfinder
- Viewfinder display (framing grid)
Four selectable AF-area modes according to the subject in optical viewfinder shooting
The D5200 offers four AF-area modes. You can choose how the focus point for autofocus is selected according to the subject in viewfinder shooting.
-Single-point AF mode
Ideal for stationary subjects. You can focus on the subject selecting one of the 39 focus points according to your composition. It is effective to focus on an aimed point in situations such as shooting a flower or portrait.
- Single-point AF mode
-Dynamic-area AF mode
Suitable for capturing an erratically moving subject. Select one of the 39 focus points. If the subject briefly leaves the selected focus point, the camera will focus based on information from the surrounding points.
Selectable when focus mode is set to AF-A or AF-C.
|
9 points
|
Choose when there is time to compose the photograph or when photographing subjects that are moving predictably.
|
|---|---|
|
21 points
|
Choose when photographing subjects that are moving unpredictably.
|
|
39 points
|
Choose when photographing subjects that are moving quickly and cannot be easily framed in the viewfinder.
|
- 9 points
- 21 points
- 39 points
-3D-tracking mode
Suitable for shooting a moving subject. Pursues your subject using all 39 focus points. Once focusing is achieved with a selected focus point, the focus point automatically changes to track the subject according to its movement while the shutter-release button is pressed halfway.
Selectable when focus mode is set to AF-A or AF-C.
- 3D-tracking mode
-Auto-area AF mode
The D5200 detects the main subject using all 39 focus points and automatically focuses on it. The D5200 can recognize human skin tone using "subject identification" of the Scene Recognition System for improved human subject acquisition.
- Auto-area AF mode
Note: Only the selected focus point is shown on actual images. Also, if you select focus points in a peripheral area of an image when "9 points" or "21 points" is chosen, the number of focus points actually used may be less than 9 or 21.
Captures the decisive moment release mode button that supports quick selection of release mode and approx. 5 fps high-speed continuous shooting
The release mode button is located next to the mode dial. The release mode setting menu is displayed on the LCD monitor by pressing the release mode button so that quick switching of modes is possible. For release modes, the D5200 employs quiet shutter-release mode, "Q", that allows shooting with reduced mirror movement sound. This is effective for occasions such as a ceremony or when taking pictures of insects or a sleeping child. Also, the D5200 realizes high-speed continuous shooting at approx. 5 fps, while approx. 3 fps is also selectable, which is optimal for capturing natural facial expressions. The number of shots in continuous shooting is up to 100 in JPEG. It does not miss a moment of a subject's movements or facial expression. The shutter unit is tested for approx. 100,000 cycles with the shutter actually loaded to prove its high durability.
- Release mode button
- Release mode setting menu
- Approx. 5 fps high-speed continuous shooting ensures you capture decisive moments.
Shooting with the mirror in the up position is achieved in live view newly designed, independently driven mirror mechanism [NEW]
Nikon newly designed the high-speed and highly precise sequential control mechanism for the D5200. It contributes to high-speed continuous shooting at up to approx. 5 fps with a release time lag of approx. 0.09 s*. This new sequential control mechanism drives the mirror independently. In live view shooting, the shutter is released with the mirror in the up position. Because the impact of the mirror's up and down movement is eliminated, smooth and quiet shooting can be expected in single-frame and continuous shooting (low-speed/high-speed).
- *Based on CIPA Guidelines.
Live view shooting that enables accurate focusing using the large, east-to-see 7.5-cm (3-in.), approx. 921k-dot, vari-angle LCD monitor
The D5200 incorporates a large, easy-to-see, 7.5-cm (3-in.), approx. 921k-dot (VGA), 170 viewing angle, movable vari-angle LCD monitor that realizes comfortable live view shooting. Approx. 100% frame coverage of the LCD monitor is effective when you want to compose your image firmly before shooting in a situation such as landscape or portrait shooting. Simply rotate the live view switch on top of the camera to shift from viewfinder shooting to live view shooting. The position of a focus point can be moved using a multi selector to focus on the desired point.
- More information about shooting with the vari-angle monitor
- 7.5-cm (3-in.), 921k-dot (VGA), 170 viewing angle LCD monitor
Three focus modes selectable focusing that suits your subject
-Single-servo AF (AF-S)
Suitable for a stationary subject such as landscapes, architecture or flowers.
-Full-time-servo AF (AF-F)
Convenient for shooting a moving subject which is usually difficult to focus on, such as a person or pet. Available in both live view mode and movie recording. Camera focuses continuously as the subject moves.
-Manual focus (MF)
Manual focusing. Suitable for a subject for which autofocus is difficult, such as an animal in a cage or a person in the shade with the sun in the background.
Four AF-area modes in live view selectable according to your subject
-Face-priority AF
Suitable for focusing on someone's face such as for a commemorative photo.
-Wide-area AF
Suitable for handheld shooting such as for a landscape. Focus point can be moved to a desired point within the frame.
-Normal-area AF
Convenient for shooting with pin-point focus such as for a close-up of a flower and other small subjects. Using a tripod is recommended for more precise focusing.
-Subject-tracking AF
After focusing is activated, focus point tracks the subject automatically. Suitable for a moving subject such as a child or pet.
Recommended combination of focus mode and AF-area mode
- Single-servo AF and normal-area AF
Suitable for a stationary subject
- Full-time-servo AF and subject-tracking AF
Suitable for a moving subject
Camera selects the optimal scene mode automatically Scene Auto Selector (only available in live view shooting)
In live view shooting, if you point the camera at your subject, the camera automatically identifies the scene and selects the most appropriate scene mode from Portrait, Landscape, Close up and Night portrait*. Smooth shooting is achieved without setting the scene mode for each subject.
- *When mode dial is set to Auto or Auto (flash off) and using AF.
- Scene Auto Selector (Landscape)
-Scene Auto Selector employed on the D5200
Note: Selected when the camera identifies situations not covered by Portrait, Landscape, Close up or Night portrait mode, or for scenes suited to Auto or Auto (flash off).
Flicker reduction function
Flicker and banding visible in the monitor under fluorescent or mercury vapor light during live view or movie recording can be reduced using the flicker reduction function. When "Auto" mode is set in the flicker reduction menu, the camera can automatically identify the light source frequency for the appropriate exposure control. You can also manually switch between 50 Hz and 60 Hz according to your local area.
Creative expression
More advanced expression by combining creative angle and Special Effects
The D5200's LCD monitor opens horizontally from 0 to 180 and flips up and down from +180 to -90. It allows you to set the monitor at your preferred angle for the creative expression you desire in your composition. You can shoot comfortably from a high or low angle with a stable posture, when it would otherwise be difficult to shoot using the optical viewfinder. Even if shooting from ground level, it is possible to shoot confirming composition. Moreover, the vari-angle LCD monitor helps you to shoot more creative images than ever before in combination with the Special Effects, for both still images and movies.
- More information about Special Effects
Enable you to confirm an effect in real time while shooting and deliver more creative expression Special Effects
The D5200 comes equipped with seven options of Special Effects. It is easy to shoot images applying various effects without using image-editing software. The result of an effect is displayed on the LCD monitor in real time, therefore you can set the effects while checking the appearance of your image. The wide range of effects greatly expands your creative possibilities in combination with the vari-angle LCD monitor for both still images and movies.
Special Effects incorporated in the D5200
Color sketch*, Miniature effect*, Selective color*, Silhouette, Night vision, High key, Low key
- *It is possible to apply these effects to still images after shooting using retouch menus.
Ideal for movies to create a dynamic impression for a commercial or a cinematic effect [Selective color]
- All colors other than the color(s) you want to emphasize are recorded in black and white. Up to three colors are selectable and the color range can be adjusted in values between 1 to 7.
The image can be pop or artistic [Color sketch]
- The camera detects and colors subjects' outlines to create sketch-style images. Vividness of colors and density of outlines are adjustable.
Note: Movies shot in this mode play back like a slide show made up of a series of stills.
Landscape appears as if it is miniature scale model when shooting from a high place [Miniature effect]
- Distant subjects appear as if they are miniature scale models. The position of the focus point remains sharp while the peripheral area is defocused.
Note: Miniature effect movies play back at high speed.
Easy to enjoy super-high sensitivity shooting [Night vision]
- Enables shooting in extremely low-light conditions. Records monochrome (black and white) images.
Renders a woman or child, for example, with a gentle and soft atmosphere [High key]
- Creates beautiful bright images filled with light by intentional overexposure.
Suitable for metallic materials or a portrait of a man with a dignified and somber atmosphere [Low key]
- Creates dark and somber images to emphasize highlights by intentional underexposure.
Creates a dramatic effect on a subject [Silhouette]
- Creates dramatic images with silhouettes of subjects against a bright background.
Shoots the scene beautifully and automatically 16 options of Scene Modes
If you select a mode according to the scene, the D5200 automatically chooses the most appropriate settings to deliver a beautiful image. Five frequently used Scene Modes such as Portrait and Landscape can be directly selected using the mode dial. For other modes such as Sunset, Dusk/dawn and Food, set the mode dial to SCENE and select the mode by rotating the command dial. You can capture scenes which previously had been difficult to shoot, easily and beautifully.
Scene Modes employed on the D5200
Portrait, Landscape, Child, Sports, Close up, Night portrait, Night landscape, Party/indoor, Beach/snow, Sunset, Dusk/dawn, Pet portrait, Candlelight, Blossom, Autumn colors, Food
- Sports
- Close up
- Night landscape
- Party/indoor
- Dusk/dawn
- Food
Customizes colors and tones of your movies and images to your preferences before shooting Picture Control
The D5200 employs six types of Picture Control, selectable according to your subjects and shooting scenes for both still images and movies. Selected Picture Control lets you fine-tune sharpening, contrast, etc. to match your own image creation ideas. Changes can be saved as custom Picture Controls and used with image-browsing/editing software ViewNX 2 (supplied) and image-editing software Capture NX 2 (optional).
Picture Control employed on the D5200
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape
- More information
- Set Picture Control display
- Adjusting display
- Standard
- Standard processing for balanced results. Recommended for most situations.
- Neutral
- Minimal processing for natural results. Choose for photographs that will later be extensively processed or retouched.
- Vivid
- Provides distinct, colorful, fresh-looking images. Choose for situations where you want to emphasize primary colors such as blue, red and green.
- Monochrome
- Gives you monochromatic shadings, such as black-and-white or sepia. You can select filter effects and toning.
- Portrait
- Portrait delivers natural-appearing skin. Natural texture gives the skin of portrait subjects a smoother feel.
- Landscape
- Produces vibrant landscapes and cityscapes. Suitable for any kinds of nature scenes.
Easy in-camera image editing Retouch menus
The D5200 comes equipped with 19 kinds of image-editing functions. These in-camera functions let you retouch images easily. There are a variety of options such as Fisheye that produces effects similar to those obtained with a fisheye lens and Filter effects that achieve images similar to those taken with a filter. Edit movie allows you to delete unwanted parts by choosing the start or end point, or save a selected frame as a JPEG image. In each case, a duplicate image or movie is created, leaving the original securely intact.
Retouch menus employed on the D5200
D-Lighting, Red-eye correction, Trim, Monochrome, Filter effects, Color balance, Image overlay, NEF (RAW) processing, Resize, Quick retouch, Straighten, Distortion control, Fisheye, Color outline, Color sketch*, Perspective control, Miniature effect*, Selective color*, Edit movie
- *It is possible to apply these effects to still images/movies prior to shooting using Special Effects.
- Straighten
- Corrects inclination of the image within a range of 5 (in approx. 0.25 steps).
- Trim
- The desired part of the image can be trimmed and enlarged.
- Fisheye
- Creates images that resemble those taken with a fisheye lens.
Effective for backlit or shaded conditions built-in flash
Even when the subject's face is backlit or, for example, shaded by a hat, you can shoot with appropriate brightness using the built-in flash. The D5200 detects the brightness situation of the subject, pops up* the built-in flash automatically and fires. Using i-TTL flash control that achieves high-precision metering, an optimal amount of light for the scene realizes naturally reproduced images.
- *When shooting mode is set to Auto, Portrait, Child, Close up, Night portrait, Party/indoor, Pet portrait or Color sketch.
Exclusive Nikon software expand your creativity
Your Imaging Toolbox ViewNX 2 (supplied)
This simple and intuitive software helps you get the most out of your images and movies after shooting. ViewNX 2 provides importing and browsing capability while also incorporating image-editing functions such as Resize, Brightness, Crop, Straighten and NEF (RAW) image processing. High-definition and high-quality RAW processing is achieved by utilizing the same processing algorithm as Capture NX 2 that faithfully reproduces Nikon image quality. Its movie-editing functions help you create your own original movies quickly and easily, and Nikon's smart photo sharing and storage service, my Picturetown, works smoothly with ViewNX 2, allowing you to log in directly from the software for easy uploading without activating a browser.
- More information
Quick and simple image-editing software with intuitive operation Capture NX 2 (optional)
Nikon's RAW images (NEF: Nikon Electronic Format) maintain extremely rich data. Only Nikon's Capture NX 2 can fully utilize this data with its optimized file format and software processing algorithms. With the enhanced speed of the algorithms, high-speed processing is achieved. This enables high-speed, stress-free editing even if the data size is large. Also, Capture NX 2 supports 64-bit (native) to realize a comfortable working environment. You can focus on editing with ease because it is possible to leave the original image intact with NEF editing. In addition to the intuitive and simple editing using Color Control Points, it incorporates various functions such as Auto Retouch brush, Batch Processing, Quick Fix, Straighten Tool, Vignette Control, Auto Color Aberration Control and Distortion Control.
- *Compared with conventional versions, under test conditions established by Nikon.
Note: For further details of the latest version or operating environment, please visit Nikon's website.
D-Movie
Reproduces even fast-moving scenes beautifully D-Movie compatible with 1920 x 1080 60i/50i
The D5200 allows you to record movie with sharpness, clarity and fluid motion easily. Utilizing the newly developed Nikon DX-format CMOS sensor and EXPEED 3, which is equivalent to that of higher models, the D5200 deliver movies with reduced noise, jaggies and moir. It renders various fast-moving scenes naturally, such as galloping horses, the splashing of water or the view from a moving car. The D5200 also employs subject-tracking AF that tracks and maintains focusing on a moving subject and face-priority AF that is optimal for portrait shooting. The movie-record button is located next to the shutter-release button. You can start/stop movie recording as if shooting still images while holding the camera stably and camera shake that may occur during operation is minimized. If you want to shoot according to your creative intention, it is possible to set the shutter speed and ISO sensitivity manually* (in mode M). In combination with unique shooting angles using the vari-angle LCD monitor and NIKKOR lenses that feature high resolution, you can enjoy advanced, creative movie recording by making clips, short films or video projects combining stills and video.
The D5200 also employs a variety of movie-editing features that can be accomplished easily inside the camera and without the need for a computer. It is possible to delete unwanted parts by choosing the start and end point in single frame units, and save a selected frame as a JPEG image with the same image size as that of the selected movie frame.
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
Note: The video shown here was taken in 1920 x 1080 60i, then converted to Flash Video format for ease of handling. Image quality varies from the original.
- *Selectable shutter speed varies according to the frame rate of the movie. ISO sensitivity can be set to values between ISO 100 to 6400 or Hi 0.3 to Hi 2.
Sample movies utilizing the Special Effects of the D5200
- Selective color
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
- Low key
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
Note: The video shown here was taken using the D-Movie function, then converted to Flash Video format for ease of handling. Image quality varies from the original.
Built-in stereo microphone that enables you to record rich, high-quality sound [NEW]
The D5200's built-in stereo microphone lets you enjoy recording rich, high-quality sound. The sensitivity level can be adjusted, choosing from auto and manual (1 to 20 steps) according to the shooting situation. Select low level (smaller value) for scenes in louder environments, such as a concert hall; high level (large value) for quieter environments, with more delicate ambient sounds, such as a murmuring stream.
ME-1 Stereo Microphone (optional) compatible
In addition to the built-in microphone, the D5200 lets you record stereo sound with the optional ME-1 Stereo Microphone. Using the ME-1 Stereo Microphone reduces noise caused by lens vibration recorded during autofocus shooting. You can select the microphone sensitivity setting in the same way as with the built-in stereo microphone.
Specifications
|
Frame size (pixels)
|
Frame rate*1
|
Maximum bit rate
(high quality/Normal) |
Maximum length
(high quality/Normal)*4 |
|---|---|---|---|
|
1920 x 1080
|
60i*2
|
24 Mbps/12 Mbps
|
20 min./29 min. 59 s
|
|
50i*2
|
|||
|
30p*2
|
|||
|
25p*3
|
|||
|
24p
|
|||
|
1280 x 720
|
60p*2
|
||
|
50p*2
|
|||
|
640 x 424
|
30p*2
|
8 Mbps/5 Mbps
|
29 min. 59 s/29 min. 59 s
|
|
25p*3
|
- *1Listed value. Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively.
- *2Available when NTSC is selected for Video mode.
- *3Available when PAL is selected for Video mode.
- *4Movies recorded in miniature effect mode are up to three minutes long when played back.
Enables playback of still images and movies on High-Definition TV HDMI supported
The D5200 supports HDMI (High-Definition Multimedia Interface) that allows you to play back still images and movies with High-Definition TV*1. HDMI mini connector is employed as the interface. Also, the D5200 is compatible with HDMI-CEC (Consumer Electric Control) that enables remote operation of the camera using a TV remote control*2.
- *1Requires optional commercially available HDMI connection cable (Type C) for playback.
- *2Remote control of HDMI-CEC supported TV.
Ease of use
Compact and lightweight body with three color variations and enhanced holding
The D5200's compact and lightweight body of approx. 505 g (1 lb 1.8 oz)* is easy to carry around. A sub-grip is newly employed on the lower left of the front of the camera to improve holding in combination with the thumb pad on the upper right of the rear of the camera. You can shoot sharp images using 24.1 effective megapixels, without blur caused by camera shake. The color of the body can be chosen from black, red and bronze.
- *Body only.
- Dimensions (W x H x D): approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
Weight: approx. 555 g/1 lb 3.6 oz (including battery, SD memory card, excluding body cap), approx. 505 g/1 lb 1.8 oz (body only)
Selectable body colors
- Black
- Red
- Bronze
Sub-grip and thumb pad improve holding
- Front
- Rear
Easier and more intuitive to operate newly designed GUI
The D5200 incorporates an easier and more fluid new GUI, utilizing graphic-processing performance enhanced by EXPEED 3. For the info display design, you can choose from two options Classic or Graphic. Background color can be selected from black, blue and brown. A new design is also employed for each setting display.
In optical viewfinder shooting
-Classic
- Black
- Blue
- Brown
-Graphic
- Black
- Blue
- Brown
In live view shooting
-Graphic
Information edit button
Pressing the information edit button when shooting information is displayed gives you direct access to the menu of the setting you would like to adjust.
- Information edit button
In optical viewfinder shooting
- Info display
- Setting menu display
In live view shooting
- Info display
- Setting menu display
WU-1a Wireless Mobile Adapter (optional) that enables wireless transmission of images to a smart device, and remote shooting
By attaching the optional WU-1a Wireless Mobile Adapter to the D5200's USB connector, two-way communication between the camera and a smart device such as a smartphone or tablet computer with Wi-Fi communication function is possible. With the remote shooting function that enables release of the shutter from a distance, you can use your smart device as a remote live view monitor, to confirm the best angle and shoot. Images can be transmitted wirelessly and you can easily upload them to SNS or attach them to a mail. The WU-1a is compatible with smart devices using the iOS or Android.
Note: This function requires installing of Wireless Mobile Adapter Utility to the smart device prior to use.
Wireless Mobile Adapter Utility
Wireless Mobile Adapter Utility is software enabling download of images from a camera to a smart device or operation of a camera from a smart device for taking an image by attaching the WU-1a Wireless Mobile Adapter.
Note: Can be downloaded from the application store of each smart device (free).
Comfortable remote control without worrying about obstacles in the way
WR-R10/WR-T10 Wireless Remote Controllers (optional) that achieve multiple camera control [NEW]
WR-R10/WR-T10 Wireless Remote Controllers expand the flexibility of remote control. Unlike remote controls using infrared light, it is possible to release the shutter even if there are obstacles such as a tree in the way. The communication distance for a combination of the WR-R10 with WR-T10 is approx. 20 m (66 ft). You can control a single or multiple cameras with the WR-R10 attached using the WR-T10 as a transmitter*. With the WR-R10/WR-T10, you can enjoy a variety of shooting, such as attaching different lenses to the cameras, changing angles for each camera, or shooting still images and movies simultaneously by switching channels.
- *WR-T10 and WR-R10(s) have to be set to the same channel and paired in advance to achieve simultaneous release. (For further information, please refer to the user's manual of the WR-R10/WR-T10.)
- Comfortable remote shooting is assured even if there are people or objects between the remote controller and camera.
Examples of use
Controlling multiple cameras with one WR-T10 (Simultaneous release)
- The shutters on all cameras can be released simultaneously by pressing the WR-T10's shutter-release button all the way down.
Specifications of the WR-R10/WR-T10
|
|
WR-R10
|
WR-T10
|
|---|---|---|
|
Product images
|
 |
 |
|
Compatible cameras
|
D4*1, D3 series*1, D800 series*1, D700*1, D600, D300 series*1, D7000, D5200, D5100, D3200, D3100, etc., D-SLR cameras that employ a ten-pin remote terminal*1 or accessory terminal
|
-
|
|
Channels
|
5 (2.425 GHz), 10 (2.450 GHz), 15 (2.475 GHz)
|
|
|
Range (line of sight)
|
Approx. 50 m (164 ft) at height of about 1.2 m (4 ft) between WR-R10s*2
|
Approx. 20 m (66 ft) at height of about 1.2 m (4 ft) from WR-T10 to WR-R10
|
|
Pairing
|
Unlimited
|
|
|
Controllable functions
|
Live view*3, movie*3, continuous shooting, shutter-release button (half/full pressing available), possible to activate a function assigned to an Fn button*4
|
|
- *1Requires WR-A10 WR adapter. Cameras other than the D4 or D800 series that employ a ten-pin remote terminal, including F-SLRs, are capable of using the controller for half/full pressing of the shutter-release button only (except D1, D1H, D1X, D100 [+MB-D100])
- *2Only available when master D-SLR camera employs a ten-pin remote terminal.
- *3Available only with the D4, D800 series, D600, D5200 and D3200.
- *4Available only with the D4, D800 series and D5200.
Note: Depending on the camera, there may be a limitation to the accessories that can be attached simultaneously with the WR-R10 Wireless Remote Controller. Attempting to forcibly attach accessories can damage the camera or accessory.
Versatile playback functions
The D5200 gives you a variety of playback display options that take advantage of the large 7.5-cm (3-in.) monitor. The number of images displayed at one time can be selected from 1, 4, 9 and 72, and calendar display arranges images in chronological order. You can also display histograms of a magnified area of an image and check the focus using playback zoom of face.
- 72-thumbnail display
- Calendar display
- Histogram display for magnified area
- Playback zoom of face
Transmits taken images from the camera to a computer wirelessly to expand your photographic creativity Eye-Fi card (on the market) compatible
The D5200 can transmit taken image data (JPEG) from the camera to a computer wirelessly. You can also transmit images to online photo sharing and storage services such as "my Picturetown" and a computer automatically.
- More information
Note: The D5200 can turn Eye-Fi cards on and off, but may not support other Eye-Fi functions. Direct any inquiries to the manufacturer. Eye-Fi cards are for use only in the country of purchase (As of October, 2012). Observe all local laws concerning the use of wireless devices.
Embeds location information on an image GP-1 GPS Unit (optional)
The D5200 is compatible with the Nikon GP-1 GPS Unit that is able to embed location information on an image. Latitude, longitude and altitude of a shooting location are recorded as Exif data. Images with location information can be displayed on a GeoTag workspace of ViewNX 2 (supplied with the D5200). What's more, Nikon's image sharing and storage website my Picturetown, online image sharing services and commercially available digital mapping software are all there to enhance your photographic enjoyment.
- More information
High-capacity (SDXC), high-speed (UHS-I) SD memory card compatible
The D5200 supports SDXC (Secure Digital eXtended Capacity) and UHS-I. Combined with the enhanced speed of the image-processing engine EXPEED 3, it processes and writes image data of 24.1 megapixels at high speed. In high-speed continuous shooting, this allows the shooting of 100 frames in JPEG (fine/Medium)*.
- *With an 8 GB SanDisk Extreme Pro SDHC UHS-I card (SDSDXPA-008G). Results will vary with card type, camera settings, and scene recorded. The maximum number of exposures that can be stored in memory buffer at ISO 100; number drops when long-exposure noise reduction or auto distortion control is on.
Long-life battery due to energy-saving design EN-EL14 Rechargeable Li-ion Battery
The D5200's superior energy-saving design allows you to shoot approx. 500 shots per charge* with the EN-EL14 Rechargeable Li-ion Battery.
- *Based on CIPA Standards.
- EN-EL14 Rechargeable Li-ion Battery (supplied)
Nikon's photo sharing and storage service my Picturetown
- *Fees and availability may vary by country.
- More information
Nikon Digital SLR Camera D5200 Specifications
|
Type
|
|
|---|---|
|
Type
|
Single-lens reflex digital camera
|
|
Lens mount
|
Nikon F mount (with AF contacts)
|
|
Effective angle of view
|
Nikon DX format; focal length equivalent to approx. 1.5x that of lenses with FX-format angle of view
|
|
Effective pixels
|
|
|
Effective pixels
|
24.1 million
|
|
Image sensor
|
|
|
Image sensor
|
23.5 x 15.6 mm CMOS sensor
|
|
Total pixels
|
24.71 million
|
|
Dust-reduction system
|
Image sensor cleaning, Airflow Control System, Image Dust Off reference data (optional Capture NX 2 software required)
|
|
Storage
|
|
|
Image size (pixels)
|
|
|
File format
|
|
|
Picture Control System
|
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls
|
|
Media
|
SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards
|
|
File system
|
DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
|
|
Viewfinder
|
|
|
Viewfinder
|
Eye-level pentamirror single-lens reflex viewfinder
|
|
Frame coverage
|
Approx. 95% horizontal and 95% vertical
|
|
Magnification
|
Approx. 0.78x (50 mm f/1.4 lens at infinity, -1.0 m-1)
|
|
Eyepoint
|
17.9 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)
|
|
Diopter adjustment
|
-1.7 to +0.7 m-1
|
|
Focusing screen
|
Type B BriteView Clear Matte Mark VII screen
|
|
Reflex mirror
|
Quick return
|
|
Lens aperture
|
Instant return, electronically controlled
|
|
Lens
|
|
|
Compatible lenses
|
Autofocus is available with AF-S and AF-I lenses; autofocus is not available with other type G and D lenses, AF lenses (IX NIKKOR and lenses for the F3AF are not supported), and AI-P lenses; non-CPU lenses can be used in mode
 , but the camera exposure meter will not functionThe electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster |
|
Shutter
|
|
|
Type
|
Electronically controlled vertical-travel focal-plane shutter
|
|
Speed
|
1/4000 to 30 s in steps of 1/3 or 1/2 EV, bulb, time (requires optional ML-L3 Remote Control)
|
|
Flash sync speed
|
X=1/200 s; synchronizes with shutter at 1/200 s or slower
|
|
Release
|
|
|
Release modes
|
 (single frame),  (continuous low speed),  (continuous high speed),  (self-timer),  (delayed remote; ML-L3),  (quick-response remote; ML-L3),  (quiet shutter release); interval timer photography supported |
|
Frame advance rate
|
Up to 3 fps (
) or 5 fps () |
|
Self-timer
|
2 s, 5 s, 10 s, 20 s; 1 to 9 exposures
|
|
Exposure
|
|
|
Metering mode
|
TTL exposure metering using 2016-pixel RGB sensor
|
|
Metering method
|
|
|
Range
(ISO 100, f/1.4 lens, 20C/68F) |
|
|
Exposure meter coupling
|
CPU
|
|
Exposure modes
|
Auto modes (
 auto;  auto [flash off]); programmed auto with flexible program ( ); shutter-priority auto ( ); aperture-priority auto ( ); manual (); scene modes ( portrait;  landscape;  child;  sports;  close up;  night portrait;  night landscape;  party/indoor;  beach/snow;  sunset;  dusk/dawn;  pet portrait;  candlelight;  blossom;  autumn colors;  food); special effects modes ( night vision;  color sketch;  miniature effect;  selective color;  silhouette;  high key;  low key) |
|
Exposure compensation
|
Can be adjusted by -5 to +5 EV in increments of 1/3 or 1/2 EV in
, , and modes |
|
Exposure bracketing
|
3 shots in steps of 1/3 or 1/2 EV
|
|
Exposure lock
|
Luminosity locked at detected value with
 (  ) button |
|
ISO sensitivity
(Recommended Exposure Index) |
ISO 100 to 6400 in steps of 1/3 EV; can also be set to approx. 0.3, 0.7, 1 or 2 EV (ISO 25600 equivalent) above ISO 6400; auto ISO sensitivity control available
|
|
Active D-Lighting
|
Auto, extra high, high, normal, low, off
|
|
ADL bracketing
|
2 shots
|
|
Focus
|
|
|
Autofocus
|
Nikon Multi-CAM 4800DX autofocus sensor module with TTL phase detection, 39 focus points (including 9 cross-type sensors), and AF-assist illuminator (range approx. 0.5 to 3 m/1 ft 8 in. to 9 ft 10 in.)
|
|
Detection range
|
-1 to +19 EV (ISO 100, 20C/68F)
|
|
Lens servo
|
|
|
Focus point
|
Can be selected from 39 or 11 focus points
|
|
AF-area modes
|
Single-point AF, 9-, 21- or 39-point dynamic-area AF, 3D-tracking, auto-area AF
|
|
Focus lock
|
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing
( ) button |
|
Flash
|
|
|
Built-in flash
|
, , , , , , , : Auto flash with auto pop-up , , , , : Manual pop-up with button release |
|
Guide number
|
Approx. 12/39, 13/43 with manual flash (m/ft, ISO 100, 20C/68F)
|
|
Flash control
|
TTL: i-TTL flash control using 2016-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600 or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering
|
|
Flash modes
|
Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off
|
|
Flash compensation
|
-3 to +1 EV in increments of 1/3 or 1/2 EV
|
|
Flash-ready indicator
|
Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
|
|
Accessory shoe
|
ISO 518 hot-shoe with sync and data contacts and safety lock
|
|
Nikon Creative Lighting
System (CLS) |
Advanced Wireless Lighting supported with SB-910, SB-900, SB-800 or SB-700 as a master flash or SU-800 as commander; Flash Color Information Communication supported with all CLS-compatible flash units
|
|
Sync terminal
|
AS-15 Sync Terminal Adapter (available separately)
|
|
White balance
|
|
|
White balance
|
Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine-tuning
|
|
White balance bracketing
|
3 shots in steps of 1
|
|
Live View
|
|
|
Lens servo
|
|
|
AF-area modes
|
Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
|
|
Autofocus
|
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
|
|
Automatic scene selection
|
Available in
and modes |
|
Movie
|
|
|
Metering
|
TTL exposure metering using main image sensor
|
|
Metering method
|
Matrix
|
|
Frame size (pixels)
and frame rate |
|
|
File format
|
MOV
|
|
Video compression
|
H.264/MPEG-4 Advanced Video Coding
|
|
Audio recording format
|
Linear PCM
|
|
Audio recording device
|
Built-in monaural or external stereo microphone; sensitivity adjustable
|
|
Maximum length
|
29 min. 59 s (3 min. in miniature effect mode)
|
|
ISO sensitivity
|
ISO 100 to 6400; can also be set to approx. 0.3, 0.7, 1, or 2 EV (ISO 25600 equivalent) above ISO 6400
|
|
Monitor
|
|
|
Monitor
|
7.5-cm (3-in.), approx. 921k-dot (VGA), vari-angle TFT monitor with 170 viewing angle, approx. 100% frame coverage, and brightness adjustment
|
|
Playback
|
|
|
Playback
|
Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, auto image rotation, and image comment (up to 36 characters)
|
|
Interface
|
|
|
USB
|
Hi-Speed USB
|
|
Video output
|
NTSC, PAL
|
|
HDMI output
|
Type C mini-pin HDMI connector
|
|
Accessory terminal
|
Wireless remote controller: WR-R10 (available separately)
Remote cord: MC-DC2 (available separately) GPS unit: GP-1 (available separately) |
|
Audio input
|
Stereo mini-pin jack (3.5-mm diameter)
|
|
Supported languages
|
|
|
Supported languages
|
Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian
|
|
Power source
|
|
|
Battery
|
One EN-EL14 Rechargeable Li-ion Battery
|
|
AC adapter
|
EH-5b AC Adapter; requires EP-5A Power Connector (available separately)
|
|
Tripod socket
|
|
|
Tripod socket
|
1/4 in. (ISO 1222)
|
|
Dimensions / weight
|
|
|
Dimensions
(W x H x D) |
Approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
|
|
Weight
|
Approx. 555 g/1 lb 3.6 oz with battery and memory card but without body cap; approx. 505 g/1 lb 1.8 oz (camera body only)
|
|
Operating environment
|
|
|
Temperature
|
0 to 40C/32 to 104F
|
|
humidity
|
85% or less (no condensation)
|
|
Accessories
|
|
|
Supplied accessories
(may differ by country or area) |
EN-EL14 Rechargeable Li-ion Battery, MH-24 Battery Charger, DK-5 Eyepiece Cap, DK-20 Rubber Eyecup, UC-E17 USB Cable, EG-CP16 Audio Video Cable, AN-DC3 Camera Strap, BF-1B Body Cap, BS-1 Accessory Shoe Cover, ViewNX 2 CD-ROM
|
- The SD, SDHC and SDXC logos are trademark of the SD Card Association.
- PictBridge is a trademark.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
- Google and Android are registered trademarks or trademarks of Google Inc.
- Products and brand names are trademarks or registered trademarks of their respective companies.
- Images in viewfinders, on LCDs and monitors shown in this site are simulated.
Memory card capacity
The following table shows the approximate number of pictures that can be stored on an 8 GB SanDisk Extreme Pro SDHC UHS-I card at different image quality and size settings.
|
Image quality
|
Image size
|
File size*1
|
No. of images*1
|
Buffer capacity*2
|
|---|---|---|---|---|
|
NEF (RAW) + JPEG fine*3
|
Large
Medium Small |
37.0 MB
32.2 MB 28.5 MB |
152
173 192 |
6
6 6 |
|
NEF (RAW) + JPEG normal*3
|
Large
Medium Small |
30.9 MB
28.4 MB 26.5 MB |
178
192 203 |
6
6 6 |
|
NEF (RAW) + JPEG basic*3
|
Large
Medium Small |
27.7 MB
26.6 MB 25.6 MB |
196
204 210 |
6
6 6 |
|
NEF (RAW)
|
-
|
24.6 MB
|
217
|
8
|
|
JPEG fine
|
Large
Medium Small |
12.2 MB
7.4 MB 3.8 MB |
507
853 1600 |
35
100 100 |
|
JPEG normal
|
Large
Medium Small |
6.2 MB
3.7 MB 1.9 MB |
1000
1600 3200 |
100
100 100 |
|
JPEG basic
|
Large
Medium Small |
3.0 MB
1.9 MB 1.0 MB |
1900
3200 6000 |
100
100 100 |
 |
Nikon D5200 Digital SLR Camera - 24.1MP (Black)
- 3.0"TFT LCD, Airflow Control System, Live View, AF-Area Mode
- Body Only
- Special Effects that enable you to enjoy various creative expressions in still images and movies by setting prior to shoot. ...
- High-speed, multifunctional and high-performance image-processing engine "EXPEED 3", equivalent to that of the Nikon's flagship model, D4. ...
- Wide sensitivity range of ISO 100 to 6400 (expandable to ISO 25600 equivalent) that delivers sharp images with reduced image blur even in low-lit situations or sports scenes. ...
- High-speed continuous shooting at approx. 5 fps that surely captures decisive moments. ...
- Stereo microphone employed [NEW], Full HD (1920 x 1080) D-Movie with selectable 60i/50i frame rate. ...
- Easy-to-understand and easy-to-operate, new GUI that effectively utilizes graphic processing. [NEW] ...
- Large, easy-to-view, approx. 921k-dot, wide viewing angle (170), 7.5-cm (3-in.) horizontal-opening vari-angle LCD monitor. ...
- Energy-saving design that achieves approx. 500 shots* per charge (with EN-EL14, in single-frame mode). ...
- *Based on CIPA Standards.
- Compatible with the WU-1a Wireless Mobile Adapter (optional) that enables transmission of images to smartphone or tablet PC wirelessly. ...
- Compatible with the WR-R10/WR-T10 Wireless Remote Controllers (optional). Remote control is ensured even if there are obstacles in the way. [NEW] ...
- 16 options of Scene Modes that enable selection of the most appropriate mode according to the shooting scene or subject. ...
- Variety of image-editing functions that allow you to retouch images easily after shooting, such as NEF (RAW) processing, Trim and Fisheye. ...
Precise subject acquisition
Faithfully reproduces the shooting scene as you see it — high-precision Scene Recognition System that analyzes a subject more finely with the 2016-pixel RGB sensor
You can also choose to shoot with 11 focus points for quicker focus-point selection. Additionally, in the viewfinder, it is possible to display grid lines that are effective for rigorous composition.
Four selectable AF-area modes according to the subject in optical viewfinder shooting
The D5200 offers four AF-area modes. You can choose how the focus point for autofocus is selected according to the subject in viewfinder shooting.
Single-point AF mode
Ideal for stationary subjects. You can focus on the subject selecting one of the 39 focus points according to your composition. It is effective to focus on an aimed point in situations such as shooting a flower or portrait.
Selectable when focus mode is set to AF-A or AF-C.
|
9 points
|
Choose when there is time to compose the photograph or when photographing subjects that are moving predictably.
|
|---|---|
|
21 points
|
Choose when photographing subjects that are moving unpredictably.
|
|
39 points
|
Choose when photographing subjects that are moving quickly and cannot be easily framed in the viewfinder.
|
Selectable when focus mode is set to AF-A or AF-C.
- *Based on CIPA Guidelines.
- More information about shooting with the vari-angle monitor
Suitable for a stationary subject
Suitable for a moving subject
Creative expression
More advanced expression by combining creative angle and Special Effects
The D5200's LCD monitor opens horizontally from 0 to 180 and flips up and down from +180 to -90. It allows you to set the monitor at your preferred angle for the creative expression you desire in your composition. You can shoot comfortably from a high or low angle with a stable posture, when it would otherwise be difficult to shoot using the optical viewfinder. Even if shooting from ground level, it is possible to shoot confirming composition. Moreover, the vari-angle LCD monitor helps you to shoot more creative images than ever before in combination with the Special Effects, for both still images and movies.
- More information about Special Effects
Enable you to confirm an effect in real time while shooting and deliver more creative expression Special Effects
The D5200 comes equipped with seven options of Special Effects. It is easy to shoot images applying various effects without using image-editing software. The result of an effect is displayed on the LCD monitor in real time, therefore you can set the effects while checking the appearance of your image. The wide range of effects greatly expands your creative possibilities in combination with the vari-angle LCD monitor for both still images and movies.
Special Effects incorporated in the D5200
Color sketch*, Miniature effect*, Selective color*, Silhouette, Night vision, High key, Low key
- *It is possible to apply these effects to still images after shooting using retouch menus.
Ideal for movies to create a dynamic impression for a commercial or a cinematic effect [Selective color]
- All colors other than the color(s) you want to emphasize are recorded in black and white. Up to three colors are selectable and the color range can be adjusted in values between 1 to 7.
The image can be pop or artistic [Color sketch]
- The camera detects and colors subjects' outlines to create sketch-style images. Vividness of colors and density of outlines are adjustable.
Note: Movies shot in this mode play back like a slide show made up of a series of stills.
Landscape appears as if it is miniature scale model when shooting from a high place [Miniature effect]
- Distant subjects appear as if they are miniature scale models. The position of the focus point remains sharp while the peripheral area is defocused.
Note: Miniature effect movies play back at high speed.
Easy to enjoy super-high sensitivity shooting [Night vision]
- Enables shooting in extremely low-light conditions. Records monochrome (black and white) images.
Renders a woman or child, for example, with a gentle and soft atmosphere [High key]
- Creates beautiful bright images filled with light by intentional overexposure.
Suitable for metallic materials or a portrait of a man with a dignified and somber atmosphere [Low key]
- Creates dark and somber images to emphasize highlights by intentional underexposure.
Creates a dramatic effect on a subject [Silhouette]
- Creates dramatic images with silhouettes of subjects against a bright background.
Shoots the scene beautifully and automatically 16 options of Scene Modes
If you select a mode according to the scene, the D5200 automatically chooses the most appropriate settings to deliver a beautiful image. Five frequently used Scene Modes such as Portrait and Landscape can be directly selected using the mode dial. For other modes such as Sunset, Dusk/dawn and Food, set the mode dial to SCENE and select the mode by rotating the command dial. You can capture scenes which previously had been difficult to shoot, easily and beautifully.
Scene Modes employed on the D5200
Portrait, Landscape, Child, Sports, Close up, Night portrait, Night landscape, Party/indoor, Beach/snow, Sunset, Dusk/dawn, Pet portrait, Candlelight, Blossom, Autumn colors, Food
- Sports
- Close up
- Night landscape
- Party/indoor
- Dusk/dawn
- Food
Customizes colors and tones of your movies and images to your preferences before shooting Picture Control
The D5200 employs six types of Picture Control, selectable according to your subjects and shooting scenes for both still images and movies. Selected Picture Control lets you fine-tune sharpening, contrast, etc. to match your own image creation ideas. Changes can be saved as custom Picture Controls and used with image-browsing/editing software ViewNX 2 (supplied) and image-editing software Capture NX 2 (optional).
Picture Control employed on the D5200
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape
- More information
- Set Picture Control display
- Adjusting display
- Standard
- Standard processing for balanced results. Recommended for most situations.
- Neutral
- Minimal processing for natural results. Choose for photographs that will later be extensively processed or retouched.
- Vivid
- Provides distinct, colorful, fresh-looking images. Choose for situations where you want to emphasize primary colors such as blue, red and green.
- Monochrome
- Gives you monochromatic shadings, such as black-and-white or sepia. You can select filter effects and toning.
- Portrait
- Portrait delivers natural-appearing skin. Natural texture gives the skin of portrait subjects a smoother feel.
- Landscape
- Produces vibrant landscapes and cityscapes. Suitable for any kinds of nature scenes.
Easy in-camera image editing Retouch menus
The D5200 comes equipped with 19 kinds of image-editing functions. These in-camera functions let you retouch images easily. There are a variety of options such as Fisheye that produces effects similar to those obtained with a fisheye lens and Filter effects that achieve images similar to those taken with a filter. Edit movie allows you to delete unwanted parts by choosing the start or end point, or save a selected frame as a JPEG image. In each case, a duplicate image or movie is created, leaving the original securely intact.
Retouch menus employed on the D5200
D-Lighting, Red-eye correction, Trim, Monochrome, Filter effects, Color balance, Image overlay, NEF (RAW) processing, Resize, Quick retouch, Straighten, Distortion control, Fisheye, Color outline, Color sketch*, Perspective control, Miniature effect*, Selective color*, Edit movie
- *It is possible to apply these effects to still images/movies prior to shooting using Special Effects.
- Straighten
- Corrects inclination of the image within a range of 5 (in approx. 0.25 steps).
- Trim
- The desired part of the image can be trimmed and enlarged.
- Fisheye
- Creates images that resemble those taken with a fisheye lens.
Effective for backlit or shaded conditions built-in flash
Even when the subject's face is backlit or, for example, shaded by a hat, you can shoot with appropriate brightness using the built-in flash. The D5200 detects the brightness situation of the subject, pops up* the built-in flash automatically and fires. Using i-TTL flash control that achieves high-precision metering, an optimal amount of light for the scene realizes naturally reproduced images.
- *When shooting mode is set to Auto, Portrait, Child, Close up, Night portrait, Party/indoor, Pet portrait or Color sketch.
Exclusive Nikon software expand your creativity
Your Imaging Toolbox ViewNX 2 (supplied)
This simple and intuitive software helps you get the most out of your images and movies after shooting. ViewNX 2 provides importing and browsing capability while also incorporating image-editing functions such as Resize, Brightness, Crop, Straighten and NEF (RAW) image processing. High-definition and high-quality RAW processing is achieved by utilizing the same processing algorithm as Capture NX 2 that faithfully reproduces Nikon image quality. Its movie-editing functions help you create your own original movies quickly and easily, and Nikon's smart photo sharing and storage service, my Picturetown, works smoothly with ViewNX 2, allowing you to log in directly from the software for easy uploading without activating a browser.
- More information
Quick and simple image-editing software with intuitive operation Capture NX 2 (optional)
Nikon's RAW images (NEF: Nikon Electronic Format) maintain extremely rich data. Only Nikon's Capture NX 2 can fully utilize this data with its optimized file format and software processing algorithms. With the enhanced speed of the algorithms, high-speed processing is achieved. This enables high-speed, stress-free editing even if the data size is large. Also, Capture NX 2 supports 64-bit (native) to realize a comfortable working environment. You can focus on editing with ease because it is possible to leave the original image intact with NEF editing. In addition to the intuitive and simple editing using Color Control Points, it incorporates various functions such as Auto Retouch brush, Batch Processing, Quick Fix, Straighten Tool, Vignette Control, Auto Color Aberration Control and Distortion Control.
- *Compared with conventional versions, under test conditions established by Nikon.
Note: For further details of the latest version or operating environment, please visit Nikon's website.
- More information
D-Movie
Reproduces even fast-moving scenes beautifully D-Movie compatible with 1920 x 1080 60i/50i
The D5200 allows you to record movie with sharpness, clarity and fluid motion easily. Utilizing the newly developed Nikon DX-format CMOS sensor and EXPEED 3, which is equivalent to that of higher models, the D5200 deliver movies with reduced noise, jaggies and moir. It renders various fast-moving scenes naturally, such as galloping horses, the splashing of water or the view from a moving car. The D5200 also employs subject-tracking AF that tracks and maintains focusing on a moving subject and face-priority AF that is optimal for portrait shooting. The movie-record button is located next to the shutter-release button. You can start/stop movie recording as if shooting still images while holding the camera stably and camera shake that may occur during operation is minimized. If you want to shoot according to your creative intention, it is possible to set the shutter speed and ISO sensitivity manually* (in mode M). In combination with unique shooting angles using the vari-angle LCD monitor and NIKKOR lenses that feature high resolution, you can enjoy advanced, creative movie recording by making clips, short films or video projects combining stills and video.
The D5200 also employs a variety of movie-editing features that can be accomplished easily inside the camera and without the need for a computer. It is possible to delete unwanted parts by choosing the start and end point in single frame units, and save a selected frame as a JPEG image with the same image size as that of the selected movie frame.
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
Note: The video shown here was taken in 1920 x 1080 60i, then converted to Flash Video format for ease of handling. Image quality varies from the original.
- *Selectable shutter speed varies according to the frame rate of the movie. ISO sensitivity can be set to values between ISO 100 to 6400 or Hi 0.3 to Hi 2.
Sample movies utilizing the Special Effects of the D5200
- Selective color
- Lens: AF-S DX NIKKOR 18-55mm f/3.5-5.6G VR
- Low key
- Lens: AF-S DX NIKKOR 18-105mm f/3.5-5.6G ED VR
Note: The video shown here was taken using the D-Movie function, then converted to Flash Video format for ease of handling. Image quality varies from the original.
Built-in stereo microphone that enables you to record rich, high-quality sound [NEW]
The D5200's built-in stereo microphone lets you enjoy recording rich, high-quality sound. The sensitivity level can be adjusted, choosing from auto and manual (1 to 20 steps) according to the shooting situation. Select low level (smaller value) for scenes in louder environments, such as a concert hall; high level (large value) for quieter environments, with more delicate ambient sounds, such as a murmuring stream.
ME-1 Stereo Microphone (optional) compatible
In addition to the built-in microphone, the D5200 lets you record stereo sound with the optional ME-1 Stereo Microphone. Using the ME-1 Stereo Microphone reduces noise caused by lens vibration recorded during autofocus shooting. You can select the microphone sensitivity setting in the same way as with the built-in stereo microphone.
Specifications
|
Frame size (pixels)
|
Frame rate*1
|
Maximum bit rate
(high quality/Normal) |
Maximum length
(high quality/Normal)*4 |
|---|---|---|---|
|
1920 x 1080
|
60i*2
|
24 Mbps/12 Mbps
|
20 min./29 min. 59 s
|
|
50i*2
|
|||
|
30p*2
|
|||
|
25p*3
|
|||
|
24p
|
|||
|
1280 x 720
|
60p*2
|
||
|
50p*2
|
|||
|
640 x 424
|
30p*2
|
8 Mbps/5 Mbps
|
29 min. 59 s/29 min. 59 s
|
|
25p*3
|
- *1Listed value. Actual frame rates for 60p, 50p, 30p, 25p, and 24p are 59.94, 50, 29.97, 25, and 23.976 fps respectively.
- *2Available when NTSC is selected for Video mode.
- *3Available when PAL is selected for Video mode.
- *4Movies recorded in miniature effect mode are up to three minutes long when played back.
Enables playback of still images and movies on High-Definition TV HDMI supported
The D5200 supports HDMI (High-Definition Multimedia Interface) that allows you to play back still images and movies with High-Definition TV*1. HDMI mini connector is employed as the interface. Also, the D5200 is compatible with HDMI-CEC (Consumer Electric Control) that enables remote operation of the camera using a TV remote control*2.
- *1Requires optional commercially available HDMI connection cable (Type C) for playback.
- *2Remote control of HDMI-CEC supported TV.
Ease of use
Compact and lightweight body with three color variations and enhanced holding
The D5200's compact and lightweight body of approx. 505 g (1 lb 1.8 oz)* is easy to carry around. A sub-grip is newly employed on the lower left of the front of the camera to improve holding in combination with the thumb pad on the upper right of the rear of the camera. You can shoot sharp images using 24.1 effective megapixels, without blur caused by camera shake. The color of the body can be chosen from black, red and bronze.
- *Body only.
- Dimensions (W x H x D): approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
Weight: approx. 555 g/1 lb 3.6 oz (including battery, SD memory card, excluding body cap), approx. 505 g/1 lb 1.8 oz (body only)
Selectable body colors
- Black
- Red
- Bronze
Sub-grip and thumb pad improve holding
- Front
- Rear
Easier and more intuitive to operate newly designed GUI
The D5200 incorporates an easier and more fluid new GUI, utilizing graphic-processing performance enhanced by EXPEED 3. For the info display design, you can choose from two options Classic or Graphic. Background color can be selected from black, blue and brown. A new design is also employed for each setting display.
In optical viewfinder shooting
-Classic
- Black
- Blue
- Brown
-Graphic
- Black
- Blue
- Brown
In live view shooting
-Graphic
Information edit button
Pressing the information edit button when shooting information is displayed gives you direct access to the menu of the setting you would like to adjust.
- Information edit button
In optical viewfinder shooting
- Info display
- Setting menu display
In live view shooting
- Info display
- Setting menu display
WU-1a Wireless Mobile Adapter (optional) that enables wireless transmission of images to a smart device, and remote shooting
By attaching the optional WU-1a Wireless Mobile Adapter to the D5200's USB connector, two-way communication between the camera and a smart device such as a smartphone or tablet computer with Wi-Fi communication function is possible. With the remote shooting function that enables release of the shutter from a distance, you can use your smart device as a remote live view monitor, to confirm the best angle and shoot. Images can be transmitted wirelessly and you can easily upload them to SNS or attach them to a mail. The WU-1a is compatible with smart devices using the iOS or Android.
Note: This function requires installing of Wireless Mobile Adapter Utility to the smart device prior to use.
Wireless Mobile Adapter Utility
Wireless Mobile Adapter Utility is software enabling download of images from a camera to a smart device or operation of a camera from a smart device for taking an image by attaching the WU-1a Wireless Mobile Adapter.
Note: Can be downloaded from the application store of each smart device (free).
Comfortable remote control without worrying about obstacles in the way
WR-R10/WR-T10 Wireless Remote Controllers (optional) that achieve multiple camera control [NEW]
WR-R10/WR-T10 Wireless Remote Controllers expand the flexibility of remote control. Unlike remote controls using infrared light, it is possible to release the shutter even if there are obstacles such as a tree in the way. The communication distance for a combination of the WR-R10 with WR-T10 is approx. 20 m (66 ft). You can control a single or multiple cameras with the WR-R10 attached using the WR-T10 as a transmitter*. With the WR-R10/WR-T10, you can enjoy a variety of shooting, such as attaching different lenses to the cameras, changing angles for each camera, or shooting still images and movies simultaneously by switching channels.
- *WR-T10 and WR-R10(s) have to be set to the same channel and paired in advance to achieve simultaneous release. (For further information, please refer to the user's manual of the WR-R10/WR-T10.)
- Comfortable remote shooting is assured even if there are people or objects between the remote controller and camera.
Examples of use
Controlling multiple cameras with one WR-T10 (Simultaneous release)
- The shutters on all cameras can be released simultaneously by pressing the WR-T10's shutter-release button all the way down.
Specifications of the WR-R10/WR-T10
|
|
WR-R10
|
WR-T10
|
|---|---|---|
|
Product images
|
 |
 |
|
Compatible cameras
|
D4*1, D3 series*1, D800 series*1, D700*1, D600, D300 series*1, D7000, D5200, D5100, D3200, D3100, etc., D-SLR cameras that employ a ten-pin remote terminal*1 or accessory terminal
|
-
|
|
Channels
|
5 (2.425 GHz), 10 (2.450 GHz), 15 (2.475 GHz)
|
|
|
Range (line of sight)
|
Approx. 50 m (164 ft) at height of about 1.2 m (4 ft) between WR-R10s*2
|
Approx. 20 m (66 ft) at height of about 1.2 m (4 ft) from WR-T10 to WR-R10
|
|
Pairing
|
Unlimited
|
|
|
Controllable functions
|
Live view*3, movie*3, continuous shooting, shutter-release button (half/full pressing available), possible to activate a function assigned to an Fn button*4
|
|
- *1Requires WR-A10 WR adapter. Cameras other than the D4 or D800 series that employ a ten-pin remote terminal, including F-SLRs, are capable of using the controller for half/full pressing of the shutter-release button only (except D1, D1H, D1X, D100 [+MB-D100])
- *2Only available when master D-SLR camera employs a ten-pin remote terminal.
- *3Available only with the D4, D800 series, D600, D5200 and D3200.
- *4Available only with the D4, D800 series and D5200.
Note: Depending on the camera, there may be a limitation to the accessories that can be attached simultaneously with the WR-R10 Wireless Remote Controller. Attempting to forcibly attach accessories can damage the camera or accessory.
Versatile playback functions
The D5200 gives you a variety of playback display options that take advantage of the large 7.5-cm (3-in.) monitor. The number of images displayed at one time can be selected from 1, 4, 9 and 72, and calendar display arranges images in chronological order. You can also display histograms of a magnified area of an image and check the focus using playback zoom of face.
- 72-thumbnail display
- Calendar display
- Histogram display for magnified area
- Playback zoom of face
Transmits taken images from the camera to a computer wirelessly to expand your photographic creativity Eye-Fi card (on the market) compatible
The D5200 can transmit taken image data (JPEG) from the camera to a computer wirelessly. You can also transmit images to online photo sharing and storage services such as "my Picturetown" and a computer automatically.
- More information
Note: The D5200 can turn Eye-Fi cards on and off, but may not support other Eye-Fi functions. Direct any inquiries to the manufacturer. Eye-Fi cards are for use only in the country of purchase (As of October, 2012). Observe all local laws concerning the use of wireless devices.
Embeds location information on an image GP-1 GPS Unit (optional)
The D5200 is compatible with the Nikon GP-1 GPS Unit that is able to embed location information on an image. Latitude, longitude and altitude of a shooting location are recorded as Exif data. Images with location information can be displayed on a GeoTag workspace of ViewNX 2 (supplied with the D5200). What's more, Nikon's image sharing and storage website my Picturetown, online image sharing services and commercially available digital mapping software are all there to enhance your photographic enjoyment.
- More information
High-capacity (SDXC), high-speed (UHS-I) SD memory card compatible
The D5200 supports SDXC (Secure Digital eXtended Capacity) and UHS-I. Combined with the enhanced speed of the image-processing engine EXPEED 3, it processes and writes image data of 24.1 megapixels at high speed. In high-speed continuous shooting, this allows the shooting of 100 frames in JPEG (fine/Medium)*.
- *With an 8 GB SanDisk Extreme Pro SDHC UHS-I card (SDSDXPA-008G). Results will vary with card type, camera settings, and scene recorded. The maximum number of exposures that can be stored in memory buffer at ISO 100; number drops when long-exposure noise reduction or auto distortion control is on.
Long-life battery due to energy-saving design EN-EL14 Rechargeable Li-ion Battery
The D5200's superior energy-saving design allows you to shoot approx. 500 shots per charge* with the EN-EL14 Rechargeable Li-ion Battery.
- *Based on CIPA Standards.
- EN-EL14 Rechargeable Li-ion Battery (supplied)
Nikon's photo sharing and storage service my Picturetown
Nikon's own image-sharing website, my Picturetown, allows you to easily store, manage and share your images with your family and friends, and post to social networking services (SNS). Membership is free and permits storage of up to 2 GB of photos and/or movies. And with an additional paid registration, you can expand your capacity to 200 GB*. Also, utilizing free applications compatible with a smart device, you can enjoy images using a PC or a smart device anytime, anywhere.
Nikon Digital SLR Camera D5200 Specifications
|
Type
|
|
|---|---|
|
Type
|
Single-lens reflex digital camera
|
|
Lens mount
|
Nikon F mount (with AF contacts)
|
|
Effective angle of view
|
Nikon DX format; focal length equivalent to approx. 1.5x that of lenses with FX-format angle of view
|
|
Effective pixels
|
|
|
Effective pixels
|
24.1 million
|
|
Image sensor
|
|
|
Image sensor
|
23.5 x 15.6 mm CMOS sensor
|
|
Total pixels
|
24.71 million
|
|
Dust-reduction system
|
Image sensor cleaning, Airflow Control System, Image Dust Off reference data (optional Capture NX 2 software required)
|
|
Storage
|
|
|
Image size (pixels)
|
|
|
File format
|
|
|
Picture Control System
|
Standard, Neutral, Vivid, Monochrome, Portrait, Landscape; selected Picture Control can be modified; storage for custom Picture Controls
|
|
Media
|
SD (Secure Digital) and UHS-I compliant SDHC and SDXC memory cards
|
|
File system
|
DCF (Design Rule for Camera File System) 2.0, DPOF (Digital Print Order Format), Exif (Exchangeable Image File Format for Digital Still Cameras) 2.3, PictBridge
|
|
Viewfinder
|
|
|
Viewfinder
|
Eye-level pentamirror single-lens reflex viewfinder
|
|
Frame coverage
|
Approx. 95% horizontal and 95% vertical
|
|
Magnification
|
Approx. 0.78x (50 mm f/1.4 lens at infinity, -1.0 m-1)
|
|
Eyepoint
|
17.9 mm (-1.0 m-1; from center surface of viewfinder eyepiece lens)
|
|
Diopter adjustment
|
-1.7 to +0.7 m-1
|
|
Focusing screen
|
Type B BriteView Clear Matte Mark VII screen
|
|
Reflex mirror
|
Quick return
|
|
Lens aperture
|
Instant return, electronically controlled
|
|
Lens
|
|
|
Compatible lenses
|
Autofocus is available with AF-S and AF-I lenses; autofocus is not available with other type G and D lenses, AF lenses (IX NIKKOR and lenses for the F3AF are not supported), and AI-P lenses; non-CPU lenses can be used in mode
 , but the camera exposure meter will not functionThe electronic rangefinder can be used with lenses that have a maximum aperture of f/5.6 or faster |
|
Shutter
|
|
|
Type
|
Electronically controlled vertical-travel focal-plane shutter
|
|
Speed
|
1/4000 to 30 s in steps of 1/3 or 1/2 EV, bulb, time (requires optional ML-L3 Remote Control)
|
|
Flash sync speed
|
X=1/200 s; synchronizes with shutter at 1/200 s or slower
|
|
Release
|
|
|
Release modes
|
 (single frame),  (continuous low speed),  (continuous high speed),  (self-timer),  (delayed remote; ML-L3),  (quick-response remote; ML-L3),  (quiet shutter release); interval timer photography supported |
|
Frame advance rate
|
Up to 3 fps (
) or 5 fps () |
|
Self-timer
|
2 s, 5 s, 10 s, 20 s; 1 to 9 exposures
|
|
Exposure
|
|
|
Metering mode
|
TTL exposure metering using 2016-pixel RGB sensor
|
|
Metering method
|
|
|
Range
(ISO 100, f/1.4 lens, 20C/68F) |
|
|
Exposure meter coupling
|
CPU
|
|
Exposure modes
|
Auto modes (
 auto;  auto [flash off]); programmed auto with flexible program ( ); shutter-priority auto ( ); aperture-priority auto ( ); manual (); scene modes ( portrait;  landscape;  child;  sports;  close up;  night portrait;  night landscape;  party/indoor;  beach/snow;  sunset;  dusk/dawn;  pet portrait;  candlelight;  blossom;  autumn colors;  food); special effects modes ( night vision;  color sketch;  miniature effect;  selective color;  silhouette;  high key;  low key) |
|
Exposure compensation
|
Can be adjusted by -5 to +5 EV in increments of 1/3 or 1/2 EV in
, , and modes |
|
Exposure bracketing
|
3 shots in steps of 1/3 or 1/2 EV
|
|
Exposure lock
|
Luminosity locked at detected value with
 (  ) button |
|
ISO sensitivity
(Recommended Exposure Index) |
ISO 100 to 6400 in steps of 1/3 EV; can also be set to approx. 0.3, 0.7, 1 or 2 EV (ISO 25600 equivalent) above ISO 6400; auto ISO sensitivity control available
|
|
Active D-Lighting
|
Auto, extra high, high, normal, low, off
|
|
ADL bracketing
|
2 shots
|
|
Focus
|
|
|
Autofocus
|
Nikon Multi-CAM 4800DX autofocus sensor module with TTL phase detection, 39 focus points (including 9 cross-type sensors), and AF-assist illuminator (range approx. 0.5 to 3 m/1 ft 8 in. to 9 ft 10 in.)
|
|
Detection range
|
-1 to +19 EV (ISO 100, 20C/68F)
|
|
Lens servo
|
|
|
Focus point
|
Can be selected from 39 or 11 focus points
|
|
AF-area modes
|
Single-point AF, 9-, 21- or 39-point dynamic-area AF, 3D-tracking, auto-area AF
|
|
Focus lock
|
Focus can be locked by pressing shutter-release button halfway (single-servo AF) or by pressing
( ) button |
|
Flash
|
|
|
Built-in flash
|
, , , , , , , : Auto flash with auto pop-up , , , , : Manual pop-up with button release |
|
Guide number
|
Approx. 12/39, 13/43 with manual flash (m/ft, ISO 100, 20C/68F)
|
|
Flash control
|
TTL: i-TTL flash control using 2016-pixel RGB sensor is available with built-in flash and SB-910, SB-900, SB-800, SB-700, SB-600 or SB-400; i-TTL balanced fill-flash for digital SLR is used with matrix and center-weighted metering, standard i-TTL flash for digital SLR with spot metering
|
|
Flash modes
|
Auto, auto with red-eye reduction, auto slow sync, auto slow sync with red-eye reduction, fill-flash, red-eye reduction, slow sync, slow sync with red-eye reduction, rear-curtain with slow sync, rear-curtain sync, off
|
|
Flash compensation
|
-3 to +1 EV in increments of 1/3 or 1/2 EV
|
|
Flash-ready indicator
|
Lights when built-in flash or optional flash unit is fully charged; flashes after flash is fired at full output
|
|
Accessory shoe
|
ISO 518 hot-shoe with sync and data contacts and safety lock
|
|
Nikon Creative Lighting
System (CLS) |
Advanced Wireless Lighting supported with SB-910, SB-900, SB-800 or SB-700 as a master flash or SU-800 as commander; Flash Color Information Communication supported with all CLS-compatible flash units
|
|
Sync terminal
|
AS-15 Sync Terminal Adapter (available separately)
|
|
White balance
|
|
|
White balance
|
Auto, incandescent, fluorescent (7 types), direct sunlight, flash, cloudy, shade, preset manual, all except preset manual with fine-tuning
|
|
White balance bracketing
|
3 shots in steps of 1
|
|
Live View
|
|
|
Lens servo
|
|
|
AF-area modes
|
Face-priority AF, wide-area AF, normal-area AF, subject-tracking AF
|
|
Autofocus
|
Contrast-detect AF anywhere in frame (camera selects focus point automatically when face-priority AF or subject-tracking AF is selected)
|
|
Automatic scene selection
|
Available in
and modes |
|
Movie
|
|
|
Metering
|
TTL exposure metering using main image sensor
|
|
Metering method
|
Matrix
|
|
Frame size (pixels)
and frame rate |
|
|
File format
|
MOV
|
|
Video compression
|
H.264/MPEG-4 Advanced Video Coding
|
|
Audio recording format
|
Linear PCM
|
|
Audio recording device
|
Built-in monaural or external stereo microphone; sensitivity adjustable
|
|
Maximum length
|
29 min. 59 s (3 min. in miniature effect mode)
|
|
ISO sensitivity
|
ISO 100 to 6400; can also be set to approx. 0.3, 0.7, 1, or 2 EV (ISO 25600 equivalent) above ISO 6400
|
|
Monitor
|
|
|
Monitor
|
7.5-cm (3-in.), approx. 921k-dot (VGA), vari-angle TFT monitor with 170 viewing angle, approx. 100% frame coverage, and brightness adjustment
|
|
Playback
|
|
|
Playback
|
Full-frame and thumbnail (4, 9, or 72 images or calendar) playback with playback zoom, movie playback, photo and/or movie slide shows, histogram display, highlights, auto image rotation, and image comment (up to 36 characters)
|
|
Interface
|
|
|
USB
|
Hi-Speed USB
|
|
Video output
|
NTSC, PAL
|
|
HDMI output
|
Type C mini-pin HDMI connector
|
|
Accessory terminal
|
Wireless remote controller: WR-R10 (available separately)
Remote cord: MC-DC2 (available separately) GPS unit: GP-1 (available separately) |
|
Audio input
|
Stereo mini-pin jack (3.5-mm diameter)
|
|
Supported languages
|
|
|
Supported languages
|
Arabic, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal and Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish, Ukrainian
|
|
Power source
|
|
|
Battery
|
One EN-EL14 Rechargeable Li-ion Battery
|
|
AC adapter
|
EH-5b AC Adapter; requires EP-5A Power Connector (available separately)
|
|
Tripod socket
|
|
|
Tripod socket
|
1/4 in. (ISO 1222)
|
|
Dimensions / weight
|
|
|
Dimensions
(W x H x D) |
Approx. 129 x 98 x 78 mm/5.1 x 3.9 x 3.1 in.
|
|
Weight
|
Approx. 555 g/1 lb 3.6 oz with battery and memory card but without body cap; approx. 505 g/1 lb 1.8 oz (camera body only)
|
|
Operating environment
|
|
|
Temperature
|
0 to 40C/32 to 104F
|
|
humidity
|
85% or less (no condensation)
|
|
Accessories
|
|
|
Supplied accessories
(may differ by country or area) |
EN-EL14 Rechargeable Li-ion Battery, MH-24 Battery Charger, DK-5 Eyepiece Cap, DK-20 Rubber Eyecup, UC-E17 USB Cable, EG-CP16 Audio Video Cable, AN-DC3 Camera Strap, BF-1B Body Cap, BS-1 Accessory Shoe Cover, ViewNX 2 CD-ROM
|
- The SD, SDHC and SDXC logos are trademark of the SD Card Association.
- PictBridge is a trademark.
- HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.
- Google and Android are registered trademarks or trademarks of Google Inc.
- Products and brand names are trademarks or registered trademarks of their respective companies.
- Images in viewfinders, on LCDs and monitors shown in this site are simulated.
Memory card capacity
The following table shows the approximate number of pictures that can be stored on an 8 GB SanDisk Extreme Pro SDHC UHS-I card at different image quality and size settings.
|
Image quality
|
Image size
|
File size*1
|
No. of images*1
|
Buffer capacity*2
|
|---|---|---|---|---|
|
NEF (RAW) + JPEG fine*3
|
Large
Medium Small |
37.0 MB
32.2 MB 28.5 MB |
152
173 192 |
6
6 6 |
|
NEF (RAW) + JPEG normal*3
|
Large
Medium Small |
30.9 MB
28.4 MB 26.5 MB |
178
192 203 |
6
6 6 |
|
NEF (RAW) + JPEG basic*3
|
Large
Medium Small |
27.7 MB
26.6 MB 25.6 MB |
196
204 210 |
6
6 6 |
|
NEF (RAW)
|
-
|
24.6 MB
|
217
|
8
|
|
JPEG fine
|
Large
Medium Small |
12.2 MB
7.4 MB 3.8 MB |
507
853 1600 |
35
100 100 |
|
JPEG normal
|
Large
Medium Small |
6.2 MB
3.7 MB 1.9 MB |
1000
1600 3200 |
100
100 100 |
|
JPEG basic
|
Large
Medium Small |
3.0 MB
1.9 MB 1.0 MB |
1900
3200 6000 |
100
100 100 |
- *1All figures are approximate. Results will vary with card type, camera settings, and scene recorded.
- *2Maximum number of exposures that can be stored in memory buffer at ISO 100. Drops when long exposure noise reduction or auto distortion control is on.
- *3Image size applies to JPEG images only. Size of NEF (RAW) images cannot be changed. File size is the total for NEF (RAW) and JPEG images.
Approved memory cards
The following SD memory cards have been tested and approved for use in the D5200. Cards with class 6 or faster write speeds are recommended for movie recording. Recording may end unexpectedly when cards with slower write speeds are used.
|
|
SD memory cards
|
SDHC memory cards*2
|
SDXC memory cards*3
|
|
|---|---|---|---|---|
|
SanDisk
|
2GB*1
|
4 GB, 8 GB, 16 GB, 32 GB
|
64 GB
|
|
|
Toshiba
|
||||
|
Panasonic
|
4 GB, 6 GB, 8 GB, 12 GB,
16 GB, 24 GB, 32 GB |
48 GB, 64 GB
|
||
|
Lexar Media
|
4 GB, 8 GB, 16 GB, 32 GB
|
-
|
||
|
Platinum II
|
||||
|
Professional
|
64 GB, 128 GB
|
|||
|
Full-HD Video
|
-
|
4 GB, 8 GB, 16 GB
|
-
|
|
 |
Nikon VHS00901 Shoulder Strap From Woven Fabric with Embroidered Nikon Logo
Strap AN-DC4
 |
Nikon AU00263 Premium Nikon Branded DSLR Slim
Nikon Premium Nikon branded DSLR slim
 |
Nikon Coolpix S3200 Digital Camera - Red
- 16.0MP, 6x Optical Zoom, 4.6-27.6mm (Angle Of View Equivalent To That Of 26-156mm Lens In 35mm [135] Format), 2.7" LCD, Image Stabilization, HD720p Movies
16.0
Megapixel CCD Sensor
6x
Wide-Angle Optical Zoom-NIKKOR Glass Lens
2.7"
LCD Monitor
720p
HD 720p Movies with Sound
Versatile 6x optical Zoom-NIKKOR glass lens
Composition matters, and the COOLPIX S3200 makes it easy to compose beautiful photos and HD movies. Its 6x optical Zoom-NIKKOR glass lens goes from wide-angle to telephoto with ease. Zoom all the way out to show your friend in action, then zoom in for a dramatic close-up. Plus, the COOLPIX S3200 includes electronic Vibration Reduction (VR) image stabilization, which minimizes the effects of camera shake for sharper, clearer images.
Slim, stylish and easy to use
Great performance in a no-fuss package
HD (720p) movie recording at the touch of a button
-
TypeCompact Digital Camera
-
Effective Pixels16 million
-
Image SensorCCD
-
Sensor Size1/ 2.3 in.
-
Total Pixels16.44 million (approx.)
-
Lens6x optical Zoom-NIKKOR glass lens
-
Lens Focal Length4.6-27.6 mm (angle of view equivalent to that of 26-156 mm lens in 35mm [135] format)
-
Lens f/-numberf/3.5-6.5
-
Lens Construction5 elements in 5 groups
-
Lens Zoom6x
-
Digital ZoomUp to 4x (angle of view equivalent to that of approx. 624mm lens in 35mm [135] format)
-
Vibration ReductionElectronic VR
-
Autofocus (AF)Contrast-detect TTL AF
-
Autofocus (AF) Focus-area selectionAuto (9-area automatic selection)
Center
Face priority
Manual with 99 focus areas
Subject tracking -
Focus Range[W]: Approx. 1 ft. 8 in. (50 cm.) to infinity
[T]: Approx. 3 ft. 4 in. (1 m.) to infinity
Macro close-up mode: [W]: Approx. 2.0 in. (5 cm.) to infinity -
Focus LockYes
-
Maximum Autofocus Areas/Points99
-
Monitor Size2.7 in. diagonal
-
Monitor TypeTFT-LCD with Anti-reflection coating
5-level brightness adjustment -
Monitor Resolution230,000-dots
-
Monitor Frame coverage (shooting mode)97% horizontal (Approx.)
97% vertical (Approx.) -
Monitor Frame coverage (playback mode)100% horizontal (Approx.)
-
Storage MediaSD memory card
SDHC memory card
SDXC memory card -
Internal MemoryApprox. 42MB
-
Storage File SystemDCF
EXIF 2.3
DPOF compliant -
Storage File formatsStill pictures: JPEG
Audio files: WAV
Movies: AVI (Motion-JPEG compliant) -
MovieHD: 1280x720p / 30fps
Small Size: 320x240 / 30fps
Standard TV: 640x480 / 30fps -
Voice Memo FunctionYes
-
Image Size (pixels)4608 x 3456 (16M)
-
ISO SensitivityISO 80 -3200
Auto (auto gain ISO 80-1600)
Fixed range auto (ISO 80-400, ISO 100-800) -
Lowest ISO Sensitivity80
-
Highest ISO Sensitivity3200
-
Exposure Metering256-segment matrix, center-weighted
-
Exposure ControlProgrammed auto exposure (shutter speed, ND filter selection and ISO sensitivity)
Flexible program with motion detection -
Exposure ModesProgrammed Auto
-
Scene ModesBack Light
Beach
Close Up
Copy
Dusk/Dawn
Fireworks Show
Food
Landscape
Museum
Night Landscape
Night Portrait
Panorama Assist
Party/Indoor
Pet Portrait
Portrait
Scene Auto Selector
Snow
Sports
Sunset -
In-Camera Image EditingCrop
D-Lighting
Filter Effects
Glamour Retouch
Rotate image
Skin softening
Small Picture -
Exposure Compensation2 EV in steps of 1/3
-
White BalanceAuto
Cloudy
Daylight
Flash
Fluorescent
Incandescent
Manual -
ShutterMechanical and image sensor electronic shutter
-
Shutter Speed1/2000-1 sec. (when ISO sensitivity set to Auto)
4 sec. (when scene mode is set to Fireworks show) -
Top Continuous Shooting Speed at full resolutionUp to 6 shots at approx. 1.3 frames per second
-
Continuous Shooting OptionsBest Shot Selector
Continuous
Multi-shot 16
Single -
ApertureElectronically-controlled ND filter (-3.3 AV) selection
-
Self-timerCan be selected from 10 or 2 seconds duration
-
Built-in flash Range (approx.) (ISO sensitivity: Auto)[W]: 0.5 to 4.5m (1ft 8in. to 14ft.)
[T]: 0.5 to 2.4m (1ft. 8in. to 7ft. 10in.) -
Built-in Flash ControlTTL auto flash with monitor preflashes
-
Built-in FlashYes
-
InterfaceHi-speed USB
-
Interface Data transfer protocolMTP
PTP -
Video OutputNTSC
PAL -
I/O terminalAudio/video (A/V) output
Digital I/O (USB) -
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portugese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukranian
Vietnamese -
Power SourcesOne Rechargeable Li-ion Battery EN-EL19 (supplied)
-
Charging Time2 hours and 30 minutes (when using Charging AC Adapter EH-69P and when no charge remains) (Approx.)
-
Battery / BatteriesRechargeable Li-ion Battery EN-EL19
-
Battery Life (shots per charge)Still pictures*: Approx. 210 shots
*Based on Camera and Imaging Products Association (CIPA) standards for measuring the life of camera batteries. Measured at 23(-/+2)C (73(-/+4)F); zoom adjusted with each shot, flash fired with every other shot, image quality set to Normal, image size set to 4608 x 3456 (16M). Battery life may vary depending on shooting interval and length of time menus and images are displayed. -
Tripod Socketin.
-
Approx. DimensionsHeight: 2.3in. (57.8mm)
Width: 3.8in. (94.8mm)
Depth: 0.8in. (19.5mm)Excluding projections. Method of noting dimensions and weight is in accordance with CIPA DCG-005-2009 guideline. -
Approx. Weight4.6 oz. (128g)With battery and SD memory card. Method of noting dimensions and weight is in accordance with CIPA DCG-005-2009 guideline.
-
Supplied Accessories
- AN-CP19 Strap
- UC-E6 USB Cable
- EG-CP14 Audio Video Cable
- EN-EL19 Rechargeable Li-ion Battery
- EH-69P AC Adapter/Charger
- NikonView NX 2 CD-ROM
 |
Nikon Coolpix S3200 Digital Camera - Blue
- 16.0MP, 6x Optical Zoom, 4.6-27.6mm (Angle Of View Equivalent To That Of 26-156mm Lens In 35mm [135] Format), 2.7" LCD, Image Stabilization, HD720p Movies
16.0
Megapixel CCD Sensor
6x
Wide-Angle Optical Zoom-NIKKOR Glass Lens
2.7"
LCD Monitor
720p
HD 720p Movies with Sound
Versatile 6x optical Zoom-NIKKOR glass lens
Composition matters, and the COOLPIX S3200 makes it easy to compose beautiful photos and HD movies. Its 6x optical Zoom-NIKKOR glass lens goes from wide-angle to telephoto with ease. Zoom all the way out to show your friend in action, then zoom in for a dramatic close-up. Plus, the COOLPIX S3200 includes electronic Vibration Reduction (VR) image stabilization, which minimizes the effects of camera shake for sharper, clearer images.
Slim, stylish and easy to use
Great performance in a no-fuss package
HD (720p) movie recording at the touch of a button
-
TypeCompact Digital Camera
-
Effective Pixels16 million
-
Image SensorCCD
-
Sensor Size1/ 2.3 in.
-
Total Pixels16.44 million (approx.)
-
Lens6x optical Zoom-NIKKOR glass lens
-
Lens Focal Length4.6-27.6 mm (angle of view equivalent to that of 26-156 mm lens in 35mm [135] format)
-
Lens f/-numberf/3.5-6.5
-
Lens Construction5 elements in 5 groups
-
Lens Zoom6x
-
Digital ZoomUp to 4x (angle of view equivalent to that of approx. 624mm lens in 35mm [135] format)
-
Vibration ReductionElectronic VR
-
Autofocus (AF)Contrast-detect TTL AF
-
Autofocus (AF) Focus-area selectionAuto (9-area automatic selection)
Center
Face priority
Manual with 99 focus areas
Subject tracking -
Focus Range[W]: Approx. 1 ft. 8 in. (50 cm.) to infinity
[T]: Approx. 3 ft. 4 in. (1 m.) to infinity
Macro close-up mode: [W]: Approx. 2.0 in. (5 cm.) to infinity -
Focus LockYes
-
Maximum Autofocus Areas/Points99
-
Monitor Size2.7 in. diagonal
-
Monitor TypeTFT-LCD with Anti-reflection coating
5-level brightness adjustment -
Monitor Resolution230,000-dots
-
Monitor Frame coverage (shooting mode)97% horizontal (Approx.)
97% vertical (Approx.) -
Monitor Frame coverage (playback mode)100% horizontal (Approx.)
-
Storage MediaSD memory card
SDHC memory card
SDXC memory card -
Internal MemoryApprox. 42MB
-
Storage File SystemDCF
EXIF 2.3
DPOF compliant -
Storage File formatsStill pictures: JPEG
Audio files: WAV
Movies: AVI (Motion-JPEG compliant) -
MovieHD: 1280x720p / 30fps
Small Size: 320x240 / 30fps
Standard TV: 640x480 / 30fps -
Voice Memo FunctionYes
-
Image Size (pixels)4608 x 3456 (16M)
-
ISO SensitivityISO 80 -3200
Auto (auto gain ISO 80-1600)
Fixed range auto (ISO 80-400, ISO 100-800) -
Lowest ISO Sensitivity80
-
Highest ISO Sensitivity3200
-
Exposure Metering256-segment matrix, center-weighted
-
Exposure ControlProgrammed auto exposure (shutter speed, ND filter selection and ISO sensitivity)
Flexible program with motion detection -
Exposure ModesProgrammed Auto
-
Scene ModesBack Light
Beach
Close Up
Copy
Dusk/Dawn
Fireworks Show
Food
Landscape
Museum
Night Landscape
Night Portrait
Panorama Assist
Party/Indoor
Pet Portrait
Portrait
Scene Auto Selector
Snow
Sports
Sunset -
In-Camera Image EditingCrop
D-Lighting
Filter Effects
Glamour Retouch
Rotate image
Skin softening
Small Picture -
Exposure Compensation2 EV in steps of 1/3
-
White BalanceAuto
Cloudy
Daylight
Flash
Fluorescent
Incandescent
Manual -
ShutterMechanical and image sensor electronic shutter
-
Shutter Speed1/2000-1 sec. (when ISO sensitivity set to Auto)
4 sec. (when scene mode is set to Fireworks show) -
Top Continuous Shooting Speed at full resolutionUp to 6 shots at approx. 1.3 frames per second
-
Continuous Shooting OptionsBest Shot Selector
Continuous
Multi-shot 16
Single -
ApertureElectronically-controlled ND filter (-3.3 AV) selection
-
Self-timerCan be selected from 10 or 2 seconds duration
-
Built-in flash Range (approx.) (ISO sensitivity: Auto)[W]: 0.5 to 4.5m (1ft 8in. to 14ft.)
[T]: 0.5 to 2.4m (1ft. 8in. to 7ft. 10in.) -
Built-in Flash ControlTTL auto flash with monitor preflashes
-
Built-in FlashYes
-
InterfaceHi-speed USB
-
Interface Data transfer protocolMTP
PTP -
Video OutputNTSC
PAL -
I/O terminalAudio/video (A/V) output
Digital I/O (USB) -
Supported LanguagesArabic
Brazilian Portuguese
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Greek
Hindi
Hungarian
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portugese
Romanian
Russian
Spanish
Swedish
Thai
Turkish
Ukranian
Vietnamese -
Power SourcesOne Rechargeable Li-ion Battery EN-EL19 (supplied)
-
Charging Time2 hours and 30 minutes (when using Charging AC Adapter EH-69P and when no charge remains) (Approx.)
-
Battery / BatteriesRechargeable Li-ion Battery EN-EL19
-
Battery Life (shots per charge)Still pictures*: Approx. 210 shots
*Based on Camera and Imaging Products Association (CIPA) standards for measuring the life of camera batteries. Measured at 23(-/+2)C (73(-/+4)F); zoom adjusted with each shot, flash fired with every other shot, image quality set to Normal, image size set to 4608 x 3456 (16M). Battery life may vary depending on shooting interval and length of time menus and images are displayed. -
Tripod Socketin.
-
Approx. DimensionsHeight: 2.3in. (57.8mm)
Width: 3.8in. (94.8mm)
Depth: 0.8in. (19.5mm)Excluding projections. Method of noting dimensions and weight is in accordance with CIPA DCG-005-2009 guideline. -
Approx. Weight4.6 oz. (128g)With battery and SD memory card. Method of noting dimensions and weight is in accordance with CIPA DCG-005-2009 guideline.
-
Supplied Accessories
- AN-CP19 Strap
- UC-E6 USB Cable
- EG-CP14 Audio Video Cable
- EN-EL19 Rechargeable Li-ion Battery
- EH-69P AC Adapter/Charger
- NikonView NX 2 CD-ROM
 |
Nikon 1 J1 Digital Camera - Black
- 10.1MP, 2.7x Lens Focal Length (Nikon CX Format), 3.0" TFT LCD, Built-In Stereo Microphone, Built-In Flash, 1080/60i
- 10-30mm VR f3.5 - 5.6
For your very mobile lifestyle comes a completely new imaging system with freedom to create and express as never before. Highly compact and portable, the Nikon 1 J1 goes everywhere you go. Moments from your amazing world are captured using a highly responsive autofocus and super fast shooting speed. In one touch you can work in Full HD (1080p) movie record mode. A camera so versatile you can even snap photos while recording movies. Unleash your creativity with Nikon 1—offering a balance of high performance, advanced features, portability and a newly designed interchangeable lens system. Infuse your world with photos from every moment and connect as never before.
CX-Format
High-Speed AF CMOS Sensor
10 FPS
Continuous Shooting
Motion Snapshot
One-Touch Photo Animation Experience
Full HD
1080p Movies
Innovation in technology and design
Today, all it takes is a single imaging device to capture and share every moment of an incredible and connected life. Nikon brings an evolution in imaging technology, starting with a newly developed Nikon CX-format super high-speed AF CMOS sensor that powers every capture. Ensure image precision through the new, compact interchangeable lens system featuring image stabilization (VR) and superior fast and quiet autofocus motors built on the NIKKOR heritage of optical excellence.
Not a moment is missed with a camera that keeps up with you! Always on the go, you know moments worth sharing can happen all the time. Don't let your creativity be hindered by slow focus speed; Nikon 1 J1 delivers an amazing 10 fps speed in autofocus mode. Grab every turn of the swimmer as he leaps from the high dive and glides into the water below. Even fast moving action like this is rendered with amazing clarity—thanks to an incredible 73 point AF array continuously working to ensure everything is sharp and clear.
Certain snapshots from life evoke emotions that just cannot be retold with merely a photograph. Remember the feelings you had while watching a wave crash to the shore or fireworks exploding overhead? Make those moments come alive in a single click using Motion Snapshot. Reveal the essence that can't be captured in a single photo.
Simultaneously capture Full HD (1080p) movies and photos
There will be moments when you're recording a great movie and an opportunity to grab an amazing photo comes along. Capture both at the same time! Start your movie recording with a touch of a button. See that great still? Hit the shutter even during record mode. Autofocus keeps everything sharp, working double duty to simultaneously capture both movies and photos. Infuse even more personality into multimedia creations by adding slow motion. For times when photos alone are not enough, family and friends will appreciate your expressions brought to life.
Let the camera do the work with Smart Photo Selector
For all the times you wished your camera could capture those great spontaneous moments while they unfolded in front of you, there is Nikon 1. Have too many blurry or poorly lit photos? Or how many photos do you have where someone's eyes were shut? With a single touch using Smart Photo Selector there are no more imperfect photos. Get the best of what you see. Engage in the moment while you let the camera do the work for you.
Expand creativity and select from a range of lens options, including one designed specifically for movie filming. Engineered for fast and easy swap-out, stay photo-ready all the time. Compactness brings portability, whether using the single focal length 10mm or the 30-110mm telephoto. 1 NIKKOR lenses feature Vibration Reduction (VR) to keep photos sharp, extending a heritage of precision symbolized by durability, superior image quality and optical excellence.
-
TypeAdvanced Camera with Interchangeable Lenses
-
Lens MountNikon 1 mount
-
Picture AngleApprox. 2.7x lens focal length (Nikon CX format)
-
Effective Pixels10.1 million
-
Sensor Size13.2mm x 8.8mm
-
Image Sensor FormatCX
-
Image Sensor TypeCMOS
-
Total Pixels12 million
-
Dust-reduction systemOptical anti-dust mechanism
-
Image Area (pixels)
Still Images (3:2 aspect ratio)
3,872 x 2,592
2,896 x 1,944
1,936 x 1,296
Smart Photo Selector (3:2 aspect ratio)
3,872 x 2,592
2,896 x 1,944
1,936 x 1,296
Movie Mode (16:9 aspect ratio)
3,840 x 2,160 (1080/60i)
1,920 x 1,080 (1080/30p)
1,280 x 720 (720/60p)
Motion Snapshot (16:9 aspect ratio)
3,840 x 2,160 -
File FormatCompressed 12-bit NEF (RAW)
JPEG: JPEG-Baseline compliant with fine (approx 1:4), normal (approx 1:8), or basic (approx 1:16) compression
NEF (RAW) + JPEG: Single photograph recorded in both NEF (RAW) and JPEG formats -
Picture ControlStandard
Neutral
Vivid
Monochrome
Portrait
Landscape
Selected Picture Control can be modified
User-customizable Settings -
Storage MediaSD
SDHC
SDXC -
Card Slot1 Secure Digital (SD)
-
File SystemCompliant with DCF (Design Rule for Camera File System) 2.0
DPOF (Digital Print Order Format)
EXIF 2.3 (Exchangeable Image File Format for Digital Still Cameras)
PictBridge -
ViewfinderLCD
-
Lens Apertureelectronically controlled
-
Shutter typeElectronic Shutter
-
Fastest Shutter Speed1/16,000 sec.
-
Slowest Shutter Speed30 sec.
-
Flash Sync SpeedUp to 1/60 sec.
-
Bulb Shutter SettingYes
-
Shutter Release ModesSingle-frame [S] mode
Continuous
Electronic [Hi]
Self-timer mode
Delayed remote
Quick Response Remote
Interval Timer Shooting -
Frame Advance RateElectronic [Hi]: Approx. 10, 30 or 60 fps
Other modes: Up to 5 fps (single AF or manual focus, S Shutter- priority auto or M Manual exposure mode, shutter speed 1/250 sec or faster, and other settings at default values) -
Top Continuous Shooting Speed at full resolution5 frames per second 10, 30 or 60 fps using Electronic (Hi) shutter
-
Self-timer2, 5, 10 sec. Timer duration electronically controlled
-
Remote Control ModesDelayed remote (2 sec)
Quick-response remote -
Exposure Metering SystemTTL metering using image sensor
-
Metering MethodMatrix
Center-weighted: Meters 4.5mm circle in center of frame
Spot: Meters 2mm circle centered on select focus area -
Exposure ModesProgrammed Auto with flexible Program (P)
Shutter-Priority Auto (S)
Aperture-Priority Auto (A)
Aperture-Priority (A)
Manual (M)
Scene Auto Selector -
Scene ModesPortrait
Landscape
Night Portrait
Close-up
Auto -
Shooting ModesStill Image (3:2)
Smart Photo Selector (3:2)
Movie (HD 16:9)
Movie Slow Motion (8:3)
Motion Snapshot (16:9) -
Exposure Compensation3 EV in increments of 1/3EV
-
Exposure LockLuminosity locked at detected value with AE-L/AF-L button
-
ISO Sensitivity100- 3200
6400 -
Active D-LightingOn
Off -
Autofocus SystemHybrid autofocus (phase detection/contrast-detect AF)
AF-assist illuminator -
AF-area modeSingle-point AF: 135 focus areas
Auto-area AF: 41 focus areas
Subject tracking
Face-priority AF -
Focus LockFocus is locked by pressing AE-L/AF-L button or lightly pressing shutter release button in (S) AF
-
Focus ModesAuto (AF)
Auto AF-S/AF-C selection (AF-A)
Single-servo AF (AF-S)
Continuous-servo (AF-C)
Full-time Servo (AF-F)
Manual Focus (MF) -
Built-in FlashYes
-
Guide Number5/16 (m/ft ISO 100, 20C/68F) Approx.
-
Flash Controli-TTL flash control using image sensor available
-
Flash ModeFill-flash
Red-eye reduction
Rear curtain with sync
Rear curtain with slow sync
Slow sync
Slow sync with red-eye reduction -
Flash Compensation-3 to +1 EV in increments of 1/3 EV
-
Flash-ready indicatorLights when built-in flash unit is fully charged
-
White BalanceAuto
Incandescent
Fluorescent
Direct Sunlight
Flash
Cloudy
Shade
Preset Manual
All except preset manual with fine tuning -
Movie MeteringTTL exposure metering using main image sensor
-
Movie Metering methodMatrix
Center-weighted: Meters 4.5mm circle in center of frame
Spot: Meters 2mm circle centered on select focus area -
Movie File FormatMOV
-
Movie Video CompressionH.264/MPEG-4 Advanced Video Coding
-
Movie Audio recording formatAAC
-
Movie Audio recording deviceBuilt-in stereo microphone; sensitivity adjustable
-
MovieHD: 1920 x 1080/60i
HD: 1920 x 1080/30p
HD: 1280 x 720/60p
Slow-motion: 640 x 240/400fps
Slow-motion: 320 x 120/1200fps
Motion Snapshot: 1920 x 1080/60p (plays at 24p)
Audio file format: ACC
Movie file format: MOV -
Monitor Size3.0 in. diagonal
-
Monitor Resolution460,000 Dots
-
Monitor TypeTFT-LCD with brightness adjustment
-
InterfaceUSB: Hi-speed USB
HDMI output: Type C mini-pin HDMI connector -
Supported LanguagesArabic
Chinese (Simplified and Traditional)
Czech
Danish
Dutch
English
Finnish
French
German
Indonesian
Italian
Japanese
Korean
Norwegian
Polish
Portuguese
Russian
Spanish
Swedish
Thai
Turkish
Spanish -
Date, Time and Daylight Savings Time SettingsYes
-
World Time SettingYes
-
Battery / BatteriesEN-EL20 Lithium-ion Battery
-
Battery Life (shots per charge)230 shots (CIPA)
-
AC AdapterEH-5b AC Adapter
Requires EP-5C Power Supply Connector -
Tripod Socket1/4 in.
-
Approx. DimensionsWidth 4.2 in. (106mm)
Height 2.4 in. (61mm)
Depth 1.2 in. (29.8mm)
Excluding projections. -
Approx. Weight8.3oz. ( 234g)
camera body only -
Operating Environment32 to 104F (0 to 40C)
Less than 85% humidity (no condensation) -
Supplied Accessories
- EN-EL20 Rechargeable Li-ion Battery
- MH-27 Battery Charger
- UC-E6 USB Cable
- BF-N1000 Body Cap
- AN-N1000 Strap
- ViewNX 2
- Short Movie Creator CD
- User's Manual
- Reference manual CD
 |
Aiptek Z3 SportyCam FHD Outdoor Camcorder - Black
- Internal 40MB Memory, Supports Micro SD/SDHC Card, HD 1080p, 4x Digital Zoom, 1.5"LCD, High Quality Glass Lens, H.264
- Full HD (1920 x 1080p) wide-angle camcorder
- High quality glass lens
- Remote controlled operation
- Waterproof diving case
- Including mounts for bike, flat surfaces and helmet
- Full HD (1920x1080p) progressive 30fps
- 720p HD cideo recording with 60fps for fast moving actions
- AVC H.264 video compression records high quality videos while maximizing the space in recording media
- Supports HDTV via HDMI or SDTV via composite AV-out
- External card slot for microSD/SDHC cards up to 32 GB
- inklusive diving case (30 m waterproof)
- Tripod thread on both, camera and underwater case
- Easy operation via remote control (can be used for several devices simultaneously)
- Coming with bike mount, three-way pivot arm, 2x mount plates, 2x clip and velcro for flexible mounting
| Sensor Type | 5 Megapixels (2048x1536) CMOS sensor |
| View Angle |
Full HD: 130 |
|
Frame Rate at |
Full HD: 1920x1080, 30 fps, 16:9 |
| Still Image Resolution |
8 M (3200x2400) 4:3 - interpolated 5 M (2592x1944) 4:3 3 M (2048x1536) 4:3 |
| Bitrate |
FullHD: 12Mbit, 6Mbit |
| File format | AVC (Advanced Video Coding) H.264 (.MOV), JPEG, WAV |
| Internal Memory | 40 MB |
| External Memory | micro SD / SDHC up to 32 GB |
| LCD Display | 1.5 " (3,7 cm) diagonal, 270 | 960x240 Pixels |
| Aperture Range | F2.8 |
| Focal length | f=2.8 mm |
| Focus Range |
30 cm ~ |
| Digital Zoom |
4x (HD, WVGA) |
| Waterproof |
IP 68 (39m) with additional case |
| Shock resistent |
Yes |
| Remote Control |
Yes (Rec, -Stop, Snapshot) |
| Operation |
Sensor buttons |
| Functions | |
| Keylock | Yes |
| Sound Trigger | Yes, 65 dB (On, Off) |
| Exposure Control | Auto |
| White Balance | Auto |
| Internal Mic | Yes |
| Date Stamp | Yes (On, Off) |
| DPOF | Yes (Digital Print Order Format) |
| Speaker | Yes |
| Cyclic Recording | Yes (On, Off) |
| Self Timer | Yes (Off, 5, 10 s) |
| Capture Modes | Single, Triple, Continuous (2, 3, 5, 10, 20, 30 or 60 s) |
| Voice Recorder | Yes |
| Connections | |
| HDMI | mini HDMI |
| AV-Out | 3,5 mm mini jack, NTSC/PAL supported |
| PC Connection | mini USB 2.0 |
| Power | |
| Charging Time | Around 4 h |
| Input power supply | DC: 110 - 240V, 50/60Hz |
| Output power supply | AC: 5V, 1A |
| Power saving mode | Yes (Off, 2, 5 or 10 min) |
| Battery | 1400 mAh, 3,7 V, Li-Ion battery,rechargeable |
| Batterie Lifetime | Video: 4 h Audio: 5 h |
| Power consumption | 1.3 W |
| Product Details | |
| Device Language | EN/DE/FR/IT/FI/NO/SV/RU/TC |
| Manual Language | EN/DE/FR/IT |
| QSG Language | EN/DE/FR/IT/FI/NO/SV/RU/TC |
| Color | Black |
| Dimensions | 85 mm x 50 mm x 23 mm (LxWxH) |
| Weight | 81 g |
| AIPTEK Art.-Nr. | 400463 |
| EAN | 4719851876653 |
| Warranty | 24 months (EU only) |
| MSRP | 179,00 |
 |
Aiptek V60 PocketCinema DLP Pico Projector with Office Reader - 640x480, 50 Peak Lumens, 35 Lumens, 1000;1, Internal 2GB Memory, HDMI, USB & AV Input
DLP Pico Projector with Office Reader
- DLP optical technology with RGB LED
- Picture size up to 60 (150 cm)
- Native Office and PDF Reader
- HDMI, USB & AV input
- Video/Music/Photo playback
- DLP Technology provides sharp and rich image quality
- 50 lumens of brightness
- Modern RGB LED with a working lifetime up to 20.000 hours
- Projects photos and videos up to 60” (150 cm) picture size
- Built-in Office & PDF reader allows you to project your presentations
- directly without converting
- Connection via HDMI port for projection from Notebook or Tablet
- Supports SD/SDHC memory cards up to 32GB and USB sticks
- Embedded rechargeable Li-Polymer battery
| Product Features |
|
| Optical technology | DLP |
| Light Source | RGB LED |
| LED Lifetime | up to 20.000 h |
| Contrast | 1000:1 |
| Resolution | 640 x 480 Pixel (VGA) |
| Aspect Ratio | 4:3 |
| Projection Image Size (diagonal) | 6 " ~ 60" (15.2 cm ~ 152.4 cm) |
| Projection Distance |
7.9 " ~ 78.7" (20 cm ~ 200 cm) |
| Brightness |
50 Peak Lumens |
| Focus | Manual |
| Lens Offset | 50 % |
| Internal Memory | 2 GB (around 1.5 GB for storage) |
| Internal Speaker | Yes |
| Interface | 7 Touch Buttons |
| Projection Sources | Internal Memory, AV in, HDMI in, microSD/SDHC, USB mass storage device |
| Connections | |
| micro USB | For file transfer, power bank (e.g. smartphone) |
| AV Port | AVIn: 3.5 mm mini jack, PAL & NTSC Audioout: 3.5 mm mini jack |
| DV in | Charging |
| HDMI | HDMI input (A type) |
| Playback formats |
|
| Photo | *.jpeg, *.jpg, *.bmp |
| Video | *.avi, *.mov, *.mp4, *.mpg |
| Audio | *.mp3, *.wav, *.ogg |
| Document | *.ppt, *.pptx, *.doc , *.docx, *.xls, *.xlsx, *.pdf |
| Product Details |
|
| Dimensions | 135 mm x 65 mm x 22 mm (LxWxH) |
| Color | Black |
| Weight | 180 g |
| Model Code | VR6 |
| Cooling | Aktiv |
| OSD Language | EN/DE/FR/IT/ES/NL/PT |
| Power | |
| Battery Type | Integrated, 3000 mAh, Li-polymer, rechargeable |
| Battery Lifetime | Eco: 100 min Normal: 80 min Enhanced: 60 min |
| Power Supply | Input: 100 ~ 240 V AC Output: 5V, 3A DC |
| Power for external USB Devices |
Max. 500 mA, 5V |
| Power saving |
1 min / 3min / 5 min / 10 min / 20 min / 30 min / Off |
| Power Consumption |
TBA |
| Logistic Data |
|
| Giftbox Language | EN/DE/FR/IT/ES/NL/RU/AR |
| Manual Language | EN/DE/FR/IT/NO/FI/RU/AR |
| Dimension Giftbox | 190 mm x 165 mm x 80 mm (LxWxH) |
| Weight Giftbox | 0.7 kg |
| AIPTEK Art.-Nr. | 430033 |
| EAN | 4719851877223 |
| Warranty | 24 months (EU only) |
 |
Aiptek V100 PocketCinema DLP Pico Projector - 854x480, 100 Lumen Power Mode, 50 Lumen Battery Mode, 16;9, 1000;1, HDMI, USB & AV input
PocketCinema V100
- DLP optical technology with RGB LED
- Picture size up to 120 (300 cm)
- WVGA (854 x 480 Pixel) resolution
- Video/Music/Photo playback
- HDMI, USB & AV input
- DLP Technology provides sharp and rich image quality
- Modern RGB LED with a working lifetime up to 20.000 hours
- Projects photos and videos up to 120 (300 cm) picture size
- WVGA (854 x 480 Pixel) resolution in 16:9 ratio
- Supports SD/SDHC memory cards up to 32GB and USB sticks
- Connection via HDMI port to PC or Notebook for projection
- HD video playback up to 1080p video resolution
- Supports Android & Blackberry Smartphone storage projection via
- USB cable and power bank feature
- Embedded rechargeable LiPolymer battery
 |
Aiptek I50S MobileCinema DLP Pico Projector + Powerbank - 640x480, 35 Lumens, 1000;1, To Suit iPhone 4/4S - Black
MobileCinema i50S
- DLP light engine with RGB LEDs
- Picture size up to 150 cm (60)
- 35 ANSI lumen of brightness
- Power bank for iPhone charging
- Made for iPhone 4 and iPhone 4S
- DLP technology for sharp and colorful pictures
- Modern, energysaving RGB LEDs for up to 20,000 hours lifetime
- 35 ANSI lumen of brightness with 640 x 480 (VGA) Pixel resolution
- Projects image up to 150 cm (60 ") diagonal
- 1000:1 contrast ratio
- Special App for photo/video sharing, web browsing or live view
- Built-in rechargeable battery for up to 120 min projection or 60% power for iPhone
- Compatible with iPhone iPhone 4 and 4S
| Optical Technology | DLP |
| Licht Source | RGB LED |
| LED Lifetime | up to 20.000 h |
| Contrast | 1000:1 |
| Resolution | 640 x 480 Pixel (VGA) |
| Aspect Ratio | 4:3 |
| Projection Image Size (Diagonal) |
15.2 cm ~ 152.4 cm (6 ~ 60 ) |
| Projection Distance |
20 cm ~ 200 cm (8 ~ 80 )
|
| Brightness |
35 ANSI Lumen
|
| Focus | Manual |
| Offset | 50 % |
| Interface | Focus, Mode Switch, On, Off, Charging (iPhone) |
| Projection Modes | Text, Video, Eco |
| Projections Source | iPhone 4, iPhone 4S (30 pin Connector) |
| Cooling | Passive |
| Connections | |
| Micro USB | 2-in-1: data transfer, charging |
| Software & System Requirements | |
| Software | Aiptek Viewer |
| Operating System | iOS 4.0 or higher |
| Power | |
| External | 5V, 0.5 A DC |
| Battery | Internal, 1850 mAh Li-polymer, rechargeable |
| Batterie Lifetime |
Projection mode: 120 min
Charging iPhone: 60% |
| Power consumption | Projection mode: 4.5 W Charging iPhone: 5 W |
| Product Details |
|
| Giftbox Language |
EN/DE/FR/IT/ES/NL
|
| Manual Language | EN/DE/FR/IT/ES/NL |
| Color | black |
| Dimension | 125 mm x 67 mm x 20 mm (LxWxH) |
| Weight | 100 g |
| AIPTEK Art.-No. | 430035 |
| EAN | 4719851877070 |
| Warranty | 24 Months (for EU only) |
| MSRP | 229,00 |
 |
Aiptek I50D MobileCinema DLP Pico Projector - 640x480, 35 Lumens, 1000;1, To Suit iPad, iPhone and iPod - Black/Silver
MobileCinema i50D
- DLP light engine with RGB LEDs
- Picture size up to 150 cm (60 )
- 35 ANSI lumen of brightness
- Power bank for iPhone charging
- Made for iPad, iPhone and iPod
- DLP technology for sharp and colorful pictures
- Modern, energy-saving RGB LEDs for up to 20,000 hours lifetime
- 35 ANSI lumen of brightness with 640 x 480 (VGA) Pixel resolution
- Projects image up to 150 cm (60 ") diagonal
- 1000:1 contrast ratio
- Special App for photo/video sharing, web browsing or live view
- Built-in rechargeable battery for up to 120 min projection or 80% power for iPhone
- Compatible with iPhone 3GS / iPhone4 / iPhone 4S / iPad / iPad 2 / iPad 3 / iPod touch 3rd / iPod touch 4th
| Optical Technology | DLP |
| Licht Source | RGB LED |
| LED Lifetime | up to 20.000 h |
| Contrast | 1000:1 |
| Resolution | 640 x 480 Pixel (VGA) |
| Aspect Ratio | 4:3 |
| Projection Image Size (Diagonal) |
15.2 cm ~ 152.4 cm (6 ~ 60 ) |
| Projection Distance |
20 cm ~ 200 cm (8 ~ 80 ) |
| Brightness |
35 ANSI Lumen |
| Focus | Manual |
| Offset | 50 % |
| Interface | Focus, On, Off, Charging |
| Projections Source | iPhone 3GS / iPhone4 / iPhone 4S iPad / iPad 2 / iPad 3 iPod touch 3rd / iPod touch 4th |
| Cooling | Passive |
| Connections | |
| Micro USB | charging |
| Software & System Requirements | |
| Software | Aiptek Viewer (not for iPhone 3GS) |
| Operating System | iOS 4.0 or higher |
| Power | |
| External | 5V, 0.5 A DC |
| Battery | Internal, 1850 mAh Li-polymer, rechargeable |
| Batterie Lifetime |
Projection mode: 120 min |
| Power consumption | Projection mode: 4.5 W Charging iPhone: 5 W Charging iPad : 10 W |
| Product Details |
|
| Giftbox Language |
EN/DE/FR/IT/ES/NL |
| Manual Language | EN/DE/FR/IT/ES/NL |
| Colour | black/silver |
| Dimension | 67 mm x 74 mm x 20 mm(LxWxH) |
| Weight | 110 g |
| AIPTEK Art.-No. | 430036 |
| EAN | 4719851877100 |
| Warranty | 24 Months (for EU only) |
| MSRP | 229,00 |
 |
Aiptek A50P MobileCinema DLP Projector - 640x480, 35 Lumen, 1000:1, 4:3, To Suit Samsung Galaxy, HTC, LG New Mobile Series - Black
- Built-in MHL cable, Plug and Play with Samsung
- Galaxy, HTC, LG new mobile series
- Made for Android Smart Phone, Mirror projection
- HDMI input connectivity
- Share in 60, 35 lumens brightness
- Power Bank feature for emergency power charge
The compact projector is easily connected via microUSB or microHDMI and projects all types of media content to any surface, up to a size up of 60 inches.
The DLP chip design is the same one used in other great cinema projectors, providing rich colors and high contrasts.
- DLP technology for sharp and colorful pictures
- Modern, energy-saving RGB LEDs for up to 20,000 hours lifetime
- 45 Lumen brightness with 640 x 480 (VGA) Pixel resolution
- Projects image up to 150cm (60 ) diagonal
- 1000:1 contrast ratio
- No additional software needed direct projection of all your media
- Built-in rechargeable battery for up to 120 min projection or up to 80% recharge power for your mobile device
- Compatible with all Mobile-HD-Link (MHL)compatible mobile phones
|
Optical technology |
DLP |
|
Light Source |
RGB LED |
|
Resolution |
640 x 480 Pixel (VGA) |
|
Projection Image Size (Diagonal) |
15.2cm ~ 152.4cm (6 ~ 60 ) |
|
Projection Distance |
20cm to 200cm |
|
Brightness |
Up to 40 PEAK Lumen (35 ANSI Lumen) |
|
Projection Sources |
MHL compatible device, microHDMI |
|
Dimensions |
132 x 71 x 15 mm |
|
Weight (g) |
170g |
|
Manual Language |
EN/DE/FR/IT/ES/NL |
|
Optical technology
|
DLP
|
|
Light Source
|
RGB LED
|
|
LED Lifetime
|
Up to 20.000h
|
|
Contrast
|
1000:1
|
|
Resolution
|
640 x 480 Pixel (VGA)
|
|
Aspect Ratio
|
4:3
|
|
Projection Image Size (Diagonal)
|
15.2cm ~ 152.4cm (6 ~ 60)
|
|
Projection Distance
|
20cm ~ 200cm (7.9 ~ 78.7)
|
|
Brightness
|
35 ANSI lumens
|
|
Focus
|
Manual
|
|
Lens Offset
|
0%
|
|
Internal Speaker
|
Yes
|
|
Interface
|
MHL/Micro HDMI/USB
|
|
Projection Sources
|
Android phone support MHL or Micro HDMI, Notebook/Tablet/DVD Player/Game Player Device with HDMI input
|
|
Dimension
|
132mm x 71mm x 14mm (DxWxH)
|
|
Housing Colour
|
Black
|
|
Weight
|
165g
|
|
Model Code
|
A50P
|
|
Power Input
|
5V, 2A
|
|
Power Output
|
5V, 500mAh
|
|
Battery Type
|
Embedded 1850 mAh Li-polymer rechargeable battery
|
|
Battery Lifetime
|
Projection mode: up to 100min
Power Bank mode: 70 % recharge of the most android MHL phone |
|
Power Consumption
|
Projection mode: 7W
Power Bank mode: 2.5W |
|
Software
|
N/A
|
|
Operating System
|
Device support MHL or Micro HDMI
|
|
Package Content
|
MobileCinema A50P, Pouch, USB cable, Quick Start Guide
|
|
Optional Accessories
|
HDMI adapter, MHL extension cable
|
All prices shown on camerafarm.com.au website are in $AUD and inclusive of GST.
Prices and availability are subject to change without prior notice. Images
displayed are accurate to the best of our knowledge and we will not be held
responsible for purchases based soley on these images. All brands and names
are trademarks of their respective companies.
We sell and ship to anywhere in Australia
.
© Techbuy Pty Ltd (camerafarm.com.au) 2026 All rights reserved. (site rev. 1.6b) For more
information, please see our usage policies.
