TP-Link TL-SC3430N Wireless N H.264 Megapixel Surveillance Camera - 1/4" Progressive Scan CMOS Sensor, 10x Digital Zoom For Detailed Close-Ups, 2 Way Audio, SD/SDHC Card Slot, Built-In Mic, RJ-45 - Black Wireless N H.264 Megapixel Surveillance Camera
TL-SC3430N
Highlights:
- Wireless N speeds of up to 150Mbps
- High Definition viewing at 1.3 Mega-pixel (1280 x 1024) resolution
- Local SD card storage and Network Attached Storage (NAS) for convenient, safe video recording
- Advanced H.264 codec, ideal for fluid HD Video streaming
- Motion/audio detection and scheduled timer offer sensitive invasion alerts
Overview
What This Product Does
TL-SC3430N is a versatile solution for home & office monitoring to keep an eye on your home, kids or workplace; whatever it is that you care for most. With wireless N speeds up to 150Mbps, you can easily set it up to work wirelessly or using wires. Once set up, you can view live video from a Web browser or Smartphone, anywhere in the world! With a built-in SD card slot, video can be backed up, ensuring that you are never caught unaware.

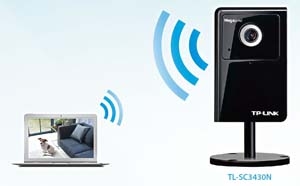

Wireless Surveillance
IP cameras are usually installed on ceilings or walls, and consequently be connected to an Ethernet cable. A wireless connection allows you to put your IP Camera anywhere you need it, without the restrictions of network cables. TL-SC3430N is wireless with speeds of up to 150Mbps, ensuring smooth video transmission.
Smooth HD Video Streaming
TL-SC3430N adopts the H.264 codec which is an advanced video compression technology that greatly reduces the size of a digital video file without compromising video quality compared with video quantity. Using H.264 provides savings in network bandwidth and storage costs, as well as achieves much higher video quality for a given bit rate.

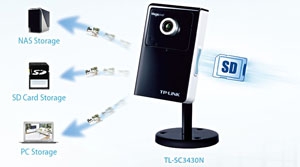

Multiple Storage Options
To provide multiple storage options making storage more reliable and convenient, TL-SC3430N is equipped with an SD Card slot for additional storage or back-up. This is in addition to existing options where users can store video content on their local PCs or NAS drives.

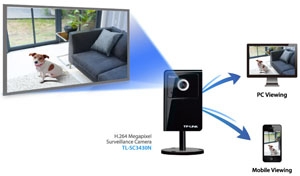

Multiple Remote Viewing Options
The TL-SC3430N provides users with abundant flexible remote viewing options. Users can look in on their cameras via the internet from their 3G mobile phones, laptops, or tablets, such as an Android phone or 3G enabled iPad.
Features:
- 1.3 megapixel progressive scan CMOS sensor produces high definition video quality
- Wireless 802.11b/g/n with WPS, up to 150Mbps
- SD card local storage and Network Storage(NAS) for convenient video recording
- H.264, MPEG-4 and MJPEG video streaming for different quality requirements and bandwidth environments
- Multiple easy remote viewing options - view live video via 3G mobile phones, laptops or tablets
- Email or FTP notifications triggered by motion Detection, Audio Detection or Schedule Timer offer sensitive invasion alert
- 10 x digital zoom for detailed close-ups
- 2 way audio allows users to listen and speak remotely
- Advanced SSL/HTTPS encryption and IP filter protect users privacy from malicious intrusions
- Free bundled software supports simultaneous monitoring of up to 16 cameras
- Quick Universal Plug and Play Installation
Specifications:
| CAMERA |
| Image Sensor |
1/4" Progressive scan CMOS sensor |
| Resolution |
1.3 Megapixel (1280 x 1024) |
| Lens |
F: 1.9, f: 4.5 mm |
| Viewing Angle |
Horizontal 47 |
| Digital Zoom |
10x Digital |
| Minimum Illumination |
0.5 Lux |
| VIDEO/IMAGE |
| Video Compression |
H.264, MPEG-4MJPEG |
| Frame Rate & Resolutions |
Max. 15 fps at 1280x1024 (SXGA), 1280x720 (HD 720)
Max. 30 fps at 640x480 (VGA), 320x240 (QVGA) |
| Video Streaming |
Simultaneous MJPEG, MPEG-4, H.264 and 3GPP (Dual streaming)
Controllable Frame rate and bandwidth
Support Unicast and Multicast
Support 3GPP/ISMA RTSP (Real Time Streaming Protocol) |
| Image Settings |
Rotation: Mirror, Flip, Mirror Flip
Configurable brightness, contrast, saturation
Overlay capabilities: time, date, text and privacy image |
| AUDIO |
| Audio Communication |
2-Way full duplex |
| Audio Input |
Built-in microphone |
| Audio Output |
Audio line output connector for external speaker |
| Audio Compression |
G.711 law, a law, and AMR |
| ALARM AND EVENT MANAGEMENT |
| Input Trigger |
Motion detection, audio detection, schedule and network link down |
| Notification Method |
E-mail, SD memory card, NAS, FTP |
| NETWORK |
| Standards and Protocols |
Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS,DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP3GPP/ISMA RTSP |
| Security |
Multiple password-protected user levels
HTTPS encryption
IP filter |
| WIRELESS |
| Wireless Data Rates |
IEEE 802.11 b/g/n , Up to 150Mbps |
| Frequency |
2.4-2.4835GHz |
| Wireless Transmit Power |
<20dBm (EIRP) |
| Wireless Encryption |
WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| INTERFACES |
| Network Interface |
RJ-45 for Ethernet 10/100 Base-T |
| Power Connector |
DC power jack |
| Audio Output |
3.5 mm jack for line out |
| Button |
Reset push button, WPS button |
| Slot |
SD/SDHC memory card slot |
| SURVEILLANCE MANAGEMENT |
| Users |
10 simultaneous unicast users
Unlimited number of users via multicast |
| Bundled Management Software |
Viewing and recording up to 16 cameras |
| MINIMUM SYSTEM REQUIREMENTS |
| CPU |
Pentium4 2.8GHz (or equivalent AMD) |
| Graphic Card |
256MB RAM graphic cards (or equivalent on-board graphic cards) |
| Memory |
1GB RAM |
| Supported Browser |
Internet Explorer 6 or higher |
| Supported OS |
Windows 2000/ 2003/XP/Vista/7 |
| GENERAL |
| External Power Supply |
12V DC, Max 12W |
| Certification |
CE, FCC, RoHS |
| Package Contents |
TL-SC3430N
Power Adapter
RJ-45 Ethernet Cable
Quick Installation Guide
Resource CD
Camera Mount Kit |
| Environment |
Operating Temperature: 0C~40C (32F ~104F)
Storage Temperature: -40C ~70C (-40F ~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| Dimensions( H X W X D ) |
3.9x 2 .5 x 1.2 in. (99 x 63 x 30mm) |
|
|
|
|
17/10
|
SanDisk 16GB SD SDHC UHS-1 Card - 45MB/s, Class 10 SANDISK SD EXTREME 16GB 45MB/S & UHS-1/CLASS 10
SDSDX-016G-XQ46
A winning Collaboration between Card and Camera, the 45MB/s Edition is designed to optimize the capabilities of Nikons D90 digital SLR camera, for up to 50 percent greater speed than standard SDHC cards. Driven by SanDisks shared passion for giving photographers the ultimate DSLR experience, Nikon developed the D90 camera to take full advantage of the 45MB/s Editions unique performance attributes.
|
|
|
|
17/10
|
SanDisk 4GB SD SDHC Card - Extreme, 30MB/s, Class 10 SanDisk Extreme SDHC Cards
4GB | SDSDX-004G-XQ46
When you need speed, go with SanDisk Extreme 30MB/s Edition SDHC card and get more out of your DSLR or advanced camera, with SanDisk's fastest SDHC card.
Lightning-fast speed and professional-grade responsiveness give you the longer continuous shooting performance and faster photo and video transfers from camera to computer, when used with the SanDisk ImageMate Multi-Card reader.
The SanDisk Extreme SDHC cards now adhere to the new Class 10 specification, which exceeds requirement for today's high definition video recording.
Features
- Extreme speed at up to 30MB/second read/write (200X)*
- Extreme capacities available in 4GB, 8GB 16GB and now 32GB**
- Extreme performance designed with SanDisk's Enhanced Super-Parallel Processing (ESP) technology
- Now at new Class 10, exceeding high-definition video recording performance requirement
- Extreme durability from deserts to glaciers, guaranteed
- Extreme compatibility with all major cameras with SDHC format such as Nikon, Canon, Panasonic, and Leica and more
- Extreme confidence backed by limited lifetime warranty
|
|
|
|
