14/08
|
BenQ MS500+ DLP Projector - 800x600, 2700 Lumens, 4000;1, 6000Hrs, VGA, RCA, RS232, USB, Speakers MS500+
The best value choice for small-medium space
The MS500+ makes the perfect projector choice for your everyday life - in business, education, even at home. Featuring an impressive brightness of 2700 ANSI lumens, a high contrast ratio of 4000:1 and a SVGA resolution, the MS500+ offers a stunning full-screen presentation with the finest details regardless of the low ambient light level.
Features:
Easy to Maintain, Easy on Your Budget
Long Lamp Life at up to 6000 hours
Enjoy a lamp life performance of up to 6000 hours* – twice the lamp life expectancy of average projector lamps on the market! This certainly lowers the number of lamp changes and keeps all maintenance to a minimum.
Lamp life results will vary depending on environmental conditions and usage.
Reliable Picture Quality with True-to-Life Color Performance
BenQ projectors that use DLP® technology are virtually immune to color decay – the yellow/green tint that some projector images develop over extended periods of usage. This is one technological advantage that you'll get to enjoy - year after year!
Filter-Free Design
BenQ DLP® projectors feature a filter-free design which could reduce the need for filter cleaning and filter replacement. This reduces the labor as well as the budget for filter maintenance and replacement.
Visual Excellence
2700 ANSI Lumens
A 2700 ANSI lumens projection lamp ensures great viewing even is location with low ambient light. The MS500+ is ideal for small-sized meeting room with under 25 people.
Sharpen up with high contrast ratios
The MS500+ boasts high contrast ratio with 4000:1. High contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read.
Go 3D with DLP® Link!
MS500+ is equipped with 3D projection technology to bring you the same amazing 3D effects you get in 3D movies. Offered for no added cost, the 3D feature on 3D-ready BenQ projectors get your audience for an immersive real-life experience. All you have to do is add the 3D glasses, content and video card along with the MS500+. A magical expedition is just to begin!
ecoFACTS Label
ecoFACTS can tell you how eco-friendly BenQ products are!
Development of eco-friendly products, BenQ doesn't just want to comply with green regulations passively, but also to actively develop eco-friendly products!
ecoFACTS declares BenQ's greatest efforts on the replacement of hazardous substances, material selection, packaging design, energy-saving design and other aspects of the products.
Specifications:
| Projection System |
DLP |
| Native Resolution |
SVGA (800 x 600) |
| Brightness* |
2700 ANSI lumens |
| Contrast Ratio |
4000 : 1 |
| Display Color |
1.07 Billion Colors |
| Lens |
F=2.56-2.8, f=21-23.1mm |
| Aspect Ratio |
Native 4:3 (5 aspect ratio selectable) |
| Throw Ratio |
1.86 - 2.04 (52.5@2m) |
| Image Size (Diagonal) |
24~300 |
| Zoom Ratio |
1.1:1 |
| Lamp(Normal/Economic Mode/SmartEco Mode)* |
220W, 4500/6000 hours |
| Keystone Adjustment |
1D, Vertical 40 |
| Projection Offset |
120%5% |
| Resolution Support |
VGA (640 x 480) to UXGA (1600 x 1200) |
| Horizontal Frequency |
31K~99KHz |
| Vertical Scan Rate |
48~120Hz |
| Interface |
Computer in (D-sub 15pin) x 2(shared with Component )
Monitor out (D-sub 15pin) x 1
Composite Video in (RCA) x 1
S-Video in (Mini DIN 4pin) x 1
Audio in (Mini Jack) x 1
Audio out (Mini Jack) x 1
Speaker 2W x 1
USB (Type Mini B) x 1
RS232 (DB-9pin) x 1 |
| Dimensions(W x H x D) |
287x100x232 mm |
| HDTV Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM |
| Weight |
2.5kg (5.51lbs) |
| Audible Noise |
31/24 dBA |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Power Consumption |
290W (Typical), Standby<1W |
| On-Screen Display Languages |
English/ France/ Germany/ Italian/ Spanish/ Russian/ Traditional Chinese/ Simplified Chinese/ Japanese/ Korean/ Swedish/ Dutch/ Turkish/ Czech/ Portuguese/ Thai/ Polish/ Hungarian/ Croatian/ Romanian/ Norwegian/ Danish/ Bulgaria/ Finnish/ Indonesian/ Greek/ Hindi/ Arabic (28 Languages)
* The available languages will depend on different sale region.* The available languages will depend on different sale region. |
| Picture Modes |
Dynamic/Presentation/sRGB/Cinema/User 1/User 2 |
| Accessories (Standard) |
Remote Control w/ Battery
Power Cord (by region)
User Manual CD
Quick Start Guide
VGA(D-sub 15pin) Cable |
| Accessories (Optional) |
Presentation Plus
Spare Lamp Kit
Ceiling Mount
3D Glasses
Carry Bag |
| 3D Support and Compatibility |
PC: 120Hz Frame Sequential 3D for resolutions up to WXGA.
*Please click to know more details about 3D Support and Compatibility. |
|
|
|
|
14/08
|
Team 8GB C121 Flash Drive - Read 15MB/s, Write 5MB/s, Slim & Mini, USB2.0 - Blue C121
Capacity: 8GB
Info:
1.Slim and mini
2.Supports hot-swap and plug-and-play
3.Backward compatible USB 1.1
4.No need of external power supply
5.Support power saving mode
6.Sliding tray design
Features:

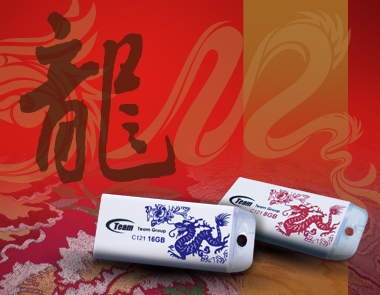

Team C121 USB disk designed with Chinese-style by dragon totem and peony stand for wealth and honor, Special design with unique tastes of the users. Its compact with push-based mechanism to prevent cap loss and give outstanding protection function and simple operation. Also, the strap hole could easily connect with multiple mobile devices, very convenient for portable use. Team C121 is your best assistant for carrying documents and running multi-media or digital photos.

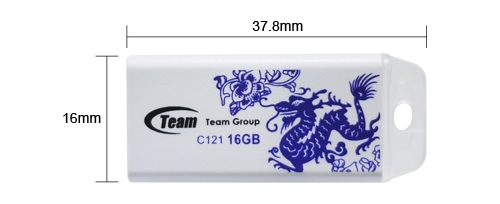

Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 2.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
-- |
| Data transfer rate |
-- |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
-- |
| other |
Support battery saving mode |
System requirements
Windows 2000 / XP / Vista / 7,Linux2.4,Mac
|
|
|
|
14/08
|
Team 4GB C121 Flash Drive - Read 15MB/s, Write 5MB/s, Slim & Mini, USB2.0 - Red C121
Interface: USB 2.0
Model: C121
Colour: Red
Performance:
Read (Max): 15MB/s
Write (Max): 5MB/s
Expected Life: >10 Years
Size: 37.8(L) x 16.00(W) x 8.53(H) mm
Weight: 9G
Activity LED: No
Ready Boost: TBA
Packaging: Retail
Warranty: Lifetime [TG004GC121W6]
Capacity: 4GB, 8GB, 16GB, 32GB
Info:
1.Slim and mini
2.Supports hot-swap and plug-and-play
3.Backward compatible USB 1.1
4.No need of external power supply
5.Support power saving mode
6.Sliding tray design
Features
Team C121 USB disk designed with Chinese-style by dragon totem and peony stand for wealth and honor, Special design with unique tastes of the users. Its compact with push-based mechanism to prevent cap loss and give outstanding protection function and simple operation. Also, the strap hole could easily connect with multiple mobile devices, very convenient for portable use. Team C121 is your best assistant for carrying documents and running multi-media or digital photos.
Product Dimensions
Specification
| Specification |
Content |
| Interface |
USB 2.0 |
| Hot Plug |
Yes |
| LED Reveal |
No |
| Storage time |
10Years |
| Weight |
-- |
| Data transfer rate |
-- |
| Accessories |
No |
| Warranty |
Lifetime warranty |
| Notes |
-- |
| other |
Support battery saving mode |
System requirements
Windows 2000 / XP / Vista / 7,Linux2.4,Mac
|
|
|
|
14/08
|
GeoVision GV-3008 Hardware Compression Card - Provides Up to 8 Video & 8 Audio Channels, Recording Up To 240/200FPS (NTSC/PAL), H.264 Hardware Compression - PCI-Ex1
The GV-3008 Card provides up to 8 video and 8 audio channels, recording up to 240 / 200 fps (NTSC / PAL) in total with H.264 hardware compression. The GV-3008 Card provides the high-resolution live image with DSP Overlay. Even in multi views, the image on the largest division view can remain at the high-quality resolution.
Specifications
|
GV-3008
|
GV-3008 x 2
|
|
Interface
|
PCI-E (x1)
|
PCI-E (x1) x 2
|
|
Input Type
|
D-Type
|
D-Type
|
|
Video Input
|
8 Cams
|
16 Cams
|
|
Audio Input
|
8 Channels
|
16 Channels
|
|
Recording Rate (D1)
|
NTSC
|
240 fps
|
480 fps
|
|
PAL
|
200 fps
|
400 fps
|
|
Display Rate
|
NTSC
|
240 fps
|
480 fps
|
|
PAL
|
200 fps
|
400 fps
|
|
Video Resolution
|
NTSC
|
S/W
|
352 x 240
|
352 x 240
|
|
H/W
|
704 x 480
|
704 x 480
|
|
PAL
|
S/W
|
352 x 288
|
352 x 288
|
|
H/W
|
704 x 576
|
704 x 576
|
|
Video Compression Format
|
S/W
|
Geo MPEG4, Geo H264
|
|
H/W
|
H.264
|
|
Audio Compression Format
|
AAC (16 kHz / 16 bit)
|
|
Bit Rate Range
|
2.5 M ~ 10 M
|
|
GV-Net I/O Card Support
|
Yes
|
|
GV-Multi Quad Card Support
|
Yes
|
|
GV-Loop Through Card Support
|
Yes
|
|
Dimensions(W x H)
|
180 x 112 mm / 7.09 x 4.41 in |
|
Installation Guide
|
GV-3008
|
|
Note:
1. GV-3008 does not support the TV-Out function.
2. GV-3008 is currently not compatible with VIA series, ATI series, Intel Sandy Bridge series and NVIDIA series chipset motherboards.
|
|
Minimum System Requirements For One Card
|
|
OS Supported
|
32-bit
|
Windows XP / Windows Vista / Windows 7 / Windows Server 2008
|
|
64-bit
|
Windows 7 / Windows Server 2008 R2
|
|
CPU
|
Core 2 Duo, 2.33 GHz
|
|
RAM
|
2 x 1 GB Dual Channels
|
|
HDD
|
250 GB
|
|
Graphic Card
|
AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color
|
|
DirectX
|
9.0c
|
|
Power Supply
|
400 Watts
|
|
Minimum System Requirements For Two Card
|
|
OS Supported
|
32-bit
|
Windows XP / Windows Vista / Windows 7 / Windows Server 2008
|
|
64-bit
|
Windows 7 / Windows Server 2008 R2
|
|
CPU
|
Core 2 Quad, 2.4 GHz
|
|
RAM
|
2 x 1 GB Dual Channels
|
|
HDD
|
500 GB
|
|
Graphic Card
|
AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color
|
|
DirectX
|
9.0c
|
|
Power Supply
|
400 Watts
|
|
|
|
|
14/08
|
GeoVision GV-SD200-S Outdoor Full HD IP Speed Dome - 2 Megapixel Progressive Scan CMOS, 18x Optical Zoom, 8x Digital Zoom, H.264 and MJPEG, Full HD Real-Time Resolution, Motion Detection - White
- 2 MP progressive scan CMOS
- 18x Optical Zoom
- 8x Digital Zoom
- H.264 and MJPEG
- Full HD Real-time Resolution
- Two-way audio support on Web interface
- Removable IR Cut Filter
- Motion Detection
- Wide Dynamic Range (WDR)
- Digital Noise Reduction
- IP66 Rating for outdoor environment
- No SD/SDHC card slot & local storage function for Argentina
The Full HD GV-IP Speed Dome provides variable pan/tilt speeds ranging from a fast patrol of 400° per second to a slow rotation of 5° per second with 0.225° pan accuracy for fast and accurate tracking ability. The 360° endless rotation and -10°~190° tilt travel can track objects passing directly beneath the GV-IP Speed Dome. A maximum of 256 preset points can be programmed for precise location of target areas, and users can also define 8 sequences, 4 auto-pan modes and 4 cruise routes for the Dome to operate automatically.
The GV-IP Speed Dome provides 4 alarm inputs and 2 alarm relay outputs, and the alarm management can be done through the network as well.
Specifications:
| Camera |
| Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Optical Zoom |
18X |
| Digital Zoom |
1~8x variable |
| Focal Length |
4.7~84.6 mm |
| Focus Mode |
Auto / Manual |
| White Balance |
Auto/ Indoor/ Outdoor/ ATW |
| Iris Control |
Auto / Manual |
| Electronic Shutter |
1/30 ~ 1/10000 sec. |
| AGC control |
Auto / Manual |
| Back Light |
On / Off |
| Minimum Illumination |
Color |
0.05 lux at F/1.6 |
| B/W |
0.01 lux at F/1.6 |
| Video |
| Video Codec |
H.264, MJPEG |
| Video Streaming |
Single Stream |
| Video Resolution |
4:3 |
1024 x 768, 800 x 600, 640 x 480 |
| 16:9 |
1920 x 1080, 1280 x 720 |
| 5:4 |
1280 x 1024 |
| D1 |
720 x 576 / 720 x 480 |
| CIF |
352 x 288 / 352 x 240 |
| Frame Rate |
30/25 fps (60/50 Hz) at 1920 x 1080;
30/25 fps (60/50 Hz) at 1280 x 720 |
| Audio |
| Audio input/output |
Two-way audio on Web interface |
| Audio Codec |
G.711 |
| Network |
| Interface |
10/100 Mb Ethernet (RJ-45) |
| Protocol |
IPv4, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, UPnP, IGMP, SNMP, QoS, ONVIF |
| Mechanical |
| Temperature Detector |
No |
| Connectors |
Power |
3-pin terminal block |
| Ethernet |
Ethernet (10/100 Base-T), RJ-45 Connector |
| Audio |
1 in 1 out (terminal block) |
| Digital I/O |
4 in 2 out (12-pin terminal block) |
| Local Storage |
Micro SD/SDHC memory card slot (for Class 6 card or above) |
| Web Interface |
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or IP Device Utility |
| Language |
English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish and Traditional Chinese |
| Operation |
| Pan Travel |
360 endless |
| Tilt Travel |
-10 ~ 190 |
| Manual Speed |
0.5 ~ 90/s |
| Presets |
256 |
| Preset Accuracy |
0.225 |
| Preset Speed |
5~400/s |
| Sequence |
8 |
| Auto Pan |
4 |
| Cruise |
8 |
| Privacy Mask |
16 |
| Proportional Pan & Tilt |
On/Off (Pan and tilt speed proportional to zoom ratio) |
| Resume after Power loss |
Yes |
| Home Function |
Preset, Sequence, Auto pan, Cruise |
| Auto Flip |
Digital / Mechanical / Off |
| Digital Slow Shutter |
On / Off |
| Motion Detection |
On / Off |
| Wide Dynamic Range |
On / Off |
| Day/Night: IR Cut Filter |
Auto / Manual |
| Digital Noise Reduction |
On / Off |
| Digital Alarm Input |
4 |
| Digital Alarm Output |
2 |
| Alarm Reaction |
Preset, Sequence, Auto pan, Cruise |
| General |
| Operating Temperature |
-40C ~ 50C / -40F ~ 122F |
| Dimensions |
191.97 x 228.1 mm / 7.55 x 11.1 in (with sunshield) |
| Weight |
2.32 kg / 5.11 lb |
| Power Source |
AC24V 10% |
| Power Consumption |
65 W (with heater) |
| Heater |
On: -7C / 19.4F ;
Off: 3C / 37.4F |
| Regulatory |
CE, FCC, RoHS, IP66 |
|
|
|
|
14/08
|
GeoVision GV-SD200 Indoor Full HD IP Speed Dome - 2 Megapixel, 8x Digital Zoom, 18x Optical Zoom, Full HD Real-time Resolution, H.264 and MJPEG, Two-Way Audio Support On Web Interface - White
- 2 MP progressive scan CMOS
- 18x Optical Zoom
- 8x Digital Zoom
- H.264 and MJPEG
- Full HD Real-time Resolution
- Two-way audio support on Web interface
- Removable IR Cut Filter
- Motion Detection
- Wide Dynamic Range (WDR)
- Digital Noise Reduction
- * No SD/SDHC card slot & local storage function for Argentina
INTRODUCTION
The Full HD GV-IP Speed Dome provides variable pan/tilt speeds ranging from a fast patrol of 400° per second to a slow rotation of 5° per second with 0.225° pan accuracy for fast and accurate tracking ability. The 360° endless rotation and -10°~190° tilt travel can track objects passing directly beneath the GV-IP Speed Dome. A maximum of 256 preset points can be programmed for precise location of target areas, and users can also define 8 sequences, 4 auto-pan modes and 4 cruise routes for the Dome to operate automatically.
The GV-IP Speed Dome provides 4 alarm inputs and 2 alarm relay outputs, and the alarm management can be done through the network as well.
Specifications:
| Camera |
| Sensor |
1/2.8" Progressive Scan CMOS Sensor |
| Optical Zoom |
18X |
| Digital Zoom |
1~8x variable |
| Focal Length |
4.7~84.6 mm |
| Focus Mode |
Auto / Manual |
| White Balance |
Auto/ Indoor/ Outdoor/ ATW |
| Iris Control |
Auto / Manual |
| Electronic Shutter |
1/30 ~ 1/10000 sec. |
| AGC control |
Auto / Manual |
| Back Light |
On / Off |
| Minimum Illumination |
Color |
0.05 lux at F/1.6 |
| B/W |
0.01 lux at F/1.6 |
| Video |
| Video Codec |
H.264, MJPEG |
| Video Streaming |
Single Stream |
| Video Resolution |
4:3 |
1024 x 768, 800 x 600, 640 x 480 |
| 16:9 |
1920 x 1080, 1280 x 720 |
| 5:4 |
1280 x 1024 |
| D1 |
720 x 576 / 720 x 480 |
| CIF |
352 x 288 / 352 x 240 |
| Frame Rate |
30/25 fps (60/50 Hz) at 1920 x 1080;
30/25 fps (60/50 Hz) at 1280 x 720 |
| Audio |
| Audio input/output |
Two-way audio on Web interface |
| Audio Codec |
G.711 |
| Network |
| Interface |
10/100 Mb Ethernet (RJ-45) |
| Protocol |
IPv4, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, UPnP, IGMP, SNMP, QoS, ONVIF |
| Mechanical |
| Temperature Detector |
No |
| Connectors |
Power |
3-pin terminal block, PoE |
| Ethernet |
Ethernet (10/100 Base-T), RJ-45 Connector |
| Audio |
1 in 1 out (terminal block) |
| Digital I/O |
4 in 2 out (12-pin terminal block) |
| Local Storage |
Micro SD/SDHC memory card slot (for Class 6 card or above) |
| Web Interface |
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or IP Device Utility |
| Language |
English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Simplified Chinese, Spanish and Traditional Chinese |
| Operation |
| Pan Travel |
360 endless |
| Tilt Travel |
-10 ~ 190 |
| Manual Speed |
0.5 ~ 90/s |
| Presets |
256 |
| Preset Accuracy |
0.225 |
| Preset Speed |
5~400/s |
| Sequence |
8 |
| Auto Pan |
4 |
| Cruise |
8 |
| Privacy Mask |
16 |
| Proportional Pan & Tilt |
On/Off (Pan and tilt speed proportional to zoom ratio) |
| Resume after Power loss |
Yes |
| Home Function |
Preset, Sequence, Auto pan, Cruise |
| Auto Flip |
Digital / Mechanical / Off |
| Digital Slow Shutter |
On / Off |
| Motion Detection |
On / Off |
| Wide Dynamic Range |
On / Off |
| Day/Night: IR Cut Filter |
Auto / Manual |
| Digital Noise Reduction |
On / Off |
| Digital Alarm Input |
4 |
| Digital Alarm Output |
2 |
| Alarm Reaction |
Preset, Sequence, Auto pan, Cruise |
| General |
| Operating Temperature |
0C ~ 40C / 32F ~ 104F |
| Dimensions |
171.7 x 228.71 mm / 6.76 x 9 in |
| Weight |
1.62 kg / 3.57 lb |
| Power Source |
PoE, AC24V 10% |
| Power Consumption |
20 W |
| Regulatory |
CE, FCC, RoHS |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3at Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
Per Port 48V DC, 1A. Max. 48 watts |
|
|
|
|
14/08
|
GeoVision GV-RSG-128CAM Recording Server - USB Dongle, Supports GV Cameras Only

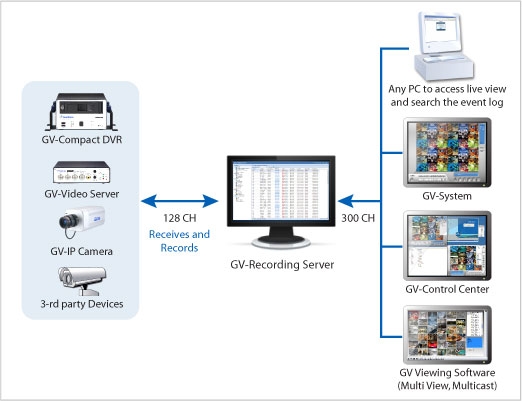

The GV-Recording Server is a video streaming server designed for large-scale video surveillance deployments. It can receive and record up to 128 channels from various IP video devices. Through an intuitive Web interface, each IP camera can be configured to record video continuously, upon motion detection, upon I/O trigger or according to a schedule.
In addition, it can simultaneously distribute up to 300 channels to its clients which include GV-System (DVR/NVR system), GV-GIS (geographic information system), GV-Control Center (central monitoring system) and Multi View (viewing software). Using the GV-Recording Server, the desired frame rates can be reached while the CPU loading and the bandwidth usage of IP video devices are significantly reduced.
In some areas or countries, you may like to install 3G wireless Internet module (e.g. GPRS/UMTS) on the GV-Video Server or GV-Compact DVR but have the problem to obtain a public IP address from ISP. The Passive connection method of GV-Recording Server can solve the public IP issue by accepting the connection request from the GV-Video Server or GV-Compact DVR, and then distribute the video streaming to clients.
| GV-USB Dongle |
| It is required to insert the GV-USB Dongle to the server to enable the GV-Recording Server software. The GV-USB Dongle supports connection with up to 128 IP channels and comes in internal dongles. You can select a dongle to enable GV-IP video devices only, or a dongle to include both thirdparty IP devices and GVIP devices. |
- GV-IP video devices only: 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 124, 128 IP channels.
- Third-party IP devices (Includes GV-IP video devices): 32, 36, 40, 44, 48, 52, 56, 60, 64, 68, 72, 76, 80, 84, 88, 92, 96, 100, 104, 108, 112, 116, 120, 124, 128 IP channels.
|
Features
Simultaneous receiving and recording up to 128 IP channels
Distributing up to 300 IP channels of video to clients
Video gateway between IP devices and receiving clients (GV-System, GV-Control Center and Multi View)
Support for third-party IP video devices (Sony, Axis, VIVOTEK, Panasonic, HikVision, Arecont Vision)
Support for ONVIF, PSIA and RTSP protocols
Different recording policies to set each channel to record continuously, upon motion detection, upon I/O trigger or by schedule (recording upon motion detection and I/O trigger are only for GV-IP devices)
Video playback using Remote ViewLog
Web interface to remotely configure and monitor GV-Recording Server using Internet Explorer, Firefox, Google Chrome and Safari
Passive and active connection methods with IP video devices (Passive connection only supported by GV-IP devices)
Solution for Mobile DVR (GV-Video Server, GV-Compact DVR) to obtain a public IP address
Bandwidth monitoring
Two-way audio communication (only for GV-IP devices through active connection)
Support for 16 languages
| Minimum System Requirements |
|
Servers meeting the minimum system requirements have the capacity to receive up to 128 channels and transmit up to 300 channels with the image settings of 1280 x 1024 resolution, 30 fps and H264 / MPEG4 codec for each channel.
|
| |
| OS |
64-bit Windows 7 / Server 2008 |
| CPU |
Core i5 750, 2.67 GHz |
| Memory |
4 GB Dual Channels (without recording)
6 GB Dual Channels (with recording) |
| Hard Disk |
1 GB (for installation) |
| Browser |
- Internet Explorer 8.0.7600.16385
- Internet Explorer 9.00.7930.16406
- Firefox 3.6.13
- Google Chrome 9.0.597.94
- Safari 5.33.19.4
|
| LAN |
Gigabit Ethernet X 1 |
| Hardware |
Internal GV-USB Dongle |
| Note: In order to receive 128 channels and transmit up to 300 channels with the image settings of 1280 x 1024 resolution, 30 fps and JPEG codec for each channel, Gigabit Ethernet x 6 is required. |
Specifications:
| Feature |
Device |
| Number of IP Video Device Connections |
128 channels |
| Number of Remote Client Connections |
300 channels |
| Active Connections |
Yes |
| Passive Connections |
Yes (only for GV IP devices) |
| 3rd Party IP Cameras Support |
Yes |
| Live Viewing |
Single live view, multi-channel live view |
| Recording |
Yes (up to 128 channels) |
| Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, UPnP, DynDNS, RTSP, PSIA, ONVIF |
| E-Mail Notification |
Yes (for Active connection lost, passive connection lost, USB protection key removed, recycling of recorded video, start keep days operation, motion detection, disk full, disk error, I/O trigger, disk removed, recording failure) |
| SMS Notification |
No |
| 2-Way Audio |
Yes (only for GV-IP devices through active connection) |
| GPS support |
Yes (only for GV-IP cameras) |
| Number of Accounts |
Up to 1000 accounts |
| Mobile Phone Support |
No |
| Bandwidth Control |
No |
| IE Live View |
Yes (up to 36 channels) |
| IE Event Query |
Yes |
| IE I/O Control |
No |
| Language |
Czech / Danish / English / French / German / Hebrew / Hungarian / Italian / Japanese / Polish / Portuguese / Russian / Serbian / Simplified Chinese / Spanish / Traditional Chinese |
|
| |
|
|
|
|
14/08
|
GeoVision GV-MFD320 3 Megapixel H.264 Mini Fixed Dome Camera - Up to 20FPS At 2048x1536, Built-In Microphone, Memory Card Slot, Active Tampering Alarm, Motion Detection, PoE, Megapixel Lens - White
- 3 Megapixel Progressive Scan CMOS
- Stream 1 from H.264 and MJPEG;
- Stream 2 from H.264, MPEG4 and MJPEG
- Up to 20 fps at 2048 x 1536
- Built-in microphone
- Memory Card Slot
- Active Tampering alarm
- Motion detection
- Privacy mask
- IP address filtering
- PoE (Power over Ethernet)
- Megapixel lens
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specifications:
| Camera |
| Image Sensor |
1/2.5" progressive scan CMOS |
| Picture Elements |
2048 (H) x 1536 (V) |
| Minimum Illumination |
Color |
0.5 Lux at F/2.8 |
| Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
| White Balance |
Automatic, Manual (2800K ~ 8500K) |
| Lens |
| Megapixel |
Yes |
| Day/Night |
Yes (electronic) |
| Iris |
Fixed |
| Focal Length |
2.54 mm |
| Maximum Aperture |
F/2.8 |
| Mount |
M12, Pitch 0.5 mm |
| Image Format |
1/2.5" |
| Operation |
Focus |
No |
| Zoom |
No |
| Iris |
Fixed |
| Operation |
| Video Compression |
H.264, MPEG4 and MJPEG |
| Video Streaming |
Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG |
| Frame Rate |
20 fps at 2048 x 1536
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity, WDR, Defog |
| Audio Compression |
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later. |
| Sensor Input |
No |
| Alarm Output |
No |
| Video Resolution |
| Main Stream |
4:3 |
2048 x 1536, 1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 |
| 16:9 |
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252 |
| 5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
| Sub Stream |
4:3 |
640 x 480, 320 x 240 |
| 16:9 |
640 x 360, 448 x 252 |
| 5:4 |
640 x 512, 320 x 256 |
| Network |
| Interface |
10/100 Ethernet |
| Ethernet Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) |
| Mechanical |
| Lens Mounting |
M12, Pitch 0.5 mm |
| Temperature Detector |
Yes |
| Camera Angle Adjustment |
Pan |
-45 ~45 |
| Tilt |
0 ~ 90 |
| Connectors |
Power |
3-pin terminal block, PoE |
| Ethernet |
Ethernet (10/100 Base-T), RJ-45 |
| Audio |
Built-in microphone |
| Digital I/O |
No |
| Auto Iris |
No |
| Local Storage |
Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above) |
| TV-Out |
No |
| LED Indicator |
4 LEDs: Link, ACT, Power, Status |
| General |
| Operating Temperature |
0 C ~ 50 C / 32 F ~ 122 F |
| Humidity |
10% to 90% (no condensation) |
| Power Source |
PoE, DC 12V |
| Max. Power Consumption |
5.5 W |
| Dimensions |
Camera Body |
106 x 55.6 mm / 4.2 x 2.2 in |
| Cable Length |
1 m / 3.28 ft |
| Max. Cable Diameter |
8 mm / 0.31 in |
| Max. Connector Diameter |
28.5 mm / 1.12 in |
| Weight |
280 g / 0.62 lb |
| Regulatory |
CE, FCC, C-Tick, RoHS compliant |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type |
End-Span and Mid-Span |
| PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
| Web Interface |
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or Utility |
| Access from Web Browser |
Camera live view, video recording, change video quality, zoom in/out, bandwidth control, image snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay |
| Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
| Applications |
| Network Storage |
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server |
| Smart Device Access |
- GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Control Center, GV-Center V2, GV-VSM |
|
|
|
|
14/08
|
GeoVision GV-MFD220 2 Megapixel H.264 Mini Fixed Dome - Up to 30FPS at 1920x1080, Built-In Microphone, Memory Card Slot, Motion Detection, PoE, Megapixel Lens, Active Tampering Alarm - White
- 2 Megapixel Progressive Scan CMOS
- Stream 1 from H.264 and MJPEG;
- Stream 2 from H.264, MPEG4 and MJPEG
- Up to 30 fps at 1920 x 1080
- Built-in microphone
- Memory Card Slot
- Active Tampering alarm
- Motion detection
- Privacy mask
- IP address filtering
- PoE (Power over Ethernet)
- Megapixel lens
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- * No memory card slot & local storage function for Argentina
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specifications:
| Camera |
| Image Sensor |
1/2.5" progressive scan CMOS |
| Picture Elements |
1920 (H) x 1080 (V) |
| Minimum Illumination |
Color |
0.5 Lux at F/2.8 |
| Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
| White Balance |
Automatic, Manual (2800K ~ 8500K) |
| Lens |
| Megapixel |
Yes |
| Day/Night |
Yes (electronic) |
| Iris |
Fixed |
| Focal Length |
2.54 mm |
| Maximum Aperture |
F/2.8 |
| Mount |
M12, Pitch 0.5 mm |
| Image Format |
1/2.5" |
| Operation |
Focus |
No |
| Zoom |
No |
| Iris |
Fixed |
| Operation |
| Video Compression |
H.264, MPEG4 and MJPEG |
| Video Streaming |
Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG |
| Frame Rate |
30 fps at 1920 x 1080
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity, WDR, Defog |
| Audio Compression |
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later. |
| Sensor Input |
No |
| Alarm Output |
No |
| Video Resolution |
| Main Stream |
4:3 |
1600 x 1200, 1280 x 960, 640 x 480, 320 x 240 |
| 16:9 |
1920 x 1080, 1280 x 720, 640 x 360, 448 x 252 |
| 5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
| Sub Stream |
4:3 |
640 x 480, 320 x 240 |
| 16:9 |
640 x 360, 448 x 252 |
| 5:4 |
640 x 512, 320 x 256 |
| Network |
| Interface |
10/100 Ethernet |
| Ethernet Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) |
| Mechanical |
| Lens Mounting |
M12, Pitch 0.5 mm |
| Temperature Detector |
Yes |
| Camera Angle Adjustment |
Pan |
-45 ~45 |
| Tilt |
0 ~ 90 |
| Connectors |
Power |
3-pin terminal block, PoE |
| Ethernet |
Ethernet (10/100 Base-T), RJ-45 |
| Audio |
Built-in microphone |
| Digital I/O |
No |
| Auto Iris |
No |
| Local Storage |
Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above) |
| TV-Out |
No |
| LED Indicator |
4 LEDs: Link, ACT, Power, Status |
| General |
| Operating Temperature |
0 C ~ 50 C / 32 F ~ 122 F |
| Humidity |
10% to 90% (no condensation) |
| Power Source |
PoE, DC 12V |
| Max. Power Consumption |
5.5 W |
| Dimensions |
Camera Body |
106 x 55.6 mm / 4.2 x 2.2 in |
| Cable Length |
1 m / 3.28 ft |
| Max. Cable Diameter |
8 mm / 0.31 in |
| Max. Connector Diameter |
28.5 mm / 1.12 in |
| Weight |
280 g / 0.62 lb |
| Regulatory |
CE, FCC, C-Tick, RoHS compliant |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type |
End-Span and Mid-Span |
| PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
| Web Interface |
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or Utility |
| Access from Web Browser |
Camera live view, video recording, change video quality, zoom in/out, bandwidth control, image snapshot, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay |
| Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
| Applications |
| Network Storage |
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server |
| Smart Device Access |
- GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Control Center, GV-Center V2, GV-VSM |
|
|
|
|
14/08
|
GeoVision GV-BX140DW 1 Megapixel H.264 WDR D/N Box IP Camera - Up to 30FPS at 1280x720, Built-In, External Microphone, 2-Way Audio, Wide Dynamic Range (WDR), Memory Card Slot, DC 12V / PoE - White
- 1 megapixel progressive scan Wide dynamic range CMOS
- Stream 1 from H.264 and MJPEG;
- Stream 2 from H.264, MPEG4 and MJPEG
- Up to 30 fps at 1280 x 720
- Built-in / external microphone
- 2-way audio
- One sensor input and alarm output
- TV-out support
- Memory Card Slot
- Wide Dynamic Range (WDR)
- Motion detection
- Tampering alarm
- Privacy mask
- IP address filtering
- DC 12V / PoE
- Removable IR-cut filter for Day/Night function
- Varifocal megapixel lens
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
- * No memory card slot & local storage function for Argentina
Active Tampering Alarm
Tampered
Focus Change
Camera Shift
Specifications:
| Camera |
| Image Sensor |
1/3" progressive scan CMOS |
| Picture Elements |
1280 (H) x 720 (V) |
| Minimum Illumination |
Color |
0.2 Lux at F/1.4 |
| B/W |
0.08 Lux at F/1.4 |
| IR ON |
0 Lux |
| Shutter Speed |
Automatic |
| White Balance |
Automatic, Manual (2800 ~ 8500K) |
| Gain Control |
Automatic |
| S/N Ratio |
50 dB |
| WDR |
Yes |
| Lens |
| Megapixel |
Yes |
| Day/Night |
Yes (with removable IR-cut filter) |
| Lens Type |
Varifocal |
| Focal Length |
2.8 ~ 12 mm |
| Maximum Aperture |
F/1.4 |
| Mount |
CS Mount |
| Image Format |
1/3" |
| Operation |
Focus |
Manual (w/lock) |
| Zoom |
Manual (w/lock) |
| Iris |
Fixed |
| Torque (Focus/Zoom screws) |
0.049 N.m |
| Operation |
| Video Compression |
H.264, MPEG4 and MJPEG |
| Video Streaming |
Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG |
| Frame Rate |
30 fps at 1280 x 720
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, Defog |
| Audio Compression |
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later. |
| Two-way Audio |
Yes |
| Sensor Input |
1 input (Dry Contact) |
| Alarm Output |
1 Digital Output (200mA 5V DC) |
| Video Resolution |
| Main Stream |
16:9 |
1280 x 720, 640 x 360, 448 x 252 |
| Sub Stream |
16:9 |
640 x 360, 448 x 252 |
| Network |
| Interface |
10/100 Ethernet |
| Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) |
| Mechanical |
| Lens Mounting |
CS-Mount |
| Temperature Detector |
Yes |
| Connectors |
Power |
2-pin terminal block, PoE |
| Ethernet |
RJ-45 |
| Audio |
1 In (Using the built-in microphone or externally connecting a microphone)
1 Out (Stereo phone jack, 3.5 mm / 0.14 in) |
| Digital I/O |
3-pin terminal block, pitch 2.5 mm / 0.1 in |
| Auto Iris |
Not functional |
| Local Storage |
Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above) |
| TV-Out |
BNC connector (640 x 480 resolution) |
| LED Indicator |
2 LEDs: Power, Status |
| General |
| Operating Temperature |
0 C ~ 50 C / 32 F ~ 122 F |
| Humidity |
10% to 90% (no condensation) |
| Power Source |
12V DC / PoE |
| Max. Power Consumption |
7 W |
| Dimensions (L X W X H) |
75.5 x75 x 54 mm / 2.97 x 2.95 x 2.13 in (without lens) |
| Weight |
321 g / 0.71 lb |
| Regulatory |
CE, FCC, C-Tick, RoHS compliant |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
| Web Interface |
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or Utility |
| Access from Web Browser |
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay |
| Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
| Applications |
| Network Storage |
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server |
| Smart Device Access |
- GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch
- GV-Eye HD for iPad |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Control Center, GV-Center V2, GV-VSM |
|
|
|
|
Previous Page
|
Next Page
|
|
