The Bullet Camera features a weather sealed and IP66 rating housing for outdoor use. The camera also features 16 IR LEDs IR LEDs for infrared illumination in night vision applications. Additionally, the Bullet Camera supports both DC 12V and AC 24V power supply.









Camera
Image Sensor		1/2.5" progressive scan CMOS
Picture Elements		1280 (H) x 1024 (V)
Minimum Illumination	Color	1 Lux (1/30 sec), 0.5 Lux (1/5 sec)
	B/W	0 Lux
	IR ON
Shutter Speed		Automatic, Manual (1/5 ~ 1/8000 sec)
White Balance		Automatic, Manual (2800K ~ 8500K)
Lens
Megapixel		Yes
Day/Night		Yes (with removable IR-cut filter)
Lens Type		Varifocal
Focal Length		3 ~ 9 mm
Maximum Aperture		F / 1.3
Mount		14 mm
Image Format		1/3"
Operation	Focus	Manual (w/lock)
	Zoom	Manual (w/lock)
	Iris	DC Drive
Torque (Focus/Zoom screws)		0.049 N.m
		16 IR LEDs
IR Distance		15 m / 50 ft (Max.)
Operation
Video Compression		H.264, MPEG4, MJPEG
Video Stream		Stream 1 from H.264 and MJPEG Stream 2 from H.264, MPEG4 and MJPEG
Frame Rate		30 fps at 1280 x 1024 * The frame rate and the performance may vary depending on the number of connections and data bitrates (different scenes).
Image Setting		Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less, Image Orientation, Shutter Speed, D/N Sensitivity, Backlight Compensation, WDR, Defog
Audio Compression		G.711, AAC (16 kHz / 16 bit) * AAC is only supported by GV-System V8.5 or later
Two-way Audio		Yes
Sensor Input		1 Input (Dry Contact)
Alarm Output		1 Digital Output (200mA 5V DC)
Video Resolution
Main Stream	4 : 3	1280 x 960, 640 x 480, 320 x 240
	16 : 9	1280 x 720, 640 x 360, 448 x 252
	5 : 4	1280 x 1024, 640 x 512, 320 x 256
Sub Stream	4 : 3	640 x 480, 320 x 240
	16 : 9	640 x 360, 448 x 252
	5 : 4	640 x 512, 320 x 256
Network
Interface		10/100 Ethernet
Protocol		HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP)
Mechanical
Lens Mounting		14 mm
Temperature Detector		Yes
Camera Angle Adjustment	Pan	0 ~ 360
	Tilt	90 ~ 180
	Rotate	0 ~ 360
Connectors	Power	3-pin terminal block, PoE
	Ethernet	RJ-45
	Audio	1 In (RCA female for microphone) 1 Out (RCA female for speaker)
	Digital I/O	I/O Wires
	Auto Iris	DC Drive
	Local Storage	Micro SD / SDHC / SDXC memory card slot (for Class 6 card or above)
	TV-Out	None
General
Operating Temperature		-20 C ~ 50 C / -4 F ~ 122 F
Humidity		10% to 90% (no condensation)
Power Source		12V DC / 24V AC / PoE
Max. Power Consumption		12 W
Dimensions	Camera Body	277.5 x 87.75 x 148.95 mm / 10.9 x 3.45 x 5.86 in
	Cable Length	1 m / 3.28 ft
	Max. Cable Diameter	7.1 mm / 0.28 in
	Max. Connector Diameter	25.2 mm / 0.99 in
Weight		1.35 kg / 2.98 lb
Protection Classification		IP66
Regulatory		CE, FCC, C-Tick, RoHS compliant
Power over Ethernet
PoE Standard		IEEE 802.3af Power over Ethernet / PSE
PoE Power Supply Type		End-Span
PoE Power Output		Per Port 48V DC, 350mA. Max. 15.4 watts
Web Interface
Installation Management		Web-based configuration
Maintenance		Firmware upgrade through Web Browser or Utility
Access from Web Browser		Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Text Overlay
Language		Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish
Applications
Network Storage		GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
Smart Device Access		- GV-Eye for Android smartphone, tablet, iPhone, and iPod Touch - GV-Eye HD for iPad
Live Viewing		IE , GV-MultiView
CMS Server support		GV-Control Center, GV-Center V2, GV-VSM

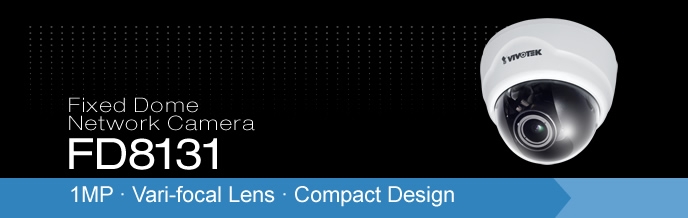

1MP Vari-focal Lens Compact Design Fixed Dome Network Camera FD8131



VIVOTEK FD8131 is an easy-to-use fixed dome network camera specifically designed for indoor security applications with a compact, stylish housing. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need look no further for an all-in-one camera capable of capturing high quality, high resolution video.



This camera supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.



With the vari-focal lens, the FD8131 provides users the freedom to adjust the field of view in accordance with their application. Also included are a number of advanced features which are standard for VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, 802.3af compliant PoE, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8131 provides the best value in IP surveillance for indoor applications such as offices, banks, and retail stores.



• System Information
  • CPU
    • Multimedia SoC (System-on-Chip)
  • Flash
    • 128 MB
  • RAM
    • 256 MB

• Camera Features
  • Image sensor
    • 1/4" CMOS
  • Maximum Resolution
    • 1280x800
  • Lens Type
    • Vari-focal
  • Focal Length
    • f = 3 ~ 12 mm
  • Aperture
    • F 1.4 ( wide ), F 2.0 ( tele )
  • Field of View
    • 48.06 ~ 17.06 (horizontal)
    • 28.97 ~ 10.76 (vertical)
    • 55.62 ~ 19.76 (diagonal)
  • Shutter Time
    • 1/5 sec. to 1/32,000 sec.
  • Minimum Illumination
    • 0.5 Lux @ F1.4, 50 IRE
  • Pan / Tilt / Zoom
    • ePTZ
    • 16x digital zoom ( 4x on IE plug-in ,4x built-in )
  • On-board Storage
    • MicroSD/SDHC card slot

• Video
  • Compression
    • H.264, MPEG-4 & MJPEG
  • Maximum Frame Rate
    • H.264: 30 fps at 1280x800
    • MPEG-4: 30 fps at 1280x800
    • MJPEG: 30 fps at 1280x800
  • Maximum Streams
    • 4 simultaneous streams
  • S/N Ratio
    • Above 53 dB
  • Dynamic Range
    • Above 40 dB
  • Video Streaming
    • Adjustable resolution, quality and bitrate
    • Configurable video cropping for bandwidth saving
  • Image Settings
    • Adjustable image size, quality, and bit rate
    • Time stamp and text caption overlay
    • Flip & mirror
    • Configurable brightness, contrast, saturation, sharpness, white balance and exposure control
    • BLC (Backlight compensation)
    • Supports privacy masks
    • Scheduled profile settings

• Network
  • Users
    • Live viewing for up to10 clients
  • Protocols
    • IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
  • Protocols
    • 10 Base-T / 100BaseTX Ethernet (RJ-45)
  • ONVIF
    • Ver. 1.02

• Intelligent Video
  • Video Motion Detection
    • Triple-window video motion detection
  • Video Motion Detection
    • y-window video motion detection

• Alarm and Event
  • Alarm Triggers
    • Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
  • Alarm Events
    • Event notification using HTTP, SMTP, FTP, NAS server
    • File upload via HTTP, SMTP, FTP and NAS server

• General
  • Connectors
    • RJ-45 cable connector for Network/PoE connection
    • DC 12V Power input
    • Digital input * 1
    • MicroSD/SDHC card slot
  • LED Indicator
    • System power and status indicator
  • Power input
    • 12V DC
    • 802.3af Power-over-Ethernet (Class 1)
  • Power consumption
    • Max. 3.84 W
  • Dimensions
    • : 109.5 mm x 90.5 mm
  • Weight
    • Net: 500 g
  • Safety Certifications
    • CEC-TickFCC ( Class A )LVDVCCI
  • Working Temperature
    • Operating Temperature: -10C ~ 50C ( 14F ~ 122F )
  • Warranty
    • 24 Months

• System Requirements
• Operating System
  • Microsoft Windows 7 / Vista / XP / 2000
• Browser
  • Mozilla Firefox 7~10 ( Streaming only )
  • Internet Explorer 7.x or 8.x
• Other Players
• VLC:1.1.11 or above
• QuickTime:7 or above





The Cruzer Glide USB Flash Drive offers an easy and secure way to share, move, and back up your most important files. Featuring a compact design with a retractable USB connector, this flash drive is ideal for data users who need easy, portable access to their media and personal files.





The Cruzer Glide USB flash drive has a sleek, streamlined design with an attractive black and red color scheme. Its compact size means it can easily slip into a front pocket or purse. The USB drive's connector retracts with a pull of the slide, protecting the drive when it's not in use.



Available in capacities up to 128GB, the Cruzer Glide USB Flash Drive lets you carry your favorite media with you. You'll be able to store, share, and transport hours of HD video, entire photo albums, your music library and important documents.



To transfer files to your drive, plug the flash drive into your computer's USB port and drag the desired files into the drive's folder. No additional software or drivers are required, so you can begin transferring and backing up your files immediately.



Each Cruzer Glide USB flash drive is preloaded SanDisk SecureAccess which lets you create a password-protected folder for your sensitive files. The password protection uses 128-bit AES encryption, so you'll be able to share your drive without sharing private documents.





The Cruzer Glide USB flash drive also comes with 2GB of free online storage space provided by YuuWaa. This convenient cloud storage service features a drag-and-drop interface, so you can transfer your files to a secure YuuWaa server with just a few mouse clicks.



The Cruzer Glide USBFlash Drive can function in a variety of climates. It can operate in temperatures ranging from -13 to 185 degrees Fahrenheit, which means you'll be able to transfer files no matter where you are.



The Cruzer Glide USB Flash Drive is backed by a two-year limited warranty.



Capacities: 4GB, 8GB, 16GB, 32GB, 64GB and 128GB
Compatibility: SanDisk SecureAccess software: Windows® XP, Windows Vista®, Windows 7 and Mac OS X v10.5+ SanDisk SecureAccess page.) Linux: storage only
USB port: USB 2.0 port required for high-speed transfer
Warranty: 2-year limited warranty





The Cruzer Glide USB Flash Drive offers an easy and secure way to share, move, and back up your most important files. Featuring a compact design with a retractable USB connector, this flash drive is ideal for data users who need easy, portable access to their media and personal files.







The Cruzer Glide USB flash drive has a sleek, streamlined design with an attractive black and red color scheme. Its compact size means it can easily slip into a front pocket or purse. The USB drive's connector retracts with a pull of the slide, protecting the drive when it's not in use.



Available in capacities up to 128GB, the Cruzer Glide USB Flash Drive lets you carry your favorite media with you. You'll be able to store, share, and transport hours of HD video, entire photo albums, your music library and important documents.



To transfer files to your drive, plug the flash drive into your computer's USB port and drag the desired files into the drive's folder. No additional software or drivers are required, so you can begin transferring and backing up your files immediately.



Each Cruzer Glide USB flash drive is preloaded SanDisk SecureAccess which lets you create a password-protected folder for your sensitive files. The password protection uses 128-bit AES encryption, so you'll be able to share your drive without sharing private documents.




The Cruzer Glide USB flash drive also comes with 2GB of free online storage space provided by YuuWaa. This convenient cloud storage service features a drag-and-drop interface, so you can transfer your files to a secure YuuWaa server with just a few mouse clicks.



The Cruzer Glide USBFlash Drive can function in a variety of climates. It can operate in temperatures ranging from -13 to 185 degrees Fahrenheit, which means you'll be able to transfer files no matter where you are.




The Cruzer Glide USB Flash Drive is backed by a two-year limited warranty.



Capacities: 4GB, 8GB, 16GB, 32GB, 64GB and 128GB
Compatibility: SanDisk SecureAccess software: Windows® XP, Windows Vista®, Windows 7 and Mac OS X v10.5+ SanDisk SecureAccess page.) Linux: storage only
USB port: USB 2.0 port required for high-speed transfer
Warranty: 2-year limited warranty

Cruzer Glide USB Flash Drive Backs Up, Transfers, and Secures Your Data.



The Cruzer Glide USB Flash Drive offers an easy and secure way to share, move, and back up your most important files. Featuring a compact design with a retractable USB connector, this flash drive is ideal for data users who need easy, portable access to their media and personal files.





The Cruzer Glide USB flash drive has a sleek, streamlined design with an attractive black and red color scheme. Its compact size means it can easily slip into a front pocket or purse. The USB drive's connector retracts with a pull of the slide, protecting the drive when it's not in use.



Available in capacities up to 128GB, the Cruzer Glide USB Flash Drive lets you carry your favorite media with you. You'll be able to store, share, and transport hours of HD video, entire photo albums, your music library and important documents.



To transfer files to your drive, plug the flash drive into your computer's USB port and drag the desired files into the drive's folder. No additional software or drivers are required, so you can begin transferring and backing up your files immediately.



Each Cruzer Glide USB flash drive is preloaded SanDisk SecureAccess which lets you create a password-protected folder for your sensitive files. The password protection uses 128-bit AES encryption, so you'll be able to share your drive without sharing private documents.

The Cruzer Glide USB flash drive also comes with 2GB of free online storage space provided by YuuWaa. This convenient cloud storage service features a drag-and-drop interface, so you can transfer your files to a secure YuuWaa server with just a few mouse clicks.



The Cruzer Glide USBFlash Drive can function in a variety of climates. It can operate in temperatures ranging from -13 to 185 degrees Fahrenheit, which means you'll be able to transfer files no matter where you are.



The Cruzer Glide USB Flash Drive is backed by a two-year limited warranty.




Capacities: 4GB, 8GB, 16GB, 32GB, 64GB and 128GB
Compatibility: SanDisk SecureAccess software: Windows® XP, Windows Vista®, Windows 7 and Mac OS X v10.5+ SanDisk SecureAccess page.) Linux: storage only
USB port: USB 2.0 port required for high-speed transfer
Warranty: 2-year limited warranty



Cruzer Glide USB Flash Drive Backs Up, Transfers, and Secures Your Data.



The Cruzer Glide USB Flash Drive offers an easy and secure way to share, move, and back up your most important files. Featuring a compact design with a retractable USB connector, this flash drive is ideal for data users who need easy, portable access to their media and personal files.







Lightweight Design with Retractable USB Connector
The Cruzer Glide USB flash drive has a sleek, streamlined design with an attractive black and red color scheme. Its compact size means it can easily slip into a front pocket or purse. The USB drive's connector retracts with a pull of the slide, protecting the drive when it's not in use.



High-Capacity Drive Stores Your Essential Files
Available in capacities up to 128GB, the Cruzer Glide USB Flash Drive lets you carry your favorite media with you. You'll be able to store, share, and transport hours of HD video, entire photo albums, your music library and important documents.



Fast Drag-and-Drop File Transfer
To transfer files to your drive, plug the flash drive into your computer's USB port and drag the desired files into the drive's folder. No additional software or drivers are required, so you can begin transferring and backing up your files immediately.



SanDisk SecureAccess Software Protects Files with a Password and Encryption
Each Cruzer Glide USB flash drive is preloaded SanDisk SecureAccess which lets you create a password-protected folder for your sensitive files. The password protection uses 128-bit AES encryption, so you'll be able to share your drive without sharing private documents.



Includes 2GB of Cloud Storage
The Cruzer Glide USB flash drive also comes with 2GB of free online storage space provided by YuuWaa. This convenient cloud storage service features a drag-and-drop interface, so you can transfer your files to a secure YuuWaa server with just a few mouse clicks.



Durable and Temperature Proof
The Cruzer Glide USBFlash Drive can function in a variety of climates. It can operate in temperatures ranging from -13 to 185 degrees Fahrenheit, which means you'll be able to transfer files no matter where you are.



Warranty
The Cruzer Glide USB Flash Drive is backed by a two-year limited warranty.
