13/07
|
GeoVision GV-MDR120 1.3 Megapixel H.264 Low Lux Mini Fixed Rugged Dome - 1/3" Progressive Scan CMOS, Up to 30fps, Built-In Microphone, Motion Detection, Tampering Alarm - White GV-MDR120 1.3MP H.264 Low Lux Mini Fixed Rugged Dome
- 1/3" progressive scan CMOS
- Megapixel lens
- Dual video streams: Stream 1 from H.264 and MJPEG; Stream 2 from H.264, MPEG4 and MJPEG
- Up to 30 frames per second in megapixel resolution (1280 x 1024)
- IK7 rating
- IP66 rating
- 3-axis mechanism: pan (-45° ~ +45°), tilt (0° ~ 90°), rotate (0° ~ 360°)
- Built-in microphone
- Motion detection
- Tampering alarm
- Privacy mask
- Text overlay
- IP address filtering
- Endurable to low environment temperatures (-20°C ~ 50°C / -4°F ~ 122°F)
- Supports iPhone, iPad, Android & 3GPP
- 31 languages on Web interface
Specifications:
| Camera |
| Image Sensor |
1/3" progressive scan CMOS |
| Picture Elements |
1280 (H) x 1024 (V) |
| Minimum Illumination |
Color
B/W |
0.08 Lux at F/1.5 |
| Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
| White Balance |
Automatic, Manual (2800K ~ 8500K) |
| Gain Control |
Automatic |
| S/N Ratio |
45 dB |
| BLC |
Yes |
| Lens |
| Megapixel |
Yes |
| Day/Night |
Yes (Electronic) |
| Iris |
Fixed |
| Focal Length |
4.05 mm |
| Maximum Aperture |
F/1.5 |
| Mount |
M12, Pitch 0.5 mm |
| Image Format |
1/3" |
| Operation |
Focus |
No |
| Zoom |
No |
| Iris |
Fixed |
| Operation |
| Video Compression |
H.264, MPEG4 and MJPEG |
| Video Streaming |
Stream 1 from H.264 or MJPEG;Stream 2 from H.264, MPEG4 or MJPEG |
| Frame Rate |
30 fps at 1280 x 1024
* The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
| Image Setting |
Brightness, Contrast, Saturation, Sharpness, Gamma, White Balance, Flicker-less 50/60 Hz, Image Orientation, Shutter Speed, Backlight Compensation, D/N sensitivity |
| Audio Compression |
G.711, AAC (16 kHz / 16 bit)
* AAC is only supported by GV-System V8.5 or later. |
| Video Resolution |
| Main Stream |
4:3 |
1280 x 960, 640 x 480, 320 x 240 |
| 16:9 |
1280 x 720, 640 x 360, 448 x 252 |
| 5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
| Sub Stream |
4:3 |
640 x 480, 320 x 240 |
| 16:9 |
640 x 360, 448 x 252 |
| 5:4 |
640 x 512, 320 x 256 |
| Network |
| Interface |
10/100 Ethernet |
| Ethernet Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, 3GPP/ISMA, RTSP, PSIA, SNMP, QoS (DSCP) |
| Mechanical |
| Lens Mounting |
M12, Pitch 0.5 mm |
| Temperature Detector |
Yes |
| Camera Angle Adjustment |
Pan |
-45 ~ 45 |
| Tilt |
0 ~ 90 |
| Rotate |
0 ~ 360 |
| Connectors |
Power |
PoE |
| Ethernet |
Ethernet (10/100 Base-T), RJ-45 |
| Audio |
Built-in microphone |
| Local Storage |
Micro SD/SDHC memory card slot (for Class 6 card or above) |
| LED Indicator |
4 LEDs: Link, ACT, Power, Status |
| General |
| Operating Temperature |
-20 C ~ 50 C / -4 F ~ 122 F |
| Humidity |
10% to 90% (no condensation) |
| Power Source |
PoE |
| Max. Power Consumption |
3.7 W |
| Dimensions |
Camera Body |
115 x 59.2 mm / 4.5 x 2.3 in |
| Cable Length |
1.054 m / 4.15 ft |
| Max. Cable Diameter |
6.2 mm / 0.24 in |
| Max. Connector Diameter |
30 mm / 1.18 in |
| Weight |
568 g / 1.3 lb |
| Protection Classification |
IP66 |
| Vandal Resistance |
IK7 |
| Regulatory |
CE, FCC, C-Tick, EN50155, RoHS compliant |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
| Web Interface |
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or Utility |
| Access from Web Browser |
Camera live view, video recording, change video quality, bandwidth control, image snapshot, digital I/O control, audio, Wide Angle Lens Dewarping, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay |
| Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
| Applications |
| Network Storage |
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server
* GV-Backup Center and GV-Recording Server are supported in V1.08 or later |
| Mobile Phone support |
GV-AView for Android Smartphone, GV-Eye HD for iPad, GV-Eye for iPhone and iPod Touch, GV-GView for Windows PDA, GV-MSView for Windows Smartphone, GV-SSView for Symbian Smartphone, 3G-enabled phone |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Control Center, GV-Center V2, GV-VSM |
|
|
|
|
13/07
|

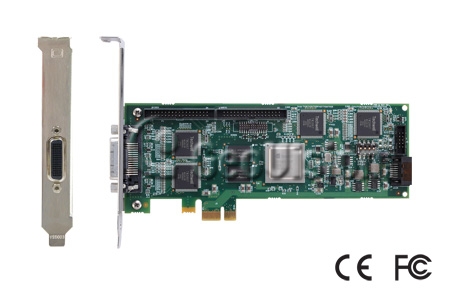

GeoVision GV-5016 Video Capture Card - PCI-Ex1
| Specifications |
| |
GV-5016 |
GV-5016 x 2 |
| Interface |
PCI-E (x1) |
PCI-E (x1) x 2 |
| Input Type |
LFH |
| Video Input |
16 Cams |
32 Cams |
| Audio Input |
16 Channels |
32 Channels |
| Recording Rate (D1) |
NTSC |
480 fps |
960 fps |
| PAL |
400 fps |
800 fps |
| Display Rate |
NTSC |
480 fps |
960 fps |
| PAL |
400 fps |
800 fps |
| Video Resolution |
NTSC |
H/W |
704 x 480 |
704 x 480 |
| S/W |
352 x 240 |
352 x 240 |
| PAL |
H/W |
704 x 576 |
704 x 576 |
| S/W |
352 x 288 |
352 x 288 |
| Video Compression Format |
S/W |
Geo MPEG4, Geo H264 |
| H/W |
H264 |
| Audio Compression Format |
AAC (16 kHz / 16 bit) |
| Bit Rate Range |
5M ~ 10M |
| GV-Multi Quad Card Support |
No |
| GV-Loop Through Card Support |
No |
| GV-NET/IO Card Support |
Yes (Note 3) |
| Dimensions (W x H) |
168 x 70 mm / 6.61 x 2.75 in |
| Installation Guide |
GV-5016 |
|
Note:
1. GV-5016 does not support the TV-Out function.
2. GV-5016 is currently not compatible with VIA series and ATI series chipset motherboards.
3. To work together with GV-5016, GV-NET/IO Card V3.1 must be set in the I/O Box Mode and connected to the PC through USB or DB9.
4. Specifications are subject to change without notice.
|
|
Minimum System Requirements For One Card
|
| OS Supported |
32-bit |
Windows XP / Windows Vista / Windows 7 / Windows Server 2008 |
| 64-bit |
Windows 7 / Windows Server 2008 R2 |
| CPU |
Core 2 Quad, 2.4 GHz |
| RAM |
2 x 1 GB Dual Channels |
| HDD |
500 GB |
| Graphic Card |
AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color |
| DirectX |
9.0c |
|
Minimum System Requirements For Two Cards
|
| OS Supported |
32-bit |
Windows XP / Windows Vista / Windows 7 / Windows Server 2008 |
| 64-bit |
Windows 7 / Windows Server 2008 R2 |
| CPU |
Core i5 650, 3.20 GHz |
| RAM |
2 x 1 GB Dual Channels |
| HDD |
1 TB |
| Graphic Card |
AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended),
32-bit color |
| DirectX |
9.0c |
|
|
|
|
13/07
|
GeoVision GV-FER521 5 Megapixel H.264 Fisheye Rugged IP Camera - Electronic Day/Night Function, Provides 360 & 180 Degrees Panorama View, Virtual PTZ Function, Auto Pan Function, 2-Way Audio, PoE, Micro SD/SDHC
Introduction
The GV-FER521 is an outdoor fisheye camera that allows you to monitor all angles of a location using just one camera. The distorted hemispherical image of the fisheye camera will be converted into the conventional rectilinear projection.
Without installing any software, you can watch live view and utilize functions such as motion detection, privacy mask, and alert notification through the Web interface using an IE browser. In addition, the GV-FER521 seamlessly integrates with the GV-System, providing advanced monitoring and video management features.
The GV-Fisheye IP Camera is designed to be mounted on the ceiling, wall or ground. There are two ways to mount the GV-FER521 on the ceiling, Hard Ceiling Mount and In-Ceiling Mount. In-Ceiling Mount allows the camera to be mounted into the ceiling, revealing a small portion of the camera.
Key Features
5MP progressive scan CMOS
H.264 and MJPEG
Digital Object Tracking
Electronic Day/Night function
IP66 Rating
IK6 Rating
Provides 360 and 180 degrees panorama view
No mechanical moving parts
Built-in Web server for monitoring through IE browser
Virtual PTZ function
Auto Pan function
Different angle of view accessible by multiple users at the same time
Playback from any view angle and zoom level
Privacy mask
Visual automation
Tampering alarm
2-way audio
PoE
Micro SD/SDHC Card Slot
31 languages on Web interface
Specifications:
| System Requirements |
| OS |
32-bit |
Windows XP / Vista / 7 / Server 2008 |
| 64-bit |
Windows 7 / Server 2008 |
| GV-System Version |
GV-System V8.5.3.0 or later |
| Browser |
Internet Explorer 7.x or later |
| Camera |
| Image Sensor |
1/2.5" progressive scan CMOS |
| Picture Elements |
2560 (H) x 1920 (V) |
| Minimum Illumination |
Color |
2.0 Lux / F2.0 |
| B/W |
| Shutter Speed |
Automatic, Manual (1/5 ~ 1/8000 sec) |
| White Balance |
Automatic, Manual (2800 ~ 8500K) |
|
Optics Lens
|
| Megapixel |
Yes |
| Day/Night |
Yes (electronic) |
| Iris |
Fixed Iris |
| Focal Length |
1.6 mm |
| Maximum Aperture |
F/2.0 |
| Mount |
M12, Pitch 0.5 mm |
| Image Format |
4.7 mm (image circle) |
| Operation |
Focus |
None |
| Zoom |
None |
| Iris |
Fixed |
|
Operation
|
| Video Compression |
H.264, MJPEG |
| Video Streaming |
Single streaming from H.264 or MJPEG |
| Frame Rate |
10 fps at 2560 x 1920
15 fps at 2048 x 1944 |
| Image Setting |
Brightness, Contrast, Sharpness, Saturation, Gamma, White Balance, Flicker-less, Backlight Compensation, Image Orientation, Shutter Speed, Day / Night |
| Audio Compression |
G.711, AAC (16 kHz / 16 bit) |
| Two-way Audio |
Yes |
|
Network
|
| Interface |
10/100 Ethernet |
| Protocol |
HTTP, HTTPS, TCP, UDP, SMTP, FTP, DHCP, NTP, UPnP, DynDNS, RTSP, PSIA, SNMP, QoS (DSCP) |
|
Mechanical
|
| Lens Mounting |
M12, Pitch 0.5 mm / 0.02 in |
| Temperature Detector |
Yes |
| Connectors |
Power |
PoE |
| Ethernet |
Ethernet (10/100 Base-T), RJ-45 Connector |
| Audio |
Built-in speaker & microphone |
| Auto Iris |
None |
| Local Storage |
Micro SD / SDHC memory card slot (for Class 6 card or above),
or Mini USB slot for USB storage |
| TV-Out |
None |
|
General
|
| Operating Temperature |
-20 C ~ 50 C / -4 F ~ 122 F |
| Humidity |
10% to 90% (no condensation) |
| Power Source |
PoE (IEEE802.3af) |
| Max. Power Consumption |
5 W |
| Dimensions |
Camera Body |
Hard-Ceiling Mount |
160 x 46.4 mm / 6.30 x 1.83 in |
| In-Ceiling Mount |
164 x 46.4 mm / 6.46 x 1.83 in |
| Cable Length |
1 m / 3.28 ft |
| Max. Cable Diameter |
6.2 mm / 0.24 in |
| Max. Connector Diameter |
30 mm / 1.18 in |
| Weight |
480 g / 1.06 lb |
| Protection Classification |
IP66 |
| Vandal Resistance |
IK6 |
| Regulatory |
CE, FCC, C-Tick, RoHS compliant |
|
Power over Ethernet
|
| PoE Standard |
IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type |
End-Span |
| PoE Power Output |
Per Port 48V DC, 350mA. Max. 15.4 watts |
|
Web Interface
|
| Installation Management |
Web-based configuration |
| Maintenance |
Firmware upgrade through Web Browser or Utility |
| Access from Web Browser |
Camera live view, video recording, change video quality, bandwidth control, image snapshot, audio, Picture in Picture, Picture and Picture, Privacy Mask, Visual Automation, Tampering Alarm, Auto Pan function, virtual PTZ, motion detection, wide angle lens dewarping, text overlay |
| Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
|
Application
|
| Network Storage |
GV-NVR, GV-System, GV-Backup Center, GV-Recording Server |
| Live Viewing |
IE , GV-MultiView |
| CMS Server support |
GV-Control Center, GV-Center V2, GV-VSM |
|
|
|
|
13/07
|

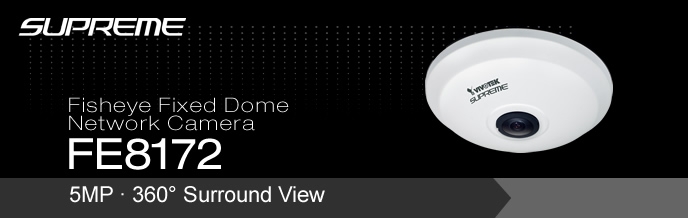

Vivotek FE8172 Supreme Series Fisheye Fixed Dome Network Camera - 5 Megapixel CMOS Sensor, Up to 30fps @ 1080p FHD, Removable IR-Cut For Day & Night Function, Real-time H.264, MPEG-4, MJPEG - White
5MP 360° Surround View Fisheye Fixed Dome Network Camera FE8172
Overview
VIVOTEK FE8172 is the fisheye fixed dome network camera from VIVOTEK, featuring detailed 5MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 12X wider field of view than a standard VGA camera. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices and more.
The FE8172 offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capability, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both of the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI).
As with all VIVOTEK true day/night cameras, the FE8172 features a removable IR-cut filter, maintaining clear images 24 hours a day. Together with 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage and iPad applications, the FE8172 is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.
Features
- 5-megapixel CMOS Sensor
- Up to 30 fps @ 1080p Full HD
- 1.05 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Removable IR-cut Filter for Day & Night Function
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
- ePTZ for Data Efficiency
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
|
|
|
|
13/07
|
Vivotek FE8172V Supreme Series Fisheye Fixed Dome Network Camera - 5 Megapixel CMOS Sensor, Up to 30fps @ 1080p FHD, Removable IR-Cut Filter For Day & Night Function, Real-time H.264, MPEG-4, MJPEG - White

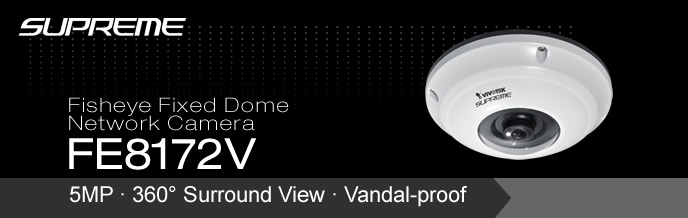

5MP 360° Surround View Vandal-proof Fisheye Fixed Dome Network Camera FE8172V
Overview
VIVOTEK FE8172V is the fisheye fixed dome network camera from VIVOTEK, featuring detailed 5MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 12X wider field of view than a standard VGA camera. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices and more.
The FE8172V offers various display layouts, including original surround view, panoramic view, and regional view for various mounting applications. With the latest cutting-edge image processing capability, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in both of the panoramic as well as regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI).
As with all VIVOTEK true day/night cameras, the FE8172V features a removable IR-cut filter, maintaining clear images 24 hours a day. Its IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the vandal-proof IK10-rated housing effectively provides robust protection from vandalism. Together with 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, EN50155 mobile surveillance and iPad applications, the FE8172V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.
Features
- 5-megapixel CMOS Sensor
- Up to 30 fps @ 1080p Full HD
- 1.05 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
- Removable IR-cut Filter for Day & Night Function
- EN50155 Compliance for Professional Mobile Surveillance
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
- Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
- ePTZ for Data Efficiency
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
|
|
|
|
13/07
|
Vivotek MD8562D Supreme Series - 2 Megapixel CMOS Sensor, Vandal-proof Mobile Surveillance WDR Enhanced Network Camera - Up to 30fps @ 1080p FHD, Weatherproof Housing, Built-In MicroSD/SDHC ''SUPREME SERIES'' - Vivotek MD8562D 2MP Vandal-proof Mobile Surveillance WDR Enhanced Network Camera .
Features
- 2-megapixel CMOS Sensor
- Up to 30 fps @ 1080p Full HD
- Wide Angle Fixed Lens
- EN50155 Compliance for Professional Mobile Surveillance
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
- Vandal-proof IK10-rated and Weather-proof IP67-rated Housing
- Built-in 802.3af Compliant PoE + 12V DC Supply
- Built-in MicroSD/SDHC Card Slot for On-board Storage
|
|
|
|
Previous Page
|
Next Page
|
|
