Waterproof housing design
5 LED 30pcs
IR distance:30m









Imaging Sensor	1/4 Sharp Color CCD
Effective Pixels(HV)	PAL:500582 NTSC:510492
Horizontal Resolution	420TVL
Signal System	PAL / NTSC
Horizontal System	PAL:15.625KHZ / NTSC:15.734KHZ
Clock FrequencyMHZ	PAL:19.3125 / NISC:19.0699
Scanning system	2:1 Interlace
Minimum Illumination	0LUX
Sync.System	Internal
S/N ratio	=50dB(AGC off)
Electronic shutter	PAL:1/50-1/100,000s;NTSC:1/60-1/100,000
Gamma Character	0.05-1.00 Adjustable
Video out	1.0Vp-p,75O
AGC	Auto
White Balance	ATW/AWB/AWC-set/Manual/Indoor/Outdoor
Built-in lens	8mm
LED(IR distance)	8 LED 36pcs,IR distance 50m
Power supply	12V DC
Currency	<400mA
Dimension(mm)	173(L)100(W)91(H)mm
Weight(kg)	0.664kg
Operating temperature	-10-50oC
Color	Black

Imaging Sensor	1/4 Sharp CCD
Horizontal Resolution	420TVL
Minimum Illumination	0Lux
Signal System	PAL / NTSC
Horizontal System	PAL:15.625KHZ / NTSC:15.734KHZ
Clock Frequency MHZ	PAL:19.3125 / NISC:19.0699
Scanning system	2:1 Interlace
Sync. System	Internal
S/N ratio	=50dB(AGC off)
Electronic shutter	PAL:1/50-1/100,000s;NTSC:1/60-1/100,000
Gamma Character	0.45db
Video out	1.0Vp-p,75O
AGC	Auto
White Balance	Auto
IR Distance	15m
Built-in lens	3.6mm
Power supply	12V DC
Currency	<400mA
Dimension(mm)	9469mm
Weight(kg)	0.164kg
Operating temperature	-10-50oC
Color	Black

Security Day & Night Camera 3.6mm Fixed Len, 1/4" Sharp Color CCD, 420 TVL, 26 LED, 25m IR



Features:



• Compatible with Various Lens
• 26pcs IR LED
• Waterproof IP65
• IR Lamps Irradiation Distance 25m



Specifications:







CB-500A Series	CB-500Ap	WCB-500Ap	CB-502Ap	WCB-502Ap
Interchangeable CS-Mount Lens
Wireless (11a/b/g/n dual band WiFi)
Wired (802.3af PoE)
USB port for 3G/ 4G(WiMAX/LTE)
DIDO I/O Port

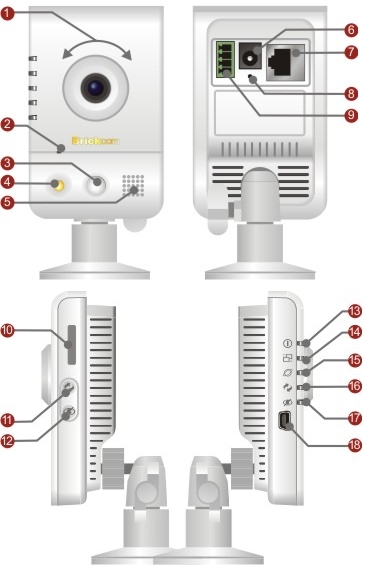

	Adjustable focal Lens		WPS button
	Built-in Microphone		Privacy button
	PIR		Power LED
	Illumination LED		Status LED
	Speaker		Internet LED
	Power Connector		WPS LED
	Ethernet RJ45 Socket		Privacy LED
	Reset Button		USB Port for 3G/4G
	DIDO Terminal I/O Connector
	Micro SD/SDHC slot











The Brickcom CB-500A Series provides full frame rate video in resolutions up to 5 megapixel including HDTV (Full HD 1080p @ 30 fps streaming). At the same time, the CB-500A Series supports H.264, Motion JPEG and MPEG-4 for multiple streaming to meet different quality need. The CB-500A Series use a 1/2.5" Sensor, offers a reliable video even in a low lux application (0.5 Lux @ F1.5/ 0.8Lux @ F1.8). Brickcom understands the importance of the video quality, and develop this CB-500A Series providing clear, sharper video and color fidelity.





The CB-500A Series is designed with powerful software features to maximize the camera capabilities and adapt variable environments to provide optimized video quality. The intelligent multi-profile supports 5 profiles, allows users being able to configure more parameter of image. With this feature, the user has the ability to set various sensor and lens attributes in a profile, including the brightness, contrast, sharpness, saturation, exposure, de-noise, white balance etc. Furthermore, the profiles can be switched automatically following the user-defined schedule. Up to 3 pre-set profiles (Day, Night, and Sunset) and 2 user-defined profiles are provided for the camera for unprecedented flexibility.





The CB-500A Series is designed with a PIR sensor for detecting movement even in dark and a white LED for illumination the scene at an event. Moreover, it supports DI/DO for external alarm device. By integrating with the Brickcom BP-1000 power battery pack, the CB-500A Series can supports the edge recording, the camera can continue recording and store the data to the SD/SDHC card when the network or power connection is interrupted.





The 5M Cube camera Series offers a wide variety of data transmission options to meet different needs. The CB-500A Series support 802.11 a/b/g/n Dual Band WiFi or 3G/ 4G (WiMAX/ LTE) wireless connectivity. With these models, users can utilize WiFi and 3G networks in areas where cabling installation would be costly or difficult. The wireless cube camera also supports WPS (WiFi protected setup) for easy and secure wireless network connections. Moreover, the CB-500A and CB-502A models support PoE (Power over Ethernet) which allows the cameras to transmit data and receive power through the same cable.
