Vivotek MD8562 Fixed Dome Network Camera - 2 Megapixel CMOS Sensor, Vandal-Proof, Mobile Surveillance, WDR Enhanced, 1080p Full HD, Real-Time H.264, MPEG-4, MJPEG, Built-in 802.3af Compliant PoE - White

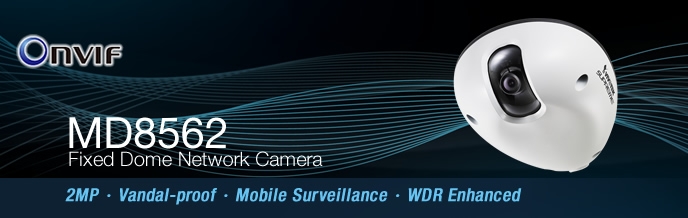

2MP Vandal-proof Mobile Surveillance WDR Enhanced Network Camera MD8562
Overview
VIVOTEK MD8562 are compact, 2-Megapixel network cameras geared toward transportation applications such as buses, trains, and other vehicles. With full EN50155 compliance & IP67-rated design, the camera can withstand shock, vibration, humidity, dust, and temperature fluctuations, maintaining stable and reliable video during vehicle movement. Furthermore, the vandal-proof metal housing effectively provides robust protection from vandalism. As such, the combination of high resolution imaging and protective housing endows the MD8562 with the rugged reliability required to maximize passenger safety and optimize mobile surveillance.
By utilizing high-definition 1920x108 resolution, the MD8562 can deliver extremely clear and detailed images, achieving accurate identification of people or objects with ease. With WDR
enhancement, users can identify image details in extremely bright or dark environments. Video footage of in-vehicle passenger activities or vehicle accidents captured with this camera can thus be used for post-event forensic evidence.
With the tamper detection feature, the MD8562 are truly robust and intelligent cameras that keep security staff notified once suffering video loss from being blocked or spray-painted. PoE (Power-over-Ethernet) also allows the MD8562 to be operated and powered with a single Ethernet cable, giving greater ease of installation. In order to facilitate on-board storage and data portability, the camera is also complete with a MicroSD/SDHC card slot for local recording. With such a broad spectrum of advanced features, the MD8562 are the best choices for mobile surveillance.
Features
- 2-megapixel CMOS Sensor
- Up to 30 fps @ 1080p Full HD
- Wide Angle Fixed Lens
- EN50155 Compliance for Professional Mobile Surveillance
- Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
- WDR Enhancement for Unparalleled Visibility in Extremely Bright or Dark Environments
- Vandal-proof IK10-rated and Weather-proof IP67-rated Housing
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC Card Slot for On-board Storage
Specifications
| System |
CPU: Multimedia SoC |
| Lens |
f=2.8 mm F 2.0 Board lens Fixed
|
| Angle of View |
110 (horizontal) 81.5 (vertical) 142 (diagonal)
|
| Shutter Time |
1/5 ~ 1/32,000 sec |
| Image sensor |
1/2.7" progressive scan CMOS in 1920x1080 Resolution |
| Minimum Illumination |
0.2 Lux @ F2.0 ( typical )
|
| Video |
Compression: H.264, MPEG-4 & MJPEG Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP or HTTPS H.264/MPEG-4 multicast streaming MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports video cropping for bandwidth efficiency Supports ePTZ for data efficiency Supports 3GPP mobile surveillance Frame rates: H.264: Up to 30 fps at 1920x1080 MPEG-4: Up to 30 fps at 1920x1080 MJPEG: Up to 30 fps at 1920x1080
|
| Image Settings |
Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure AGCAWBAES Supports privacy masks BLC (Backlight compensation) WDR enhanced |
| Audio |
Compression GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps G.711 audio encoding, bit rate: 64 kbps, -Law or A-Law Interface: External microphone input Supports audio mute
|
| Networking |
10/100 Mbps Ethernet, RJ-45 ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X |
| Alarm and Event Management |
Triple-window video motion detection 1 D/I for external sensor and alarm Event notification using HTTP, SMTP, or FTP Local recording of MP4 files Tamper Detection
|
| On-board Storage |
MicroSD/SDHC card slot Stores snapshots and video clips
|
| Security |
Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection
|
| Users |
10 clients on-line monitoring at the same time |
| Dimensions |
Depth: 130mm Width: 107mm Height: 47mm Cable length: 520 mm Cable diameter: 7.2 mm; Max Connector: 14 mm |
| Weight |
Net: 450 g |
| LED Indicator |
System restore status indicator
|
| Power |
Power consumption: Max. 4.3 W Power consumption: Max. 7.5 W (with heater) 802.3af compliant Power-over-Ethernet (Class 3)
|
| Housing |
Weather-proof IP67-rated housing Vandal-proof IK10-rated metal housing
|
| Approvals |
CEC-TickFCCLVDVCCIEN50155 |
| Operating Environments |
Temperature: -25 ~ 50 C (-13 ~ 122 F) Humidity: 90%
|
| Viewing System Requirements |
OS: Microsoft Windows 2000/XP/Vista/7 Browser: Mozilla Firefox, Internet Explorer 6.x or above Cell phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above |
| Installation, Management, and Maintenance |
Camera angle adjustment: Tilt range: 90 (0~90) Installation Wizard 2 32-CH central management software Supports firmware upgrade
|
| Applications |
SDK available for application development and system integration |
| Warranty |
36 months |
|
|
|
