Camerafarm product archive #40775
| Image |
Date |
Product description |
Price |
Buy |
|
22/08
|
Brickcom FB-300Ap Fixed Box Network Camera - 3.0 Megapixel, Full HD 1080p, H.264, Simultaneous Dual Stream Optimized Quality and Bandwidth, Built-In SD/SDHC Memory Card, 2 Way Audio - Black/Silver 3 Megapixel Fixed Box Network Camera
FB-300A Series
3 MP, Full HD (1080p), HD (720p) Resolution
H.264, MPEG-4 and MJPEG Triple Codec Compression
Simultaneous Dual stream for Optimized Quality and Bandwidth
Unique Profile Setting for Variable Environment
802.3af Compliant PoE
Built-in SD/SDHC Memory Card Slot for Local Storage
Removable IR-Cut Filter for Day and Night Function
IEEE 802.11 a/b/g/n Compliance Wireless Connectivity (*)
WPS Function Support for Easy Wireless Network Setup (*)
Dimension Diagram (FB-300Ap Series)
1. Status LED
2. Power Connector (AC24V in) (*)
3. Power Connector (DC12V in)
4. Light Sensor
5. WPS LED
6. SD/SDHC Card Slot (*)
7. Reset Button
8. Built-in Microphone
9. Microphone/Line In
10. Ethernet RJ45 10/100 Socket (Link/Power LED embedded)
11. Detachable Antenna (*)
12. WPS Button (*)
13. Extension I/O Terminal Block
14. Audio Out
15. Auto Iris Connector
FB-300A Series
Camera
Model Number
FB-300A
3 MEGAPIXEL/ 2 Way Audio/ SDHC/ Ethernet/ POE/ RS485/ DIDO
WFB-300A
3 MEGAPIXEL/ 2 Way Audio/ SDHC/ Ethernet/ POE/ RS485/ DIDO/ Wireless 802.11 abgn/ WPS button
Hardware System
CPU: 500 MHz
Flash: 16M
RAM: 128M DDR
Image Sensor
Sensor Type : 1/4” CMOS 3 megapixel Sensor
Sensor Resolution : 2032 x 1536 pixel
Minimum Illumination : 1 Lux (Without IR LED)
Day & Night Support
Mechanical ICR , triggered by sensor
Video
Video Image Compression
H.264 / MPEG4 / MJPEG
Video Setting
Auto Exposure Control: Sport, Normal, Night Vision, User Defined
Auto Gain Control: 1X~5X
Shutter Speed: 1/10000~1/7s
Image Resolution
4:3
- 2032 x 1536
- 1600 x 1200
- 640 x 480
- 320 x 240
5:4
- 1280 x 1024
- 640 x 512
- 320 x 256
16:9
- 1280 x 720
- 640 x 352
- 320 x 176
Frame Rate at Max. Resolution
H.264: 8 fps
MPEG4: 8 fps
MJPEG: 6 fps
Audio
Audio Streaming
Two-way audio support
Audio Compression
G.711, AMR (8 kHz, Mono, PCM)
Audio Input
External microphone or line input (Unbalanced, 1.4 Vp-p, 1 Vrms)
Audio output
Line Output
Network
Communication
Ethernet : one 10/100Mbps RJ-45
IEEE 802.11a/b/g/n compliance (WFB-300A)
Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP,
RTCP, Wireless 802.11 a/b/g/n (WFB-300A)
General
Interface & Buttons
DC 12V Power In
AC 24V Power In
RJ45 Ethernet Cable Connector
General I/O Terminal Block(DI/DO, RS485 included)
External MIC/Line Input
External Audio Output
Built-in MIC
Reset Button
SD/SDHC memory card slot
WPS Button (WFB-300A)
Detachable Antenna Connector (WFB-300A
Power input
AC 24V
DC 12V / 1A (Power Supply)
PoE:802.3af Compliant
LEDs
FB-300A
Status/Ethernet(Power/Link)
WFB-300A
Status/WPS/Ethernet(Power/Link)
Power consumption
Max Power Consumption : 10 watts
Environment
Operating Temperature : 0°C ~ 50°C (32°F ~122°F)
Operating Humidity : 10% ~ 80%
Dimension
124(L) * 60 (W) * 65(H) mm
Weight
FB-300A
Net: 380g (Without Lens)
Gross : 893G
WFB-300A
Net: 385g (Without Lens)
Gross: 903G
Certification
FCC, CE
Warranty
Limited 2-year warranty
|
|
|
|
22/08
|
Lexar Media 4GB Memory Stick Pro Duo Platinum II - Mark2 Certified Lexar 4GB Platinum II Memory Stick PRO Duo Card MSPD
Product Highlights
- For fast-action photography and HD video
- Superior performance and reliability
- Works with Sony digital cameras, video cameras, MP3 players, televisions, and computers
- Limited lifetime warranty
Multimedia Storage and Versatility in a Small Format
Lexar offers a comprehensive line of award-winning memory cards in various speeds, formats, and capacities. With so many options, it's easy to find the right Lexar memory card to fit your needs and lifestyle.
The Lexar Platinum II Memory Stick PRO Duo captures photo, video, and multimedia files in user-friendly Memory Stick format. It works with a vast range of applications, including Sony video cameras, MP3 players, televisions, and computers with a Memory Stick PRO Duo slot. The Lexar Platinum II Memory Stick PRO Duo is available in 2GB, 4GB, 8GB, 16GB, and 32GB capacities.
Designed for Fast-Action Photos and HD Video
Maximize Your Photo- and Video-Taking Experience. The Lexar Platinum II Memory Stick PRO Duo delivers high-capacity performance, specifically suited for Sony devices. This means you can take more high-resolution photos and video, and store and transfer more music and other important data files.
Versatility. The Lexar Platinum II Memory Stick PRO Duo provides versatile storage for a wide range of Sony devices. It can be used with DSLR and point-and-shoot digital cameras, video cameras, MP3 players, televisions, and computers. And high-capacity options mean you can reliably store and transfer a large amount of high-resolution photo, video, and more.
Performance, Reliability, and Compatibility. The Lexar team works with major camera manufacturers to ensure all Lexar memory cards are compatible with their digital camerasfrom the simplest to most complex. The cards are also tested in the Lexar Quality Labs, facilities with more than 800 digital cameras and memory card devices, to further ensure compatibility and performance. In addition, all Lexar Platinum II cards come with a limited lifetime warranty. Whether youre shooting and storing action photos or HD video, the Lexar Platinum II memory Stick PRO Duo card is an excellent high-capacity, high-performance solution to your storage needs.
Lexar offers a comprehensive line of innovative, award-winning memory products in several categories, including memory cards, card readers, DRAM, USB flash drives, and portable backup drives. With so many options, its easy to find the right Lexar solution to fit your needs.
Lexar. When Memory Matters.
Limited lifetime warranty is limited to 10 years from purchase in Germany.
Lexar Platinum II cards are sold in Europe as Lexar Premium Series cards.
Some of the listed storage capacity is used for formatting and other purposes and is not available for data storage. 1GB equals 1 billion bytes. For more information, go to www.lexar.com/capacity.
NOTE: Product appearance, software offerings, and packaging may vary depending on ship date and available inventory.
|
|
|
|
22/08
|
Kworld Twisted Pair Transmission System - Passive Series With DC Power Plug Twisted Pair Transmission System - Passive Series With DC Power Plug
Features
- Transmit a full motion monochrome and colour video signal up to 50 metres over one CAT5 networking cable.
- Passive, no power required.
- Eliminate Coaxial Cable.
- Fast, easy installation, saving time and money.
- Substantial saving on the cost of the cable itself.
Specification
- 1 Video Input (BNC Connector)
- Video Input - 1V P-P, 75 Ohms
- RJ-45 Output to BNC with DC power plug
- Transmission Distance : 50 Metres (B/W & Colour)
- Required cable Twisted RJ-45 Pair CAT5 (AWG24)
- Power - Pass Through
- Dimesions 69mm x 25mm x 22mm
|
|
|
|
22/08
|
Kworld Twisted Pair Transmission System - Passive Series with DC Power Jack Twisted Pair Transmission System - Passive Series
Features
- Transmit a full motion monochrome and colour video signal up to 50 metres over one CAT5 networking cable.
- Passive, no power required.
- Eliminate Coaxial Cable.
- Fast, easy installation, saving time and money.
- Substantial saving on the cost of the cable itself.
Specifications
- 1 Video Input (BNC Connector)
- Video Input - 1V P-P, 75 Ohms
- RJ-45 Output to BNC with DC power jack
- Transmission Distance : 50 Metres (B/W & Colour)
- Required cable Twisted RJ-45 Pair CAT5 (AWG24)
- Power - Pass Through
- Dimesions 69mm x 25mm x 22mm
|
|
|
|
22/08
|

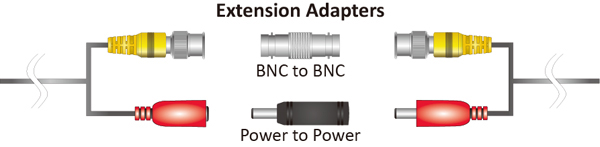

Kworld CCTV Extension Cable - 30M 100ft. Camera Extension Cable
(KG24-100V)
Features
- Male-to-Male BNC RG59 connectors included
- Length: 100ft (30M)
- Plug and play installation increase the wiring distance
- Excellent transmission quality
- Compatible with all KGuard or any other CCTV devices
|
|
|
|
22/08
|

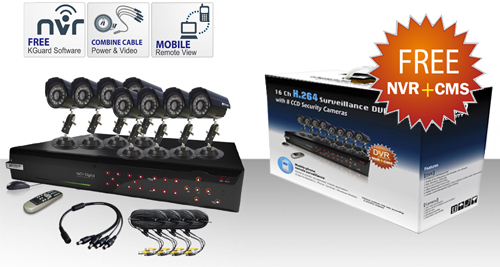

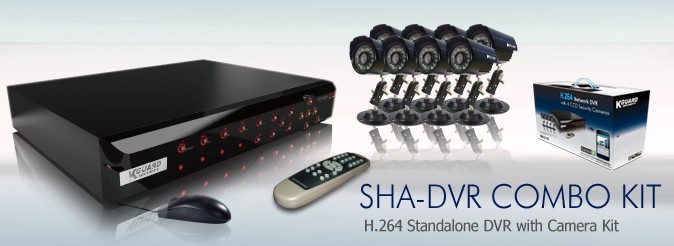

Kworld SHA-DVR Combo Kit - H.264 Standalone DVR With Camera Kit, 8x CCD Camera, Mobile Remote View, Waterproof, NO HDD - Black
KG-CA116-H03 (KG-SHA116 w/ 8 CCD Camera Kit)
KG-SHA116 w/ 8 CCD Camera Kit
Overview
The KGuard CA116-H03 H.264 surveillance kit is suitable for home, small or medium business environment. This all-in-one surveillance kit is equipped with 8 channel weatherproof cameras, one 16-Ch H.264 DVR and free surveillance software which supports remote site backup, E-map, event management, motion detection, IP camera hybrid system and more. The easy set-up and multiple viewing capabilities make it an economic choice for your surveillance need.
 |

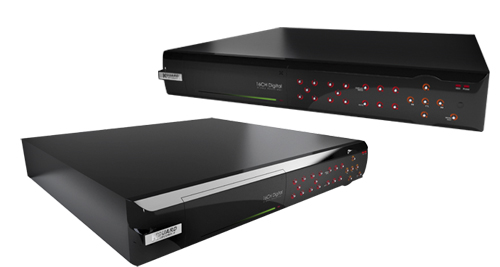

H.264 DVR
H.264 encoding has the advantage of higher image quality, lower bandwidth and storage requirement, especially suitable for digital video security. |
 |
Smartphone Support
Access live video footage directly from your Smartphone. The DVR can also be set to email your Smartphone whenever any specific activity occurs.
(Supports Blackberry, iPhone, Symbian, Windows Mobile) |
 |

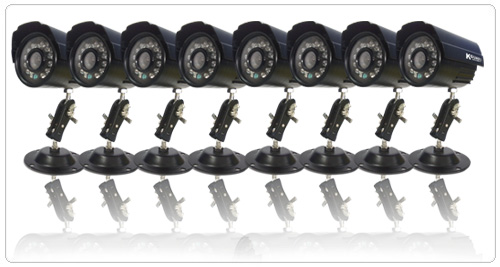

CCTV Camera
With built-in high intensity infrared LED, the CCTV cameras can provide clear video image up to 10m in the dark. The camera housing is also designed for weatherproof and with an integral rain hood / sunshade. |
 |
Free bundle with CMS & NVR software
The free surveillance software features are remote site backup, E-map, event management, motion detection, playback smart search and more. |

|
KG Model Name
( H.264 DVR with IR Camera )
|

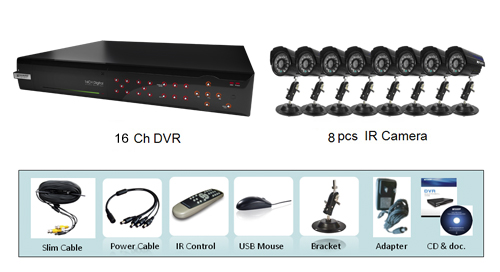

Package Contents
|
|
S-DVR KIT Accessory
|
1/4(1/3) CCD Camera KIT
|
Weight/ Dimension
|
|
KG-CA116-H(S)xx
( 16ch DVR *1pcs + Camera KIT *2sets )
|
Remote Controller *1
USB Mouse *1
Adapter (12V/5A) *1
Power Cable *1
User's Manual *1
Software CD *1
|
Camera *8
Adapter (12V/2A) *2
Slim Cable (18M) *8
4 Way Power Cable Splitter *2
Bracket *8
|
14.8~15.5 kg/ 555*220*460 mm
|
H.264 16CH DVR
| DVR Model |
KG-SHA116 ( 16CH ) |
| Video Compression |
H.264 |
| Video System |
NTSC / PAL |
| Operation System |
Linux |

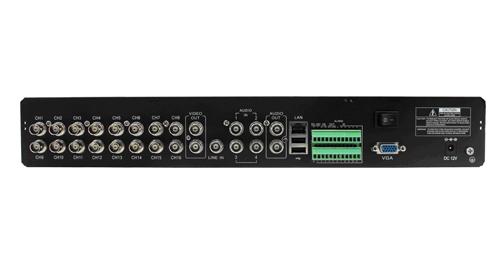

| Video Input / Output |
BNC 16-channel / VGA 1-channel & BNC 2-channel |
| Audio Input / Output |
BNC 4-channel / 1-channel |
| Intercom |
1-channel of line-in |
| Audio Compression |
8kHz*16bit ADPCM |
| Display Frame Rate |
PAL: 400 fps / NTSC: 480 fps |
| Playback Resolution |
NTSC: CIF(352x240), HD1(704x240), D1(704x480) PAL: CIF(352x288), HD1(704x288), D1(704x576) |
| Recording Frame Rate |
PAL: 100fps@D1, 200fps@HD1, 400fps@CIFNTSC: 120fps@D1, 240fps@HD1, 480fps@CIF |
| Recording Mode |
Always / schedule: motion detection, manual, sensor triggered |
| Recording Pack Time |
15/30/45/60mins file time selectable |
| HDD Interface |
One removable HDD tray and one fixed HDD rack, support up to 2TB SATA HDD each |
| Network Interface |
RJ45, 10M/100M |
| Network Protocol |
Supports TCP/IP, DHCP,DDNS, PPPoE |
| Network Function |
Supports to live view with IE (Internet Explorer) & with mobile phone |
| USB2.0 |
USB mouse, USB disk (backup, upgrade) |
| Playback |
Local: Playback 4 channels at the same timeNetwork: 1-channel |
| Playback Search |
Date/time, file list |
| Playback Mode |
PLAY / SLOW / FWD / Frame by frame |
| Backup |
Backup via USB flash disk, USB HDD disk, USB CD/DVD-RW & Network |
| PTZ Control |
Built-in RS485, support PELCO-P & PELCO-D |
| Alarm Mode |
Motion Detection, Video loss, HDD loss, HDD full, Sensor triggered |
| Power Supply |
DC 12V/5A |
| Working Temperature |
50F to 104F (10 to 40 ) |
  CCTV CAMERA
| Model Type |
IR Camera |
| Image Sensor |
1/3 Sony or 1/4" SHARP CCD (*1) |
| Effective Pixel |
PAL: 500(H)X582(V) ; NTSC:510(H)X492(V) |
| Horizontal Resolution |
420/480/520TV Line (*1) |
| IR Distance |
10 or 20M (*1) |
| Video Output |
1.0Vp-p. 75ohm (BNC) |
| SIN Ratio |
>48dB |
| Min Illumination |
0 LUX /F1.2 |
| Lens Mount |
3.6mm Lens |
| Electronic Shutter |
PAL: 1/50-1/100.000sec ; NTSC: 1/60-1/100.000sec |
| Weather Proof |
IP66 |
| Operating Temp |
-10 ~ 50C |
| Power Supply |
12V DC, 200mA (IR ON) |
|
|
|
|
22/08
|
PNY 4GB SD SDHC Card - Class 4PNY TECHNOLOGIES - PNY SD 4GB MLC + SMI266
|
|
|
|
22/08
|
Strontium 16GB Micro SDHC Card - Class 4, With Adapter Strontium 16GB Micro SDHC Class 4 With Adapter
- Super high-performance
- 100% tested
- Only highest quality components
- Lifetime hassle-free warranty
Capacity : 16GB equivalent to
- 4,000 MP3 Songs
- 20,800 5MP Images
- 22.4 Hours MPEG-4
- Estimation for 4-minute MP3 songs at 128kbps.
- Estimation for 5MP camera. May vary due to phone model resolution and compression.
- Estimation for MPEG-4 video at 1.5 Mbps. May vary due to resolution and compression.
|
|
|
|
22/08
|
Brickcom FD-300Ap Indoor Fixed Dome Network Camera - 3.0 Megapixel, Built-In IR Cut Filter, IR Illuminator, 2-Way Audio, 3-Axis Brickcom FD-300Ap Indoor 3.0 Megapixel Fixed Dome PoE Network Camera with IR and 2-Way Audio
The FIXED DOME SERIES is a full-featured, 3-axis, fixed-dome, network camera. With a megapixel progressive sensor and built-in IRcut filter/ IR illuminator LEDs/ Auto Light sensor, it can provide 24-hour, indoor surveillance. The FIXED DOME SERIES features a wide-angle and vari-focal lens, which offers wide view coverage of all angles. The FIXED DOME SERIES is designed to provide end users with high quality video feed for an easily accessible security system. The embedded high performance image sensor and CPU allow for each camera to stream real time, high resolution video at 30 fps. It can transmit video using many codec compression options, including MPEG- 4/MJPEG/H.264, which reduce bandwidth and storage requirements without compromising image quality. For easy viewing of the video feed, users can view the live feed from anywhere through internet browsers or 3G portable devices.
|
|
|
|
