Resolution: SVGA (800 x 600)
Weight: 11.9 oz. (338 grams)
Height: 1.3"
Depth: 5.9"
Width: 2.5"
Audio: Two .75W Speakers
Inputs/Outputs: VGA, Composite Video, Component Video, USB Mini 2.0, Audio Out (3.5mm Stereo Jack), microSD™ Card Slot
Light source: LED, 20,000 hours typical (no replacement)
Battery life: 2 hours
Supported resolutions: VGA, SVGA (native), SXGA, XGA, WXGA
Video compatibility: NTSC (480i, 480p), PAL (576i, 576p), H.264, SD (480i/576i), HD (720p/1080i) Controlled lighting improves image brightness.





Works with these popular file formats: DOC, PPT, XLS, TXT, PDF, BMP, JPG, MP4, MP3, PAL, NTSC, H264, AMR, AAC



Connects to your favorite digital media sources. Share files, photos and movies from: MP3 Players, PCs, DVD players, digital cameras and smartphones.





Get Great Performance while not compromising on quality and ease of use.

Save the Environment with latest Eco technology by minimizing your power consumption and consumables replacements.

Large Flexibility in positioning the projector and minimized cost for replacements.

Intuitive Use of latest Eco and projection technology due to usercentric design.

Peace of Mind with future-proof connectivity.

Wide Format allows you to enjoy extra space in presentations and other office files.

Less Shadow and Glare - not standing in the light beam gives you more space to engage with your audience when presenting.



Short-Throw Projection with 0.47:1 throw ratio
Minimized Cost of Ownership due to long lamp life and filter cleaning intervals
Innovative ECO Functions to reduce power consumption
Great Connectivity due to numerous analog and digital connection terminals as well as network capability
Intuitive and Easy Operation with user centric design



Technical Specification NEC M300WS


Display 3 x 1.5 cm (0.59") p-Si LCD Panel with MLA
Native Resolution 1280 x 800 (WXGA)
Aspect Ratio 16:10
Brightness 1 3000 ANSI Lumens (approx. 75% in Eco Mode)
Contrast Ratio 1 2000:1
Lamp 265 W AC (195 W AC Eco Mode)
Lamp Life [hrs] 3000 (3500 Eco Mode)



Lens F= 2.0, f= 00 mm
Projection Factor 0.47 : 1
Projection Angle [°] 37.3 - 38.6
Projection Distance [m] 0.6 – 1.1
Screen Size (diagonal) [cm] Minimum: 152.4 / 60"; Maximum: 279.4 / 110"
Projection Distance: min. / max. [cm] 00 (00")
Zoom Digital Zoom
Focus Adjustment Manual



Supported Resolutions



640 x 480 (VGA/MAC 13"); 832 x 624 (MAC 16"); 800 x 600 (SVGA);
1024 x 768 (XGA); 1152 x 864 (XGA); 1920 x 1080 (HDTV 1080i/60;
HDTV 1080i/50); 1600 x 1200 (UXGA); 1360 x 768 (WXGA); 1366 x
768 (WXGA); 1600 x 900 (WXGA++); 1440 x 900 (WXGA+); 1680 x
1050 (WSXGA+); 1152 x 870 (MAC 21"); 720 x 576 (DVD
progressive); 720 x 480 (SDTV 480p); 1280 x 800 (WXGA); 1280 x
1024 (MAC 23"); 1280 x 1024 (SXGA); 1280 x 768 (WXGA); 1280 x
960 (SXGA); 1400 x 1050 (SXGA+); 1280 x 720 (HDTV 720p); 1280
x 1024 (Maximum resolution of digital input); 720 x 480 SDTV
576p/576i; 720 x 576 SDTV 480p/480i





Horizontal: 15–100 kHz (RGB: 24 kHz– 100 kHz); Vertical: 50 – 120
Hz

RGB (analog) Input: 2 x Mini D-sub 15-pin, compatible to component (YPbPr)
Video Input: 1 x RCA
HDMI™ Input: 1x HDMI® (Deep Color, Lip sync)
S-Video Input: 1 x Mini DIN 4-pin
Audio Input: 2 x 3.5 mm Stereo Mini Jack; Input: 2 x RCA Stereo; Output: 1
x 3.5 mm Stereo Mini Jack (variable)
PC Control Input: 1 x D-Sub 9 pin (RS-232) (male)
LAN 1 x RJ45
USB 2 x Type A (USB 2.0 high speed); 1 x Type B
Video Signals PAL; PAL60; NTSC; SECAM; NTSC 4.43; PAL-M



Remote Control



Source Select; Freeze-function; Auto Adjust; Aspect Ratio; Automatic
Picture Adjustment; Magnify-function; Optional Presentation and
Mouse Control; Lamp Mode Control; Picture Adjust; Audio Control;
Picture Mute; Picture Mode; Freeze; Help Eco Mode; Digital Zoom;
Presentation and Mouse Control; AV Mute; ID set



Power Supply 100-240 V AC; 50 - 60 Hz
Power Consumption [W] 343 (Normal) / 264 (Eco) / 8 (Network Stand-by) / 0.4 (Stand-by)

MECHANICAL
Dimensions (W x H x D) [mm] 398 x 140 x 309.5 (without lens and feet)
Weight [kg] 4.0
Fan Noise [dB (A)] 30 / 36 (Eco / Normal)

Operating Temperature [°C] 5 to 40
Operating Humidity [%] 20 to 80
Storage Temperature [°C] -10 to 50
Storage Humidity [%] 20 to 80



Optional Accessories Lamp (NP17LP); Wireless LAN module (NP02LM2); Wall Mount Kit
(NP02WK)
ERGONOMICS
Safety and Ergonomics CE; TÜV GS; RoHS; Gost-R
Speakers [W] 1 x 10 (mono)
WARRANTY
Projectors 3 years pan-European service
Lamp 6 months, max. 1000 hrs



Shipping Contents IR Remote Control (RD-448E); Mini D-SUB Signal Cable; Power
Cord (1.8 m); Security Sticker; Users Manual on CD-ROM; Quick
Setup Guide; Lens Cap

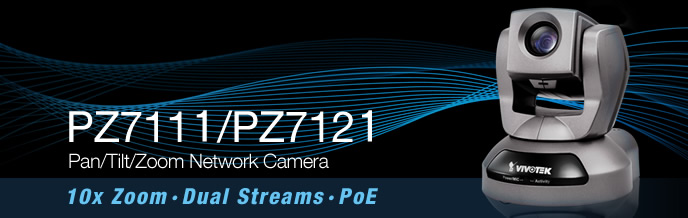

VIVOTEK's PZ7111/PZ7121 is a high-performance network camera featuring 10x zoom and pan/tilt functionality. The camera is designed for indoor surveillance applications such as retail stores, offices, and banks.



The built-in 10x motorized optical zoom module provides excellent depth of field when zoomed in, displaying clear-cut images of near or distant objects. With 300-degree pan and 135-degree tilt, the camera can achieve a wide range of view, giving users more comprehensive control over the monitored site. The PZ7111/PZ7121 is incorporated with VIVOTEK's self-developed Bach SoC; therefore, users can benefit from the advantages of dual-codec video and two-way audio. With support for simultaneous dual streaming, the camera allows users to view MJPEG or MPEG-4 videos on multiple platforms such as web browsers or 3G cell phones.



VIVOTEK's PZ7111/PZ7121 also supports Power-over-Ethernet connection, making installation easier and more cost-efficient. The free, standard, multi-lingual 16-channel recording software helps users to seamlessly set up an easy-to-use IP surveillance system.









System	CPU: Multimedia SoC
Pan/Tilt/Zoom	Pan range: 300 (-150 ~ +150) Tilt range: 135 (-45 ~ +90) 10x optical zoom 10x digital zoom Auto pan mode Auto patrol mode
Lens	10x optical zoom f=4.2 ~ 42 mm F 1.8 (wide) F 2.9 (tele) auto iris auto focus
Angle of View	4.9 ~ 46 (horizontal) 3.6 ~ 35 (vertical)
Shutter Time	1/60(PZ7112), 1/50 ~ 1/10000 sec
Image sensor	1/4" CCD in D1 Resolution
Minimum Illumination	1.5 Lux / F1.8 ( typical ) 0.05 Lux / F1.8 ( low light mode )
Video	Compression: MJPEG & MPEG-4 Streaming: Simultaneous dual streams MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Supports 3GPP mobile surveillance Frame rates: MPEG-4: Up to 30/25 fps 704x480/704x576 MJPEG: Up to 30/25 fps 704x480/704x576
Image Settings	Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure ATWAWBAESALC BLC (Backlight compensation)
Audio	Compression GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps Interface: Built-in microphone External microphone input Audio output External/Internal microphone switch Supports two-way audio Supports audio mute
Networking	10/100 Mbps Ethernet, RJ-45 Protocols: IPv4, TCP/IP, HTTP, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS and PPPoE
Alarm and Event Management	Triple-window video motion detection 1 D/I & 1 D/O for external sensor and alarm Event notification using HTTP, SMTP, or FTP Local recording of MP4 files
Security	Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission
Users	10 clients on-line monitoring at the same time
Dimensions	Depth: 105mm Width: 105mm Height: 125mm
Weight	Net: 391 g
LED Indicator	System power and status indicator System activity and network link indicator
Power	12V DC Power consumption: Max. 12 W
Approvals	CEC-TickFCCLVDVCCI
Operating Environments	Temperature: 0 ~ 50 C (32 ~ 122 F) Humidity: 20% ~ 80%
Viewing System Requirements	OS: Microsoft Windows 2000/XP/Vista/7 Browser: Mozilla Firefox, Internet Explorer 6.x or above Cell phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above
Installation, Management, and Maintenance	Installation Wizard 2 32-CH central management software Supports firmware upgrade
Applications	SDK available for application development and system integration
Warranty	24 months

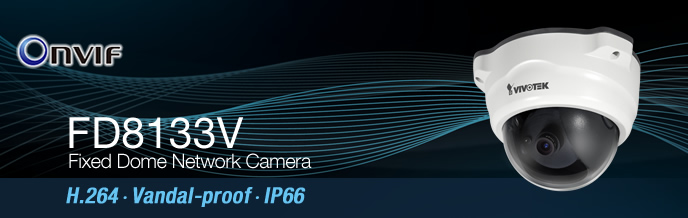

H.264 Vandal-proof IP66 Dome Network Camera FD8133V



VIVOTEK FD8133V is an easy-to-use fixed dome network camera specifically designed for indoor/outdoor security applications with a compact, stylish vandal-proof exterior. Equipped with a 1MP sensor enabling viewing resolution of 1280x800 at 30 fps, users need look no further for an all-in-one camera capable of capturing high quality, high resolution video.

The FD8133V supports the industry-standard H.264 compression technology, drastically reducing file sizes and conserving valuable network bandwidth. With MPEG-4 and MJPEG compatibility also included, video streams can also be transmitted in any of these formats for versatile applications. The streams can also be individually configured to meet different constraints, thereby further reducing bandwidth and storage requirements. Users can thus receive multiple streams simultaneously in different resolutions, frame rates, and image qualities for viewing on different platforms.



Its IP66-rated housing protects the camera body against rain and dust and ensures operation under poor weather conditions. Furthermore, the metal vandal-proof housing effectively provides robust protection from vandalism. Also included are a number of advanced features standard on VIVOTEK cameras, including tamper detection, MicroSD/SDHC card slot, and VIVOTEK's 32-channel recording software. With all of these capabilities, the FD8133V presents the best value in IP surveillance for indoor/outdoor applications.







System	CPU: Multimedia SoC
Lens	f=3.6 mm F 1.8 Board lens
Angle of View	56 (horizontal) 41 (vertical)
Shutter Time	1/5 ~ 1/25,000 sec
Image sensor	1/4" CMOS in 1280x800 Resolution
Minimum Illumination	0.3 Lux @ F1.8 ( typical )
Video	Compression: H.264, MPEG-4 & MJPEG Streaming: Simultaneous multiple streams H.264 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 streaming over UDP, TCP, HTTP or HTTPS MPEG-4 multicast streaming MJPEG streaming over HTTP or HTTPS Supports activity adaptive streaming for dynamic frame rate control Supports 3GPP mobile surveillance Frame rates: H.264: Up to 30/25 fps at 1280x800 MPEG-4: Up to 30/25 fps at 1280x800 MJPEG: Up to 30/25 fps at 1280x800
Image Settings	Adjustable image size, quality, and bit rate Time stamp and text caption overlay Flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance and exposure AGCAWBAES Supports privacy masks BLC (Backlight compensation)
Networking	10/100 Mbps Ethernet, RJ-45 ONVIF support Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Alarm and Event Management	Triple-window video motion detection 1 D/I for external sensor and alarm Event notification using HTTP, SMTP, or FTP Local recording of MP4 files Tamper Detection
On-board Storage	MicroSD/SDHC card slot Stores snapshots and video clips
Security	Multi-level user access with password protection IP address filtering HTTPS encrypted data transmission 802.1X port-based authentication for network protection
Users	10 clients on-line monitoring at the same time
LED Indicator	System power and status indicator System activity and network link indicator
Power	12V DC Power consumption: Max. 3.5 W
Approvals	CEC-TickFCCLVDVCCI
Operating Environments	Temperature: 0~ 50 C (32 ~ 122 F) Humidity: 90%
Viewing System Requirements	OS: Microsoft Windows 2000/XP/Vista/7 Browser: Mozilla Firefox, Internet Explorer 6.x or above Cell phone: 3GPP player Real Player: 10.5 or above Quick Time: 6.5 or above
Installation, Management, and Maintenance	3-axis mechanism for flexible ceiling and wall mount installation Camera angle adjustment: Pan range: 350 Tilt range: 85 Rotate range: 350 Installation Wizard 2 32-CH central management software Supports firmware upgrade
Applications	SDK available for application development and system integration
Warranty	12 months

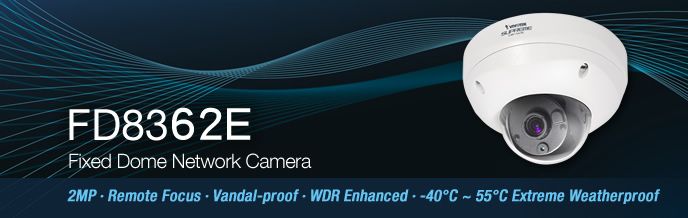

VIVOTEK FD8362E are professional fixed dome network cameras offering 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. The cameras can capture a much more comprehensive area than a standard VGA model, significantly reducing the number of units required. It is especially suitable for monitoring wide open outdoor such as building entrances, airports or applications requiring accurate identification.



For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. Thus VIVOTEK introduces the Smart Focus System to make installation and adjustment easier. VIVOTEK adopts lenses with built-in stepping motors that the installer can use to remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance.



The IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Its metal vandal-proof housing effectively provides robust protection from vandalism. Additionally, the wide temperature range further enhances the FD8362E's performance and reliability in extremely cold and warm weather.



With other advanced features such as tamper detection, 802.3af compliant PoE, MicroSD/SDHC card for on-board storage, video cropping, and e-PTZ functionality, the FD8362E provide the most robust solution suitable for any demanding outdoor environments.

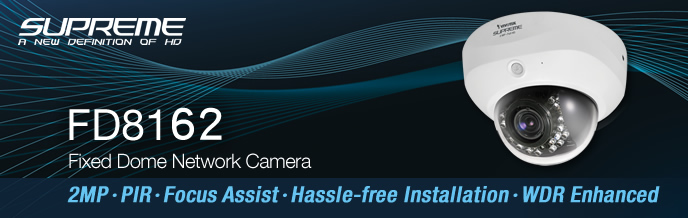

VIVOTEK FD8162 is an easy-to-use fixed dome network camera, featuring 2-Megapixel or 1080p Full HD resolution with superb image quality up to 30 fps. As a true day/night camera, the FD8162 features a removable IR-cut filter, maintaining clear images 24 hours a day. With WDR enhancement, users can identify image details in extremely bright or dark environments. It is especially suitable for monitoring wide open indoor environments such as building entrances, airports or applications requiring accurate identification.



With high-performance H.264/MPEG-4/MJPEG compression technology, the FD8162 offers extra-smooth HD video quality. For installers, properly adjusting the focus of a megapixel network camera can be difficult due to the image detail. To resolve this, the FD8162 is equipped with a focus assist button to allow users to precisely adjust the camera focus. Furthermore, the unique design of the four-step mount facilitates easy usage of the FD8162, offering more flexible, hassle-free installation and maintenance.



Together with a PIR sensor for thermal detection, 802.3af compliant PoE, tamper detection, MicroSD/SDHC card for on-board storage, video cropping and e-PTZ functionality, the FD8162 is indisputably the top choice for reliable and high performance surveillance.
