ICU HD-N010R Panoramic 180 Degree Camera - High Digital Color, True Day & Night, 1/3" Sony Super HAD, 540TV - White ICU-N010R
General Features
- 1/3” SONY SUPER HAD
- 540TV Lines(HD-N010R) / 420TV Lines(HD-N009N)
- Panoramic 180 Degree Camera
- Limitless Observation Angle 180° + 180°(360°)
- Viewing Angle without Blind Spot
- Cutoff Less Panoramic Viewing Angle
- Best Observer in Anyplace
- Cable concealed thru bracket
- 3-AXIS Bracket

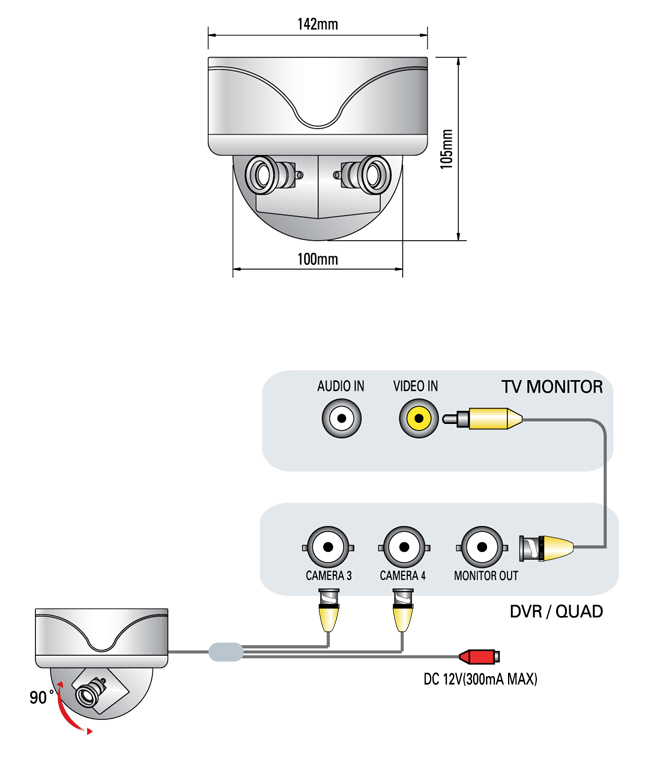

CAD
Specification
|
MODEL
|
HD-N009N
|
HD-N010R
|
|
Image Pick-Up Device
|
1/3" SONY SUPER HAD CCD
|
|
TV System
|
NTSC, PAL
|
|
Total Pixels
|
NTSC=510(H)*492(V)/PAL=500(H)*582(V)
|
NTSC=768(H)*494(V)/PAL=752(H)*582(V) |
|
Scanning System
|
2:1 Interlace
|
|
Sync System
|
Internal Sync
|
|
Resolution
|
420TV Lines
|
540TV Lines |
|
Minimum lllumination
|
0.1 Lux
|
|
S/N Ratio
|
More than 46dB
|
|
Gamma Characteristic
|
r=0.45
|
|
Video Output
|
CVBS:1.0Vp-p 75ohm
|
|
Electronic Shutter Speed
|
NTSC=1/60sec~1/100,000sec/PAL=1/50sec~1/100,000sec
|
|
Power Supply
|
DC 12V
|
|
Power Consumption
|
250mA
|
|
Lens
|
3.8mm+3.8mm fixed Board Lens(180)
|
|
perational Temp.
|
-10~+50 Deg C.RH 95% Max.
|
|
Storage Temp.
|
-20~+60 Deg C.RH 95% Max.
|
|
Dimension
|
142mm(W)*105mm(H)*142mm(D)
|
|
Weight
|
1500g
|
|
|
|
