21/10

Sanyo PDG-DWL2500 Ultra Short Throw DLP Projector - 1280x800, 2500 Lumens, 2000;1, VGA, HDMI, Speakers

PDG-DWL2500

3D READY* ULTRA SHORT FOCUS PROJECTOR

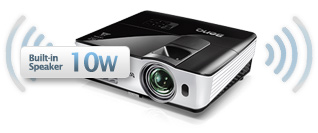

Ultra-short Focus Projector with built-in 10 Watt speaker
Throw ratio of 0.19 : 1
Large-screen 3D projection capability
Longlife filter
6-segment colour wheel
WXGA resolution (1,280 x 800 pixels) in 16:10 format
Brightness: 2,500 ANSI lumens (dynamic mode)
Contrast ratio: 2,000:1
Compact design for saving space in installation

*The only compatible 3D image signal is the Frame Sequential format. The Frame Packing and Side-by-side formats are not supported. Active Shutter format 3D glasses (sold separately) are required in order to view projected images in 3D. (DLP Link and IR formats are compatible.)

  • Technical Specifications

System DLP 1-chip system (6-segment)
DLP chip
Size 0.65 inch, Aspect Ratio 16:10
Pixel count 1,024,000 (1280 x 800)
Light source 275W
Screen size (Projection distance)*1 Minimum 60 Maximum 110 (23.0cm - 45.5cm); 80: 32.0cm
Colour reproducibility (when projecting video signal) Full colour (10.7 billion colors)
Brightness*2 2,500 lumens
Contrast ratio (Full On/Full Off)*2 2000:1
Speaker 10W mono
Scanning frequency (input) Horizontal: 15-93KHz, Vertical: 50-120Hz, Dot Clock: 150MHz or less
Resolution (resizing) (when using RGB signal) 1280 x 800 dots (WUXGA dot resizing possible)
Terminals
Computer HDMI x 1: digital signals input, HDMI (V 1.3 Deep colour), D-sub15 x 1: analog RGB input (component input with conversion cable), D-sub15 x 1: analog RGB input or Monitor out
Video RCA x 1: Composite video, mini Din 4-pin x 1: S-Video
Audio Mini jack (stereo) x 2: Input (for Computer 1, 2), 2RCA (R,L - mono) x 1: input (for video), Mini jack (stereo) x 1: output (variable audio out)

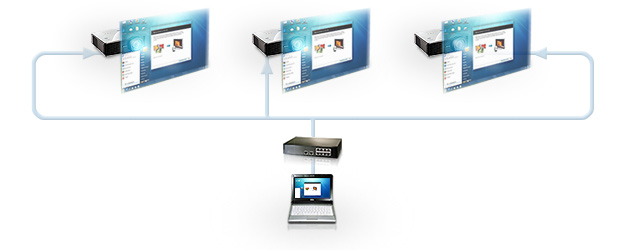

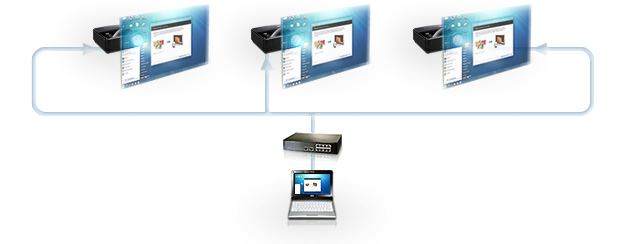

Communication RJ-45 x 1: wired LAN, D-sub 9pin x 1: RS232C, mini Din 3-pin: 3D SYNC out
Operating temperature 5-40C
Power source 100-240V AC, 50/60Hz
Power consumption 100V-120V AC: 320W Eco / 400W Normal; 200V - 240V AC: 305W Eco / 375W Normal
Standby power consumption 100V-120V AC: 0.47W Eco / 10.3W Normal; 200V - 240V AC: 0.85W Eco / 11.5W Normal
Dimensions (W x H x D) 321 x 170 x 385mm (not including protruding parts)
Weight 6.2kg
Main accessories Removable power cord x 1, D-sub 15 cable x 1, PIN code-locking seal, Owners manual (Quick Manual & CD-ROM), Remote control x1 (AAA battery x 2)

*1 Distance from projection window to the screen.
*2 When Lamp Mode: Normal and Image Mode: Dynamic are selected. Measurement, measuring conditions and method of notation all comply with ISO 21118 international standards.
'DLP' is a registered trademark of Texas Instruments.

Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

Epson EB-S10 Portable LCD Projector - 800x600, 2600 Lumens, 2000;1, 5000Hr, VGA

Epson EB-S10

Corporate Portable Multimedia Projectors

Friendly, Elegant and Compact. Ideal for Home, Business and Education.

Epson is pleased to introduce the Epson EB-S10 3LCD Multimedia Projectors. Bright, stylish and compact, the EB-S10 delivers performance and reliability to business and education environments in style.

KEY FEATURES:

  • Powerful 2,600 Lumens Brightness All the power you need to create big, bold presentations and dazzling home theatre
  • Stylish, Compact Design Powerful enough to be used as an installation projector, light and compact enough to be used as a portable. The 8 series delivers a professional appearance however it is used.
  • 1.35X Digital Zoom Flexible placement for either desktop or installation usage.
  • Front Exhaust Directs hot exhaust air away from desktop users and their audience.

The Epson EB-S10 projector offers a stylish new design, and impressive performance. A powerful 2,600 lumens enables use in bright environments, and their wide variety of input options ensures compatibility with a broad range of multimedia input devices including computers, home theatre equipment and gaming consoles.

FEATURES AND BENEFITS:

Powerful 2,600 lumens brightness
The new Epson EB-S10 delivers a bright 2,600 lumen image thanks to Epsons unique E-TORL lamp technology and efficient optical engine. This makes the EB-S10 bright enough to be used as either an installation or desktop projector in even the brightest of rooms, without the need to dim the lights or close the curtains.

Stylish, Compact Design
With stylish flowing lines, and compact form, the Epson EB-S10 conveys an attractive, professional appearance whether installed on a ceiling mount, or used as a portable presentation tool. White colouring enables the projector to blend unobtrusively with the ceiling when mounted, leaving the presentation room appearing clean and professional.

USB Display Function
The Epson EB-S10 can display your presentation via a connection to a PC or Mac with a simple USB cable.

1.35X Digital Zoom
The Epson EB-S10 boasts a 1.35x digital zoom ensuring flexible installation and desktop use.

PRODUCT TYPE Entry Level Multimedia Projectors
PRODUCT NAME Epson EB-S10
PRODUCT CODE V11H369053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.55 inches without MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 480,000 pixels (800 x 600) x 3
  Native resolution SVGA
  Aspect ratio 4:3
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Digital zoom / Manual focus
  F-number 1.44
  Focal length 16.6mm
  Zoom ratio 1.0 ~ 1.35 Digital
LAMP Type 200W UHE
  Life (estimated) 5000Hr ( Low Brightness )# 4000Hr ( High Brightness )#
#Subject to operation and environmental conditions.
OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE) 23 to 260 inch [0.87 to 10.5m] (Zoom: Tele),
30 to 350 inch [0.87 to 10.5m] (Zoom: Wide)
LIGHT OUTPUT (Brightness)
  Normal Mode 2,600 Lumens Light Output
2,600 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom: Wide)
  Eco Mode 2,040 Lumens Light Output
2,040 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 2000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY 90% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
VIDEO QUALITY Simple Interlace-Progressive conversion
SOUND OUTPUT 1W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK 13.5MHz to 108MHz up to UXGA 60Hz
HORIZONTAL 15KHz to 69KHz
VERTICAL 50Hz to 85Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
FOOT ADJUSTER Front-centre
TILT ANGLE 0 to 12 degrees
AUTO KEYSTONE CORRECTION Vertical: -30 to +30 degrees
PASSWORD PROTECTED FUNCTION
(security function)		 Implemented
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 800 x 600 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
INPUT TERMINAL Video D-sub 15pin x 1 (Blue moulding)
  Audio RCA x 1 (White/Red)
OUTPUT SIGNAL Video Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL

Video

D-sub 15pin x 1 (Blue moulding)
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Audio signal 500mVrms / 47k-ohm
INPUT TERMINAL Video Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin (Blue moulding)
  Audio RCA x 2 (White/Red )
USB DISPLAY
  Display Performance 800 x 600 dots
CONTROL I/O
  USB I/O Type B x 1 (for mouse control)
OPERATING TEMPERATURE 5C to 35C (41F to 95F) > (20%-80% Humidity )
COOL-DOWN PERIOD "Instant off"
START-UP PERIOD Approx. 5 seconds (warm up 30 seconds)
POWER SUPPLY VOLTAGE 100-240V AC10% 50/60Hz
POWER CONSUMPTION 100-240VAC 3.2-1.4A 50/60Hz Lamp
280W/265W (Lamp on) 0.3W/0.4W (standby)
DIMENSION
EXCLUDE FEET 228(D) x 295(W) x 77(H) mm
MAXIMUM DIMENSION 228(D) x 295(W) x 79(H) mm
WEIGHT Approx. 2.3kg
FAN NOISE
ECO MODE 29dB
NORMAL MODE 34dB
WARRANTY
STANDARD WARRANTY 2 years*
*excluding lamp
* For more information visit Epson Projector Warranty
ACCESSORIES
POWER CORD 1.8m
COMPUTER CABLE 1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male)
REMOTE CONTROL Included
SOFT CARRYING CASE Included
PASSWORD PROTECT STICKER Included
AIR FILTER Included
OWNER'S MANUAL CD-ROM
PRODUCT OPTIONS
Product Code Item Code Description



V13H010L54

 Lamp
  7012083 Ceiling mount with telescopic pole
  7012084 Ceiling mount standard
  3YWEBS10 3rd Year Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

 Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

Epson EB-X10 Portable LCD Projector - 1024x768, 2600 Lumens, 2000;1, 5000Hrs, VGA, HDMI

EPSON EB-X10

Corporate Portable Multimedia Projectors

Friendly, Elegant and Compact. Ideal for Home, Business and Education.

Epson is pleased to introduce the Epson EB-X10 3LCD Multimedia Projector. Bright, stylish and compact, the Epson EB-X10 projector delivers performance and reliability to business and education environments in style.

KEY FEATURES:

  • Powerful 2,600 Lumens Brightness All the power you need to create big, bold presentations and dazzling home theatre
  • Stylish, Compact Design Powerful enough to be used as an installation projector, light and compact enough to be used as a portable. The EB-X10 delivers a professional appearance however it is used.
  • 1.2X Optical Zoom Lens Flexible placement for either desktop or installation usage
  • HDMI Input Terminal The ultimate digital AV interface delivers crisp, sharp images that will bring your presentations and home theatre viewing to life!
  • Front Exhaust Directs hot exhaust air away from desktop users and their audience

The Epson EB-X10 projector offer a stylish new design, and impressive performance. A powerful 2,600 lumens enables use in bright environments, and their wide variety of input options ensures compatibility with a broad range of multimedia input devices including computers, home theatre equipment and gaming consoles.

FEATURES AND BENEFITS:

Powerful 2,600 lumens brightness
The new Epson EB-X10 projector delivers a bright 2,600 lumen image thanks to Epsons unique E-TORL lamp technology and efficient optical engine. This makes the EB-X10 bright enough to be used as either an installation or desktop projector in even the brightest of rooms, without the need to dim the lights or close the curtains

Stylish, Compact Design
With stylish flowing lines, and compact form, the Epson EB-X10 projector conveys an attractive, professional appearance whether installed on a ceiling mount, or used as a portable presentation tool. White colouring enables the projector to blend unobtrusively with the ceiling when mounted, leaving the presentation room appearing clean and professional.

USB Display Function and USB Memory Slide Show
The EB-X10 can display your presentation via a connection to a PC or Mac with a simple USB cable. You can also create and display images directly from a USB memory device, making it possible to give presentations without the need for a PC.

1.2X Optical Zoom Lens
The Epson EB-X10 features a powerful 1.2x optical zoom lens ensuring flexible installation and desktop use.

HDMI Input Terminal EB-X10
High quality digital content can be delivered to the EB-X10 via HDMI, the ultimate digital interface, making these products suitable for use as home theatre projectors.

PRODUCT TYPE Entry Level Multimedia Projectors
PRODUCT NAME Epson EB-X10
PRODUCT CODE V11H368053
PROJECTION SYSTEM RGB Liquid Crystal Shutter Projection System
PROJECTION METHOD Front / Rear / Ceiling Mount
SPECIFICATION OF MAIN PARTS
LCD Size 0.55 inches without MLA
  Driving method Poly-Silicon TFT Active Matrix
  Pixel number 786,432 pixels (1024 x 768) x 3
  Native resolution XGA
  Aspect ratio 4:3
  Pixel arrangement Cross Stripe
  Refresh Rate 50Hz-60Hz
PROJECTION LENS Type Optical zoom / Manual focus
  F-number 1.58 - 1.72
  Focal length 16.9mm 20.28mm
  Zoom ratio 1.0 ~ 1.2 Optical
LAMP Type 175W UHE
  Life (estimated) 5000Hr ( Low Brightness )# 4000Hr ( High Brightness )#
#Subject to operation and environmental conditions.
OPTICAL SYSTEM Dichroic Mirror Separation & Prism combine method
SCREEN SIZE (PROJECTED DISTANCE) 30 to 300 inch [0.9 to 9.0m] (Zoom: Wide),
30 to 300 inch [1.08 to10.8m] (Zoom: Tele)
LIGHT OUTPUT (Brightness)
  Normal Mode 2,600 Lumens Light Output
2,600 Lumens Colour Light Output
(Colour mode: Dynamic, Zoom: Wide)
  Eco Mode 2,040 Lumens Light Output
2,040 Lumens Colour Light Output
(Colour mode: Game, Zoom: Wide)
CONTRAST 2000:1 (Auto Iris On)
BRIGHTNESS UNIFORMITY 90% (Typ.)
COLOUR REPRODUCTIVITY Full colour (16.77 million colours)
VIDEO QUALITY Simple Interlace-Progressive conversion
SOUND OUTPUT 1W monaural
EFFECTIVE SCANNING FREQUENCY RANGE (ANALOG)
PIXEL CLOCK 13.5MHz to 162MHz up to SXGA 60Hz
HORIZONTAL 15KHz to 92KHz
VERTICAL 50Hz to 85Hz
EFFECTIVE SCANNING FREQUENCY RANGE (DIGITAL)
PIXEL CLOCK 13.5MHz to 162MHz up to SXGA 60Hz
HORIZONTAL 15KHz to 64KHz
VERTICAL 50Hz to 60Hz
ADJUSTMENT FUNCTION
PROJECTOR / REMOTE CONTROL Brightness / Contrast / Tint / Saturation / Sharpness / Input Signal
Colour Temperature / Tracking / Position / Sharpness / Volume e.t.c.
FOOT ADJUSTER Front-centre
TILT ANGLE 0 to 12 degrees
AUTO KEYSTONE CORRECTION Vertical: -30 to +30 degrees
PASSWORD PROTECTED FUNCTION
(security function)		 Implemented
OTHER FUNCTION
USB Display Display Performance - Native - 1024 x 768
ANALOGUE RGB I/O
DISPLAY PERFORMANCE Native 1024 x 768 pixels
INPUT SIGNAL Signal type Separate signal
  Video signal Analogue (0.7V p-p, 75ohm / Mac 0.714Vp-p, 75ohm)
  Sync. signal Separate (positive & negative, bi-polarity 2-5 Vpp) / Composite (positive & negative, bi-polarity 2-5Vpp) / Sync-on-green (negative, 0.3Vpp)
  Audio signal 500mVrms / 47K-ohm
INPUT TERMINAL Video D-sub 15pin x 1 (Blue moulding)
  Audio RCA x 1 (White/Red)
OUTPUT SIGNAL Video Analog (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm)
  Sync. Separate (positive & negative,TTL) /
Composite (positive & negative,TTL) /
Sync. on green (negative 0.2 - 0.4Vpp)
OUTPUT TERMINAL Video D-sub 15pin x 1 (Blue moulding)
  Audio RCA x 1 (White/Red)
HDMI
DISPLAY PERFORMANCE Native 1024 x 768 (576i)
INPUT SIGNAL Version Capabilities Ver 1.3a (Specific features IS NOT supported)
  Video Standard 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
  Video Signal TMDS(TMDS is signal for HDMI)
  Audio Signal Linear PCM
  Input Terminal HDMI x 1
  HDCP Supported
VIDEO I/O
DISPLAY PERFORMANCE   NTSC: 560 lines, PAL: 560 lines (Depends on observation of the multi burst pattern)
INPUT SIGNAL Video standard NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
  Video signal Composite Video (1.0Vpp / Sync. negative, 75ohm) /
S-Video (Luminous 0.714Vpp, Chrominous 0.286Vpp, 75ohm) /
Component Video (Analog Y level 0.75V 75ohm / Cr Cb level
+/-0.35V 75ohm / sync. negative 0.3V or 3-state+/-0.3V on Y) /
Video-RGB (0.7Vpp, 75ohm / Mac 0.714Vpp, 75ohm
  Audio signal 500mVrms / 47k-ohm
INPUT TERMINAL Video Composite Video: RCA (Yellow) x1
S-Video: Mini DIN
Component Video: D-sub 15pin (Blue moulding)
  Audio RCA x 2 (White/Red )
CONTROL I/O
USB I/O I/O Terminal Type B x1 (for mouse control)
  I/O Speed USB Type B Ver. 2.0
MEMORY I/O
USB I/O I/O Terminal USB Type A x 1(for USB Memory)
  I/O Speed USB Type A Ver. 1.1
OPERATING TEMPERATURE 5C to 35C (41F to 95F) > (20%-80% Humidity )
COOL-DOWN PERIOD "Instant off"
START-UP PERIOD Approx. 5 seconds (warm up 30 seconds)
POWER SUPPLY VOLTAGE 100-240V AC10% 50/60Hz
POWER CONSUMPTION 100-240VAC 3.2-1.4A 50/60Hz Lamp
244W/234W (Lamp on) 0.3W/0.4W (standby)
DIMENSION
EXCLUDE FEET 228(D) x 295(W) x 77(H) mm
MAXIMUM DIMENSION 228(D) x 295(W) x 79(H) mm
WEIGHT Approx. 2.3kg
FAN NOISE
ECO MODE 29dB
NORMAL MODE 34dB
WARRANTY
STANDARD WARRANTY 2 years*
*excluding lamp
* For more information visit Epson Projector Warranty
ACCESSORIES
POWER CORD 1.8m
COMPUTER CABLE 1.8m, D-sub 15pin (Male) - Mini D-sub 15pin (Male)
USB CABLE 1.8m, A/B
REMOTE CONTROL Included
SOFT CARRYING CASE Included
PASSWORD PROTECT STICKER Included
AIR FILTER Included
OWNER'S MANUAL CD-ROM
PRODUCT OPTIONS
Product Code Item Code Description



V13H010L54

 Lamp
  7012083 Ceiling mount with telescopic pole
  7012084 Ceiling mount standard
  3YWEBX10 3rd Year Warranty
Epson is the registered trademark of Seiko Epson Corporation. Epson ESC/P2 and Epson Stylus are trademarks of Seiko Epson Corporation. MicroDot is a trademark of Epson Australia Pty Limited. All other product names and other company names used herein are for identification purposes only and may be the trademarks or registered trademarks of their respective owners. Epson disclaims any and all rights in those marks. Specifications are subject to change without notice.

Equipment supplied by Epson Australia is designed to function in conjunction with genuine Epson consumables and accessories specifically configured for it.

Usage Conditions
Epson products are designed and made to give highly reliable use and long life when used according to its specifications. With any system, product or device used in situations where human life may be involved or at risk, Epson advises that you should take all necessary steps to ensure the suitability of your Epson product for inclusion in your system, and recommends that you include fail-safe procedures and redundancy support or backup equipment in your system, to maintain the maximum safety margin and optimum system reliability. Examples include but are not limited to do not interfere with any electrical components within the device, do not use items supplied with the product for purposes other than as intended by Epson (ie mains cords, inks, CDs, plastic wrapping) and do not make modifications to the product.

 Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

Epson V13H010L58 Replacement Lamp - To Suit Epson EB-S9/X9/W9/S10/X10/W10 Projector

Epson Projector Lamp for EB-S9, X9, W9, S10, X10, W10

Projector Options

Epson Projector Lamp for EB-S9, X9, W9, S10, X10, W10

V13H010L58



 Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

BenQ MS612ST DLP Projector - 800x600, 2500 Lumens, 5000:1, 6000Hrs, VGA, HDMI, Speakers

MS612ST

Your Very Own 3D Home Entertainment

Bring home the cinema experience with the BenQ MS612ST! Featuring 2500 ANSI lumen high brightness, 5000:1 high contrast ratio, HDMI and 10W built-in speaker, this short-throw projector gives you a 55 big picture in only 1 meter! Together with DLP Link and NVIDIA 3D Vision dual 3D set-up, youll get to enjoy plenty of big time movie and gaming fun!

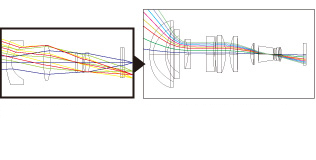

Exclusive Aspherical Lens Design for the Ultimate Short-throw Projection

A global DLP  expert, BenQ excels as the number one-selling brand in the worldwide short-throw projector market with every one out of seven short-throw projector to be of BenQ kind. This undisputed short-throw leader offers picture quality excellence defined by astonishing color performance and well-focused text projection with its very own asphiercal lens design.

BenQ's Exclusive Aspherical Lens Projection Design for Clearer, Sharper and More Stable Picture Performance

Normal Image Zoom Rate
with Traditional Projection

Boosted Image Zoom Rate with
BenQ's Aspherical Short-throw
Lens Projection



Well-Focused Text Projection for Superb Reading

Other Short-throw Technologies
Blurry and Difficult to Read

BenQ Aspherical Short-throw Lens Technology
Crisp and Clear for Easy Reading



The Good Things that Come in Short Distances

Zero Space Constraints

Zero Space Constraints to Close Up the Distance Between You and Your Audience



Zero Eye-Blinding Lights

Zero Shadow Disruptions for an Ultra-Smooth, Interruption-Free Presentation



Zero Disruptions

Zero Eye-Blinding Lights to Keep Your Eyes and Focus on Your Audience



Dual 3D Projection Options to Double the Fun

With 3D picture presentation taking over the world of movies and gaming, BenQ has decided to recreate your home entertainment with the combination of industry-leading 3D technologies DLP  Link and NVIDIA  3D Vision turning any flat surface into the perfect stage for 3D picture performance with the BenQ MS612ST!

*Please click to know more details about 3D Support and Compatibility.



The BenQ MS612ST supports over 400 3D PC games and movies with DLP  Link and NVIDIA 3D Vision!



Everything You Need to Enjoy Hassle-Free Set-Up and Seamless Connectivity

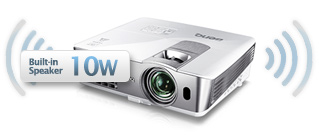

10W Microphone Audio Power

The MS612ST is built with 10W audio power to add to your home entertainment fun! All you have to do is connect the MS612ST to your DVD player, game console or PC to experience big-screen movie or gaming audiovisual enjoyment right at home!

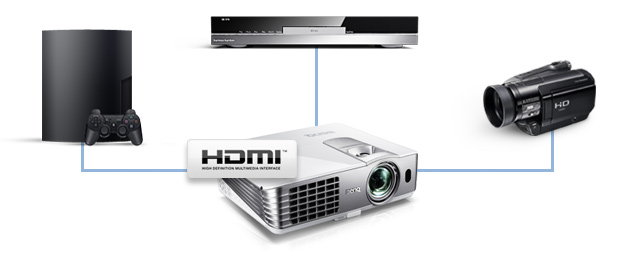

HDMI Connectivity

Enjoy endless home entertainment possibilities with the MS612ST! This fabulous projector features a convenient HDMI interface to deliver ultra-smooth digital HD signal and sound via just one cable! It's the perfect choice for hosting movie or game nights!

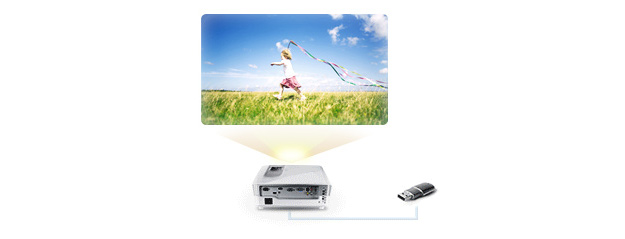

Convenient USB Reader Projection

Go down the memory lane together by sharing your all-time favorite photos! The MS612ST allows you to view photos in big images without the hassle of connecting to a PC, camera or camcorder! All you need to do is plug and play using a USB flash drive!

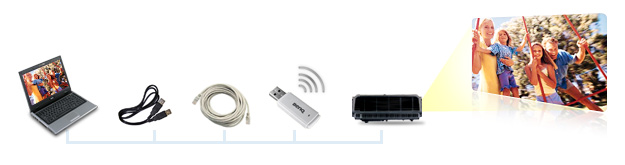

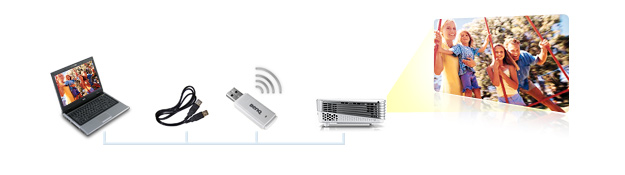

Hassle-Free USB/Wireless Display Set-Up

The MS612ST keeps display set-ups quick and easy with its USB Display and Wireless Display options!

USB Display offers the plug-and-play convenience of USB connection with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

Wireless Display keeps cables and wires out of everyones way with the BenQ Wireless Display Adapter to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.

Specifications

Projection System DLP technology by Texas Instruments
Native Resolution SVGA (800 x 600)
Brightness* 2500 ANSI lumens
Contrast Ratio 5000:1 (Full on/Full off)
Keystone Manual Vertical 40
Aspect Ratio 4:3 Native, 16:9 Selectable
Color Full 1.07 billion color palette
Lens F=2.6- 2.78, f=10.2 - 12.24 mm
Zoom Ratio Manual Zoom, 1.20:1
Image Size (Diagonal) 27 to 300
Throw Ratio 0.9 - 1.08 (55"@1M)
Lamp** 190W, 4500/6000 hours (Normal/Economic mode)
Computer Compatibility VGA(640 x 480) to UXGA(1600 x 1200)
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
Horizontal Frequency 31-99 kHz
Vertical Scan Rate 23-120 Hz
Input Terminals PC:
Analog RGB: D-sub 15 pin x 1
USB connector: Type A x 1 (USB Reader); Mini-B x1 (USB Display)
A/V:
HDMI V1.3 x 1
Component Video: D-sub 15 pin x 1
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Stereo Mini Jack x 1
Audio L/R: RCA x 2
Output Terminals PC:
D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
10W Speaker
Control Terminal Serial Connector : RS232 9 pin x 1
Dimensions(W x H x D) 311 x 104 x 244 mm (12.2 x 4.1 x 9.6 inch) without lens
Weight 2.5 kg (5.5 lbs)
Power Supply 100 to 240 VAC, 50/60 Hz
Power Consumption 275W, Standby < 1W
Audible Noise 29/26 dBA (Normal/Economic mode)
On-Screen Display Languages Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Indonesia/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages)
Picture Modes Dynamic Mode
sRGB Mode
User 1 Mode
Presentation Mode
Cinema Mode
User 2 Mode
Functions

BrilliantColor
VIDI
Closed Captioning
USB Display
Wireless Display (Optional)
Quick Cooling
3D Color Management
Auto Blank
Digital Zoom (x2)
High altitude mode
Freeze
Quick Auto Search
Wall Color Correction
USB Reader
3D Ready
Teaching Template
MyScreen
Panel Key Lock
Auto Off
Security Password
"Q?" Hot Key for FAQ
Accessories (Standard) Quick Start Guide
Manual CD
Remote Control w/battery
VGA Cable
Power Cord
Soft Carry Case
Accessories (Optional)

Presentation Plus
RS232 Cable
Spare Lamp Kit
Wireless Dongel
3D Support and Compatibility *Please click to know more details about 3D Support and Compatibility.
Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

BenQ MX613ST DLP Projector - XGA 1024x768, 2500 Lumens, 3000:1, 5000Hrs, 1x VGA, 1x HDMI, Speakers

MX613ST

Big Pictures in Small Spaces

The BenQ MS613ST offers the highest display flexibility with its aspherical lens design giving you a 55 big picture in a mere projection distance of 1 meter! Featuring 2500 ANSI lumen high brightness and 3000:1 high contrast ratio and DLP Link 3D technology, this XGA projector is the perfect match for small-sized business and education settings!

Exclusive Aspherical Lens Design for the Ultimate Short-throw Projection

A global DLP  expert, BenQ excels as the number one-selling brand in the worldwide short-throw projector market with every one out of seven short-throw projector to be of BenQ kind. This undisputed short-throw leader offers picture quality excellence defined by astonishing color performance and well-focused text projection with its very own asphiercal lens design.

BenQ's Exclusive Aspherical Lens Projection Design for Clearer, Sharper and More Stable Picture Performance

Normal Image Zoom Rate
with Traditional Projection

Boosted Image Zoom Rate with
BenQ's Aspherical Short-throw
Lens Projection



Well-Focused Text Projection for Superb Reading

Other Short-throw Technologies
Blurry and Difficult to Read

BenQ Aspherical Short-throw Lens Technology
Crisp and Clear for Easy Reading



Great Things about Short-throw Projection

Zero Space Constraints

Zero Space Constraints to Close Up the Distance Between You and Your Audience



Zero Eye-Blinding Lights

Zero Shadow Disruptions for an Ultra-Smooth, Interruption-Free Presentation



Zero Disruptions

Zero Eye-Blinding Lights to Keep Your Eyes and Focus on Your Audience



Stereoscopic 3D Ready Projection

All BenQs upcoming projector models come standard-equipped with DLP LinkTM-supported 3D projection technology to bring you the same amazing 3D effects you get in 3D movies. Unlike traditional 3D projector systems that require two perfectly aligned projectors with two separate video feeds to deliver 3D projection, BenQs system requires only one making it the perfect choice for education and home entertainment use!

*Please click to know more details about 3D Support and Compatibility.



Thoughtful Design for Presenters

10W Microphone Audio Power

The MS613ST is built with 10W audio power to perfect your presentation performance and your audiences meeting experience in small-sized classrooms or business settings.

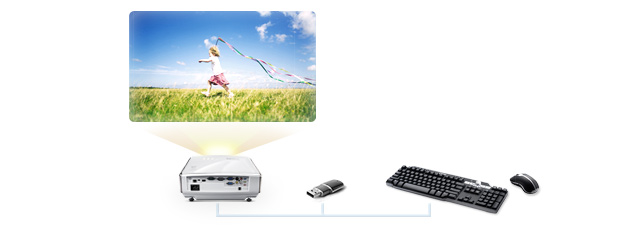

Hassle-Free PC-Less Presentation

Enjoy a hassle-free presentation with the USB Reader! The USB Reader function enables a JPEG presentation with a USB flash drive! Its as easy and plug and play!

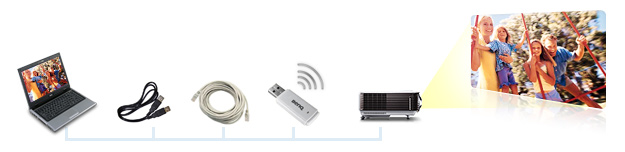

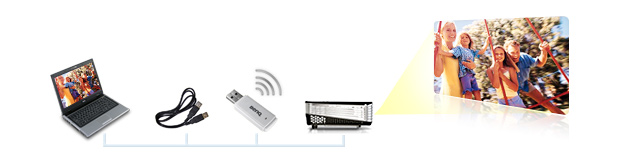

Powerful Display Tools for Your Presentation Success

Projectors are powerful tools for making successful presentations. To ensure a smooth presentation on your part, BenQ has integrated various display functions into the MX613ST to fit every need!

USB Display offers the plug-and-play convenience of USB connection with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

Wireless Display keeps cables and wires out of everyones way with the BenQ Wireless Display Adapter (optional accessory) to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.

Specifications


Projection System DLP technology by Texas Instruments
Native Resolution XGA (1024 x 768)
Brightness* 2500 ANSI lumens
Contrast Ratio 3000:1 (Full on/Full off)
Keystone Manual Vertical 40
Aspect Ratio 4:3 Native, 16:9 Selectable
Color Full 1.07 billion color palette
Lens F=2.6- 2.78, f=10.2 - 12.24 mm
Zoom Ratio Manual Zoom, 1.20:1
Image Size (Diagonal) 27 to 300
Throw Ratio 0.9 - 1.08 (55"@1m)
Lamp** 210W, 4000/5000 hours
Computer Compatibility VGA(640 x 480) to UXGA(1600 x 1200)
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
Horizontal Frequency 31-99 kHz
Vertical Scan Rate 23-120 Hz
Input Terminals PC:
Analog RGB: D-sub 15 pin x 1
USB connector: Type A x 1 (USB Reader); Mini-B x1 (USB Display)
A/V:
HDMI V1.3 x 1
Component Video: D-sub 15 pin x 1
(Shared with Analog RGB connector)
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Stereo Mini Jack x 1
Audio L/R: RCA x 2
Output Terminals

PC:
D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
10W Speaker x 1
Control Terminal Serial Connector: RS232 9 pin x 1
USB mini Type B x 1 (Page up/down)
Dimensions(W x H x D) 311 x 104 x 244 mm (12.2 x 4.1 x 9.6 inch) without Lens
Weight 2.5 kg (5.5 lbs)
Power Supply 100 to 240V AC, 50/60 Hz
Power Consumption 275W, Standby < 1W
Audible Noise 30/26 dBA (Normal/Economic mode)
On-Screen Display Languages Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages)
Picture Modes Dynamic Mode
sRGB Mode
User 1 Mode
Presentation Mode
Cinema Mode
User 2 Mode
Functions BrilliantColor
VIDI
3D Color Management
Closed Captioning
Digital Zoom (x2)
Variable Audio Out
Quick Cooling
3D Ready
Wireless Display (Optional)
Short-Throw Ratio Lens
Blank
Panel Key Lock
Auto Off
Security Password
HDTV compatible
High Altitude Mode
"Q?" Hot Key for FAQ
Quick Auto Search
USB Display
PC-Less Presentation
Accessories (Standard) Quick Start Guide
Manual CD
Remote Control w/battery
VGA Cable
Power Cord
Soft Carry Case
Accessories (Optional) Presentation Plus
Wall Mount
Wireless Dongle
Spare Lamp Kit
RS232 Cable
3D Support and Compatibility *Please click to know more details about 3D Support and Compatibility.



 Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

BenQ MX761 DLP Projector - 1024x768, 4200 Lumens, 5300:1, 3000Hrs, VGA, HDMI, Speaker

MX761

Maximized Flexibility for Your Convenience

The BenQ MX761 opens you to the highest installation versatility with 1.6x Big Zoom minus the hassle of reconstructions! Designed with XGA resolution, 4200 ANSI lumens, 5300 ultra-high contrast ratio and 3D ready projection, the MX761 is the best-matched presentation choice for your medium-sized classrooms and meeting rooms!

Maintenance Saving for IT Managers - Flexible Installation

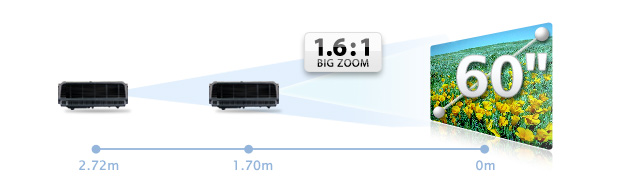

1.6x Big Zoom Impressive Projection Range

Enjoy the superior installation flexibility with the MX761! With its 1.6x Big Zoom feature to give you a 60" big picture in an impressively wide range of throw distance from 1.70 to 2.72 meters, you'll be overcome any form of limited ceiling space - dodging ceiling fans, lights and room decorations. Simply place the MX760 where your original ceiling mount is and slide it in at no extra cost to your budget!

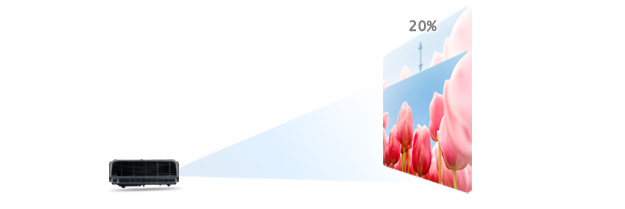

20 Manual Vertical Lens Shift Installation Flexibility

The manual Vertical Lens Shift function allows you to make minor projection adjustments to the projected image by shifting the image up by 20 giving you the extra flexibility you need to overcome slight miscalculations during a new projector installation.

Auto / Manual Keystone 40

Automatically or manually, the MX761 gets rid of misshaped images, graphics and charts instantaneously via its 40 vertical keystone adjustment function! With the MX761, a perfect square is all you'll see!

LAN Control Centralized Projector Management

LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively offering them full access and control over every projector directly from their workstations. Its just what you need to save energy, time and money!

The BenQ MX761 offers seamless support for your original LAN Control setting whether its Crestron, PJ-Link or SNMP. It also comes with a built-in projector network control system uniquely designed by BenQ for your convenience. All it takes is a LAN cable to set things up!

Thoughtful Design for Presenters

20W Microphone Audio Power

The X761is built with 20W industry-leading audio power and microphone input to empower your presentation! Two 10W speakers are sealed and secured within each side of the projector with BenQs anti-shake design to deliver crisp-clear audio quality and projection stability, while the microphone input connects you to conventional and wireless microphones and microphone headsets.

What's more, the MX761 can be used as an audio system only even when it's on standby mode! Finally, you can have a blast presenting without straining your voice or your budget!

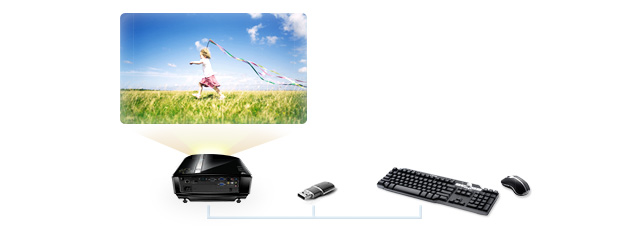

Hassle-Free PC-Less Presentation

Enjoy a hassle-free presentation with the USB Reader and Remote Desktop functions! The USB Reader function enables a JPEG presentation with a USB flash drive! Its as easy and plug and play! The Remote Desktop function allows you to present using a wireless mouse and keyboard! Consider it an upgrade from the USB Reader option! Youll get to access everything from your computer remotely on the projection screen! Going PC-less also means youll get to save up on computer purchase, maintenance and repair for your school or company!

Multiple Display Options for Various Office andClassroom Needs

Projectors are powerful tools for making successful presentations. To ensure a smooth presentation on your part, BenQ has integrated various display functions into the MX761 to fit every need!

USB Display offers the plug-and-play convenience of USB connection with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature also offers simultaneous 1-8, 4-1 or partial projection display option for better content management for discussions, presentations, training and classroom teaching.

Wireless Display keeps cables and wires out of everyones way with the BenQ Wireless Display Adapter to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.

Closed Captioning

Display subtitles in video content without the need for an external closed-captioning device with the MX761. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.



Thoughtful Teaching Template Design

To make your teaching job easier, BenQ has added the teaching template function to the MX761. Now, with four different line pattern designs to choose from Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.

Projection System DLP technology by Texas Instruments
Native Resolution XGA (1024 x 768)
Brightness* 4200 ANSI lumens
Contrast Ratio 5300:1 (Full on/Full off)
Keystone Auto Keystone / Manual Vertical 40
Aspect Ratio 4:3 Native (5 aspect ratio selectable)
Color Full 1.07 billion color palette
Lens F=2.45 to 3.07
Zoom Ratio Manual Zoom, 1.6:1
Lens Shift Vertical Lens Shift 20%
Image Size (Diagonal) 18 to 300
Throw Ratio 1.4 to 2.24 (70"@2M)
Lamp** 300W, 2000/3000 hours (Normal/Economic mode)
Computer Compatibility VGA(640 x 480) to UXGA (1600 x 1200)
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
Horizontal Frequency 31-99 kHz
Vertical Scan Rate 48-120 Hz
Input Terminals PC:
Analog RGB: D-sub 15 pin x 2
LAN Networking: RJ-45 x 1 (LAN Display)
USB Type A x 1 (USB Reader), Type Mini-B x 1 (USB Display)
A/V:
HDMI (v1.3) x 1
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Component Video: D-sub 15 pin x 2 (Shared with Analog RGB)
Microphone: Stereo Mini Jack x1
Audio L/R : RCA x 2
Stereo Mini Jack x 1
Output Terminals PC:
Monitor out: D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
Speaker: 10W x 2
DC 12V Trigger x1
Control Terminal Serial Connector : RS232 9 pin x 1
RJ45 x 1 (LAN Control)
USB Type Mini-B x 1 (Page up/down)
Dimensions(W x H x D) 11.4 x 5.03 x 9.9 inch (290 x 128 x 252 mm)
Weight 7.26 lbs (3.3 kg)
Power Supply AC 100 to 240 V, 50/60 Hz
Power Consumption Typical 419W, Standby < 1W
Audible Noise 35/30 dBA (Normal/Economic mode)
On-Screen Display Languages Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Indonesian/ Italian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages)
Picture Modes PC Input:
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
A/V Input :
Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
Functions BrilliantColor
VIDI
3D Color Management
Crestron LAN Control
Closed Captioning
Digital Zoom (x2)
Variable Audio Out
Quick Cooling
Quick Auto Search
PJLink Compatible
Blank
Panel Key Lock
Auto Off
Security Password
HDTV compatible
High Altitude Mode
"Q?" Hot Key for FAQ
3D Ready
Freeze
Teaching Template
Accessories (Standard) Quick Start Guide
Manual CD
Remote Control w/battery
VGA(D-sub) Cable
Power Cord
Soft Carry Case
Accessories (Optional) Presentation Plus
RS232 Cable
Spare Lamp Kit
Wireless Dongle
3D Support and Compatibility

*Please click to know more details about 3D Support and Compatibility.





 Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

BenQ MW811ST DLP Projector - WXGA 1280x800, 2500 Lumens, 4600:1, 5000Hrs, 1x VGA

MW811ST

A Presentation that Widens Your View

Featuring WXGA resolution, 4600:1 high contrast and 2500 ANSI lumens, the MW811ST offers a 95 picture in only 1m broadening learning with an extra 30% of stunning colors and crisp-clear text! With 3D ready, interactive whiteboard and LAN/USB Display support, the MW811ST is the perfect tool to teach and present in small-sized settings!

Exclusive Aspherical Lens Design for the Ultimate Short-throw Projection

A global DLP  expert, BenQ excels as the number one-selling brand in the worldwide short-throw projector market with every one out of seven short-throw projector to be of BenQ kind. This undisputed short-throw leader offers picture quality excellence defined by astonishing color performance and well-focused text projection with its very own asphiercal lens design.

BenQ's Exclusive Aspherical Lens Projection Design for Clearer, Sharper and More Stable Picture Performance


Normal Image Zoom Rate
with Traditional Projection

Boosted Image Zoom Rate with
BenQ's Aspherical Short-throw
Lens Projection
Well-Focused Text Projection for Superb Reading


Other Short-throw Technologies
Blurry and Difficult to Read

BenQ Aspherical Short-throw Lens Technology
Crisp and Clear for Easy Reading


The Good Things that Come in Short Distances

Zero Space Constraints

Just imagine the freedom of having the same projection quality with half the required distance! Youll have better flexibility in choosing your projection locations! That's the magic of short throw!

Zero Eye-Blinding Lights

The short throw projection distance keeps the projector light from shinning directly into your eyes, allowing you to keep your focus on your audience.

Zero Disruptions

Say goodbye to the shadows that often interrupt your presentation. With a projection distance this close, you and your audience can move freely without worrying about obstructions between the projector and the screen!



Stereoscopic 3D Ready Projection

All BenQs upcoming projector models come standard-equipped with DLP LinkTM-supported 3D projection technology to bring you the same amazing 3D effects you get in 3D movies. Unlike traditional 3D projector systems that require two perfectly aligned projectors with two separate video feeds to deliver 3D projection, BenQs system requires only one making it the perfect choice for education and home entertainment use!

*Please click to know more details about 3D Support and Compatibility.



Classroom3 Initiative 3D Case Study

3D visualization is researched and proven to help all types of learners excel in class! Texas Instruments' Classroom3 DLP 3D Initiative's recent case study shows a dramatic improvement of 35% in student test scores from the pilot implementation of 3D simulations across the US state of Illinois.
Find out more on: www.dlp.com/downloads/DLP_3D_Classroom3_Case_Study.pdf

LAN Control Centralized Projector Management

LAN Control is designed to help IT managers perform day-to-day projector maintenance and repair tasks efficiently and effectively offering them full access and control over every projector directly from their workstations. Its just what you need to save energy, time and money!

The BenQ MW811ST offers seamless support for your original LAN Control setting whether its Crestron, PJ-Link or SNMP. It also comes with a built-in projector network control system uniquely designed by BenQ for your convenience. All it takes is a LAN cable to set things up!

Thoughtful Design for Presenters

20W Microphone Audio Power

The MW811STis built with 20W industry-leading audio power and microphone input to empower your presentation! Two 10W speakers are sealed and secured within each side of the projector with BenQs anti-shake design to deliver crisp-clear audio quality and projection stability, while the microphone input connects you to conventional and wireless microphones and microphone headsets.

What's more, the MW811ST can be used as an audio system only even when it's on standby mode! Finally, you can have a blast presenting without straining your voice or your budget!



Hassle-Free PC-Less Presentation

Enjoy a hassle-free presentation with the USB Reader and Remote Desktop functions! The USB Reader function enables a JPEG presentation with a USB flash drive! Its as easy and plug and play! The Remote Desktop function allows you to present using a wireless mouse and keyboard! Consider it an upgrade from the USB Reader option! Youll get to access everything from your computer remotely on the projection screen! Going PC-less also means youll get to save up on computer purchase, maintenance and repair for your school or company!

Multiple Display Options for Various Office and Classroom Needs

Projectors are powerful tools for making successful presentations. To ensure a smooth presentation on your part, BenQ has integrated various display functions into the MW811ST to fit every need!

USB Display offers the plug-and-play convenience of USB connection with automatic resolution detection for the best image presentation and extension support for simultaneous multi-projection display.

LAN Display offers a cost-effective solution for projector implementation management using a single LAN cable to control and display. This feature also offers simultaneous 1-8, 4-1 or partial projection display option for better content management for discussions, presentations, training and classroom teaching.

Wireless Display keeps cables and wires out of everyones way with the BenQ Wireless Display Adapter (optional accessory)to deliver big screen display for all your presentations and perform simplified centralized network control via USB 2.0 seamless WLAN connectivity.

Closed Captioning

Display subtitles in video content without the need for an external closed-captioning device with the MW811ST. It's perfect for viewing in educational settings such as language classes where a transcript of onscreen dialog is desirable.



Thoughtful Teaching Template Design

To make your teaching job easier, BenQ has added the teaching template function to the MW811ST. Now, with four different line pattern designs to choose from Letter Formation, Musical Staff, Worksheet and Coordinate Chart, you can easily write or draw on whiteboards as well as blackboards without the need of drawing lines or charts.

Multi-Function Connectors

Specifications

Projection System DLP technology by Texas Instruments
Native Resolution WXGA (1280 x 800)
Brightness* 2500 ANSI lumens
Contrast Ratio 4600:1 (Full on/Full off)
Keystone Auto Keystone / Manual Vertical 30
Aspect Ratio 16:10 Native (5 aspect ratio Selectable)
Color Full 1.07 billion color palette
Lens F=2.6
Zoom Ratio Fixed
Image Size (Diagonal) 48 to 300
Throw Ratio 0.5 (95"@1M)
Lamp** 210W, 4000/5000 hours (Normal/Economic mode)
Computer Compatibility VGA(640 x 480) to UXGA(1600 x 1200)
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility NTSC, PAL, SECAM
Horizontal Frequency 31-99 kHz
Vertical Scan Rate 48-120 Hz
Input Terminals PC:
Analog RGB: D-sub 15 pin x 2 (Shared with Component)
LAN Networking: RJ-45 x1 (LAN Display)
USB Type A x1 (USB Reader), Type Mini-B x1 (USB Display)
A/V:
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Microphone: Stereo Mini Jack x1
Audio L/R : RCA x 2
Stereo Mini Jack x 1
Output Terminals PC:
Monitor out: D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
Speaker: 10W x 2
DC 12V Trigger
Control Terminal Serial Connector : RS232 9 pin x 1
RJ45 x 1 (LAN Control)
USB Type Mini-B x1 (Page up/down)
Dimensions(W x H x D) 11.4 x 5.03 x 9.9 inch (290 x 128 x 252 mm) with Lens
Weight 7.5 lbs (3.4kg)
Power Supply AC 100 to 240 V, 50/60 Hz
Power Consumption Typical 290W, Standby < 1W
Audible Noise 32/27 dBA (Normal/Economic mode)
On-Screen Display Languages Bulgarian/ Croatian/ Czech/ Danish/ Dutch/ English/ Finnish/ French/ German/ Greek/ Hungarian/ Italian/ Indonesian/ Japanese/ Korean/ Norwegian/ Polish/ Portuguese/ Romanian/ Russian/ Simplified Chinese/Spanish/ Swedish/ Turkish/ Thai/ Traditional Chinese (26 Languages)
Picture Modes Dynamic Mode
Presentation Mode
sRGB Mode
Cinema Mode
User 1 Mode
User 2 Mode
Functions BrilliantColor
VIDI
3D Color Management
Crestron LAN Control
Closed Captioning
Digital Zoom (x2)
Variable Audio Out
Quick Cooling
Quick Auto Search
PJLink Compatible
Blank
Panel Key Lock
Auto Off
Security Password
HDTV compatible
High Altitude Mode
"Q?" Hot Key for FAQ
3D Ready
Freeze
Teaching Template
Accessories (Standard) Quick Start Guide
Manual CD
Remote Control w/battery
VGA Cable
Power Cord
Accessories (Optional) Presentation Plus
Wall Mount
RS232 Cable
Spare Lamp Kit
Wireless Dongle
Carry Case
3D Support and Compatibility *To know more about 3D Support and Compatibility details.

 Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

BenQ SP840 DLP Projector - 1920x1080, 4000 Lumens, 3000;1, 2000Hrs, VGA, 2xHDMI, Speaker

SP840

Light-On learning for Large-Size Space
BenQ SP840 Full HD high brightness projector offers high brightness projection with Full HD image quality. The higher the resolution, the better the image quality. Full HD resolution will give you 100% dot-to-dot viewing quality-distortion-free. With BenQ SP840, things are certainly lookin great.

Enjoy Readability and Breathtaking Colors with BenQ

Premium Full HD


The BenQ SP840 offers the highest standard of home cinema viewing. It supports multiple video formats including 480P, 576P, 720P, 1080i and 1080P. From HDTV or blu-ray DVD to video games such as Xbox or PS3, you can enjoy the latest video formats in Full HD, the new standard of video performance that delivers 5X more detail than traditional 480P projectors.


BrilliantColor Performance
Featuring BrilliantColor Technology and a uniquely designed golden ratio 6-segment color wheel, the BenQ SP840 projector delivers true-to-life images with enhanced secondary color brightness for your visual enjoyment!













Customize with 3D Color Management
Exclusive BenQ 3D Color Management empowers you with the freedom to fine-tune color intensity to meet your preference. 3D Color Management lets users independently adjust the hue, grain, and saturation levels of all six color wheel tones (red, green, blue, cyan, magenta, and yellow) without colors compromising each other.

4000 ANSI lumens
A 4000 ANSI lumens projection lamp ensures the best viewing quality for large venues. The SP840 offers bright and clear projection so you can give the perfect presentation

3000:1 Contrast Ratio
The SP840 boasts contrast ration with 3000:1. The 3000:1contract ratios translate to razor-sharp detail definition and a broader range of subtle color differences, which makes text is sharper, cleaner, and easy to read and in turn grab audiences attention and interest.

Thoughtful Features
Comprehensive Connectivity with Dual HDMI
SP840 features dual HDMI ports for hassle-free, simultaneous hosting of your digital devices. HDMI is also the highest and completely future-proof connection standard, ensuring pure digital audio and video perfection.

A Keystone-Perfect View for All Your Projections
With the automatic keystone adjustment, a perfect square is all you'll see. So go ahead and say goodbye to misshaped images, graphics, and charts!



Specifications


Native Resolution 1080p (1920 x 1080)
Projection System DLP  technology by Texas Instruments
Brightness 4000 ANSI lumens
Lamp 330W, 1500/2000 hours(Normal/Economic mode)
Contrast Ratio 3000:1 (Full on/Full off)
Weight 3.4 kg (7.5 lbs)
Audible Noise 39/34 dB (Normal/Economic mode)
Computer Compatibility VGA(640 x 480) to WUXGA(1920 x 1200)
Dimensions(W x H x D) 12.8 x 3.7 x 10 inch (325 x 95 x 254 mm)
Image Size (Diagonal) 24 to 300
Throw Ratio 1.59-1.9 (56.8"@2M)
Zoom Ratio Manual Zoom, 1.20:1
Lens F=2.50-2.76, f=23.5mm-28.2mm
Color Full 1.07 billion color palette
Aspect Ratio 16:9 Native, 5 modes Selectable
Horizontal Frequency 31-90 kHz
Vertical Scan Rate 48-85 Hz
Input Terminals PC:
Analog RGB: D-sub 15 pin x 1
A/V:
HDMI v1.3 x 2
Component Video: RCA x 3
S-Video: Mini Din 4 pin x 1
Composite Video: RCA x 1
Audio:
Audio L/R: RCA x 2
Stereo Mini Jack x 1
Output Terminals PC:
Monitor Out: D-sub 15 pin x 1
Audio:
Variable Audio Out : Stereo Mini Jack x 1
Speaker: 3W x 1
DC 12V x 1
Video Compatibility NTSC, PAL, SECAM
Auto Switching Power Supply 100 to 240 VAC, 50/60 Hz
Power Consumption 430W, Standby < 1W
On-Screen Display Language English/ Danish/ Finnish/ French/ German/ Italian/ Norwegian/ Polish/ Portuguese/ Russian/ Traditional Chinese/ Simplified Chinese/Spanish/ Swedish/ Korean/ Czech/ Japanese (17 Languages)
Features BrilliantColorTM
UNISHAPE
3D Color Management
Dual HDMI inputs
Closed Captioning
Auto Keystone
Variable Audio Out
Panel Key Lock
Quick Auto BrilliantColor
Crestron LAN Control
Closed Captioning
3D Color Management
Resolution Reminder
Digital Zoom
Freeze
HDTV compatible
RoomView Compatible
Wall Color Correction
Blank
Panel Key Lock
Auto Off
Security Password
"Q?" Hot Key for FAQ
High altitude mode
Accessories (Standard) Quick Start Guide
Manual CD
Remote Control with backlight
VGA Cable
Power Cord
Soft Carry Case
Accessories (Optional) Presentation Plus
RS232 Cable
Spare Lamp Kit
Ceiling Mount
Control Terminals Serial Connector : RS232 9 pin (male)
Keystone Manual Vertical 30
HDTV Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p/60/50/30/25/24
Picture Modes Dynamic Mode
sRGB Mode
Standard Mode
Cinema Mode
User 1 Mode
User 2 Mode
User 3 Mode
Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

Brateck CCTV Camera Adjustable Wall Mount Bracket - For Indoor & Outdoor Camera

Brateck CCTV Camera Adjustable Wall Mount Bracket for Indoor and Outdoor

CCTV Camera Bracket

Features
  • Economical camera mount
  • Medium-duty mounting application
  • Non feed-through type
  • Extruded aluminium
  • Sturdy construction
  • For indoor / outdooruse
  • Adjustable head
  • Dimensions: 307x140x89 mm
  • Maximum load up to 15Kg
Link contains in-depth information about this product Link contains a picture of this product    NA
21/10

Brateck CCTV Camera Adjustable Ceiling Mount Bracket - For Indoor & Outdoor Camera

Brateck CCTV Camera Adjustable Ceiling Mount Bracket for Indoor and Outdoor

CCTV Camera Bracket

Features
  • Economical camera mounting bracket
  • Medium-duty ceiling-mount
  • For cable feed-through
  • Extruded aluminium
  • Sturdy construction
  • For indoor / outdooruse
  • Adjustable head
  • Dimensionz: 200x90x90mm
  • Maximum load 15Kg
Link contains in-depth information about this product Link contains a picture of this product    NA
Previous Page Next Page
