Camerafarm product archive #40397
| Image |
Date |
Product description |
Price |
Buy |
|
09/08
|
Panasonic PT-LB2EA LCD Projector - XGA, 1024x768, 2600 Lumens, 500:1, 5000Hrs, 1xVGA, 1xRJ45 PT-LB2 Series
LCD Projectors
Superb Basic Performance with a 5,000-Hour*1 Lamp Replacement Cycle Compact, Mobile Projectors
Outstanding Performance and Excellent Mobility Ideal for a Wide Range of Uses — From Business to Education
The PT-LB2 series offers superb basic performance, such as a 5,000-hour*1 lamp replacement cycle. Its Intelligent Power Management function allows resistance to sudden voltage fluctuations. A network function reduces management tasks with a wired LAN connection, and allows flexible system upgrading. And an easy setup function enables quick operation for portable use. This kind of versatility brings efficient visual communication to all kinds of applications.
Portable Convenience and High Basic Performance, Including a 5,000-hour*1 Lamp Replacement Cycle and a Resistance to Sudden Voltage Fluctuations*3
The New Lamp Drive System Enables a 5,000-hour*1 Lamp Replacement Cycle
Panasonic employs a number of advanced technologies — including a proprietary lamp drive system — that help maintain lamp performance . This has resulted in a 5,000-hour*1 lamp replacement cycle. It helps saving operating cost by providing longer usage between lamp replacements.
Intelligent Power Management Function Allows Resistance to Sudden Voltage Fluctuations*3
Momentary power outages*4 or voltage drops*5 can cause the projector to shut down, interrupting the projection. The PT-LB2 series equipped with the Intelligent Power Management function controls the power supply to cope with power fluctuations, to enable continued projection.
The Daylight View Basic Function Ensures Clear Images Even in Brightly Lit Rooms
Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone colour and brightness level according to the surrounding illumination.
Quiet 29-dB*6 Design Helps to Hold Viewers' Attention
The noise level is as low as 29-dB*6. This helps your audience to keep their attention on the discussion or on the screen images during quiet scenes.
Easy Portability with a Compact, A4-File-Size Body
The compact body is the size of an A4 file and weighs only about 2.3 kg, while producing a brightness of 2,600 lm*7. Its handy size and weight make it easy to carry from room to room, or to a client's office for an on-site presentation. It gives you sharp, clear images wherever and whenever you need them.
Low Standby Power Consumption of 0.4 W*8 Helps the Environment
The ecological design of the PT-LB2 series greatly reduces its environmental impact. In Eco Standby mode, power consumption is only 0.4 W*8. As examples of other environmental design features, the uncoated cabinet uses no halogenated flame retardants, the lens uses lead-free glass, and an Auto Off Timer switches the projector to Standby mode when no input signal is received for a preset time. The PT-LB2 series also complies with the standards of the RoHS Directive*9.
|
|
|
|
09/08
|
EZ Cool Webcam With Microphone - 10.0MP, High Resolution, Cystal Clear Clip, USB2.0 EZCool Facebk 10.0MP Webcam with Mic
SKU: AWCEZCFACEBK12M
10.0 Mega Pixel USB2.0 Driver Free Webcam for PC & Laptop
Universal USB 2.0 Computer camera, USB PC Web cam, USB PC Web camera, USB 2.0 PC camera
Features
- A classical telescope design. - Universal type USB web camera for any computer & laptop. - A crystal clear clip base specially for cliping on the laptop. - Absolutely driver installation free. Just plug&play. - Compatible with both USB 1.1 & USB 2.0. - 10.0 Mega pixels. Marvellous Clear and clean images - High resolution CMOS lens. - Snapshot available. - Focus range: manual focus from 4.8cm to infinity.
|
|
|
|
09/08
|
EZ Cool Chatcam Webcam With Headset - 16.0MP, High Resolution & Fast Transmission, High Quality Camera Lens EZCool Chatcam 16.0MP Webcam with Headset
SKU: AWCEZCCHATCAM2M The item is a 16.0 MP USB PC Web Cam that comes with a Free Headset with Mic. It is a PNP (Plug and Play) product with a high resolution and fast transmission rate. Add this web cam to your PC/Laptop and you'll have the perfect mean to communicate with distant friends, family or clients!
Features16.0 MP High Resolution By Interpolated Frame Rate: Up to 30 Frames Per Second CMOS Colour Image Sensor Timer Snap Shot Function Lens: High Quality Professional Camera Lens Video Recording Bonus Headset with Mic USB2.0 High Speed Interface Plug and Play Manual Focus Adjustment Automatic Whiteness Balance Auto Colour Adjustment Multifunctional Design for Any Flat Surface, Laptop, LCD Screen and CRT Monitor Built-in Picture Compress Driver/Software Disk Included
System Requirement
Windows Vista/XP/2000/ME/98se Intel PII 300Mhz or Advanced 32MB Ram or Advanced 16Bit VGA and Sound Card 20MB Free Disk Space
|
|
|
|
09/08
|
EZ Cool AWCEZC106R1300K 1.3 Pixel PC USB Webcam - Built-In Microphone, 6 LEDS Light For Low Light ConditionEZCool 1.3M Pixel PC USB Webcam Features - Up to 1.3mpixel super clear picture
- Built-in microphone
- 6 led lighting for dim environment
- Smart design for desktop or laptop
- Manual focus and high quality glas
|
|
|
|
09/08
|

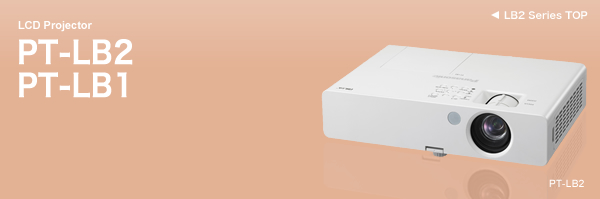

Panasonic PT-LB2 LCD Projector - XGA, 1024x768, 2600 Lumens, 500;1, 5000Hrs, 1xVGA, 3x Digital ZoomPT-LB2
Panasonic employs a number of advanced technologies including a proprietary lamp drive system that help maintain lamp performance . This has resulted in a 5,000-hour* lamp replacement cycle. It helps saving operating cost by providing longer usage between lamp replacements. * With the lamp mode in Eco mode. This value is calculated by continuously turning the lamp on for 2.5 hours and off for 0.25 hour. The lamp replacement cycle will decrease if the lamp is turned on/off more frequently, or if it is left on for longer intervals.
Momentary power outages*2 or voltage drops*3 can cause the projector to shut down, interrupting the projection. The PT-LB2 series equipped with the Intelligent Power Management function controls the power supply to cope with power fluctuations, to enable continued projection.3 *1 Fluctuations may occur in the electricity power supply except the power outage. *2 Continuing 0V power supply during several tens of milliseconds. *3 Power supply voltage reduction. Excluding momentary power outage.


Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.
The noise level is as low as 29-dB*. This helps your audience to keep their attention on the discussion or on the screen images during quiet scenes.
* Lamp mode : eco
The compact body is the size of an A4 file and weighs only about 2.3 kg, while producing a brightness of 2,600 lm*. Its handy size and weight make it easy to carry from room to room, or to a client's office for an on-site presentation. It gives you sharp, clear images wherever and whenever you need them.
* For the PT-LB2. The PT-LB1 has a brightness of 2,200 lm.
The ecological design of the PT-LB2 series greatly reduces its environmental impact. In Eco Standby mode, power consumption is only 0.4 W*1. As examples of other environmental design features, the uncoated cabinet uses no halogenated flame retardants, the lens uses lead-free glass, and an Auto Off Timer switches the projector to Standby mode when no input signal is received for a preset time. The PT-LB2 series also complies with the standards of the RoHS Directive.*2
*1 In Eco Standby mode, network functions such as Standby On via LAN are not available, and only certain commands can be received from RS-232C control. *2 Restriction of the use of certain Hazardous Substances. The specified toxic substances used in the electrical and electronic equipment that is manufactured and distributed within Europe are controlled (the six substances are lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl esters (PBDE)), and all Panasonic projectors comply with the standards of the European RoHS Directive.

|
|
PT-LB2
 |
PT-LB1
 |
| Power supply |
100240 V AC, 50/60 Hz |
| Power consumption |
300 W (0.4 W*1 in eco standby mode. 15 W in normal standby mode. 18 W in normal standby mode when set to audio monitor out and with fan stopped.)
|
| Optical system |
Dichroic mirror separation/prism synthesis system |
| LCD panel |
Panel size |
16 mm (0.63") diagonal, 4:3 aspect ratio |
| Display method |
Transparent LCD panel (x 3, R/G/B) |
| Drive method |
Active matrix |
| Pixels |
786,432 (1,024 x 768) x 3, total of 2,359,296 pixels |
| Pixel configuration |
Stripe |
| Lens |
Manual zoom (1:11:1.2), manual focus, F 1.641.87, f 18.8022.56 mm |
Manual zoom (1:11:1.2), manual focus, F 2.002.20, f 19.22 22.68 mm |
| Lamp |
220 W UHM lamp |
| Projection size |
0.847.62 m (33300 inches) diagonally (4:3 aspect ratio) |
| Colors |
Full color (16,777,216 colors) |
| Brightness*2 |
2,600 lumens
|
2,200 lumens |
Center-to-corner uniformity ratio*2 |
85% |
| Contrast ratio*2 |
500:1 (full on/full off) |
| Resolution (RGB)*3 |
1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
| Scanning frequency |
RGB |
Horizontal: 1591 kHz, Vertical: 5085 Hz |
| YPBPR |
480i (525i): fH 15.75 kHz; fv 60 Hz 576i (625i): fH 15.63 kHz; fv 50 Hz 480p (525p): fH 31.50 kHz; fv 60 Hz 576p (625p): fH 31.25 kHz; fv 50 Hz 720/60p (750p): fH 45.00 kHz; fv 60 Hz 720/50p (750p): fH 37.50 kHz; fv 50 Hz 1080/60i (1125i): fH 33.75 kHz; fv 60 Hz 1080/50i (1125i): fH 28.13 kHz; fv 50 Hz 1080/60p(1125p): fH 67.50 kHz; fV 60 Hz 1080/50p(1125p): fH 56.25 kHz; fV 50 Hz |
S-Video/ Video |
NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fv 60 Hz PAL, SECAM, PAL-N: fH15.63 kHz; fv 50 Hz |
| Optical axis shift |
5:1 (fixed) |
| Keystone correction range |
Vertical: approx. 30 |
| On-screen menu |
17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai |
| Installation |
Front/rear, ceiling/desk (menu selection) |
| Built-in speakers |
Size: 4 x 2 cm (1-1/16" x 25/32") x 1, oval |
| Terminals |
COMPUTER (RGB) 1 IN |
D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms |
| COMPUTER (RGB) 2 IN |
D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms |
| VIDEO IN |
RCA pin x 1, 1.0 V [p-p], 75 ohms |
| S-VIDEO IN |
Mini DIN 4-pin x 1, Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ohms |
| AUDIO IN |
M3 (L, R) x 2, 0.5 V [rms] |
| VARIABLE AUDIO OUT |
M3 (L, R) x 1, 0 2.0 V [rms] |
| SERIAL |
D-sub 9-pin x 1, for external control (RS-232C compliant) |
| LAN |
RJ-45 x 1, compatible with PJLink (class 1), 10BASE-T/100BASE-TX |
| Power cord length |
2 m (6.6') |
| Cabinet material |
Moulded plastic (PC+ABS) |
| Dimensions (W x H x D)*4 |
307 x 69 x 210 mm (12-3/32" x 2-23/32" x 8-9/32") |
| Weight*5 |
Approx. 2.3 kg (5.07 lbs.) |
| Operating environment |
Temperature: 040C (32104F) *6 Humidity: 20%80% (no condensation) |
| Supplied accessories |
Power cord, Power cord secure lock, Wireless remote control, Batteries for remote control ( AAA type for North/South America, R03 type for Europe/Asia) x2, VGA cable, Carrying bag, Application software (CD-ROM) |
| Optional accessories |
ET-PKB2 |
Ceiling mount bracket |
| ET-KFB2 |
Highly durable filter unit |
| ET-RFB2 |
Replacement air filter for ET-KFB2 |
| ET-LAB2 |
Replacement lamp unit |
|
|
|
|
09/08
|
Panasonic PT-LB1 LCD Portable Projector - XGA, 1024x768, 2200 Lumens, 500;1, 1xVGA, 1xRJ-45, Includes Soft Carry Case Projector PT-LB1
Panasonic employs a number of advanced technologies including a proprietary lamp drive system that help maintain lamp performance . This has resulted in a 5,000-hour* lamp replacement cycle. It helps saving operating cost by providing longer usage between lamp replacements.
* With the lamp mode in Eco mode. This value is calculated by continuously turning the lamp on for 2.5 hours and off for 0.25 hour. The lamp replacement cycle will decrease if the lamp is turned on/off more frequently, or if it is left on for longer intervals.
|
Momentary power outages*2 or voltage drops*3 can cause the projector to shut down, interrupting the projection. The PT-LB2 series equipped with the Intelligent Power Management function controls the power supply to cope with power fluctuations, to enable continued projection.3
|
 |
*1 Fluctuations may occur in the electricity power supply except the power outage. *2 Continuing 0V power supply during several tens of milliseconds. *3 Power supply voltage reduction. Excluding momentary power outage. |
Panasonic's Daylight View Basic technology achieves sharp, easy-to-see images by clearly reproducing the details in dark image areas, which were previously difficult to see in brightly lit rooms. A built-in sensor measures the ambient light, and the Daylight View Basic function adjusts the halftone color and brightness level according to the surrounding illumination.
The noise level is as low as 29-dB*. This helps your audience to keep their attention on the discussion or on the screen images during quiet scenes.
* Lamp mode : eco
The compact body is the size of an A4 file and weighs only about 2.3 kg, while producing a brightness of 2,600 lm*. Its handy size and weight make it easy to carry from room to room, or to a client's office for an on-site presentation. It gives you sharp, clear images wherever and whenever you need them.
* For the PT-LB2. The PT-LB1 has a brightness of 2,200 lm.
The ecological design of the PT-LB2 series greatly reduces its environmental impact. In Eco Standby mode, power consumption is only 0.4 W*1. As examples of other environmental design features, the uncoated cabinet uses no halogenated flame retardants, the lens uses lead-free glass, and an Auto Off Timer switches the projector to Standby mode when no input signal is received for a preset time. The PT-LB2 series also complies with the standards of the RoHS Directive.*2
*1 In Eco Standby mode, network functions such as Standby On via LAN are not available, and only certain commands can be received from RS-232C control. *2 Restriction of the use of certain Hazardous Substances. The specified toxic substances used in the electrical and electronic equipment that is manufactured and distributed within Europe are controlled (the six substances are lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl esters (PBDE)), and all Panasonic projectors comply with the standards of the European RoHS Directive.

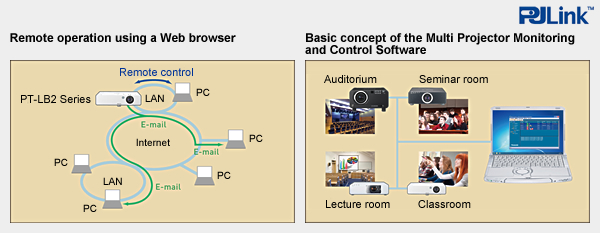

| A Web browser on a computer connected through a wired LAN system lets you remotely operate projectors and check their status. An e-mail messaging function can also notify you when a lamp needs replacement, and indicate the overall projector status. In addition, Multi Projector Monitoring and Control Software is included for monitoring and controlling multiple Panasonic projectors from a single PC. The wired LAN terminal is compatible with PJLink (Class1), an open protocol that is used by many manufacturers, to enable integrated control of systems that contain different brands of projectors. |
|
The lamp can be accessed through the top panel for easy replacement, and the air filter can be removed and installed through the side panel. This eliminates the need to detach the projector from its ceiling bracket and greatly simplifies maintenance. The air filter uses a Micro Cut Filter, which is an electrostatic filter that employs an ion effect to attract and trap dust particles with high efficiency.
|
|
|
 The external ET-KFB2 highly durable filter mounts to the PT-LB2 series projector to boost dust and particle collection. This optional filter is recommended if the projector is to be installed in a dusty area.
|
|
|
Various interfaces: Interfaces include two computer (RGB) inputs, a wired LAN terminal, and a serial (RS-232C) terminal for external control. The serial terminal has an Emulate function that lets you continue using existing control systems when replacing a previous Panasonic model. It is also possible to output audio during Standby mode. This is convenient when connecting an external audio system* through the projector.
* Requires speakers and an audio amplifier.
|
 |

|
|
PT-LB2
 |
PT-LB1
 |
| Power supply |
100240 V AC, 50/60 Hz |
| Power consumption |
300 W (0.4 W*1 in eco standby mode. 15 W in normal standby mode. 18 W in normal standby mode when set to audio monitor out and with fan stopped.)
|
| Optical system |
Dichroic mirror separation/prism synthesis system |
| LCD panel |
Panel size |
16 mm (0.63") diagonal, 4:3 aspect ratio |
| Display method |
Transparent LCD panel (x 3, R/G/B) |
| Drive method |
Active matrix |
| Pixels |
786,432 (1,024 x 768) x 3, total of 2,359,296 pixels |
| Pixel configuration |
Stripe |
| Lens |
Manual zoom (1:11:1.2), manual focus, F 1.641.87, f 18.8022.56 mm |
Manual zoom (1:11:1.2), manual focus, F 2.002.20, f 19.22 22.68 mm |
| Lamp |
220 W UHM lamp |
| Projection size |
0.847.62 m (33300 inches) diagonally (4:3 aspect ratio) |
| Colors |
Full color (16,777,216 colors) |
| Brightness*2 |
2,600 lumens
|
2,200 lumens |
Center-to-corner uniformity ratio*2 |
85% |
| Contrast ratio*2 |
500:1 (full on/full off) |
| Resolution (RGB)*3 |
1,024 x 768 pixels (Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.) |
| Scanning frequency |
RGB |
Horizontal: 1591 kHz, Vertical: 5085 Hz |
| YPBPR |
480i (525i): fH 15.75 kHz; fv 60 Hz 576i (625i): fH 15.63 kHz; fv 50 Hz 480p (525p): fH 31.50 kHz; fv 60 Hz 576p (625p): fH 31.25 kHz; fv 50 Hz 720/60p (750p): fH 45.00 kHz; fv 60 Hz 720/50p (750p): fH 37.50 kHz; fv 50 Hz 1080/60i (1125i): fH 33.75 kHz; fv 60 Hz 1080/50i (1125i): fH 28.13 kHz; fv 50 Hz 1080/60p(1125p): fH 67.50 kHz; fV 60 Hz 1080/50p(1125p): fH 56.25 kHz; fV 50 Hz |
S-Video/ Video |
NTSC, NTSC4.43, PAL-M, PAL60: fH15.75 kHz; fv 60 Hz PAL, SECAM, PAL-N: fH15.63 kHz; fv 50 Hz |
| Optical axis shift |
5:1 (fixed) |
| Keystone correction range |
Vertical: approx. 30 |
| On-screen menu |
17 languages: English, French, German, Spanish, Italian, Korean, Russian, Chinese, Japanese, Swedish, Norwegian, Danish, Portuguese, Polish, Hungarian, Czech, and Thai |
| Installation |
Front/rear, ceiling/desk (menu selection) |
| Built-in speakers |
Size: 4 x 2 cm (1-1/16" x 25/32") x 1, oval |
| Terminals |
COMPUTER (RGB) 1 IN |
D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms |
| COMPUTER (RGB) 2 IN |
D-sub HD 15-pin (female) x 1 RGB signal: G: 0.7 V [p-p] (1.0 V [p-p] for sync on green signals), 75 ohms, R, B: 0.7 V [p-p], 75 ohms, HD/SYNC, VD: TTL (positive/negative polarity compatible) YPBPR signal: Y: 1.0 V [p-p] (including sync signal), 75 ohms, PB, PR: 0.7 V [p-p], 75 ohms |
| VIDEO IN |
RCA pin x 1, 1.0 V [p-p], 75 ohms |
| S-VIDEO IN |
Mini DIN 4-pin x 1, Y: 1.0 V [p-p], C: 0.286 V [p-p], 75 ohms |
| AUDIO IN |
M3 (L, R) x 2, 0.5 V [rms] |
| VARIABLE AUDIO OUT |
M3 (L, R) x 1, 0 2.0 V [rms] |
| SERIAL |
D-sub 9-pin x 1, for external control (RS-232C compliant) |
| LAN |
RJ-45 x 1, compatible with PJLink (class 1), 10BASE-T/100BASE-TX |
| Power cord length |
2 m (6.6') |
| Cabinet material |
Moulded plastic (PC+ABS) |
| Dimensions (W x H x D)*4 |
307 x 69 x 210 mm (12-3/32" x 2-23/32" x 8-9/32") |
| Weight*5 |
Approx. 2.3 kg (5.07 lbs.) |
| Operating environment |
Temperature: 040C (32104F) *6 Humidity: 20%80% (no condensation) |
| Supplied accessories |
Power cord, Power cord secure lock, Wireless remote control, Batteries for remote control ( AAA type for North/South America, R03 type for Europe/Asia) x2, VGA cable, Carrying bag, Application software (CD-ROM) |
| Optional accessories |
ET-PKB2 |
Ceiling mount bracket |
| ET-KFB2 |
Highly durable filter unit |
| ET-RFB2 |
Replacement air filter for ET-KFB2 |
| ET-LAB2 |
Replacement lamp unit |
| *1: |
In eco standby mode, network functions such as Standby On via LAN are not available, and only certain commands can be received from RS-232C control. |
| *2: |
Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards. |
| *3: |
Input signals that exceed this resolution will be converted to 1,024 x 768 pixels. |
| *4: |
Protruding parts not included. |
| *5: |
Average value (excluding lens cap). May differ depending on models. |
| *6: |
The operating temperature range is 0C (32F) to 35C (95F) when used in High-Altitude mode (1,400 to 2,700 m (4,593 to 8,858 feet)). Also, in Lamp Normal mode, if the ambient temperature exceeds 35C/95F (30C/85F in High-Altitude mode), the light output may be reduced approximately 30% to protect the projector. |
NOTES ON USE
| |
The projector uses a high-voltage mercury lamp that contains high internal pressure. This lamp may break, emitting a large sound, or fail to illuminate, due to impact or extended use. The length of time that it takes for the lamp to break or fail to illuminate varies greatly depending on individual lamp characteristics and usage conditions. |
| |
The brightness of the lamp will gradually decrease with use. |
| |
The projector includes consumable parts. The frequency of replacement for the lamp and other consumable parts will increase if the projector is subjected to extended, continuous use. For details, please consult a service representative. |
|
|
|
|
