Epson's Laser Displays
- 7,300-lumen brightness
Sharp images and vivid colours, even in well-lit rooms- WUXGA resolution
Sharp Full HD images for excellent clarity- Wireless connectivity
Built-in- Effortless, flexible installation
Lightweight and compact design with wide lens shift- Large image
Scalable display size of up to 500 inches- Laser light source
Experience astonishing picture quality, reliability and long life
- Up to 3x brighter colours, and reliable performance1 3LCD, 3-chip technology
- WUXGA high definition resolution enjoy clear and sharp image quality without any distortion perfect for presentations, videos, digital signage and more
- Amazing colour brightness up to 7,300 lumens colour brightness and 7,300 lumens white brightness
- Large, versatile display options easily create a display up to 500" diagonal in 16:10, plus ultra wide 16:6 and 21:9 aspect ratios for enhanced content display and visibility
- Simplified installation compact and lightweight design featuring a wide vertical and horizontal lens shift, 1.6x optical zoom, 360-degree mounting, built-in geometric correction tools and a universal VESA mounting pattern
- Split screen project from two different image sources for flexible options in the workplace
- Wireless networking and content sharing Wi-Fi 6/6E allows for fast, reliable wireless connectivity for screen casting, along with direct connection to the cloud-based service, Epson Projector Management Connected and WPA3-Enterprise security
- Built-in NFC reduces installation time of multiple projectors; read and write setting information using the Epson Projector Config Tool App
- Virtually maintenance-free operation2 Featuring breakthrough laser technology, it delivers a laser light source of up to 20,000 hours
- Enhanced connectivity HDBaseT and HDMI two in and one out for daisy-chaining and signal monitoring
- Up to 5 year projector warranty3 enjoy peace of mind
3LCD technology
All Epson projectors are based on 3-chip LCD technology for amazing colour, incredible detail and solid reliability. 3LCD's 3-chip architecture dedicates an entire chip to process each primary colour red, green and blue, continuously. Unlike single-chip technology that delivers colour sequentially, you get full-time colour. The result is vibrant, realistic images and video all delivered with 3LCDs true-to-life colour.
Up to 3 x brighter colours with Epson projectors1
Epson projectors use 3LCD Engines that have no colour wheel with a white segment and therefore don't force a trade-off between white and colour brightness.
In fact, Epson projectors have up to 3x Brighter Colours than their leading competitive 1-chip DLP projectors. If you are looking for business and education projectors or 720p home entertainment projectors, know that choosing Epson projectors means up to 3x brighter colours. If you are looking for 1080p home entertainment projectors, you consistently get 2x and up to 3x Brighter Colours than competitor 1-chip DLP projectors.
HIGH IMAGE QUALITY
Brilliant images in any setting
Powered by 3LCD technology and Epsons laser optical engine, the L790U series is capable of producing white light and colour light output of 7,300 lumens in WUXGA resolution, delivering captivating images in virtually any venue. While the light weight and compact size of these projectors enable them to be carried from room to room, they are also capable of highly visible images thanks to high brightness and a superior 5,000,000:1 contrast ratio.

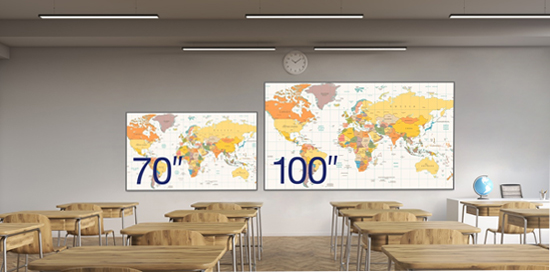

Large image size
While conventional panels are limited to a pre-determined height and width, projectors have no such constraints. With the image size expanding up to 500", your audience can easily read and understand the information youre sharing.

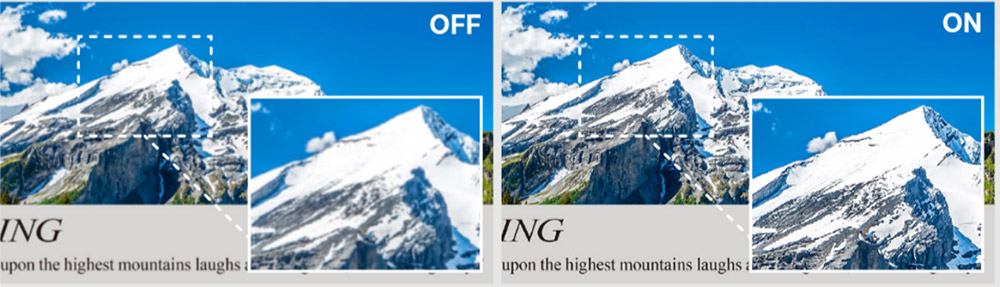

Super-resolution with detail enhancement
Get a crisper and sharper image with advanced image features on the EB-L790U. Super-resolution defines edges for standard and HD content, while detail enhancement refines surface detail for true-to-life images. With advanced digital processing, visibility of image displays such as small letters and patterns improves and the sharp edges create crisper images for a more immersive experience.

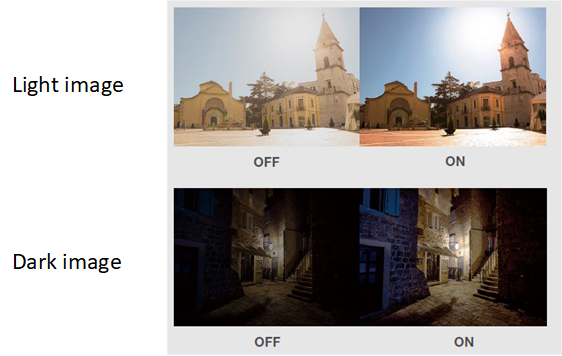

Scene adaptive gamma correction
The Epson L790U offers high visibility in any environment with image quality adjustment features, such as scene-adaptive gamma correction. This feature analyses images frame-by-frame and automatically adjusts the gamma level to project at the optimum contrast. Natural-looking images are achieved by controlling crushed blacks in dark scenes and clipped whites in bright scenes.
ADVANCED INSTALLATION FEATURES

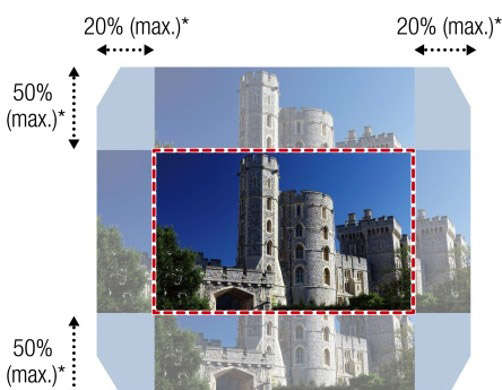

Manual lens shift, zoom and focus
The manual lens shift2 covers a wide range, offering a great deal of flexibility when installing the projector.

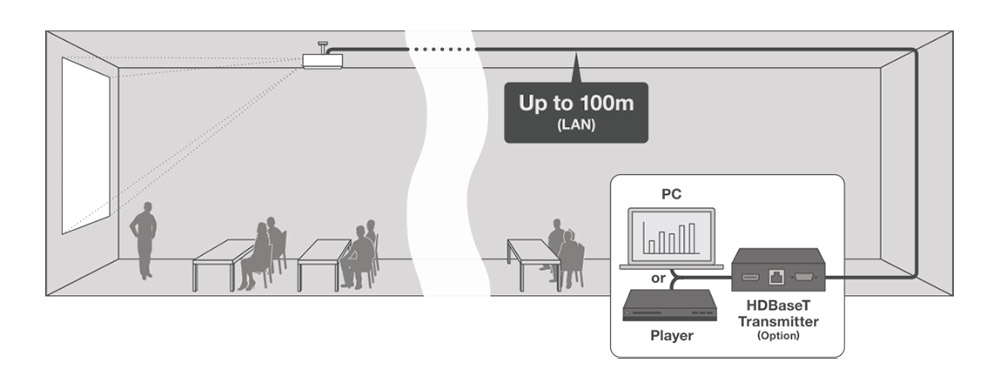

HDBaseT and diverse connectivity
Cutting-edge HDBaseT technology means just one single CAT-5/6 cable carries Full HD video, audio, network and control commands up to 100 metres to accommodate large venues. No need for additional cables, signal repeaters or added labour.

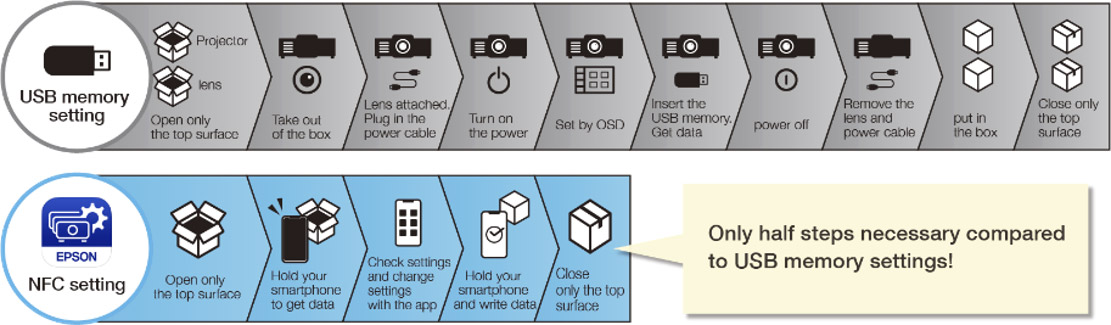

NFC functionality
NFC functionality enables communication with smart devices even when the projector is switched off and can be configured and checked easily from the Epson Projector Config Tool on a smart device. This means initial configuration can be carried out at the warehouse before transportation, reducing the work hours needed for installation and helping to reduce adjustment time when multiple projectors are being installed.

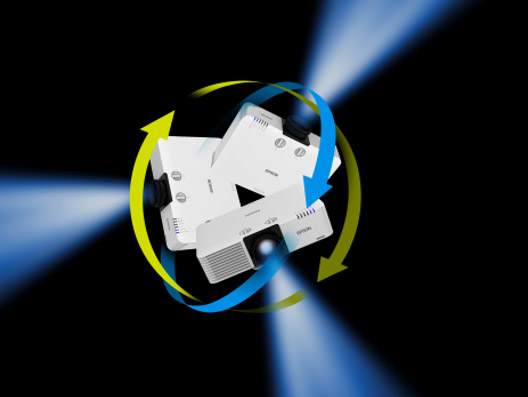

360 degree projection
The Epson L790U can be rotated 360 in any direction for off-axis positioning flexibility. As a result, they can be used for a wide range of applications, such as projecting on the ceiling or floor, or as part of a rear-projection system. Epson technology keeps the projector running without compromising performance or causing overheating.

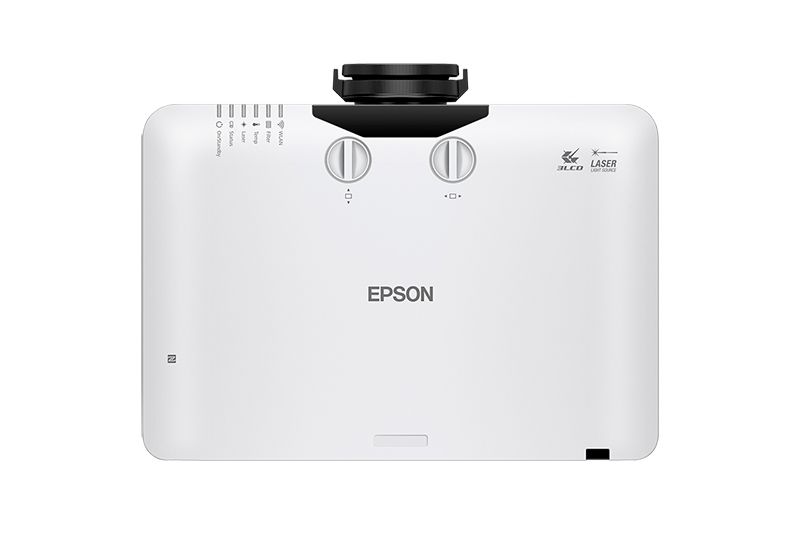

Compact design
Weighing around 9 kg, the Epson L790U series projectors boast a compact and lightweight design. They offer exceptional flexibility and easy installation.
Multi projection
Powered by cutting-edge 4KE technology, the Epson L790U series projectors deliver stunning image quality with seamless blending, precise stacking, and advanced colour calibration perfect for creating immersive visual experiences.

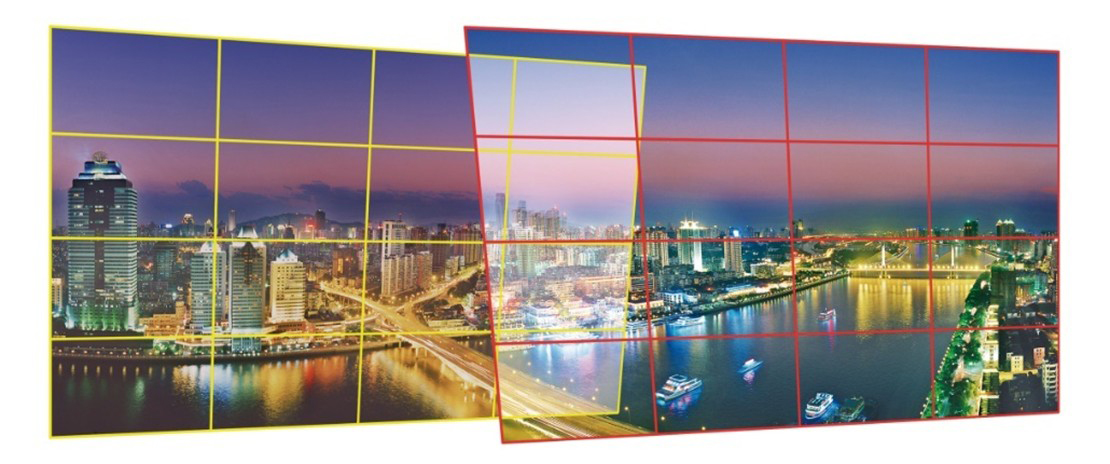

Edge blending
Enhance the experience with seamless panoramic, multi-screen images that blend edges by matching colour and brightness perfectly, even in areas that overlap.
Point correction
Make smooth adjustments of distorted projection images by shifting each of the points laid out on the grid pattern.
Colour uniformity
Keep images consistent and maintain images that have become uneven over time between multiple projectors with manual colour correction function.
Epson Projector Professional Tool (EPPT)
Setup multiple projectors straight out of the box with new large venue application software. Epson Projector Professional Tool allows you to adjust and control images projected on a network with high-end projector setup features such as geometry correction, image layout adjustment and edge blending by pairing with ELPEC01 external camera. Exclusively bundled to Epson laser projectors, large scale presenting has become much easier and flexible with automation.

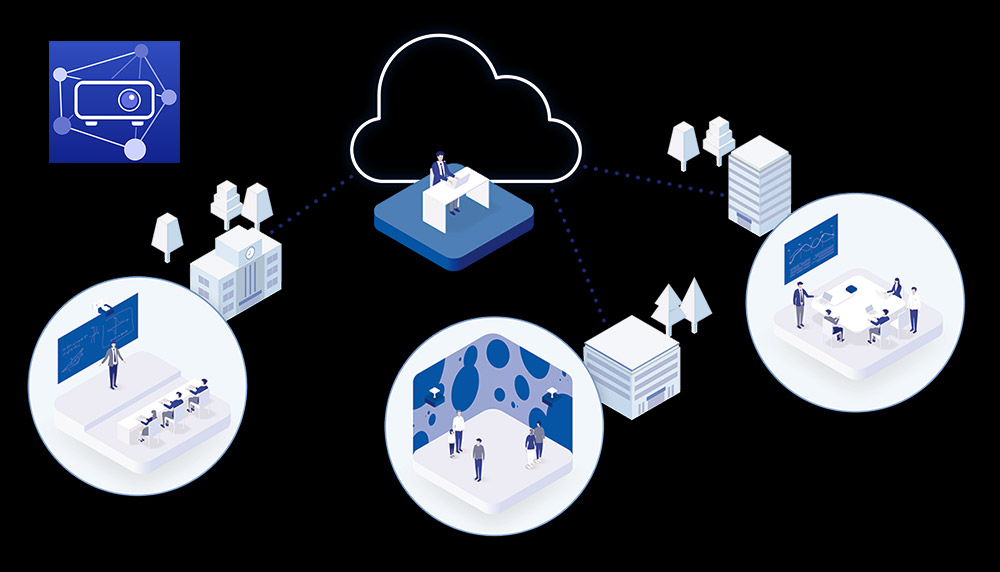

Epson Projector Management Connected support
The Epson L790U supports the software Epson Projector Management Connected, which provides a range of monitoring, notification and control functions for the projector.
Enhanced connectivity
The Epson L790U series supports daisy-chaining via HDMI connectivity, allowing multiple devices to be connected to a single display or projector. This feature offers a convenient solution for presentations, video conferencing, and various other applications.

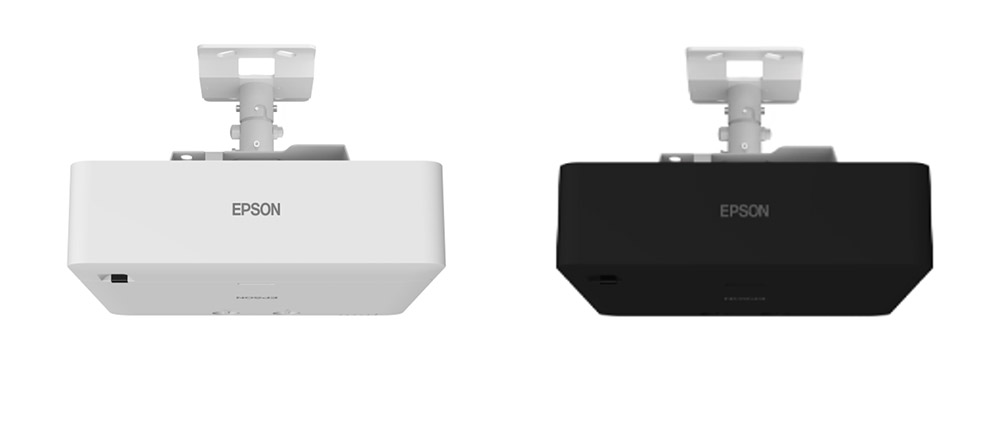

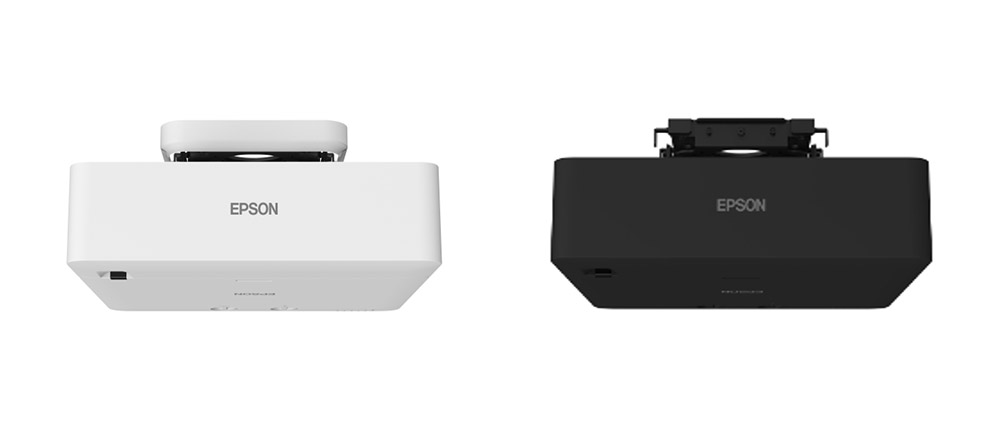

Universal ceiling mounts
The Epson L790U is compatible with two different ceiling mount options: the ELPMB22 for height-adjustable mounting and the ELPMB30 for low-profile installations.
ELPMB22 - Standard ceiling
ELPMB30 - Low profile ceiling mount

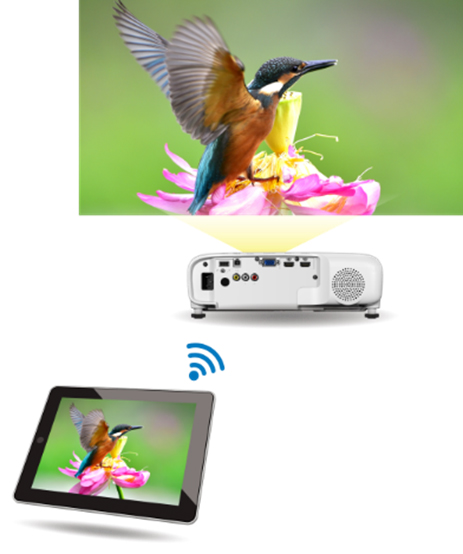

VERSATILE WIRELESS CONNECTION
Casting features
Apple Airplay
Sharing information has been made easier with Apple Airplay. Stream high quality video, music, photos, and presentation from your iPhone or iPad wirelessly.
Epson iProjection
Wirelessly project from your PC and mobile device with the Epson iProjection App. Easily share information on the big image from up to 4 connected devices simultaneously.
Miracast
Miracast has simplified the process of sharing information3. Users can project their smartphone or tablet screens without a cable connection and ensure high resolution content can be viewed effortlessly.
Wireless LAN Enterprise security
WPA2/WPA3-Enterprise Network provides a safe method of wireless connectivity so that projectors can connect to an integrated environment over a secure network.

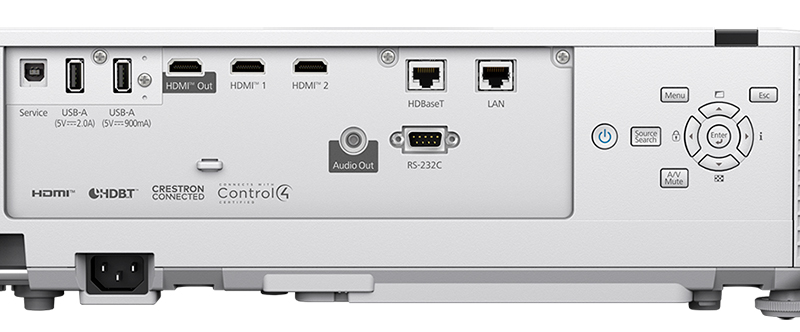

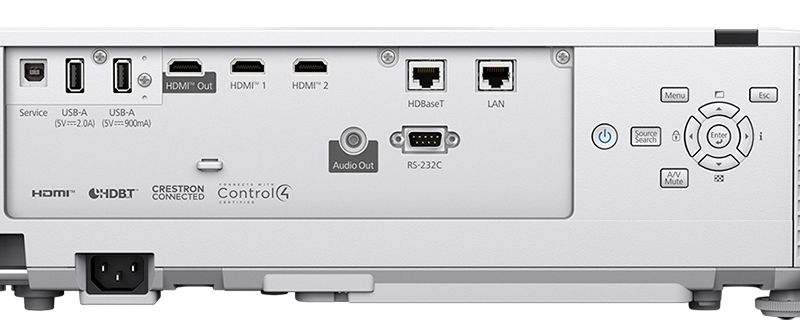

Connectivity panel
| PROJECTOR |
|---|

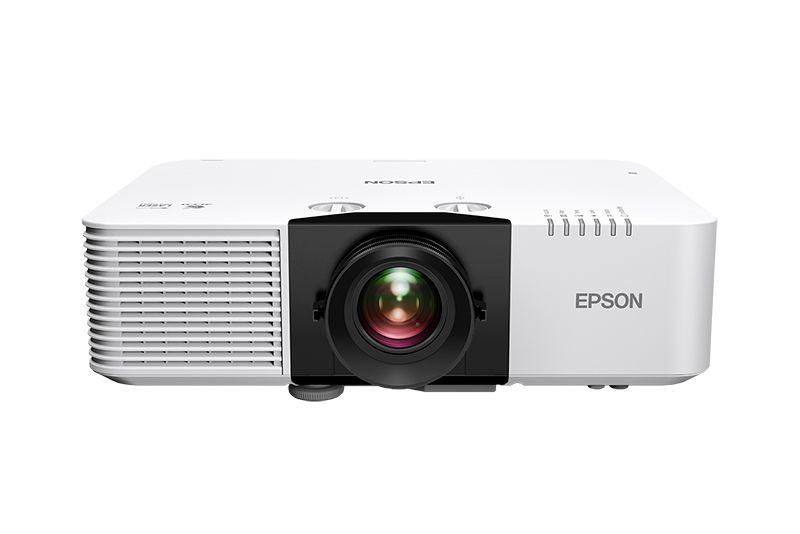

| PRODUCT NAME | Epson EB-L790U |
| PRODUCT CODE | V11HB28053 |
| TECHNOLOGY |
|---|
| Projection System | 3LCD |
| LCD Panel | 0.67-inch |
| Light Source | Laser Diode |
| IMAGE |
|---|
| Colour Light Output | 7,300 Lumens |
| White Light Output | 7,300 Lumens |
| ECO Mode Light Output | 5,110 Lumens |
| Resolution | WUXGA |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio | 5,000,000:1 |
| Colour Reproduction | Up to 1.07 billion colours |
| Colour Processing | 10 bit |
| OPTICAL |
|---|
| Zoom | 1 - 1.6 (optical zoom) |
| Screen Size | 50" to 500" [1.44 m to 14.76 m] |
| Projection Distance | 80" screen 2.33 m - 3.78 m |
| Throw Ratio | 1.35 (Zoom: Wide)
2.20 (Zoom: Tele) |
| Lens F Number | 1.5 - 1.7 |
| Lens Focal Length | 20.0 mm - 31.8 mm |
| Focus Method | Manual |
| CONNECTIVITY |
|---|
| Input: Digital | 2 x HDMI, 1 x HDBaseT |
| Control: I/O | 1 x RS-232C |
| USB | 2 x USB type A (for PC free, document camera)
1 x USB type B (firmware update) |
| Network: I/O | 1 x RJ45 |
| HDBaseT | Yes |
| Wireless Connectivity | Built-in |
| Output: Digital | 1 x HDMI |
| Output: Audio | 1 x Stereo mini |
| ADVANCED FEATURES |
|---|
| Built-in Speaker | 10W |
EPSON Projector Management
(Network & Control) | Yes |
EPSON iProjection
(Multi-PC Projection) | Yes |
| EPSON Projector Professional Tool | Yes |
| EPSON Projector Content Manager | Yes |
| EPSON Projector Management Connected | Yes |
| ELPEC01 external camera functionality | Yes |
| Scene Adaptive Gamma | Yes |
| Wireless LAN Enterprise Security | Yes |
| NFC | Yes |
| Airplay | Yes |
| Miracast | Yes |
| Split Screen | Yes |
| Edge Blending | Yes |
| Detail Enhancement | Yes |
| 360 Degress Projection | Yes |
| Content Playback | Yes |
| Instant Off | Yes |
| Direct Power On | Yes |
| Security | Kensington - style lock provision
Wireless LAN Unit Lock
Padlock & security cable hole |
| Colour Modes | Dynamic
Presentation
Cinema
BT.709
Natural
DICOM SIM
Multi-Projection |
| GENERAL |
|---|
| Dimensions D x W x H (Including Feet) | 340 x 440 x 138 mm |
| Weight | Approx. 8.2 kg |
| Projector Warranty | 5 years |
| Power Consumption (Normal/Energy Saving): | 399 W / 0.4 W |
| Noise Level | Normal / Eco: 34 dB / 25 dB |
| What's in the box | EB-L790U projector, 3 m power cable, remote control, 2 x AA batteries, User's Guide |
