| Performance |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Recording modes | Manual, Schedule |
| Supported resolutions | 3840 ×2160, 1920 × 1080, 1680× 1050, 1440 × 900, 1280 × 1024, 1280 × 720 |
| Video motion detection | Yes |
| Video loss detection | Yes |
| Multi-screen | Yes |
| Video input channels | 8 channels |
| Maximum resolution | 3840 x 2160 pixels |
| Supported network protocols | NTP |
| Backup function | Yes |
| Output bandwidth | 60 Mbit/s |
| Input bandwidth | 80 Mbit/s |
| Wireless LAN features |
|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi data rate (max) | 300 Mbit/s |
| Wi-Fi band | Single-band (2.4 GHz) |
| Security algorithms | WPA-PSK, WPA2-PSK |
| Hard drive |
|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |
| Storage |
|---|
| Number of HDDs installed | 0 |
| HDD capacity | 0 GB |
| Maximum storage capacity | 10 TB |
| HDD interface | SATA |

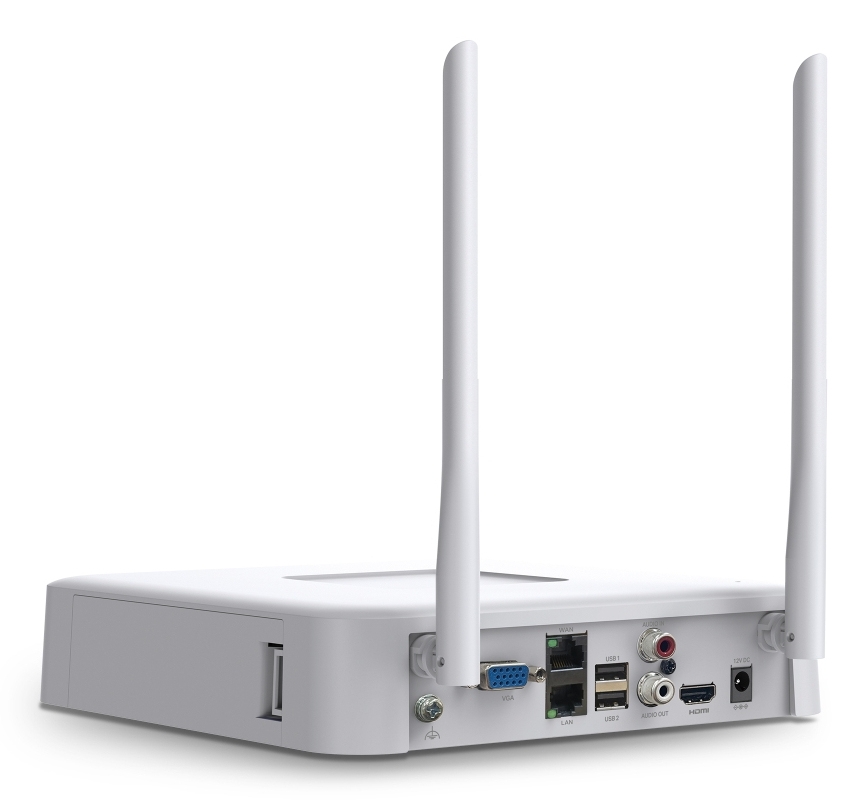

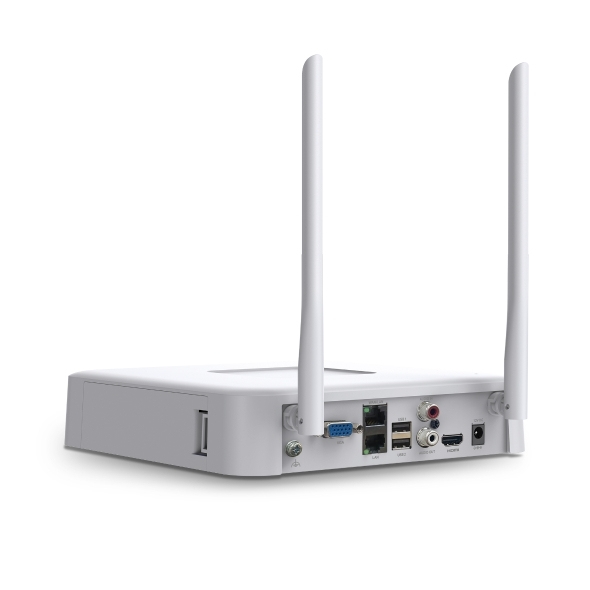

| Ports & interfaces |
|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Audio RCA outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| Supported network protocols | NTP |
| Audio RCA inputs | 1 |
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Storage relative humidity (H-H) | 10 - 90% |
| Features |
|---|
| Reset button | Yes |
| Product colour | White |
| LED indicators | Yes |
| Certification | CE, NCC, JRF, RCM, KC, BSMI, VCCI, HDMI |
| Power |
|---|
| Power consumption (max) | 16.3 W |
| Power consumption (typical) | 5.7 W |
| System requirements |
|---|
| Mobile operating systems supported | Android, iOS |
| Browser supported | Chrome (57+), Firefox (52+), Edge (91+) |
| Operational conditions |
|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions |
|---|
| Width | 200.3 mm |
| Depth | 200.3 mm |
| Height | 43 mm |
| Weight | 500 g |
| Package weight | 1 kg |
