| Performance |
|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Day/night mode | Yes |
| Certification | CE/BSMI/VCCI/ONVIF |
| Design |
|---|
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Housing material | Plastic |
| Camera |
|---|
| Lens viewing angle, horizontal | 88.2 ° |
| Lens viewing angle, vertical | 48.7 ° |
| Lens viewing angle, diagonal | 106.5 ° |
| Progressive scan | Yes |
| Image sensor |
|---|
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Number of sensors | 1 |
| Lens system |
|---|
| Fixed focal length | 2.8 mm |
| Night vision |
|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Video |
|---|
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Mirror, Saturation, Sharpness |
| Privacy masking | Yes |
| Smart IR | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Back Light Compensation (BLC) | Yes |
| Noise reduction technology | 3D noise reduction |
| Maximum resolution | 1920 x 1080 pixels |
| Supported graphics resolutions | 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Video compression formats | H.264, H.264+, H.265, H.265+ |
| Total megapixels | 2 MP |
| Network |
|---|
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Storage |
|---|
| Built-in HDD | No |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security |
|---|
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Mirror | Yes |
| Password reset via email | Yes |
| Power |
|---|
| Power source type | PoE |
| Certificates |
|---|
| Certification | CE/BSMI/VCCI/ONVIF |
| Operational conditions |
|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Weight & dimensions |
|---|
| Width | 115 mm |
| Depth | 86 mm |
| Height | 115 mm |
| Packaging content |
|---|
| Number of cameras | 1 |
| Other features |
|---|
| Video compression formats | H.264, H.264+, H.265, H.265+ |

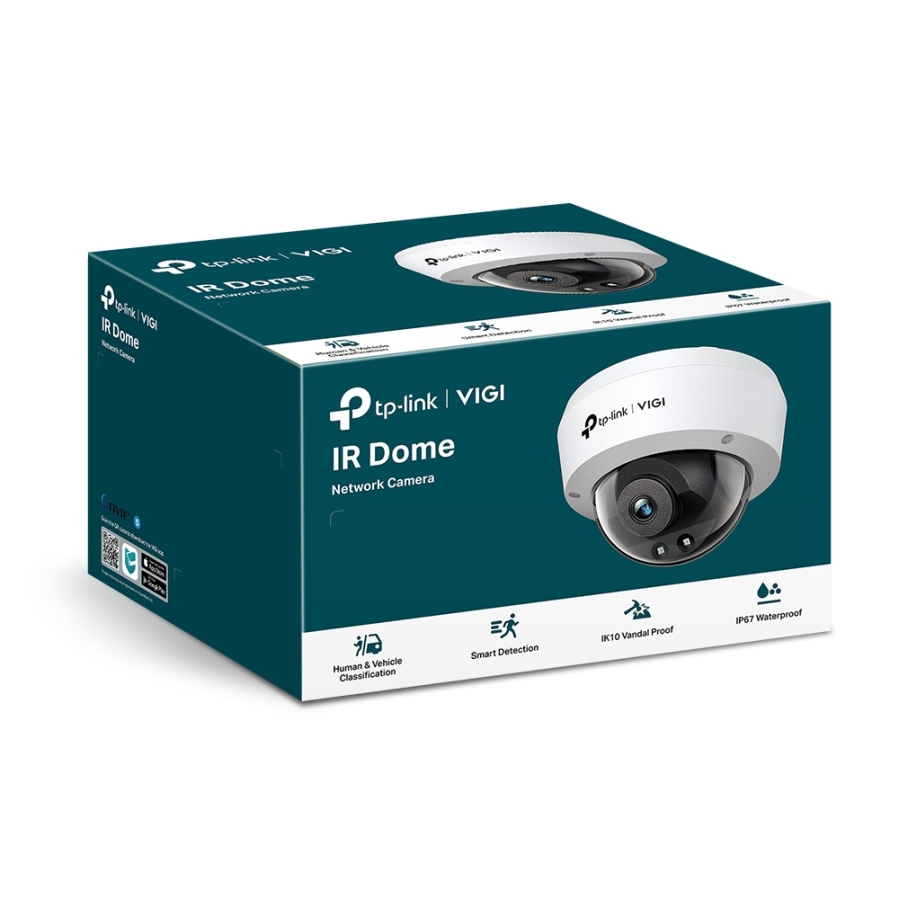

Security Never Shuts Down 2MP IR Dome Network Camera
Looking for a higher resolution? It's right here. 2MP Full-High Definition The VIGI C220I camera comes with 2MP–more than enough pixels to pick up some of the more discrete details.
Human & Vehicle Classification Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business. Smart Detection Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
IK10 Vandal-Proof & IP67 Waterproof With vandal-resistant, rugged housing and waterproof design, this VIGI dome camera is built tough to withstand vandalism and harsh environments with rain and dust for constant security anywhere and anytime.
More compression. More savings. Same quality. Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Never miss a detail. SmartVid-Smart Video Enhancement VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
Simplified Deployment with PoE Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.
Choose the right lens for your security. 2.8/4 mm Lens Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C220I comes with two different lens versions to better suit your security needs.
Flexible Management Take full control over your security via three management methods: NVR UI, VIGI app, and VIGI Security Manger.
