AXIS Q9216-SLV Dome IP security camera Outdoor 2304 x 1728 pixels Ceiling/wall, 1/2.5" CMOS, 2.4mm, 2304x1728, RJ-45, HDMI, microSD/microSDHC/microSDXC, IP69, IK10+, 131x209x176 mm

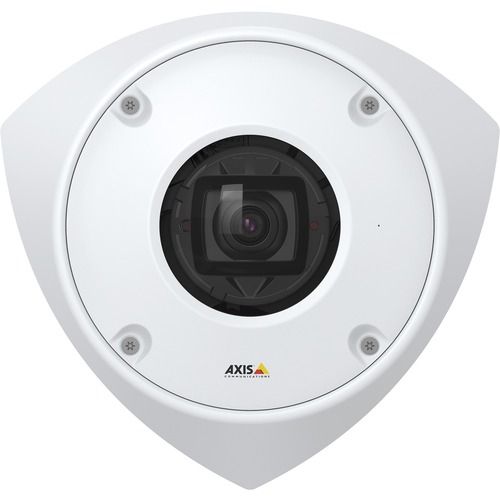

Product May Vary From Image
Our Price:
$2,102.45
Quantity:
Part No:
522683
Brand:
Manuf No:
01766-001

01766001
Ship Weight:
1.97 KG  Details
Usually Ships:
1-3 Days   More info
Product Description

Axis Q9216-SLV Dome IP security camera Outdoor 2304 x 1728 pixels Ceiling/wall

Manufacturer: Axis
Category: Home
Sub-Category: Security Cameras
SKU: 01766-001
EAN: 7331021067493

Description

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera specially designed to provide a wide field-of-view and ensure no area is left uncovered. Available in white and elegant stainless-steel, this low power consuming camera is ideal for high-security installations such as in prisons and psychiatric wards. See it all - day and night AXIS Q9216-SLV offers 4 MP video quality and can cover 125 degrees horizontally and 95 degrees vertically, with no blind spots. Ideal in prison cells, it features 940 nm invisible IR illumination for unobtrusive surveillance in total darkness that won’t irritate or provoke the occupant. Wide Dynamic Range (WDR) ensures clarity even when there’s both dark and light areas in the scene. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality. Occupant safety and privacy With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm, especially important in high-security installations. The vandal-resistant IK10+ rated casing also offers IP66-rating for protection from dust and water. For added peace of mind, it includes a tampering alarm as well as shock and casing open detection so you can be informed if there’s any attempt to interfere with the camera. It features a removable built-in microphone which can be mounted if audio surveillance is required. Furthermore, AXIS Q9216-SLV includes an indication LED to see if the camera is active or not as well as polygonal privacy masking ensuring occupant privacy is respected. Enhanced security features This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. Furthermore, it includes a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) to ensure secure storage of all cryptographic keys and certificates even in the event of a security breach. Compact and easy to install This compact camera offers simple and cost-effective installation. The chassis and mounting bracket are specially designed for versatile cable management and mounting options. It’s possible to connect to various conduits and connectivity devices to the back of the camera, such as AXIS T8643 PoE+ over Coax Compact or other compatible media converters and PoE extenders. Additionally, you can mount a conduit top box with space for additional conduits. Once the camera is mounted you can create a ligature-resistant (anti-ligature) installation by applying tamper-resistant security sealant along the edges to permanently seal it to the wall or ceiling. And, even if the back chassis is sealed to the wall, the camera can still be easily removed for service and maintenance. Easy to clean and maintain For ease of maintenance, the stainless-steel casing is IP66- and IP6k9k-rated to allow cleaning with high pressure, high temperature water jets. If the camera is severely soiled or defaced, the abrasion-resistant two-part front cover is easily removed, and the window can be cleaned more thoroughly with detergent or simple graffiti remover.

Specifications

Performance
Infrared (IR) cut-off filterYes
TypeIP security camera
Connectivity technologyWired
PTZ controlYes
Placement supportedOutdoor
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationEN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 50130–5 I, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4X NIST SP500-267
Design
IK codeIK10+
Form factorDome
Product colourStainless steel
Mounting typeCeiling/wall
International Protection (IP) codeIP66, IP69, IP69K
Housing materialStainless steel
Camera
Camera shutter speed1/32500 - 1/5 s
Camera pan controlNo
Camera tilt controlNo
Lens viewing angle, horizontal125°
Lens viewing angle, vertical95°
Progressive scanYes
Image sensor
Sensor typeCMOS
Progressive scanYes
Optical sensor size25.4 / 2.5 mm (1 / 2.5")
Number of sensors1
Lens system
Number of lenses1
Maximum aperture number2
Fixed focusYes
Fixed focal length2.4 mm
Night vision
Night visionYes
Night vision distance15 m
LED typeIR
Infra-red wavelength940 nm
Video
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Text caption overlayYes
Bit rate controlVariable Bit Rate (VBR)
Maximum resolution2304 x 1728 pixels
Supported graphics resolutions320 x 240, 2304 x 1728
Video compression formatsAVC, H.264, H.265, HEVC, M-JPEG
Frame rate30 fps
Video streamingYes
Audio
Voice codecsG.711, G.726, OPUS
Sample rate48 kHz
Built-in microphoneYes
Audio system full duplexYes
Audio system2-way
Network
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af, IEEE 802.3at
Ethernet LANYes
Wi-FiNo
Supported network protocolsIPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP
Storage
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Built-in HDDNo
Internal memory1024 MB
Flash memory512 MB
Ports & interfaces
Terminal block portYes
Microphone inYes
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
Connectivity technologyWired
Security
Video motion detectionYes
Security algorithmsEAP-TLS, FIPS 140-2
IP address filteringYes
HTTPS encryptionYes
Password protectionYes
Power
Power source typePoE
Power consumption (typical)4.7 W
Power consumption (max)10.8 W
Certificates
CertificationEN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35 IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 EN 50130–5 I, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69, ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4X NIST SP500-267
Weight & dimensions
Width209 mm
Depth176 mm
Height131 mm
Weight1.6 kg
Packaging content
Number of cameras1
Other features
Video compression formatsAVC, H.264, H.265, HEVC, M-JPEG
Logistics data
Harmonized System (HS) code85258900




Product Warranty


12 Month Return To Base
