| Performance |
|---|
| Product type | Group video conferencing system |
| Product colour | Black, White |
| Tilt angle range | -15 - 15 ° |
| PTZ control | Yes |
| Pan range | -25 - 25 ° |
| Technical details |
|---|
| Product type | Group video conferencing system |
| Product colour | Black, White |
| Tilt angle range | -15 - 15 ° |
| PTZ control | Yes |
| Pan range | -25 - 25 ° |
| Video |
|---|
| HD type | 4K Ultra HD |
| Optical zoom | 5x |
| Digital zoom | 3x |
| Supported video modes | 720p, 900p, 1440p, 2160p |
| Maximum frame rate | 30 fps |
| Audio |
|---|
| Output level | 90/99 dB |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Microphone pick-up range | 4.5 m |
| Built-in speaker(s) | Yes |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Microphone in | Yes |
| Interface module |
|---|
| Interface module HDMI ports quantity | 3 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 2 |
| Network |
|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Security algorithms | 128-bit AES |

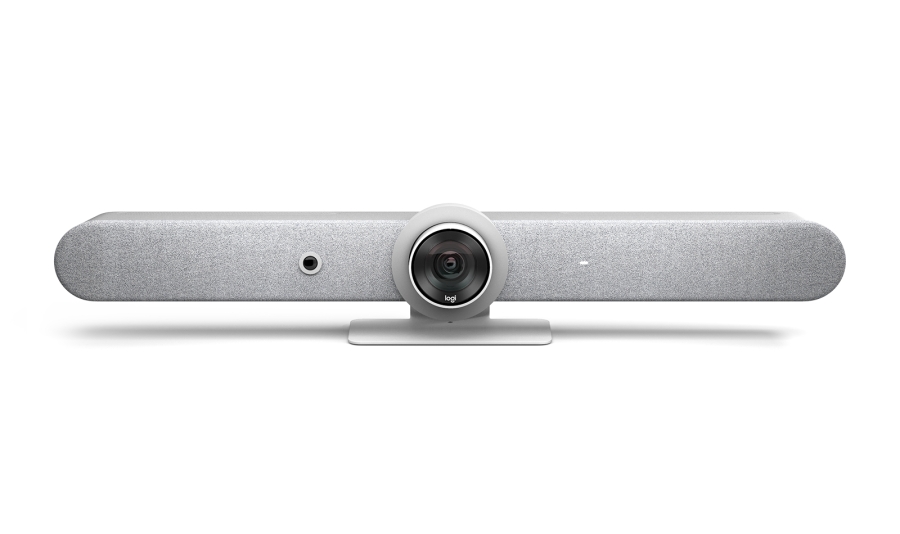

| Camera |
|---|
| Field of view (FOV) angle | 90 ° |
| Horizontal field of view | 82.1 ° |
| Remote control interface | Bluetooth |
| Optical zoom | 5x |
| Digital zoom | 3x |

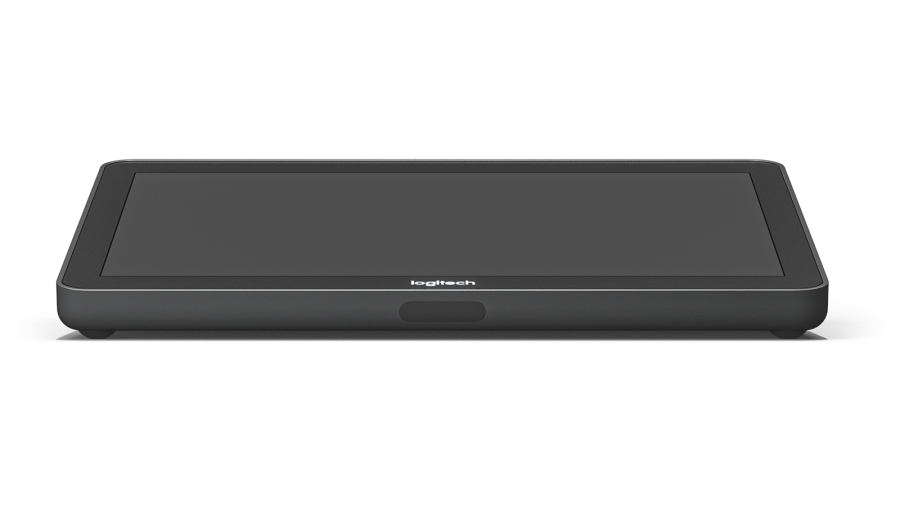

| Display |
|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Microphone |
|---|
| Microphone sensitivity | -36 dB |
| Microphone frequency | 90 - 16000 Hz |
| Number of microphones | 6 |
| Sound pressure level (max) | 90 dB |
| Features |
|---|
| Telepresence | No |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 64 BTU/h |
| Power |
|---|
| DC input voltage | 19 V |
| AC input voltage | 100 - 240 V |
| Current | 4.754 A |
| Weight & dimensions |
|---|
| Camera dimensions (WxDxH) | 910 x 160 x 164 mm |
| Interface module dimensions (W x D x H) | 244 x 179 x 58 mm |
| Interface module weight | 1.25 kg |
| Camera weight | 7.08 kg |
| Packaging content |
|---|
| Remote control included | Yes |
| Cables included | AC, DC, HDMI, USB Type-A to USB Type-C |
| Power cable length | 2.5 m |
| HDMI cable length | 2 m |
