Screen Size | 55" |
Panel Technology | U-IPS |
Native Resolution | 3,840 x 2,160 (UHD) |
Brightness | 450 nit |
Contrast Ratio | 1000:1 |
Color gamut | NTSC 72% |
Viewing Angle (H x V) | 178 x 178 |
Color Depth | 10-bit (D),1.07 Billion Colors |
Response Time | 9ms |
Portrait / Landscape | No / Yes |
Bezel Color | Silver |
Bezel Width | 57.2 / 26.2 / 26.2 / 28.9 mm |
Weight (Head) | 26kg |
Monitor Dimensions (W × H × D) | 1,265 x 769.5 x 61.8 mm |
Monitor Dimensions with Stand (W × H × D) | 1,265 x 815 x 290 mm |
VESA™ Standard Mount Interface | 300 x 300 |
CPU | AMD Ryzen Embedded V1605B |
Graphics | AMD Radeon Vega |
Internal Memory | 128 GB (eMMC), 8 GB (RAM) |
Wi-Fi | 802.11ac 2 x 2 |
Bluetooth | Bluetooth 5.0 |
Temperature Sensor | Yes |
Auto Brightness Sensor | Yes |
Local Key Operation | Yes (Jog Key) |
OS | Windows 10 IOT Enterprise (Value) |
Launcher Bar | Yes |
Split View (Full / Half) | Yes |
Screen Capture | Yes |
Meeting(Voice) Record | Yes |
File Sharing | Yes |
One:Quick Remote Meeting | Yes |
Reader Mode (Bluelight) | Yes |
Built-in Apps | Chrome, Skype (Preloaded) / MS Whiteboard (Download Link) |
Input | HDMI (2), DP, RJ45(LAN) (1), USB3.1 Type A (2), USB Type C (1) |
Output | DP Out : USB Type-C (DP ALT MODE) |
Operation Temperature | 0 °C to 40 °C |
Operation Humidity | 10 % to 80 % |
Speaker | Yes (10W x 2) |
Accessory - Basic | Remote Controller, Power Cord, Touch Pen, Pen Tip, Manual, Regulation Book, Warranty Card, Installation Guide |

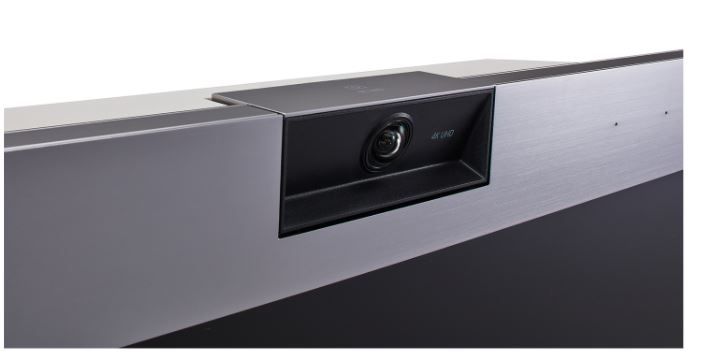

Camera | Resolution 3,840 x 2,160 (UHD) Field of View (FoV) 120° Zoom (ePTZ) 4 x Zoom Video Framing Yes |
MIC | Array 10EA Beamforming Yes Pickup Range 6m |
Touch | Available Object Size for Touch Ø8 mm Reponse Time (PC Win10, based on Whiteboard) 35 mm ? Accuracy 3.5 mm ? Interface USB 1.1 Operating System Support Windows 10 or Higher Multi Touch Point Max. 10 Points |
