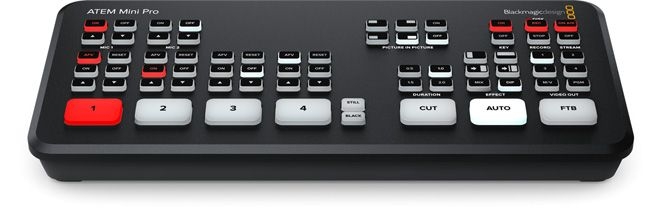

BlackMagic ATEM Mini Pro

Blackmagicdesign ATEM Mini Pro

Overview

ATEM Mini Pro is fast to set up and easy to use. It includes 4standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There's also amultiview with 4cameras, media, preview and program plus status of recording, streamingandaudio.

Connections

Total Video Inputs

• 4

Total Outputs

• 2

Total Aux Outputs

• 1

Total Audio Inputs

• 2 x 3.5mm stereo mini jack.

Total Audio Outputs

• None, embedded audio only.

Timecode Connection

• None

HDMI Video Inputs

• 4 x HDMI type A, 10-bit HD switchable.
• 2 channel embedded audio.

Video Input Re-Sync

• On all 4 HDMI inputs.

Frame Rate and Format Converters

• On all 4 HDMI inputs.

HDMI Program Outputs

• 1

Ethernet

• Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface

• 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
