Yealink VC800 Video Conferencing System - 1920x1080, H.265, USB2.0

Product May Vary From Image
Our Price:
$7,371.60
Quantity:
Part No:
440056
Brand:
Yealink
Manuf No:
VC800
Ship Weight:
2 KG  Details
Usually Ships:
Order In   More info
Product Description

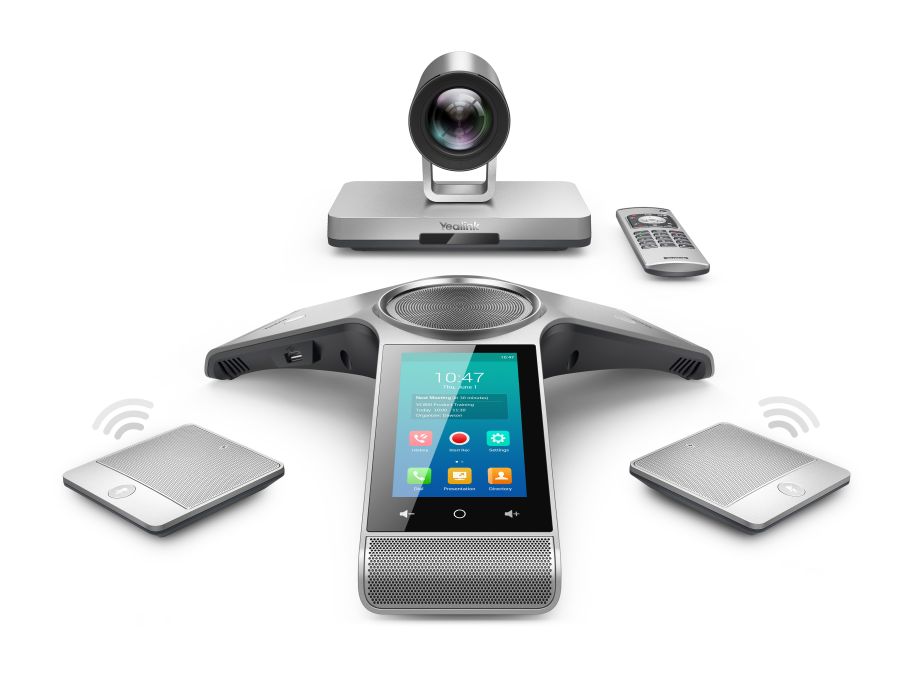

Yealink VC800 Video Conferencing System



Features

  • Built-in 24-site multipoint and can be divided into two virtual meeting rooms
  • 1080P/60FPS and 12x optical PTZ camera
  • H.265/HEVC video codec, 1080P from 512Kbps bandwidth
  • Super video packet loss recovery technology, resistant up to 30%
  • 5-inch touchable conference phone with a superior speaker
  • Two DECT-based wireless expansion microphones
  • Two HDMI output and two HD content input (HDMI + Mini-DP)
  • Support ‘1+8’ multi-camera solution with VCC22
  • Deeply integrate with leading cloud platforms: Yealink Cloud, Yealink Meeting Server, StarLeaf, Pexip, Mind, Zoom and BlueJeans

Overview

VC800 Video Conferencing System

Designed for Better Collaboration

VC800 is the second generation full-HD video conferencing system launched by Yealink. Equipped with the strongest embedded MCU within the industry, VC800 can support 24-site HD video conferencing plus two virtual meeting rooms. It has an all-in-one design and first-class video and audio technology that creates an easier and more effective collaboration experience. As the newest generation of Yealink VC series video conferencing systems, the VC800 adopts an intuitive user interface that makes meeting control simpler. Featureing H.265/HEVC, Opus and HD voice backed by a superior speaker, the Yealink VC800 facilitates more immersive audio-visual collaboration. VC800 supports up to 8 VCC22 cameras as 1+8 multi-camera solution. By leveraging Yealink Meeting Server(YMS), the VC800 seamlessly supports Meeting Scheduling and One-touch Meeting Access. All combine to make VC800 one of the perfect solution for the medium-to-large meeting rooms.

  • Touchable Phone
  • Wireless Microphones
  • 24 sites Multipoint
  • Multi-camera Solution
  • H.265 / HEVC
  • 1080P / 60FPS

Key Features and Benefits

Powerful Built-in MCU

Yealink VC800 supports up to 24 sites HD video conferencing and two virtual meeting rooms. Meanwhile, it backs up Automatic Voice Activated Switching and local meeting control, making the meeting be in an orderly manner.

Immersive Audio-Visual Experience

Using a new 12x optical PTZ camera, it supports 1080P/60FPS video calls, thus greatly enhancing the fluency of video conferencing and making the presentation more vivid even in details. Co-worked with Yealink conference phone CP960, Yealink VC800 creates a better audio solution. Backed by a superior speaker, Opus codec, two DECT-based wireless expansion microphones and quality 20ft/360° voice pickup distance, VC800 ensures that anyone in the workspace could have an immersive HD audio experience.

Easier Meeting Experience and Simpler Deployment

Yealink VC800 owns all-in-one design which combines codec and camera together, only one standard RJ45 network cable could connect TV area and conference table. Moreover, its 5-inch touchable VCS phone makes the membership and meeting control simpler and more intuitive, and its friendly TV-style user interface helps you minimize the learning cost.

Less Bandwidth, Better Network Adaptability

Via supporting H.265/HEVC video codecs, just with the minimum 512kbps, 1080P HD video calls can be realized, thus saving more than 50% bandwidth than using H.264. Thanks to Yealink anti-packet loss technology, VC800 can resist up to 30% video and audio packet loss which guarantees smooth video communication.

Compatibility and Integration

Yealink VC800 supports standard H.323/SIP dual protocol. It is not only deeply integrated with Yealink Meeting Server(YMS), supporting Meeting Scheduling and One-touch Meeting Access; but also worked with Yealink Cloud Management Service, bringing quick deployment. Besides, it supports the 3rd-party room system and integrates with the leading cloud platforms.

Specifications

Package includes

VC800 Codecintegrate camera

Video Conference Phone CP960

CP Wireless Expansion Mic CPW90 (2 units) or

-CP Wired Expansion Mic CPE90 (2 units)

Remote Control VCR11

Cable Hub VCH50

Cable Bundle

Full-HD PTZ Camera

1920 x 1080 video resolution

60 frame rate

12x optical zoom PTZ camera

Horizontal field of view: 70°

Vertical field of view: 42°

Pan angel range: +/- 100°

Tilt angel range: +/- 30°

Beauty shot

Multipoint Capacity

Built-in multipoint up to 24 sites at 1080p30

Multipoint license for 8/16/24 sites

Supports two virtual meeting rooms

Additional five-way audio call

Mixed protocols, codecs, bandwidth, resolution, and frame rate

Video Standard and Network Suitability

Video codecs:

-H.265/HEVC, H.264 High Profile, H.264, H.263

Bandwidth dynamic adaptive adjustment

Forward Error Correction (FEC), anti 30% video and audio packet loss

Shared content and audio preference strategy

Bandwidth/protocol/ auto adaptive

VCS Phone CP960 and Audio Features

5-inch touchscreen with 1280*720 resolution

Speaker

Built-in 3-microphone array

20ft/360° voice pickup range

Supports 2 wireless (or wired) expansion mic

Audio codecs:

- Opus, 8~48kHz sampling rate

- 14kHz bandwidth with G.722.1C

- 7kHz bandwidth with G.722.1

- 3.4kHz bandwidth with G.711 (PCMA/PCMU)

Audio technology:

- Acoustic echo cancellation

- Automatic gain control

- Yealink Noise Proof Technology

- CNG, PLC, AJB, De-Rerb

Call Features

1080p60 people + 1080P30 content sharing

video quality

Video Layout:

- Voice activation (onePlusN)

- onePlusN, maximum 1+7 viewable participates

- N*N, maximum 3*3 viewable participates

- Picture-in-picture (PIP) , full-screen

Video/audio recording and playback

Dual displays and ‘focus’ feature

Screenshots in USB flash drive

Group dial

Meeting control:

- invite/remove

- mute/unmute participates (only for Yealink Meeting Server)

- lock

DND (do not disturb), call statistics

Auto answer, mute, and call waiting

Virtual meeting room password

Virtual keyboard

Local directory: 500 entries

Call history: all/missed/received/dialed

LDAP phonebook

Multi-language support

Standard Communication Protocol

H.323/SIP

Dual stream protocol: H.239 (H.323)/BFCP (SIP)

FECC: H.224/H.281, Sony VISCA and PELCO D/P

H.323 protocol suite: H.245, H.225, H.235, H.241

Gatekeeper account and SIP account

Compatible Cloud Platforms

Yealink Cloud Management Service

Yealink Meeting Server

StarLeaf/UC OpenCloud, supports QCP code

Pexip/Mind/Zoom/BlueJeans

Network and Security Features

IPv4 and IPv6, DHCP/static IP

HTTP/HTTPS web server

RS232/HTTP API for control system integration

SRTP/TLS, AES 128-bit encryption

QoS: 802.1p/q, Diff-serv

VLAN, IEEE802.1X, LLDP-MED

Anti-attack

Network diagnosis: Ping, trace route

Time and date synchronization using SNTP

Built-in certificate

NAT and Firewall Traversal

NAT (manual/auto mode)

ICE/TURN/STUN

Yealink intelligent firewall traversal

Open VPN, H.460

Configuration Management

Configuration via browser/display/auto-provisioning

Virtual remote control

Firmware upgrading, factory resetting

Export or import configuration

System log exporting

VC800 Codec Connections

2 x HDMI output (supporting CEC function)

1 x Line-in (3.5mm)

1 x Line-out (3.5mm)

1 x Yealink extension port (RJ-45) connect to VCH50 /CP960 Phone

1 x 10/100/1000M Ethernet port

2 x USB 2.0

1 x Power port

1 x Security lock slot

1 x Reset slot

VCH50 Connections

1 x RJ45 port connect to VC800 codec

1 x RJ45 port connect to CP960

1 x HDMI input for content sharing (with audio)

1 x Mini-DP input for content sharing (with audio)

1x USB 2.0 for recording

Other Physical Features

External Yealink Power Adapter:

AC 100~240V input and DC 48V/0.7A Output

Wall/TV mounted shelf with screws

Power consumption (PSU):

Idle16W, normal operating: 17W; MAX: 21W

Dimension (W.D.H):

- VC800 codec: 235 mm x 172 mm x 169 mm

- CP960: 338mm x 338mm x 74mm

- VCR11: 190mm x 55mm x 24mm

Operating humidity: 10~95%

Operating temperature: 0~40°C

Storage temperature: -30~70°C

Package Features

N.W/CTN: 6.6 kg

G.W/CTN: 7.8 kg

Giftbox size: 414mm*402mm*384mm

Giftbox size: 414mm*402mm*384mm


Product Warranty


12 Month Return To Base
