Peace of mind shouldn't end when the sun goes down. With 16 ft night vision, you'll never miss a thing.

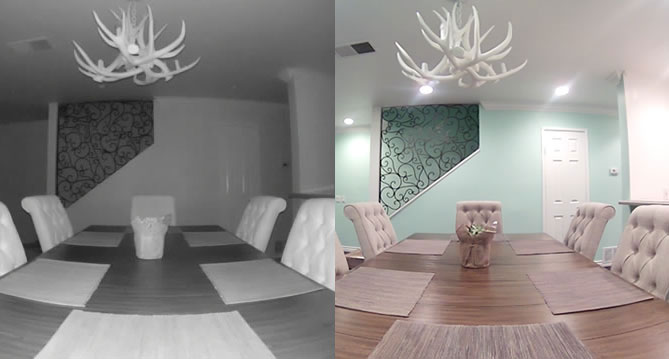

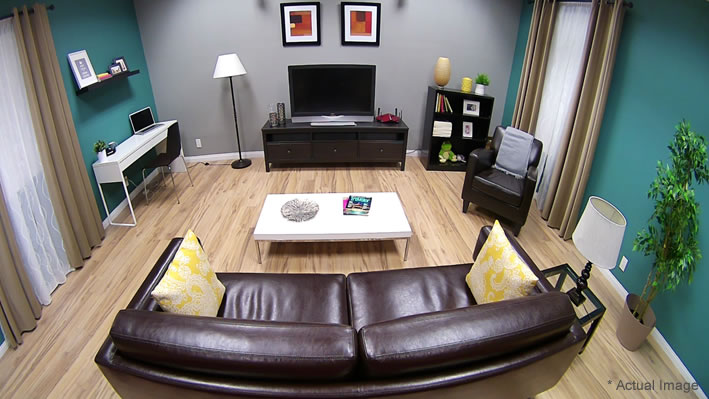

DAY:

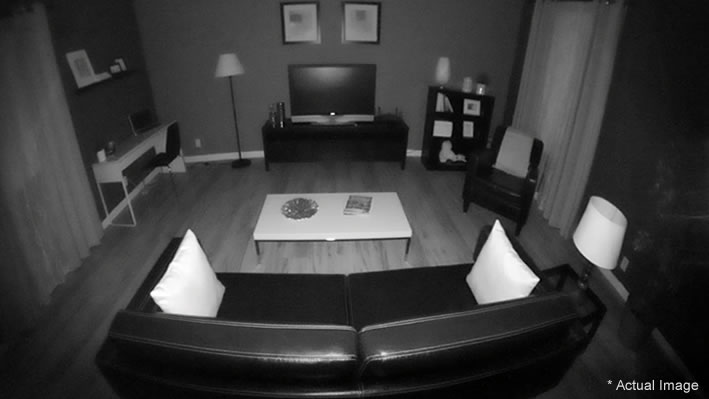

NIGHT:

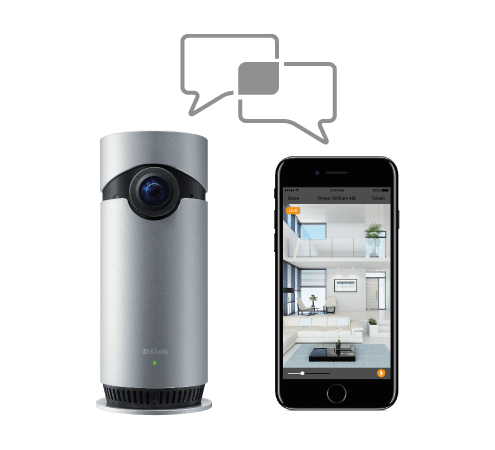

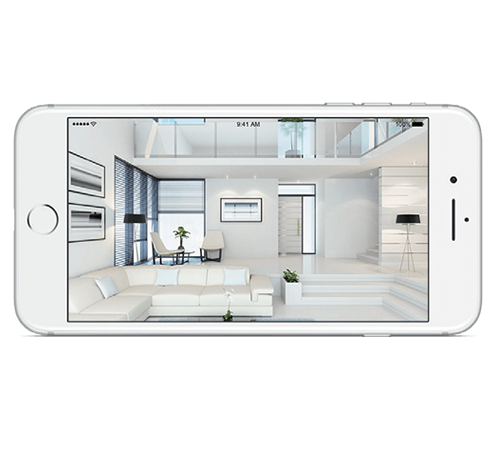

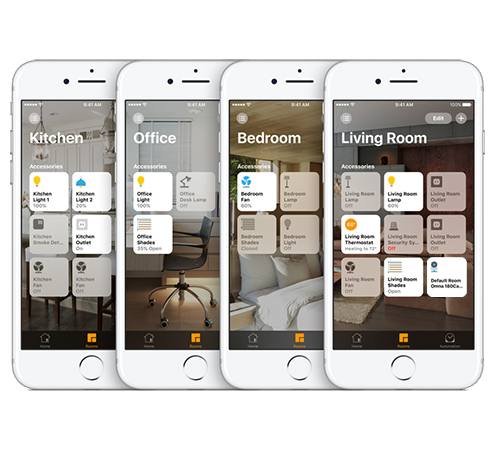

Be there. Even when you're not.

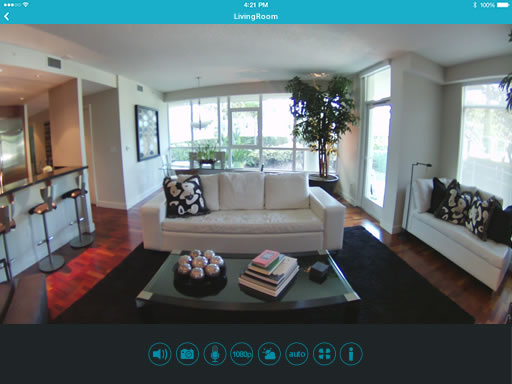

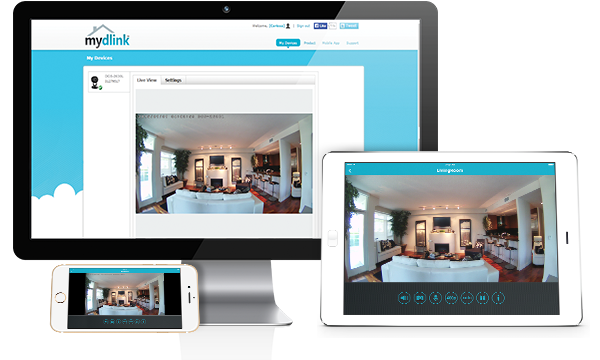

Check in on the people and places you love whenever you'd like with our free mydlink app.

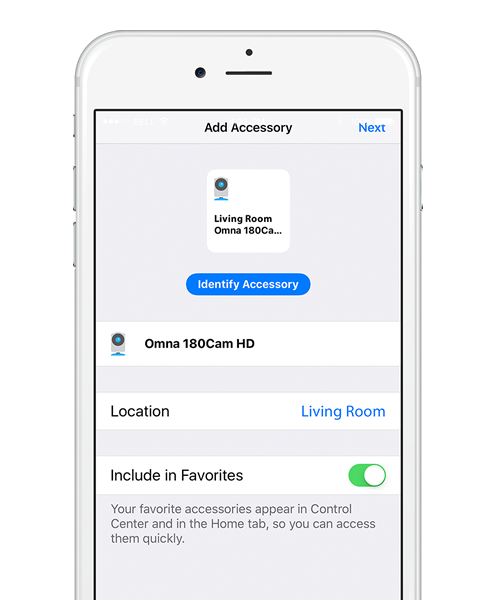

Easy to set up. Even easier to use.

Get your Wi-Fi Camera set up in minutes, and place it just about anywhere in your home. The free mydlink® app is available for iOS, Android devices, and Windows Phones.

Apple App StoreGoogle PlayWindow App Store

Why you want it.

Built-in microphone

  • Picks up on loud noises, like breaking glass, and automatically sends alert notifications.

Light Sensor

  • Determines when IR LEDs are needed to see in the dark.

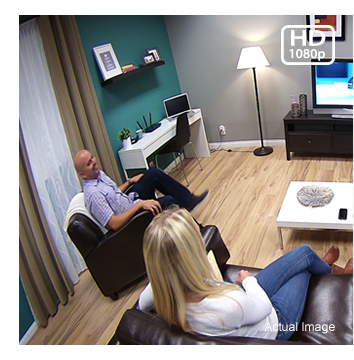

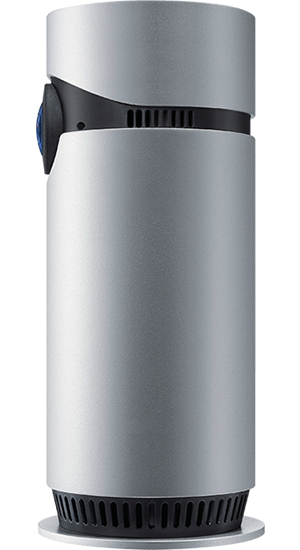

Full HD Sensor

  • Features a 1/3", 3-megapixel sensor to deliver images in sharp, rich detail.

Glass camera lens

  • Coupled with de-warping technology, provides a clear, ultra-wide 180 field of view.

6 Infrared LEDs

  • With IR-cut filter provide a bright, clear image even in complete darkness.

2 PIR sensors

  • Detect infrared radiation when a person or animal passes for enhanced motion detection.

360ş camera rotation

  • Ensures your video is perfectly level in any position.

11AC Dual Band Wi-Fi

  • Means a reliable Wi-Fi connection for 1080p video streaming and recording.

Simultaneous H.264/MJPEG compression

  • Conserves storage space while limiting impact on your network performance.

Micro SD/SDXC card slot

Lets you record a week of continuous clip recordings in 1080p* - up to 128GB

Metal Stand

  • Wall mountable with flexible tilt for the perfect angle.

Features

  • Audio Detection Alerting
  • Enhanced Motion (PIR)
  • Motion Detection Alerting
  • Night Vision (IR LEDs)
  • On Camera Recording
  • 1080p Full HD
  • 180 Wide Eye lens
  • 2-Way Audio

Setting

  • Indoor

mydlink

  • mydlink
  • mydlink Lite

Specifications

Camerafarm Surveillance & Security products from D-Link
  • Alerts you with push notification whenever motion or sound is detected.

    Built-in night vision function allows you to see up to 5 metres even in complete darkness

    Enhanced Motion Detection with Wi-Fi Motion Sensor

    The passive Infrared (PIR) motion sensor greatly reduces false alarms to ensure you are alerted only when needed.

    Motion detection up to 8 metres (100° horizontal / 80° vertical). Automatic alerts to notify you when motion is detected.

    Specifications

    Image Product description Price Buy
    D-Link DCS-936L

    D-Link DCS-936L HD Wi-Fi Camera


    - 720p HD Quality Video, Sound and Motion Detection, Local Recording, Wi-Fi Signal LED, Night Vision, Remote Viewing
    - :: DCS-936L

    D-Link DCS-936L HD Wi-Fi Camera



    Overview

    • 720p HD Quality Video – Rich detail and crisp image quality
    • Sound and Motion Detection – Push alert notifications when loud noises or movement is detected
    • Local Recording – MicroSD/SDXC card slot for local recording based on event triggers, schedules or continuously
    • Wi-Fi Signal LED – Locator LED guides you to the best camera placement within Wi-Fi range for reliable streaming and recording
    • Night Vision – See up to 16 feet in complete darkness with built-in IR LEDs
    • Remote Viewing – View on your iPhone, iPad, Android device or Windows phone with the mydlink Lite app

    HD Video

    Crisp, clear live and recorded video so you never have to wonder

    Wi-Fi Signal Locator

    Find the best placement for optimal performance

    Smart Alerts

    Get push notifications sent to your phone so you know as it happens

    120° Viewing

    See more of your home with a wide angle lens

    Simple Setup

    Out of the box and into your home  in minutes

    No Monthly Fees

    Affordable home security that doesn't nickel and dime

    See more of your spaces.

    With a 120° wide angle lens, you can see more of your rooms, pets and kids

    Home security in high definition.

    Crisp 720p HD video gives you a clear view of what's going on at home. See more of your favorite faces and places - it's home security with an eye for detail.

    Responsive recording.

    Your camera begins recording automatically to a microSDXC card up to 128 GB when it senses changes in your home.

    D-link

    Be there. Even when you're not.

    Check in on the people and places you love whenever you'd like with our free mydlink app.*

    *The DCS-936L is not supported by or compatible with the mydlink Home app or mydlink Connected Home product series

    D-link

    Easy to set up. Even easier to expand.

    Get your DCS-936L set up in minutes, and place it just about anywhere in your home. Easily add cameras to cover new spaces and new additions

    D-link

    Build your own complete security system.

    Connect the mydlink Camera Recorder and up to 2 hard drives to simultaneously stream and record up to 4 D-Link Wi-Fi cameras..

    D-link

    Features

    • Audio Detection Alerting
    • HD 720p
    • Motion Detection Alerting
    • Night Vision (IR LEDs)
    • On Camera Recording
    • Wi-Fi Signal Locator LED
    • mydlink +
    • mydlink Lite
    • Setting
    • Indoor

    Specifications

    Camera Hardware Profile

    1/4" 1-megapixel progressive CMOS sensor

    16 ft night vision with infrared LEDs

    Minimum illumination: 0 lux with IR LEDs on

    Built-in Infrared-Cut Removable (ICR) filter module

    Built-in microphone

    4x digital zoom

    Focal length: 2.45 mm

    Aperture: F2.4

    Angle of view:

    (H) 100

    (V) 54

    (D) 120

    External Device Interfaces

    Power LED

    Reset button

    WPS button

    microUSB power connector

    microSD/SDXC card slot

    Wi-Fi signal locator LED

    Image Features

    Adjustable image size, quality, frame rate and bit rate

    Adjustable brightness, saturation, contrast, sharpness and hue

    Configurable motion and sound detection

    Time stamp and text overlays

    Flip & mirror

    Video Compression

    Simultaneous H.264/MJPEG format video compression

    JPEG for still images

    Video Resolution

    1280 x 720 at up to 30 fps

    640 x 352 up to 30 fps

    320 x 176 up to 30 fps

    Audio Support

    PCM

    ADPCM

    Mobile Support

    mydlink Lite app available for iOS, Android devices and Windows Phones

    mydlink + app available for iOS and Android devices

    Network Protocols

    IPv4, ARP, TCP, UDP, ICMP

    DHCP Client

    NTP Client (D-Link)

    DNS Client

    DDNS Client (D-Link)

    SMTP Client

    FTP Client

    HTTP Server

    PPPoE

    UPnP, UPnP port forwarding

    RTP, RTSP, RTCP

    HTTPs for configuration

    Bonjour

    Security

    Administrator and user group protection

    Password authentication

    HTTP and RTSP digest encryption

    Dimensions (W x D x H)

    1.89 x 2.56 x 3.17 inches

    Weight

    0.31 lbs (camera only)

    Power Input

    5 V DC / 1.2 A, 50/60 Hz through power adapter

    Temperature

    Operating: 0 to 40 C (32 to 104 F)

    Storage: -20 to 70 C (-4 to 158 F)

    Humidity

    Operating: 20% to 85% non-condensing

    Storage: 20% to 85% non-condensing

    Certifications

    CE

    CE LVD

    FCC Class B

    ICES

    C-Tick

    Link to product page    $164.65
    D-Link DCS-32-3

    D-Link DCS-32-3 Wall Mount Long Bracket


    - For D-Link DCS-6815/6817/6818/6915 Speed Dome IP Camera :: DCS-32-3

    Overview

    Standard pending is designed for mounting the camera on the wall.

    Specifications

    Dimensions

    348 x 104 x 138.6mm

    Diameter

    45mm

    Weight

    1.5kg

    Link to product page    $170.85
    D-Link DCS-32-4

    D-Link DCS-32-4 Wall Mount Mini Bracket


    - For D-Link DCS-6815/6817/6818/6915 Speed Dome IP Camera :: DCS-32-4

    Overview

    The DCS-32-4 mini wall mount is designed to mount the D-Link DCS-6818 speed dome IP camera on a wall.

    Specifications

    Designed to mount the D-Link DCS-6818 speed dome IP camera on a wall Dimensions: 8 x 4.8 x 5.3 inches (204 x 124 x 135.2 mm) Diameter: 1.8 inches (44.5 mm) Weight: 2.6 pounds (1.2 kg) Link to product page    $113.90
    D-Link DCS-960L

    D-Link DCS-960L HD Ultra-Wide View Wi-Fi Camera


    - 720p HD, 1/2.7 1-Megapixel Sensor,180 Field of View, IR LED (with IR-Cut), Built-In Microphone, Wi-Fi 802.11ac, H.264/MJPEG, Wall Mountable
    :: DCS-960L

    Overview

    View more with less

    Why limit yourself? See more of your home and never worry about what's happening off-camera.

    Unique de-warping technology.

    Maximizes the video quality with less distortion - letting you see more of your home at a glance.

    Home security in high definition.

    Crisp 720p HD video gives you a clear view of what's going on at home. See more of your favorite faces and places - it's home security with an eye for detail.

    Round-the-clock peace of mind.

    Peace of mind shouldn't end when the sun goes down. With 16 feet night vision, you'll never miss a thing.

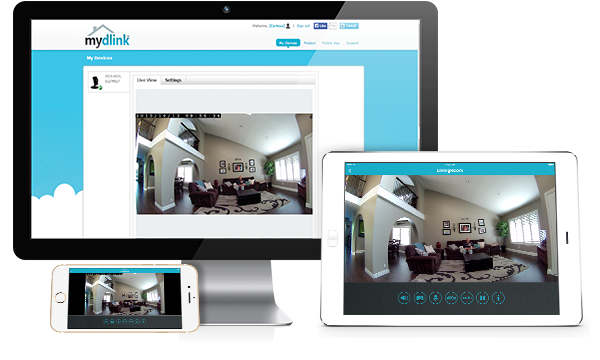

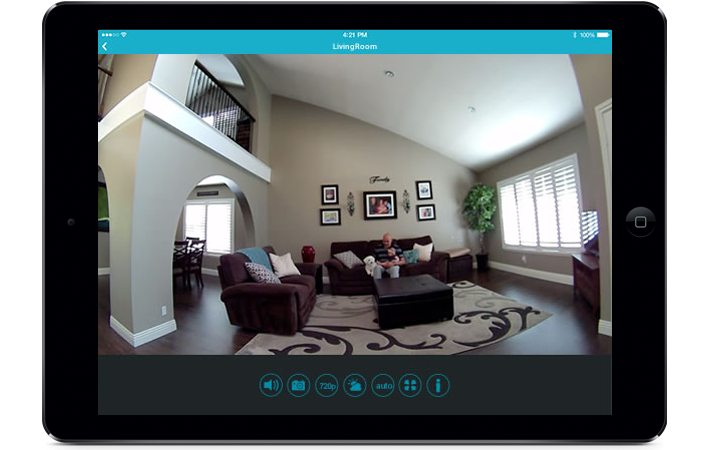

    Be there. Even when you're not

    Check in on the people and places you love whenever you'd like with our free mydlink app

    Easy to set up. Even easier to use.

    Get your Wi-Fi Camera set up in minutes, and place it just about anywhere in your home. The free mydlink® Lite app is available for iOS, Android devices, and Windows Phones.

    Free app for iOS, Android and Windows

    Why You Want It

    Built-in microphone

    Picks up on loud noises, like breaking glass, and automatically sends alert notifications.

    2 Infrared LEDs

    With IR-cut filter provide a bright, clear image even in complete darkness.

    Motion sensor

    Detects movement and automatically sends alert notifications.

    HD Sensor

    Features a 1/2.7, 1-megapixel sensor to deliver images in sharp, rich detail.

    Light Sensor

    Determines when IR LEDs are needed to see in the dark.

    11AC Dual Band Wi-Fi

    Means a reliable Wi-Fi connection for 720p video streaming and recording.

    Glass camera lens

    Coupled with de-warping technology, provides a clear, ultra-wide 180 field of view.

    Simultaneous H.264/MJPEG compression

    Conserves storage space while limiting impact on your network performance.

    Micro SD/SDXC card slot

    Features a 1/2.7, 1-megapixel sensor to deliver images in sharp, rich detail.

    Micro USB powered

    Power using a standard electrical outlet or even a portable USB battery.

    Status LED

    Lets you know what your cameras doing.

    WPS enabled

    Quick and easy setup with a push of a button.

    Camera base

    Wall mountable with flexible tilt for the perfect angle.

    Link to product page    $343.90
    D-Link DCH-100KT

    D-Link DCH-100KT D.I.Y. Security Kit - HD Edition SMARTPLUG


    - The Smart Home HD Starter Kit includes a Smart Plug (DSP-W215), a Wi-Fi Motion Sensor (DCH-S150) and a Monitor HD (DCS-935L)
    :: DCH-100KT

    Overview

    This clever little starter kit gives you the ability to set, control, monitor and automate your home from anywhere. The Smart Home HD Starter Kit includes a Smart Plug (DSP-W215), a Wi-Fi Motion Sensor (DCH-S150) and a Monitor HD (DCS-935L).

    These devices talk to each other and with the mydlink Home smartphone and tablet app you can decide what it is you would like them to do. This is clever stuff implemented to make your life easier and safer with added peace of mind. It is smart home technology at its most futuristic.

    Easy To Set Up

    Simply download the mydlink Home app and the step by step setup wizard will help you set up all the devices in the kit

    Do-It-Yourself SimpleNo Installation FeesNo Monthly Charges

    Your mydlink™ Home

    mydlink™ Home allows you to start with this convenient starter kit and add more when you want to. The unique mydlink™ Home App1 for iOS and Android smartphone and tablet puts you in control of all your mydlink™ Home smart devices. You can even setup automation rules to make your home smarter.

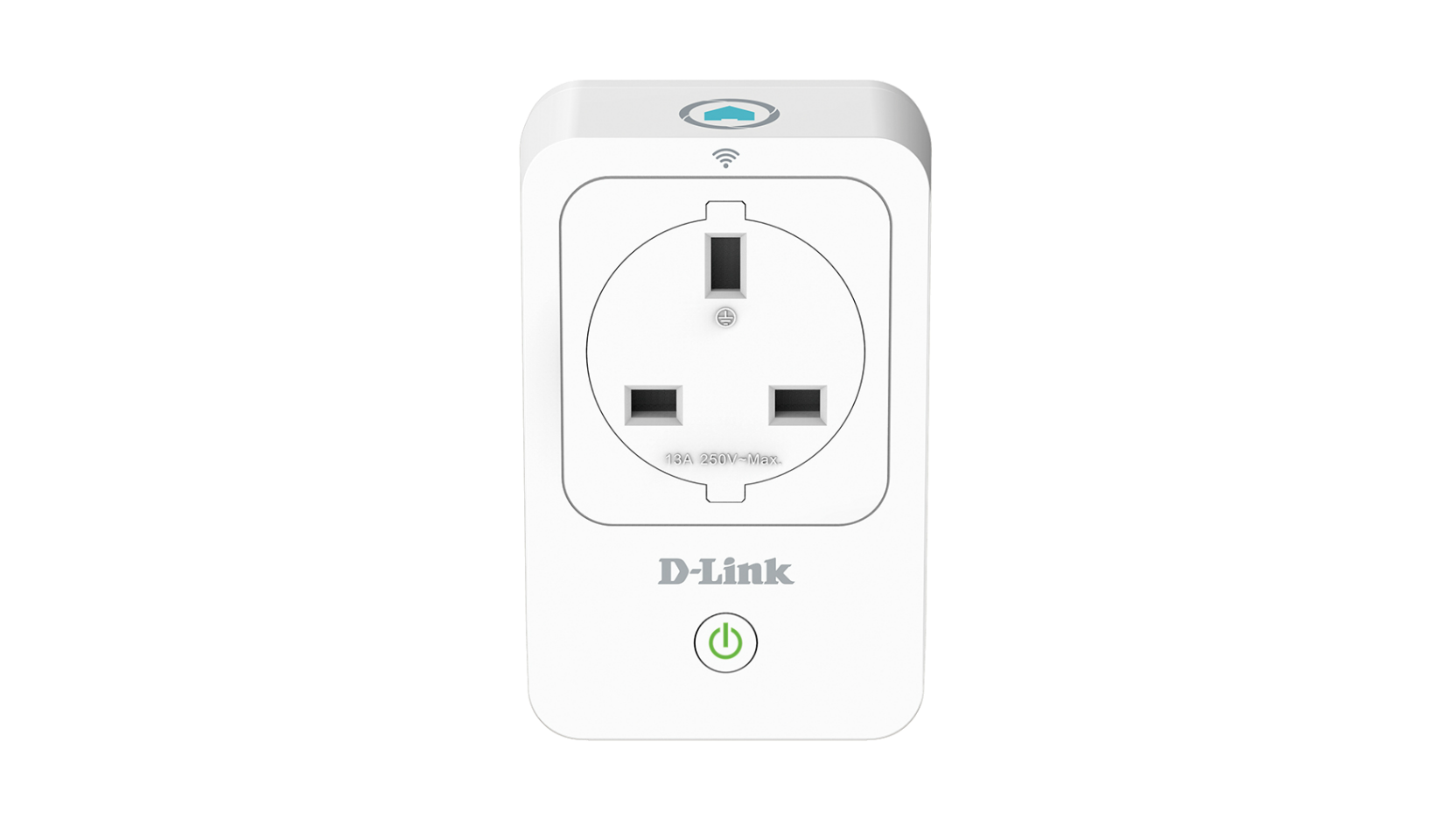

    mydlink Home Smart Plug DSP W215

    Turn Devices On/Off with Smart Plug

    Instantly turn devices on or off from your iOS or Android smartphone or tablet using the mydlink™ Home app, wherever you are

    Create on/off schedules to have your appliances work for you when you want them to.

    The integrated thermal sensor automatically turns off overheating power sockets, giving you peace of mind2.

    Automatic alerts to notify you when an appliance has been:

    • Turned on/off
    • Power consumption limit is exceeded
    • If the appliance malfunctions and overheats

    mydlink Home Monitor HD DCS 935L

    View From Anywhere with Monitor HD

    Monitor your home in HD 720p. See everything in detail, even when zoomed in.

    DSP-W215 Smart Plug

    Device Interface

    802.11b/g/n wireless with WPA/WPA2 encryption

    WPS button / reset button

    LEDs

    Power/Status

    Functionality

    Support Functions

    Smart remote control

    Push notifications

    Energy usage statistics

    Power scheduling

    Overheat protection

    Physical

    Dimensions

    96.5 x 62 x 76.7 mm

    Weight

    180 g (EU)

    173 g (UK)

    Power

    Input: 100 to 240 V AC

    Maximum Load

    16A, 250V

    Power Consumption

    Maximum 5 W

    Temperature

    Operating: 0 to 40 C (32 to 104 F)

    Storage: -20 to 65 C (-4 to 149 F)

    Humidity

    Operating: 10% to 90% non-condensing

    Storage: 5% to 95% non-condensing

    Certifications

    FCC

    UL

    DCH-S150 Wi-Fi Motion Sensor

    Device Interfaces

    802.11b/g/n wireless with WPA/WPA2 encryption

    WPS button / reset button

    LED

    Status/WPS

    PIR Sensor

    8 metres (100 horizontal / 80 vertical) detection range

    Antennas

    One internal antenna

    Plug Type

    Region dependent

    Physical

    Dimensions

    58 x 54 x 43.5 mm (2.28 x 2.13 x 1.71 inches)

    Weight

    80 grams (2.82 ounces)

    Power

    Input: 220 to 240 V AC, 50/60 Hz

    Temperature

    Operating: 0 to 40 C (32 to 104 F)

    Storage: -20 to 65 C (-4 to 149 F)

    Humidity

    Operating: 10% to 90% non-condensing

    Storage: 5% to 95% non-condensing

    Certifications

    FCC, CE

    UL, CE/LVD

    DCS-935L Monitor HD

    Camera  Hardware Profile

    1/4 Megapixel progressive CMOS sensor

    5 metre IR illumination distance

    Minimum illumination: 0 lux with IR LEDs on

    Built-in Infrared-Cut Removable (ICR) Filter module

    4X digital zoom

    Lens: Fixed length 2.38 mm

    Aperture: F2.4

    Angle of view:

    (H) 78.44

    (V) 47.9

    (D) 85.98

    Minimum object distance: 434 mm

    Exposure Time: 1/7.5 to 1/24,000 sec.

    Built-in microphone

    Image Features

    Time stamp and text overlays

    Configurable motion detection windows

    Video Compression

    Simultaneous H.264/MJPEG format compression

    JPEG for still images

    Video Resolution

    1280 x 720 at frame rates up to 30 fps

    Audio Compression

    AAC

    G.711

    Connectivity

    802.11b/g/n/ac wireless with WEP/WPA/WPA2 encryption

    Advanced Features

    Event Management

    Motion detection

    Sound detection

    General

    Dimensions

    58.0 x 84.5 x 124.9 mm (2.28 inches x 3.33 inches x 4.92 inches)

    Weight

    160.0 g (5.6 ounces) 5%

    Power

    5 V DC 1.2 A, 50/60 Hz

    Power Consumption

    3.5 watts maximum

    Temperature

    Operating: 0 to 40 C (32 to 104 F)

    Storage: -20 to 70 C (-4 to 158 F)

    Humidity

    Operating: 20% to 80% non-condensing

    Storage: 20% to 80% non-condensing

    Certifications

    CE

    CE LVD

    FCC Class B

    C-Tick

    1 mydlink Home app is available for iOS and Android devices. Please refer to the mobile apps store page to check whether your device is compatible.

    Link to product page    $274.95
    D-Link DCS-2630L

    D-Link DCS-2630L Full HD Ultra-Wide View Wi-Fi Camera


    - 1080p Full HD, 1/3" 3-megapixel progressive CMOS Sensor, 8x Digital Zoom, 180 Wide Eye Lens, 2-Way Audio, 802.11ac, H.264/MJPEG
    :: DCS-2630L

    Overview

    View more with less.

    Why limit yourself? See more of your home and never worry about what's happening off-camera.

    Unique de-warping technology.

    Maximizes the video quality with less distortion - letting you see more of your home at a glance.

    Home security in high definition.

    Crisp 1080p HD video lets you see more of your favorite faces and places - it's home security with an eye for detail.

    Round-the-clock peace of mind.

    Camera Hardware Profile

    1/3" 3-megapixel progressive CMOS sensor

    16 ft night vision with infrared LEDs

    Minimum illumination: 0 lux with IR LEDs on

    Built-in microphone and speaker

    8x digital zoom

    Focal length: 1.72 mm

    Aperture: F2.0

    Angle of view:

    (H) 182

    (V) 112

    (D) 182

    External Device Interfaces

    802.11ac wireless

    Power LED

    Reset button

    WPS button

    microUSB power connector

    microSD card slot

    Image Features

    Adjustable image size, quality, frame rate and bit rate

    Adjustable brightness, saturation, contrast, sharpness and hue

    Configurable motion and sound detection

    Time stamp and text overlays

    Flip & mirror

    Anti-flicker (on/off)

    Video Compression

    Simultaneous H.264/MJPEG format video compression

    JPEG for still images

    Video Resolution

    1920 x 1080 at up to 30 fps

    1280 x 720 at up to 30 fps

    640 x 352 up to 30 fps

    320 x 176 up to 30 fps

    Audio Support

    AAC

    PCM

    ADPCM

    Mobile Support

    mydlink Lite app available for iOS 7 and above, Android devices4.0 and above, and Windows Phones

    mydlink + app available for iOS 7 and above, and Android devices 2.1 and above

    Network

    Network Protocols

    IPv4, ARP, TCP, UDP, ICMP

    DHCP Client

    NTP Client (D-Link)

    DNS Client

    DDNS Client (D-Link)

    SMTP Client

    FTP Client

    HTTP Server

    Samba Client

    PPPoE

    UPnP port forwarding

    LLTD

    HTTPs for configuration

    Bonjour

    Security

    Administrator and user group protection

    Password authentication

    HTTP and RTSP digest encryption

    Physical

    Dimensions (H x W x D)

    3.37 x 3.37 x 5.53 inches

    Weight

    0.76 lbs (camera only)

    Power Input

    5 V DC / 1.5 A, 50/60 Hz through power adapter

    Temperature

    Operating: 0 to 40 C (32 to 104 F)

    Storage: -20 to 70 C (-4 to 158 F)

    Humidity

    Operating: 20% to 80% non-condensing

    Storage: 5% to 95% non-condensing

    Certifications

    CE

    CE LVD

    FCC Class B

    ICES

    Link to product page    $401.35
    D-Link DNR-2020-04P

    D-Link DNR-2020-04P PoE Network Video Recorder - 16-Channel


    - 3.5" HDD(2) Up to 16TB, RAID 0/1/JBOD4, 1GB Memory, GigLAN, 10/100 BaseT PoE(4), HDMI, VGA, USB3.0, USB2.0, M-JPEG, MPEG-4, H.264
    :: DNR-2020-04P

    Overview

    The DNR-2020-04P JustConnect 16-Channel PoE Network Video Recorder is an all-in-one network video recorder (NVR) that can record video from up to 16 network cameras1 to its dual HDD storage2 . With the integrated HDMI/VGA display output and USB port3 , users can view, control and configure the DNR-2020-04P without the need to turn on their PC. Featuring Power over Ethernet (PoE), the NVR supplies power to up to four PoE cameras, saving valuable time and electrical installation costs during setup. Powered by an embedded system, the DNR-2020-04P supports real-time remote monitoring and playback via a web browser using the NVRs web GUI. Additionally, support for audio in/out, DI/DO triggering, and external USB 3.0 storage for video export and backups fill the needs of small businesses. The bundled Multi-NVR Viewer is a comprehensive network surveillance software designed for SMB and enterprise users, making the DNR-2020-04P a convenient, versatile, and effective video recorder.

    Versatile Monitoring

    Users are provided with a variety of options for viewing and organising camera footage onscreen. Featuring live viewing of multiple channels, users can simply drag and drop selected cameras to the viewing area. Users can also control pan/tilt/zoom (PTZ) functions from within the interface. A single camera may be viewed full-screen with two-way audio support. Optional Digital In/Digital Out (DI/DO) connections to triggers such as door and window sensors allow for easy event-based recording.

    Extensive Recording Functionality

    The DNR-2020-04Ps clear interface allows for easy configuration of many functions including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a user-defined schedule. E-map support simplifies camera setup and management. The NVR also provides event recording based on specific triggers such as when motion is detected and notifications can be set so that an email will be sent to alert the administrator whenever an event occurs.

    Secure Storage

    Administrators may filter external connections to the NVR by IP address, limiting access and thus increasing security. Administrators may also manage access privileges for users by specifying the cameras they may monitor. The NVR also includes the option to protect data using a RAID 1 configuration4 , which duplicates recorded data onto two separate hard drives. In the event of HDD failure, data integrity is maintained on the secondary HDD. The recorded data can be backed up to external USB disks or additional storage locations such as FTP servers whenever required.

    Bundled NVR Software

    The included DCS-260 Multi-NVR Viewer is a comprehensive network surveillance software designed for SMB and enterprise users. Using an intuitive user interface, you can centrally manage up to 128 NVR devices and network cameras, allowing you to efficiently control multiple D-Link NVRs located in different areas. By enabling users to monitor multiple live camera views, receive real-time event notification, and manage camera locations using multiple eMaps, the software not only meets but exceeds the requirements of any modern security-conscious company.

    Smooth Streaming from Anywhere

    The DNR-2020-04P also enables users to remotely view and manage the NVR from anywhere via a web browser. The Gigabit Ethernet port provides superior bandwidth for viewing 16 camera streams simultaneously, so critical moments can be monitored and captured at all times. Additionally, using the JustConnect+ app for iOS and Android mobile devices, allows administrators easy access for monitoring the DNR-2020-04P using mobile devices.

    Features

    Trustworthy Surveillance

    • Reliable network camera surveillance recorder for small business users
    • View real-time and recorded video of all 16 cameras from anywhere in your home or office, or remotely via the Internet
    • M-JPEG, MPEG-4 or H.264 video format

    Convenient Interface

    • Effortless network camera setup and management
    • User-friendly interface provides 16 channels of simultaneous live view, recording, playback, and PTZ control
    • Continuous, scheduled, or event recording with automatic overwrite function

    Flexible Storage Options

    • Two-bay SATA 3.5 HDD interface, up to 16 TB of hard disk storage space for recorded video2
    • Protects important surveillance files with automatic backups using RAID 1 technology

    Flexible and Scalable

    • Stand-alone device: Eliminates the need for a dedicated PC
    • Integrated HDMI/VGA display output
    • Supports D-Link network cameras1
    • Power fail recovery recording

    Specifications

    General

    Standards

    IEEE 802.3u/x/z

    IEEE 802.3af

    SATA II/III

    Auto MDI/MDI-X

    HDD2

    Format Disk

    Up to 16 TB HDD

    EXT3 file system

    RAID 0, 1, JBOD4

    Two Reset Modes

    Reset firmware GUI button

    HW reset button (hold for 10 seconds)

    Reset Button

    Reset to factory default

    Flash ROM

    128 MB

    RAM

    1024 MB DDR3

    Network Interface

    Gigabit Ethernet port (10/100/1000 Mbps)

    I/O Ports

    1 x 10/100/1000 BaseT RJ-45 port

    4 x 10/100 BaseT PoE port (802.3af)

    HDMI (supports 720p and 1080p resolution with 16:9 display ratio)

    D-sub for VGA output

    1 x USB 3.0 port3

    1 x USB 2.0 port3

    3.5 mm audio input x 1, output x 1

    4 x DI, 1 x DO

    Cooling

    1 x Smart Fan

    Software Features

    Supported Cameras

    Please visit www.dlink.com for a list of supported cameras1

     Supports auto-discovery and megapixel resolution

    System Requirements for Web Interface

    Browser: Internet Explorer, Firefox, or Safari

    Recording Performance

    Max recording bitrate: 80 Mbit/s

    Primary video profile:

    H.264 at 1080p at 480 fps

    Secondary video profile:

    H.264 at VGA at 240 fps

    Camera Search

    UPnP

    ONVIF

    Audio and Video Recording

    Synchronised audio & video recording

    Compression Format

    H.264, MPEG-4, M-JPEG

    Audio Compression Format

    G.711, G.726

    Video Setting

    Resolution

    Quality

    Bitrate

    Frame rate

    Enable audio

    Video profile selection

    Recording Mode

    Record by schedule, manual, always, and event-based recording

    Motion-triggered recording

    Alarm Recording

    Pre-alarm: 60 seconds per channel

    Post-alarm: 300 seconds per channel

    Remote Live View

    Supported via browser and Multi NVR Viewer (DCS-260) software

    Remote Live View Control

    Live view

    Preset/Go to Preset

    Patrol/Auto Patrol

    Focus

    PTZ control

    Snapshot

    Full screen

    Auto scan

    Digital zoom (Zoom in & Zoom out)

    Manual Record

    Audio Enable

    Adjust audio volume

    Video layout

    e-map

    Remote Playback Control

    Normal

    Fast forward/rewind

    Step forward/rewind

    Remote Playback

    Supported via browser and Remote Playback application

    Playback system with timeline GUI, search by event, area, cameras, date, and time

    Browser or Remote Playback support 16-channel simultaneous playback

    Digital zoom

    Overwrite Recording

    Auto recycling when disk storage is full

    File Export

    Local: Export videos to AVI / MP4 format

    Remote: Export videos to AVI or ASF file

    Export images to JPG file

    Digital Watermark Tool

    Prevents recorded video files/snapshots from being tampered with

    Acts as a tool for verification

    User Account

    Additional accounts can be created to allow users system access and specify authorization for camera channels, PTZ, etc.

    DDNS

    D-Link DDNS and DynDns server support

    Manual DDNS

    System Time

    D-Link NTP

    Input time

    Sync with computer

    Daylight saving time

    Auto Backup

    Backup recorded data to USB/SAMBA/FTP via a schedule

    Remote Backup

    Remote backup software can backup raw data to redundant storage

    System Status

    Camera status

    HDD status

    System status

    Network Service

    Protocols

    IPV4, ARP, TCP, UDP, ICMP

    DHCP Server/Client

    NTP Client

    DNS Client

    DDNS Client

    SMTP Client

    FTP Client

    HTTP Server

    RTP

    RTCP

    RTSP

    IP filtering

    UPnP

    CoS

    QoS/DSCP

    HTTPS

    Samba

    Bonjour

    SNMP v1/v2c/v3

    PPPoE

    DDP

    User Interface

    HTTP Web browser

    NVR Search Utility

    Remote Playback/Backup

    Verification tool

    Mobile app

    GUI via HDMI/VGA

    Package Contents

    JustConnect 16-Channel PoE Network Video Recorder

    Power Adapter

    Ethernet Cable

    Quick Installation Guide

    CD-ROM with:

    Software

    Product Documentation

    Physical

    Weight

    2.1 kg (4.63 lbs)

    Power Input

    Input: 100 to 240 V AC, 50 to 60 Hz

    Output: DC 48 V/1.85 A

    Power Consumption

    Max. 90 W

    PoE Budget

    Per Port: Max. 15 W

    Total: 45 W

    Temperature

    Operating: 0 to 40 C (32 to 104 F)

    Storage: -20 to 70 C (-4 to 158 F)

    Humidity

    5% to 90% non-condensing

    Certifications

    CE

    FCC

    RoHS

    Dimensions

    63 x 225 x 300 mm

    1 Please see the camera compatibility list.

    2 Hard disks are not included. Supports hard disks up to 8 TB each for a total of 16 TB.

    3 This port is used for firmware updates, video exports to USB drives, and backups. Connection to a USB mouse/keyboard is supported.

    4 RAID 0 and RAID 1 mirroring requires the use of two internal SATA drives. To avoid data incompatibility in RAID 1 operation, use identical SATA drives from the same manufacturer. Formatted drive capacity for RAID 1 operation is dependent on the drive capacity of the lowest-sized drive. Some older generation SATA drives may not be compatible.

    Link to product page    $743.05
    D-Link DCS-4802E

    D-Link DCS-4802E Vigilance Full HD Day & Night Camera


    - Full HD 1920x1080, 1/3 2 Megapixel Progressive CMOS Sensor, 60 ft IR Illumination, 10x Digital Zoom, IP66, H.264 & MJPEG
    :: DCS-4802E

    Overview

    The D-Link DCS-4802E Vigilance Full HD Outdoor Mini Dome Network Camera is a high definitionprofessional surveillance and security solution suitable for small, medium, and largeenterprises. The camera uses a high-sensitivity 1/3 megapixel progressive scan CMOS sensorwith digital WDR image enhancement to deliver balanced video in varying lighting conditions.The compact rugged design makes this camera ideal for deployment in a wide variety ofsurveillance applications. The unique design with 3-axis adjustment allows for precisepositioning of the lens, supporting 360 Pan, 360 Rotation, and 75 Tilt.

    High-Quality Streaming & Recording

    To maximize bandwidth efficiency and improve image quality, the DCS-4802E provides realtimevideo compression using the H.264 and MJPEG codecs, and supports three separateprofiles for simultaneous video streaming and recording. This versatility enables a wide varietyof security applications, such as monitoring public areas to detect incidents and to coordinateresponses, enforcing access control to restricted areas, deterring criminal activity, or monitoringinventory.

    Continuous Monitoring

    The DCS-4802Es digital wide dynamic range (WDR) video enhancement gives you improvedimage quality in environments with uneven or difficult lighting, so you can identify subjectsthat are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slidesout of the way to use all available light. The DCS-4802E also has built-in IR LED illuminatorswith a 60 foot range, allowing the camera to keep watch even in complete darkness. Thesefeatures work together to give you a reliable surveillance camera capable of monitoring anarea 24 hours a day.

    Flexible Connectivity

    The DCS-4802E has a built-in 802.3af compliant PoE module that simplifiesinstallation by providing power and networking connectivity with a singlecable, reducing the need to drill holes or lay additional cabling.

    Five Year Warranty

    D-Link stands behind the quality of the DCS-4802E with an includedlimited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.*

    Features

    2 Megapixel Full HD Video

    • 1/3 megapixel progressive CMOS sensor
    • Full HD resolution (1920 x 1080)
    • Digital Wide Dynamic Range
    • H.264 & MJPEG codec support for streaming and recording
    • Motion detection
    • Privacy mask
    • 3D filtering reduces noise in low-light environments

    Indoor or Outdoor Placement

    • Built-in IR LED illuminator with a 60 foot range for use in dark areas
    • Range of mounting options for flexible placement
    • 3-axis adjustment allows for precise positioning of lens
    • Rugged IP66 weatherproof housing

    Network

    • Power over Ethernet (PoE) provides easy and flexible integration into your network
    • ONVIF compliant

    Specifications

    Camera

    Hardware Profile

    1/3 2 Megapixel Progressive CMOS Sensor

    60 ft IR Illumination Distance

    Minimum illumination

    1 Lux Color mode

    0.55 Lux Black and White mode

    0 Lux Black and White mode with IR LED on

    Automatic Infrared-Cut Filter module for night viewing

    10x digital zoom

    Minimum object distance: 8"

    Focal length: 2.8mm

    Aperture F2.0

    Angle of view

    (H) 96

    (V) 54

    (D) 108

    Adjustment angle (non-motorized)

    Pan: 360

    Tilt:  75

    Rotation: 360

    Camera Housing

    IP66 compliant weatherproof housing

    Image Features

    Configurable image size, quality, frame rate, and bit rate

    Time stamp and text overlays

    Configurable motion detection windows

    Configurable privacy mask zones

    Configurable exposure time, brightness, saturation, contrast, contrast, sharpness, digital WDR and 3D filter

    Video Compression

    Simultaneous H.264/MJPEG triple format compression

    H.264 multicast streaming

    JPEG for still images

    Video Resolution

    16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360

    4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 592, 640 x 480

    Frame Rate

    Up to 30 fps

    External Device Interface

    10/100 BASE-TX Ethernet port

    Supports 802.3af PoE Class 2

    Network

    Network Protocols

    IPv6

    IPv4

    ARP

    TCP/IP

    UDP

    ICMP

    DHCP client

    NTP client (D-Link)

    DNS client

    DDNS client (D-Link)

    SMTP client

    FTP client

    HTTP / HTTPS

    Samba client

    PPPoE

    UPnP/UPnP port forwarding

    RTP / RTSP/ RTCP

    IP filtering

    CoS

    QoS/DSCP

    SNMP

    Bonjour

    ONVIF compliant

    Security

    Administrator and user group protection

    Password authentication

    HTTP and RTSP digest encryption

    System Management

    System Requirements for Web Interface

    Browser: Internet Explorer 8 or higher, Firefox, Chrome, Safari

    Event Management

    Motion detection

    Event notification and uploading of snapshots/video clips via e-mail or FTP

    Supports multiple SMTP and FTP servers

    Multiple event notifications

    Multiple recording methods for easy backup

    Remote Management

    Take snapshots/video clips and save to local hard drive or NAS via web browser

    Configuration interface accessible via web browser

    OS Support

    Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android

    D-ViewCam System Requirements

    Operating System: Microsoft Windows 8/7/Vista

    Web Browser: Internet Explorer 7 or higher

    Protocol: Standard TCP/IP

    D-ViewCam Software Functions

    Remote management/control of up to 32 cameras

    Supports all management functions provided in web interface

    Viewing of up to 32 cameras on one screen

    Scheduled motion triggered, or manual recording options

    General Specifications

    Weight

    0.82 lbs (370 grams) 5%

    Power over Ethernet

    802.3af Class 2

    Power Adapter (not included)

    Input: 100 to 240V AC, 50/60 Hz

    Output: 12V DC 1.5A

    Power Consumption

    5.2 Watts 5%

    Operating Temperature

    -22 to 124 F (-30 to 50 C)

    Storage Temperature

    -4 to 158 F (-20 to 70 C)

    Operating Humidity

    20% to 80% non-condensing

    Storage Humidity

    5% to 95% non-condensing

    Certifications

    CE (Class A)

    CE LVD

    FCC (Class A)

    C-Tick

    Dimensions

    Diameter: 4.45 (113 mm)

    Heigth: 3.35 (85 mm)

    Warranty

    Warranty

    12 Month Warranty1

    5-YearWarranty available only in the USA.

    Link to product page    $305.10
    D-Link DCS-6915

    D-Link DCS-6915 Outdoor 20X Full HD WDR Speed Dome Network Camera - Sony Exmor 1/2.8" 3 Megapixel CMOS Sensor, 20x Optical Zoom, High-Quality Video, Day & Night with Mechanical IR Filter - White :: DCS-6915

    Outdoor 20X Full HD WDR Speed Dome Network Camera

    DCS-6915

    The DCS-6915 Outdoor 20X Full HD WDR Speed Dome Network Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The DCS-6915 features a 3 megapixel sensor capable of Full HD 1080p resolution, allowing for very clear surveillance footage to be taken. The powerful 20X optical zoom and 10X digital zoom ensure that you can see even the smallest details with ease.

    Proportional Pan, Tilt, and Zoom Speeds

    Proportional pan and tilt make it easy to precisely adjust the camera’s view. When the camera zooms in, the panning speed is automatically slowed to improve camera tracking and control. PTZ presets allow the camera to monitor specified areas along predefined paths. The broad tilt range from -10° to 190° allows the camera to see beyond the true horizon, meaning you can see more even when zoomed in.

    Built for Tough Environments

    Specially designed for use in challenging environments the DCS-6915 has a toughened metal, industry-certified IK-10 (vandal-proof) and IP66 (weather-proof) housing. This means that it is able to withstand sudden high impacts, as well as adverse weather conditions. With its built-in heater and fan, the camera can operate in extreme environments at temperatures ranging from -40 to 50 °C (-49  to 122 °F).

    High-Quality Video

    To maximise bandwidth efficiency and improve image quality, the DCS-6915 provides real-time video compression using the H.264 and MJPEG codecs. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to an internal MicroSD card1.

    Wide Dynamic Range (WDR)

    IP surveillance cameras are often installed in areas with consistent lighting, like offices, banks or stores. This makes it easy to set exposure levels for optimal image quality. At other times, surveillance personnel are not so lucky. Doorways, glass walls or other areas that are exposed to direct or varying sunlight can create backlit or high contrast scenes. In such conditions, detail is lost in bright areas because of over-exposure and in dark areas because of low light. Wide Dynamic Range (WDR) technology overcomes these conditions by merging two images, one with a short exposure time to capture detail in the brighter parts of the image, and one with a longer exposure time to reveal detail in the darker areas. The resulting WDR image provides natural, balanced detail – a must in critical surveillance applications with tricky lighting conditions.

    Removable IR Cut Filter for Continuous Monitoring

    The IR Cut Filter can be manually applied, or set to automatically adjust based on lighting conditions. This feature enables the camera to capture crisp colour images during the daytime, and grayscale images in low-light.

    Robust Management Software

    The included D-ViewCam™ camera management software allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

    1. MicroSD card not included

    Specifications

    Camera Hardware Profile
    • Sony Exmor 1/2.8" 3 Megapixel CMOS Sensor
    • Variable Speed 20x Optical Zoom
    • Day & Night with Mechanical IR Filter
    • 0.1 Lux (Color); 0.01 Lux (B/W)
    • Electronic shutter speed 1/1 - 1/10,100 second
    • Wide Dynamic Range (WDR)
    • Focal Length: 4.7 to 96 mm
    • Horizontal Field of View: 52° to 4°
    PTZ Hardware Profile
    • Pan travel: 360° endless
    • Tilt Travel: -10° to 190°
    • Presets: 256 points
    • Preset Accuracy: ± 0.225°
    • Preset Speed: 5° to 400° per second
    • Sequence Paths: 8
    • Auto Pan Paths: 4
    • Cruise Paths: 8
    • Pan and tilt speed proportional to zoom ratio
    • Resume after power loss
    • Home Function: Preset, Sequence, Auto pan, Cruise
    • Auto Flip: Mechanical/Digital/Off
    • Digital Slow Shutter
    • Image Freeze
    • Image Inverse
    Image Features
    • Adjustable image size, quality, frame rate and bit rate
    • Time stamp and text overlays
    • Configurable motion detection windows
    • 16 configurable privacy masks
    • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness
    Video Compression
    • Simultaneous H.264/MJPEG format compression
    • H.264 multicast streaming
    • JPEG for still images
    Video Resolution
    • 1920 x 1080 (1080P)
    • 1280 x 720 (720P)
    • 800 x 600 (SVGA)
    • 640 x 480 (VGA)
    • 1280 x 1024 (SXGA)
    • 1024 x 768 (XGA)
    • 640 x 480 (VGA)
    • 320 x 240 (CIF)
    Audio Compression
    • G.726
    • G.711
    External Device Interfaces
    • 4 alarm inputs
    • 2 alarm outputs
    • Audio input/output
    • microSD card slot1
    Network Protocol
    • IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP, PPPoE, UPnP Forwarding, RTP/RTSP/RTCP, IP filtering, IGMP, IEEE802.1x, QoS, SNMP, ONVIF Compliant
    Security
    • Administrator and user group protection
    • Password authentication
    System Requirements for Web Interface
    • Microsoft Windows 8/7/Vista/XP/2000
    • Internet Explorer, Chrome, or Firefox
    Event Management
    • Motion detection
    • Tamper detection
    • Event notification and upload snapshots/video clips via SMTP or FTP
    • Multiple event notification
    • Multiple recording methods for easy backup
    • Supports multiple HTTP, SMTP and FTP servers
    Remote Management
    • Configuration accessible via web browser
    • Take snapshots/video clips and save to local hard drive
    D-ViewCam System Requirements
    • Operating System: Microsoft Windows 7/Vista/XP
    • Web Browser: Internet Explorer 7 or higher
    D-ViewCam Software Functions
    • Remote management/control of up to 32 cameras
    • Viewing of up to 32 cameras on one screen
    • Supports all management functions provided in web interface
    • Scheduled motion triggered, or manual recording options
    Power Input
    • AC 24V, 3A
    • 802.3at PoE+2
    Max. Power Consumption
    • Max 65W (with heater)
    Temperature
    • Operating: -40° to 122° F (-40° to 50° C)
    • Storage: -4° to 158° F (-20° to 70° C)
    Humidity
    • 20% to 80% non-condensing
    Housing Ratings
    • IP66 Weatherproof
    • IK10 Vandalproof
    Certifications
    • FCC (Class A)
    • CE (Class A)
    • CE LVD (EN60965-1)
    • ICES-003
    • C-Tick

    1 MicroSD card not included. Support up to 64GB capacity.
    2 Available in hardware revision Bx only




    Link to product page    $3,781.25
    D-Link DCS-6210

    D-Link DCS-6210 Full HD Mini Fixed Network Camera


    - 1/2.7" Lens, 2 MP Progressive CMOS Sensor, 1080p, 10x Digital Zoom, MicroSD/SDHC Slot, IP66, IK10, Motion Detection, 10/100 BASE-TX, 802.3af PoE :: DCS-6210

    Full HD Mini Fixed Dome Network Camera

    DCS-6210

    • Full HD 1080p resolution, up to 1920x1080
    • IP66 weatherproof and IK10 vandal proof certified housing
    • H.264, MPEG4, MJPEG video compression
    • Support for Motion Detection
    • Support for multiple simultaneous streams
    • SD Card Slot
    • Built-in 802.3af PoE

    Overview

    Compact and Strong

    The DCS-6210 high resolution indoor/outdoor fixed dome camera is tough, vandal resistant, and weatherproof. Industry rated, it is extremely versatile and unobtrusive, easy to mount anywhere, and the fully adjustable 3-axis gimbal allows you to get the view you need. The rugged IP66-rated housing is designed for the harshest environments. Equipped with a high resolution 2 megapixel sensor to provide Full HD 1080p video, the DCS-6210 also comes with an SD card slot for local video storage.

    Built for Tough Environments

    The DCS-6210 has a toughened metal, industry-certified IK10 (vandal proof) and IP66 (weatherproof) housing, specially designed for use in rugged environments, and built to withstand sudden high impact and adverse weather conditions.

    Flexible Installation

    The DCS-6210 has a Power over Ethernet (PoE) port which allows you to connect the camera to your network and power it through a single cable. This both expands and simplifies your options by doing away with the need for a nearby power outlet, making installation on ceilings much easier. The DCS-6210 can alternatively be powered by 12VDC, which broadens installation options, including transportation and solar deployments.

    Surveillance in Full High Definition

    The DCS-6210 is built with a 2 megapixel image sensor to provide both high-quality snapshots and video with resolutions up to 1920 x 1080. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily.

    A Complete, Expandable Surveillance Solution

    The DCS-6210 is a self-sufficient surveillance solution, capable of recording snapshots and video to a microSD card without requiring a PC or network storage device. If you want to expand your surveillance options, D-ViewCam management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.

    Built for Versatility

    The DCS-6210 comes with a wealth of features that enhance its surveillance capabilities, making it ideal for any situation. Its 3-axis lens mounting allows you to position it perfectly, while its motion detection capabilities allow it to automatically record video and send you a notification when motion is detected.

    Open Network Video Interface Forum (ONVIF)

    ONVIF is an open industry forum for the development of a global standard for the interface of IP-based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-6210 is ONVIF-compliant and therefore compatible with many third party Video Management Software (VMS) solutions.

    Robust Management Software

    D-ViewCam is a software program that allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.

    Event Management

    • Motion detection by weekly schedule
    • Event notification and upload snapshots/video
    • Clips via HTTP, SMTP or FTP
    • Multiple HTTP, SMTP or FTP server configurations
    • Multiple event notifications
    • Multiple recording methods for easy backup

    D-ViewCam™ Features

    • Manage up to 32 cameras at once
    • Adjustable image size and quality
    • Custom recording schedules
    • Event notifications
    • Upload a customized floor plan

    Technical Specifications

    Camera

    Camera Hardware Profile

    1/2.7” 2 Megapixel progressive CMOS sensor
    Fixed Lens, focal length 4.3 mm, aperture F2.0
    10x digital zoom

    Angle of view:

    (H) 79 °
    (V) 43 °
    (D) 90 °

    Camera Housing

    IP-66 weather-proof compliant
    IK-10 vandal-proof compliant

    Image Features

    Configurable image size, quality, frame rate, and bit rate
    Time stamp and text overlays
    Configurable motion detection windows
    Configurable privacy mask zones
    Configurable white balance, brightness, saturation, contrast, sharpness, and BLC

    Video Compression

    Simultaneous H.264/MPEG-4/MJPEG format compression
    H.264/MPEG-4 multicast streaming
    JPEG for still images

    Video Resolution

    16:9 - 1920 x 1080 (upto 15 fps) 1280 x 800, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps recording

    4:3 - 1440 x 1080 (up to 25 fps) 1024 x 768, 800 x 600, 640 x 480, 480 x 360, 320 x 240, 176 x 144 up to 30 fps recording

    Audio Support

    G.726
    G.711

    External Device Interfaces

    10/100 BASE-TX Fast Ethernet port
    Supports 802.3af PoE
    MicroSD/SDHC card slot

    Network

    Network Protocols

    IPv6
    IPv4
    TCP/IP
    UDP
    ICMP
    DHCP client
    NTP client (D-Link)
    DNS client
    DDS client (D-Link)
    SMTP client
    FTP client
    HTTP / HTTPS
    Samba client
    PPPoE
    UPnP port forwarding
    RTP / RTSP/ RTCP
    IP filtering
    QoS
    CoS
    Multicast
    IGMP
    ONVIF compliant

    Security

    Administrator and user group protection
    Password authentication
    HTTP and RTSP digest encryption

    System Management

    System Requirements for Web Interface

    Browser: Internet Explorer, Firefox, Safari, Chrome

    Event Management

    Motion detection

    Event notification and uploading of snapshots/video clips via e-mail or FTP

    Supports multiple SMTP and FTP servers

    Multiple event notifications

    Multiple recording methods for easy backup

    Remote Management

    Take snapshots/video clips and save to local hard drive or NAS via web browser
    Configuration interface accessible via web browser

    D-ViewCam™ System Requirements

    Operating System: Microsoft Windows 7/Vista/XP
    Web Browser: Internet Explorer 7 or higher
    Protocol: Standard TCP/IP

    D-ViewCam™ Software Functions

    Remote management/control of up to 32 cameras
    Viewing of up to 32 cameras on one screen
    Scheduled motion triggered, or manual recording options
    Supports all management functions in web interface

    Physical

    Weight

    412.2 g ± 5%

    Power Consumption

    8.6 watts ± 5%

    Temperature

    Operating: -25 to 50 °C (-13 to 122 °F)

    Storage: -20 to 70 °C (-4 to 158 °F)

    Humidity

    Operating: 20% to 80% non-condensing

    Storage: 5% to 95% non-condensing

    Certifications

    CE
    CE LVD
    FCC
    C-Tick

    Link to product page    $393.25
    D-Link DCH-S220

    D-Link DCH-S220 Wi-Fi Siren - 802.11n/g, Two Internal Antennas, Sensor And Get Alerted To Movement Near Doorways, Windows, And Other Sensitive Areas, Suitable with D-Link Motion Sensors - White :: DCH-S220


    Wi-Fi Siren


    DCH-S220

    Overview

    Why you want it.

    Awareness

    Deterrence

    Security



    Pair it with a motion sensor
    Always know when something's moving at home. Pair your Wi-Fi Siren with your Wi-Fi Motion Sensor and get alerted to movement near doorways, windows, and other sensitive areas.



    Pair it with a water sensor
    Stop a problem from becoming a disaster. Pair your Wi-Fi Siren with your Wi-Fi Water Sensor to detect leaks from washing machines and water heaters before they cost you thousands.

    Make your home safer
    Use your siren with the Wi-Fi motion sensor or with the Wi-Fi Camera to monitor what's happening at home, even when you're on the go.

    Easy to set up rules
    Automate your home for safety, convenience, or both, using Rules – the easiest and best way to create a smarter and more reactive home.

    Works with what you have.
    Connects to your Wi-Fi network – No additional hub required.

    Customize Your Sound

    Easy set up



    Connect your Wi-Fi siren to an electrical outlet



    Connect to your existing Wi-Fi network (no hubs are required)



    Create rules with other devices (motion sensor, water sensor, camera) to automate your home

    What's in the box



    Wi-Fi Siren (DCH-S220)

    Quick Install Card

    Specifications

    Functionality

    Alarm Sounds

    6 different built-in sounds:

    • Emergency
    • Fire
    • Ambulance
    • Police
    • Door Chime
    • Arm/Disarm

    Alarm volume

    Selectable volume via mobile app:

    • 100 / 90 / 80 dB

    Features

    • Sound alarm based on trigger from other mydlink compatible devices
    • Receive mobile push notification
    • Schedule alarm sound at certain times

    Mobile app

    • mydlink® Home app for iPhone, iPad and Android smartphones and tablets

    Requires iOS 7 or above or Android 4.0 or above

    Compatible devices

    • Wi-Fi Motion Sensor (DCH-S150)
    • Wi-Fi Water Sensor (DCH-S160)
    • Wi-Fi Smart Plug (DSP-W110)
    • Wi-Fi Smart Plug (DSP-W215)
    • HD Wi-Fi Camera (DCS-935L)

    General

    Wireless

    • 802.11n/g

    Wireless Frequency Range

    • 2.4GHz to 2.4835GHz

    Maximum Operating Range

    • Within wireless coverage from existing Wi-Fi network

    Antennas

    • Two internal antennas

    LED

    • Status
    • Warning

    Buttons

    • Wi-Fi Protected Setup (WPS)
    • Reset

    Security

    • Wi-Fi Protected Access (WPA/WPA2)
    • Wi-Fi Protected Setup (WPS)

    Minimum Requirements

    • Smartphone or tablet (iOS 7 or above; Android 4.0 or above)
    • Router with Wi-Fi and internet connection
    • One available power outlet (125V AC)

    Physical

    Indoor or Outdoor Use

    • Indoor use only

    Dimensions

    • 2.56 x 2.56 x 2.07 inches

    Weight

    • 3.70 ounces

    Power

    • Input: 125V AC, 50/60 Hz

    Temperature

    • Operating: 32 to 104 °F
    • Storage: -4 to 149 °F

    Humidity

    • Operating: 10% to 90% non-condensing
    • Storage: 5% to 95% non-condensing

    Certifications

    • FCC
    • UL

    Order Information

    Part Number: DCH-S220

    Description: mydlink® Wi-Fi Siren

    Warranty: 1-year Limited Warranty

    Link to product page    $99.00
    D-Link DCS-4602EV

    D-Link DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera - 1/3 Megapixel Progessive CMOS Sensor, 10x Digital Zoom, IP-66 Compliant Weatherproof Housing, IK10 Vandal-Proof Housing - White :: DCS-4602EV

    Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera


    DCS-4602EV

    Overview

    High-Quality Streaming & Recording

    To maximize bandwidth efficiency and improve image quality, the DCS-4602EV provides realtimevideo compression using the H.264 and MJPEG codecs, and supports three separateprofiles for simultaneous video streaming and recording. This versatility enables a wide varietyof security applications, such as monitoring public areas to detect incidents and to coordinateresponses, enforcing access control to restricted areas, deterring criminal activity, or monitoringinventory.

    Continuous Monitoring

    The DCS-4602EVs WDR image enhancement gives you improved image quality inenvironments with uneven or difficult lighting, so you can identify subjects that are backlit or inbrightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to useall available light. The DCS-4602EV also has built-in IR LED illuminators with a 20 meter range,allowing the camera to keep watch even in complete darkness. These features work together togive you a reliable surveillance camera capable of monitoring an area 24 hours a day.

    Robust Management Software

    The DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Cameraincludes D-ViewCam, a complete surveillance software package that enablesyou to view, manage, and record from up to 32 cameras on a single computerin a central location. Recordings and e-mail alerts can be triggered throughmotion detection or events triggered by digital input devices, keepingadministrators informed of any unusual activity.

    Flexible Connectivity

    The DCS-4602EV has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a singlecable, reducing the need to drill holes or lay additional cabling.

    Features

    Dimensions

    110.9 mm x 45 mm x 78.7 mm

    SD Card Slot

    NA

    PTZ Functionality

    NA

    Video Resolution

    4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640x480, 480 x 352, 320 x 240 up to 30 fps

    Max. Resolution

    16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360, 480x272, 320 x 176 up to 30 fps

    Image sensor

    1/3 1.3 megapixel progressive CMOS sensor

    Ethernet Port Interface

    10/100

    Wireless

    NA

    Day & Night- ICR

    Yes

    Day & Night- IR LED

    Yes

    Angle of View

    (H) 96 (V) 54 (D) 108

    Digital Zoom

    10x

    Built-in Microphone

    NA

    Max. Power Consumption

    5.5 watts 5% (PoE)

    Operating Temperature

    -30 to 50 C (-22 to 124 F)

    ONVIF Compliant

    Yes

    Outdoor Usage (IP65,IP66)

    Yes

    mydlink enabled(Cloud)

    NA

    Specifications

    Camera Hardware Profile

    1/3 Megapixel progressive CMOS sensor

    20 meter IR illumination distance

    Minimum illumination:

    1.0 lux / F2.0 (color)

    0.5 lux /F2.0 (B/W)

    0 lux / F2.0 (IR-LED on)

    Built-in Infrared-Cut Removable (ICR) Filter module

    10x digital zoom

    Minimum object distance 0.2M

    Focal length: 2.8 mm

    Aperture: F2.0

    Angle of view:
    (H) 96
    (V) 54
    (D) 108

    Adjustment angle (non-motorized):

    Vertical: 60

    Horizontal: 350

    Camera Housing
    IP-66 compliant weatherproof housing IK10 vandal-proof housing

    Image Features
    Configurable image size, quality, frame rate, and bit rate

    Time stamp and text overlays

    Configurable motion detection windows

    Configurable privacy mask zones

    Configurable shutter speed, brightness, saturation, contrast, sharpness, WDR, and 3D filter.

    Video Compression
    Simultaneous H.264/MJPEG format compression

    H.264/MJPEG multicast streaming

    JPEG for still images

    Video Resolution
    16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps

    4:3 - 1440 x 1080, 1280 x 960, 900 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps

    External Device Interfaces
    10/100 BASE-TX Fast Ethernet port Supports 802.3af PoE Class 2

    Network Protocols
    IPv6 IPv4 ARP TCP/IP UDP ICMP DHCP client NTP client (D-Link) DNS client DDNS client (D-Link) SMTP client FTP client HTTP/HTTPS Samba client PPPoE UPnP port forwarding RTP/RTSP/RTCP IP filtering Multicast CoS QoS/DSCP SNMP ONVIF compliant

    Security
    Administrator and user group protection Password authentication HTTP and RTSP authentication

    System Requirements for Web Interface Browser: Internet Explorer, Firefox, Safari

    Event Management
    Motion detection
    Event notification and uploading of snapshots/video clips via e-mail or FTP
    Supports multiple SMTP and FTP servers
    Multiple event notifications
    Multiple recording methods for easy backup

    Remote Management
    Take snapshots/video clips and save to local hard drive
    Configuration interface accessible via web browser

    D-ViewCam System Requirements
    Operating System: Microsoft Windows 8/7/Vista

    Web Browser: Internet Explorer 7 or higher

    Protocol: Standard TCP/IP

    D-ViewCam Software Functions
    Remote management/control of up to 32 cameras
    Supports all management functions provided in web interface

    Viewing of up to 32 cameras on one screen
    Scheduled motion triggered, or manual recording options

    Weight 525 g 5%

    Power Input: 100 to 240 V AC, 50/60 Hz Output: 12 V DC 1.5 A

    Power Consumption 5.5 watts 5% (PoE)

    Temperature
    Operating: -30 to 50 C (-22 to 124 F) Storage: -20 to 70 C (-4 to 158 F)

    Humidity
    Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing

    Certifications
    CE CE LVD FCC C-Tick

    Link to product page    $305.10
    D-Link DCS-4701E

    D-Link DCS-4701E Vigilance HD Day & Night Outdoor Mini Bullet PoE Network Camera - 1.3 Megapixel Progressive CMOS Sensor, Up To Resolution Of 1280x720 @ 30FPS, H.264, MJPEG Codec Support - White :: DCS-4701E

    Vigilance HD Day & Night Outdoor Mini Bullet PoE Network Camera


    DCS-4701E

    • High Definition 720p resolution, up to 1280x720 @ 30fps
    • Compact and robust housing
    • IP66 weatherproof
    • Built-in IR LED illumination
    • Wide Dynamic Range image enhancement
    • Built-in 802.3af PoE

    Overview

    The D-Link DCS-4701E Vigilance HD Outdoor PoE Mini Bullet Camera is a high-definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 1.3 megapixel progressive scan CMOS sensor to deliver truly superior quality video under a wide range of lighting conditions. The all-in-one rugged design makes this camera ideal for reliable deployment in surveillance applications without the need for additional accessories.

    Enhanced LowLight Video

    Incorporating a highly sensitive CMOS sensor, the DCS-4701E provides outstanding performance in low-light conditions, rendering more vibrant colour details regardless of the amount of light available. The noise reduction feature has also been upgraded and enhanced as well to provide a level of detail in the image quality that is unmatched by other offerings in the market.

    Continuous Monitoring


    The built-in IR LED illuminators automatically turn on depending on lighting conditions, allowing the camera to capture video even in low-light or no-light conditions. Combined with the IR-Cut filter, the DCS-4701E can also provide sharp grayscale video in low-light conditions. Embedded with a powerful SoC (System-on-Chip), the camera provides real-time video compression in H.264 and MJPEG formats. These elements combine to make the DCS-4701E an ideal solution for 24-hour surveillance.

    Flexible Connectivity


    The DCS-4701E has a built-in 802.3af compliant PoE module that eases installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling.

    Robust Management Software

    TheDCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

    D-ViewCam Features

    Manage up to 32 cameras at once
    Adjustable image size and quality
    Custom recording schedules
    Event notifications
    Upload a customized floor plan

    Technical Specifications

    Camera

    Camera Hardware Profile

    1/3 1.3 megapixel progressive CMOS sensor
    30 meter IR illumination distance

    Minimum illumination

    0.2 lux (color)
    0.1 lux (B/W)
    0 lux (IR LED on )

    Built-in Infrared-Cut Removable (ICR) Filter module
    10x digital zoom
    Minimum object distance 0.2 m

    Focal length: 2.8 mm
    Aperture: F2.0

    Angle of view:

    (H) 96
    (V) 54
    (D) 108

    Camera Housing

    IP-66 compliant weatherproof housing
    Wire-in bracket

    Image Features

    Configurable image size, quality, frame rate, and bit rate
    Time stamp and text overlays
    Configurable motion detection windows
    Configurable privacy mask zones
    Configurable shutter speed, brightness, saturation, contrast, and sharpness
    WDR
    3D filter

    Video Compression

    Simultaneous H.264/MJPEG format compression
    H.264/MJPEG multicast streaming
    JPEG for still images

    Video Resolution

    16:9 - 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps
    4:3 - 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps

    External Device Interface

    10/100 BASE-TX Fast Ethernet port
    Supports 802.3af PoE

    Network

    Network Protocols
    IPv6
    IPv4
    TCP/IP
    UDP
    ICMP
    DHCP client
    NTP client (D-Link)
    DNS client
    DDNS client (D-Link)
    SMTP client
    FTP client
    HTTP / HTTPS
    Samba client
    PPPoE
    UPnP port forwarding
    RTP / RTSP/ RTCP
    IP filtering
    QoS
    CoS
    Multicast
    SNMP
    ONVIF compliant

    Security

    Administrator and user group protection
    Password authentication
    HTTP and RTSP authentication

    System Management

    System Requirements for Web Interface
    Browser: Internet Explorer, Firefox, or Safari

    Event Management

    Motion detection
    Event notification and uploading of snapshots/video clips via e-mail or FTP
    Supports multiple SMTP and FTP servers
    Multiple event notifications
    Multiple recording methods for easy backup

    Remote Management

    Take snapshots/video clips and save to local hard drive
    Configuration interface accessible via web browser

    D-ViewCam System Requirements

    Operating System: Microsoft Windows 8/7/Vista
    Web Browser: Internet Explorer 7 or higher
    Protocol: Standard TCP/IP

    D-ViewCam Software Functions

    Supports all management functions provided in web interface
    Scheduled motion triggered, or manual recording options
    Remote management/control of up to 32 cameras
    Viewing of up to 32 cameras on one screen

    General

    Weight
    445 g 5 %

    External Power Adapter

    Input: 100 to 240 V AC, 50/60 Hz
    Output: 12 V DC 1.5 A

    Power Consumption
    4.7 watts 5 % (PoE)

    Temperature

    Operating: -30 to 50 C (-22 to 122 F)
    Storage: -20 to 70 C (-4 to 158 F)

    Humidity

    Operating: 20 % to 80 % non-condensing
    Storage: 5 % to 95 % non-condensing

    Certifications

    CE
    CE LVD
    FCC
    C-Tick
    Link to product page    $243.80
    D-Link DCS-6314

    D-Link DCS-6314 Full HD WDR Outdoor Dome IP Camera - 2 Megapixel Full HD (1920x1080), Day/Night IR Filter, Built-in IR Illuminator, Digital PTZ, 2-Way Audio, Outdoor-Ready - White :: DCS-6314

    2 MP Full HD WDR Outdoor Dome IP Camera

    DCS-6314

    Overview

    The D-Link DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera is a high definition professional surveillance and security solution suitable for small, medium, and large enterprises. The camera uses a high-sensitivity 2 megapixel progressive scan CMOS sensor with onboard WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one rugged design makes this camera extremely reliable and ideal for deployment in surveillance applications without the need for additional accessories.

    High-Quality Video

    To maximise bandwidth efficiency and improve image quality, the DCS-6314 provides real-time video compression using the H.264, MPEG4, and MJPEG codecs, and supports three separate profiles for simultaneous video streaming and recording. This versatility enables a wide variety of security applications, such as monitoring public areas to detect incidents and to coordinate responses, enforcing access control to restricted areas, deterring criminal activity, or monitoring inventory. Furthermore, bandwidth requirements can be adjusted in real-time over the network, and recorded video files can be saved to a network attached storage (NAS) device or internal Micro SD card.

    Continuous Monitoring

    The DCS-6314s WDR image enhancement gives you improved image quality in environments with uneven or difficult lighting, so you can identify objects that are backlit or in brightly lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use all available light. In addition, the DCS-6314 also has built-in IR LED illuminators with a45feet range, allowing the camera to keep watch even in complete darkness. These features work together to give you a reliable surveillance camera capable of monitoring an area 24 hours a day.

    Robust Management Software

    The DCS-6314 Full HD WDR Varifocal Day & Night Outdoor Dome Network Camera includes D-ViewCam, a complete surveillance software package that enables you to view, manage, and record from up to 32 cameras on a single computer in a central location. Recordings and e-mail alerts can be triggered through motion detection or events triggered by digital input devices, keeping administrators informed of any unusual activity.

    Flexible Connectivity

    The DCS-6314 has a built-in 802.3af compliant PoE module that simplifies installation by providing power and networking connectivity with a single cable, reducing the need to drill holes or lay additional cabling. In addition, the included digital input and output connector enables connections to external devices such as IR sensors, switches and alarm relays.

    Five Year Warranty

    D-Link stands behind the quality of the DCS-6314 with an includedlimited 5-year warranty. An optional extended warranty doubles the warranty to 10 years and adds next business day hardware replacement.

    Response time is based on commercially reasonable effort and subject to restrictions. Visit www.dlink.com for warranty details.

    Features

    Maximum Resolution
    2 Megapixel Full HD (1920 x 1080)

    Environment Capabilities
    Outdoor-Ready

    Warranty
    5-Year Warranty

    Light Conditions
    Day/Night IR Filter
    Built-in IR Illuminator
    Wide Dynamic Range (WDR)

    Operating Temperature Range
    -30° to 50° C

    Network Connectivity
    10/100 Ethernet Port

    Power Options

    Power over Ethernet (PoE)
    Included Power Supply

    Pan/Tilt/Zoom Functionality
    Digital PTZ

    Audio Capabilities
    2-Way Audio

    Available Accessories
    Mounting options
    Interoperability
    Onvif-Compliant
    Unified D-Link API

    Specifications

    Camera

    Camera Hardware Profile

    • 1/2.8 2 Megapixel Progressive CMOS Sensor
    • 45feet IR Illumination Distance
    • Minimum illumination 0.2 Lux / F1.4 Color mode
    • Minimum illumination 0.05 Lux / F1.4 Black and White mode
    • Minimum illumination 0 Lux Black and White mode with IR LED on
    • Built-In Mechanical Infrared-Cut Filter
    • 2.8 to 12mm variable focal lens
    • Aperture F1.4
    • Angle of view (16:9)
      • (H) 96.5 ~ 31.2
      • (V) 64.5 ~ 17.8
      • (D) 117.5 ~ 36.8

    Camera Housing

    • IP68 compliant weatherproof housing
    • IK10 compliant vandal-proof housing
    • Included weather shield

    Image Features

    • Configurable image size, quality, frame rate, and bit rate
    • Time stamp and text overlays
    • Configurable motion detection windows
    • Configurable privacy mask zones
    • Configurable exposure time, brightness, saturation, contrast, contrast, sharpness.

    Video Compression

    • Simultaneous H.264/MPEG-4/MJPEG format compression
    • H.264/MPEG-4 multicast streaming
    • JPEG for still images

    Video Resolution

    • 16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
    • 4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps

    Audio Support

    • G.726
    • G.711

    External Device Interface

    • 10/100 BASE-TX Ethernet port with PoE
    • 1 DI / 1 DO
    • DC12 V, 100 mA Output
    • micro SD/SDHC Card Slot
    • Audio Input / Output

    Network

    Network Protocols

    • IPv6
    • IPv4
    • TCP/IP
    • UDP
    • ICMP
    • DHCP client
    • NTP client (D-Link)
    • DNS client
    • DDNS client (D-Link)
    • SMTP client
    • FTP client
    • HTTP / HTTPS
    • Samba client
    • PPPoE
    • UPnP port forwarding
    • RTP / RTSP/ RTCP
    • IP filtering
    • QoS
    • CoS
    • Multicast
    • ONVIF compliant

    Security

    • Administrator and user group protection
    • Password authentication
    • HTTP and RTSP digest encryption

    System Management

    System Requirements for Web Interface

    • Browser: Internet Explorer, Firefox, Chrome, Safari

    Event Management

    • Motion detection
    • Event notification and uploading of snapshots/video clips via e-mail or FTP
    • Supports multiple SMTP and FTP servers
    • Multiple event notifications
    • Multiple recording methods for easy backup

    Remote Management

    • Take snapshots/video clips and save to local hard drive or NAS via web browser
    • Configuration interface accessible via web browser

    OS Support

    • Windows 2000/XP/Vista/Windows 7/iPhone/iPad/Android

    D-ViewCam System Requirements

    • Operating System: Microsoft Windows 7/Vista/XP
    • Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP

    D-ViewCam Software Functions

    • Remote management/control of up to 32 cameras
    • Supports all management functions provided in web interface
    • Viewing of up to 32 cameras on one screen
    • Scheduled motion triggered, or manual recording options

    General

    Weight

    • 2.45 lbs (1112 grams)

    Power

    • Input: 100 to 240 V AC, 50/60 Hz
    • Output: 12V DC 1.25 A

    Power Consumption

    • 10 +- 5% Watt

    Temperature

    • Operating: -22 to 124 F (-30 to 50 C)
    • Storage:-4 to 158 F (-20 to 70 C)

    Humidity

    • Operating: 20% to 80% non-condensing
    • Storage: 5% to 95% non-condensing

    Certifications

    • CE
    • CE LVD
    • FCC
    • C-Tick

    Warranty

    • 5-Year Limited Warranty

    Link to product page    $680.30
    D-Link DKT-1122

    D-Link DKT-1122 Video Recorder & Camera Starter Kit - (DNR-202L + 2 x DCS-933L Bundle) :: DKT-1122

    DKT-1122 mydlink Video Recorder and Camera Starter Kit

    The DKT-1122 mydlink Video Recorder and Camera Starter Kit is a simple DIY kit supplied with 2 cameras and an NVR that allows you record video to locally attached USB storage.


    DCS-933L Wireless N Day/Night H.264 Cloud Network Camera

    The DCS-933L produces High Quality video images and it comes with built-in microphone, infrared LEDs, sound and motion detection features. It also comes with built-in wireless extender for whole-home coverage.

    Description

    The DCS-933L Wireless N H.264 Day/Night Network Camera is a versatile and unique solution for your small office or home. Unlike a standard webcam, the DCS-933L is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance.

    Peace Of Mind With 24/7 Monitoring Of Any Environment


    The DCS-933L is a standalone surveillance camera that requires no special hardware or software, and can run independently even without a PC. Send e-mail notifications with snapshots or video clips whenever motion or sound is detected using just the DCS-933L and an internet connection. You can customize areas of the video to monitor for motion to keep watch over entryways, and you can set volume limits to detect when a loud sound is picked up by the camera. Night time monitoring is possible with the built-in infrared LEDs which allow for night time viewing of up to 16 feet (5 meters), enabling round-the-clock monitoring of a home or small office.

    Full Featured Surveillance System

    Included with the DCS-933L is the D-ViewCam software, which adds enhanced features and functionality that helps you create a full surveillance system. D-ViewCam enables centralized management of multiple network cameras, supporting up to 32 network cameras and up to 64 users. With a dedicated computer it offers digital monitoring and recording with a wide array of features, including scheduled, motion and manual recording options for individual needs.

    The Fastest Technology, The Strongest Coverage


    Offering wireless 802.11b/g/n and Ethernet/Fast Ethernet connectivity, the DCS-933L is a snap to integrate into your existing network environment. You can use the DCS-933Ls Extender Mode to extend the range of your wireless network, giving your home or office better wireless coverage. This will help a home wireless network to eliminate dead spots and allow for the addition of other wireless devices easily.

    Instant Anywhere Access With mydlink Cloud Service

    Enhanced with mydlink support DCS-933L makes it easier and more convenient for you to look after your family and home or office environment. With a mydlink service enabled camera, you can stay connected to everything you love from anywhere, anytime. The mydlink service can be accessed by a web browser and also provides an optional downloadable mydlink app that allows users to have a better experience on their mobile devices. With the mydlink app, you can quickly and easily view your camera feed from anywhere using a Wi-Fi, 3G or 4G connection.

    Features

    • Wireless N Connectivity with Extender Mode
    • Sound and Motion Detection with Night Vision
    • Easily View and Manage Your Camera from au.mydlink.com
    • Ready to Use in 3 Simple Steps
    • Works with the mydlink iPhone/Android or Android app for on-the go viewing
    • Compact design with night vision that lets you view 24/7
    • mydlink Zero Configuration setup

    DNR-202L mydlink Camera Video Recorder

    The DNR-202L mydlink Camera Video Recorder is a home Network Video Recorder (NVR) which records from up to 4 IP cameras to locally attached USB storage. The DNR-202L is an efficient and reliable consumer oriented, plug-and-play NVR with a user-friendly GUI that greatly simplifies network and camera setup.

    Description

    The DNR-202L mydlink Camera Video Recorder is a home Network Video Recorder (NVR) which records from up to 4 IP cameras to locally attached USB storage. The DNR-202L is an efficient and reliable consumer oriented, plug-and-play NVR with a user-friendly GUI that greatly simplifies network and camera setup. With powerful management for your IP cameras, video recording, playback and storage the DNR-202L provides high-quality remote monitoring functionality and serves as a well featured digital replacement for older surveillance systems.

    mydlink Technology on your Mobile Device

    Empowered with mydlink technology, the DNR-202L enables users to remotely view and manage mydlink enabled devices from anywhere via a web browser using the mydlink website or the NVRs web interface. Additionally the mydlink View NVR app means you can access and monitor your DNR-202L from your mobile devices.

    Convenient and Reliable Video Recording

    The DNR-202L can manage multiple network cameras, providing direct access to view live video and play recorded data over the Internet from anywhere, anytime. Complete video management and the ability to playback and record new video simultaneously, the DNR-202L is an extremely convenient and effective video recorder. Moreover, the light weight, portability and small size of the DNR-202L make it easy to deploy in any location.

    Versatile Monitoring and Adjustment

    Users have a variety of options for viewing and organizing saved recordings on-screen. Helpful, user-friendly camera names and recording statuses can be displayed via the on-screen display. Single or Multiple cameras may be viewed on-screen and users can also control pan/tilt/zoom (PTZ) functions from within the interface.

    Automatic Camera Discovery

    Finding and configuring your IP cameras couldnt be easier. Simply press the auto-scan button and the DNR-202L will find all the cameras connected to your network. The DNR-202Ls built in buzzer will beep to confirm each of the cameras it finds.

    Extensive recording functionality

    The DNR-202L uses clear and simple interface enabling users to quickly and easily configure the most common settings, including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made automatically.

    Features

    • Reliable network camera surveillance recorder for home and small businesses
    • View and record real-time video from up to four cameras remotely via the Internet
    • Concurrent viewing and recording
    • Effortless network camera discovery, setup and management
    • Continuous recording with automatic overwrite function
    • Live monitoring includes multi-camera, fullscreen, glance, pan/tilt/zoom control
    • Calendar search and video preview before playback
    Link to product page    $299.95
    D-Link DNR-202L

    D-Link DNR-202L Camera Video Recorder - Supports 4 Channel Simultaneous Playback, Remote Viewing With MyDlink Service, 2xUSB2.0, 10/100 BASE-TX, H.264/MPEG4 720p @ 30FPS


    - No Hard Drive Disk Included :: DNR-202L

    mydlink Camera Video Recorder


    DNR-202L

    • Simultaneously record video and view real-time or playback recorded video from up to four mydlink cameras
    • Secure and safe storage of camera video with up to two attached USB external hard drives (bring your own drives)
    • Motion or schedule based recording of high-quality video and audio
    • Quick and easy setup with auto camera discovery and mydlink
    • Free mobile app and web portal for remote viewing
    • Ethernet and two USB 2.0 ports
    • Compact size (4.6" x 2.75" x 0.8")

    Overview

    Monitor And Protect Your Home or Small Business

    The mydlink Camera Video Recorder (DNR-202L) captures every moment while youre away. The DNR-202L is designed with two USB ports (you bring the USB hard drives) and is capable of recording 24/7 video without requiring a dedicated PC. Ideal for a home or small business.


    Simultaneously playback recorded footage or view live video while recording up to four mydlink Network Cloud Cameras. Unlike traditional analog CCTV network video recorders, the DNR-202L supports megapixel cameras for recording high-quality HD video and audio based on motion alerts or recording schedules.

    Supports the following mydlink Network Cloud Cameras: DCS-930L, DCS-931L, DCS-932L, DCS-933L, DCS-942L, DCS-2132L, DCS-2310L, DCS-2332L, DCS-5010L, DCS-5020L, DCS-5222L, DCS-6010L, DCS-7010L

    Features


    • Simultaneously record video and view real-time or playback recorded video (4-channel)
    • Supports up to four mydlink Network Cloud Cameras
    • Secure and safe storage of camera video with up to two attached USB external hard drives
    • Bring your own hard drives (up to 8TB - 2 x 4TB)
    • Motion alert or schedule based recording
    • Quick and easy setup with auto camera discovery
    • No fees or subscription required. Free mobile app and web portal for remote viewing *
    • Ethernet connection and two USB ports
    • Compact size (4.6 x 2.75 x 0.80)
    *Internet service or data fees might apply.

    Free Mobile App for Remote Viewing



    Real-time Monitoring and playback from anywhere through mydlinkTM

    Remotely enable/disable recording
    Easy search on recorded videos by calendar
    No Monthly service fees
    Free mobile app (iOS and Android version)
    Remote Pan & Tilt live video
    Pinch-zoom

    mydlink Camera Video Recording Made Easy

    Versatile Recording and Monitoring

    Simultaneous playback or view live video while recording up to four mydlink cameras.

    Use the DNR-202L on a local network or remotely connect using the free mydlink View app or portal anywhere with an Internet connection.



    Easy Search and Play Recorded Video

    The DNR-202L provides easy access to playback of recorded video locally using the included NVR management interface from  anywhere using the free mydlink mobile app and portal.

    Select the recorded video by date/time then choose the cameras you want to view.  It’s that easy.


    Effortless Do-it-Yourself (DIY) Installation

    Installing the mydlink Camera Video Recorder (DNR-202L) has never been easier.

    Simply connect the mydlink Camera Video Recorder to the same network as your mydlink cameras.The Setup Wizard will automatically discover installed cameras and setup recording to the DNR-202L.


    Video Recording Storage on Your Terms

    Locate the mydlink Camera Video Recorder in a safe, secure place and record camera video to the attached USB external drives. Start with one hard drive and easily expand storage by attaching a second USB drive.

    You can attach 1 or 2 USB drives for up to 8TB of storage Bring Your Own Drive for added convenience and cost savings.


    Video Storage Amount (example)

    DNR-202L Storage Table

     *based on 1 camera with H.264 video compression, medium video quality and 5 fps.

    BYOD - DNR-202L

    based on 1 camera with H.264 video compression, medium video quality and 5 fps.

    Compatible with Apple and Android Devices

    The mydlink™ Camera Video Recorder works with the following Apple devices with iOS 5.1.1 or higher:  iPod touch, iPhone, and iPad.  The DNR-202L also works with Android devices with version 4.01 or higher.  An Internet connection is required to view cameras remotely using the mydlink portal or mobile apps.

    Download the mydlink View-NVR App







    Download iOS App



    Download Android App



    Features

    • Cameras Supported
    • mydlink-enabled
    • 4 Channels
    • Fast Ethernet (10/100)
    • 0 Hard Drive Bays
    • Remote Viewing with mydlink service
    • 2 USB Ports
    • USB 2.0

    Specifications

    NETWORK VIDEO RECORDER

    Video Format

    H.264 / MPEG-4 / MJPEG for live streaming
    JPEG for still images

    Audio Support
    G.711 / G.726
    Reset Button
    Reset to factory default
    Auto Scan Key
    IP Camera Finder (press for 3 seconds)
    Eternal Device Interfaces
    10/100 BASE-TX Fast Ethernet Port for network connection
    2 x USB 2.0 ports for external HDD storage
    Supported Cameras
    Supports up to 4 mydlink-enabled network cameras
    Playback / Recording

    Supports 4 channel simultaneous playback
    Supports simultaneous live viewing or playback during recording
    Continuous recording with automatic overwrite function

    VIDEO MANAGEMENT

    Live View/Playback
    Interface
    HTTP Web Browser
    mydlink.com portal
    mydlink View app
    Live View Display Modes
    1 and 4 Channel display
    Recording Modes



    Schedule, Manual, Event (Motion), Continuous



    Recording Performance
    H.264 / MPEG4 720p @ 30 fps : 32 Mbps
    Video Setting
    Resolution/Quality/Frame Rate/Compression Format/Audio On and Off
    Playback Control
    Play, Stop, Pause, Forward, Backward, Next, Previous
    Video Export Formats
    Video: AVI
    Image: JPEG







    NETWORK

    Physical Interface RJ45 10/100 LAN Ethernet (auto MDI/MDIX)
    Network Protocols IPv4, ARP, TCP, UDP, ICMP
    DHP Client
    DNS Client
    HTTPS Server
    HTTPS
    SMTP
    RTP
    RTCP
    RTSP
    NTP
    UPnP

    SECURITY

    User Management
    Administrator password authentication
    Automatic Logoff
    Idle user timeout on configuration pages





    SYSTEM

    Supported mydlink Cameras
    DCS-930L, DCS-931L, DCS-932L, DCS-933L,DCS-942L, DCS-5010L
    DCS-5020L, DCS-2132L, DCS-5222L, DCS-2310L, DCS-2332L,
    DCS-6010L, DCS-7010L
    System Requirements
    Microsoft Windows 8, Vista, or XP SP2
    Mac OSX (10.5 or higher)
    Browser Requirements
    Internet Explorer 8 or higher
    Firefox
    Chrome
    Safari 5 or higher
    Mobile Support
    Android 4.01 and above
    iOS 5.1.1 and above
    Remote Management
    Remote live view and playback via web browser
    Configuration interface accessible via web browser
    System Log
    Status of active users
    Login history
    Certifications
    CE
    FCC
    CE LVD
    C-Tick





    PHYSICAL

    Weight
    0.2 lbs. (90g)
    External Power Adapter



    Input: 5V DC, 3 A
    Consumption: 8.5 Watts +/- 5% (include 2 x 2.5 HDD)

    Temperature
    Operating: 32o to 104o F (0o to 40o C)
    Storage: -4o to 158o F (-20o to 70o C)
    Humidity
    Operating: 10% to 90% non-condensing
    Storage: 5% to 95% non-condensing
    Dimensions
    4.7 x 3.1 x 0.80 inches
    (117.5 x 70 x 20.35 mm)






    Link to product page    $134.50
    D-Link DCS-34-3

    D-Link DCS-34-3 Bent Mount Bracket - For D-Link DCS-6511 Camera - White :: DCS-34-3

    DCS-34-3 Bent mount bracket for DCS-6511 camera


    Features

    • Height: 253mm
    • Bracket diameter: 150mm
    • Weight: 770g
    • Picture shown mounted with DCS-6511 camera, the camera is sold separately.

    Description

    Wall mounting accessory for DCS-6511 camera.
    Link to product page    $151.80
    D-Link DCS-34-2

    D-Link Pendant Ceiling Mount - For D-Link DCS-6511 Camera :: DCS-34-2

    Pendant Mount for DCS6511 Ceiling mounting accessory for DCS-6511 camera

    Features:

    Height: 201mm - Bracket diameter: 150mm

    Weight: 665g - Picture shown mounted with DCS-6511 camera the camera is sold separately.
    Link to product page    $64.70
    D-Link DCS-34-3

    D-Link Bent Wall Mount - For D-Link DCS-6511 Network Camera :: DCS-34-3

    Bent Mount for DCS6511 Wall mounting accessory for DCS-6511 camera

    Features:

    Height: 253mm - Bracket diameter: 150mm
    Weight: 770g - Picture shown mounted with DCS-6511 camera the camera is sold separately.
    Link to product page    $148.35
    D-Link DCS-6113V

    D-Link DCS-6113V Full HD Day & Night Vandal-Proof Fixed Dome Network Camera - 1/2.7" Full HD Progress Megapixel, Real-time H.264/MPEG-4/MJPEG, Built-In 4mm, F1.5 Fixed, Motion Detection, 2-Way Audio - White :: DCS-6113V

    DCS-6113V

    Full HD Day & Night Vandal-proof Fixed Dome Network Camera

    D-Link’s DCS-6113V Full HD Day & Night Dome Network Camera is an indoor fixed dome camera equipped with industry-leading high definition (Full HD) megapixel resolution and H.264 compression that enable high-quality video footage to be recorded. The DCS-6113V connects to a network to provide high-quality live video over the Internet. This camera is capable of capturing video in both dark and light environments thanks to its built-in IR LEDs and IR-cut removable (ICR) filter. The bundled 32-channel recording software simplifies the process of managing multiple IP cameras. The camera also has a built-in MicroSD card slot which can be used as a local backup by storing important events on an easily retrievable MicroSD card.

    Full HD Surveillance
    The DCS-6113V delivers Full HD 16:9 widescreen IP video surveillance which provides vivid high-quality video, making it easier to view and monitor footage.

    Multiple Video Streams
    The DCS-6113V supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low-bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, the DCS-6113V supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

    Day and Night Functionality
    The camera can be used during both day and night. The ICR filter allows the camera to capture crisp color images during the daytime and detailed grayscale at night, in low-night conditions, and even in complete darkness.

    Vandal and Tamper-proof
    Vandal-proof and anti-tamper features make the DCS-6113V camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The robust camera housing is IK-10-certified, allowing it to withstand a high amount of force. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

    Flexible Connectivity
    The DCS-6113V includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. The DCS-6113V also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

    3GPP Mobile Surveillance
    Support for 3GPP Mobile Surveillance allows users to view a live video feed from a 3GPP compatible Internet-ready mobile device. This extends monitoring capability, allowing users to check the camera’s video feed while on the go without a computer.

    D-ViewCam for Management
    The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly important events to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

    Viewing Window and ePTZ
    Customize your Region of Interest (ROI) by simply drawing a rectangle on the full view display in the web interface. Being able to digitally move the ROI is an advantage for a fixed camera since it can utilize the virtual auto pan along with preset point settings to display vivid details from HD video footage. The viewing window also allows you to utilize zoom to
    obtain more-indepth footage.

    Technical Specifications

    Camera

    Hardware Profile

    • 1/2.7” Full HD progressive megapixel CMOS sensor
    • 10 meter IR illumination distance
    • Built-in Infrared-Cut Removable (ICR) Filter module
    • Minimum illumination: 0.12 lux (day mode), 0 lux (night mode) with IR LED
    • Fixed lens, 4 mm F1.5 with 77.4 degree horizontal viewing angle
    • 256 Mbytes SDRAM
    • 128 Mbytes of flash memory
    • 16X digital zoom

    Image Features

    • Configurable image size, quality and bit rate
    • Time stamp and text overlays
    • 3 configurable motion detection windows
    • ePTZ function
    • 5 configurable privacy masks
    • Flip & mirror
    • Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

    Video Compression

    • H.264/MPEG4/MJPEG dual format compression simultaneously
    • JPEG for still image
    • H.264/MPEG-4 multicast streaming

    Video Resolution

    • 1920x1080 @ 15 fps, 1280x1024 @ 20 fps, 1280x720 @ 30 fps, 640x480 @ 30 fps, 320x240 @ 30 fps, 176x144 @ 30 fps

    Audio Features

    • GSM-AMR speech encoding, bit rate: 4.75 kbps to 12.2 kbps
    • MPEG-4 AAC audio encoding, bit rate: 16 kpbs to 128 kbps
    • Supports two-way audio and audio mute

    Network


    Network Protocols

    • IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, LLTD, CoS/QoS, SNMP, IGMP, 802.1x, ONVIF Compliant

    Security

    • Administrator and user group protection
    • Password authentication
    • HTTP and RTSP digest encryption
    • HTTPS streaming
    • Remote client access control

    System Integration

    System Requirements for Web Interface

    • Operating system: Microsoft Windows 7, Vista, XP, 2000
    • Browser: Internet Explorer 6 or higher, Chrome, Firefox, Safari

    D-ViewCam™ System Requirements

    • Operating System: Microsoft Windows 7, Vista, XP
    • Web Browser: Internet Explorer 6 or higher
    • Protocol: Standard TCP/IP

    Event Management

    • Motion detection
    • Tamper detection
    • Supports multiple HTTP, SMTP and FTP servers
    • Multiple event notification
    • Multiple recording methods for easy backup
    • Event notification and upload snapshots/video clips via HTTP, SMTP or FTP

    Remote Management

    • Configuration accessible via web browser
    • Take snapshots/video clips and save to local hard drive or NAS via web browser

    Surveillance Software Function

    • Remote management/control of up to 32 cameras
    • Viewing of up to 32 cameras on one screen
    • Supports all management functions provided in web interface
    • Scheduled motion triggered, or manual recording options

    Supported PDA, Mobile Phones, and Software

    • Handsets with 3GPP player, QuickTime 6.5, Real Player 10.5, Windows 2000/ XP/ Vista or 7

    External Device Interface

    • DI and DO for external sensor and alarm
    • External audio input (MIC in)
    • External audio/video output (AV out)
    • TV system switch (NTSC/ PAL)
    • MicroSD card slot

    Technical Specifications

    General

    • Power Input: 12 V DC 1.25 A, 50/60 Hz, IEEE 802.3af PoE
    • Max. Power Consumption: 5.3 W
    • Operating Temperature: -0 to 40 ¢ªC (32 to 104 ¢ªF)
    • Storage Temperature: -20 to 70 ¢ªC (-4 to 158 ¢ªF)
    • Humidity: 90% non-condensing
    • Vandal-proof: IK-10 standard
    • Weight: 578 g (1.27 lbs)
    • Certifications: CE (Class A), CE LVD (EN60965-1), FCC (Class A), ICES-003, C-Tick
    Link to product page    $204.90
    D-Link DNR322L

    D-Link DNR-322L Network Video Recorder


    - 2x SATA HDD, RAID 0,1,JBOD, 9 Channels :: DNR322L
    DNR-322L SECURECENTER™ 2-BAY NETWORK VIDEO RECORDER

    Overview

    Access Your Recorded Video Footage Anywhere Anytime With mydlink Network Video Recorder

    Features:

    • Camera & HDD Compatibility List
    • 2-bay Network Video Recorder, uses inexpensive 3.5” SATA drives
    • mydlink™ enabled for the easiest way to monitor your home, from your iPad, iPhone or Android devices
    • Record simultaneously from up to 9 cameras
    • Simultaneous recording and playback
    • Gigabit connectivity for fast transmission speeds
    • User/group quotas for security and confidentiality
    • RAID 1 technology to automatically mirror the contents of one Hard Drive to another
    • D-Link Green™ energy-saving design

    Description

    The mydlink Network Video Recorder is a standalone storage device that can record video simultaneously from up to nine network cameras without requiring users to turn on their PC. This device not only supports mydlink cameras but can be used to record footage from a range of D Link business cameras, which makes it an ideal DIY security solution for both homes and small businesses. With mydlink technology, the DNR-322L can be accessed remotely via a web browser from any computer connected to the Internet, just by logging into your mydlink account. Once connected, you can watch live video from any of your cameras, or playback recorded footage with the intuitive on-screen controls. With no set up fees or subscription costs, home and business users have the most flexible way to ensure their properties are secure.

    The easiest way to home monitoring

    With the mydlink Network Video Recorder it has never been easier to create a complete monitoring system for your home or small business. Unlike other solutions that require users to change their network settings to access their NVR from the Internet, the DNR-322L is simple to manage and access. Simply run the installation CD, assign your NVR to your mydlink account or if you are a first time user, set one up, and you are ready to go. The DNR-322L will even automatically discover your D-Link cameras in your network for you.

    A complete and flexible security solution

    The DNR-322L is the perfect solution for small businesses or people that travel and need to leave their properties unattended for long periods of time. With 2 bays for standard 3.5 inch, inexpensive Hard Drives, you can choose the recording capacity that best suits your needs. For example, two 3TB hard drives can store high-quality audio and video from four DCS-942L cameras for up to 6 weeks. The DNR-322L can be set up to record only during certain periods of time (for example, at night or during the weekends), or based on events, like on motion detection, so the recording capacity can be extended much longer.

    Versatile Monitoring

    Users have a variety of options for viewing and organising camera footage on-screen. If multiple cameras have been set up in a property, users can simply drag and drop video from selected cameras to the viewing area. Camera names and recording statuses are clearly displayed for easy reference. Users can control pan/tilt/zoom (PTZ) functions from within the interface or by directly clicking on the video.

    Secure Storage

    User accounts can be set up to limit access to the NVR or assign different access privileges for users by specifying the cameras they are allowed to access. For added security (for example to protect business premises) the recorded footage can be backed up to external storage on a different location. The NVR also includes the option to protect data using a RAID 1 configuration, which duplicates recorded video onto two separate hard drives. So your video is safe even if one of the Hard Drives fails.

    Extensive Recording Functionality

    The mydlink Network Video Recorders interface allows for straightforward configuration including compression, resolution, and frame rate for all connected cameras. Once the cameras have been set up, recordings can be made continuously, or according to a user-defined schedule. The NVR also provides event recording based on specific triggers such as when motion is detected.

    D-Link Green

    The Network Video Recorder with mydlink is part of D-Link Green, D-Links programme for providing eco-friendly alternatives without compromising performance: if the Hard Drives are not used in a configurable period of time, or data is not being transmitted, the DNR-322L will enter stand-by mode to save power. Also, the silent fan will adapt its speed depending on the Hard Drives temperature.

    Technical Specifications:

    firmware Specifications

    oS
    linux

    Supported cameras
    Supports all d-link network cameras. includes support for auto-discovery, and up to 3 megapixel resolution

    Recording performance

    max. capacity
    (nVr mode only):
    H.264 1080p (bitrate): 90 mbps
    H.264 720p (bitrate): 90 mbps
    mjpeg 1080p (frame rate): 90 fps
    mjpeg 720p (frame rate): 192 fps

    max. capacity (nVr+file Server mode):

    H.264 1080p (bitrate): 68 mbps
    H.264 720p (bitrate): 68 mbps
    mjpeg 1080p (frame rate): 70 fps
    mjpeg 720p (frame rate):150 fps

    Camera Search

    upnp

    Audio & Video recording

    Synchronized audio & video recording

    compression format

    H.264, mpeg-4, m-jpeg (for supported cameras)

    Video Settings

    Resolution, quality, frame rate, enable audio, go to camera interface

    Recording type

    record by schedule, manual, and event-based recording
    motion-triggered recording

    Remote live View

    Supported via ie explorer (max. 9 simultaneous channels)
    Supports mydlink portal (max. 1 simultaneous channel)

    Remote live View control

    live view, preset/go, patrol, focus, ptZ functions, snapshot, full screen, digital zoom, e-map, multiple view (1/4/6/9/16/25/36/48) with duplicated carrier

    Remote playback control

    Playback with normal, fast forward/rewind and step forward/rewind

    Remote playback

    Supported via ie and nVr client
    playback system with timeline gui, search by event, area, cameras, date and time
    internet explorer and nVr client support 1-channel playback
    digital zoom

    Overwrite recording

    Auto recycling when disk storage is full

    file export

    export videos to aVi or aSf file
    export images to bmp or jpg file

    user account
    additional accounts can be created to allow user access to the system, and specify authorization for camera channels, ptZ, etc

    System time

    Set the system time (d-link ntp, input time, sync with computer, daylight Saving time)

    ddnS

    d-link ddnS server support

    remote backup

    remote software can backup raw data to redundant storage
    auto backup of previous day’s video to ftp server

    SyStem StatuS

    camera status, System status
    Still picture emap support

    Network Service protocols

    ipV4, arp, tcp, udp, icmp
    dHcp client
    ntp client (d-link)
    dnS client
    ddnS client (d-link)
    Smtp client
    Http Server
    pppoe
    upnp
    ip filtering

    User interface

    mydlink web portal - internet explorer 7 or newer
    Http web browser - internet explorer 7 or newer (32 bit oS only)
    nVr Search utility

    tecHnical SpecificationS

    Hardware SpecificationS

    StandardS

    ieee 802.3/u/z
    auto mdi/mdi-x
    Sata i, ii

    Hard disk
    Hard disk control & management via pc
    reformat disk
    raid 0
    raid 1
    jbod

    two reSet modeS
    reset firmware gui button
    Hw reset button (hold for 5 seconds)

    flaSH rom


    128 mb

    ram
    256 mb ddr ii

    network interface
    gigabit ethernet lan port (10/100/1000 mbps)

    i/o portS

    rj45 port
    dc-in jack
    uSb port for upS status update (optional)

    power adapter
    dc 12V/4 a

    reset button
    reset to factory default

    Dimension (w x d x H)
    115 x 146.4 x 178.5 mm
    (4.53 x 5.76 x 7.03 inches)

    weigHt
     0.875 kg (1.93 lbs)

    Operating temperature
    0° to 55° c (32° to 131° f)

    Storage temperature
    -20 to 70 °c (-4 to 158 °f)

    Humidity
    Operating: 5% to 90% (non-condensing)

    Certifications

    ce
    fcc
    roHS

    Package contents

    dnr-322l 2-bay mydlink nVr
    power adapter
    ethernet cable
    Quick installation guide
    power cable Holder
    cd-rom with:
    Software
    product documentation
    Link to product page    $284.90
    D-Link DCS-5222L

    D-Link DCS-5222L HD Wireless N Pan & Tilt Network Camera - Megapixel HD 720P CMOS Sensor, Motorised Pan/Tilt/Zoom, 5M IR Illumination Distance, Built-In Passive Infra-Red (PIR), Built-In MicroSD Slot, Mic :: DCS-5222L

    DCS-5222L MYDLINK HD WIRELESS N PAN & TILT NETWORK CAMERA

    Features

    • Access the surveillance footages on your smart devices using mydlink iOS and Android apps
    • mydlink™ zero-configuration setup
    • Motorised Pan/Tilt/Zoom
    • Megapixel HD 720P CMOS sensor
    • 5 meter IR illumination distance
    • Minimum illumination 0 Lux with IR LED on
    • Built-in Passive Infra-Red (PIR)
    • Built-in Microphone
    • Built-in microSD slot

    Description

    D-Link DCS-5222L is a pan and tilt wireless network camera, ideal for small and medium business applications and remote monitoring over the Internet. It gives you detailed 24-hour remote surveillance of a large area by using a megapixel high-resolution HD image sensor for high-quality video and a built-in IR illuminator for low-light surveillance. The DCS-5222L can also be connected to your network wirelessly, allowing you to place the camera anywhere, and eliminating the need to install network cabling.

    A Complete Surveillance System

    The DCS-5222L includes a built-in CPU, allowing it to be used as a complete, standalone surveillance system. Recordings can be made continuously, whenever movement is detected, or according to a schedule you define. E-mail notifications can be sent when specific events occur, keeping you informed of what is going on. The built-in microSD slot allows the camera to run independently, or can be used to continuously record video even if the network connection is lost. The DCS-5222L can also be used as part of a multi-camera surveillance system through the included D-ViewCam software, which supports up to 32 cameras.

    Sharp Image Monitoring From Different Angles

    With sharp, responsive pan/tilt movement and digital zoom, the D-Link HD Wireless N Pan & Tilt Network Camera gives you full control, so you can quickly scan a wide area from a variety of angles, and 4x digital zoom1lets you zoom in for more detail. The DCS-5222L can also be set to automatically move to specific preset positions, allowing the camera to patrol and secure a wide area.

    mydlink for easy setup and remote viewing on your phone

    D-Links convenient mydlink zero-configuration setup gets you up and running in no time just connect the DCS-5222L, then register the device on the mydlink website. The DCS-5222L will then automatically configure itself and connect to the mydlink service, which gives you convenient access to your video feeds through the mydlink website. You can even view your camera feeds on your smart phone or tablet with the mydlink iOS and Android apps so you can stay in touch while on the go2.

    Flexible Surveillance

    Equipped with a 1.0 lux CMOS sensor, the DCS-5222L HD Wireless N Pan & Tilt Network Camera delivers exceptional picture quality even in low-light conditions. The motorized pan/tilt controls and 4x digital zoom allow you to monitor a large area and zoom to view fine details, and the PIR sensor detects movement in the area and can trigger recordings. The DCS-5222L can record snapshots and video to your computer, a network storage drive, or a microSD card. Camera footage can be viewed remotely through a web browser, or through a mobile device running the mydlink app for iOS and Android. Furthermore, the camera provides a Privacy Mode option, which allows you to set a schedule to enter privacy mode, which rotates the lens backwards to protect your privacy.

    Fast Wireless Connection

    The DCS-5222L uses 802.11n to provide wireless speeds of up to 300 Mbps and a large coverage area. This creates a solid wireless connection to your network, giving you the freedom to place the camera wherever you need it in your home without the need to install a network cable at the installation location.

    D-Viewcam Software

    D-ViewCam IP video management software is included with the DCS-5222L, and allows you to manage up to 32 cameras simultaneously from your computer. View multiple camera video feeds simultaneously, review previous surveillance footage, send automated e-mail alerts, record video to your hard drive when motion is detected, and much more.

    Specifications:

    Camera Specifications

    1/4” megapixel Progressive Cmos sensor
    5 meter ir illumination distance
    minimum illumination 0 lux with ir leD on
    built-in infrared-Cut removable (iCr) filter module
    built-in Passive infra-red (Pir)
    fixed length 4.57 mm
    aperture f1.9
    angle of view:
    (H) 45.7°
    (v) 29.5°
    (D) 52.9°
    built-in microphone

    Video Features

    Configurable image size, quality, frame rate, and bit rate
    Time stamp and text overlays
    Configurable motion detection windows
    Configurable shutter speed, brightness, saturation, contrast, mirror, flip
    Three configurable privacy mask zones

    Video Compression

    JPeG for still images
    H.264/mPeG4/mJPeG format simultaneous compression
    H.264/mPeG4 multicast streaming
    Video Resolution

    16:9 (support frame rate up to 30 fps)
    1280 x 720
    640 x 352
    320 x 176
    160 x 80

    PaN/TilT/Zoom

    Pan range: -170° to 170°
    Tilt range: -25° to 90°
    Digital Zoom: 4x2

    manual pan speed: 1-10
    manual tilt speed: 1-10
    Pre-set setting: 10 points

    Audio Compression
    aDPCm, PCm

    NeTWork ProToCol suPPorT

    iPv4, arP, TCP, uDP, iCmP, DHCP Client, NTP Client (D-link),
    DNs Client, DDNs Client (D-link), smTP Client, fTP Client, HTTP
    server, PPPoe, rTP, rTsP, rTCP, 3GPP

    Remote Management

    Configuration accessible via web browser
    Take snapshots/video clips and save to local hard drive via web browser

    seCuriTy

    administrator and user group protected
    Password authentication
    HTTP and rTsP digest encryption

    surveillaNCe

    record video continuously
    record video according to a weekly schedule
    record video when motion is detected
    upload snapshots/video clips via e-mail
    upload snapshots/video clips via fTP

    NeTWork iNTerfaCe

    ieee 802.11n

    sysTem reQuiremeNTs

    operating system: microsoft Windows 7/vista/xP sP3
    browser: internet explorer 6 or higher, firefox 3.5, safari 4.0

    suPorTeD mobile DeviCes

    mobile devices with a 3GPP player, such as Packet video
    Player 3.0, QuickTime 6.5, or real Player 10.5
    mydlink™ app requires a mobile device running ios or android

    PoWer iNPuT

    12 v/1.25 a, 50/60 Hz

    PoWer CoNsumPTioN
    10.5 watts maximum
    Link to product page    $282.05
    D-Link DCS-3716

    D-Link DCS-3716 Full HD Day & Night WDR Network Camera - Sony Exmor 1/2.8. 3 Megapixel Progressive CMOS Sensor, Full HD 1920x1080 Up to 3M 2048x2536, SD Card Slot, PoE - Silver/Black :: DCS-3716

    DCS-3716


    Full HD Day & Night WDR Network Camera

    Overview

    • Sony Exmor 1/2.8 3 Megapixel CMOS progressive sensor
    • Real-time H.264, MPEG-4, and Motion JPEG compression
    • Full HD resolution (1920x1080) up to 3M (2048x2536)
    • DC iris varifocal 3.1 mm (W) to 8 mm (T) F1.2 CS mount lens
    • Built-in removable IR-cut filter for day/night surveillance
    • WDR to handle strong light sources
    • Simultaneous multi-stream support
    • ePTZ
    • Supports multiple access list
    • Privacy Mask feature
    • SD Card slot
    • 2-way audio support
    • 2 alarm inputs / 1 alarm output
    • Power over Ethernet (PoE)
    • 3GPP mobile surveillance
    • Built-in Samba client for NAS
    • Analog BNC output
    • ONVIF compliant

    High Resolution Surveillance

    The D-Link DCS-3716 is a high-end Full HD Day & Night WDR Network Camera, equipped with a 1/2.8 3 Megapixel WDR Progressive Scan CMOS sensor and a 3.1-8.0 mm DC auto iris lens. The DCS-3716 captures video in both dark and light environments, or even subjects shot against a backlight by neutralizing imperfect lighting and generating a realistic image. In addition, the removable IR-cut filter for day/night functionality provides clear detail and high quality video at any hour of the day. The DCS-3716 incorporates Power over Ethernet (PoE) and an SD card slot, allowing it to be easily installed in a variety of locations.

    Multiple Video Streams

    The DCS-3716 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. MJPEG delivers excellent file integrity, ideal for situations which require high image detail. H.264 and MPEG-4 produce a small file size, useful for extended recording or for use in low-bandwidth networks. Additionally, the DCS-3716 supports multicast H.264 MPEG-4 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

    Flexible Connectivity

    The DCS-3716 includes input and output ports allowing connectivity to external devices such as IR sensors, switches, and alarm relays. It also comes with an RS-485 interface, providing connectivity to an optional pan/tilt enclosure which effectively adds pan/tilt functionality to the DCS-3716. An additional 12 V interface provides power for an optional LED illuminator.

    Wide Dynamic Range (WDR) Applications

    The Wide Dynamic Range (WDR) function provides clear images even under backlit conditions where the intensity of illumination can vary significantly, making the DCS-3716 perfect for extreme high-contrast environments. For example, when placed indoors, the DCS-3716 will adjust itself to the intense sunlight that may be streaming in through a nearby window. This makes it an ideal solution for security applications.

    Open Network Video Interface Forum (ONVIF) compliant

    The Open Network Video Interface Forum (ONVIF) is standards relating to open IP video networking. The DCS-3716 is ONVIF compliant and therefore interoperable with other manufacturers products on the same network such as cameras, storage systems, video analytics products and Video Management Systems.

    Specifications:

    Hardware Profile

    • Sony Exmor 1/2.8 3 Megapixel progressive CMOS sensor
    • Minimum Illumination: 0.5 lux (Color); 0.05 lux (B/W)
    • Built-in Infrared-Cut Removable (ICR) Filter module
    • WDR SN ratio : 100 dB
    • 10X digital zoom
    • DC iris varifocal length: 3.1 mm to 8.0 mm
    • Aperture: F1.2
    • Angle of view:
      • (H) 38.7 to 95.9
      • (V) 29.1 to 71.0
      • (D) 48.3 to 123.1

    Image Features

    • Configurable image size, quality, frame rate, and bit rate
    • Time stamp and text overlays
    • Configurable motion detection windows
    • 3 Configurable privacy masks zone
    • Configurable WDR, white balance, shutter speed, brightness, saturation, contrast, sharpness

    Video Compression

    • H.264/MPEG-4/MJPEG simultaneous format compression
    • JPEG for still images
    • H.264/MPEG-4 multicast streaming

    Video Resolution

    • 16:9 - 1920x1080, 1280x720, 800x450, 640x360, 480x270, 320x176, 176x144
    • 4:3 - 2048x1536, 1600x1200, 1024x768, 800x600, 640x480, 480x360, 320x240, 176x144
    • 3M (2048x1536) resolution up to 15 fps, and other resolutions support frame rates up to 30 fps

    Audio Support

    • G.726

    External Device Interface

    • 2 DI / 1 DO
    • 12 V DC, 200 mA Output
    • RS-485
    • SD card
    • Audio input / output
    • Video output

    Network Protocols

    • IPv4
    • TCP/IP
    • UDP
    • ICMP
    • DHCP Client
    • NTP Client (D-Link)
    • DNS Client
    • DDNS Client (D-Link)
    • SMTP Client
    • FTP ClientHTTP / HTTPS
    • Samba Client
    • PPPoE
    • UPnP Port Forwarding
    • RTP/RTSP/RTCP
    • IP filtering
    • 3GPP
    • IGMP
    • ONVIF compliant

    Security

    • Administrator and user group protection
    • Password authentication
    • HTTP and RTSP digest encryption

    System Requirements for Web Interface

    • Operating System: Microsoft Windows 7/Vista/XP/2000
    • Browser: Internet Explorer, Firefox, Netscape, Opera

    Event Management

    • Motion detection
    • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
    • Supports multiple HTTP, SMTP, and FTP servers
    • Multiple event notifications
    • Multiple recording methods for easy backup

    Remote Management

    • Configuration accessible via web browser
    • Take snapshots/video clips and save to local hard drive or NAS via web browser

    Mobile Support

    • Pocket PC, or mobile phone with 3GPP playback support

    D-ViewCam System Requirements

    • Operating System: Microsoft Windows 7/Vista/XP
    • Web Browser: Internet Explorer 6 or higher
    • Protocol: Standard TCP/IP

    D-ViewCam Software Functions

    • Remote management/control of up to 32 cameras
    • Viewing of up to 32 cameras on one screen
    • Supports all management functions provided in web interface
    • Scheduled motion triggered, or manual recording options

    Power

    • Input 12 V DC 1.25 A, 50/60 Hz
    • 802.3af PoE
    • Max. Power Consumption 4 watts

    Temperature

    • Operation: 0 to 40 C
    • Storage: -20 to 70 C

    Humidity

    • 20% to 80% non-condensing

    Weight

    580 g

    Certifications

    CE (Class A)
    CE LVD (EN60965-1)
    FCC (Class A)
    ICES-003
    C-Tick

    Dimensions


    79.7 x 52.9 x 190.9 (W x H x D)

    Link to product page    $796.15
    D-Link DCS220

    D-Link D-ViewCam Professional - Supports Up to 32 Camera, Megapixel Network Camera Support, MJPEG, MPEG-4, H.264 Compression Format Support, Dual Monitor Support, Remote Desktop Viewer, SMS Alert :: DCS220

    DCS-220 D-ViewCam Professional (32-Channel)

    "D-ViewCam Professional is a comprehensive IP surveillance software designed for SMB/Enterprise users. It centrally manages up to 32 network cameras for video live view, recording and playback functions. D-ViewCam Professional provide backend VMS solution for IP surveillance projects, they are compatible with D-Link network cameras, video encoder, NVR and 3rd party CMS.

    Features

    • Supports up to 32 cameras
    • Megapixel network camera support
    • MJPEG/MPEG-4/H.264 compression format support
    • Dual monitor support
    • Auto reboot function support
    • Remote Desktop Viewer
    • SMS alert

    Description

    Live Monitoring and Centralized Management

    D-ViewCam Professional is a comprehensive surveillance system designed to centrally manage up to 32 network cameras, while displaying real-time status information. Map Mode allows you to create maps based on camera location and orientation, and the Device Tree lists all the cameras connected to the interface for easy viewing. Additional features such as auto-patrol, rotate, zoom and focus provide users with optimal control over their video surveillance.

    Video Recording and Playback

    D-ViewCam Professional offers scheduled, motion, and manual recording options to meet specific user demands. Recorded files can be searched according to video type or selected within the user interface for playback, editing, or AVI /ASF file conversion.

    Video and System Database Backup

    "The D-ViewCam Professional Playback function allows users to load and play a recorded file on a Windows PC. It allows users to monitor a live feed on one computer while watching a recorded file on another. D-ViewCam Professional also provides a utility (DB-Tool) to reconstruct,repair or relocate the databases in a local drive or external drive. It also supports the import/export of configuration files enabling users to synchronize surveillance settings across devices."

    Compatible with 3rd Party CMS

    "Central Management System (CMS) can manage an unlimited number of network cameras located worldwide, allowing simultaneous operation by unlimited workstations. CMS is considered to be the omni-solution for large-scale projects,such as defense installations, justice facilities,security companies, city surveillance, national and international enterprises. D-ViewCam Professional can be managed by CMS to provide a total solution."

    Specifications:

    SPECIFICATIONS
    Supports up to 32 cameras
    Megapixel network camera support
    MJPEG/MPEG-4/H.264 compression format support
    Dual monitor support
    Multilingual support
    OSD (On-screen Display) setting
    Live Monitoring
    30 FPS maximum recording per camera (subject to camera and video server capacity)
    Automatic discovery of network cameras
    On-the-fly configuration changes
    Auto reboot function support
    System DDNS support
    Remote Desktop Viewer
    SMS alert
    Lock system to avoid unauthorized changes
    User Account Management
    User validation
    User password restriction
    User profiling
    Access privilege control
    Recording
    Supports multiple storage locations
    Record by schedule
    Record by event
    Digital watermark protection
    Pre-record/Post-record support
    Manual recording of up to 32/64 channels
    One-way audio recording of multiple channels
    Record and live display at different frame rates and resolutions
    Data Search and Playback
    Video playback control
    Intelligent Search Tool
    Histogram quick search method for videos
    Video stamp
    Extract snapshots from video
    Extract video to AVI /ASF
    Supports remote playback/web playback
    Video Mode
    Screen division layout support
    Monitor display allows for drag and drop of videos
    Supports full screen video
    Multiple channel playback support
    Information window support
    Enable Move function to control a P/T/Z camera
    Digital zoom in/out support
    Supports remote live viewing to display video
    Map Mode
    Multiple map support
    Alarm notification
    Customized map background support
    Camera preview
    Camera and I/O indicator
    I/O & Event Feature
    Output port control
    Input port trigger on event
    Output port relay when an event is detected
    Digital Input Trigger SMS
    Digital Input Trigger CMS
    E-mail notifications
    P/T/Z Control
    Manual control
    Preset positions (device dependent)
    Preset patrolling
    Multiple patrol group support
    Backup
    Backup Backup database for logs and videos
    Import/Export configuration
    DB tool
    Burn backup files to DVDs on Windows XP
    Compatibility
    Compatible with D-Link NVR
    Compatible with 3rd Party CMS
    All D-Link network cameras (visit www.dlink.co.in for more information)
    Link to product page    $3,106.35
