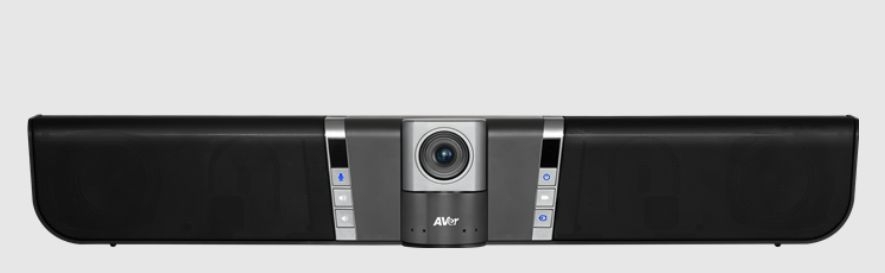

AVer VB342 USB Conference Camera with 4K Video and Lifelike
Sound
Features
Video Soundbar
The VB342 easily puts all participants in clear focus with its 4K PTZ cameras
extraordinary video quality and its professional-grade speakers and microphones.
Perfectly suited for huddle rooms.
A Vibrant Face to Face Experience with 4K & Pan Tilt
Zoom
With the VB342, theres no need to leave your office for face-to-face
meetings- just click a button and everyone is there. The VB342s 4K camera
provides superb resolution, color balance, and detail so you can catch all
participants expressions with no distortion. Ultra-sharp clarity is maintained
even when you pan, tilt and zoom.
Professional audio optimized for meetings
The VB342 brings an optimized audio experience unlike any experienced in a
meeting space. Its two uni-directional microphones cover a 4m range, ample for
any huddle room. Its stereo speaker offers 5W full range. No matter how far away
everyone is, it will sound like they are in the same room.
Easy to install and setup
The VB342 is designed for ease of access and the maximum user experience. It
is easy to install, and integrates seamlessly with your existing systems,
offering multiple connectivity and expansion options and bringing together the
ultimate VC experience in a unified, accessible platform.
Specifications
Package Contents
- VB342 unit
- Remote control
- 1.8m USB cable to PC (USB 3.0 type C to PC)
- USB type-A to type-C adapter
- Power supply
- Quick-start guide
- Wall mount bracket
- Mounting screws
Camera
- Sensor: 1/2.5"Sony Exmor RTM 4K CMOS sensor
- Frame rate: 4K 30fps; 1080p, 720p, 960x540, 848x480, 640x480, 640x360,
424x240, 320x240, 320x180 at 60, 30, 15 fps
- Lens iris, focus, zoom: fixed
- AE, white balance: auto, manual override by PTZApp
- Lens focal length: 3.37 mm +/- 5%
- Lens F#: 2.8
- Field of view: diagonal 94, horizontal 85, vertical 55
- S/N ratio: > 50dB
- Minimal illumination: 1.4 lx (50 IRE, F2.8, shutter 1/30)
- 2D noise reduction
- Back light compensation
- Minimum working distance: 80cm
- Motor pan and tilt, total horizontal viewing area 165; vertical viewing
area 85
- Digital zoom rate: up to 4X leveraging 4K sensor
Audio
- 2 uni-direction microphones w/ 4 m recommended (6 m max) pickup
range
- 5W stereo full range speakers with professional bass port tuned for
communication
- Volume up to 96dB SPL at 1/2 meter
- Echo cancellation
- Noise suppression
- 3.5mm Line-in (aux) cable connects to BYOD smartphones or PC as
speakerphone
HDMI
- DisplayLink USB 3.0 to HDMI adapter built-in
- 1080p HDMI output to TV**
** Some limitation applied by Mac OSX and Windows inbox driver
Remote Control
System Requirements*
- Windows 7/8/8.1/10
- Mac OS X 10.7 or higher
Hardware Requirements*
- 2.4GHz Intel Core 2 Duo processor
- 2GB RAM or more
Power Supply
- AC 100V ~ 240V
- Consumption: DC12V/5A
Environmental Data
- Physical characteristics: 0~40C
- Operation humidity: 20%~80%
- Storage temperature: -20~60C
- Storage humidity: 20%~80%
Physical Characteristics
- Package dimensions: 739 x 193 x 229mm
- Package weight: 4.16kg/9.3lbs
- CameraSoundbar: 650 x 100 x 109.5mm/2.133kg
- Remote control: 150 x 45 x 10mm/0.040kg
Video format
PTZ App
- Free download for Windows and Mac OSX
- Firmware field upgrade
- Advance device setting and diagnostic
Compatible Applications
- Adobe Connect, Blue Jeans, Cisco WebEx, Google Hangout, GoToMeeting, Intel
Unite, Microsoft Lync, Skype, Skype for Business, V-Cube, vMix, WebRTC,
Wirecast, XSplit, ZOOM
Warranty
- Camera, speakerphone: 3 years
- Accessories: 1 year
- DC 12V
- PC
- USB type C to PC
- Phone In
- Mic
- HDMI Out
- Reset
