Sennheiser MEB 114-S TC B - Black
85 x 100 x 25 mm, Terminal block 5-pin, 140 dB, Cardioid, Boundary Layer Microphone

[Large image available]
Product May Vary From Image

Our Price:
Part No:450893
Manuf No:506600
Ship Weight:0.533 KG  Details
Usually Ships: 1-3 Days  More info
Date Added:27/11/2019
Rating: Not Rated
Product Description

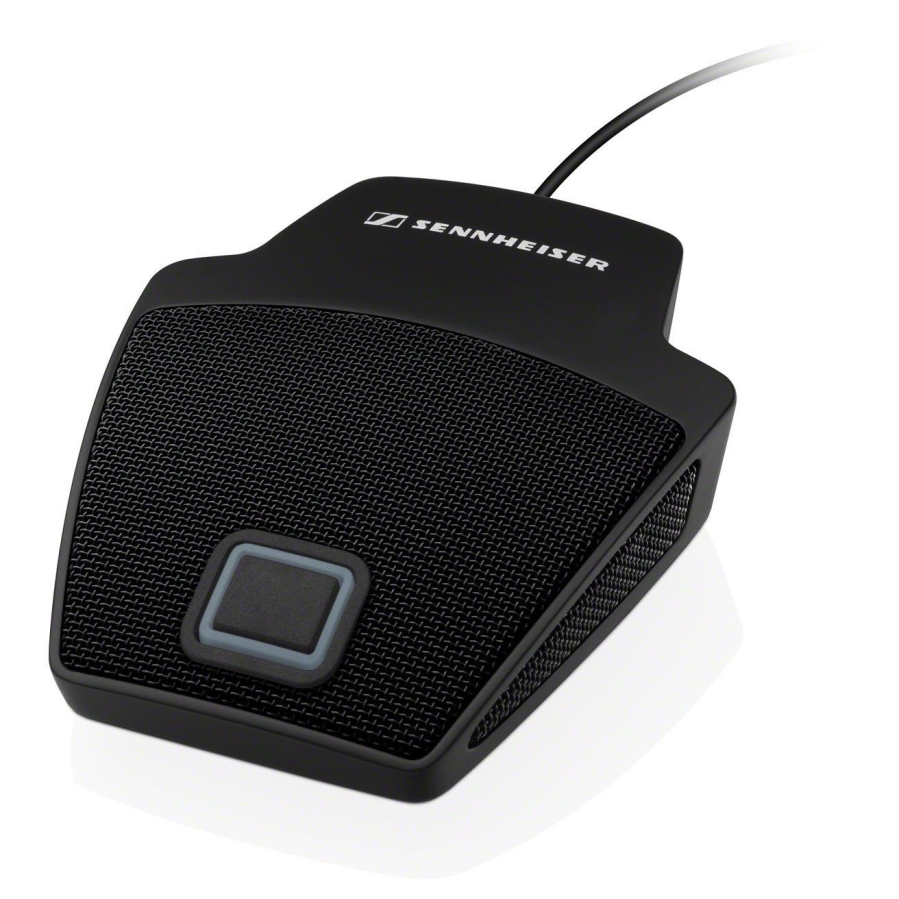

Sennheiser MEB 114-S TC B Black



The sturdy boundary layer microphone MEB 114-S TC is the perfect on-table microphone solution for the TeamConnect Audio Conferencing System. The fixed cable allows a simple and direct connection to the TeamConnect system via SL Mic Hub 1. The integrated mute button with bi-color status LED controls the mute function of the whole system and gives a clear visual status feedback. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114-S TC ensures the best speech intelligibility.


  • Award winning design
  • Easy installation with TeamConnect specific cable
  • Optimized for speech
  • Sturdy housing
  • Fixed cable
  • Made in Germany

What's in the box?

  • 1 boundary microphone with 3m fixed cable
  • Leaflet



85 x 100 x 25 mm


Terminal block 5-pin

Frequency response

40 Hz 20 kHz

Max. sound pressure level

140 dB

Transducer principle

pre-polarized condenser microphone


533 g

Pick-up pattern


Nominal impedance

200 (at 1 kHz)

Phantom powering

P 24 P 48

Operating temperature

-10 C +50 C

Equivalent noise level

29 dB (A)

Equivalent noise level weighted as per CCIR 468-3

39 dB (CCIR)

Current consumption

5,3 mA


boundary layer microphone

Dynamic range

111 dB (A)


10 mV/Pa

Product Warranty

12 Month Return To Base
