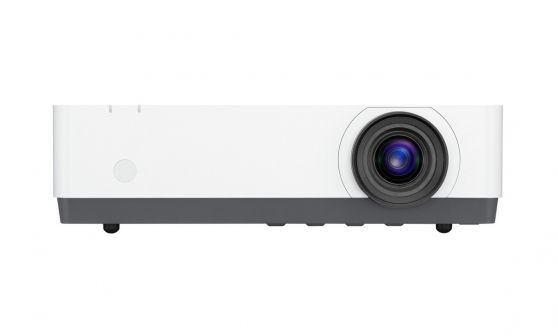

Sony VPL-EW348 4,200 Lumens WXGA High Brightness Compact Projector
with HDBaseT
Overview
Present clear, bright images in larger rooms, plus flexible
connectivity and low running costs
The VPL-EW348 projector is ideal for mid-sized and larger classrooms and
meeting rooms.
Quiet, compact and powerful, it delivers bright, detail-packed WXGA images
with 4,200 colour light output that can be seen clearly even in bright rooms,
with Sony's 3LCD technology assuring natural, vivid colours.
The VPL-EW348 is an ideal partner for today's integrated AV/IT environments,
expanding your connectivity options with HDBaseT, dual HDMI ports and Direct USB
Display connection. A convenient input label function makes life simpler,
confirming on screen the name of connected devices.
Add the VPL-EW348 to a network and see presentations from up to four
connected PC/Mac computers simultaneously. Slip in an optional Wi-Fi dongle and
present directly wirelessly from laptops, phones or tablets. Control the
projector remotely with a free app for smartphones and tablets. You don't even
need to bring a PC to meetings - just slip in a USB thumb drive and start
presenting.
A range of energy-saving features and long-lasting lamp life contribute to
low ownership costs. Maintenance is simplified by a new rear lamp access
feature.
Features
Bright, clear images with maximum 4,200 lumens colour light
output
With a 4,200 lumen maximum light output (in high mode), the VPL-EW348
delivers crisp, bright presentations that can be seen clearly in larger
classrooms or meeting rooms. There’s a choice of three brightness modes to suit
any environment, from bright daylight to darkened rooms.
3LCD BrightEra™ technology
The efficient 3LCD panel system is enhanced by advanced BrightEra™ technology
for impressively bright, consistent, high resolution images with excellent
colour accuracy and impressive reliability.
WXGA resolution
WXGA (1280 x 800) 16:10 display resolution gives plenty of crisp detail:
ideal for making presentations direct from a laptop, mobile device or DVD
player.
Powerful 16W audio
The powerful built-in 16W speaker (mono) lets your audiences hear video
soundtracks with no need for additional amplification. Energy efficient with
long-lasting lamp life up to 10,000 hours
High-performance lamp technology offers reduced ownership costs plus reduced
maintenance, with a long-lasting lamp replacement time of approx. 10,000 hours
(with brightness in low mode).
Advanced energy-saving features
Advanced lamp technology enables a range of energy-saving features. Auto
Light Dimming mode saves energy when the projector is left on without being
used. Auto Picture Mode automatically adjusts light output to suit the projected
scene. Touching a button on the remote mutes the picture temporarily,
dramatically reducing power consumption.
Quick go
Don't waste time when you're in a hurry to leave the room: turn off the
projector and unplug immediately, with no lengthy waiting for cool-down.
Networked presentations
Project presentations from a networked PC or Mac. Present JPEG, PDF and other
files wirelessly from a tablet or smartphone. Up to four users can project
PC/Mac images simultaneously, while up to eight users can connect to one
projector. The Projector Station for Network Presentation application for
Windows/Mac is included. For tablet/smartphone use, an application is provided
by Pixelworks, downloaded from the web. For details visit http://PWPresenter.pixelworks.com
Control and management from any networked PC
Projector functions and status can be managed and monitored remotely from any
networked PC, using the included Projector Station for Network Control
application.
Present wirelessly
Make presentations wirelessly from a portable or handheld device. (Microsoft
Windows / Macintosh OS requires Projector Station for Network Presentation
application. iOS / Android requires VueMagic application.)
Remote Control app for iOS/Android
Download the free Projector Remote app and control the projector from
anywhere in the room with your handheld device, with simple easy-to-read buttons
on your phone or tablet screen.
USB media viewer
Slip in a USB drive and display photos, images and graphics with no PC
needed.
Supports HDBaseT
Simpler, more cost-effective installation and connectivity with digital
transmission of HD video, audio, power and networking/control over a single
Ethernet cable.
Dual HDMI inputs
Two HDMI input terminals make it easy to connect HDMI-equipped devices like
PCs and media streaming devices.
USB Display function for easy one-cable PC connection
Present pictures and audio* from a connected PC or Mac with just one USB
cable - you don't even need to install a software driver.
* There may be a time lag between video and audio. For low-latency
applications it is recommended to use projector's line-in or HDMI-in
connection.
Customised input naming labels
Define your own input labels like 'BD Player', 'PC' and 'Document Camera',
making it easier to see on screen what devices are connected and being used.
Easier maintenance
Lamp access has been shifted to the rear of the projector body, making lamp
swaps simpler when the projector is hanging from a ceiling mount.
Quiet operation
Low fan noise ensures discreet, unobtrusive operation in classrooms and
meeting rooms.
Specifications
Display
System |
|
Display
System |
3 LCD
system |
|
|
Display
device |
|
Size of effective
display area |
0.75 (19 mm) x 3
BrightEra LCD Panel, Aspect ratio: 16:10 |
Number of
pixels |
3,072,000 (1280x800 x
3) pixels |
|
|
Projection
lens |
|
Focus |
Manual |
Zoom -
Powered/Manual |
Manual |
Zoom -
Ratio |
Approx. x
1.6 |
Throw
Ratio |
1.10:1 to
1.79:1 |
|
|
Light
source |
|
Type |
Ultra high pressure
mercury lamp |
Wattage |
225 W
type |
|
|
Recommended lamp
replacement time *1 |
|
Lamp mode:
High |
4000
H |
Lamp mode:
Standard |
6000
H |
Lamp mode:
Low |
10000
H |
|
|
Filter cleaning /
replacement cycle (Max.) |
|
Filter cleaning /
replacement cycle (Max.) |
10,000
H |
|
|
Screen
size |
|
Screen
size |
30" to 300"(0.76 m to
7.62 m) (measured diagonally) |
|
|
Light
output |
|
Lamp mode:
High |
4200
lm |
Lamp mode: Standard
*2 |
3200
lm |
Lamp mode: Low
*2 |
2500
lm |
|
|
Color light
output |
|
Lamp mode:
High |
4200
lm |
Lamp mode: Standard
*2 |
3200
lm |
Lamp mode: Low
*2 |
2500
lm |
|
|
Contrast ratio (full
white / full black) *3 |
|
Contrast ratio (full
white / full black) |
3700:01:00 |
|
|
Speaker |
|
Speaker |
16 W
(monaural) |
|
|
Displayable scanning
frequency |
|
Horizontal |
15 kHz to 92
kHz |
|
|
Vertical |
48 Hz to 92
Hz |
|
|
Display
resolution |
|
Computer signal
input |
Maiximum display
resolution: 1600 x 1200 dots *4 |
Video signal
input |
NTSC, PAL, SECAM,
480/60i, 576/50i, 480/60p, 575/50p, 720/60p, 720/50p, 1080/60i, 1080/50i,
1080/60p, 1080/50p |
|
|
Color
system |
|
Color
system |
|
|
NTSC3.58, PAL, SECAM,
NTSC4.43, PAL-M, PAL-N, PAL-60 |
Keystone correction
(Max.) *4 |
|
Vertical |
+/-20
degrees |
|
|
OSD
languages |
|
OSD
languages |
27-languages (English,
French, German, Italian, Spanish, Portuguese, Japanese, Simplified
Chinese, Traditional Chinese, Korean, Russian, Dutch, Norwegian, Swedish,
Thai, Arabic,Turkish, Polish, Vietnamese, Farsi, Finnish, Indonesian,
Hungary, Greek, Czech, Slovakia, Romania) |
|
|
INPUT OUTPUT
(Computer/Video/Control) |
|
INPUT
A |
RGB / Y PB PR input
connector: Mini D-sub 15-pin (female) |
|
Audio input connector:
Stereo mini jack |
INPUT
B |
RGB input connector:
Mini D-sub 15-pin (female) |
|
Audio input connector:
Stereo mini jack |
INPUT
C |
HDMI input connector:
HDMI 19-pin, HDCP support |
|
Audio input connector:
HDMI audio support |
INPUT
D |
HDMI input connector:
HDMI 19-pin, HDCP support |
|
Audio input connector:
HDMI audio support |
S VIDEO
IN |
S Video input
connector: Mini DIN 4-pin |
VIDEO
IN |
Video input connector:
Phono jack |
OUTPUT |
MONITOR output
connector *5: Mini D-sub 15-pin (female) |
|
Audio output connector
*6: Stereo mini |
REMOTE |
RS-232C connector:
D-sub 9-pin (male) |
LAN |
RJ45,100BASE-TX (Shared
with HDBaseT) |
USB |
Type-A |
USB |
Type-B |
MICROPHONE
IN |
Microphone input: Mini
Jack |
|
|
Acoustic noise
*5 |
|
Lamp mode:
Low |
29
dB |
|
|
Operating
temperature / Operating humidity |
|
Operating temperature /
Operating humidity |
0C to 40C (32F to 104F)
/ 20-80% (no condensation) |
|
|
Storage temperature
/ Storage humidity |
|
Storage temperature /
Storage humidity |
-10 C to +60C (-4F to
+140F) / 20% to 80% (no condensation) |
|
|
Power
requirements |
|
Power
requirements |
AC 100 V to 240 V, 3.5
A to 1.5 A, 50 Hz / 60 Hz |
|
|
Power
consumption |
|
AC 100 V to 120
V |
Lamp mode: High: 341
W |
AC 220 V to 240
V |
Lamp mode: High: 329
W |
|
|
Power Consumption
(Standby Mode) |
|
AC 100 V to 120
V |
0.5 W (when Standby
mode is set to Low) |
AC 220 V to 240
V |
0.5 W (when Standby
mode is set to Low) |
|
|
Power Consumption
(Networked Standby Mode) |
|
AC 100 V to 120
V |
18.5 W
(LAN) |
|
14.0 W (optional WLAN
module) |
|
19.4 W (All Terminals
and Networks Connected) (when "Standby Mode" is set to
"Standard") |
AC 220 V to 240
V |
25.3 W
(LAN) |
|
18.5 W (optional WLAN
module) |
|
26.3 W (All Terminals
and Networks Connected) (when "Standby Mode" is set to
"Standard") |
|
|
Standby Mode/Network
Standby Mode Activated |
|
Standby Mode/Network
Standby Mode Activated |
Approx. 10
Minutes |
|
|
Wireless Network(s)
On/Off Switch |
|
Wireless Network(s)
On/Off Switch |
1) Press the MENU
button, then select [Connection/Power] |
|
2) [WLAN
Settings] |
|
3) [WLAN
Connection] |
|
4) Select On or
Off |
|
|
Heat
dissipation |
|
AC 100 V to 120
V |
1163
BTU/h |
AC 220 V to 240
V |
1122
BTU/h |
|
|
Dimensions (W x H x
D) |
|
Dimensions (W x H x D)
(without protrusions) |
Aprox. 365 x 96.2 x 252
mm (14 3/8 X3 25/32 X9 29/32 ) |
|
|
Mass |
|
Mass |
Approx. 4.1 kg (9
lb) |
|
|
Supplied
accessories |
|
Remote
commander |
RM-PJ8 |
|
|
Optional
Accessories |
|
Optional
Lamp |
LMP-E221 |
Wireless LAN
module |
IFU-WLM3 |
|
|
Notes |
|
*1 |
The figures are the
expected maintenance time and not guaranteed. They will depend on the
environment or how the projector is used |
*2 |
The value are
estimate. |
*3 |
The value is
average. |
*4 |
Available for the VESA
Reduced Blanking signal. |
*5 |
Not available in
standby. From INPUT A and INPUT B. |
*6 |
Works as an audio
switcher function. Output from a selected channel; not available in
standby. |
