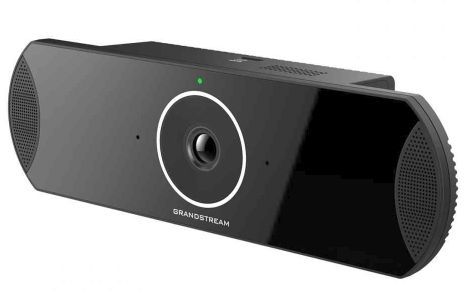

Grandstream GVC3210 Android Based 4K Full HD Video Conferencing System
Overview
Designed to allow users to customize their solution according to their specific communication needs, the GVC3210 can be paired with most video and web conferencing services to create a multi-point conferencing system. This video conferencing endpoint runs on the Android op erating system and offers full access to the Google Play Store. This allows users to utilize any Android conferencing or communication application. The GVC3210 comes equipped with sophisticated Noise-Shield technology to block out background noise and maximize audio quality. Additional features include advanced 4-microphone array with beam-forming capability, a high-end 16M pixel CMOS sensor with ePTZ for easy camera view adjustments and Miracast wireless for convenient content sharing. This simple yet powerful video conferencing endpoint is the ideal choice for SMBs looking for a price-friendly option that still carries the high-end features needed to sustain high-quality business communications.
Features
Specifications
Protocols / Standards
SIP RFC3261, BFCP, TIP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP,
PPPoE, SSH, TFTP, NTP, STUN, LLDP-MED, LDAP, TR-069 (pending), 802.1x, TLS, SRTP, TCP/IP/UDP, IPv6, H.323
Camera
1/2.3“, 16 Megapixel CMOS, 4K (2160p) Output
Lens
90°field of view, ePTZ (3x digital zoom)
Network Interface
1× RJ4510/ 100/ 1000 Mbps
WiFi
Integrated dual-band 802.11 a/b/g/n/ac (2.4GHz & 5GHz)
Bluetooth
Integrated Bluetooth 4.0 + EDR
Video Outputs
2x HDMI 1.4 up to 4K (2160p) with CEC
Video Input
1x HDMI 1.4 with resolution up to 1080p
MIC/Speaker
Built-in 4x MIC array
Remote Control
Bluetooth and infrared remote control with multi-touch touchpad
Auxiliary Ports
2x USB 2.0, micro-SD, Reset
Voice Codecs
Support for G.711μ/a, G.722 (wide-band), iLBC, Opus , G.722.1, G.722.1c ,G729A/B, in-band and out-of-band
DTMF (In audio, RFC2833, SIP INFO)
Video Codecs
H.264 BP/MP/HP, video resolution up to 4K (2160p), frame rate up to 30 fps, bitrate up to 16Mbps
Video Resolutions
4K ([email protected]) from 4096Kbps, [email protected] from 1024Kbps, [email protected] from 512 Kbps, 4SIF/4CIF from
128 Kbps, SIF/CIF from 64 Kbps
4K Capability
Experience sharp video quality of up to 4K resolution*
1. When the GVC3210 is using 4K resolution during video call, EPTZ is not supported. The GVC3210 supports
90° field of view. Please install GVC3210 at the position that suits the best conference view if you plan to use
4K resolution.
2. When the GVC3210 is using 4K resolution, local recording is not supported.
3. When the GVC3210 is using 4K resolution, HDMI Out Port 2 is not supported. Users can only use HDMI Out
Port 1 for one display.
Content Resolutions
Input: VGA, SVGA, XGA, 1280×600, WXGA, WXGA, SXGA, 1440×900, XGA+, 720p, 1600×1200, 1080p (HDMI), up
(screen sharing)
to 60fps
Encoding: 800×600, 1024×768, 1280×1024, 1280×720, 1920×1080
Output: 720p, 1080p
Dual-Stream
BFCP, video resolution (up to 4K [email protected]) + content resolution (up to [email protected])
Audio Features
AEC, ANS, AGC, Noise Shield, PLC, CNG/VAD
Video Features
FEC, dynamic display layout, picture-in-picture, picture-outside-picture, digital caption
Telephony Features
Hold, forward (unconditional/no-answer/busy), downloadable phone book (XML, LDAP), call waiting, call histo-
ry, flexible dial plan, personalized music ringtones, server redundancy & fail-over
Sample Applications
Skype, Google Hangouts, Microsoft Lync, Web browser, Adobe Flash, Facebook, Twitter, YouTube, Google
calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom applica-
tion development
Applications Deployment
Allow various Android operation system 6.0 compliant applications to be developed, downloaded and run in
the embedded device with provisioning control
QoS
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
Security
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted
configuration file, TLS, 128/256-bit SRTP, HTTPS, 802.1x media access control
Multi-Language
English, German, Italian, French, Spanish, Portuguese, Russian, Turkish, Polish, Chinese, Korean, Japanese, and
more
Upgrade/Provisioning
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using AES
encrypted XML configuration file
Power & Green Energy Efficiency
Input: 100~240Vac 50/60hz; output: 12V/2A 24W
Package Content
GVC3210 video conference endpoint, remote control, 4 AAA batteries,
universal power supply, network cable (1.5 meters), 2 HDMI cables (1.5-meter and 5-meter), lens cleaning
cloth, mounting kit, quick installation guide, GPL license
Dimensions and Weight
80mm (H) x 46.5mm (W) x 270mm (L)
Temperature and Humidity
Operation: 0°C to 40°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Compliance
FCC: FCC Part 15B; FCC Part 15C; FCC Part 15E; UL 60950 (power adapter)
CE: EN 55032; EN 55024; EN 61000-3-2; EN 61000-3-3; EN 60950-1; EN 301 489-1/17;EN 300 328; EN 301 893;
EN 62311; EN 62479; RoHS
RCM: AS/NZS CISPR 32/24; AS/NZS 60950.1; AS/NZS 4268;
ANATEL
1 year return to base
