Logitech Rally Premium Ultra-HD Conference Cam System w. Automatic Camera Control

[Large image available]
Product May Vary From Image

Our Price:
3339.85
RRP:$3,999.95
You Save:$660.10

Part No:439439
Brand:Logitech  Web Site
Manuf No:960-001219
 960001219
Ship Weight:8.2 KG  Details
Usually Ships: Order In  More info
Date Added:12/1/2019
Rating: Not Rated
Quantity:
Product Description

Logitech 960-001219 Rally Premium Ultra-HD Conference Cam System With Automatic Camera Control



Features

RALLY

Premium Ultra-HD ConferenceCam system with automatic camera control

  • RightSense? technology automates a better user experience
  • Modular audio for full coverage of medium to very large rooms
  • Premium components and sleek industrial design

Overview

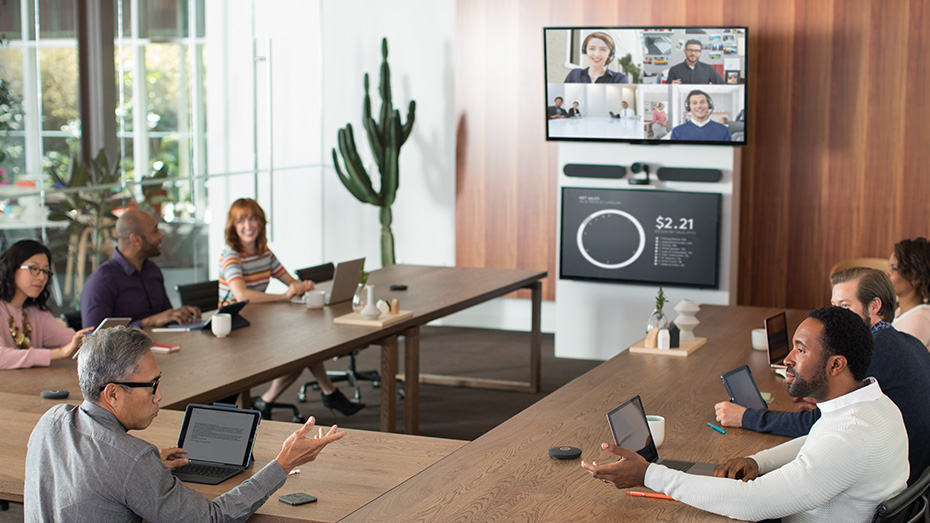

ALL TOGETHER NOW

Logitech Rally delivers studio-quality video, unmatched voice clarity, and RightSense? automation for better meetings with video conferencing applications that work with USB devices, including Google Hangouts Meet, Microsoft Skype® for Business, Microsoft Teams, and Zoom. With modular audio, thoughtful cable management and premium finishes, Rally integrates beautifully into medium and larger rooms.

STUDIO-QUALITY VIDEO

With an Ultra-HD imaging system, Rally delivers brilliantly sharp video, outstanding color, and exceptional optical accuracy at resolutions up to 4K. Logitech RightLight™? technology optimizes light balance to emphasize faces and render natural-looking skin tones, even in dim or backlit conditions.

ADVANCED MODULAR AUDIO

Crystal-clear audio is essential for world-class video conferencing, and Rally excels in delivering sound that?s natural, crisp, and highly intelligible. Logitech RightSound?™ enhances voice clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers. Exquisitely sensitive mic pods ensure that everyone in the meeting can be clearly heard while stand-alone speakers fill larger rooms with rich, life-like sound.

SLEEK INDUSTRIAL DESIGN

Every component in the Rally system features premium industrial design suitable for any professional setting. Even as Rally helps everyone look and sound great during video meetings, each part of the system looks great in its own right. The premium PTZ camera at the core of the system is elegantly finished in matte black with slate gray metal trim, complemented by sleekly designed audio components and accessories that look great in any room.

ENHANCED USER EXPERIENCE

Logitech RightSense? is a suite of technologies built into Rally that automate a better user experience. RightSight™? perfectly auto-frames participants no matter their distance from the lens. RightLight? prioritizes faces over environment to render natural-looking skin tones while RightSound? enhances vocal clarity by suppressing background noise, auto-leveling voices, and focusing on active speakers to support better meetings — ?automatically!

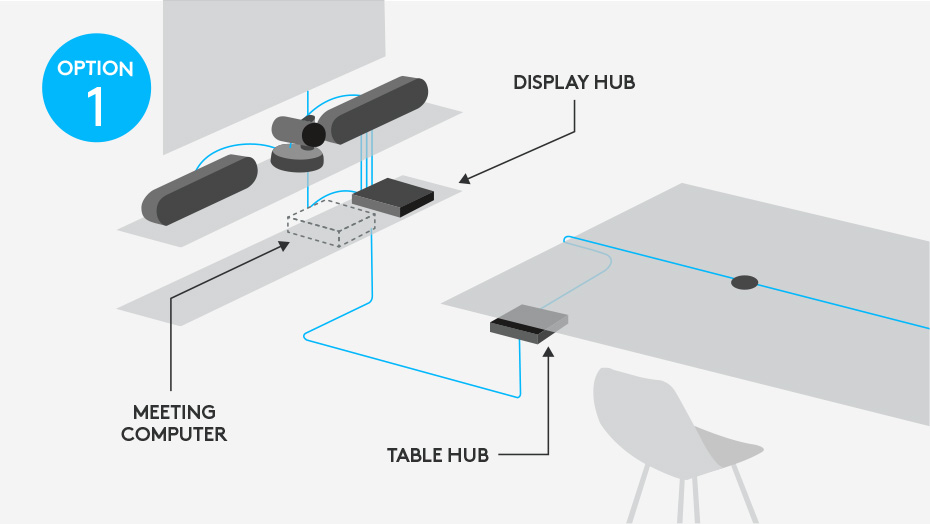

SMART CABLING AND CONTENT SHARING

With a Display Hub and Table Hub to keep cables neat and organized, Rally components and the meeting computer remain securely out of sight. Connected by a single CAT6 cable, both hubs feature a full complement of connections so you can locate the meeting computer near the display or at the table. An HDMI input on the Table Hub eliminates the need for extra-cost cable extenders and makes wired content sharing easy.

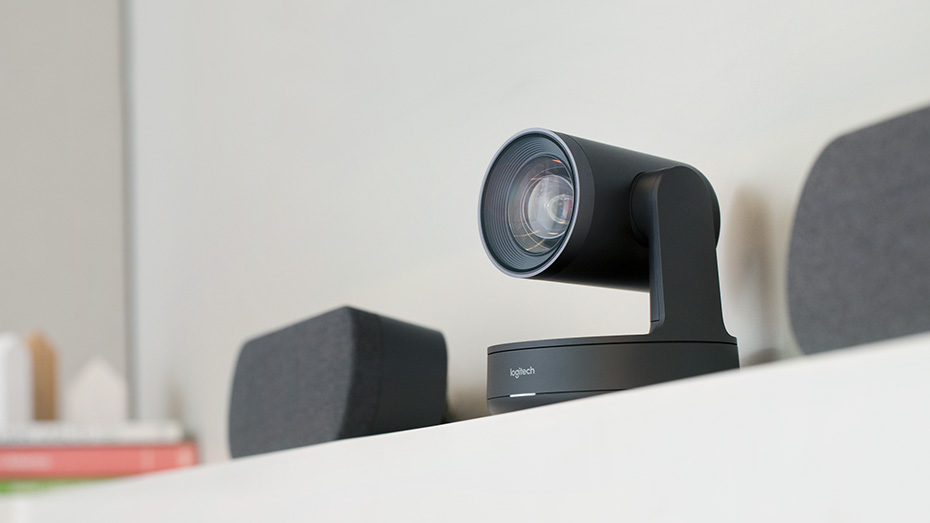

SEE EVERYONE, PERFECTLY FRAMED

Logitech RightSight? camera control1 automatically moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes.

LET THE SUNSHINE IN

Even in meeting rooms with bright windows, Logitech RightLight? technology with Wide Dynamic Range (WDR) prioritizes faces and human figures over objects and surfaces. The result is a balanced image that renders participants in flattering light with reduced glare and softer shadows, even in dim or backlit conditions

ADAPTIVE PAN, TILT AND ZOOM

Pan and tilt speeds automatically adapt to the level of zoom. The result: faster camera movement when zoomed out for quick framing and slower camera movement when zoomed in for more control.

FRONT OF ROOM AUDIO

Unlike tabletop speakerphones that decouple voices from video, Rally speakers are designed for placement at the front of the room. By aligning speakers with the display, a person'?s voice and video both come from the same place ? and never from behind you — ? so conversations feel more natural and lifelike.

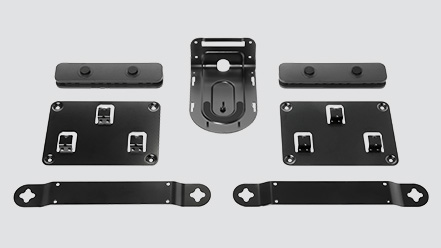

OPTIONAL MOUNTING KIT

Add Rally Mounting Kit for a streamlined installation of each component. Strong wall mounts allow ideal placement for the camera and two speakers, while ventilated mounting plates attach the display and table hubs on a wall or beneath a table. Two cleverly-designed retainers keep cables secure.

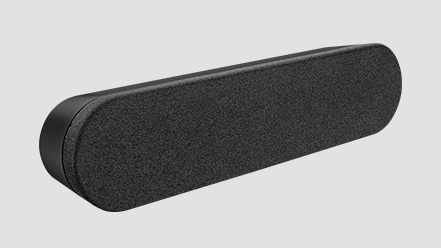

LOUD AND CLEAR

The Rally display hub powers up to two speakers, providing rich sound even in larger rooms. A patent-pending suspension system virtually eliminates vibrations that travel through walls, stands, and tables. This improves echo cancellation while keeping video shake-free, even at high volume levels and when zoomed in.

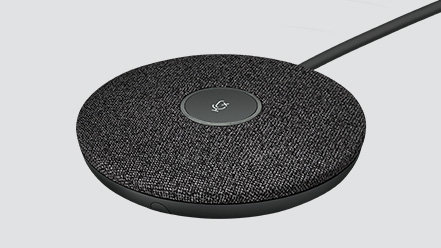

UP TO 7 MIC PODS

For rooms with more than 10 participants, add Rally Mic Pods to expand audio coverage and provide convenient access to mute controls. Each pod adds coverage for six more participants, so you can deploy Rally in large meeting spaces and boardrooms with up to 46 people.

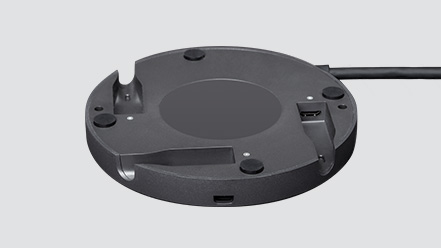

FLEXIBLE MIC POD CABLING

A more flexible alternative to daisy-chain connections, Rally Mic Pod Hub makes it easy to run cables beneath the table with three connections for Rally Mic Pods or additional Mic Pod Hubs. With a single-cable connection, participants can reposition individual mic pods to make space on the table or to bring mute control within easy reach.

Specifications

DIMENSIONS

Rally Camera

Height x Width x Depth:

182.5 mm x 152 mm x 152 mm

Rally Speaker

Height x Width x Depth:

103 mm x 449 mm x 80 mm

Rally Mic Pod

Height x Width x Depth:

21mm x 102mm x 102mm

Rally Display Hub

Height x Width x Depth:

40mm x 206mm x 179mm

Rally Table Hub

Height x Width x Depth:

40mm x 176mm x 138mm

SYSTEM REQUIREMENTS

Operating Systems

Windows® 7, Windows 8.1 or Windows 10

macOS 10.10 or higher

Chrome OS™

Resolutions higher than 1080p

Windows 8.1 or higher or macOS 10.10 or higher

USB 3.0 port and Type C cable

Compatible software

RIGHTSENSE TECHNOLOGIES

RightLight with WDR

Low-light compensation

Video noise reduction

Low-light saturation optimization

Renders natural skin tones for each participant on camera

Reduces backlighting and glare without darkening the entire image.

RightSight

Human figure detection

Auto-frame participants at meeting start

Auto-frame participants on-demand

Auto-reframe participants during meetings 1

RightSound

Machine learning AI trained to distinguish human speech from other sounds

AEC (Acoustic Echo Cancellation)

VAD (Voice Activity Detector)

Background noise suppression

Auto-level loud and soft voices

RightSound Mic Matrix

Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction

Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker

Beam focus refresh rate: 8ms (125 times/second)

Anti-Vibration Suspension:

A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls,

stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady,

even at high volume levels and when zoomed in.

Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

TECHNICAL SPECIFICATIONS

RALLY CAMERA

Ultra-HD imaging system supports:

4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

1080p, 720p at 30fps and 60 fps

Smooth motorized pan, tilt and zoom

Pan: ±90°

Tilt: +50° / -90°

15x HD zoom

90° field of view

Autofocus

3 camera presets

Kensington security slot

Video mute/unmute LED indicator

Standard tripod thread

Lens parks at -90° in sleep mode for assured privacy

RALLY MIC POD

Pickup range: 4.5m diameter

Four omnidirectional microphones forming eight acoustic beams

AEC (Acoustic Echo Cancellation)

VAD (Voice Activity Detector)

Background noise suppression

Mute button with LED status indicator

Captive 2.95m 12-pin cable

Daisy chain up to 7 Rally Mic Pods

Frequency response: 90Hz – 16kHz

Sensitivity: >-27dB +/-1dB @ 1Pa

Microphone data rate: 48 kHz

Recommended # of participants:

Rally (one Mic Pod): 10

Rally Plus (two Mic Pods): 16

Additional participants per Mic Pod: 6

Recommended participants for Rally with 7 Mic Pods: 46

RALLY SPEAKER

High-performance 3”" (76mm) driver with rare-earth magnet

Patent-pending suspension system eliminates vibration-induced camera shake and audio interference

Mini XLR cable connects to Rally Display Hub for both signal and power

Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter

Sensitivity: 95+/-2dB SPL at ½ meter

Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W

Speaker sampling rate: 48 kHz

RALLY TABLE HUB

Single CAT6A cable connection to Rally Display Hub ( 5m cable included, supports customer-supplied cables up to 50 m)

Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms

12 Pin connector for Rally Mic Pod

HDMI Type A passthrough to Display Hub (x2)

USB Type C

USB Type A (reserved for future capability)

USB Type B (connects to meeting room computer)

RJ45 (reserved for future capability)

Power input

RALLY DISPLAY HUB

HDMI Type A (x2) (connects to displays)

USB C (connects to Rally Camera)

USB Type B (connects to meeting room computer)

RJ45 (connects to Table Hub)

Mini XLR (x2)

Powers one or two Rally Speakers

Power input

REMOTE CONTROL

RF remote control (line of sight not required)

CR2032 batteries (included)

CABLES / POWER

Camera to Display Hub

2m USB 3.1 Type C to USB Type C 3.1

Conference Room Computer to Display or Table Hub

2m USB 3.1 Type A to USB Type B

Display Hub to Table Hub

5m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

Display Hub to Speaker (x2)

2.95m Mini XLR (supports customer-supplied extension cables up to 3m

Conference Room Computer to Displays (x2)

2m HDMI A

Mic Pod

2.95m: Hardwired with 12 pin connector

Power Outlets to Power Supplies (x2)

1m

Power Supplies to Table Hub / Display Hub (x2)

1.5m

AVAILABLE ACCESSORIES

RALLY MOUNTING KIT

Rally Mounting Kit with cable retainers (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)

RALLY MIC POD

Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms

RALLY MIC POD HUB

Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling

RALLY SPEAKER

Add a second Rally Speaker for larger rooms

COMPATIBILITY AND CERTIFICATIONS

Plug-and-play USB connectivity

Certified for Skype for Business and ready for Teams

Zoom Certified

Certified for Google Hangouts Meet Hardware

Microsoft Cortana® certified

Cisco Jabber® and WebEX Compatible

Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras

PACKAGE CONTENTS

Logitech Rally

Rally Camera

Rally Display Hub

Rally Table Hub

Rally Speaker (x1)

Rally Mic Pod (x1)

Remote control

USB Type C to USB Type C

USB Type A to USB Type B

CAT6A Ethernet cable

HDMI Type A (x2)

A/C cables (x2)

Power Supplies (x2)

Documentation

Logitech Rally Plus

Rally Camera

Rally Display Hub

Rally Table Hub

Rally Speaker (x2)

Rally Mic Pod (x2)

Remote control

USB Type C to USB Type C

USB Type A to USB Type B

CAT6A Ethernet cable

HDMI Type A (x2)

A/C cables (x2)

Power Supplies (x2)

Documentation

WARRANTY INFORMATION

2-Year Limited Hardware Warranty

PART NUMBER

PN: 960-001219

Product Warranty


24 Month Return To Base
