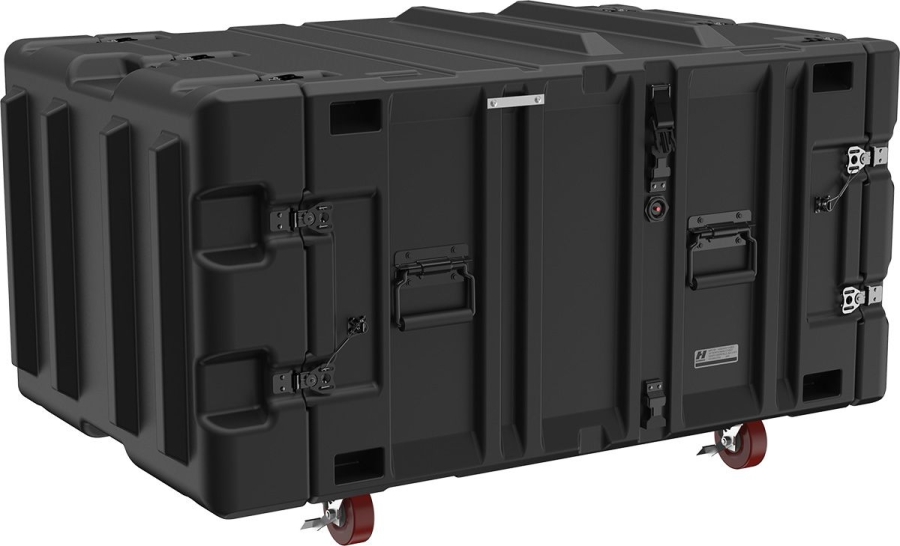

Pelican Classic V Series Rackmount Case - 7U, Black
45.80"x27.00"x20.60"(116.3x68.6x52.3cm) Dimensions

[Large image available]
Product May Vary From Image

Our Price:Discontinued
Part No:424928
Brand:Pelican  Web Site
Manuf No:CLASSIC-V-7U-M6
Ship Weight:110 KG  Details
Usually Ships: No Longer Available  More info
Date Added:6/12/2017
Rating: Not Rated
Product Description

Pelican Classic V Series Rackmount Case - 7U, Black


  • CLASSIC V-SERIES 7U, 2418-02/35/05
  • Engineered to provide secure transport for rack mountable electronics
  • Available in 3U, 4U, 5U, 7U, and 9U
  • Weight ranges for 3U – 5U = 80-100 lbs. per case
  • Weight ranges for 7U – 9U = 100-170 lbs. per case
  • Fixed square hole frame for universal equipment fit
  • 2” Front Lid, 5” Rear Lid
  • 4 removable heavy duty bottom casters
  • Stainless Steel Handles
  • Lid Hangers for lid storage while in use
  • Anti-reflective black hardware
  • Coupling catches for secure stacking
  • Sealed gasket and PRV keeps container watertight and eliminates over pressurization
  • Choice of SAE 10-32 or Metric M6 clip nuts for even more flexibility in mounting equipment
  • REACH and RoHs compliant
  • Colo Black


Pelican Products V Series Rackmount hard cases

Off-the-shelf Rack Mount Case With Pro-Grade Features

Gearing up for an event? Now you can get pro-grade rack mount cases in days instead of weeks, guaranteed! Other rack case makers claim to be fully stocked, but dont be surprised if your case order is delayed. Plus, only Pelican maintains inventory on both coasts, reducing your freight cost and transit time.

Vibration is Your Enemy

Pelican Products Vibration shock mount rack cases

Drops and impact are an obvious no-no with electronics, but vibration puts damaging repetitive stress on delicate parts and soldered joints. Thats why youll find 8 heavy duty rubber shock mounts to isolate the frame inside the shell. The polymer outer shell absorbs impacts, and the shock mount inside dissipates residual movement. Rack mount cases without shock mounts transfer impact forces directly to the electronics inside.

Universal Mounting

Pelican Products rack mount case universal U mounting

Pelican-Hardigg V-Series Cases are built utilizing a full-boxed 19 steel rack with a industry-standard square hole pattern, so hanging electronics with tab mounts is a snap. These cases also include clip nuts - just attach the clip nut onto a square hole and youve got a secure, threaded mount. We even ship the case with your choice of 10-32 Imperial or M6 Metric clip-nuts.

Clip Nuts

Pelican Products V Series rackmount case universal clip nut sae metric

Just attach the 10-32 Imperial or M6 Metric clip nut onto the square hole and you've got a secure, threaded mount.

Manual Purge Valves

Pelican Products V series rackmount watertight pressure valve

allow air pressure to be equalized to the atmosphere. This prevents vacuum lock that can make opening the case difficult.

O-ring Gaskets

Pelican Products waterproof rack mount cases water tight seal

located on the lid works with the purge valve to create a fully watertight seal.

Classic-V vs. Super-V

Pelican Products V series classic super rack mount hard cases

Whats the difference? Weve drawn on decades of rack mount case experience to produce two tiers of performance.

The Pelican-Hardigg Classic-V Series has a 33 depth frame and has longer shock mounts and a larger sway space between the rack and shell. This case also has 4 removable heavy-duty casters and stainless steel handles. Extra insurance if your equipment frequently ships via freight services.


Pelican Products rackmount cases v series classic hard case

A. Double Walled Rim for Tongue-in-Groove Sealremains sealed after impact, splash, rain, air and watertight resistant.

B. Lid Hangerkeeps lids attached to case while case is open.

C. Shock Mountsprovide excellent shock and vibration cushion for delicate equipment.

D. Coupling Catchesattaching system for secure stacking.

E. Manual Purge Valveallows air pressure to be equalized to the atmosphere.

F. Positive Anti-Shear Locksprevent lid separation upon impact.

    Recessed Hardwareprotected from impact, and snag free transport.

    Black Hardwarenon-reflective black hardware eliminates glare in bright environments.

    Patented Metal Insertscatch and hinge attachment points distribute load to case walls

G. Square Hole 19" Width Rack Framefixed square hole frame for universal equipment fit.

H. Molded-In Stacking Ribssecure non-slip stacking on matched size cases.

    Columnar Strengthmolded-in ribs provide extra columnar strength.

I. Reinforced Corners and Edges15% to 20% thicker corners and edges for added impact protection.

Pelican Products Hardigg Classic V Rack Mount Case


33" (83.8 cm) RACK DEPTH

Pelican Products Hardigg V Series Shock Mount Rack Case


Pelican Products rolling wheeled rack mount cases usa made

4 removable heavy duty bottom casters


Pelican Products Hardigg Mobile rackmount hard cases USA Made

heavy-duty spring loaded handles lay flat, and snap back in place after use


Pelican Products protective locking rack mount cases Hardigg

allow for padlock attachment to keep case locked and secure


Pelican Products V Series shockmount cases rackmount case

40 Years of Pelican Protection

Pelican Products Vibration shock mount cases and rack case   Pelican Products shockmount cases and shock mount rack case

Since 1976, Pelican Products has protected your important equipment. Our products are rigorously tested to ensure the absolute best in protection against vibration, drops, and impact forces. The V-Series rack mount cases are engineered to provide the same level of protection you've come to expect from Pelican.

Protect your gear with V-Series Shockmounts

Pelican Products shock mount cases v-series rack cases

Pelican V-Series rack mount cases come equipped with case shockmounts to ensure your sensitive equipment is safe. 8 heavy duty rubber shockmounts connect the inside frame to the outer shell, isolating your rack mount equipment from vibration and impact forces.



45.80" x 27.00" x 20.60" (116.3 x 68.6 x 52.3 cm)


12.25" (31.1 cm)


33.00" (83.8 cm)


2.50" (6.4 cm)


5.25" (13.3 cm)


65.00 lbs (29.5 kg)


RotoMolded Polyethylene


Silicone Sponge




Stainless Steel (Black Oxide) / RoHs Nickel Black


Steel (Clear Coated)

Product Warranty

60 Month Manufacturers Return To Base
