The Microsemi Adaptec HBA 1000 is the first product in the new Microsemi Adaptec Smart Storage Solutions family that is being forged through the convergence of Microsemi SAS/SATA protocol controller expertise, 30+ years of Adaptec board innovation, and acquired Smart IP technology.

Resiliency and Efficiency
The new unified Smart storage stack delivers resiliency by combining the best of the eighth-generation Adaptec ARC software and drivers with the acquired Smart IP of the most broadly deployed server storage stack. Combined with Microsemi's SSCi (16x12G/8x12G) SmartIO SAS/SATA protocol controller, the HBA 1000 Series provides a robust and stable solution that can handle the toughest system workloads and configurations. It is fully compatible with all existing and future Adaptec HBA, RAID and Expander solutions.

Available in five different 12Gb/s configurations with up to 16 internal or 16 external SAS/SATA ports, the HBA 1000 Series offers the highest port count in a low-profile, MD2 form factor and 60% less power consumption than competing HBAs.

Ease of Use
The HBA 1000 with its broad operating system support and ecosystem compatibility is easy to implement, and easy to scale when directly connecting up to 16 storage devices or scaling out with full compatibility using expanders. The unified management tools and drivers across the Microsemi Adaptec HBA, RAID and expander solutions enables customer easy manageability across the entire product line.

Maximum Performance
The HBA 1000 Series provides the highest levels of storage performance and scalability for next generation data centers by connecting numerous state of the art 12Gb/s storage devices that can aggregate their performance to the limits of the PCIe Gen 3 host bus at 6600 MB/s and achieve over 1.3 million IOPs with minimal overhead or additional latency.



    Ideal for high performing I/O solutions supporting SAS/SATA HDDs and SSDs requiring maximum connectivity.

Key Differentiators

  • Low-profile, MD2, form factor for up to 16 native SAS/SATA ports
  • Lowest power, highest density solution
  • Unified management tools with Adaptec RAID adapter family

Customer Needs

    I/O connectivity offers the highest bandwidth, lowest latency and highest I/O performance paired with broad operating system support.

Key Features

  • Support for up to 256* SAS/SATA target devices
  • Multi-LUN support
  • SAS expander support
  • TLR
  • Hot Plug Drive
  • S.M.A.R.T.
  • MPIO
  • Multi-Initiator (Host)/Clustering for SAS
  • Enclosure Management
    SES-2, SES-3
    SFF-8485, SGPIO
    SFF-8489, IBPI
  • BMC Support

Management Utilities

Adaptec maxView Storage Manager

  • Web based GUI Management Utility
  • OS Support: Windows, Linux, VMware
  • Remote configuration, monitoring & notification
  • Remote firmware updates
  • SMI-S Support
  • SMTP

Adaptec BIOS Configuration Utility (CTRL+A)

  • Legacy configuration utility
  • Flashable BIOS support

Adaptec uEFI BIOS Configuration Utility

  • HII GUI support
  • Flashable BIOS support


  • Command Line Interface

Operating System

  • Microsoft Windows
  • Red Hat Linux
  • SuSE Linux
  • CentOS
  • Ubuntu Linux
  • VMware ESXi

For a detailed list seeASK Answer ID 17431.

Data Transfer Rate

    12 Gb/s per port

Bus System Interface

    8-lane PCIe Gen3

Form Factor

    MD2- Low Profile

Connector Configuration

  • 1000-16i:Four internal mini SAS HD (SFF-8643)
  • 1000-16e:Four external mini SAS HD (SFF-8644)
  • 1000-8i8e:Two internal mini SAS HD (SFF-8643),
    Two (x4) external mini SAS HD (SFF-8644)
  • 1000-8i:Two internal mini SAS HD (SFF-8643)
  • 1000-8e:Two external mini SAS HD (SFF-8644)

Package Contents

    Model 1000-16i
  • Microsemi Adaptec HBA 1000-16i adapter
  • Additional low profile vented bracket
    Model 1000-16e
  • Microsemi Adaptec HBA 1000-16e adapter
  • Additional low profile vented bracket
    Model 1000-8i8e
  • Microsemi Adaptec HBA 1000-8i8e adapter
  • Additional low profile vented bracket
    Model 1000-8i
  • Microsemi Adaptec HBA 1000-8i adapter
  • Additional low profile vented bracket
    Model 1000-8e
  • Microsemi Adaptec HBA 1000-8e adapter
  • Additional low profile vented bracket

Physical Size

    2.535"H x 6.6"L (64mm x 167mm)

Operating Temperature

    0C to 55C (with 200 LFM airflow)

    Note: This Adaptec card contains a powerful processor which requires adequate airflow to operate reliably. Please install this card only into server or PC chassis with recommended airflow (200 LFM).

    * Ambient temperature measured 1" away from the processor

Operating Voltage

  • 1000-16i:0.3A @ 3.3V; 0.9A @ 12V
  • 1000-16e:0.1A @ 3.3V; 0.9A @ 12V
  • 1000-8i8e:0.1A @ 3.3V; 1A @ 12V
  • 1000-8i:0.3A @ 3.3V; 0.7A @ 12V
  • 1000-8e:0.1A @ 3.3V; 0.7A @ 12V

Regulatory Certification

    CE, FCC, C-tick, VCCI, CNS, KCC, UL

Mean Time Before Failure (MTBF)

    2,000,000 hours at 40C

Typical Power

  • 1000-16i:11.8 W
  • 1000-16e:11.1 W
  • 1000-8i8e:12.3 W
  • 1000-8i:9.4 W
  • 1000-8e:8.7 W


    3 years
Product Warranty

36 Month Manufacturers Return To Base

Visitor Reviews
[ There are no visitor reviews for this product yet]

Review Product

L7: 1 | TM: 1 | LM: 0 | TY: 3 | T: 205

HOME : Back -> Storage Devices -> Portable Storage Devices -> Adaptec

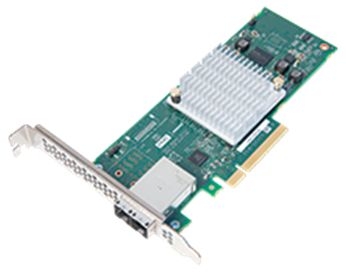

Adaptec HBA 1000-16i
