IOGEAR GUH287-01 USB2.0 Hub/Card Reader - 3-Port USB2.0, 45-In-1 Card Reader - Black

[More images available]
Product May Vary From Image

Our Price:Discontinued
Part No:164311
Brand:IOGEAR  Web Site
Manuf No:GUH287-01
Ship Weight:0.3 KG  Details
Usually Ships: No Longer Available  More info
Date Added:9/2/2011
Rating: Not Rated
Product Description

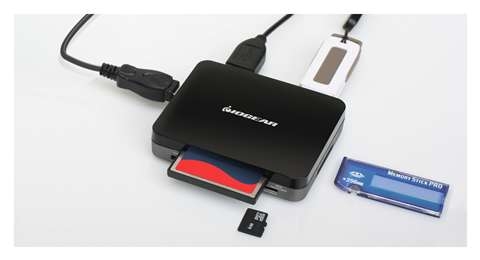

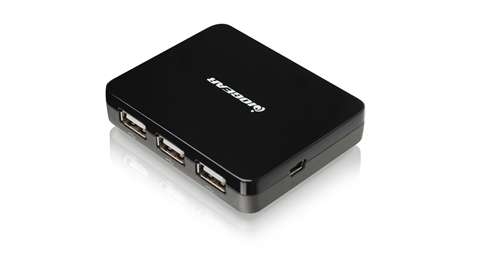

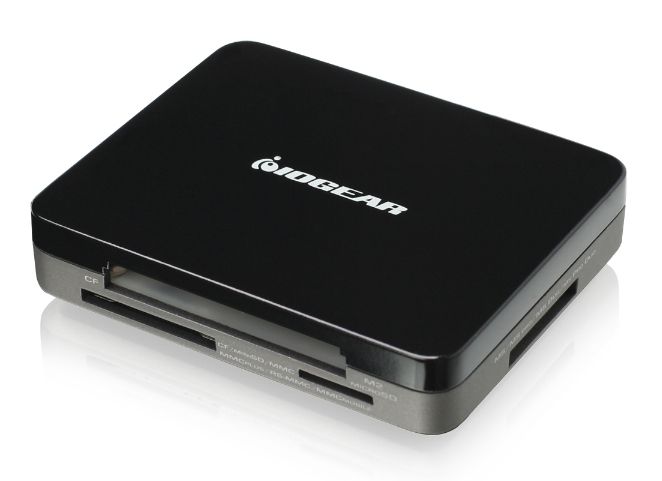

3-Port USB 2.0 Hub and 45-in-1 Card Reader
The USB 2.0 Combo Hub & Card Reader bridges the gap between your computer and devices such as cell phones, digital cameras,and portable MP3 players, as well as peripherals such as printers, external hard drives and more. Combiningthree high-speed USB 2.0 ports with a 45-in-1 card reader, this compact and elegant device delivers lightening-fast connectivity and file transfer capabilities. Just insert your memory cards and transfer data at 480 Mbps.
** Supply of this implementation of TPLs CORE Flash technology does not convey a license nor imply a right under any patent, or any other industrial or intellectual property right of TPL, to use this implementation in any finished end-user or ready-to-use final product. You are hereby notified that a license for such use is required from TPL. Contact: [email protected]"


  • Provides three USB 2.0 ports and multiple memory card reading/writing abilities
  • Support CF, SD, microSD/T-Flash, miniSD, MS/MS Duo/M2 and other common card types with no additional adapters needed
  • Up to 32GB high capacity support for SDHC and microSDHC cards
  • Compact and small form factor design offers great portability
  • Backward compatible with USB 1.1 specifications
  • Supported Media List:
    CF: CF Type I / CF Type II / Microdrive / CF Ultra / CF Ultra II / CF Extreme / CF Extreme II / CF Extreme III / CF Extreme IV
    SD: SD / SDHC / miniSD / miniSDHC / Extreme SD / Extreme III SD / Ultra II SD / Ultra speed SD / SD HS / SD Pro HS / SD Ultra
    MMC: MMC / RS MMC / MMC Mobile / MMC 4.0 / RS MMC 4.0 / MMC Plus / MMC Micro
    T-Flash: microSD / microSDHC / T-Flash
    MS: Memory Stick / MS Pro / MS Duo / MS Pro Duo / MS MG / MS MG Pro / Extreme III MS Pro / Ultra II MS Pro / HS MS Pro / HS MS Pro Duo / MS Rom / MS Select / MS PRO Duo MARK II / MS Pro HG Duo
    M2: MS Micro
Warranty: 3-YEAR
Function Diagram


  • Windows XP (SP2 or higher), Windows Vista (32-bit / 64-bit), or Windows 7 (32-bit / 64-bit)
  • Mac OS X 10.3.9 or above
  • Linux Kernel 2.4X / 2.6X or higher
  • Available USB port (USB 2.0 port for High-Speed mode)
PC CompatibleMac OS compatible

Package Content

1 x GUH287
1 x USB mini-B to Type "A" Cable
1 x Quick Start Guide
1 x Warranty / Registration Card

RoHS Compliance


Function GUH287
Connectors (Computer) Two USB Type A
Amps 500mA
Voltage 5V
USB Specification USB 2.0 / Backward compatible to USB 1.1
Ports 3 USB ports, 4 card reader slots
Operating Temperature 32 degree Fahrenheit ~ 140 degree Fahrenheit
Storage Temperature -4 degree Fahrenheit ~ 140 degree Fahrenheit
Dimensions GUH287
POP Information
10'' Peg Hook 6
6'' Peg Hook 4
Unit Dimensions
Width 3 in.
Height 0.63 in.
Length 2.42 in.
Inner Pack
Width 5.04 in.
Height 8.19 in.
Depth 4.72 in.
Inner Pack Qty. 3
Unit Package Dimensions
Width 4.8 in.
Height 7.6 in.
Depth 2 in.
Master Carton
Width 19.88 in.
Height 9.06 in.
Depth 10.83 in.
Master Carton Qty. 24
Master Carton Wt. 9.4 lb.
Inner Pack Wt. 1.04 lb.
Unit Pack Wt. 0.32 lb.
Unit Wt. 0.1 lb.


Product Warranty

1 Year Return to Base
