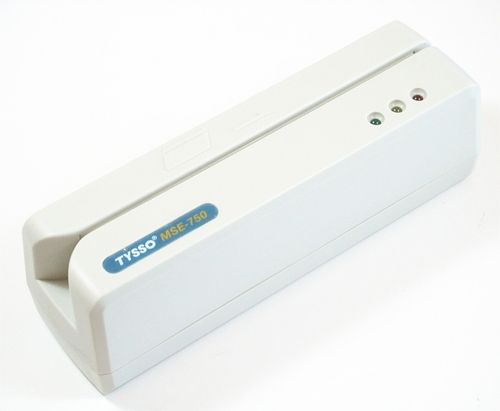

Tysso MSE-750 Hico/Loco Magstripe Card Encoder - Reader/Writer, Up to 1 Million Swipes - USB/RS232, OEM

[Large image available]
Product May Vary From Image

Our Price:
719.4

Part No:133037
Brand:Tysso
Manuf No:MSE-750-2
 MSE7502
Ship Weight:1 KG  Details
Usually Ships: Order In  More info
Date Added:21/12/2009
Rating: Not Rated
Quantity:
Product Description
PRODUCT DESCRIPTION

MSE-750 is a durable industrial grade Hi-Co/Lo-Co magnetic card reader & writer with a MTBF of 95,000 hours and the durability of one million swipes on the magnetic head! it reads and writes up to three tracks of information with a single swipe. Data is send to an USB or standard RS232 serial interface. This Hi-Co/Lo-co configurable encoder is specially designed for value added resellers (VARs) and system integrators (SIs). It supports a rich set of commands to interoperate with Windows based software programs.

This encoder features MSR206/MSE-630A dual platform compatibility. It interoperates with existing MSR206 or MSE-630A applications flawlessly. Its custom data format support enables secure application development beyond the ISO scope. FEATURES
  • MSR206/MSE-630A dual platform compatibility
  • Hico/Loco configurable
  • 300~4000 Oersted
  • Tracks 1&2&3
  • ISO 7811-1/2/3/4/5 & ANSI 4.16 1983 compliant
  • 5/6/7BPC 210/75BPI on any track
  • Raw data format
  • Two-in-one connectivity - USB or RS-232
  • Manual swipe operation
  • Dual status indicators - LEDs and beeper
  • Durable ABS plastic housing for heavy duty usage
  • Power-on self test
SPECIFICATIONS

Electrical
  • Operating Voltage: +24V DC (5%)
  • Current Consumption: 350 mA (read) and 600 mA (write)
Durability
  • Approx. 1,000,000 passes
Physical
  • Dimensions (mm): 212 x 63 x 63
  • Weight: 0.58 kg (1.28 lbs)
Environmental
  • Operating Temperature: 0 to 40 C
  • Storage Temperature: -20 to 70 C
  • Relative Humidity: 20% to 90% (non-condensing)
Recording Density
  • 210 BPI or 75 BPI on any track

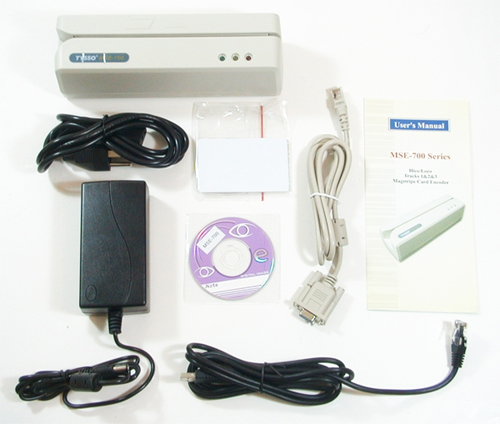

PACKAGE CONTENTS

Product Warranty


1 Year Return to Base
