AXIS Q3515-LV Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling, Axis Q3515-LV, IP security camera, Indoor & outdoor, Wired, Simplified Chinese, Traditional Chinese, German, English, Span

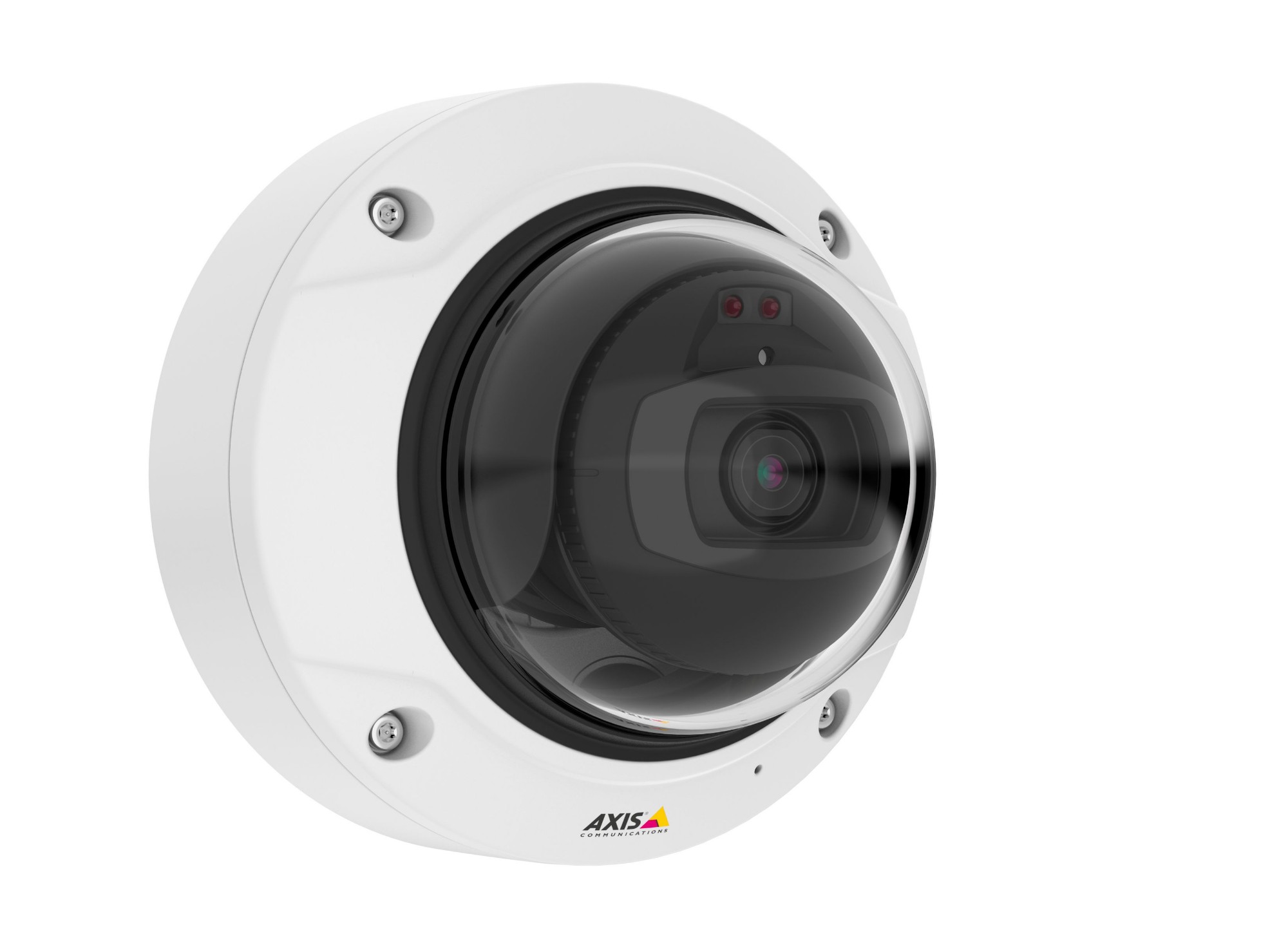

Axis Q3515-LV Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
| Manufacturer: |
Axis |
| Category: |
Home |
| Sub-Category: |
Security Cameras |
| SKU: |
01039-001 |
| EAN: |
7331021058361 |
Description
Axis Q3515-LV. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 105°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 3x, Digital zoom: 2x, Fixed focal length: 9 mm
Specifications
| Performance |
|---|
| Number of languages | 11 | | Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian | | Type | IP security camera | | Connectivity technology | Wired | | PTZ control | Yes | | Placement supported | Indoor & outdoor | | Wide Dynamic Range (WDR) | Yes | | Day/night mode | Yes | | Certification | EN 55032 A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 22 A, KCC KN32 A, KN35, IEC/EN/UL 60950-1, IEC/EN 6247, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10 | | Design |
|---|
| IK code | IK10 | | Form factor | Dome | | Product colour | White | | Mounting type | Ceiling | | Protection features | Dust resistant, Water resistant | | International Protection (IP) code | IP52 | | Camera |
|---|
| Minimum illumination | 0.02 lx | | Tilt angle range | -45 - 45° | | Pan range | -180 - 180° | | Angle of rotation | 175° | | Camera shutter speed | 1/66500 - 2 s | | Lens viewing angle, horizontal | 105° | | Lens viewing angle, vertical | 57° | | Progressive scan | Yes | | Image sensor |
|---|
| Sensor type | CMOS | | Progressive scan | Yes | | Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") | | Lens system |
|---|
| Maximum aperture number | 1.3 | | Zoom capability | Yes | | Optical zoom | 3x | | Digital zoom | 2x | | Fixed focal length | 9 mm | | Night vision |
|---|
| Night vision | Yes | | Night vision distance | 40 m | | LED type | IR | | Infra-red wavelength | 850 nm | | Video |
|---|
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness | | Privacy masking | Yes | | Maximum resolution | 1920 x 1080 pixels | | Supported graphics resolutions | 160 x 90, 1920 x 1080 (HD 1080) | | Video compression formats | AVC, H.264, M-JPEG | | Audio |
|---|
| Voice codecs | G.711, G.726 | | Network |
|---|
| Bluetooth | No | | Ethernet interface type | Fast Ethernet | | Networking standards | IEEE 802.3af, IEEE 802.3at | | Quality of Service (QoS) support | Yes | | Ethernet LAN | Yes | | Wi-Fi | No | | Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP | | Storage |
|---|
| Card reader integrated | Yes | | Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC | | Built-in HDD | No | | Internal memory | 1024 MB | | Flash memory | 512 MB | | Ports & interfaces |
|---|
| Microphone in | Yes | | Connectivity technology | Wired | | Security |
|---|
| IP address filtering | Yes | | Password protection | Yes | | Management features |
|---|
| Web-based management | Yes | | Power |
|---|
| Power source type | PoE | | Power consumption (max) | 14.5 W | | Certificates |
|---|
| Certification | EN 55032 A, EN 55024, IEC/EN 61000-6-1, IEC/EN 61000-6-2, FCC 15 B A, ICES-003 A, VCCI A, RCM AS/NZS CISPR 22 A, KCC KN32 A, KN35, IEC/EN/UL 60950-1, IEC/EN 6247, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP52, IEC/EN 62262 IK10 | | Operational conditions |
|---|
| Operating temperature (T-T) | -10 - 50 °C | | Storage temperature (T-T) | -40 - 65 °C | | Operating relative humidity (H-H) | 10 - 85% | | Weight & dimensions |
|---|
| Depth | 123.6 mm | | Height | 161.8 mm | | Length | 1400 mm | | Packaging content |
|---|
| Number of cameras | 1 | | Mounting kit | Yes | | Other features |
|---|
| Video compression formats | AVC, H.264, M-JPEG | | Logistics data |
|---|
| Harmonized System (HS) code | 85258900 |
|
|
|
